VWS-770-FF

Printer Friendly
Available
VWS-770-FF
VWS-770-FF VWS-770-FF VWS-770-FF VWS-770-FF

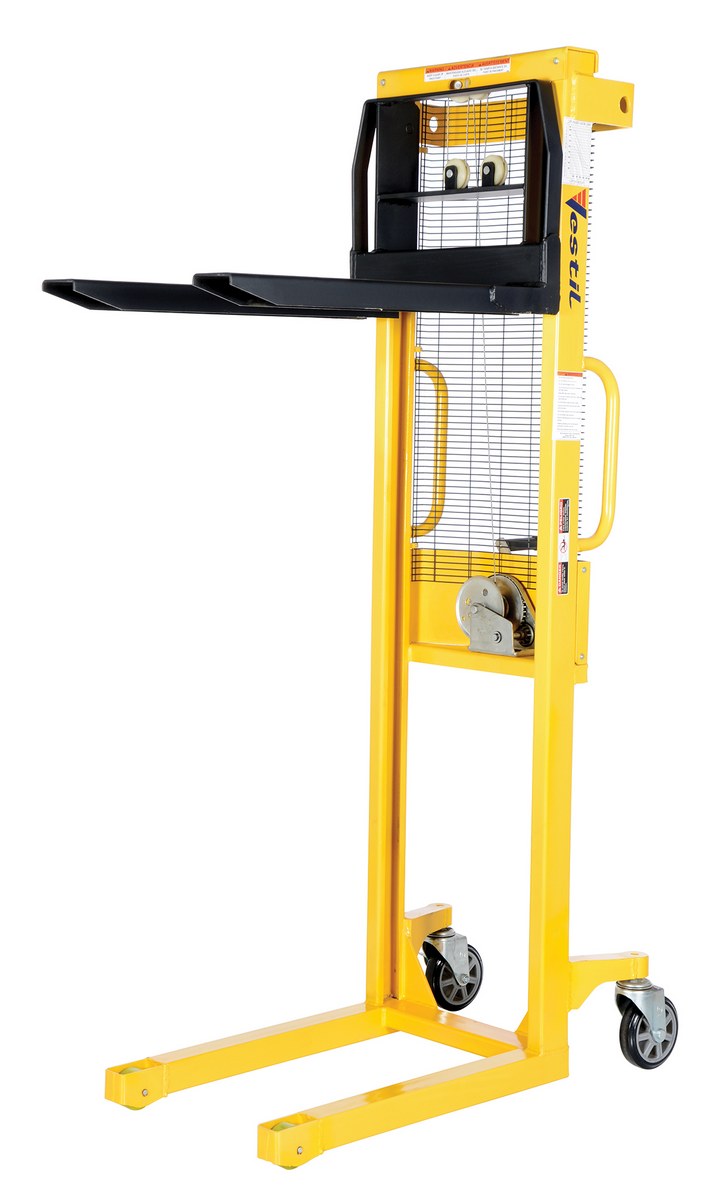

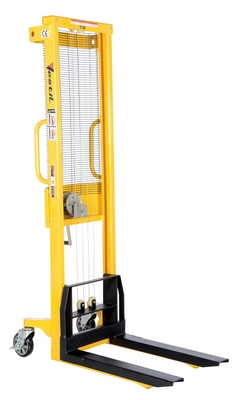

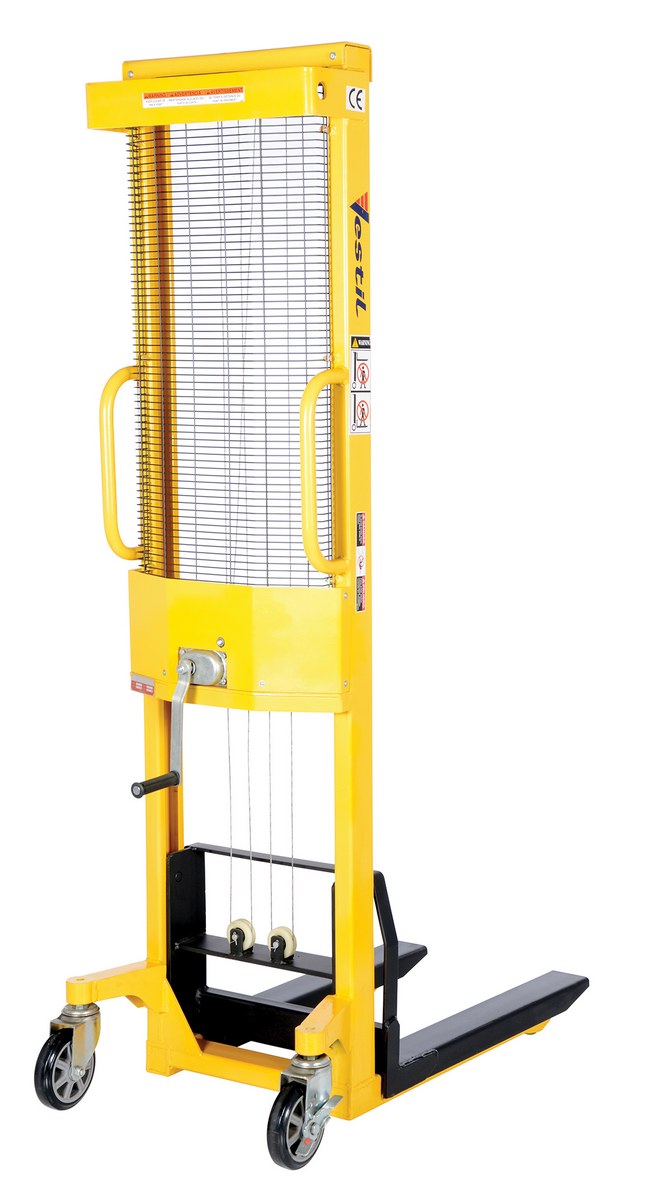

Steel Stacker with Fixed Manual Hand Winch 770 Lb. Capacity Black / Yellow

The manual stacker is designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. Maintenance free and easy to use. The full height push handle allows for easy steering and excellent visibility through a welded mesh guard with an optional removable platform available. The hand winch design is sturdy and compact to fit through standard doors. The fixed forks are raised by a manual hand winch operation for precise product positioning. The unit has two (2) rigid and two (2) swivel wheels standard on fixed legs.

  • Manual stacker is maintenance free and easy to use
  • Includes a heavy-duty mast and a winch design for easier and safer lifting
  • The lift and lower is a steel cable mechanism for simple use
  • Fixed forks for constant width
Assembled Wt.(lbs.): 200 Assembled Size: 21.6875"W x 46.1875"L x 78.1875"H

Total Ship Wt.(lbs.): 235 (only 1 package) Package 1 Size: 40"W x 48"D x 81"H Color: Black / Yellow Non-Returnable

Uniform Capacity (lb.): 770 Service Range (in.): 3-3/8 to 59 Fork Length (in.): 30
Fork Width (in.): 4 Fixed Straddle Leg Spacing (in.): 21-3/16 (OD) Fixed Fork Spacing (in.): 20-11/16 (OD)
Mast: Single Operation: Hand Winch Rear Caster Quantity/Diameter/Width (in.): (2) 5-9/10 x 1-7/16
Rear Caster Material: Poly on Poly Front Caster Quantity/Diameter/Width (in.): (2) 2-9/10 x 1-7/16 Front Caster Material: Poly on Poly
Horizontal Load Center (in.): 16 Lift per Crank Revolution (in.): 25/32 Overall Mast Height (in.): 78-3/16

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: VWS-770-FF
Available
VWS-770-FF

Steel Stacker with Fixed Manual Hand Winch 770 Lb. Capacity Black / Yellow

The manual stacker is designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. Maintenance free and easy to use. The full height push handle allows for easy steering and excellent visibility through a welded mesh guard with an optional removable platform available. The hand winch design is sturdy and compact to fit through standard doors. The fixed forks are raised by a manual hand winch operation for precise product positioning. The unit has two (2) rigid and two (2) swivel wheels standard on fixed legs.

  • Manual stacker is maintenance free and easy to use
  • Includes a heavy-duty mast and a winch design for easier and safer lifting
  • The lift and lower is a steel cable mechanism for simple use
  • Fixed forks for constant width
Dimensions: 21.6875"W x 46.1875"L x 78.1875"H Sell UOM: -- Color: Black / Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 235 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 770 Service Range (in.): 3-3/8 to 59 Fork Length (in.): 30
Fork Width (in.): 4 Fixed Straddle Leg Spacing (in.): 21-3/16 (OD) Fixed Fork Spacing (in.): 20-11/16 (OD)
Mast: Single Operation: Hand Winch Rear Caster Quantity/Diameter/Width (in.): (2) 5-9/10 x 1-7/16
Rear Caster Material: Poly on Poly Front Caster Quantity/Diameter/Width (in.): (2) 2-9/10 x 1-7/16 Front Caster Material: Poly on Poly
Horizontal Load Center (in.): 16 Lift per Crank Revolution (in.): 25/32 Overall Mast Height (in.): 78-3/16
