Manual & Electric Stackers

model: VHPS-2200-AA

VHPS-2200-AA_A.jpg VHPS-2200-AA_P.jpg VHPS-2200-AA_G.jpg VHPS-2200-AA_L.jpg VHPS-2200-AA_N.jpg VHPS-2200-AA_H.jpg VHPS-2200-AA_R.jpg VHPS-2200-AA_C.jpg More Images +
Manual & Electric Stackers
SERIES: VWS,VHPS

Stackers are designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. Maintenance free and easy to use. Full height push handle for easy steering and excellent visibility through welded mesh guard. Suffix AA stands for adjustable forks (works with pallets and skids) while FF stands for fixed forks (skids only).

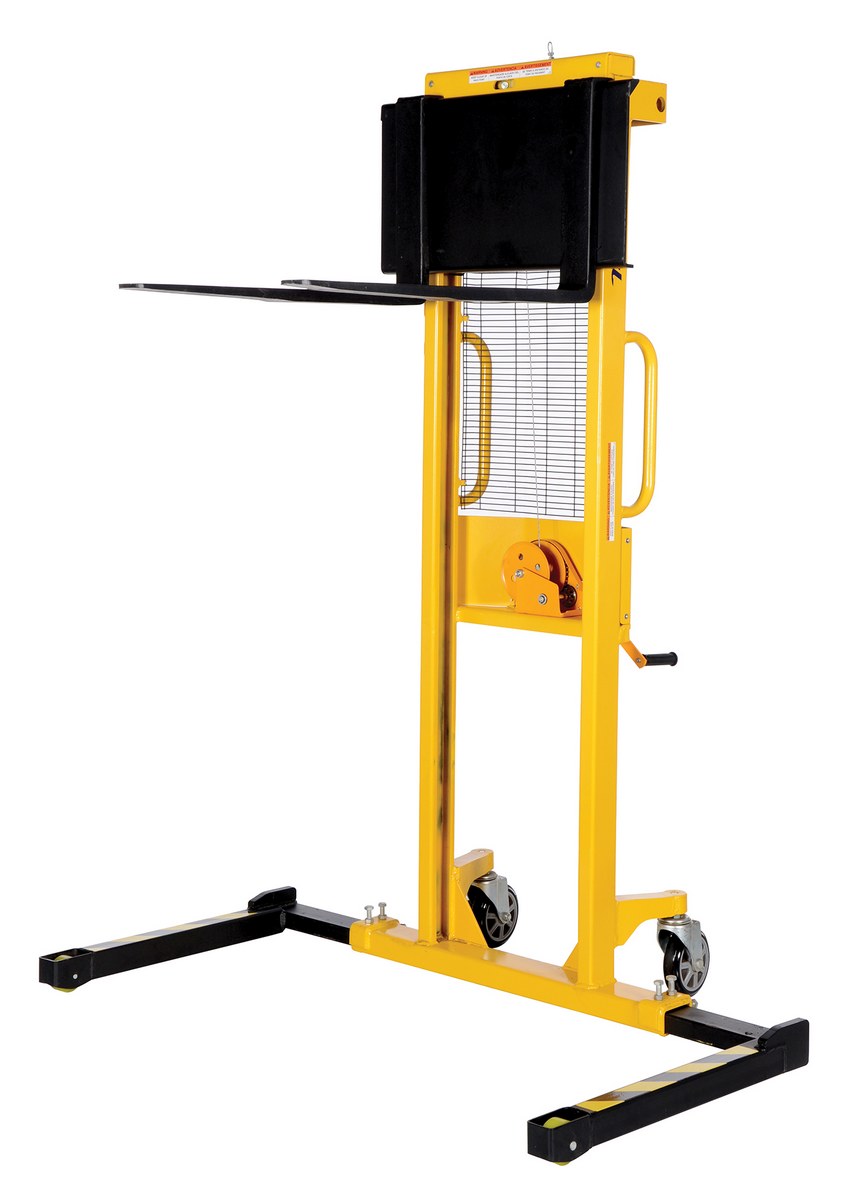

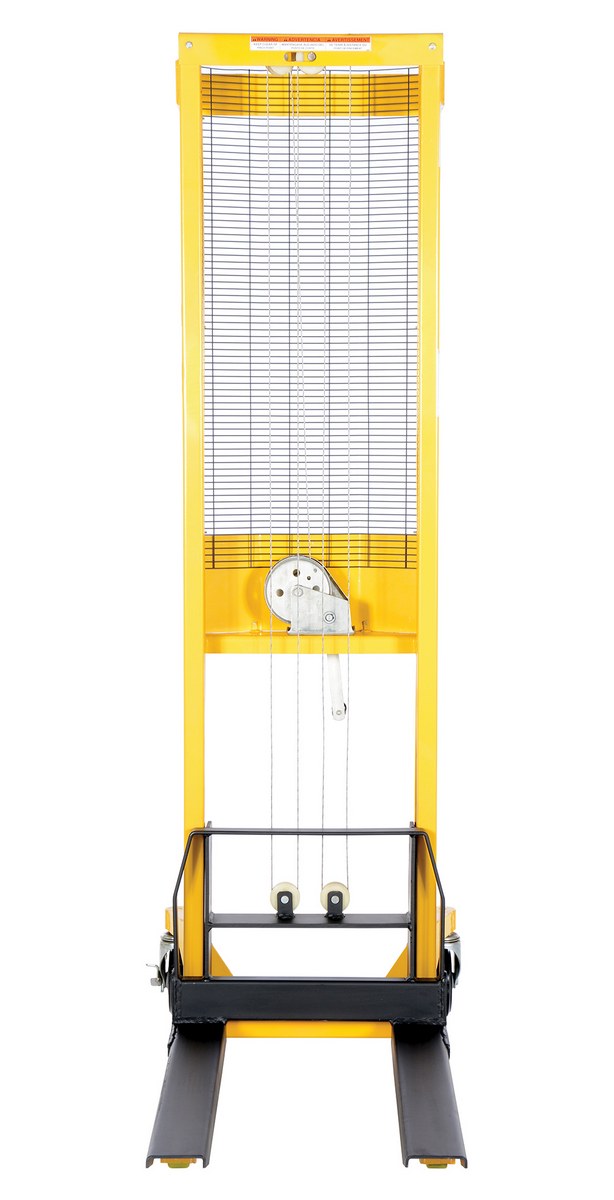

Manual Hand Winch Stackers feature a heavy duty mast and a unique winch design for easier and safer lifting. Lift and lower by hand winch and steel cable mechanism. 3/4" lift per handle revolution. Two rigid and two swivel wheels with brakes for easy maneuvering.

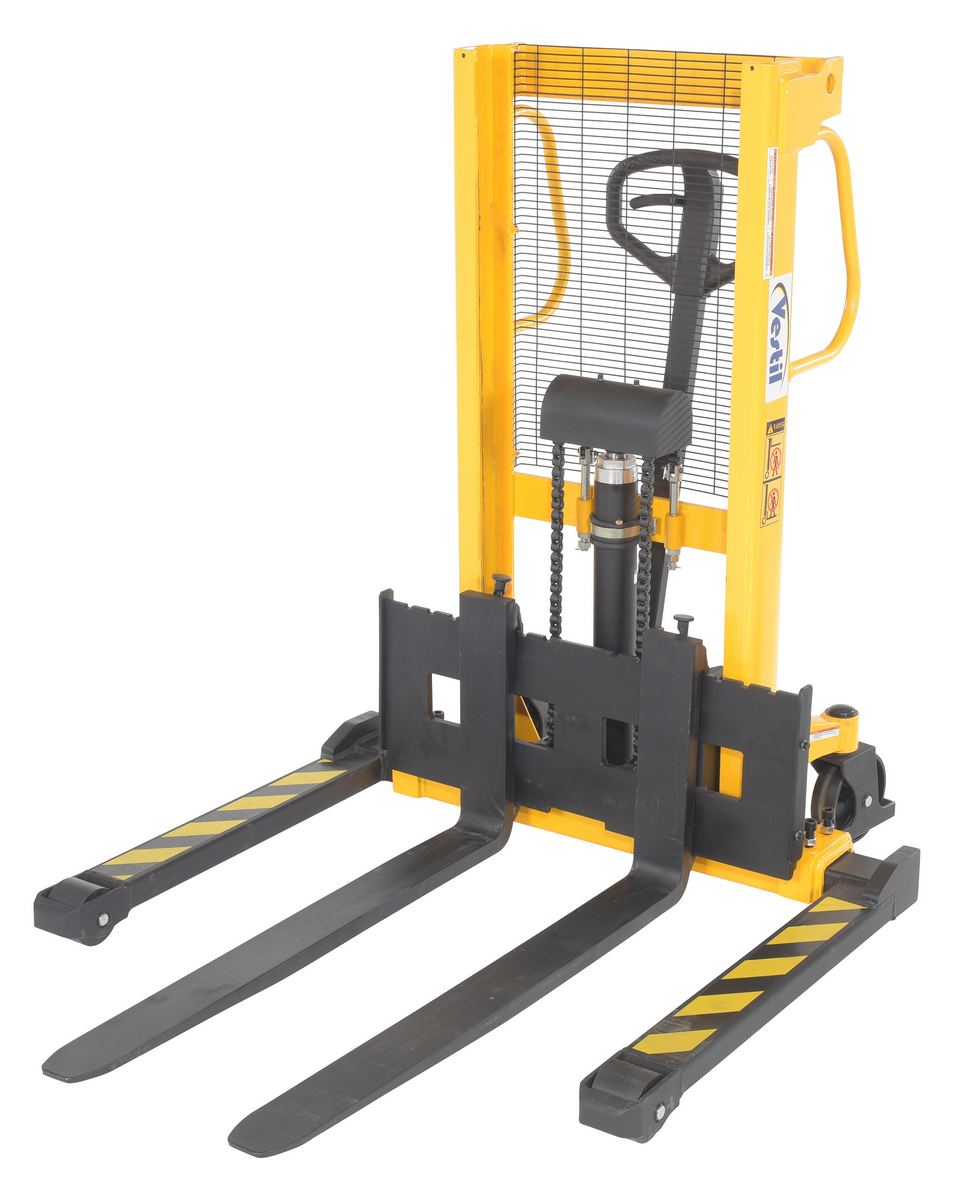

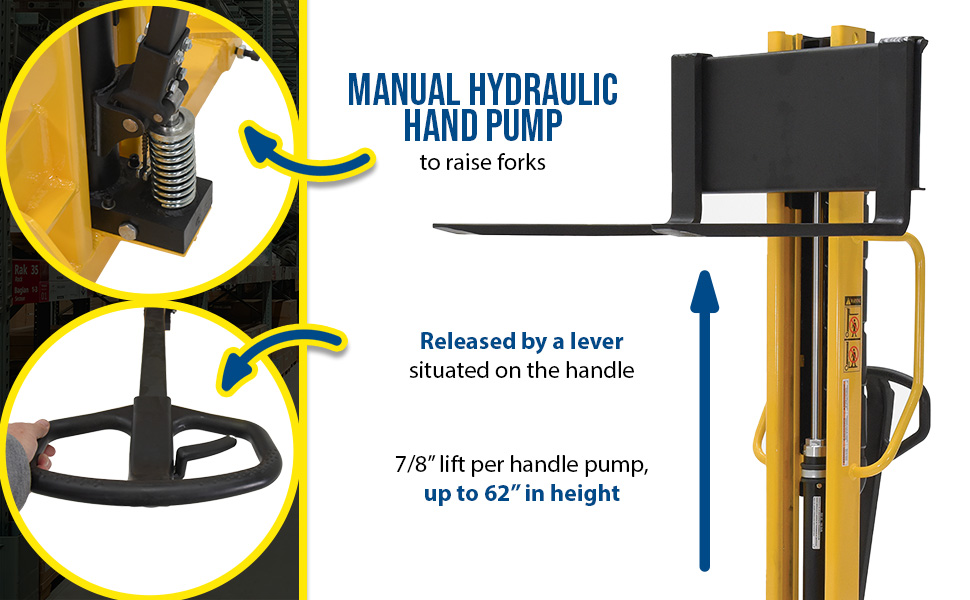

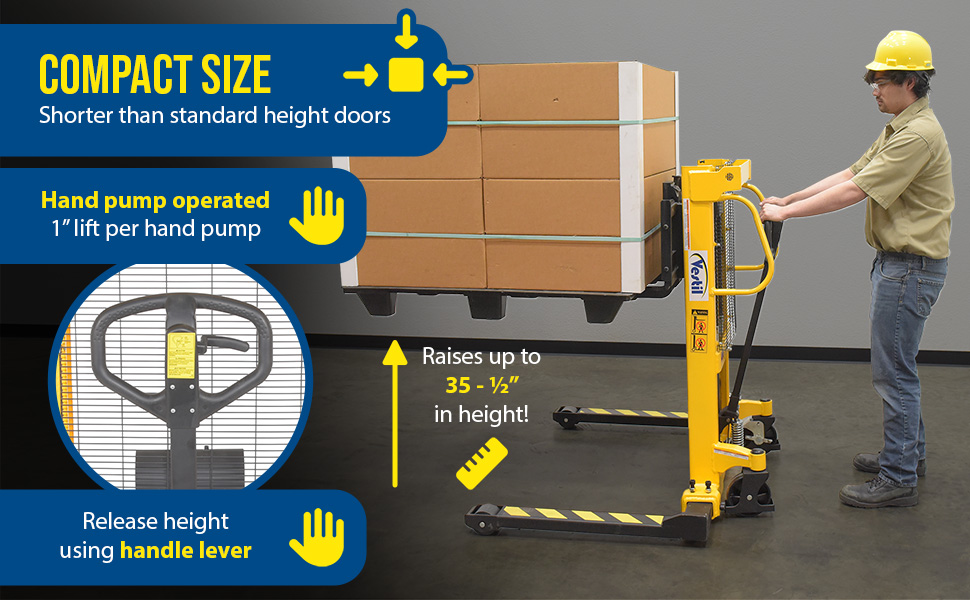

Manual Hydraulic Hand Pump Stackers are sturdy and compact to fit through standard height doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 3/4" lift per handle pump. Two rigid and two swivel wheels standard.

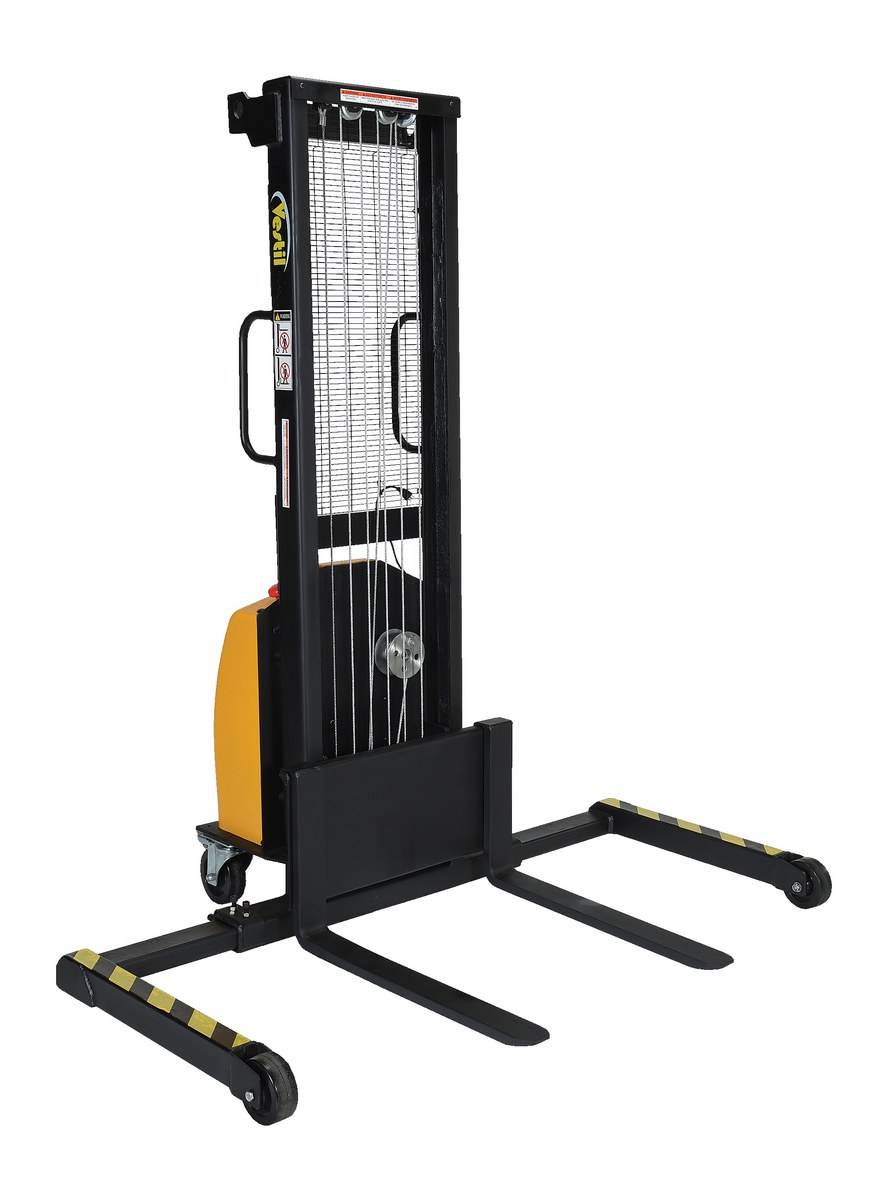

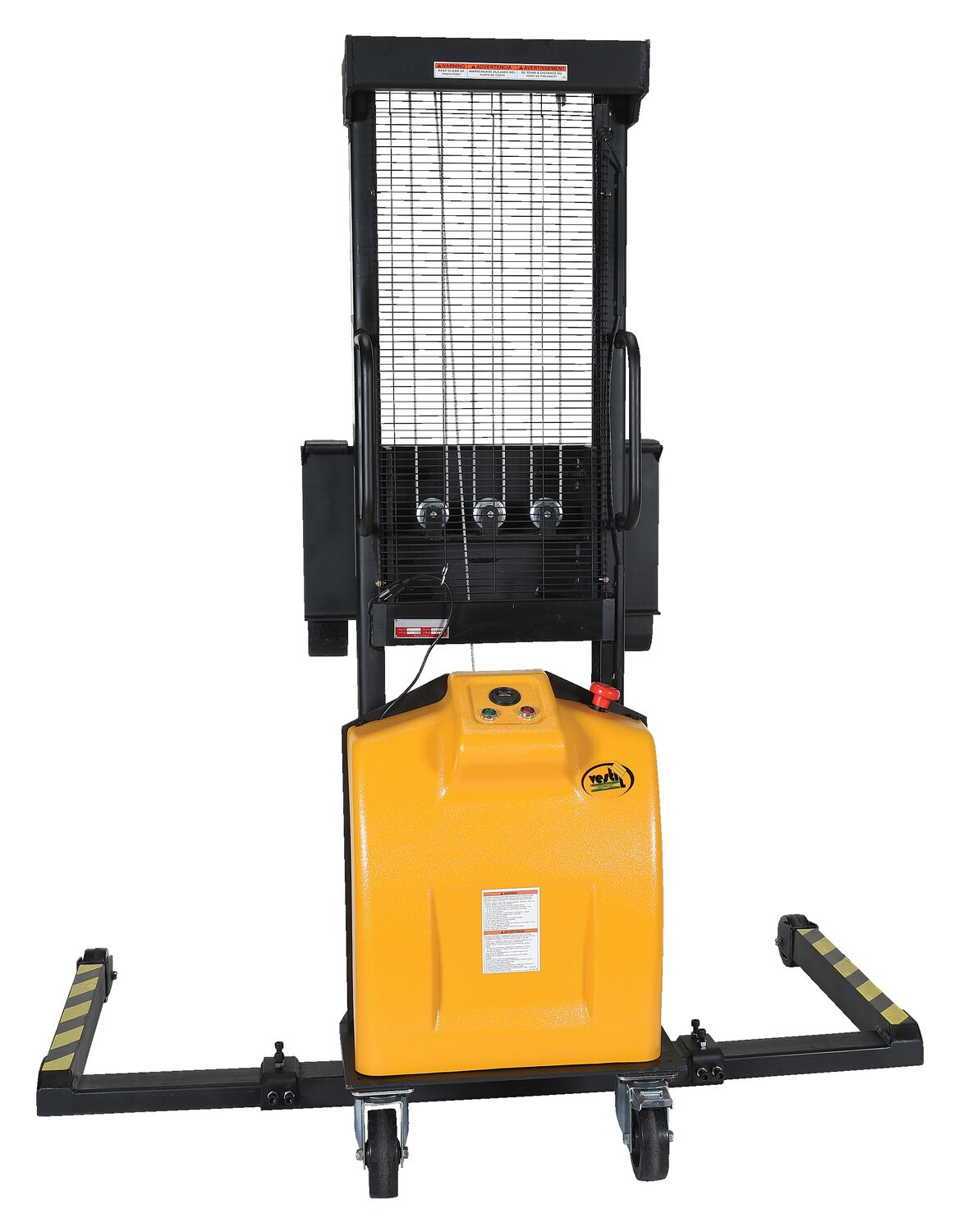

Electric Winch Stacker feature a heavy duty mast and a DC winch for easier and safer lifting. Lift and lower by DC winch and steel cable mechanism. Full height push handle for easy steering and excellent visibility through welded mesh guard. DC winch has one 12V battery. Two rigid and two swivel wheels with brakes for easy maneuvering.

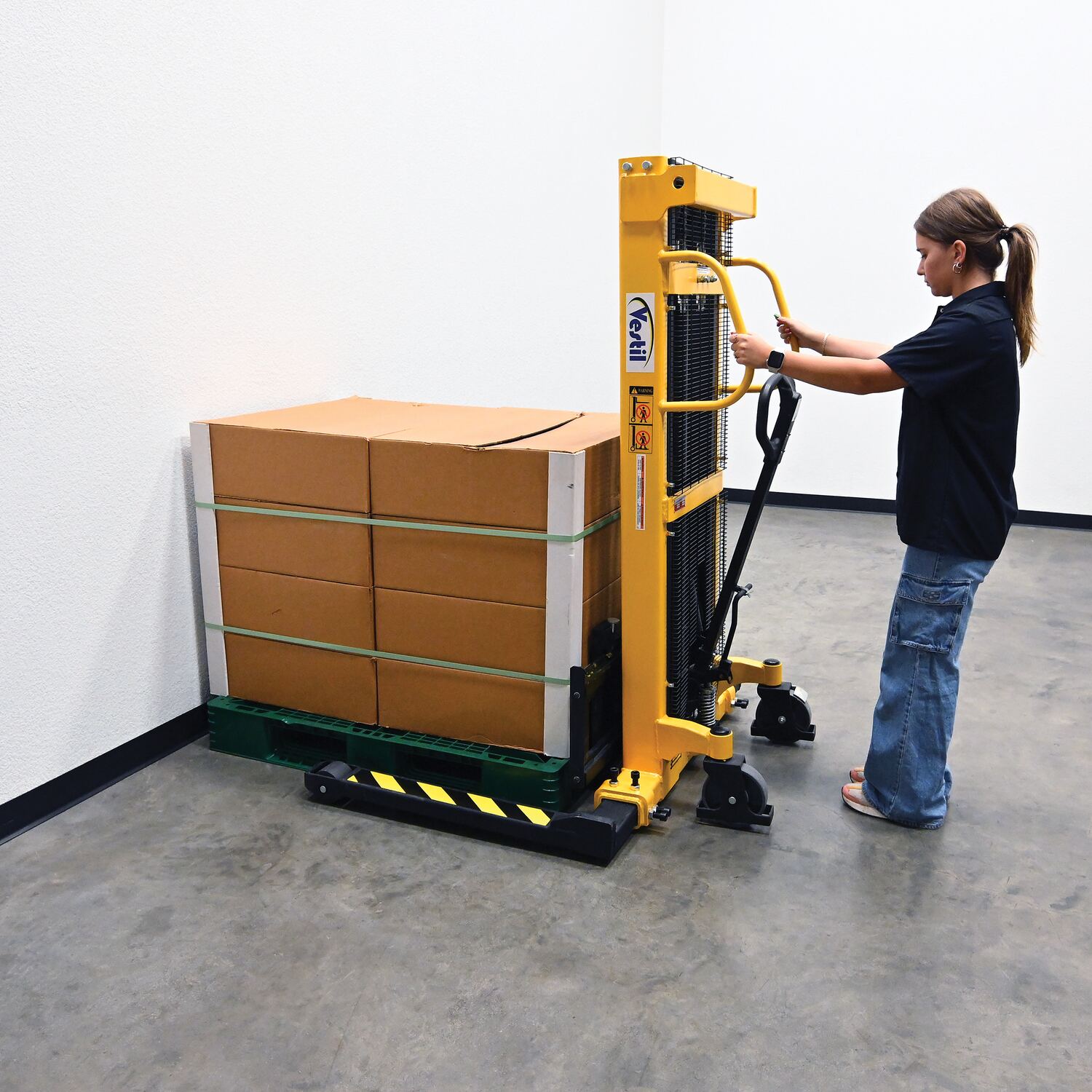

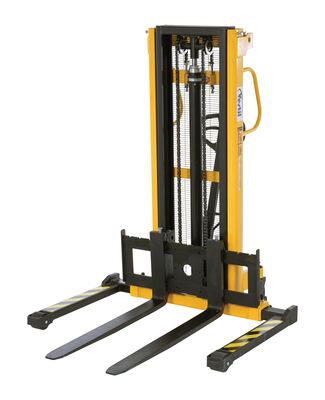

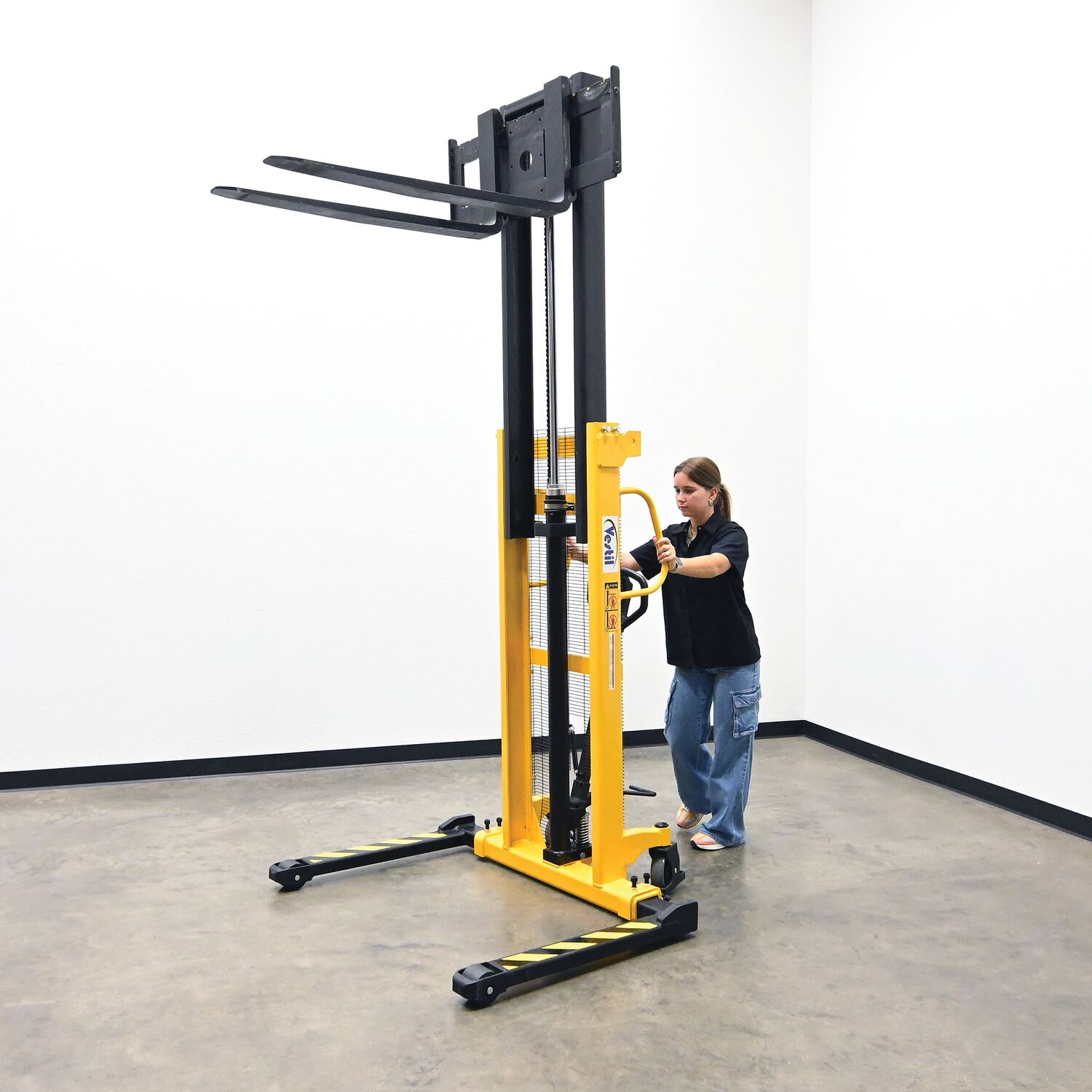

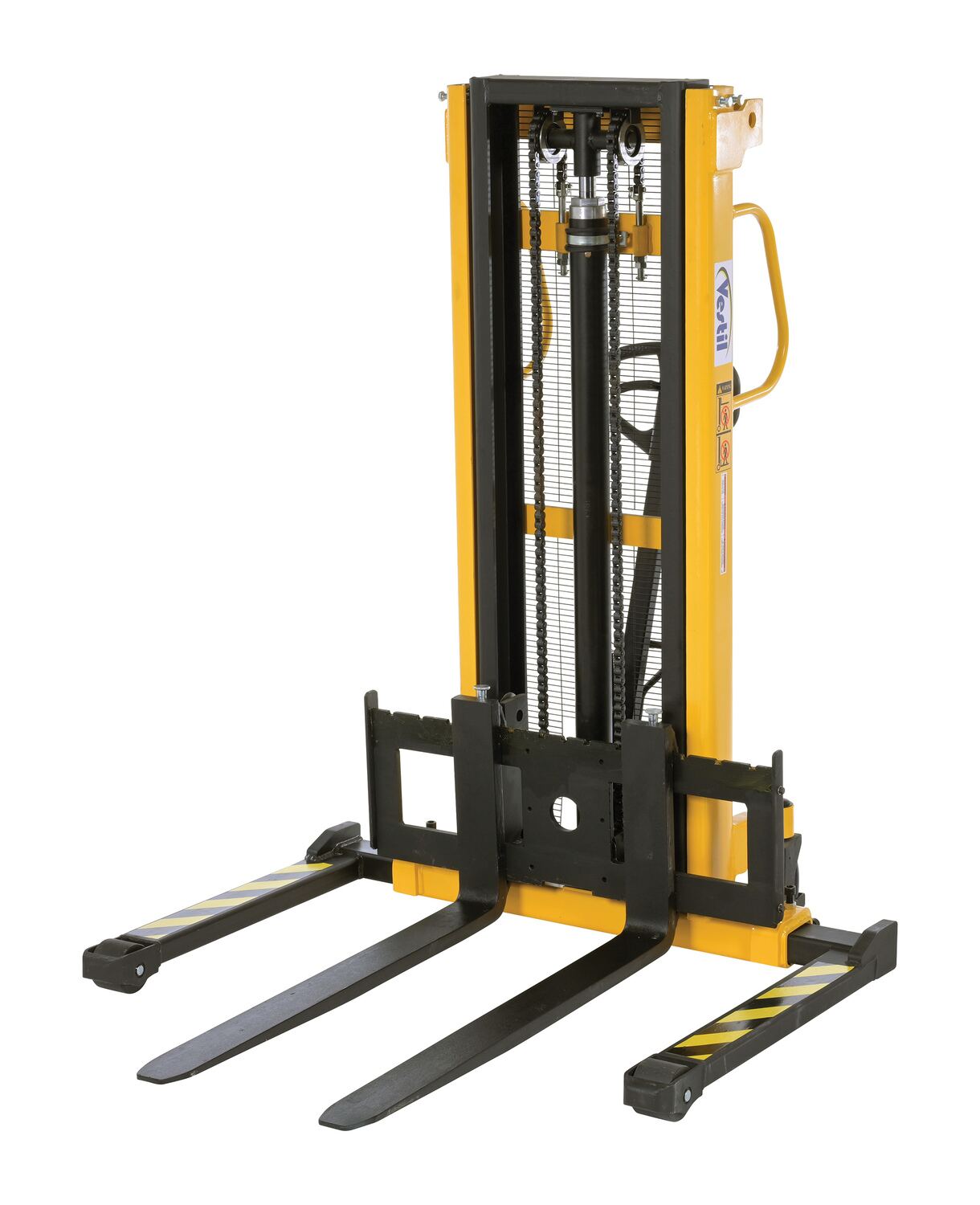

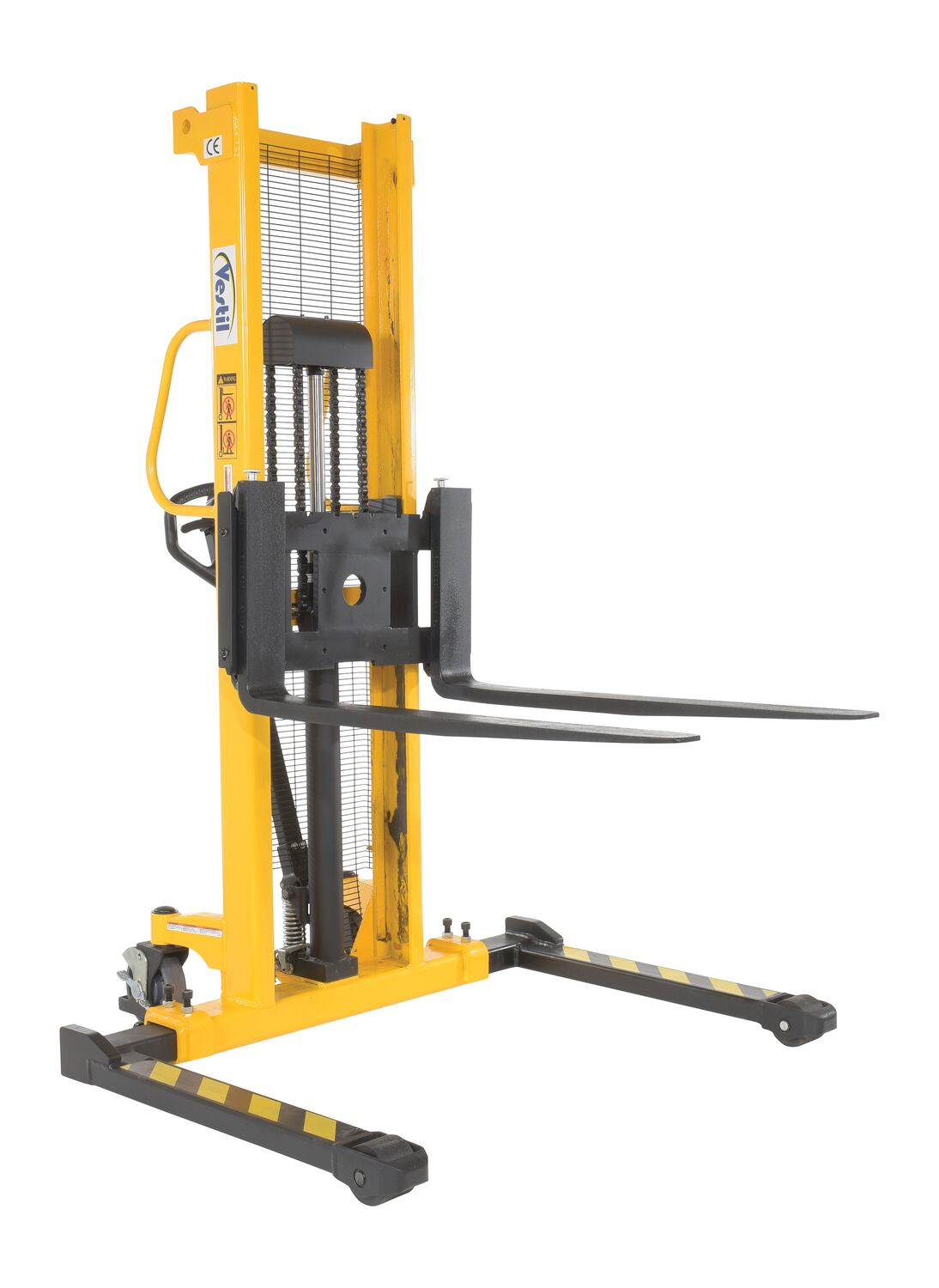

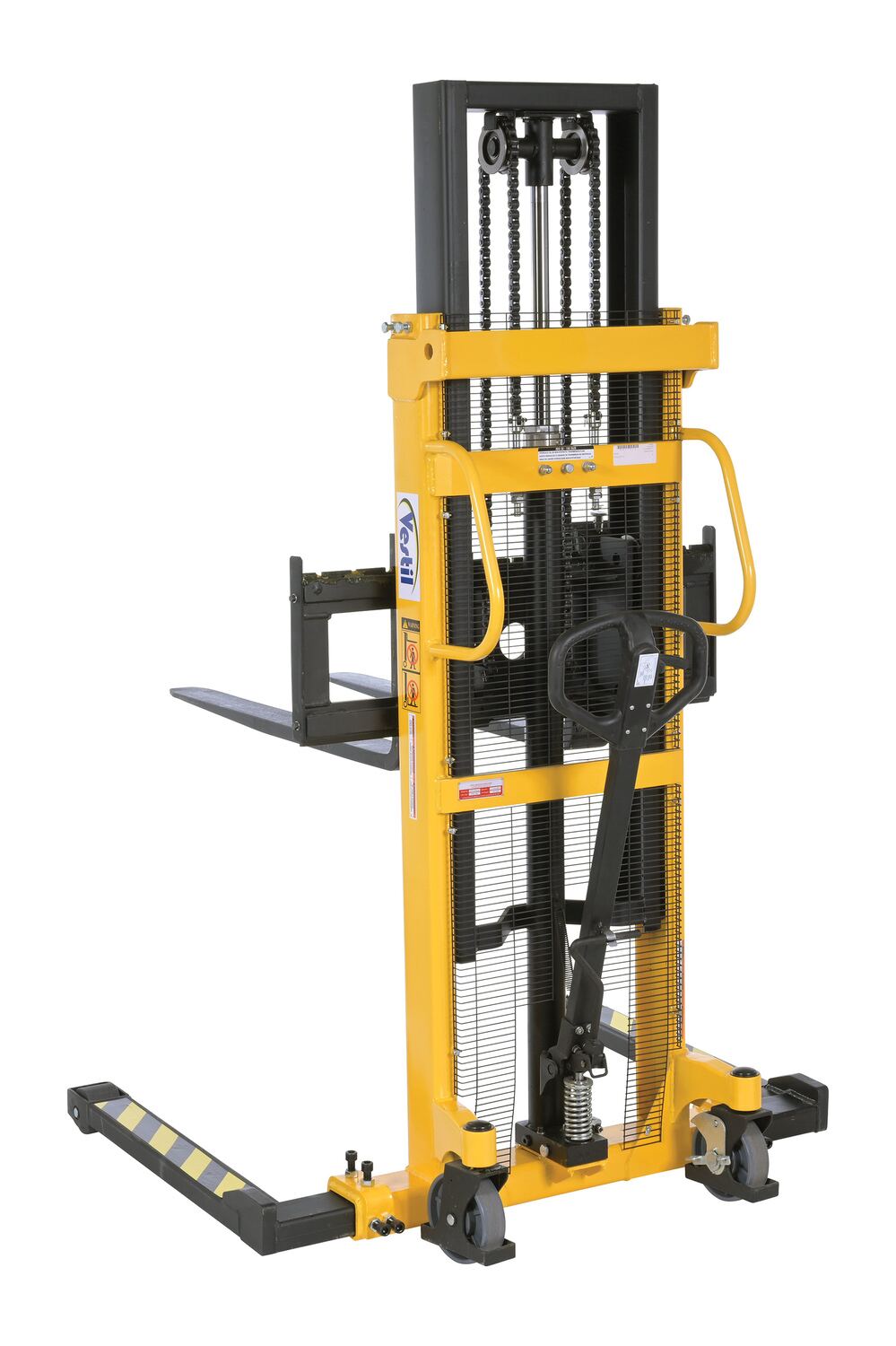

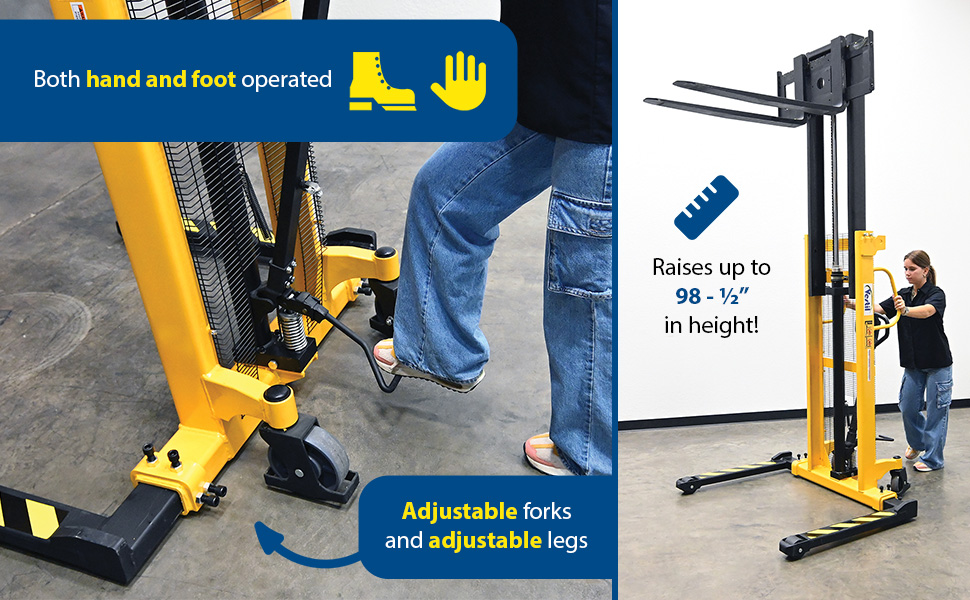

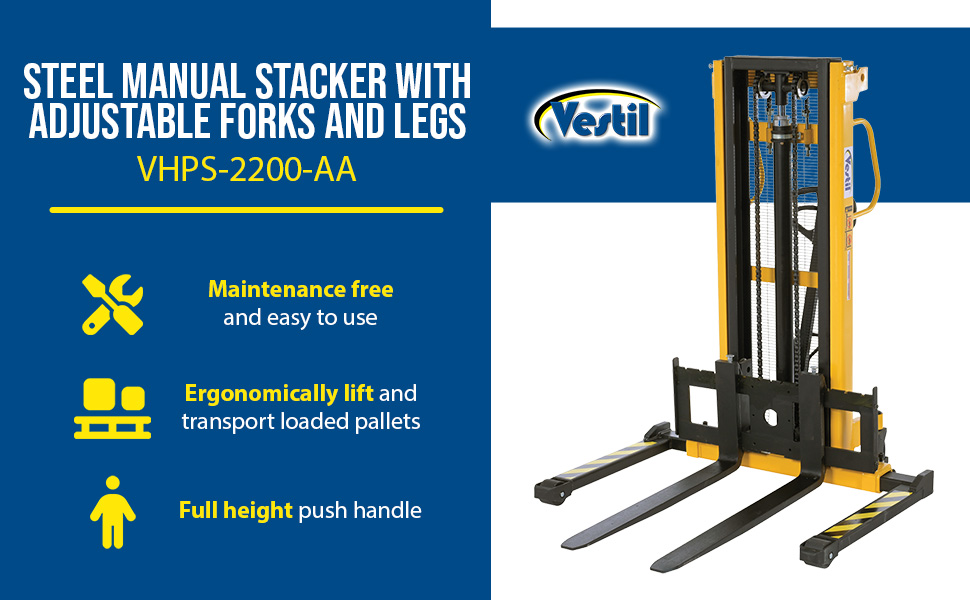

VHPS-2000-AA_A.jpgModel VHPS-2200-AA includes both, foot and hand operated lifting capabilities.

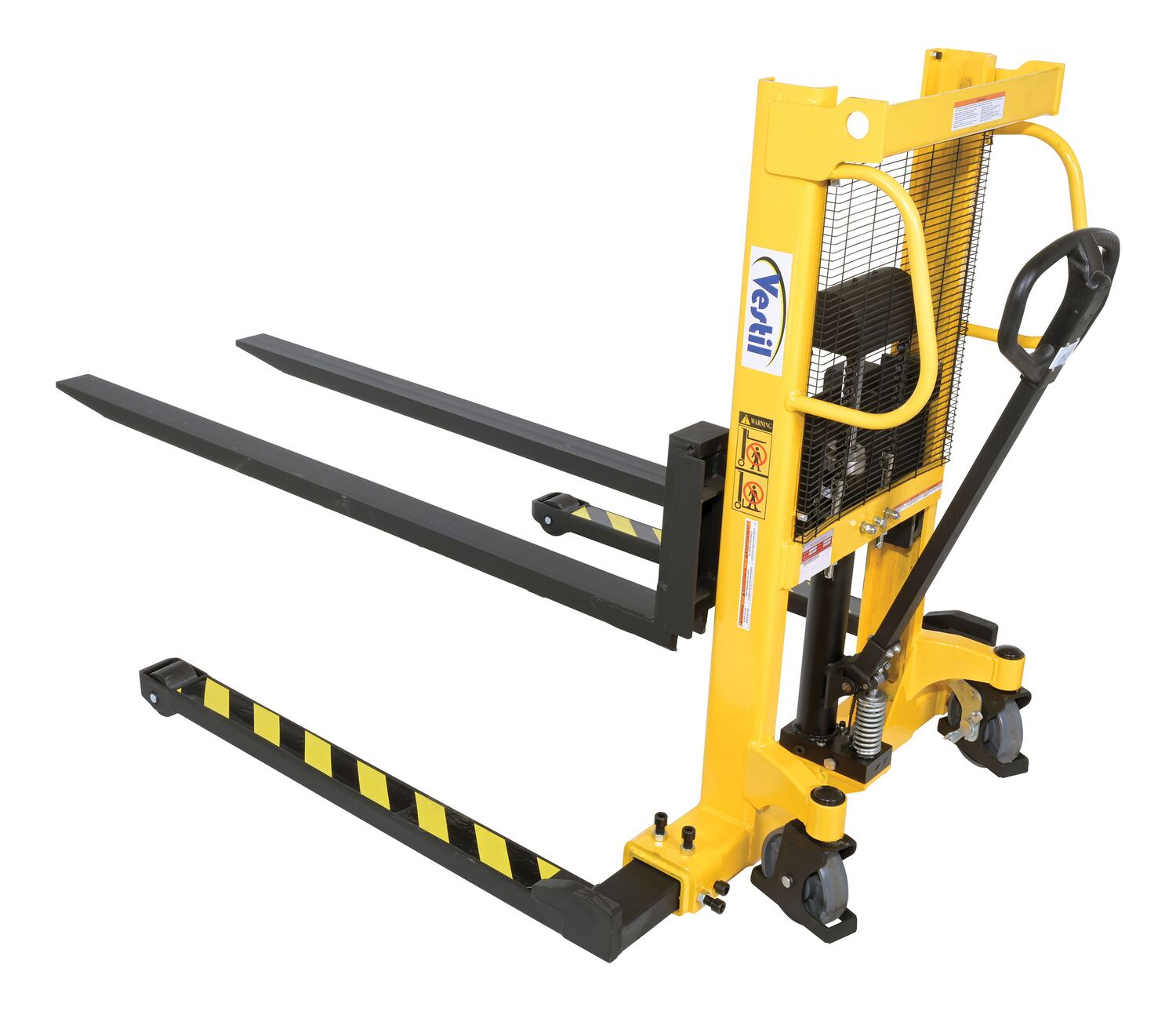

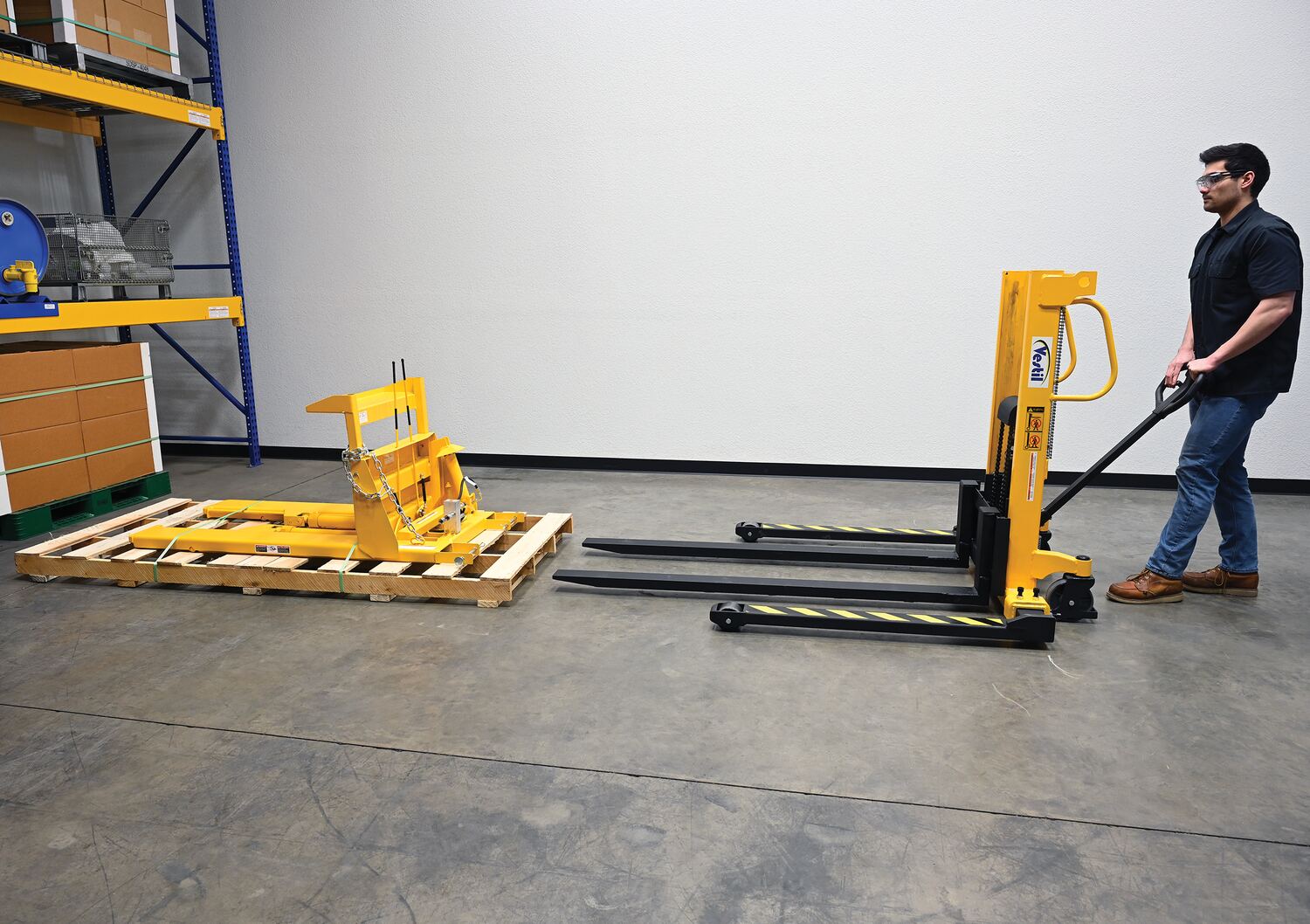

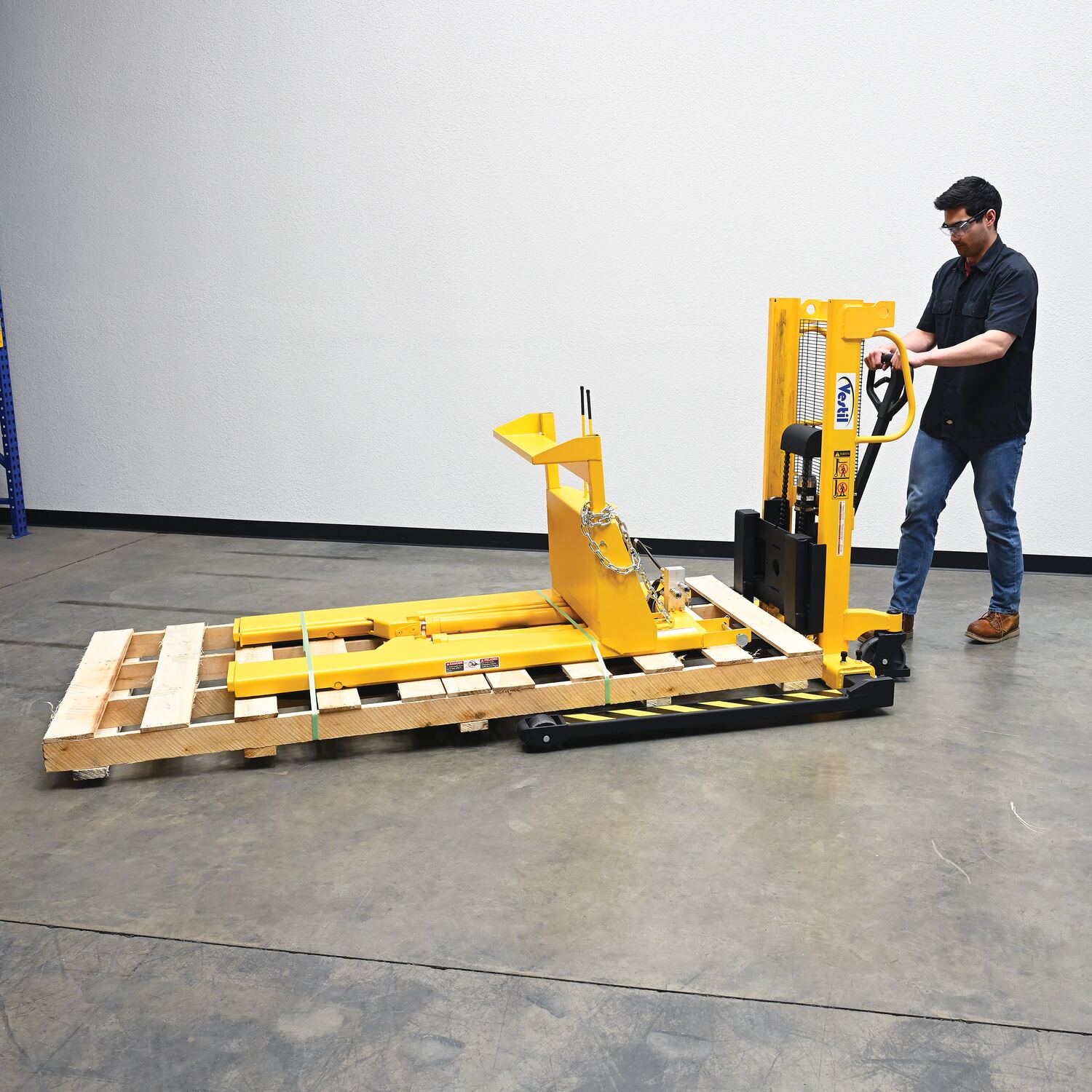

VHPS-550-AA-F72_A.jpgModel VHPS-550-AA-F72 is a manual adjustable fork stacker with extra long 72" forks.


Drum Roll Reel Forks

Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Stackers with Powered Drive and Powered Lift | Pallet Master/Servers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Narrow Mast Stackers with Powered Drive and Powered Lift | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)

Manual & Electric Stackers

model: VHPS-2200-AA

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
VHPS-2000-AA
VHPS-2000-AA-118
VHPS-2000-AA-17
VHPS-2000-AA-35
VHPS-2000-FF
VHPS-2000-FF-118
VHPS-2200-AA
VHPS-3000-AA-17
VHPS-550-AA-F72
VHPS-DK
VHPS-NM-1000-AA
VHPS-NM-1000-FF
VHPS-NM-AA-BAH
VHPS-NM-AA-PRP
VHPS-NM-AA-RFK
VHPS-NM-AA-RP
VHPS-NM-AA-RR
VHPS-NM-AA-SDG
VWS-770-AA
VWS-770-AA-DC
VWS-770-FF
VWS-770-FF-DC
VWS-AA-BAH
VWS-AA-PRP
VWS-AA-RFK
VWS-AA-RP
VWS-AA-RR
VWS-AA-SDG
VWS-DK
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

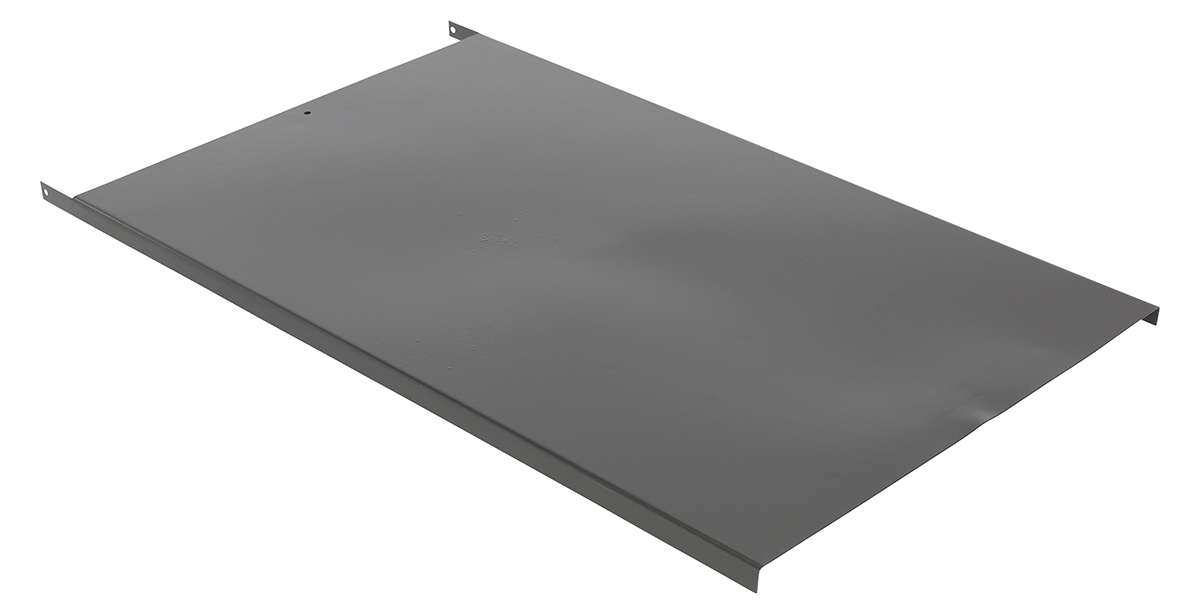

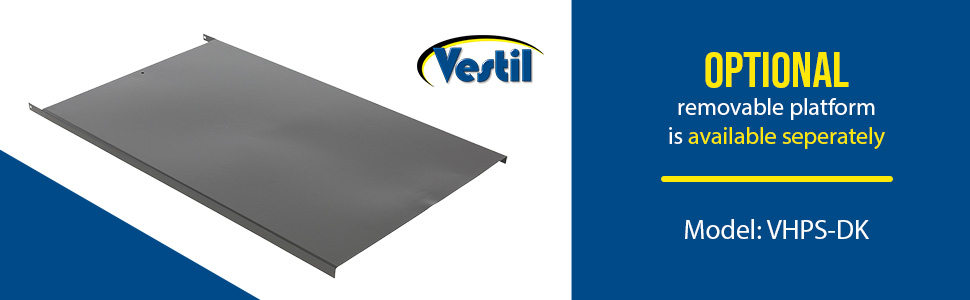

VHPS-DK VHPS-DKSteel Removable Platform 42-1/4 In. x 27-1/4 In. For VHPS Mo…40
VHPS-NM-AA-BAH VHPS-NM-AA-BAHSteel Single Ball Attachment For VHPS Models Black37
VHPS-NM-AA-PRP VHPS-NM-AA-PRPSteel Pole Attachment For VHPS Models Black35

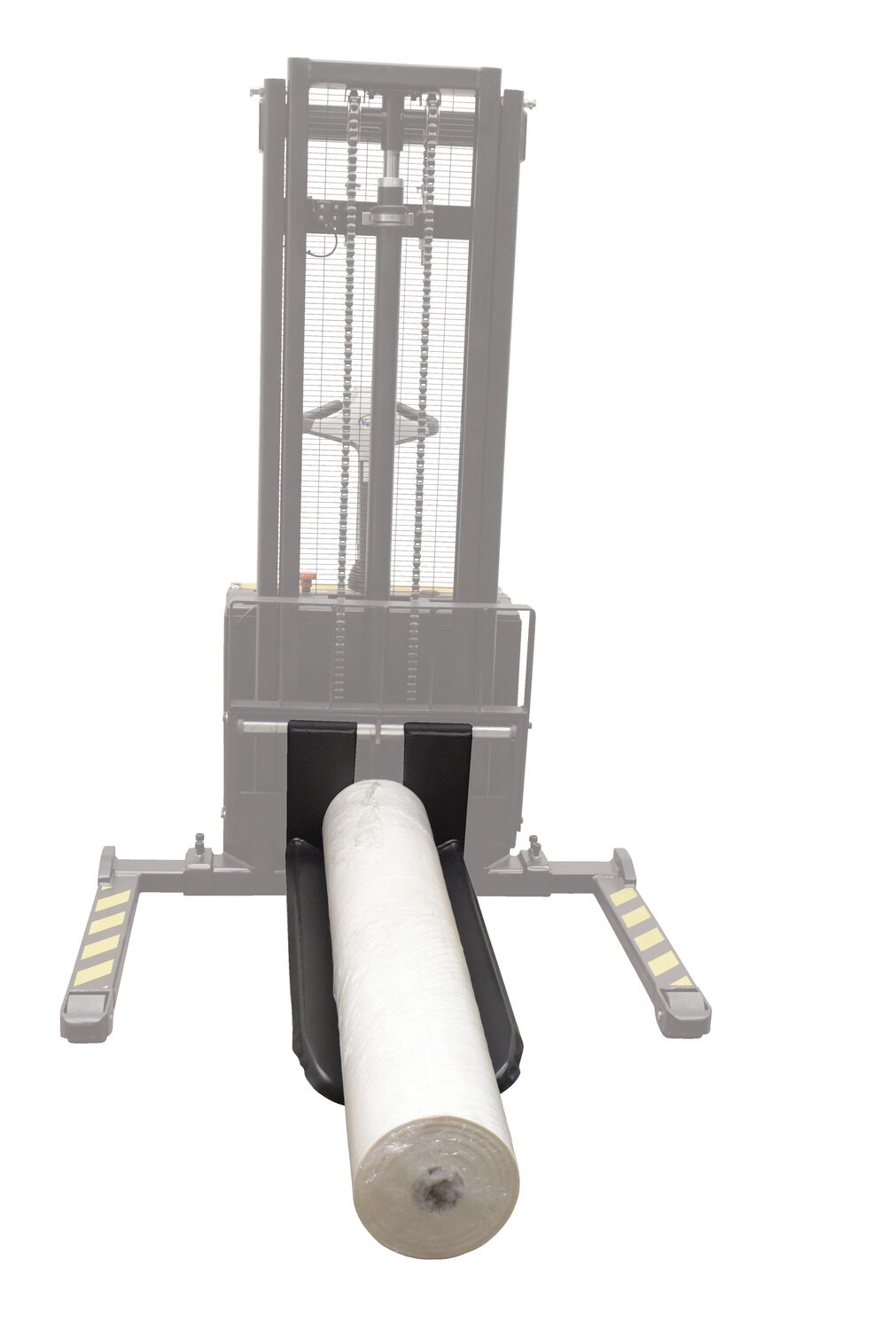

VHPS-NM-AA-RFK VHPS-NM-AA-RFKSteel Roll Fork Attachment For VHPS Models Black111
VHPS-NM-AA-RP VHPS-NM-AA-RPSteel Roller Platform Attachment For VHPS Models Yellow57
VHPS-NM-AA-RR VHPS-NM-AA-RRSteel Reel Rotator Attachment For VHPS Models Yellow55

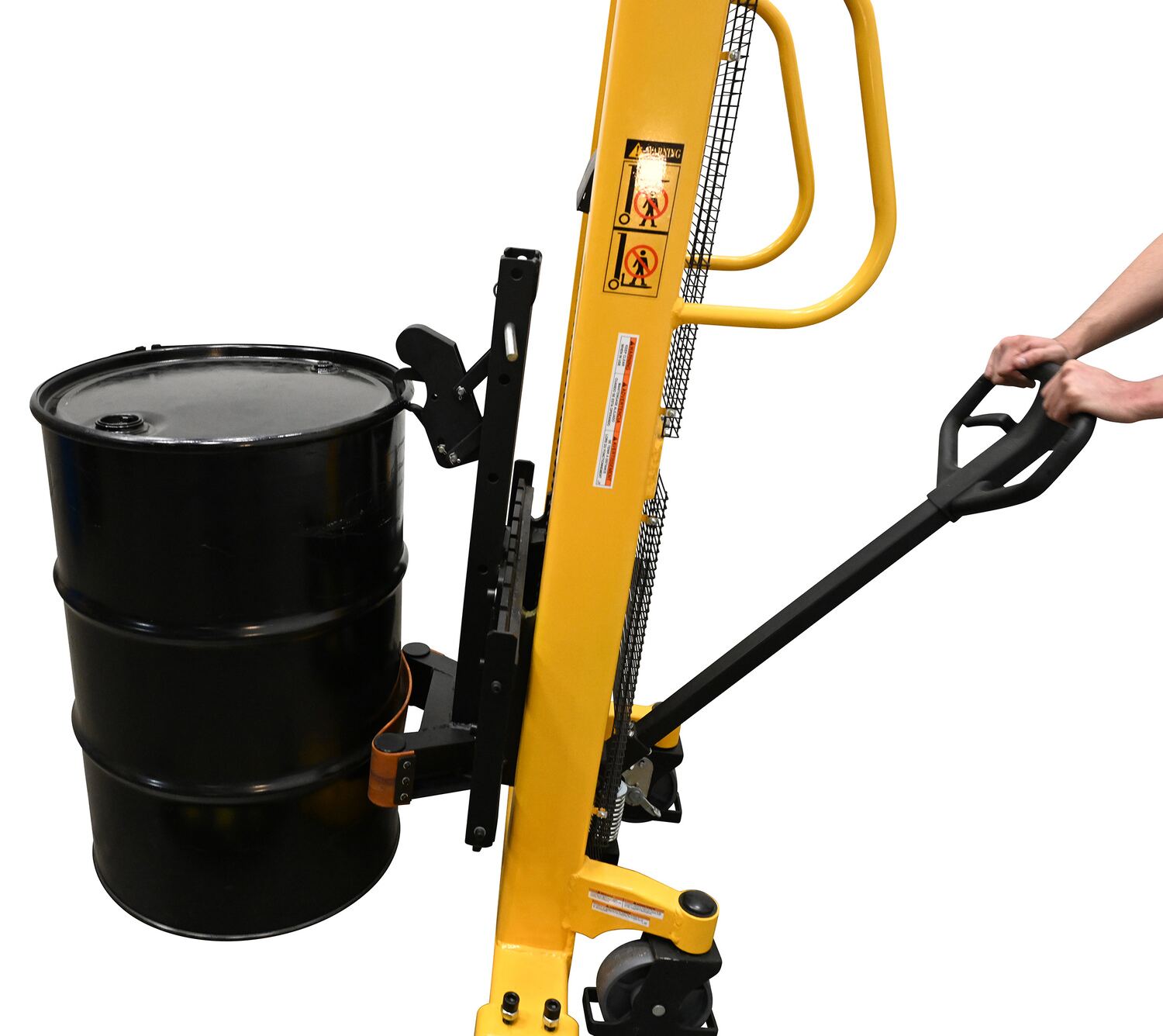

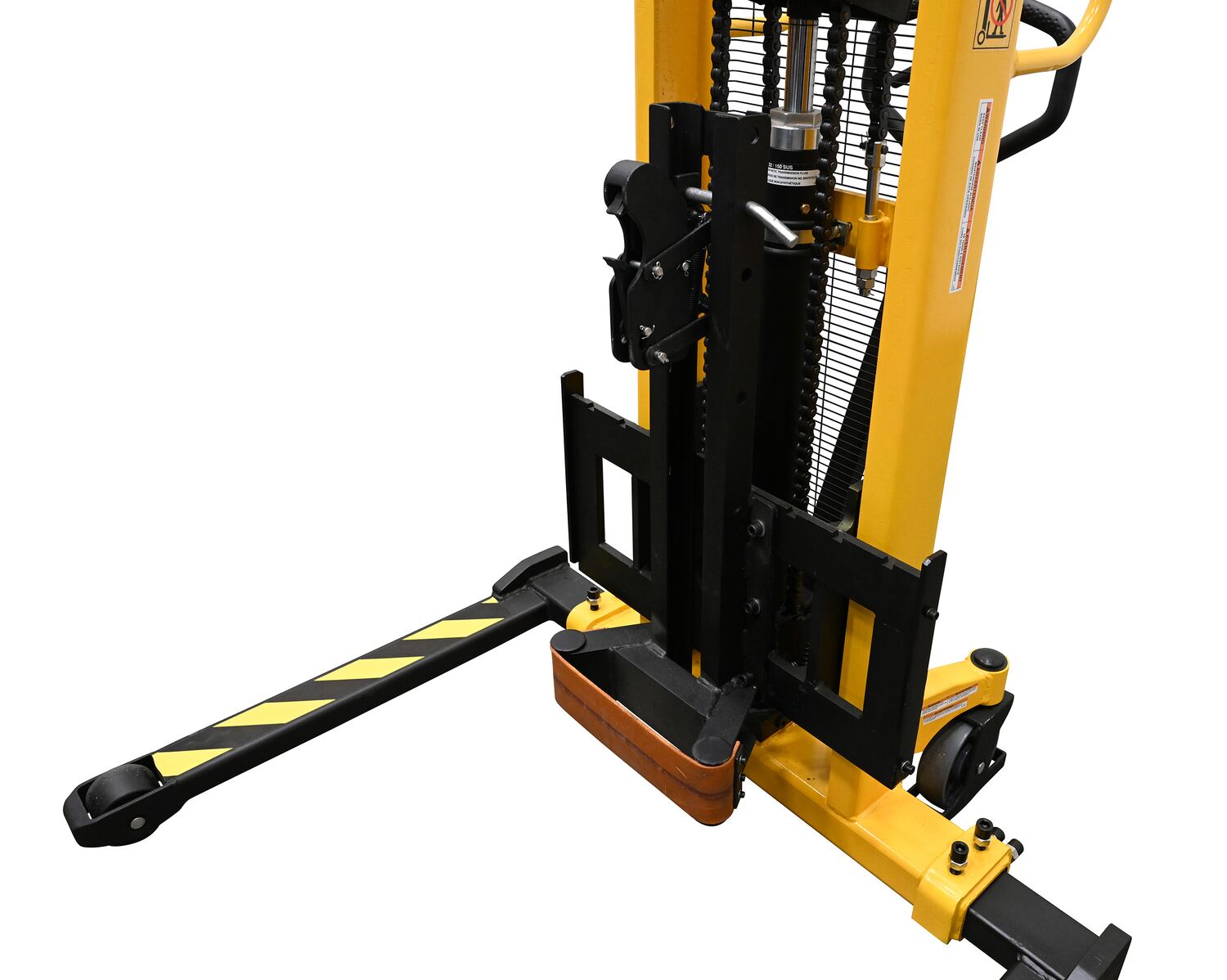

VHPS-NM-AA-SDG VHPS-NM-AA-SDGSteel Drum Grip Attachment For VHPS Models Black101

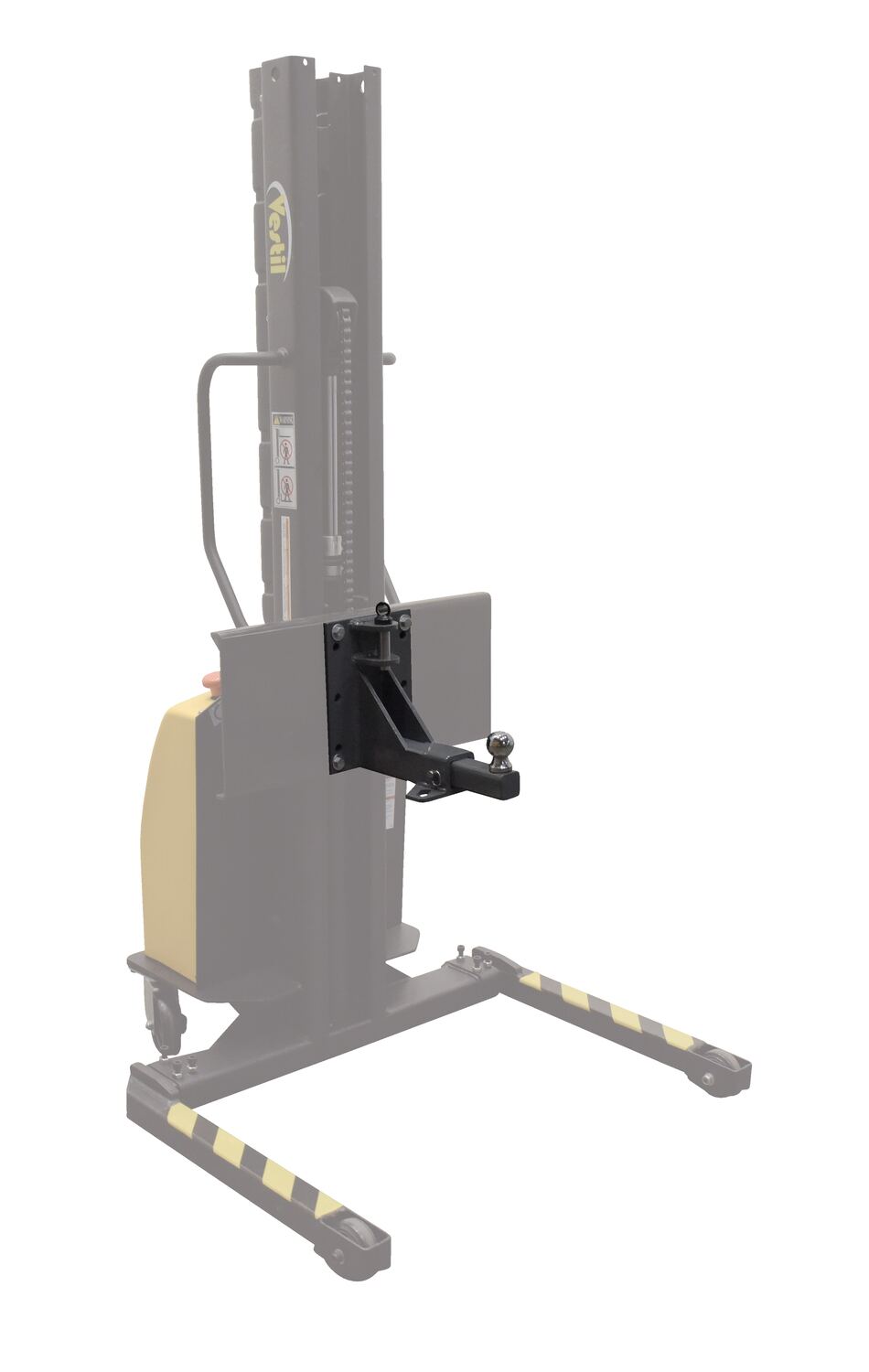

VWS-AA-BAH VWS-AA-BAHSteel Single Ball Hitch Attachment for Manual Winch Stacker37

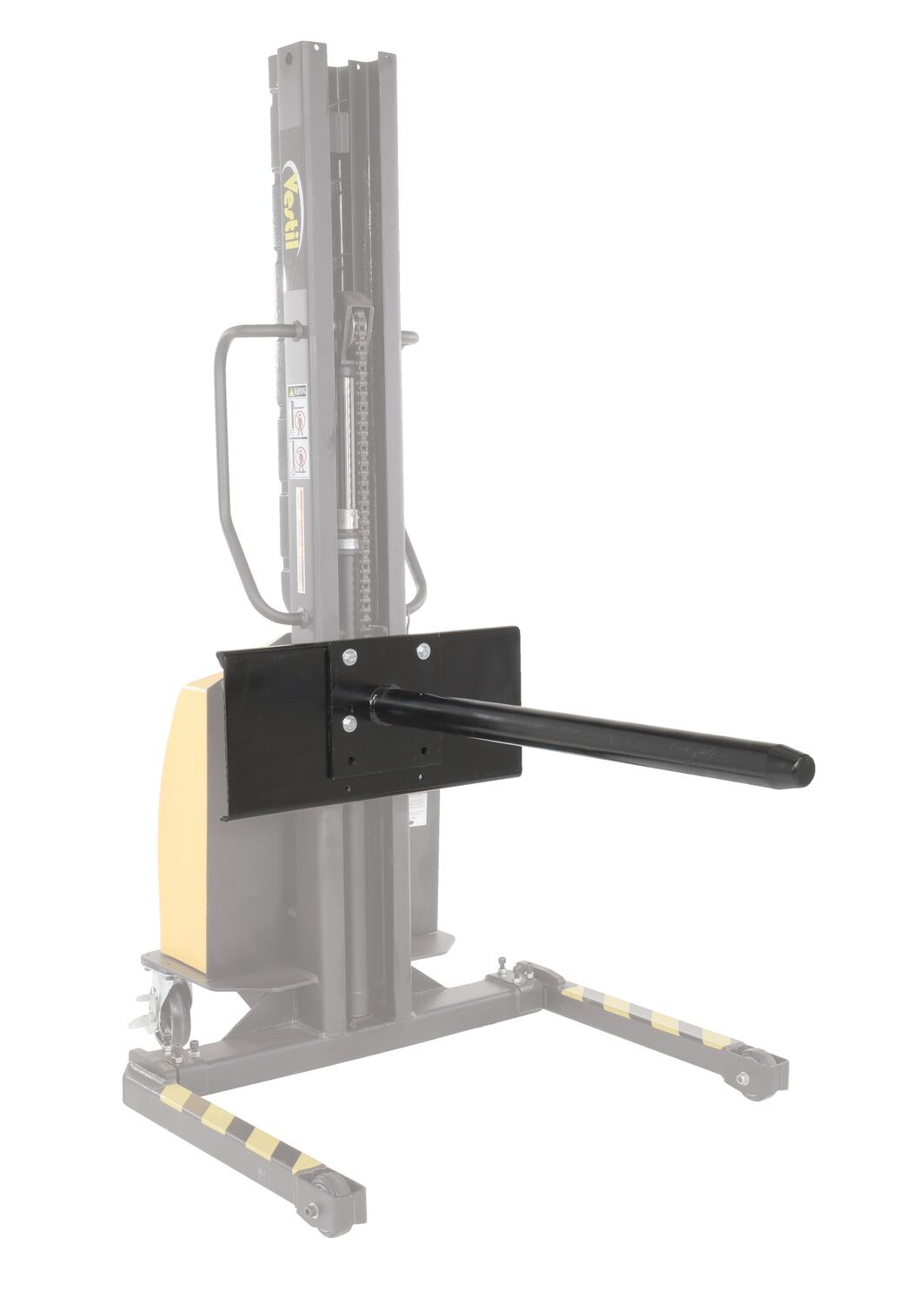

VWS-AA-PRP VWS-AA-PRPSteel Pole Attachment for Manual Winch Stacker35
VWS-AA-RFK VWS-AA-RFKSteel Roll Fork Attachment for Manual Winch Stacker111

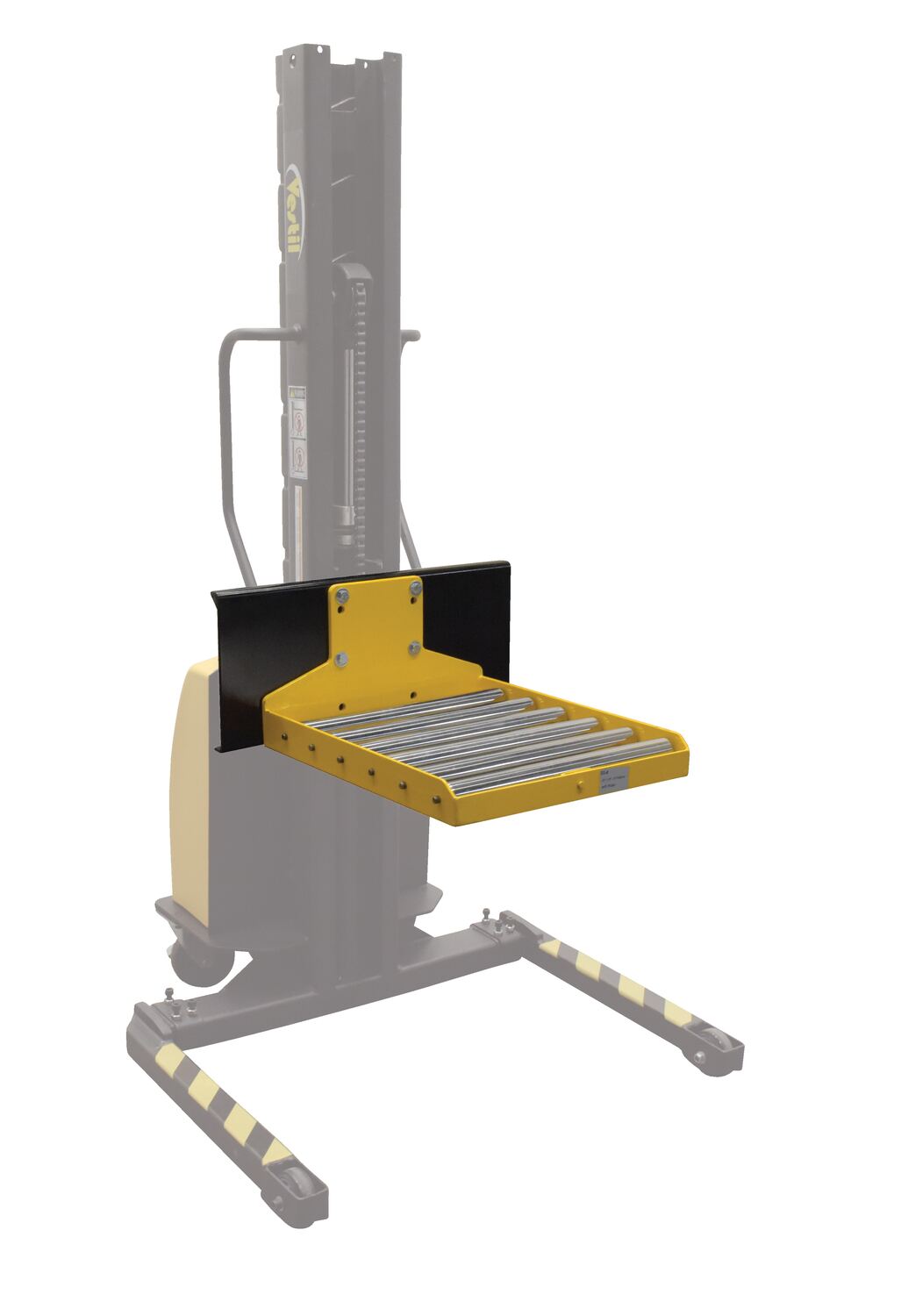

VWS-AA-RP VWS-AA-RPSteel Roller Platform Attachment for Manual Winch Stacker57

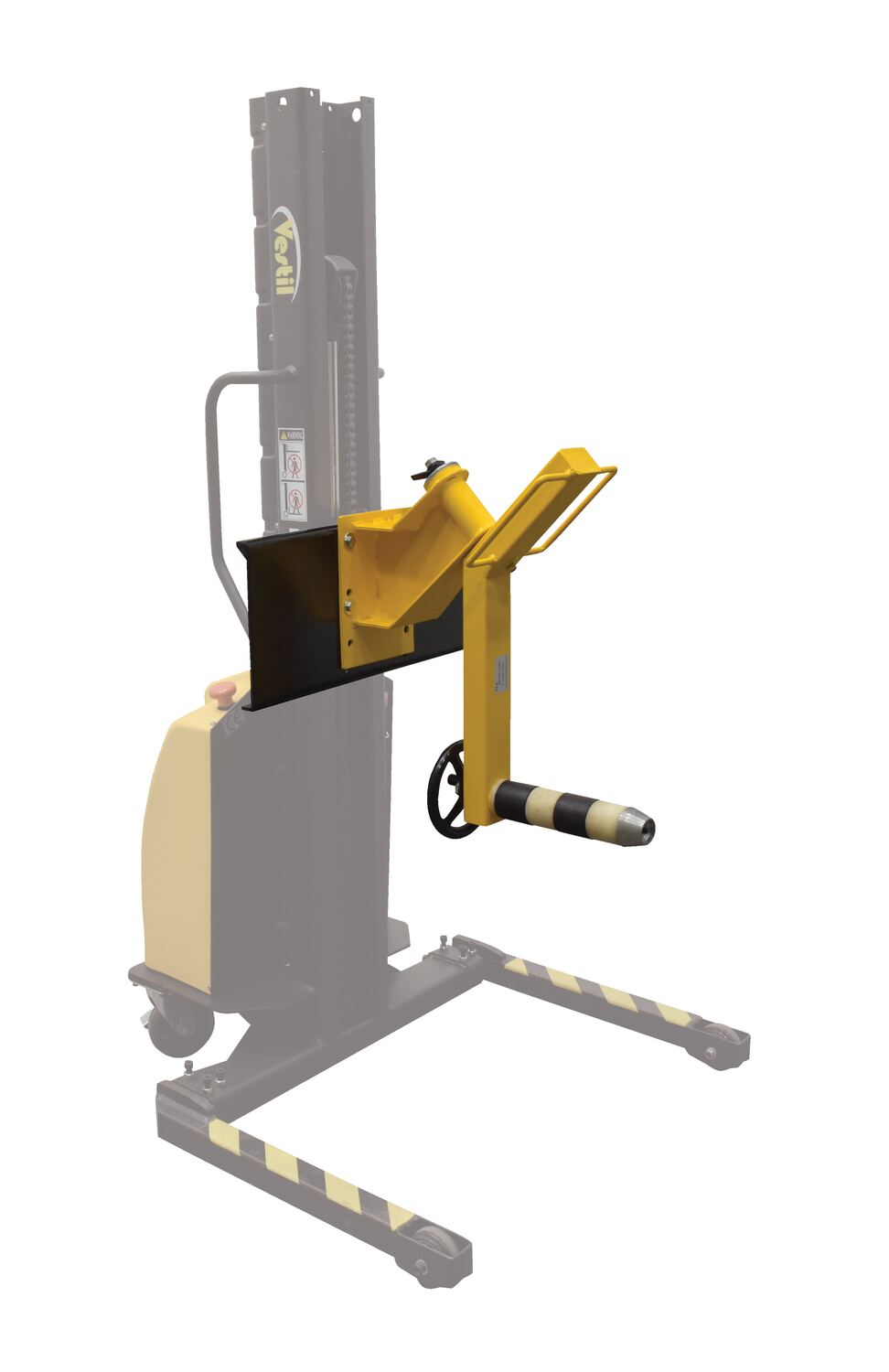

VWS-AA-RR VWS-AA-RRSteel Reel Rotator Attachment for Manual Winch Stacker55

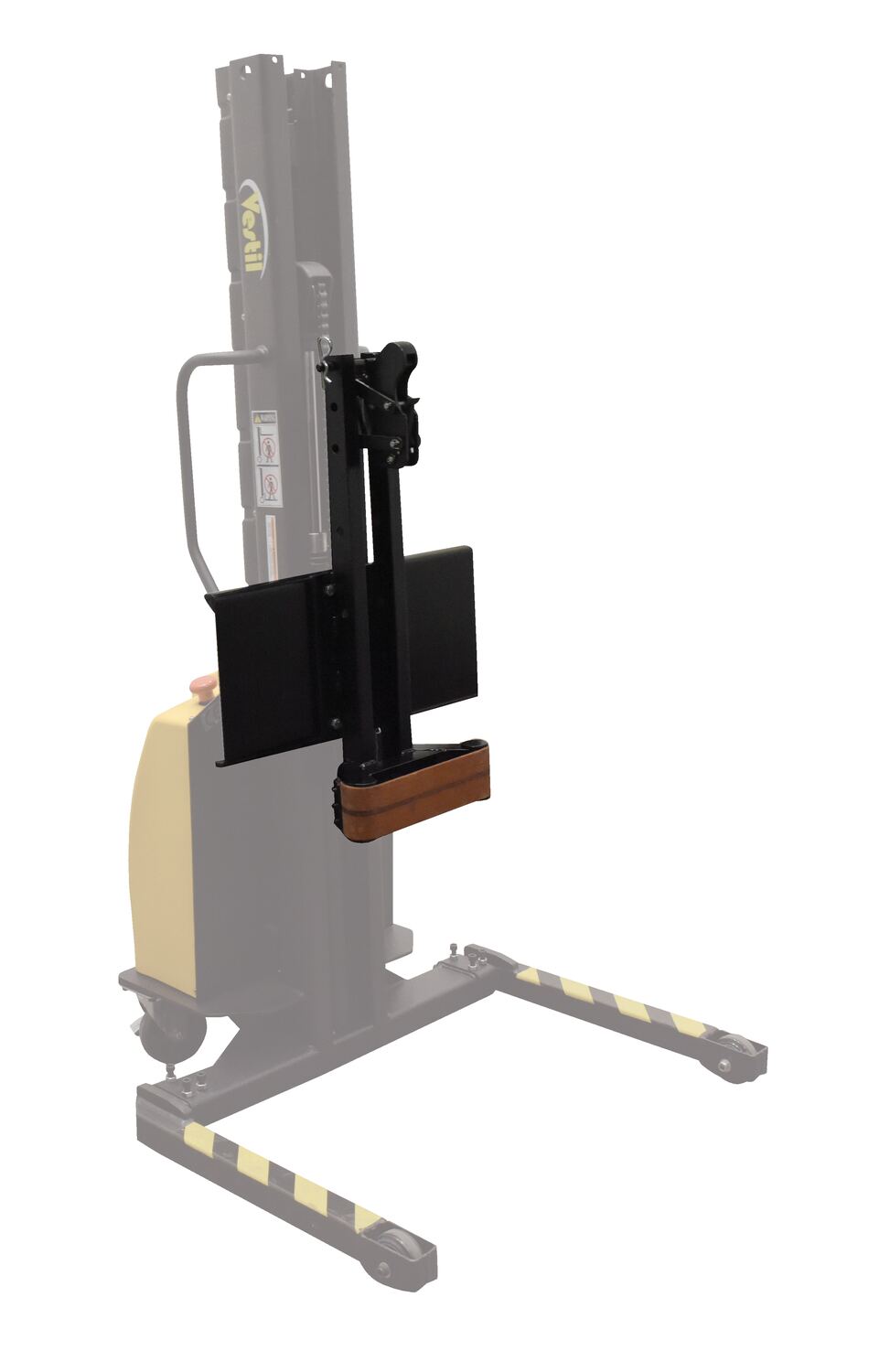

VWS-AA-SDG VWS-AA-SDGSteel Single Drum Grip Attachment for Manual Winch Stacker B…101

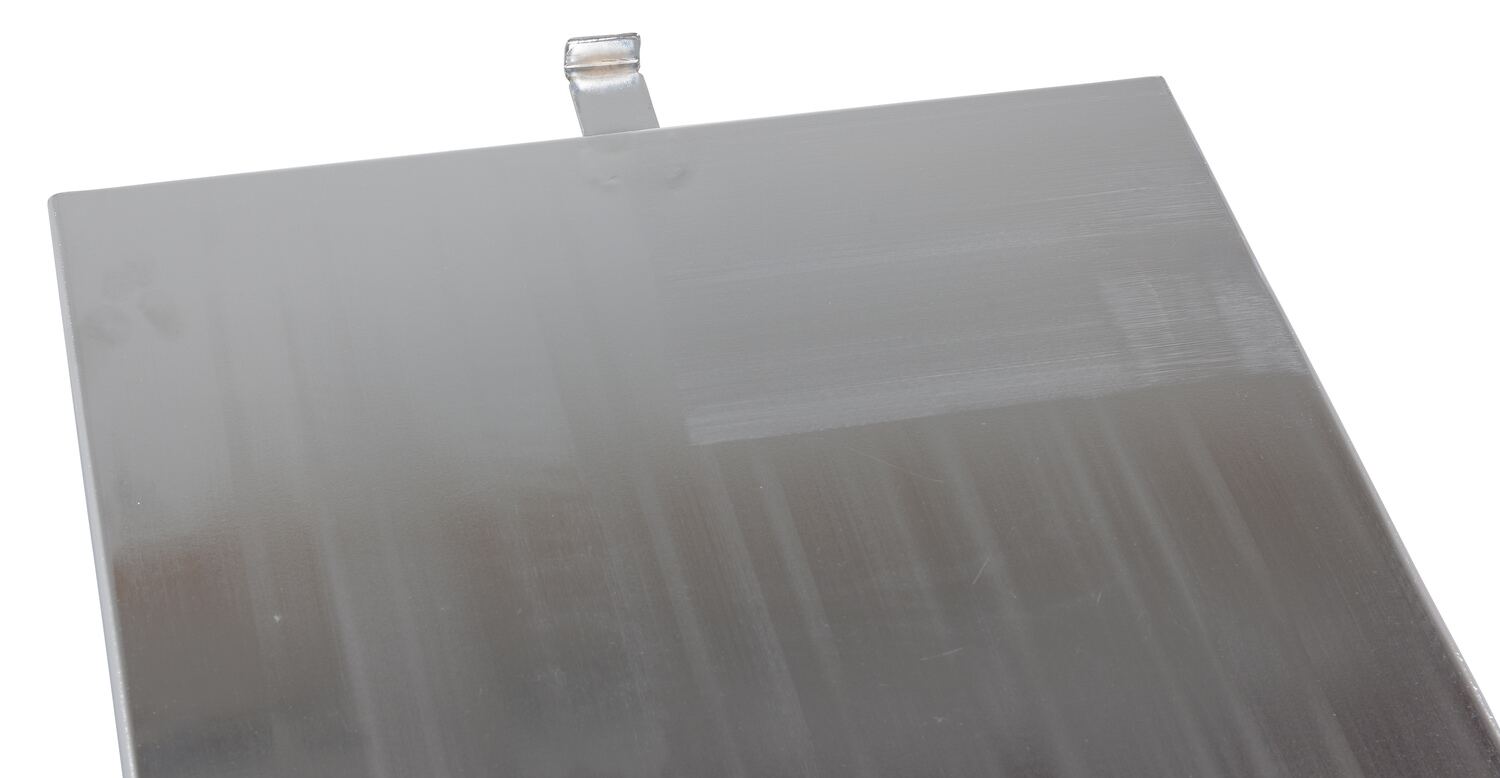

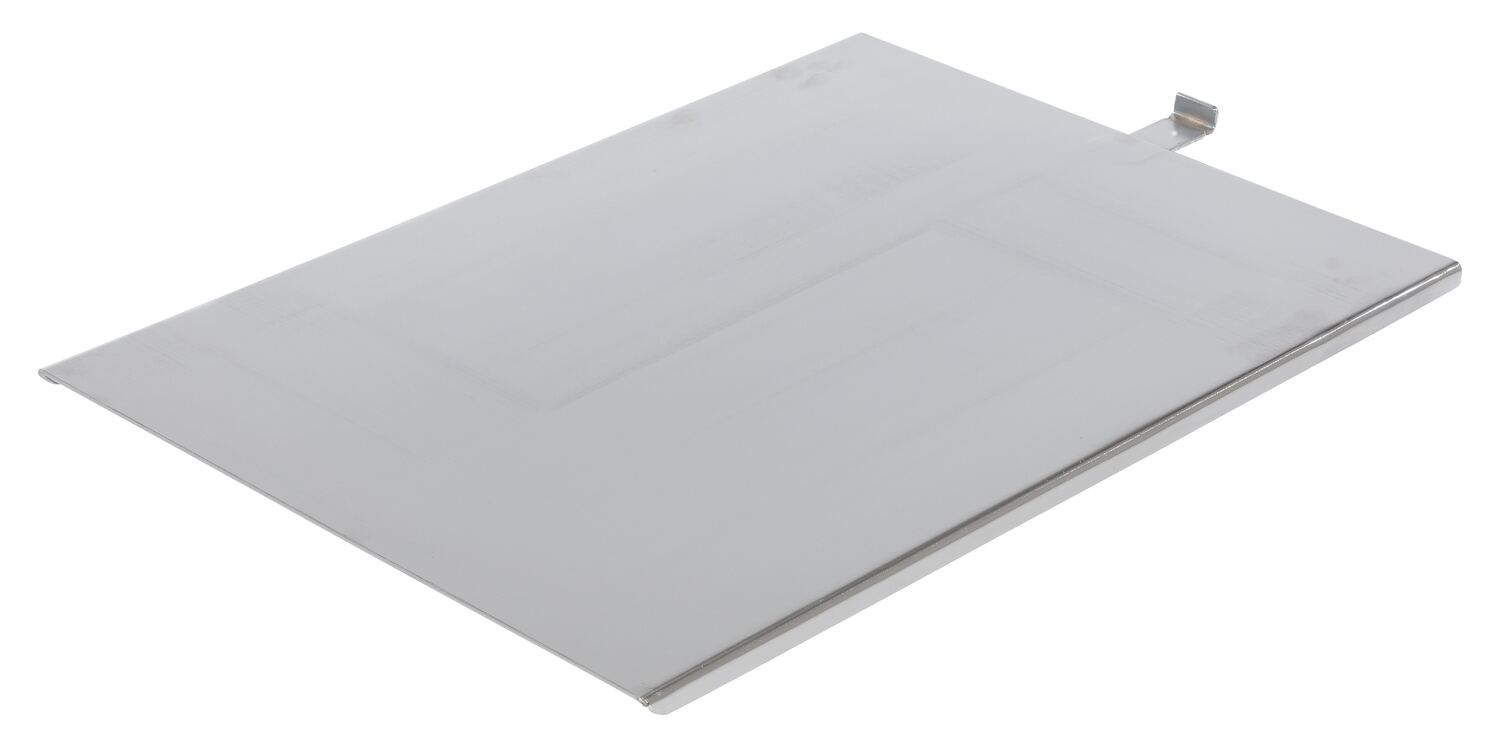

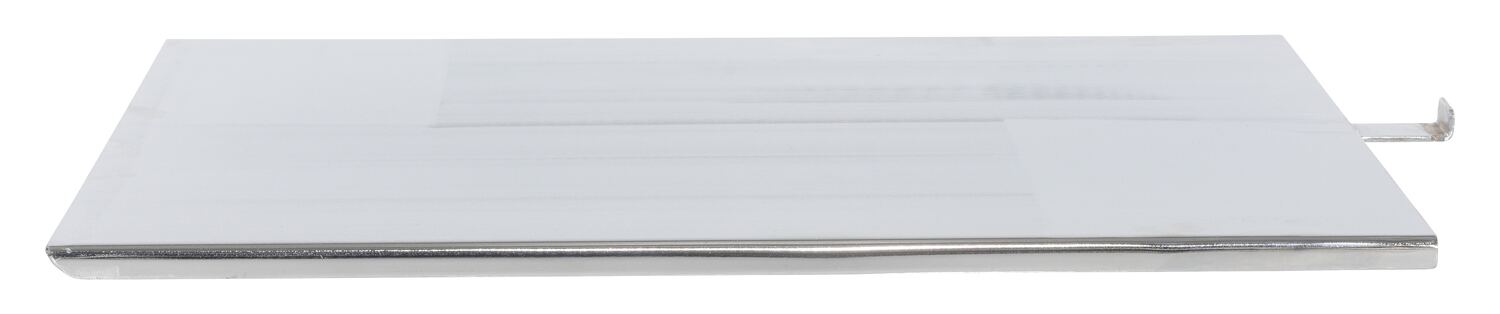

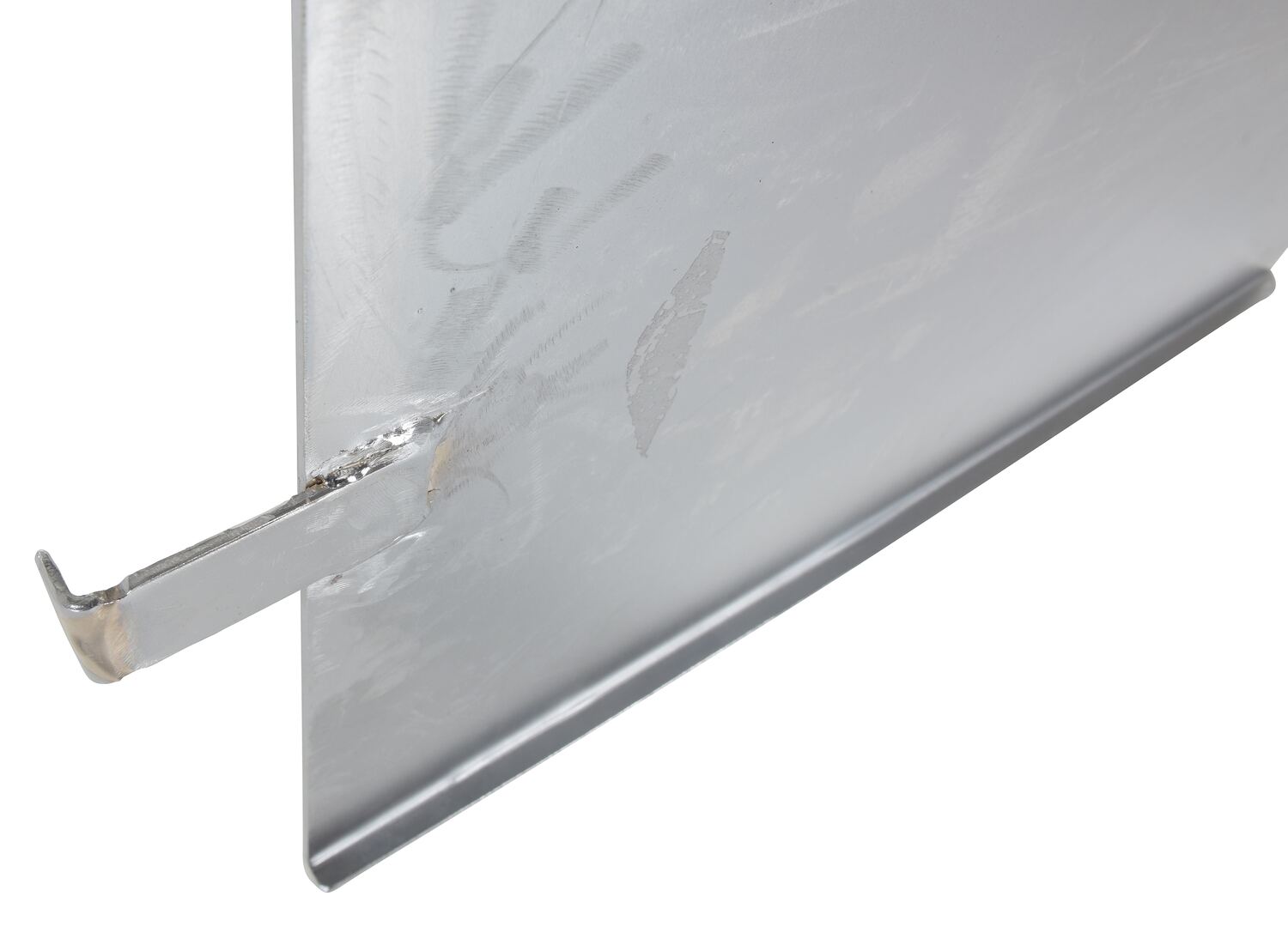

VWS-DK VWS-DKRemovable Platform Hand Winch Option46
Model Description
VHPS-AA-DRR-FK Drum/Reel/Roll Forks for Stackers
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

VHPS-2000

VWS-770-AA

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

VHPS-2000-AA-17

VHPS-2000-AA-35

VHPS-2000-AA-118

VHPS-2000-FF

VHPS-2000-FF-118

VHPS-3000-AA-17

VHPS-NM-1000-AA

VHPS-NM-1000-FF

VWS-770-AA

VWS-770-AA-DC

VWS-770-FF

VWS-770-FF-DC

VHPS-2000-AA

Testing Certificates

VHPS-2000-AA

VHPS-2000-AA-118

VHPS-2000-AA-17

VHPS-2000-AA-35

VHPS-2000-FF

VHPS-2000-FF-118

VHPS-2200-AA

VHPS-3000-AA-17

VHPS-550-AA-F72

VHPS-NM-1000-AA

VHPS-NM-1000-FF

VHPS-NM-AA-BAH

VHPS-NM-AA-PRP

VHPS-NM-AA-RFK

VHPS-NM-AA-RP

VHPS-NM-AA-RR

VHPS-NM-AA-SDG

VWS-770-AA

VWS-770-FF

VWS-770-FF-DC

VWS-AA-BAH

VWS-AA-PRP

VWS-AA-RFK

VWS-AA-RP

VWS-AA-RR

VWS-AA-SDG

SDS Sheets


Hydraulic Oil
VHPS-2000-FF SDS


Valve-Regulated Lead Acid Battery Series
VWS-770-AA-DC SDS


Hydraulic Oil
VWS-770-AA-DC SDS


Hydraulic Oil
VWS-770-FF SDS


Valve-Regulated Lead Acid Battery Series
VWS-770-FF-DC SDS


Hydraulic Oil
VWS-770-FF-DC SDS


Hydraulic Oil
VHPS-550-AA-F72 SDS

Other PDFs


Manual Hand Pump Stacker Mailing Brochure

Manual Stacker Mailing Brochure







Visit Our Youtube Channel For All Available Videos For All Products

Applications



Aerospace

Gas Stations

Hospitals

Laboratories

Military

Universities
What is the platform made of? What is the capacity and thickness ?
The platform is made of chromed steel. Thickness is Gauge 9 with 770 lbs. capacity.

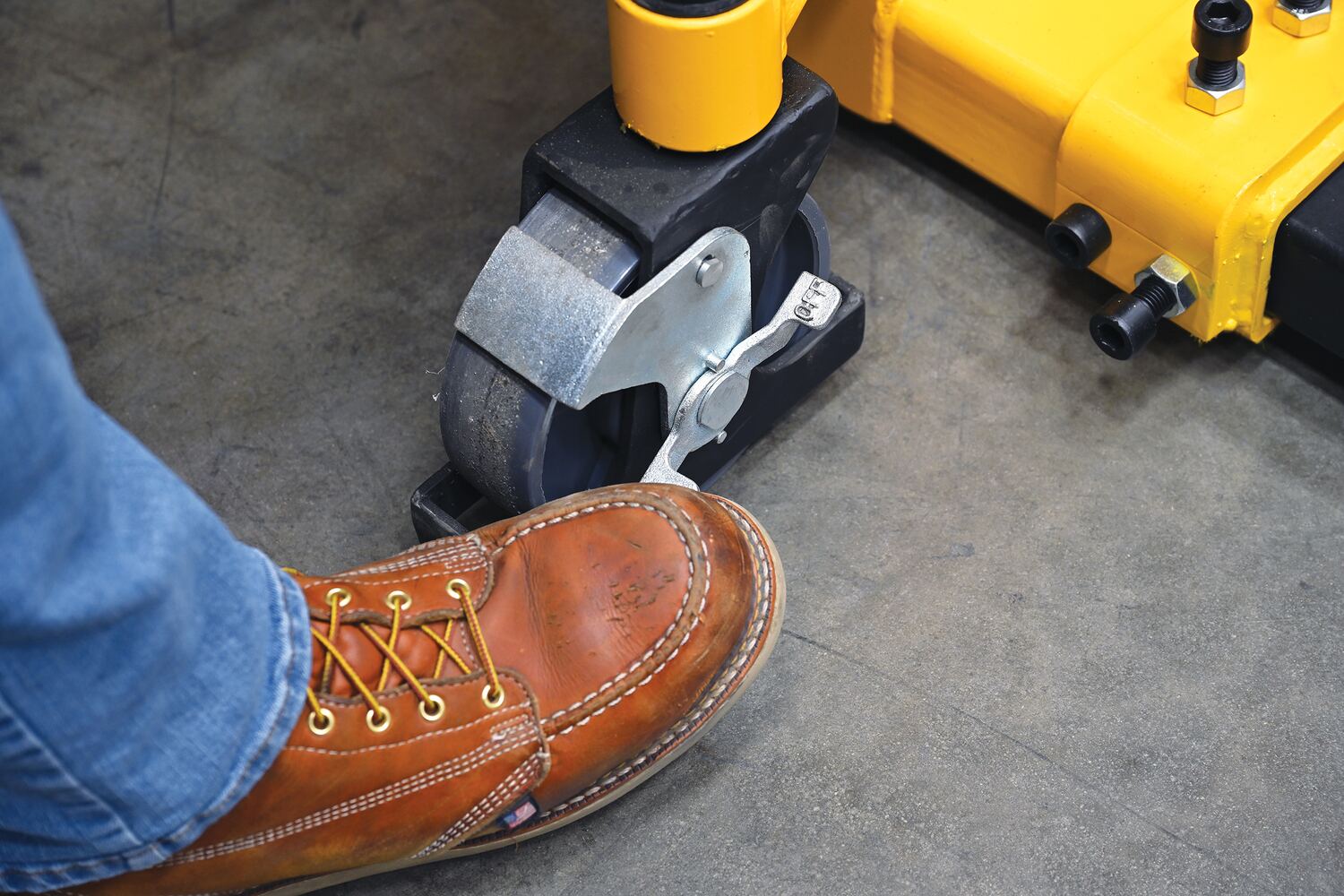

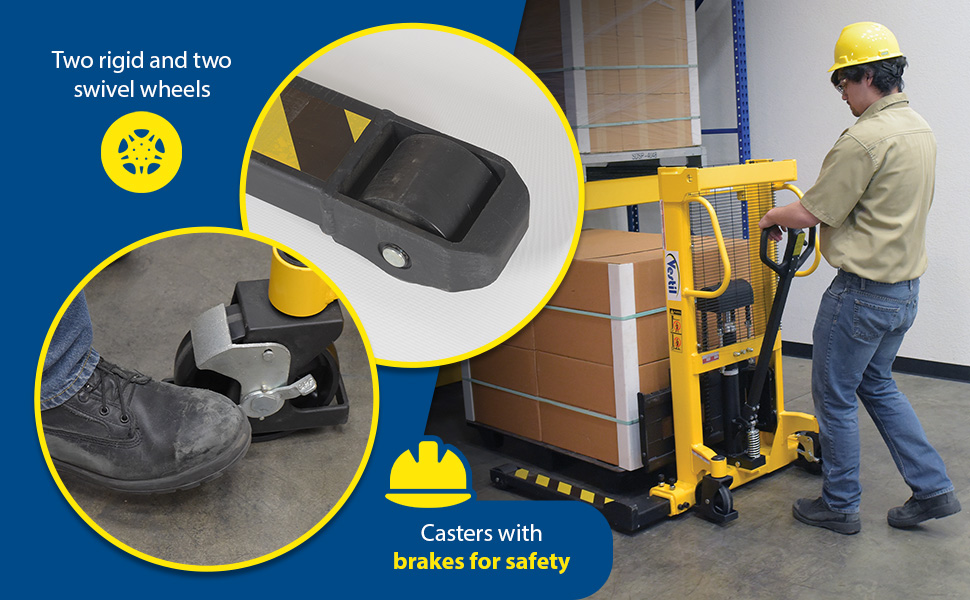

What kind of casters come on the back of the VWS-770-FF?
It comes with (1) swivel caster and (1) swivel with brake caster.

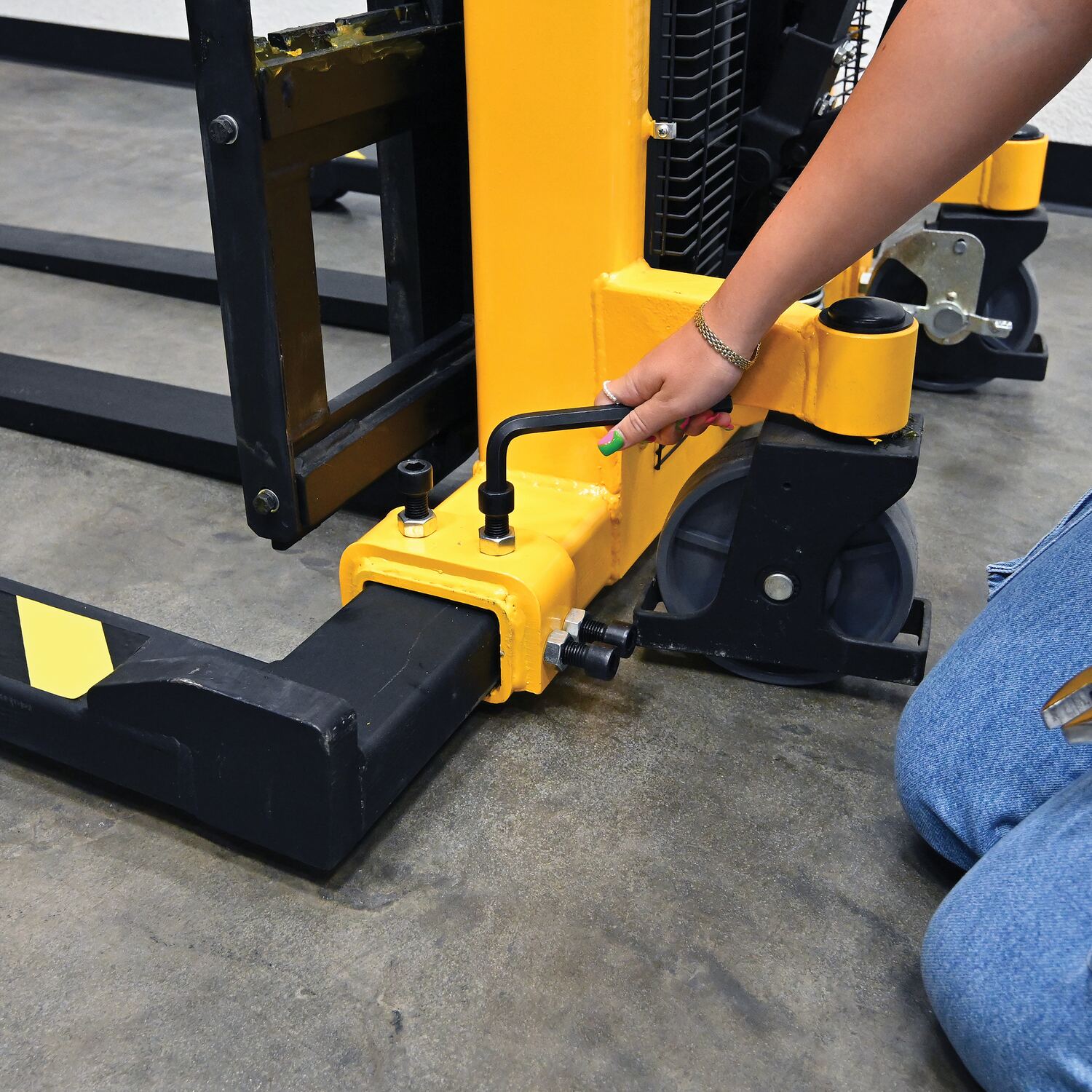

How do I adjust the outriggers to sit level?
The outriggers are adjustable. To move the outriggers, tighten the bolts on the legs . Start by loosening them all and the unit will sit level. Tighten the bolts just until they start to touch the outrigger frame. If needed, adjust the legs to level it, by tightening the top bolts on the leg opposite of the wheel needing lowered.
What is the deck size for the platform (VWS-DK)?
The platform option is 21-3/4"x29-1/2"
What is the maximum width between the outer leg supports?
The maximum width is 50".
What is the deck size for the platform (VHPS-DK)?
The platform option is 27 1/4" x 42"
What is the distance from the wheel base to the end of the fork?
It is 12" from the wheel base to the end of the fork.
What is the thickness of the forks?
The forks are 1-3/4" thick.

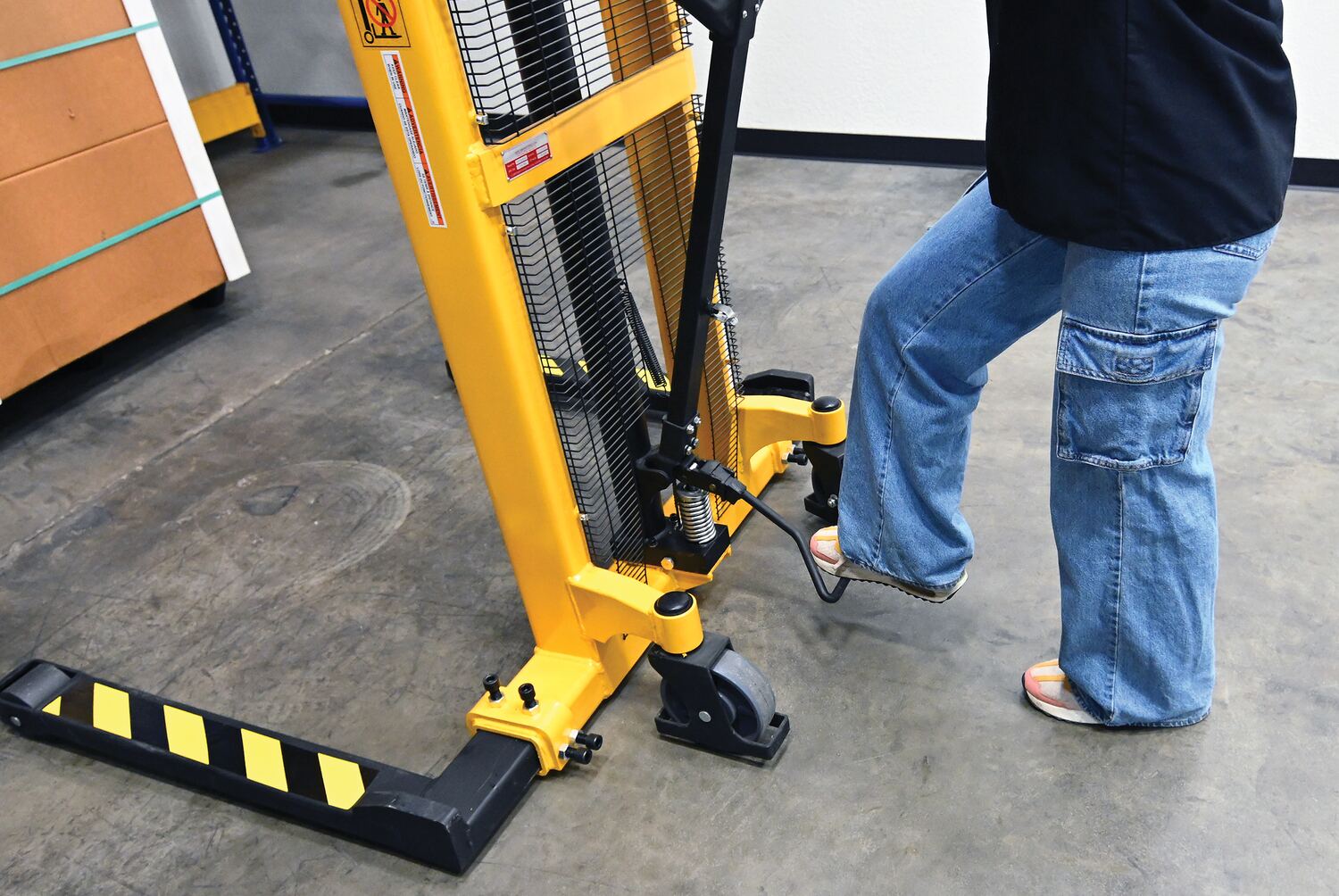

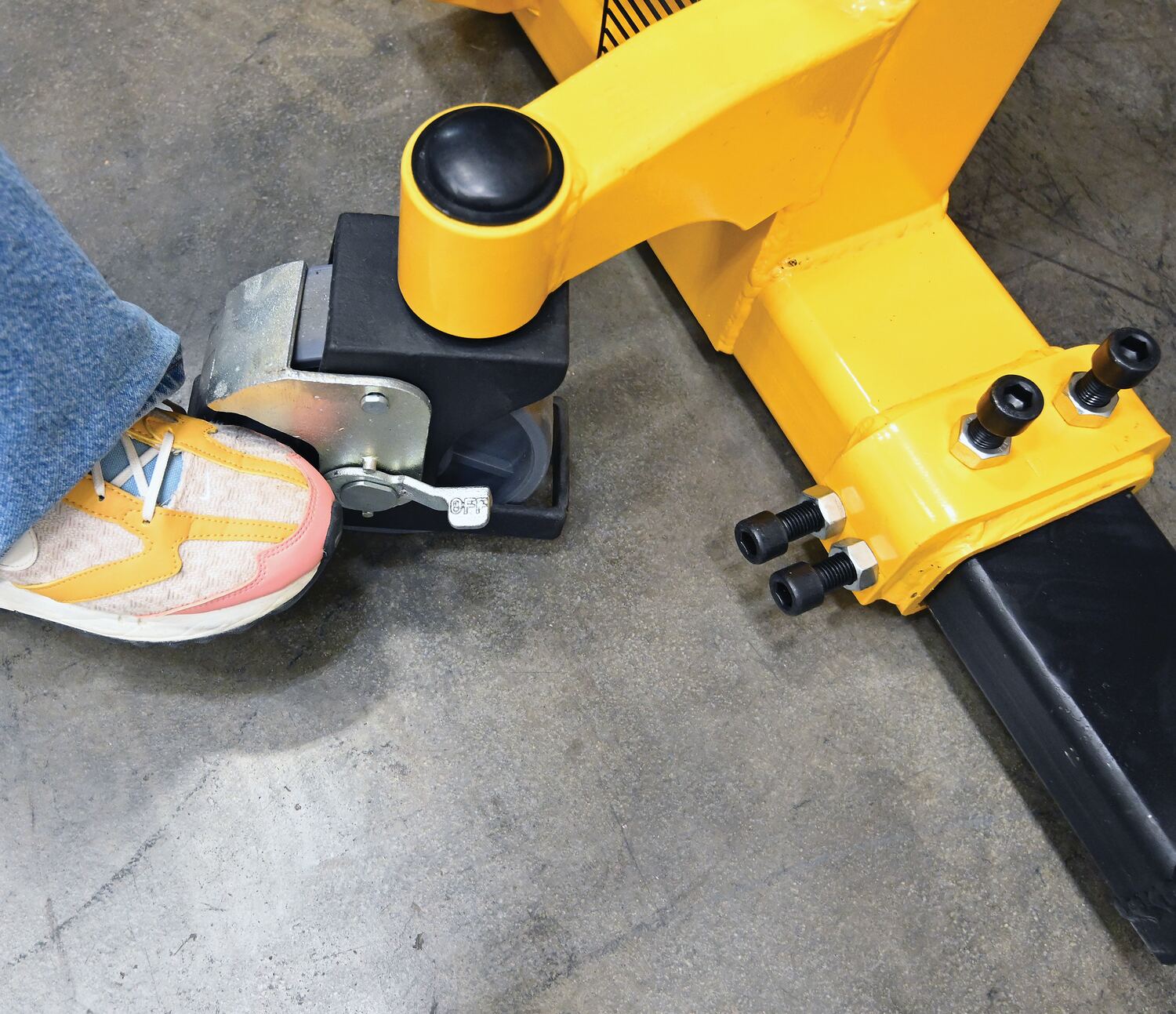

Is there a foot control option for the VHPS-2200-AA
VHPS-2200-AA is BOTH a hand and foot operated lift.
Are the forks on this unit adjustable to work with different size pallets?
The VHPS-2000-AA has adjust able forks from 8 1/2 in wide to 26 in wide.
What is the height of the black legs from ground to top of leg?
6-1/2"
Can the handle be removed on the VWS-770-AA and use a drill to operate the lift?
At this time the standard unit cannot be actuated using a power drill.
For model VWS-770-AA-DC it says "Lifting Speed Loaded (seconds): 3.35". Is the measure of travel 3.35 inches in 1 second?
Yes. 3.35" in 1 second.
What is the turning radius of this unit?
The turning radius of the VHPS-2200-AA is 47".
What is the width when the forks are at maximum opening?
The forks on the VHPS-3000-AA-17 at maximum would be 33".
Can the VHPS-DK option be used on VHPS-NM-1000-FF?
No, the VHPS-DK option cannot be used on VHPS-NM-1000-FF.
Is the battery charger for this model (VWS-770-FF-DC) a 3 or 4 prong?
3
What is the amperage for model VWS-770-FF-DC?
10 amps.
What is the run time on this unit (VWS-770-FF-DC)?
2-3 hours of continuous usage, 5-6 for intermittent usage.

Related or Similar Products:

More From Stackers





Manual & Electric Stackers




Stackers are designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. Maintenance free and easy to use. Full height push handle for easy steering and excellent visibility through welded mesh guard. Suffix AA stands for adjustable forks (works with pallets and skids) while FF stands for fixed forks (skids only).

Manual Hand Winch Stackers feature a heavy duty mast and a unique winch design for easier and safer lifting. Lift and lower by hand winch and steel cable mechanism. 3/4" lift per handle revolution. Two rigid and two swivel wheels with brakes for easy maneuvering.

Manual Hydraulic Hand Pump Stackers are sturdy and compact to fit through standard height doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 3/4" lift per handle pump. Two rigid and two swivel wheels standard.

Electric Winch Stacker feature a heavy duty mast and a DC winch for easier and safer lifting. Lift and lower by DC winch and steel cable mechanism. Full height push handle for easy steering and excellent visibility through welded mesh guard. DC winch has one 12V battery. Two rigid and two swivel wheels with brakes for easy maneuvering.

VHPS-2000-AA_A.jpgModel VHPS-2200-AA includes both, foot and hand operated lifting capabilities.
VHPS-550-AA-F72_A.jpgModel VHPS-550-AA-F72 is a manual adjustable fork stacker with extra long 72" forks.


Drum Roll Reel Forks

Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Stackers with Powered Drive and Powered Lift | Pallet Master/Servers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Narrow Mast Stackers with Powered Drive and Powered Lift | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)


Model # Description Attributes Net Wt.
(lbs)

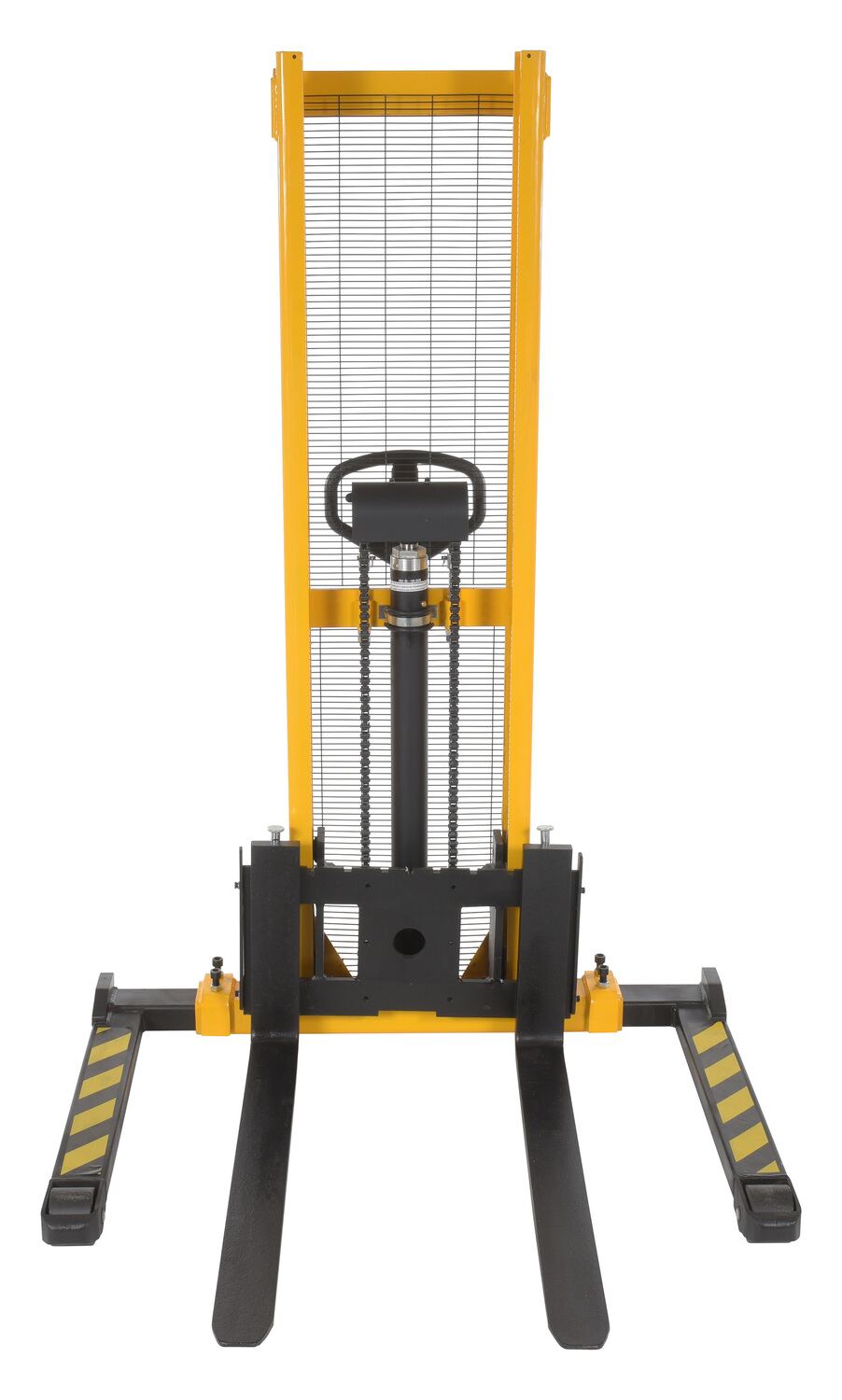

VHPS-2000-AA VHPS-2000-AASteel Manual Stacker Adjustable Forks/Legs 2,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 2000
Service Range (in.): 2 to 63		860

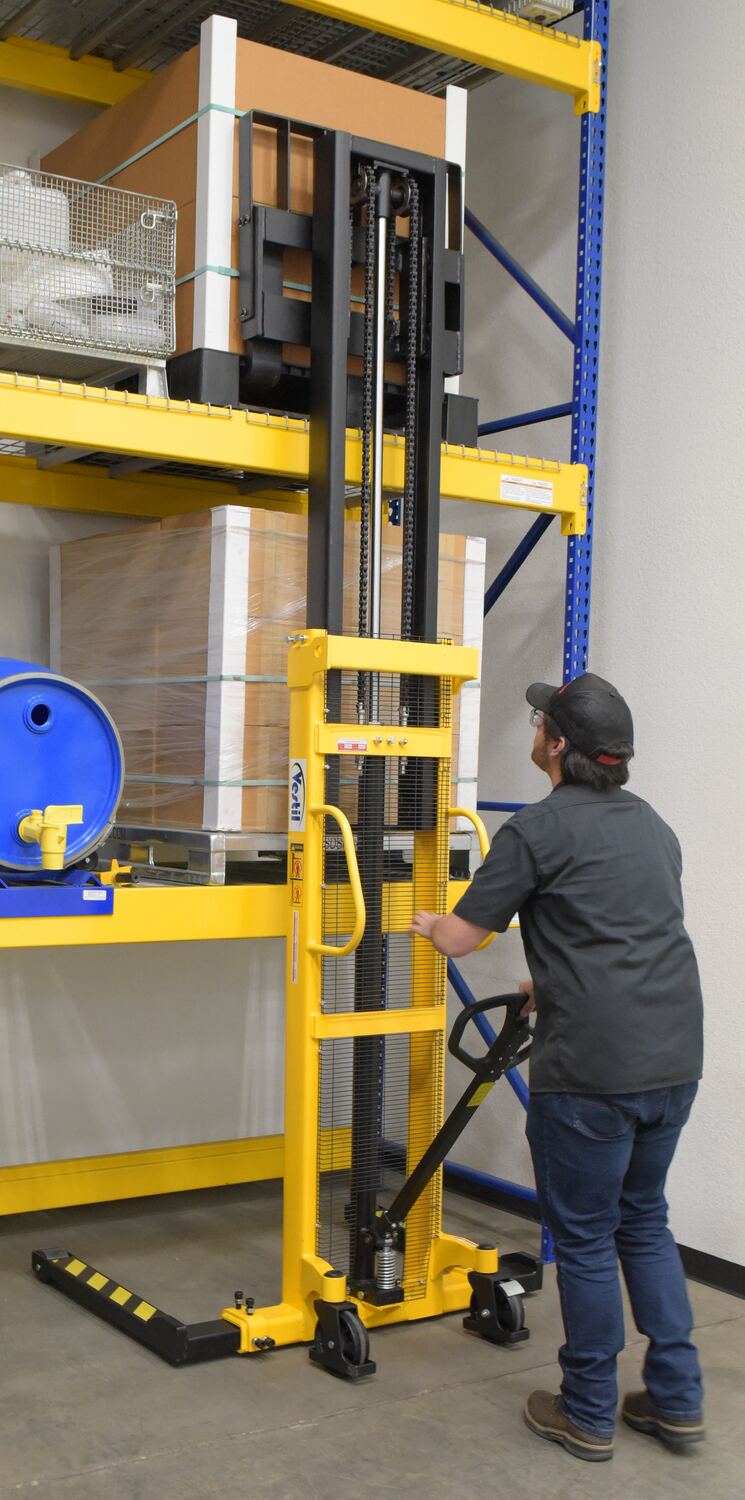

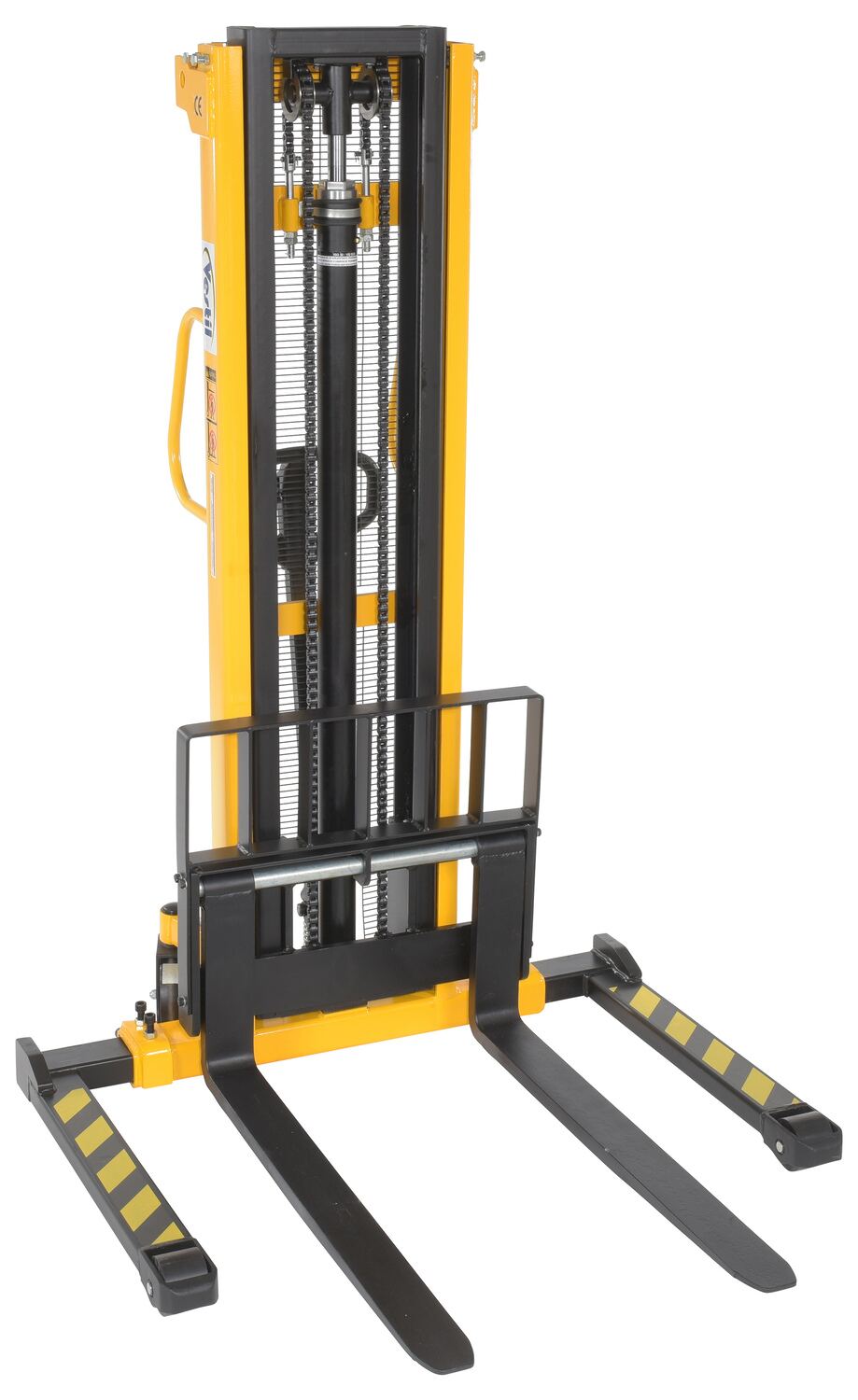

VHPS-2000-AA-118 VHPS-2000-AA-118Steel Stacker Manual Pump 2 - 118 In. 1,500 - 2,000 Lb. Capacity Black / YellowPower Source: Manual
Minimum Lift Height (in): 2.125		996

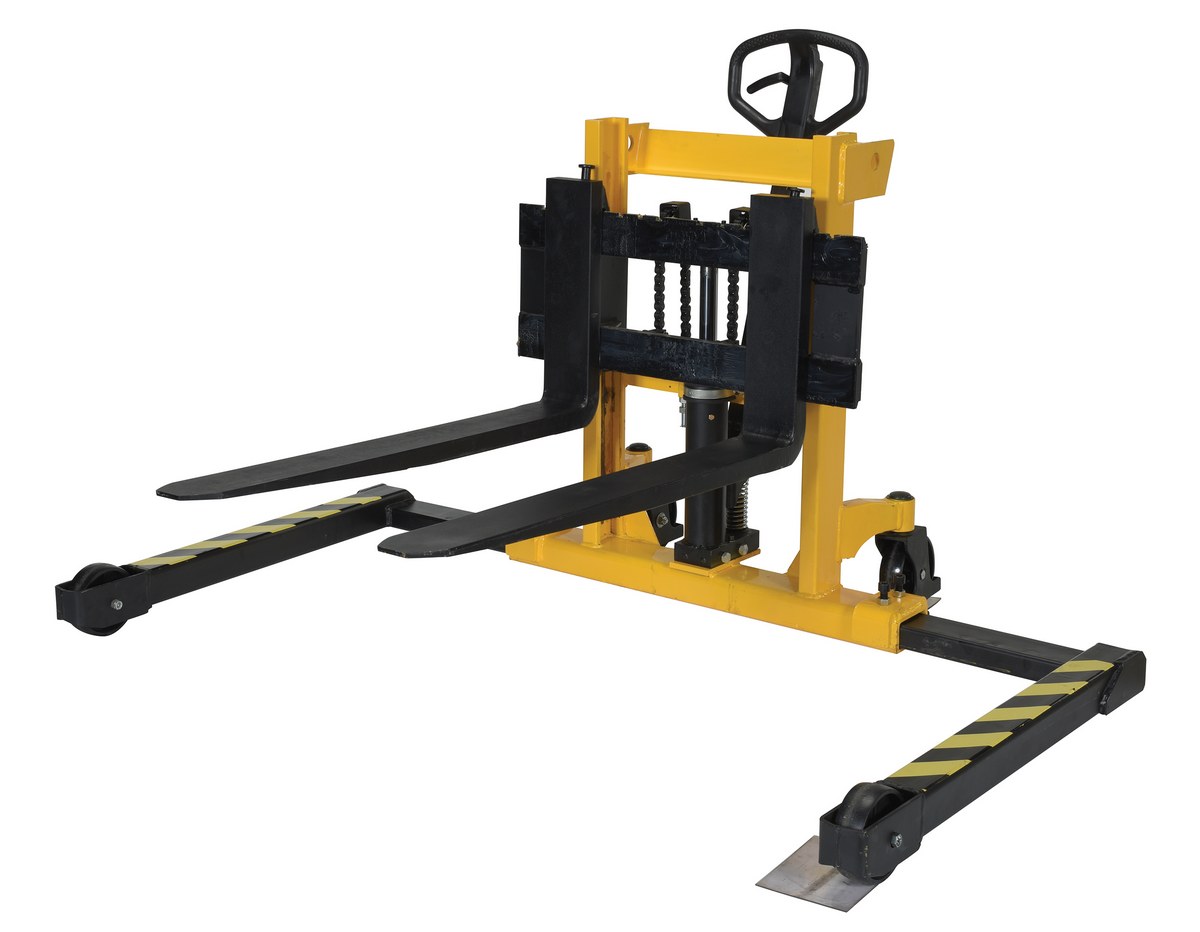

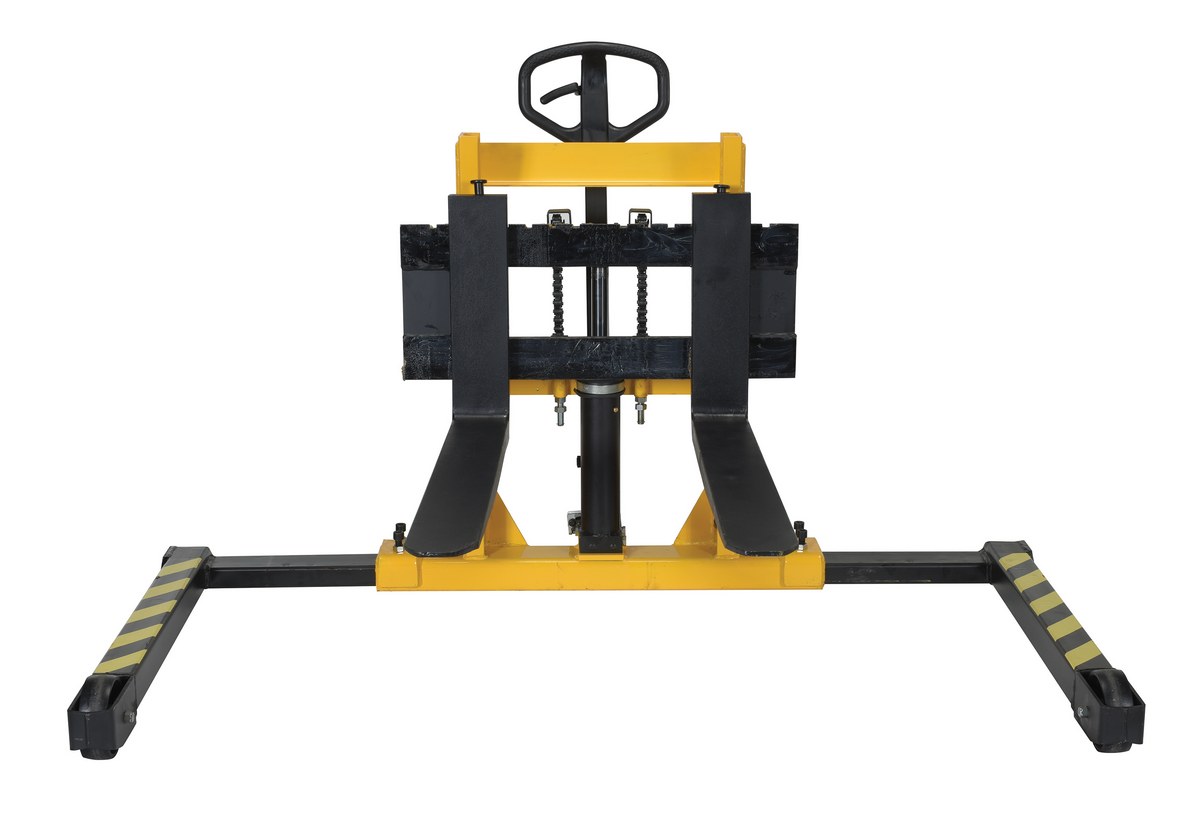

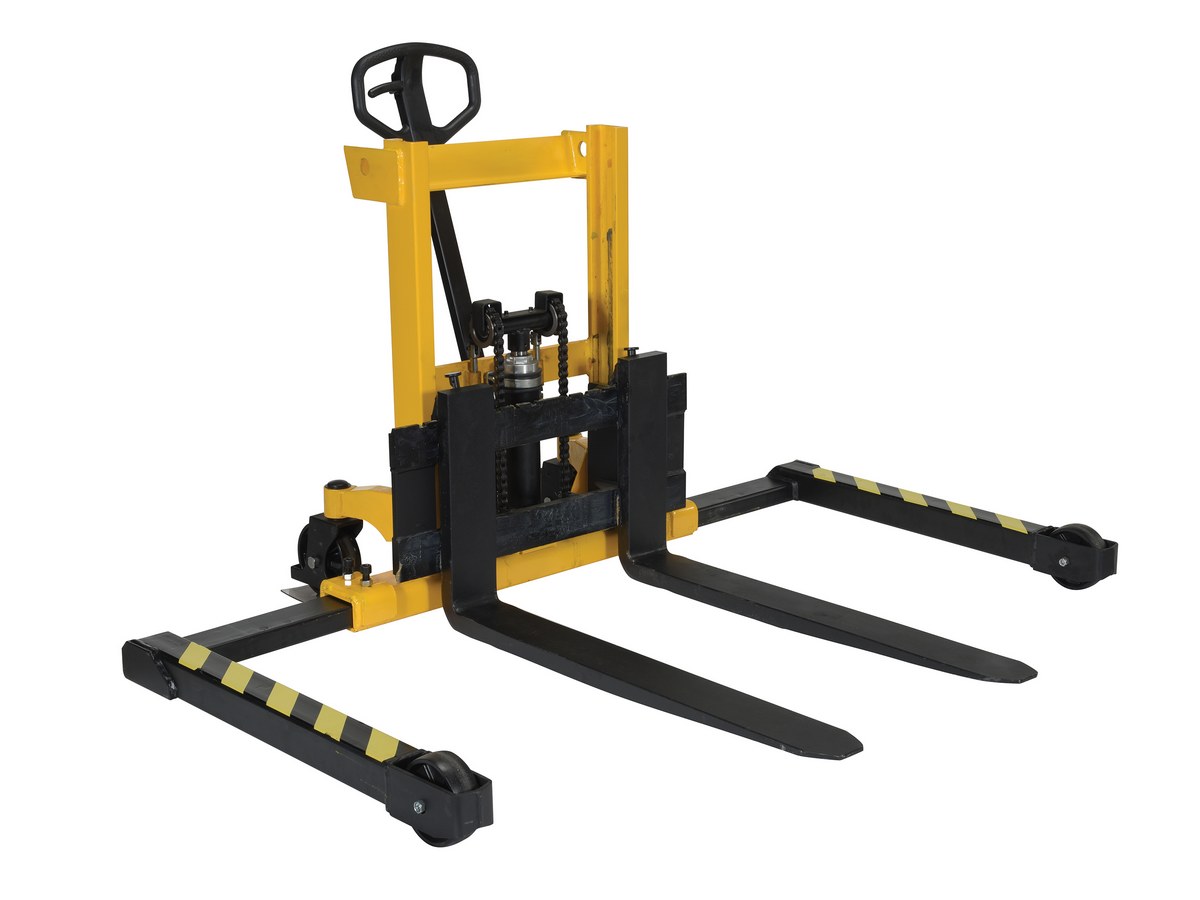

VHPS-2000-AA-17 VHPS-2000-AA-17Steel Stacker Manual Pump 3 - 17 In. 1,500 - 2,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 2000
Service Range (in.): 3 to 17		696

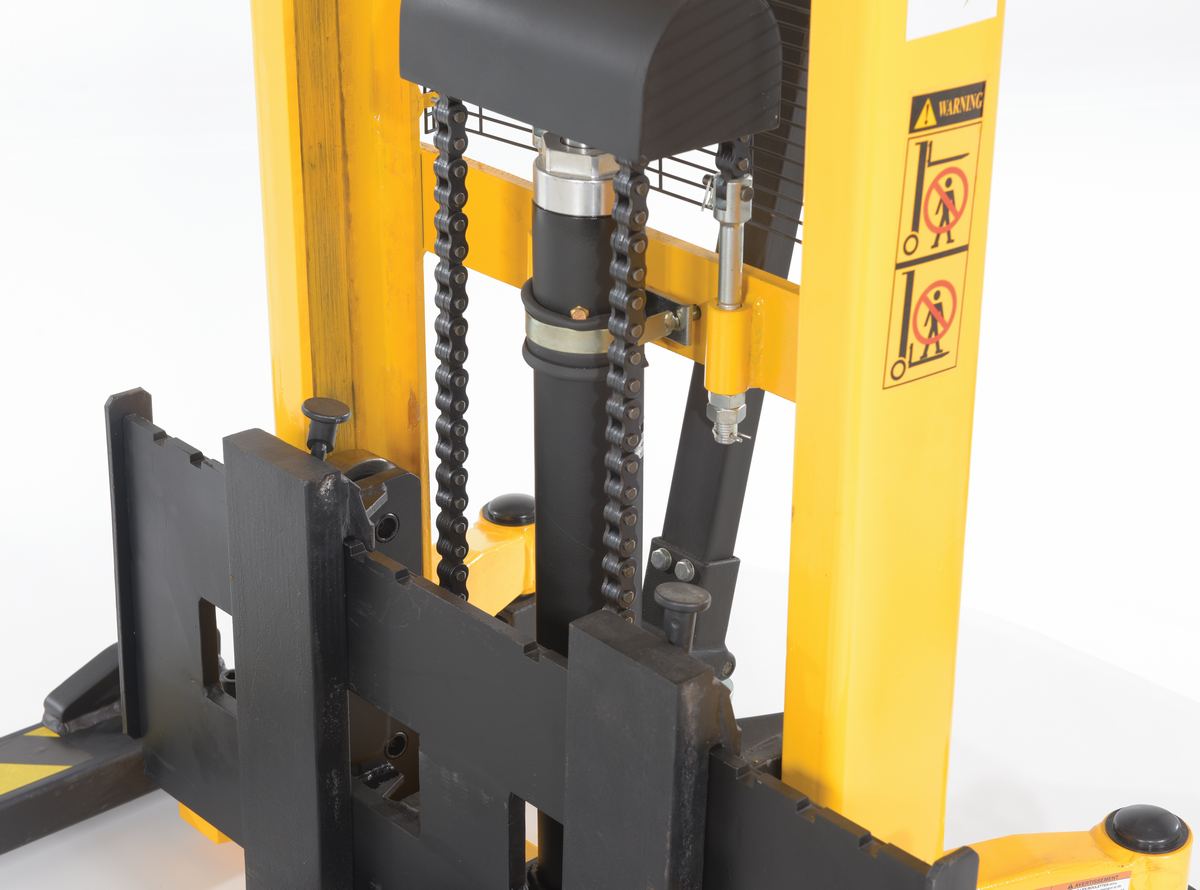

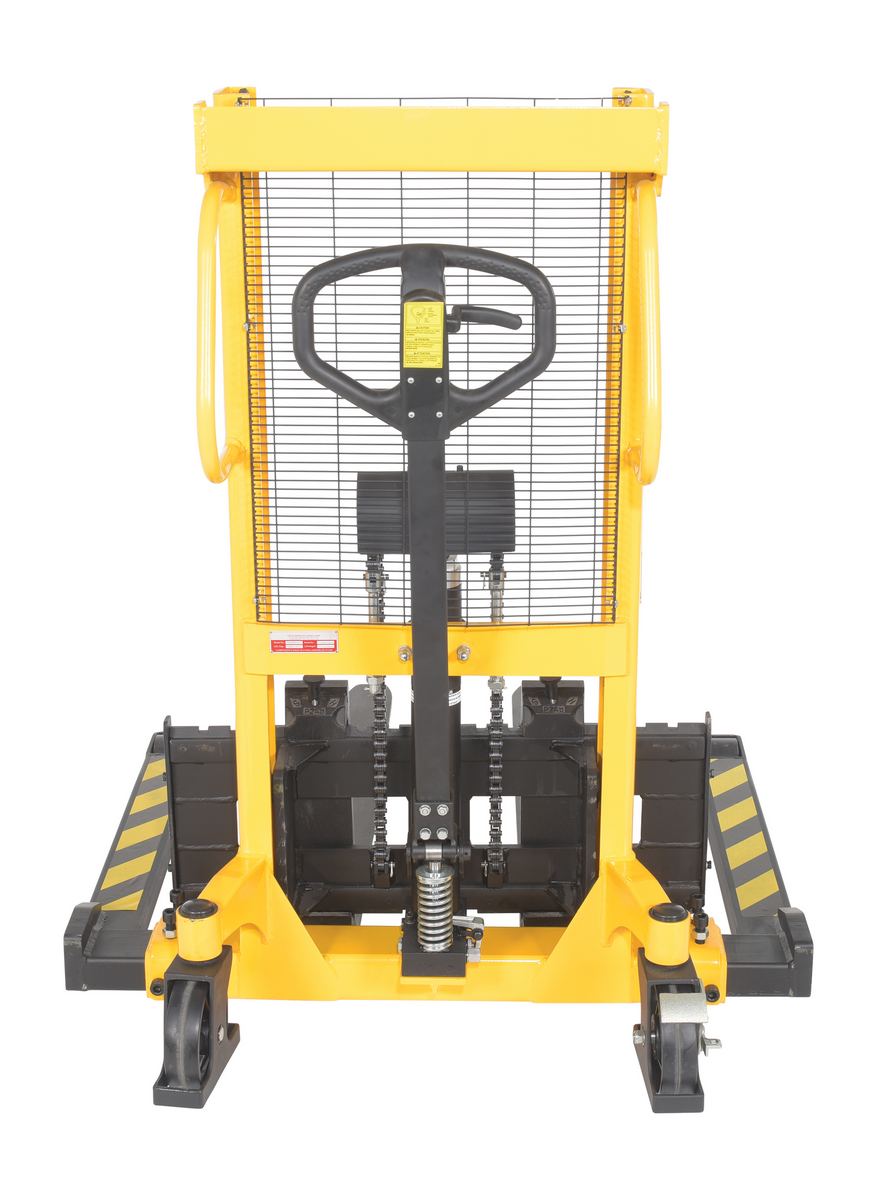

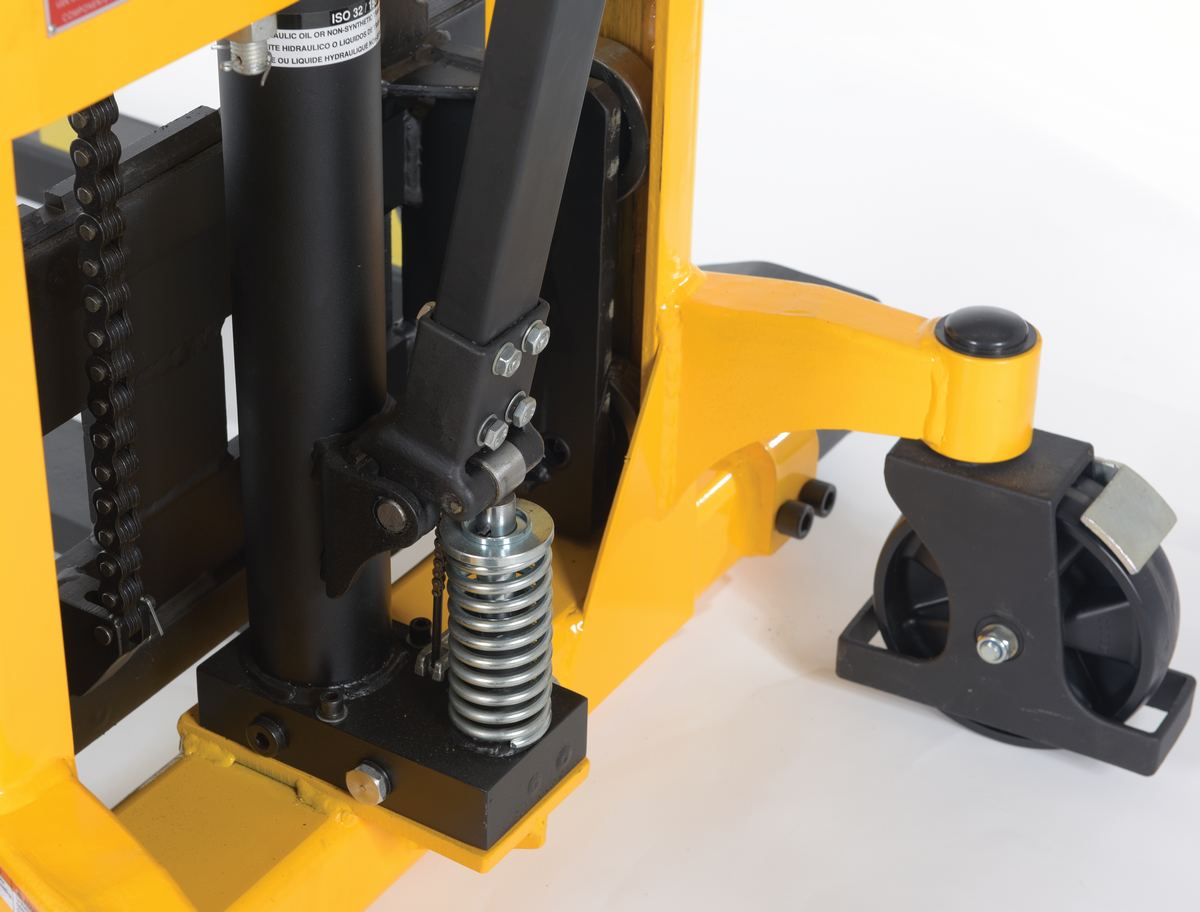

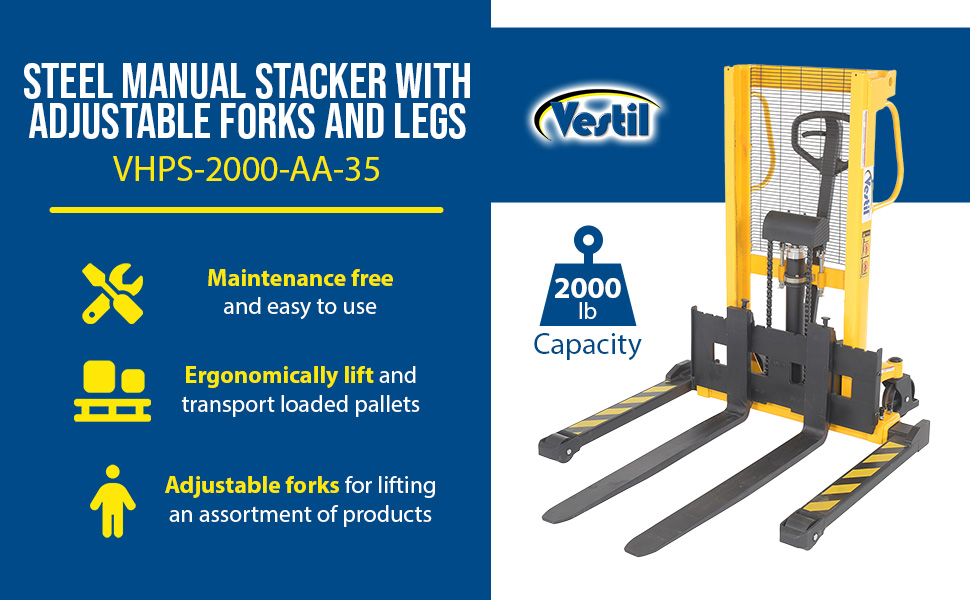

VHPS-2000-AA-35 VHPS-2000-AA-35Stacker Manual Pump 3 - 35 In. 2,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 2000
Service Range (in.): 3 to 35		764
VHPS-2000-FF VHPS-2000-FFSteel Manual Stacker Fixed Forks/Legs 2,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 2000
Service Range (in.): 3-3/4 to 63		570

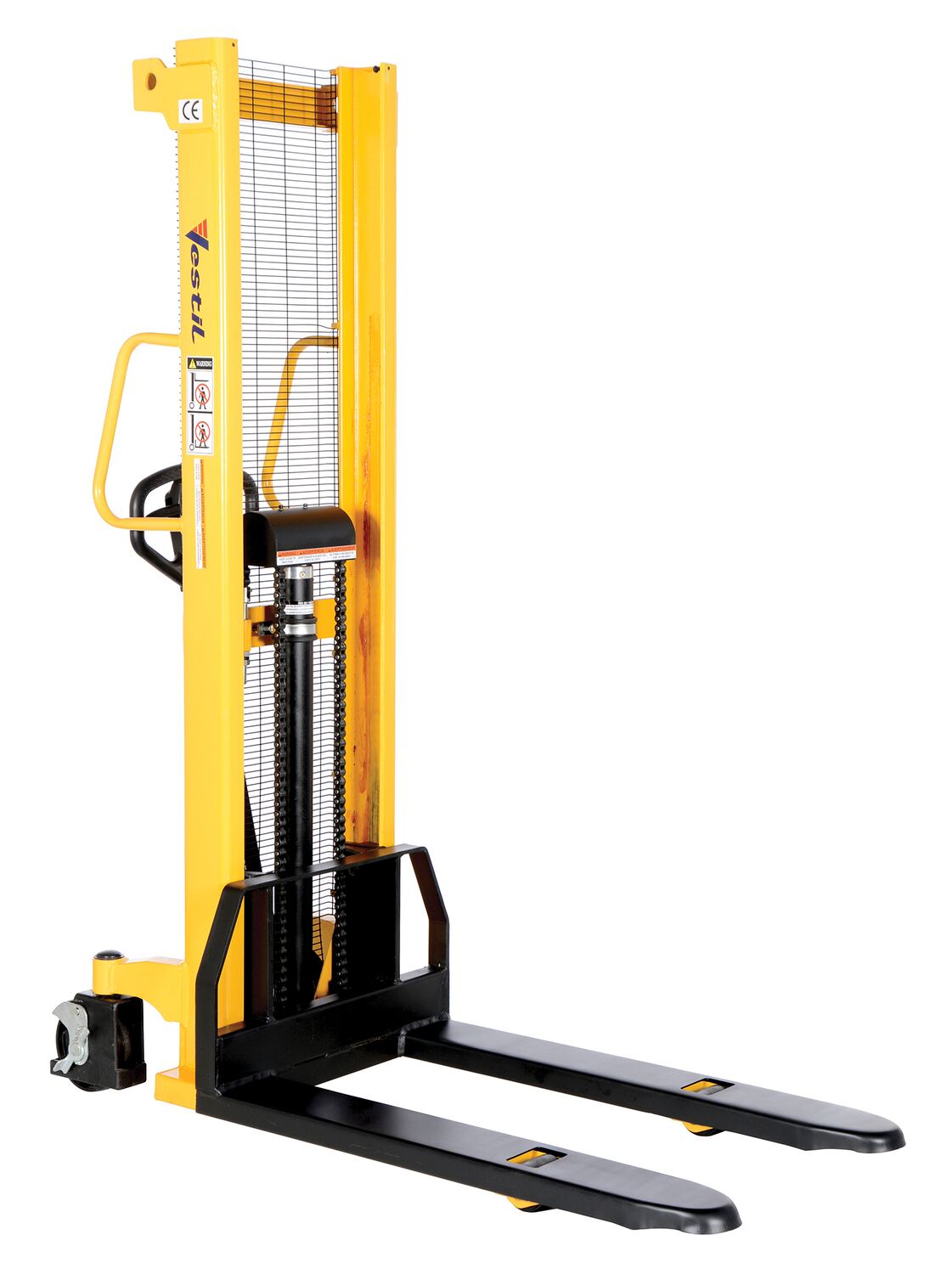

VHPS-2000-FF-118 VHPS-2000-FF-118Steel Stacker Manual Pump 3 - 118 In. 1,500 - 2,000 Lb. Capacity Black / YellowPower Source: Manual
Minimum Lift Height (in): 2.125		722

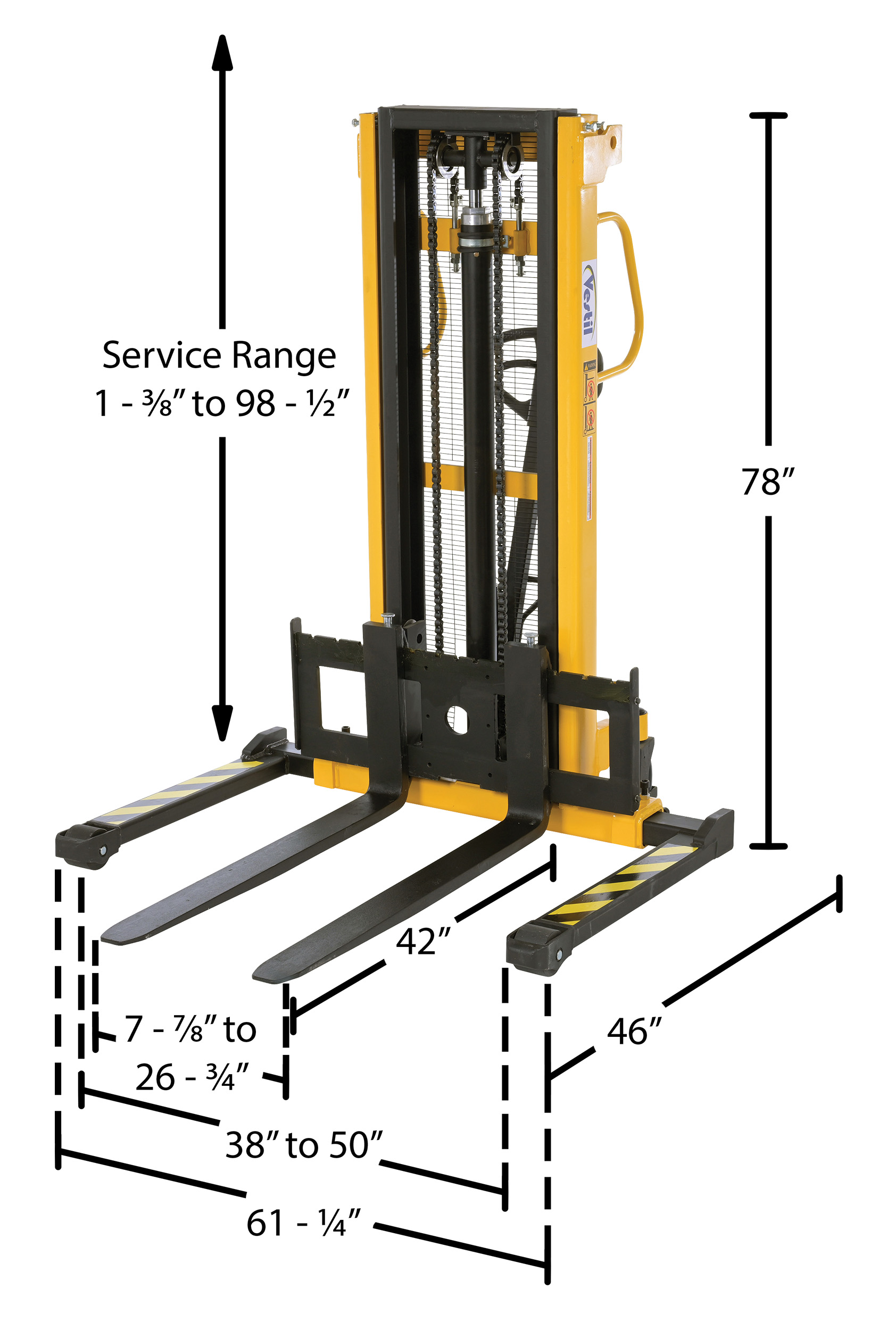

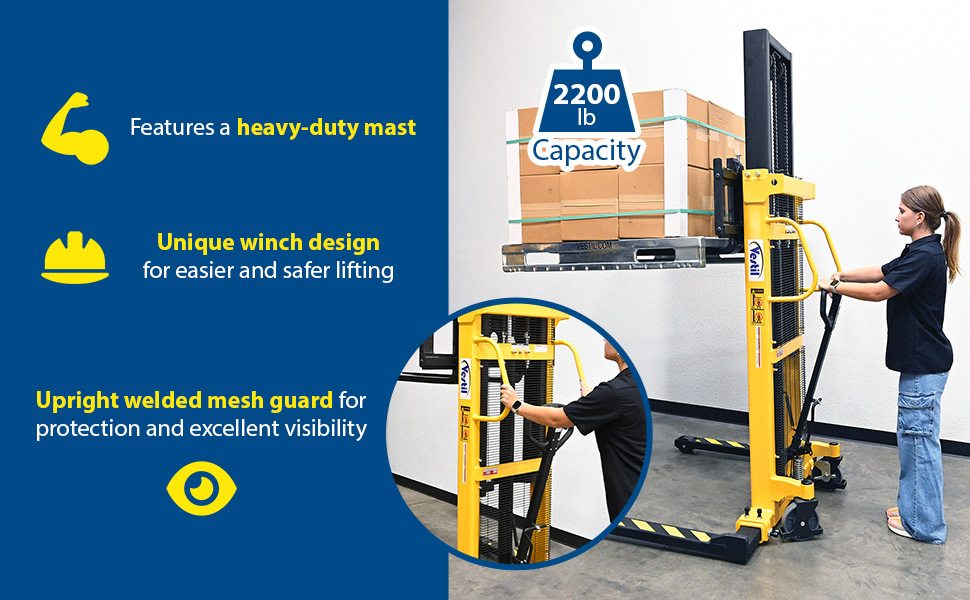

VHPS-2200-AA VHPS-2200-AASteel Manual Stacker Adjustable Forks/Legs 2,200 Lb. Capacity BlackUniform Capacity (lb.): 2200
Service Range (in.): 1.375 to 98.5		972

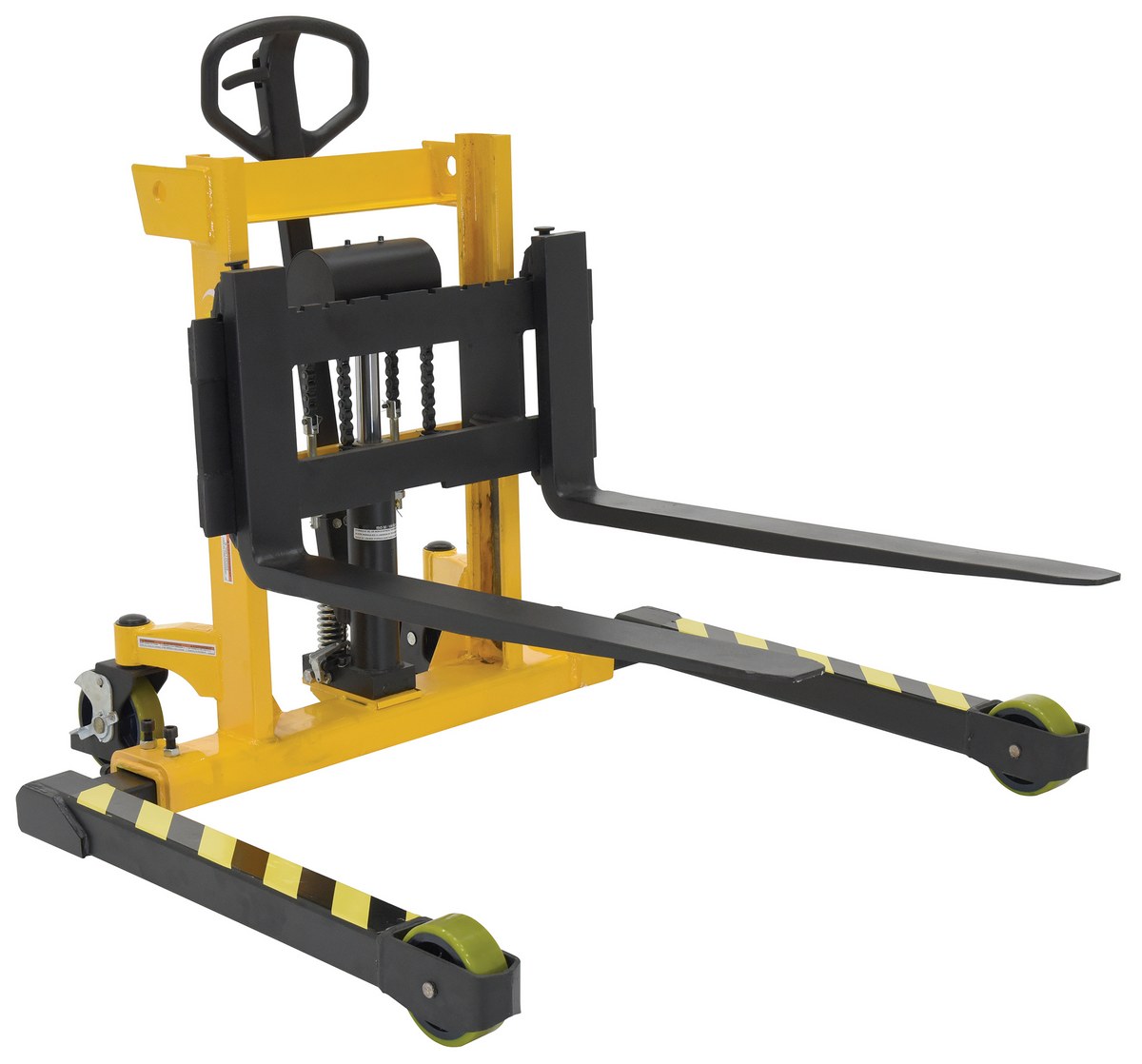

VHPS-3000-AA-17 VHPS-3000-AA-17Steel Stacker Manual Pump 2-5/8 In. - 17 In. Fork Height 3,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 3000
Service Range (in.): 2-5/8 to 17		766

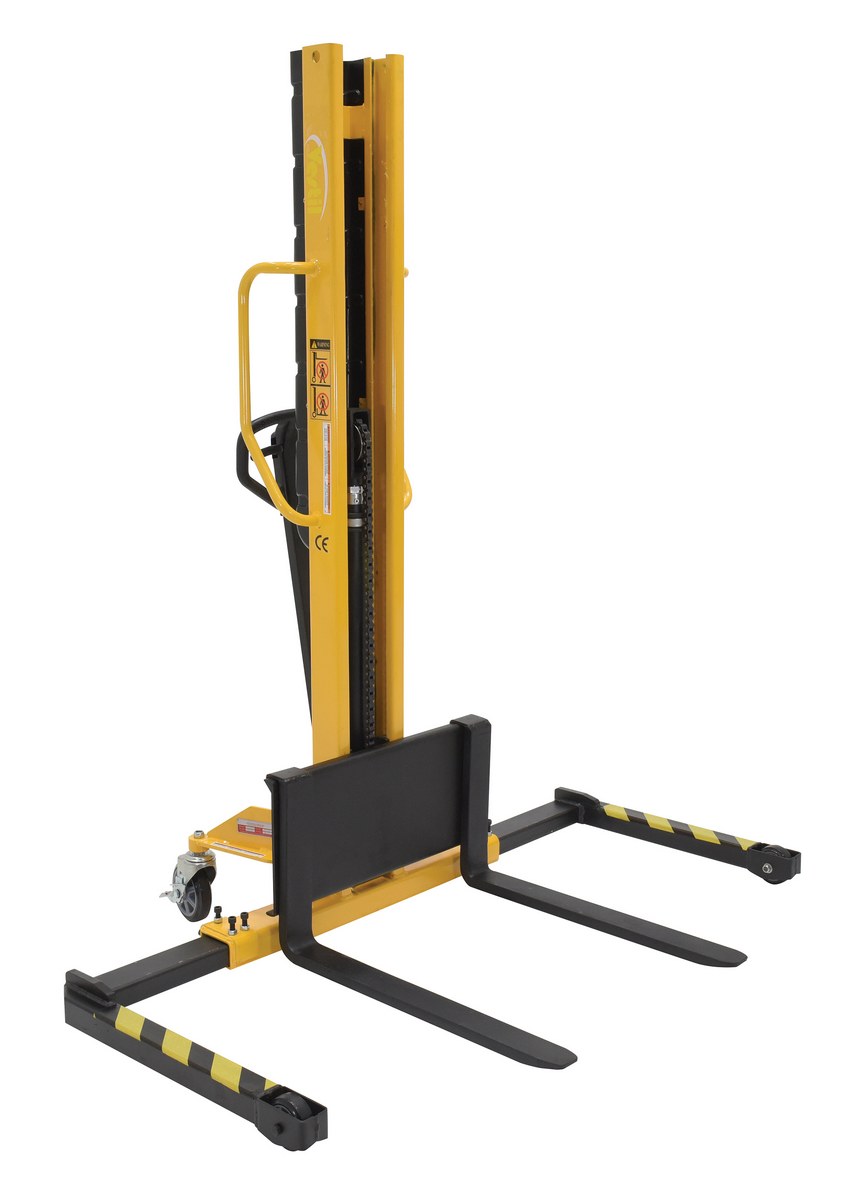

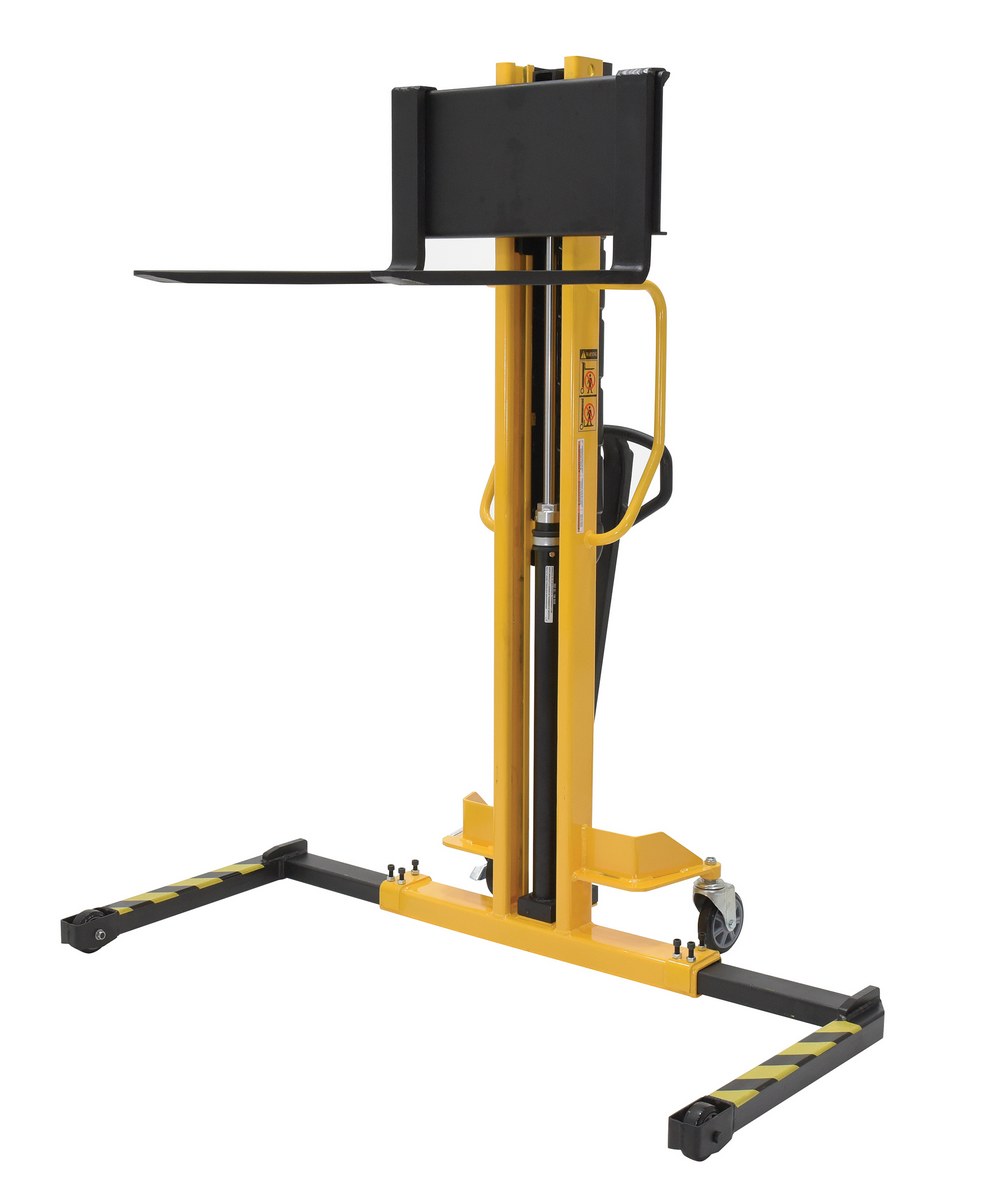

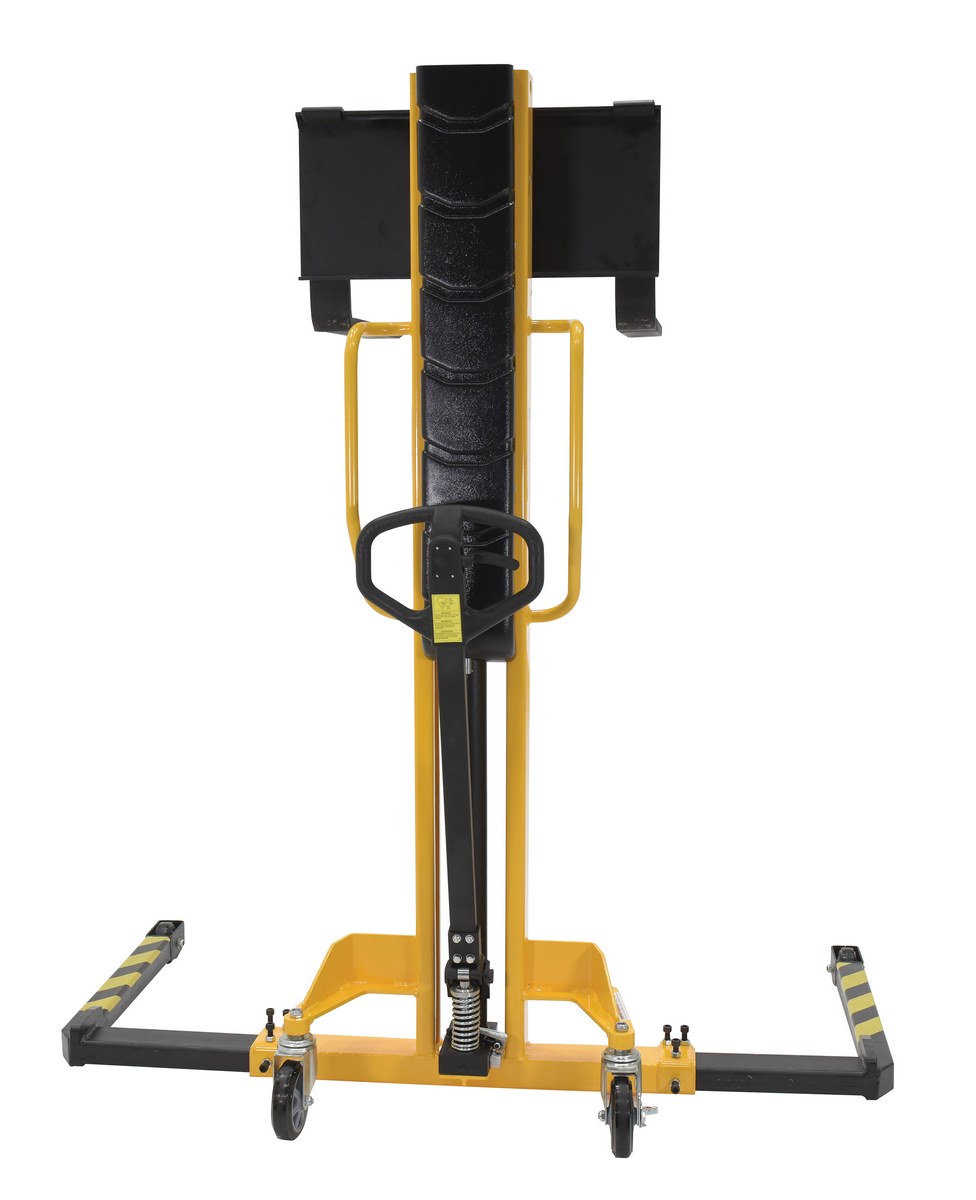

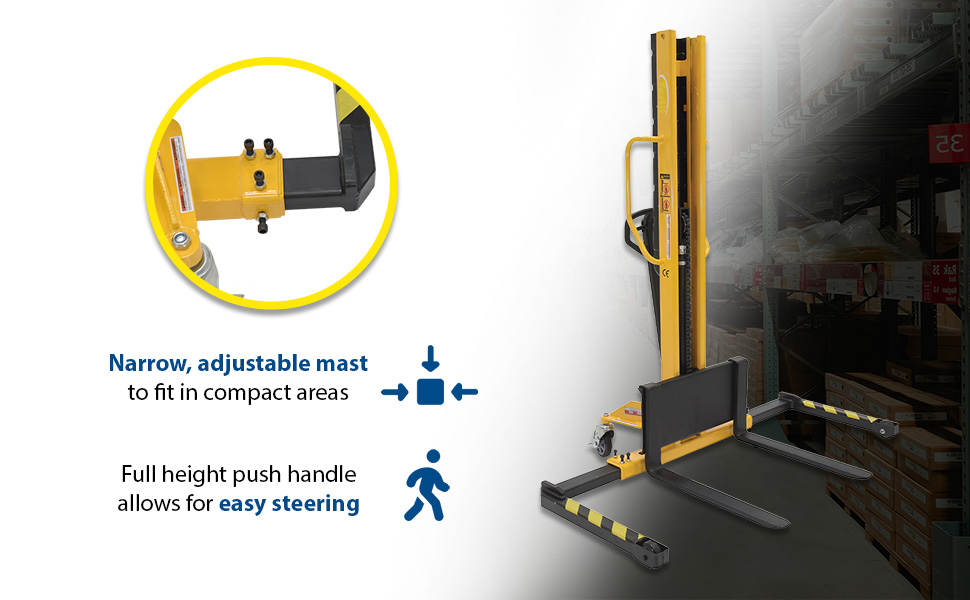

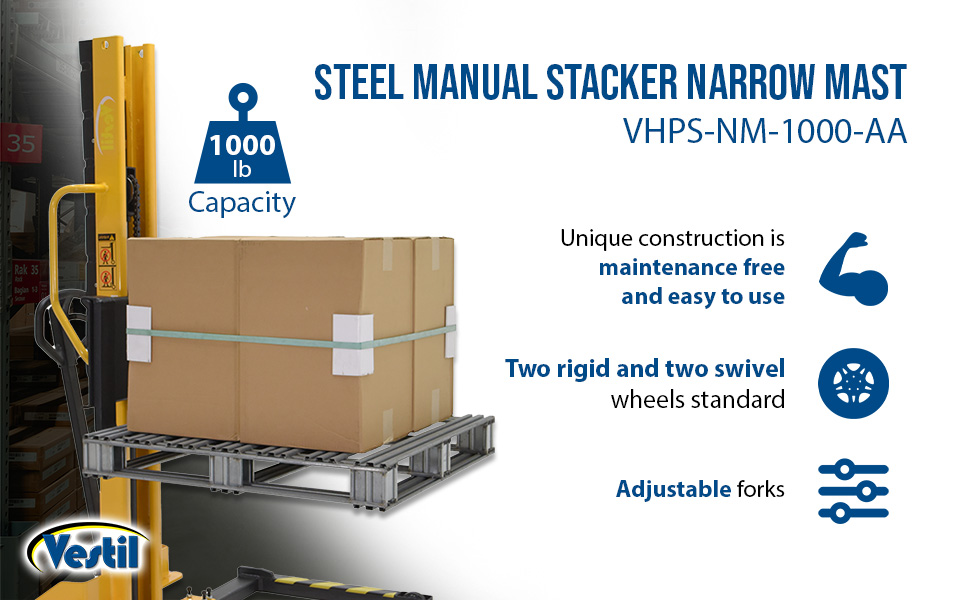

VHPS-NM-1000-AA VHPS-NM-1000-AASteel Manual Stacker Narrow Mast Adjustable Forks/Legs 1,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 1,000
Service Range (in.): 2-1/8 to 62		472

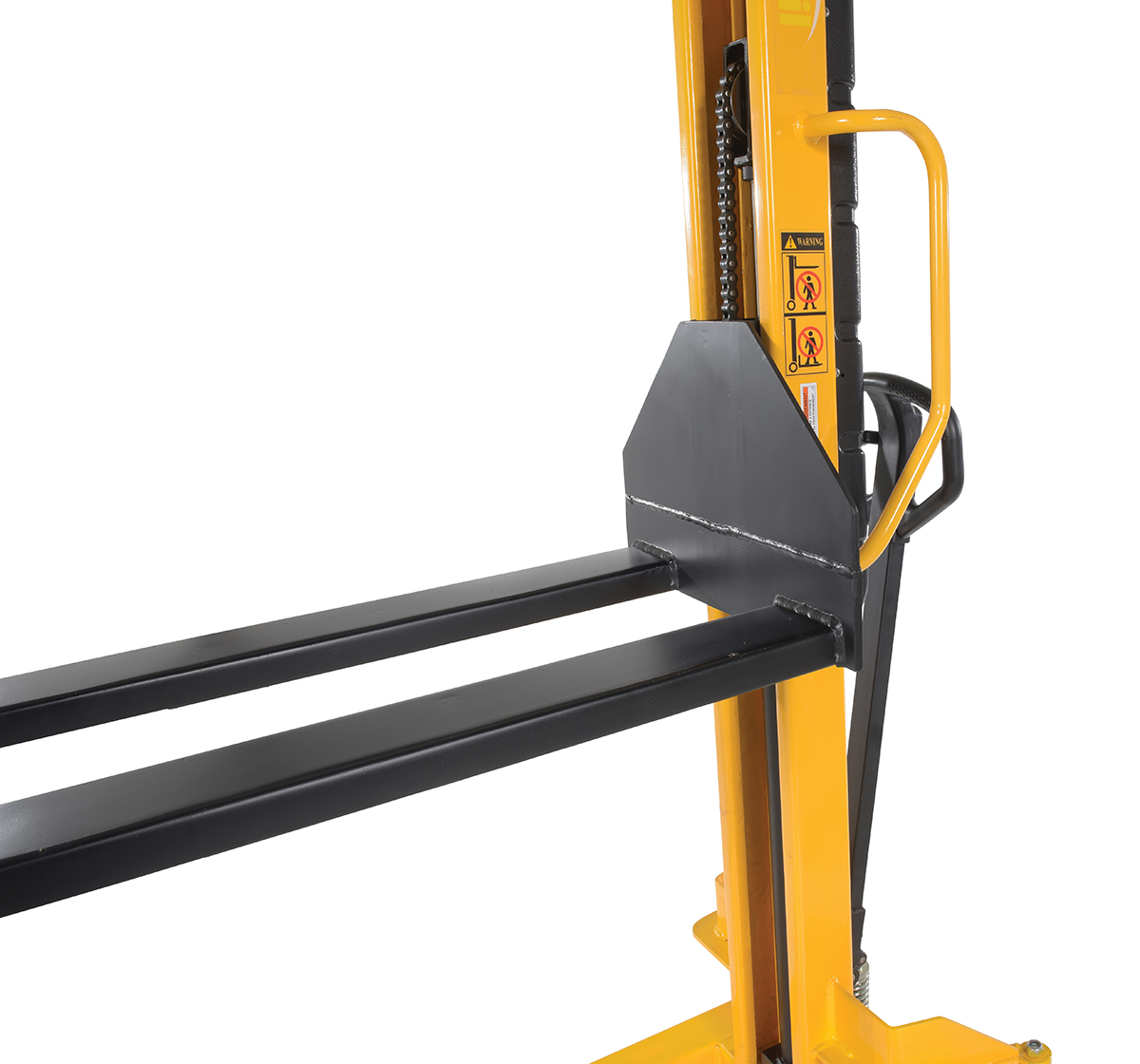

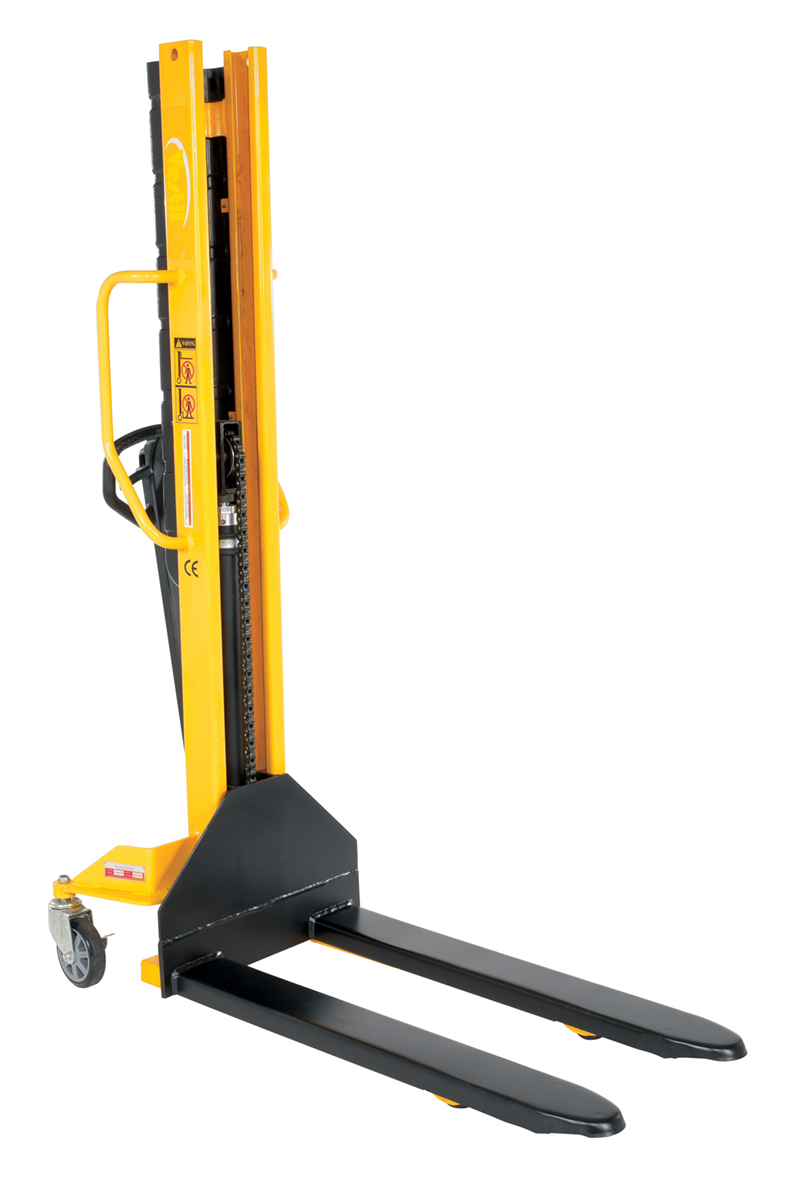

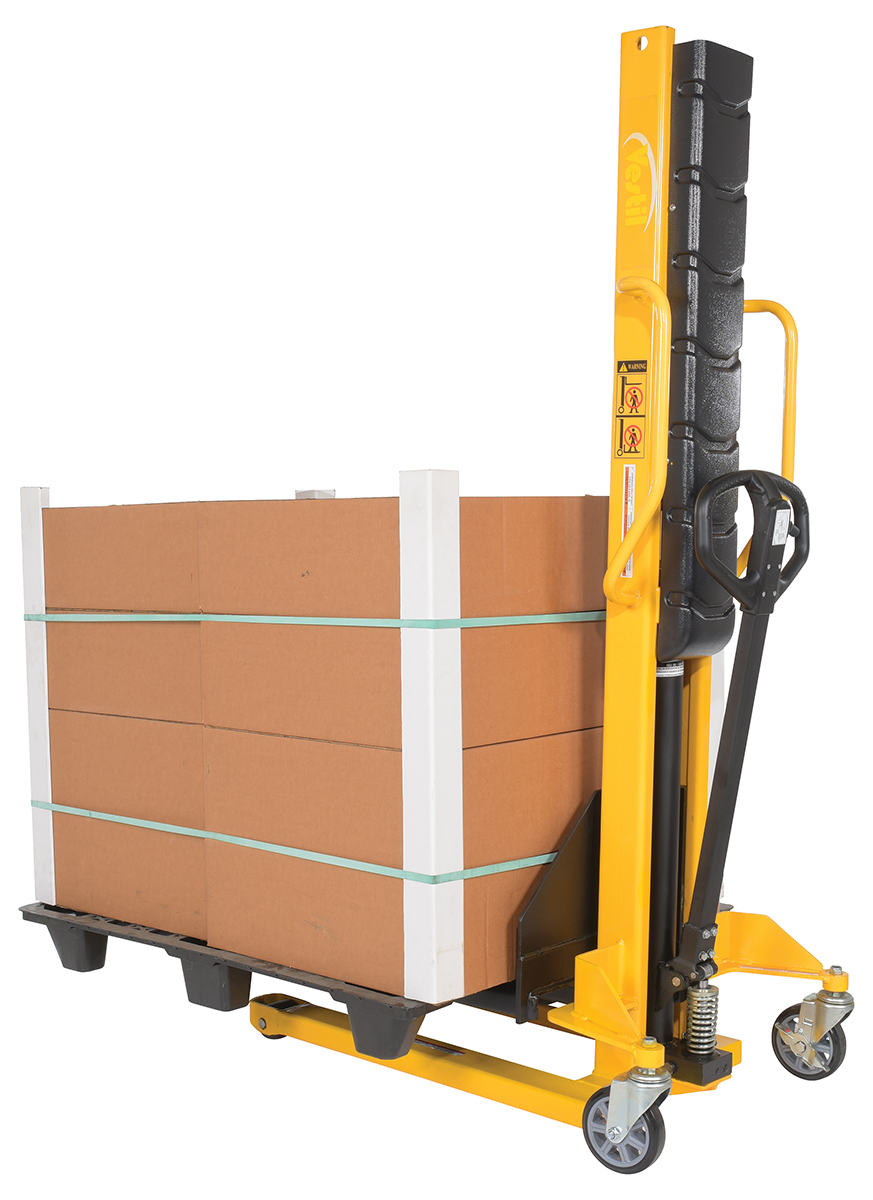

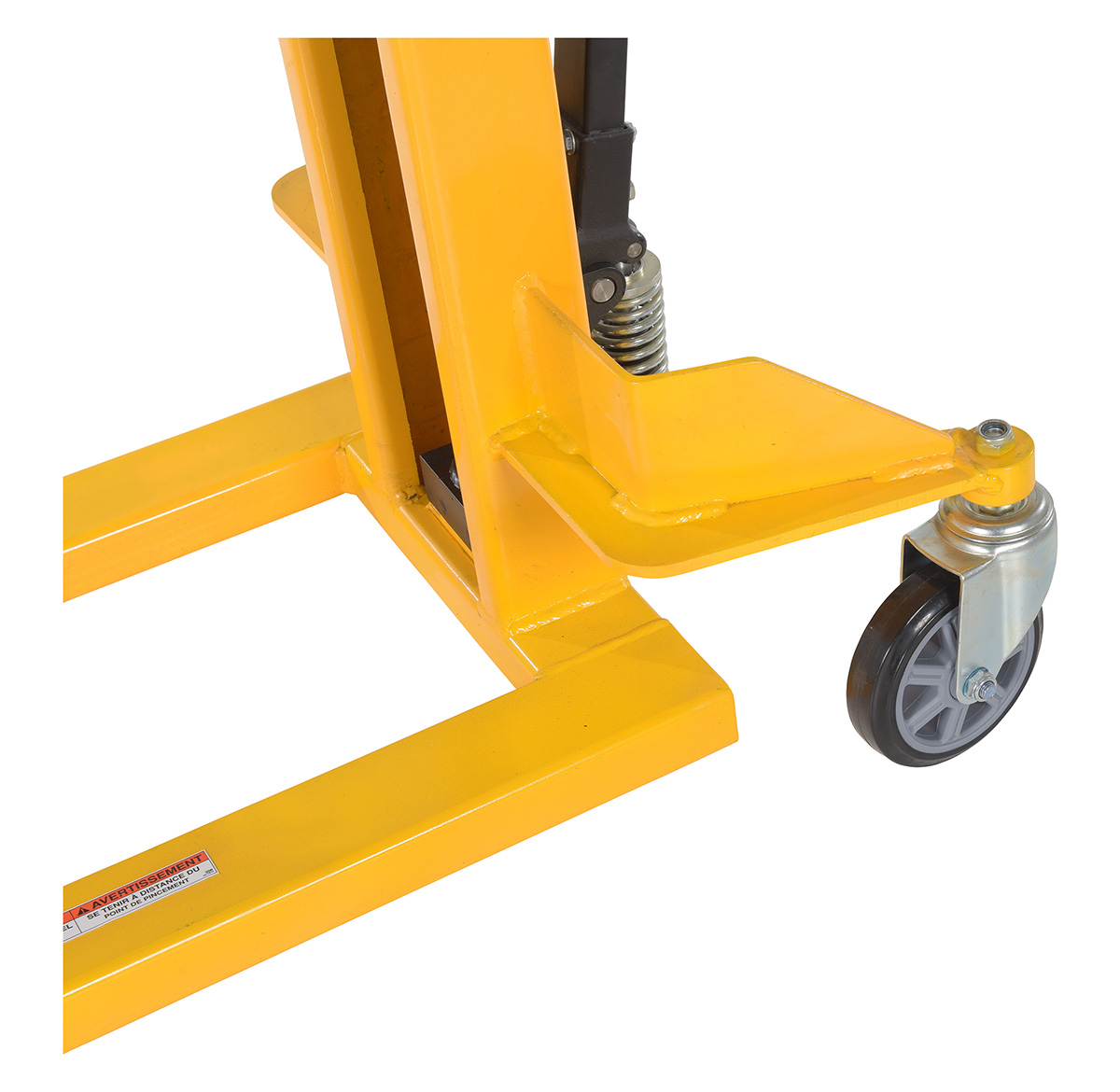

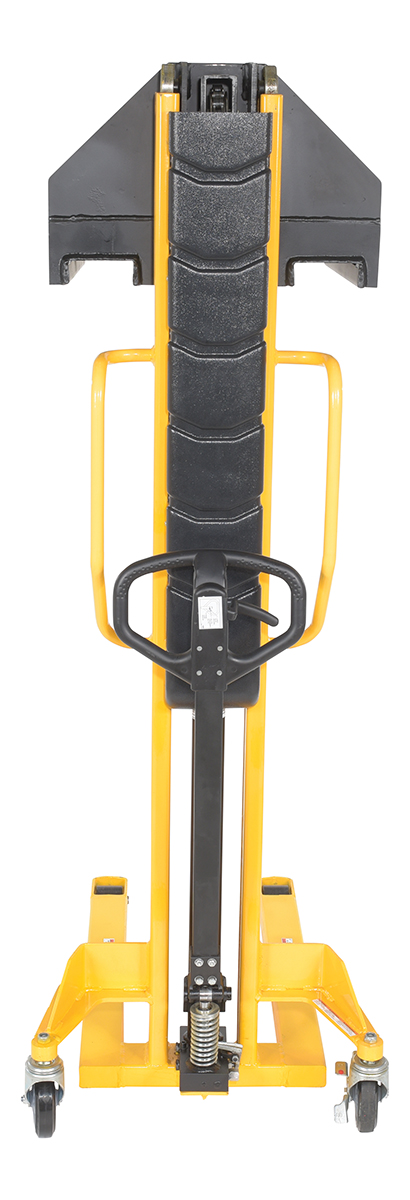

VHPS-NM-1000-FF VHPS-NM-1000-FFSteel Manual Stacker Narrow Mast Fixed Forks/Legs 1,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 1,000
Service Range (in.): 3-1/2 to 62		470

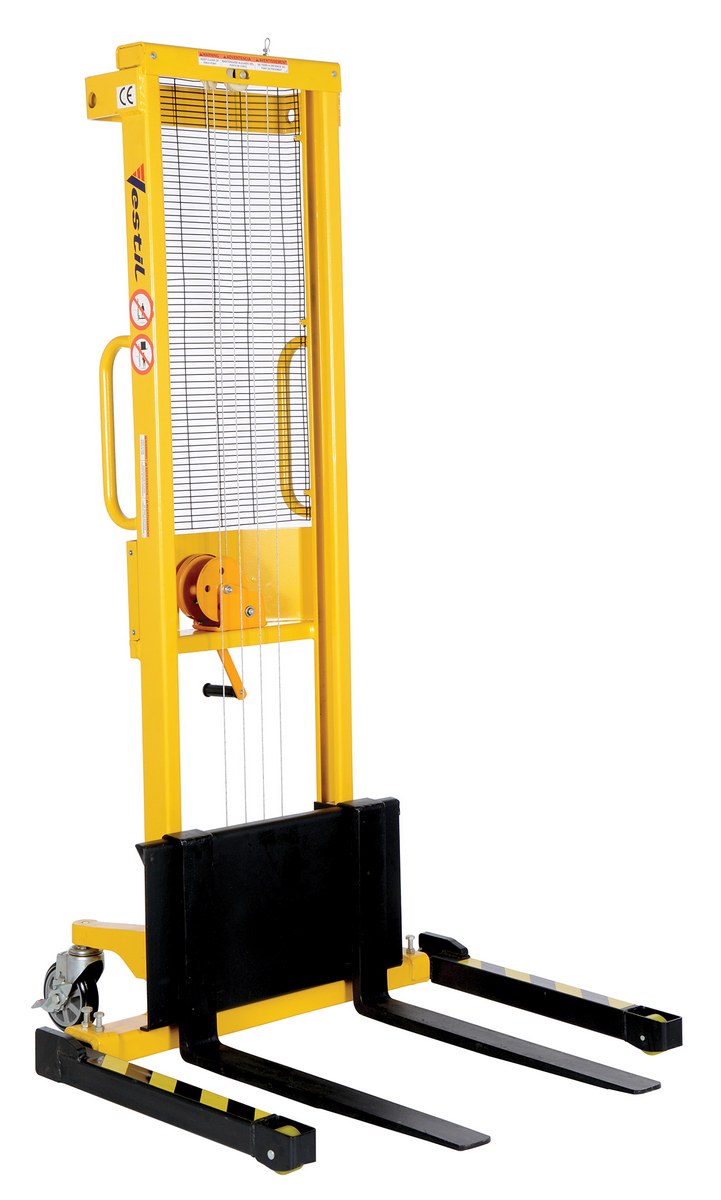

VWS-770-AA VWS-770-AASteel Stacker with Adjustable Manual Hand Winch 770 Lb. Capacity Black / YellowUniform Capacity (lb.): 770
Lowered Height (in.): 1-9/16		396
VWS-770-AA-DC VWS-770-AA-DCSteel Stacker with Adjustable DC Powered Winch 770 Lb. Capacity Black / YellowUniform Capacity (lb.): 770
Lowered Height (in.): 1-9/16		566

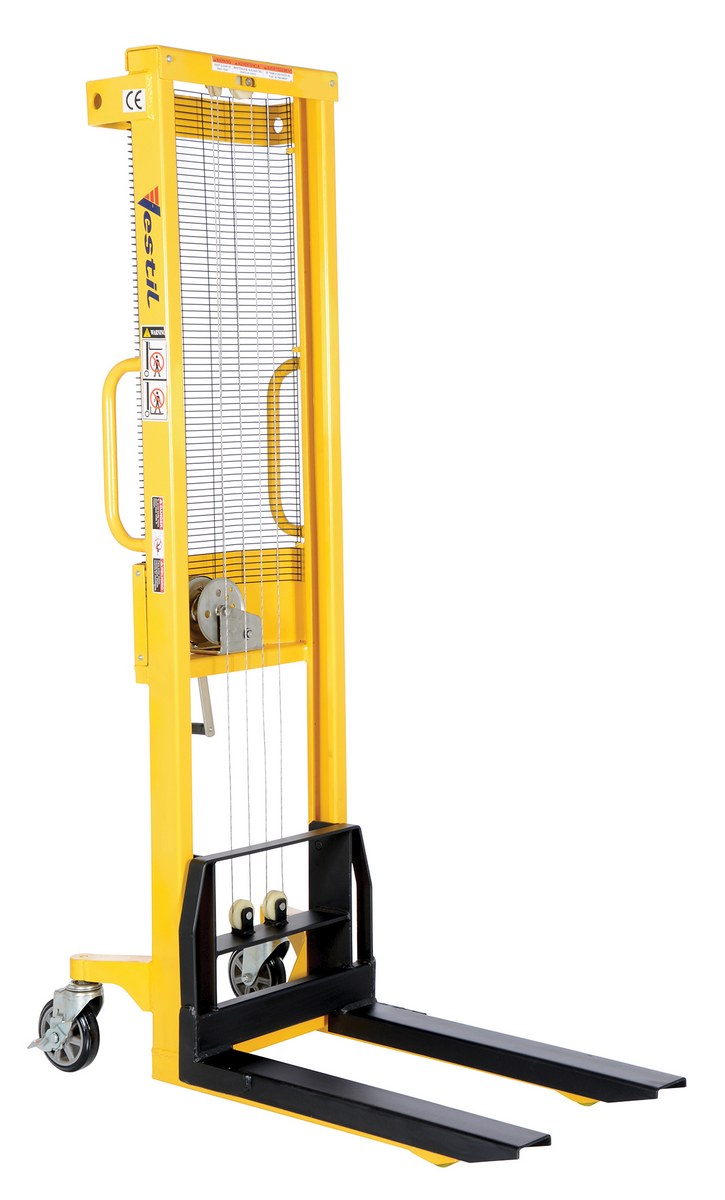

VWS-770-FF VWS-770-FFSteel Stacker with Fixed Manual Hand Winch 770 Lb. Capacity Black / YellowUniform Capacity (lb.): 770
Lowered Height (in.): 3-3/8		235

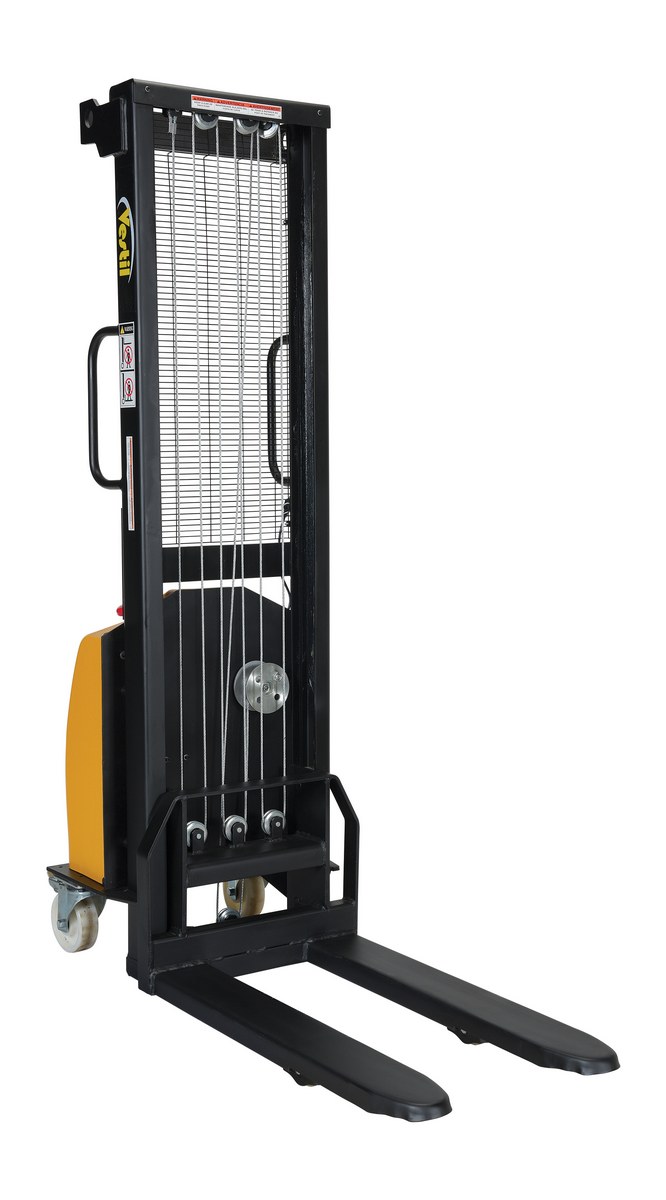

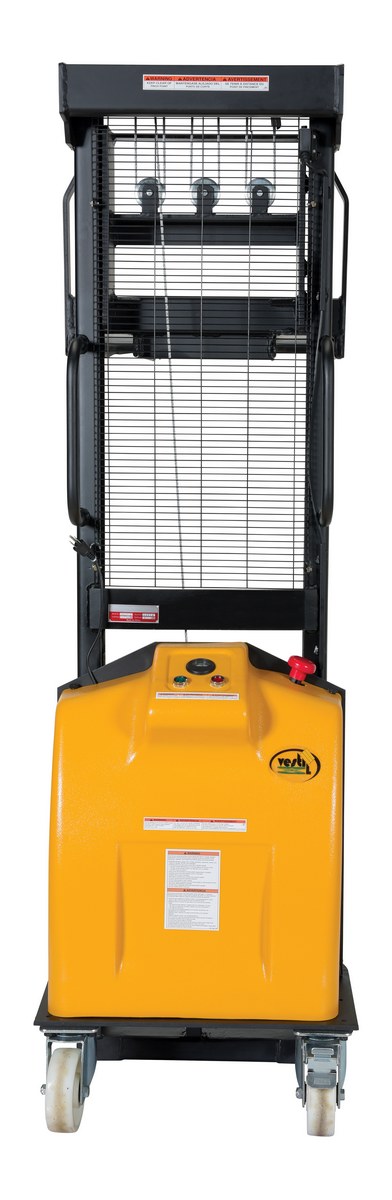

VWS-770-FF-DC VWS-770-FF-DCSteel Stacker with Fixed DC Powered Winch 770 Lb. Capacity Black / YellowUniform Capacity (lb.): 770
Lowered Height (in.): 3-3/8		462
VHPS-550-AA-F72 VHPS-550-AA-F72Steel Manual Stacker Adjustable Forks/Legs 550 Lb. Capacity Black / YellowUniform Capacity (Lbs.): 550
Fork Length (In.): 72		885

Options


Model Description
VHPS-AA-DRR-FK Drum/Reel/Roll Forks for Stackers
