Narrow Mast Stackers with Powered Drive and Powered Lift

model: SNM-90-AA

SNM-90-AA_E.jpg SNM-90-AA_A.jpg SNM-90-AA_B.jpg SNM-90-AA_C.jpg SNM-90-AA_D.jpg SNM-90-AA_F.jpg SNM-90-AA_G.jpg SNM-90-AA_H.jpg More Images +
Narrow Mast Stackers with Powered Drive and Powered Lift
SERIES: SNM

24V DC STANDARD

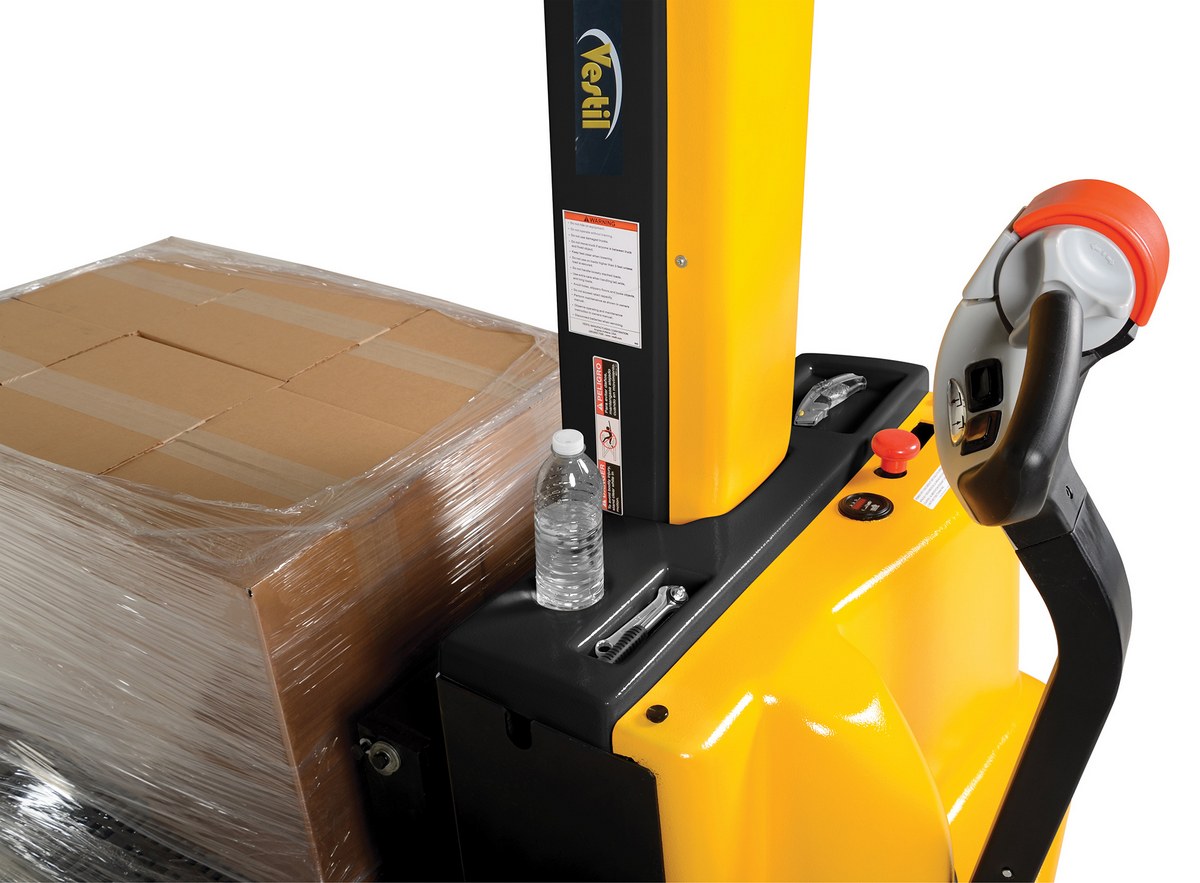

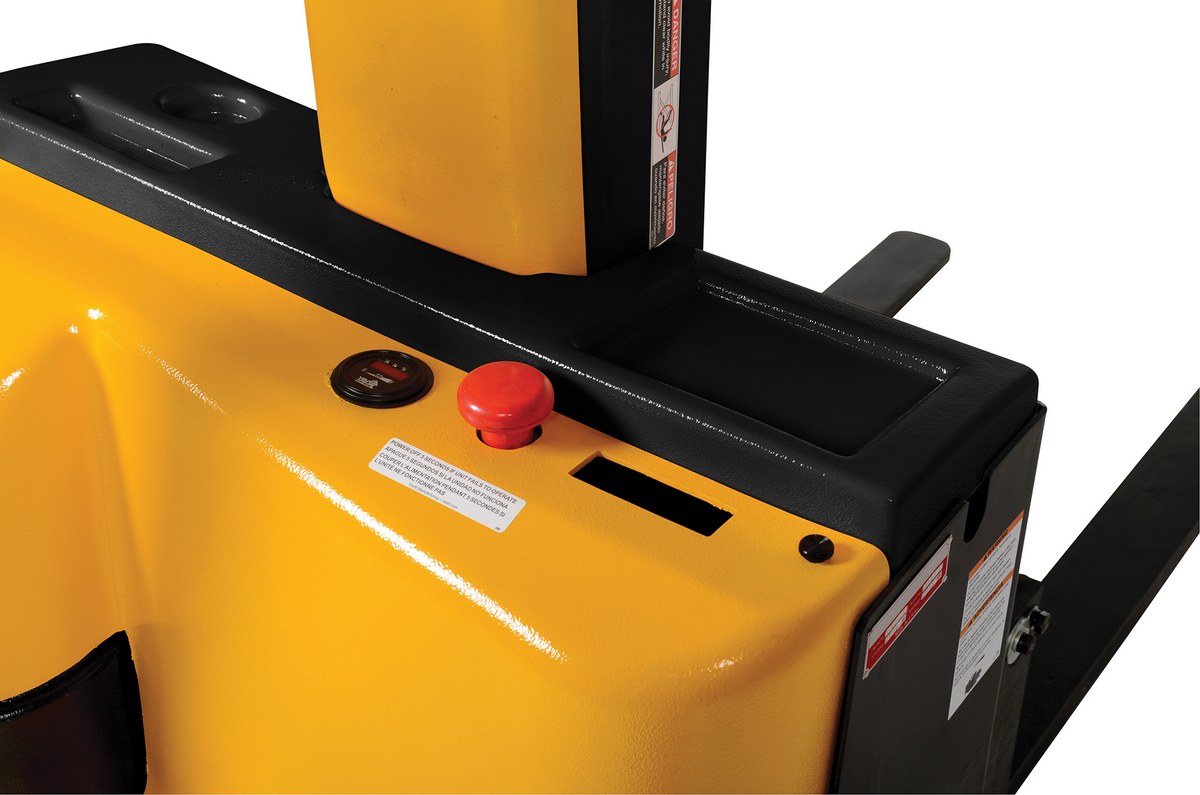

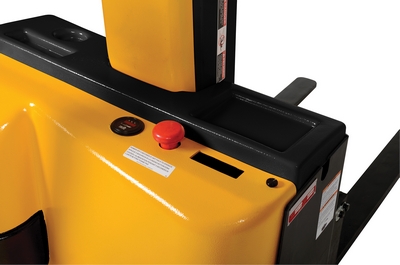

Narrow Mast Fully Powered Electric Stackers transport loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/ lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two (2) 12V batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently. Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

  • Narrow mast stacker is ideal for shipping and manufacturing facilities
  • Stacker is an efficient solution to loading and unloading in closely confined areas
  • Throttle design lifts and controls speed adjustments for ideal operation and optimal results
  • Includes poly-on-steel wheels for excellent maneuverability and fixed forks for maximum efficiency


Drum Roll Reel Forks

Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Stackers with Powered Drive and Powered Lift | Pallet Master/Servers | Manual & Electric Stackers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)

Narrow Mast Stackers with Powered Drive and Powered Lift

model: SNM-90-AA

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
SNM-62-AA
SNM-62-FA
SNM-62-FF-21
SNM-62-FF-27
SNM-90-AA
SNM-90-FF-27
SNM15-62-AA
SNM15-62-FF-27
SNM3-43-AA
SNM3-43-FF-21
SNM3-43-FF-27
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.
No options available for this product.
Model Image PDFs Description Wt (lbs.)
AGM-UPG-2-12V Warranty PDFCompliance Certificate AGM Battery Upgrade (2x12V) must be purchased with new unit 80
SL-DK Warranty PDFCompliance Certificate Solid Platform 46
SNM-AA-DRR-FK - Drum/Roll/Reel forks 140
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

SNM

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

SNM-62-AA

SNM-62-FA

SNM-62-FF-21

SNM-62-FF-27

SNM-90-AA

SNM-90-FF-27

SNM15-62-AA

SNM15-62-FF-27

SNM3-43-AA

SNM3-43-FF-21

SNM3-43-FF-27

Testing Certificates

SNM-62-AA

SNM-62-FA

SNM-62-FF-21

SNM-62-FF-27

SNM-90-AA

SNM-90-FF-27

SNM15-62-AA

SNM15-62-FF-27

SNM3-43-AA

SNM3-43-FF-21

SNM3-43-FF-27

SDS Sheets


Valve-Regulated Lead Acid Battery Series
SNM15-62-AA SDS


Hydraulic Oil
SNM15-62-AA SDS


Valve-Regulated Lead Acid Battery Series
SNM15-62-FF-27 SDS


Hydraulic Oil
SNM15-62-FF-27 SDS


Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
SNM3-43-AA SDS


Hydraulic Oil
SNM3-43-AA SDS


Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
SNM3-43-FF-21 SDS


Hydraulic Oil
SNM3-43-FF-21 SDS


Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
SNM3-43-FF-27 SDS


Hydraulic Oil
SNM3-43-FF-27 SDS


Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
SNM-62-AA SDS


Hydraulic Oil
SNM-62-AA SDS


Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
SNM-62-FA SDS


Hydraulic Oil
SNM-62-FA SDS


Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
SNM-62-FF-21 SDS


Hydraulic Oil
SNM-62-FF-21 SDS


Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
SNM-62-FF-27 SDS


Hydraulic Oil
SNM-62-FF-27 SDS


Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
SNM-90-AA SDS


Hydraulic Oil
SNM-90-AA SDS


Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
SNM-90-FF-27 SDS


Hydraulic Oil
SNM-90-FF-27 SDS

Other PDFs


Narrow Mast Stackers Mailing Brochure







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

More From Stackers





Narrow Mast Stackers with Powe...




24V DC STANDARD

Narrow Mast Fully Powered Electric Stackers transport loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/ lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two (2) 12V batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently. Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

  • Narrow mast stacker is ideal for shipping and manufacturing facilities
  • Stacker is an efficient solution to loading and unloading in closely confined areas
  • Throttle design lifts and controls speed adjustments for ideal operation and optimal results
  • Includes poly-on-steel wheels for excellent maneuverability and fixed forks for maximum efficiency


Drum Roll Reel Forks

Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Stackers with Powered Drive and Powered Lift | Pallet Master/Servers | Manual & Electric Stackers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)


Model # Description Attributes Net Wt.
(lbs)

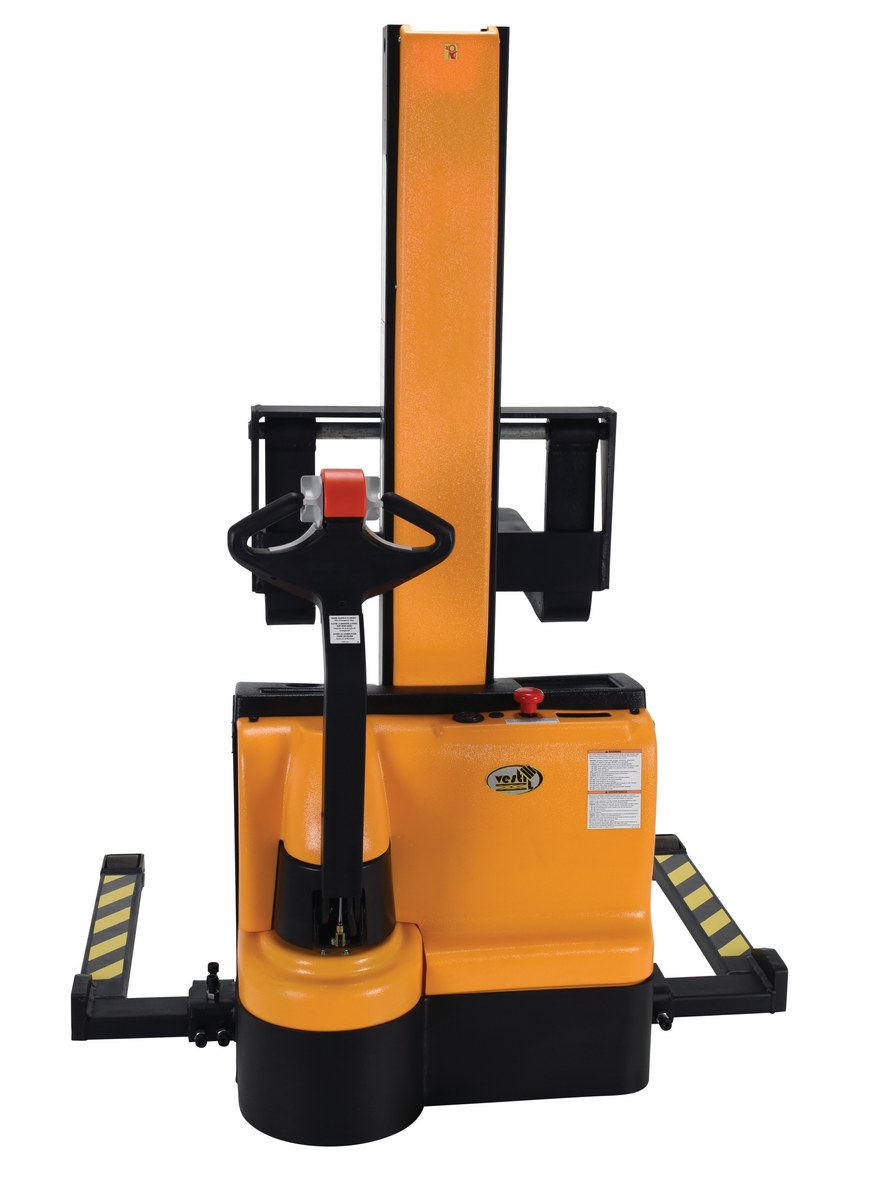

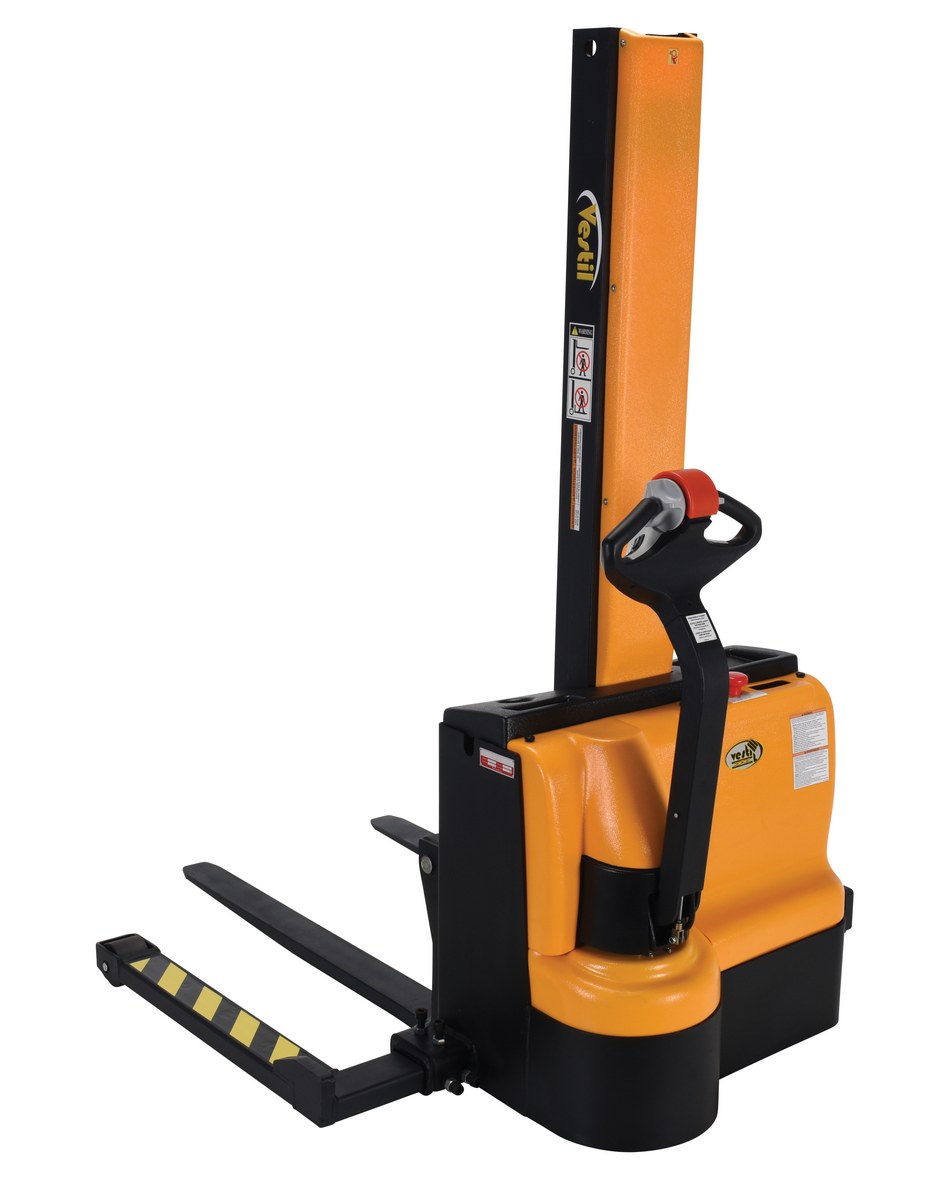

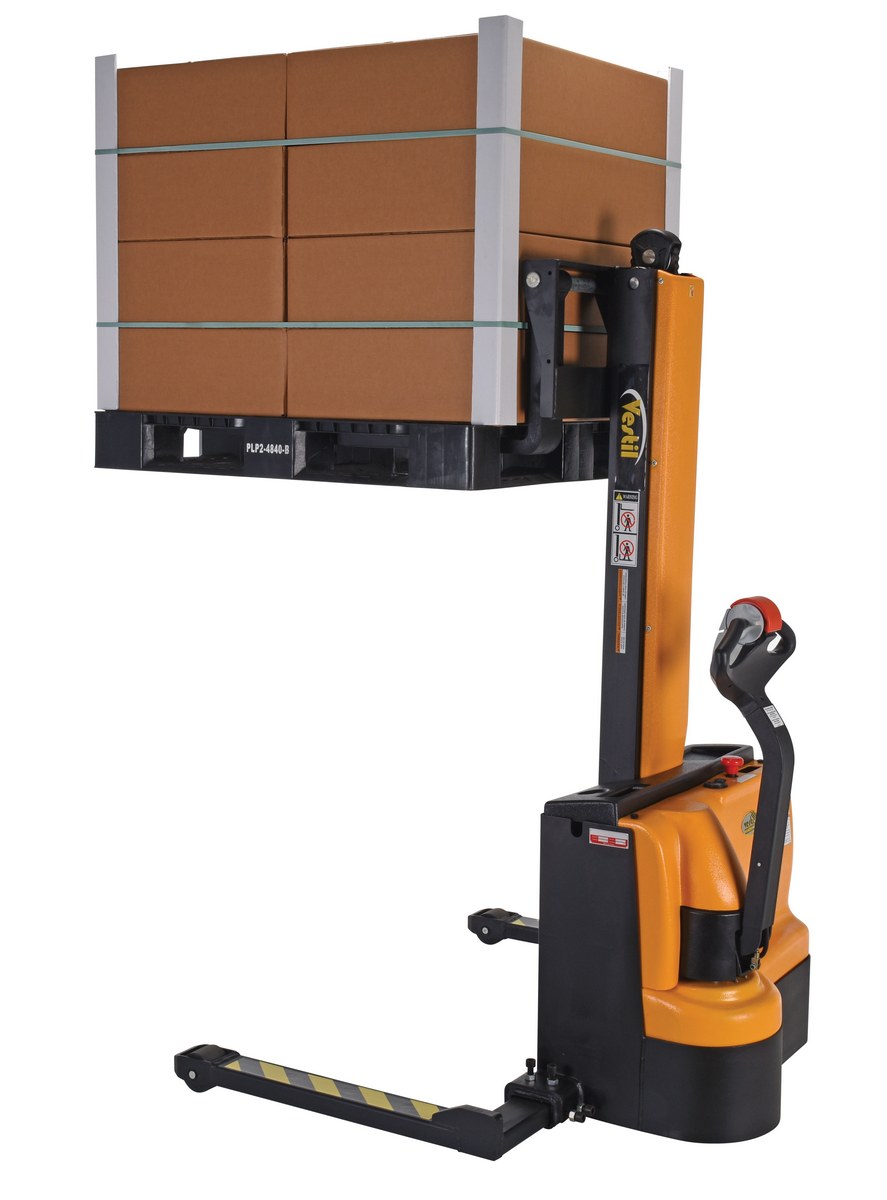

SNM-62-AA SNM-62-AASteel Narrow Mast Stacker DC Powered 62 In. Raised Height Adjustable Forks and Support Legs 2,200 Lb. Capacity Black / YellowUniform Capacity (lb.): 2,200
Service Range (in.): 2-1/8 to 62		1172

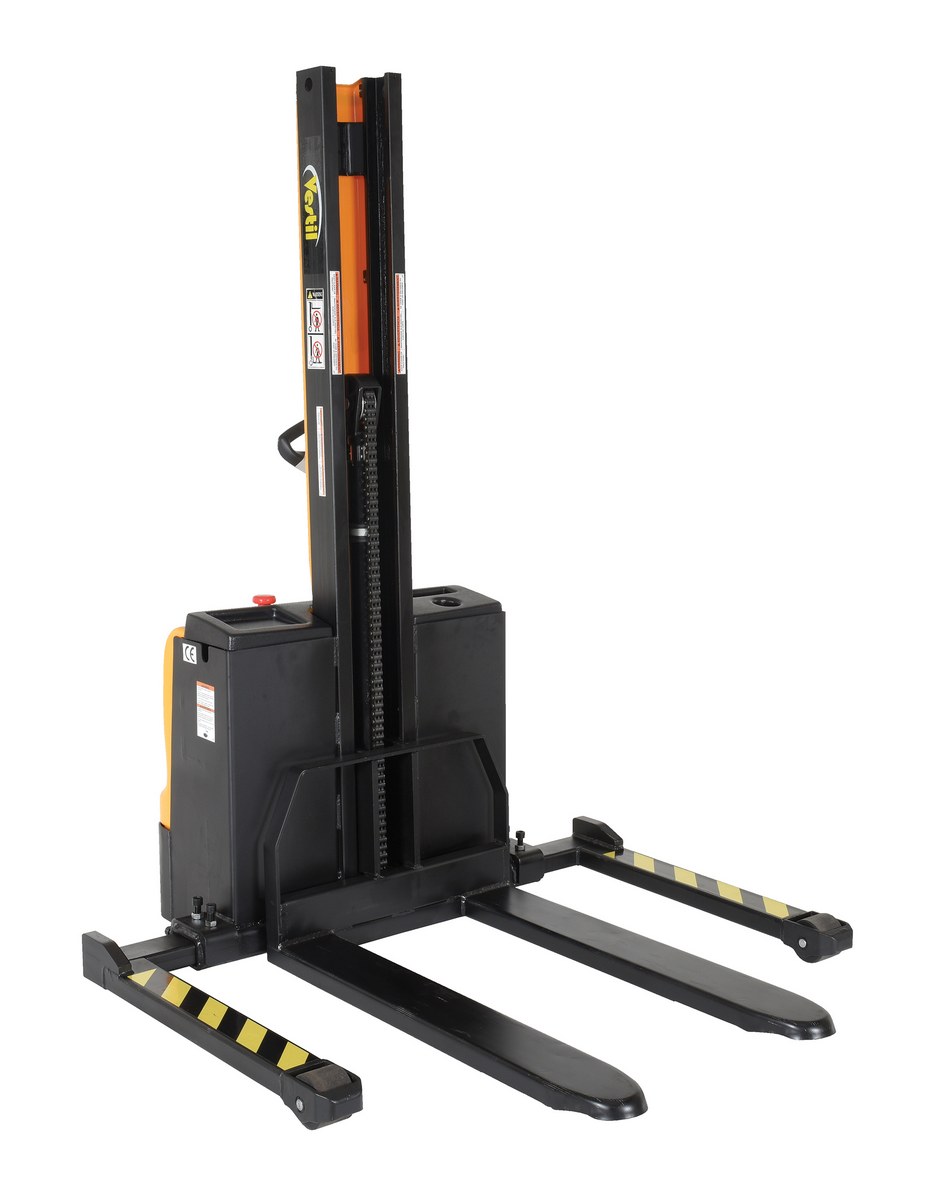

SNM-62-FA SNM-62-FASteel Narrow Mast Stacker DC Powered 62 In. Raised Height Fixed Fork Adjustable Support Legs 2,200 Lb. Capacity Black / YellowUniform Capacity (lb.): 2,200
Service Range (in.): 2-3/8 to 62		1139

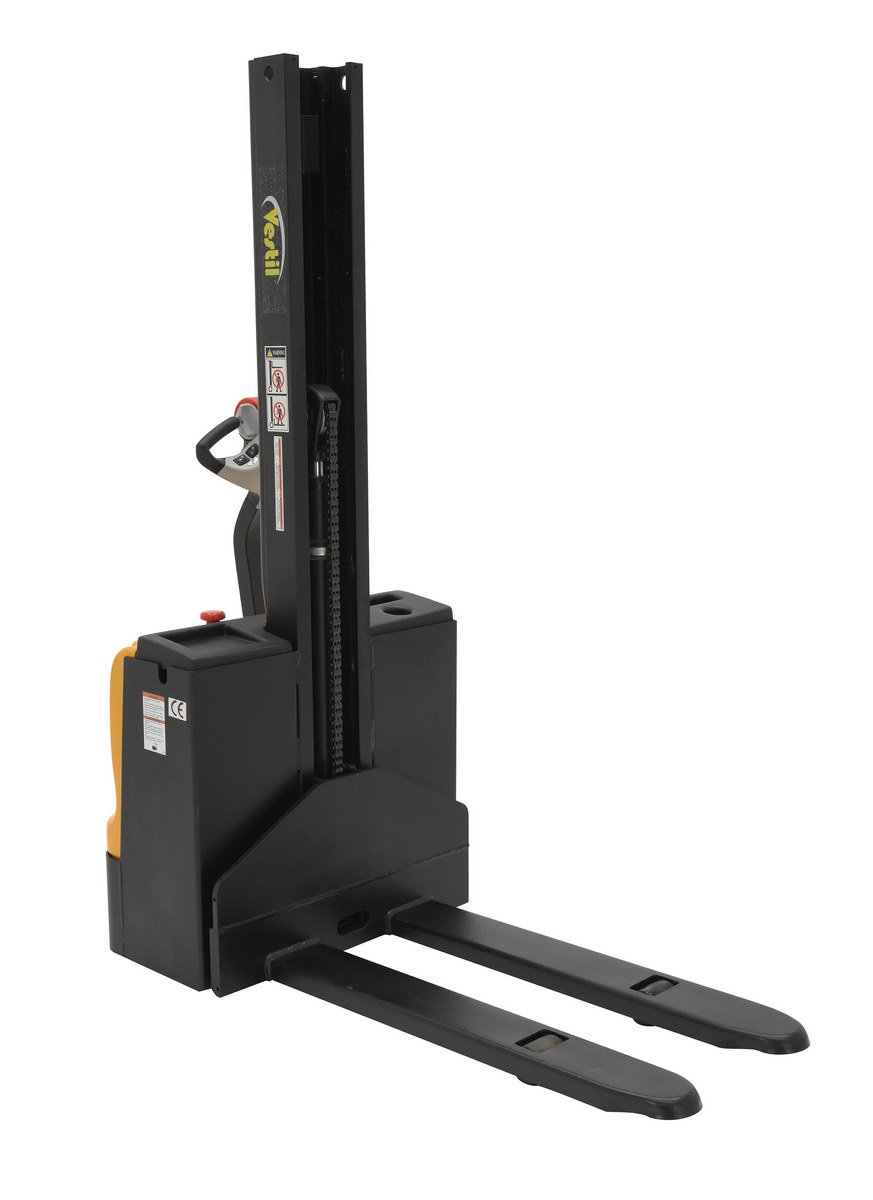

SNM-62-FF-21 SNM-62-FF-21Steel Narrow Mast Stacker DC Powered 62 In. Raised Height Fixed Fork 21 In. Fork Width 2,200 Lb. Capacity Black / YellowUniform Capacity (lb.): 2,200
Service Range (in.): 2-3/8 to 62		899

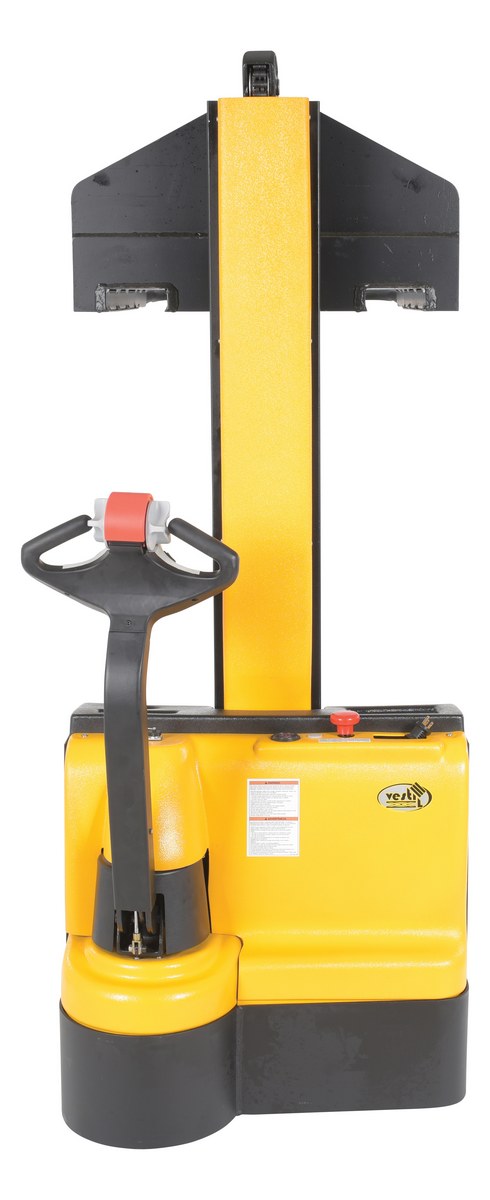

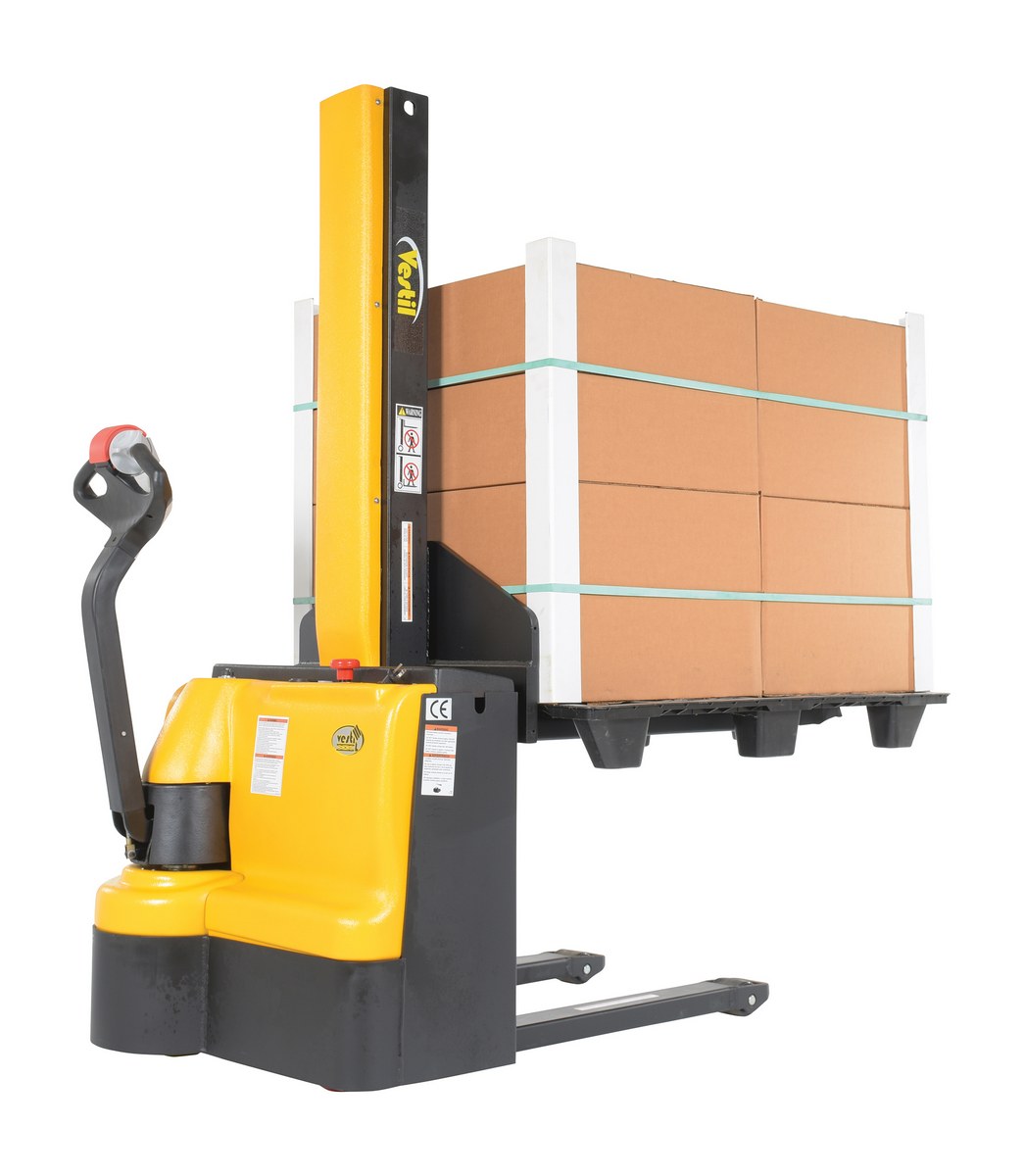

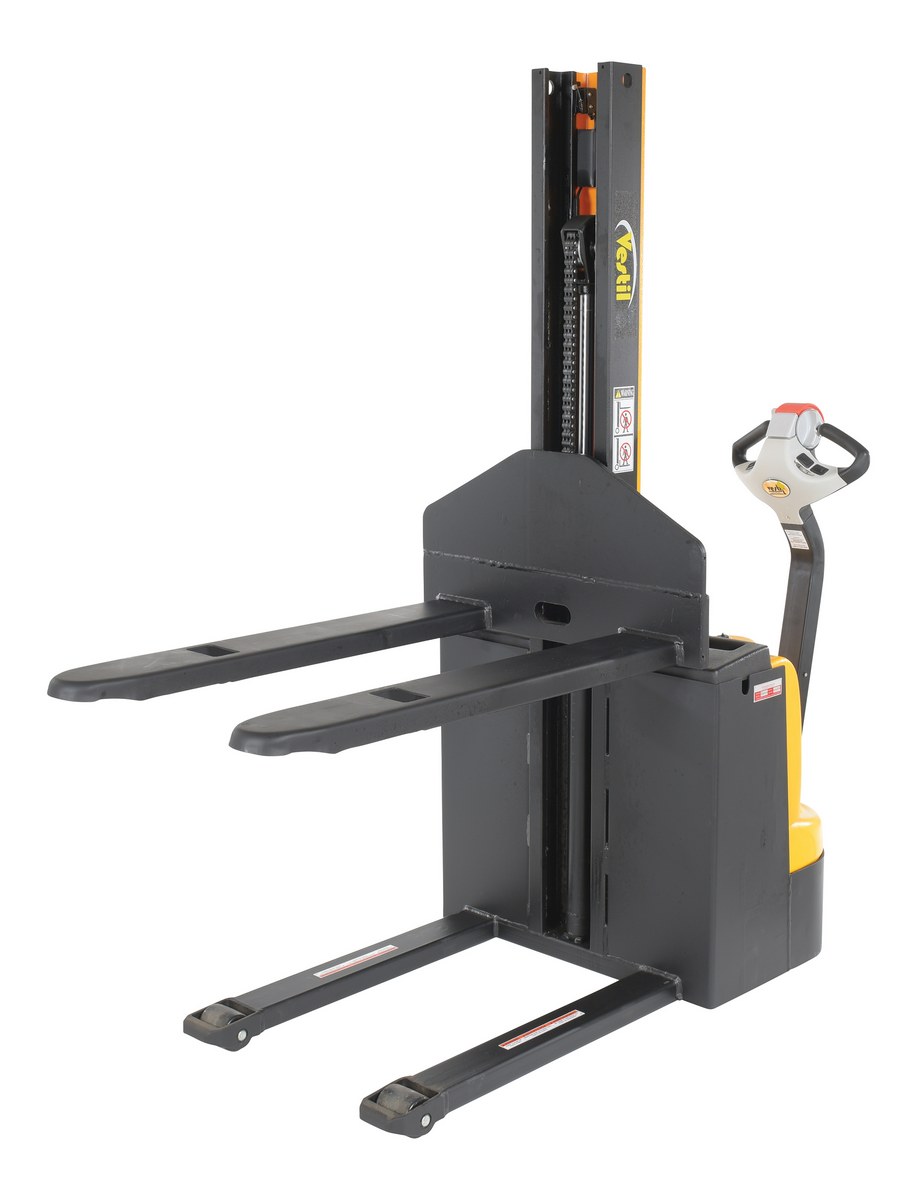

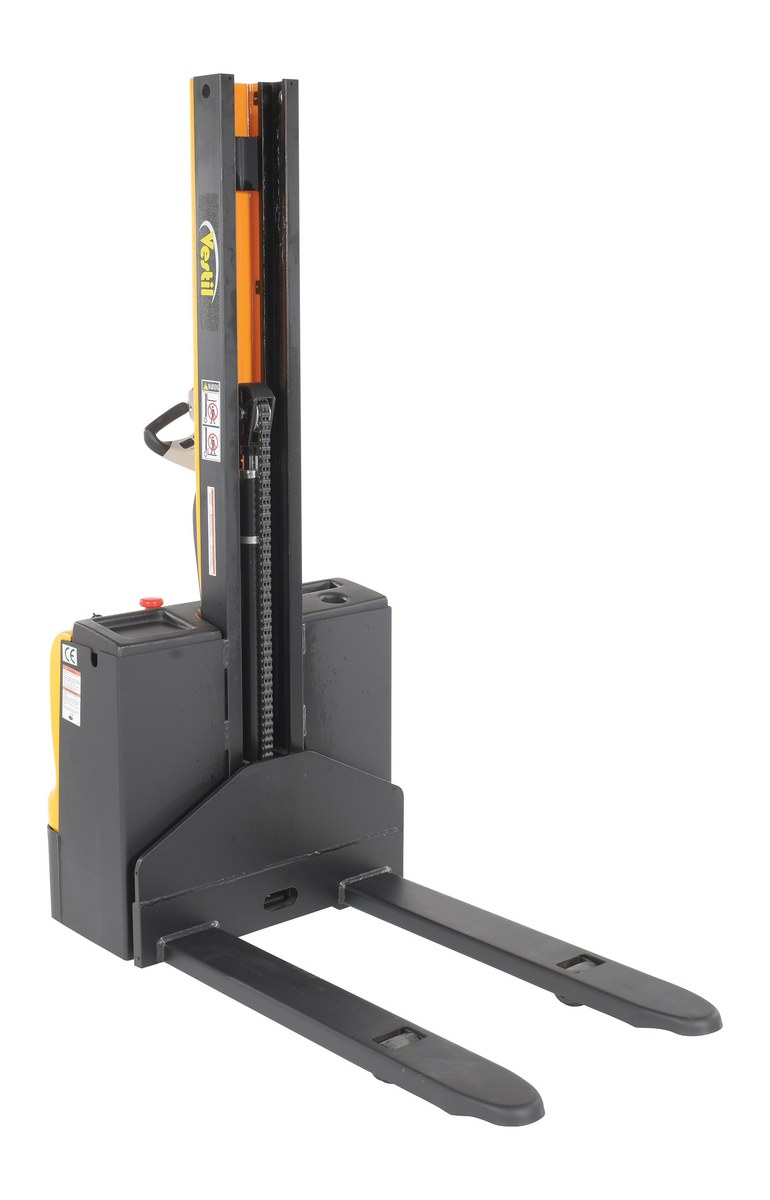

SNM-62-FF-27 SNM-62-FF-27Steel Narrow Mast Stacker DC Powered 62 In. Raised Height Fixed Fork 27 In. Fork Width 2,200 Lb. Capacity Black / YellowUniform Capacity (lb.): 2,200
Service Range (in.): 3-3/8 to 62		915

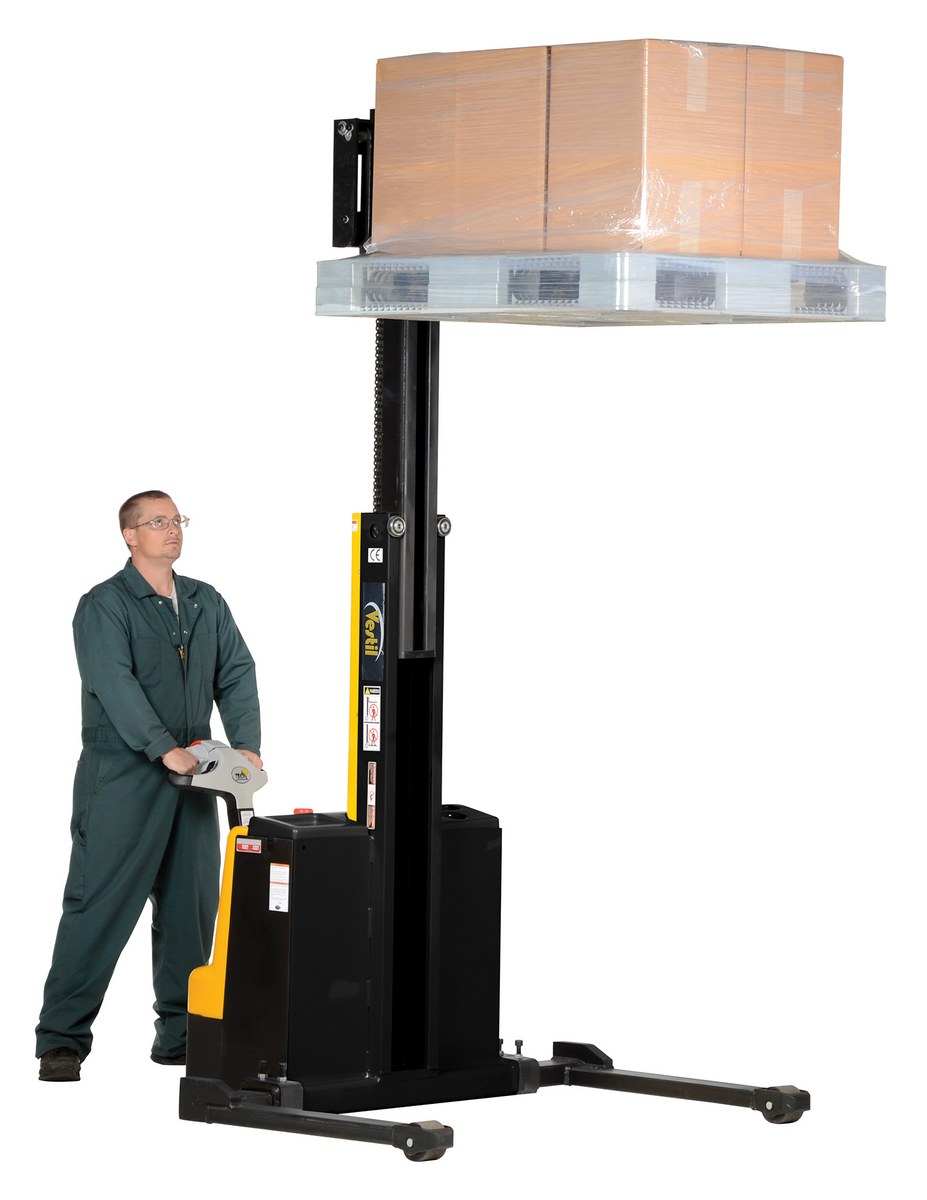

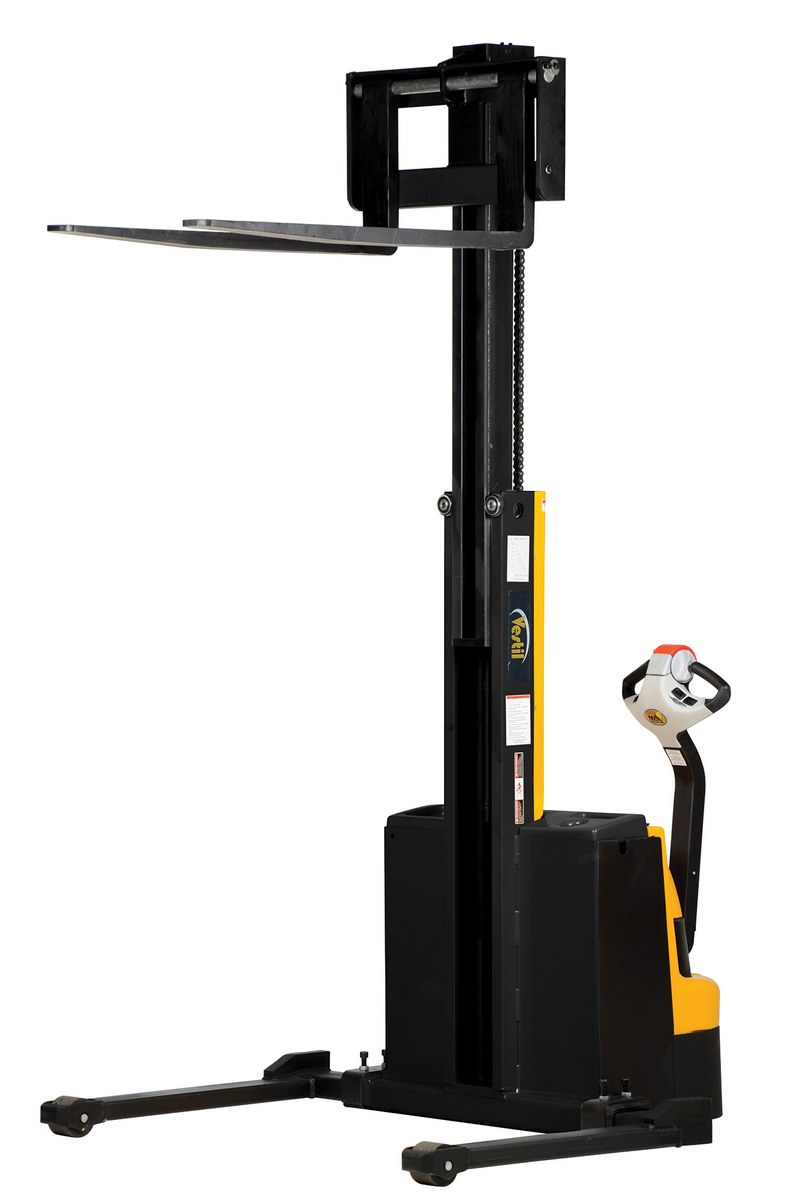

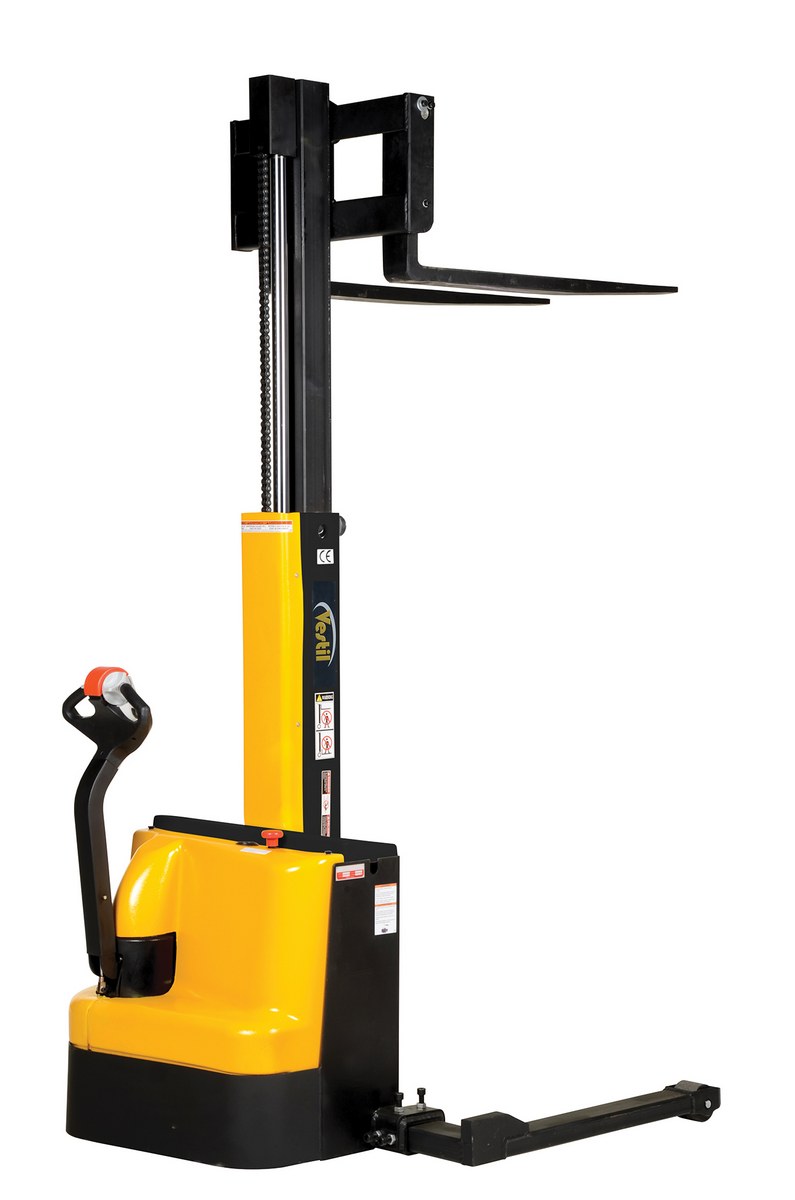

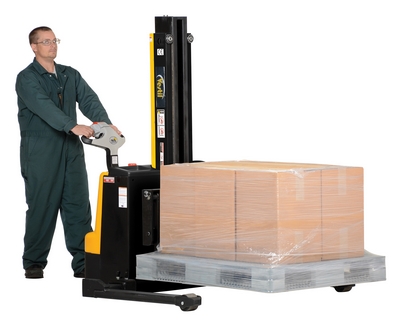

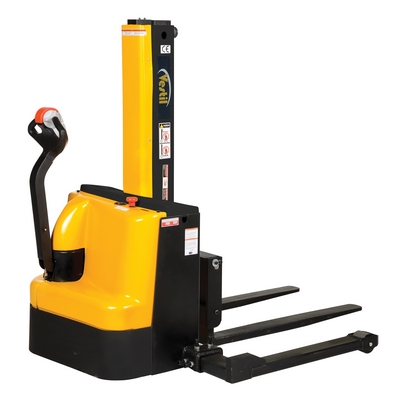

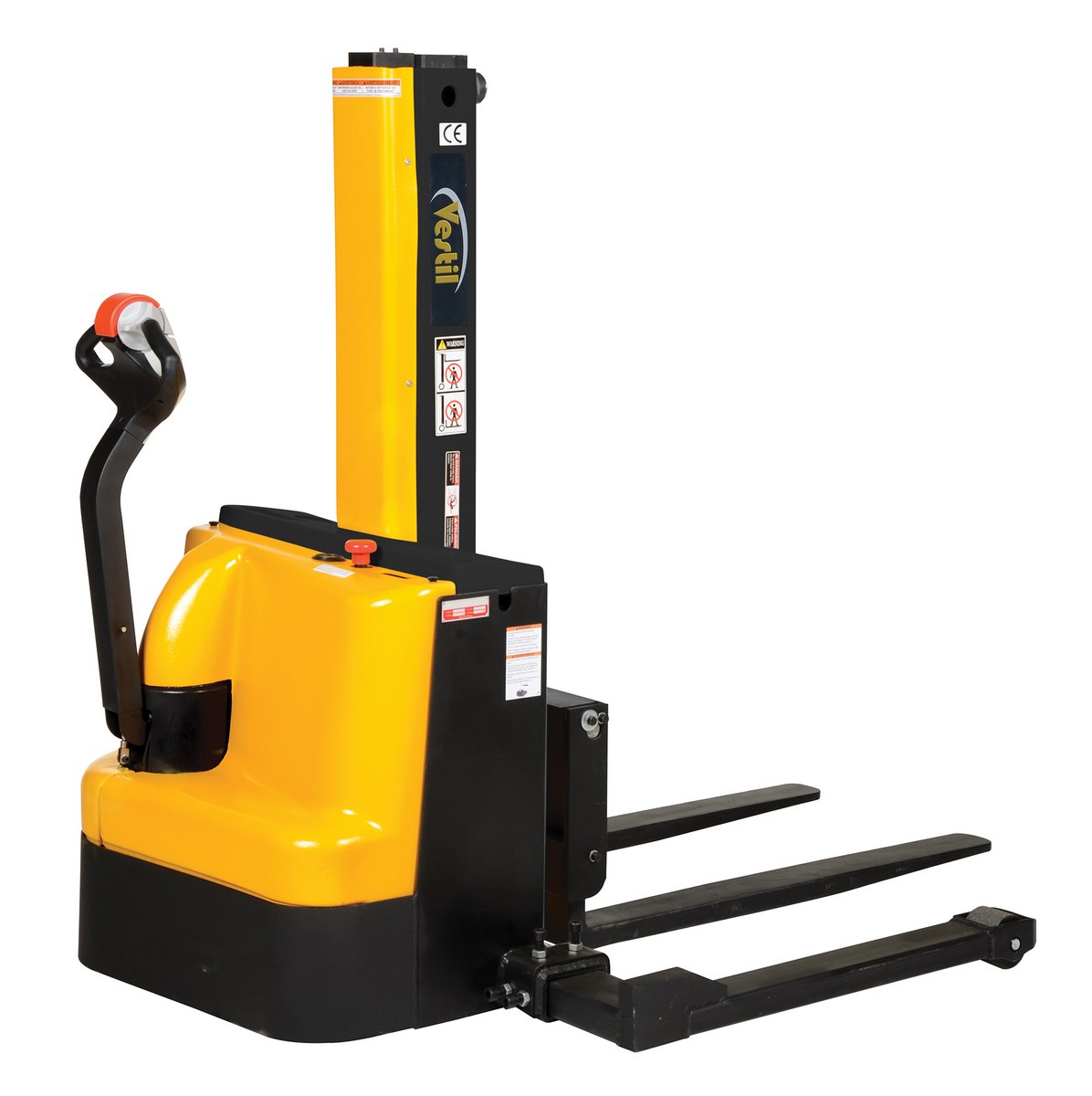

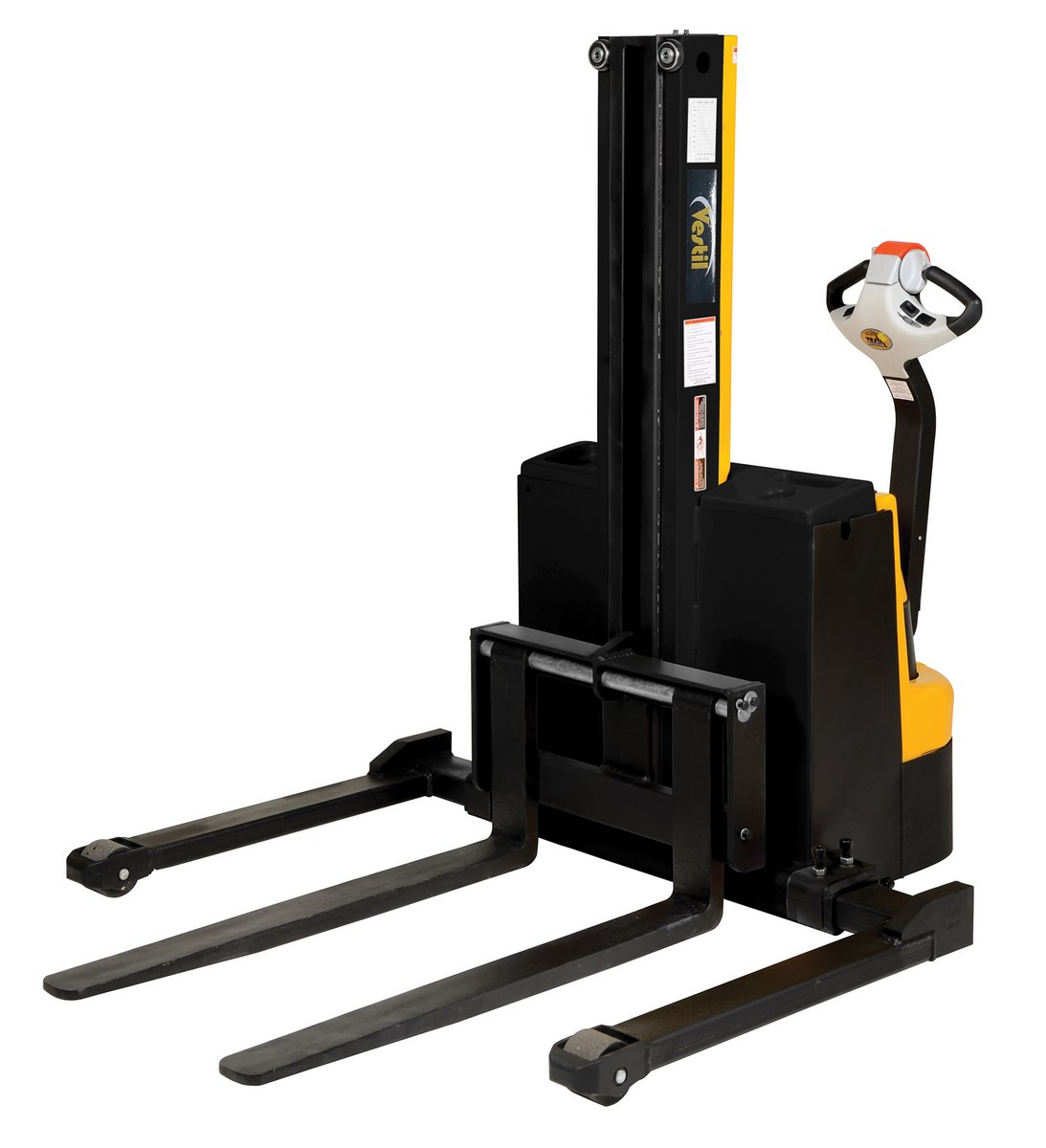

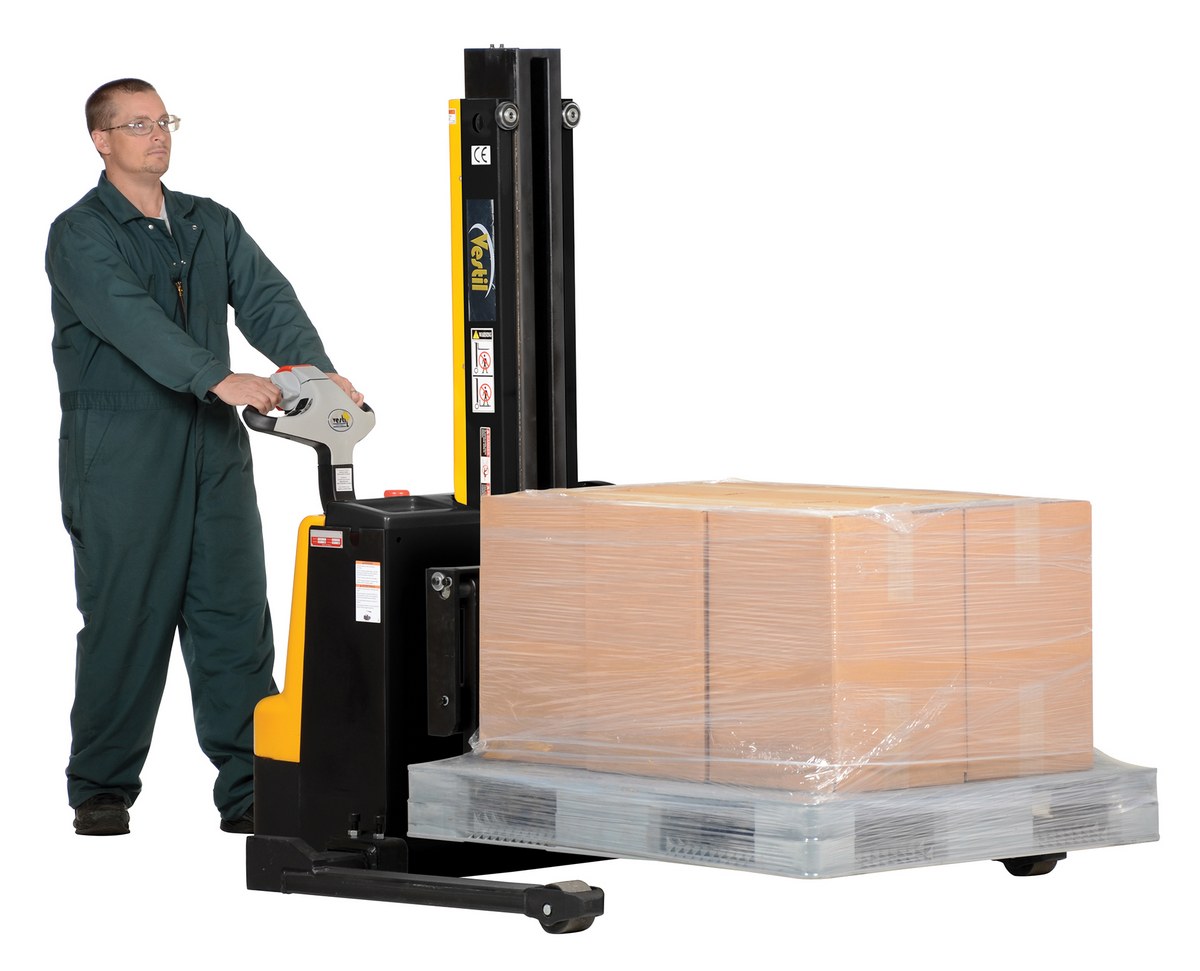

SNM-90-AA SNM-90-AASteel Narrow Mast Stacker DC Powered 90 In. Raised Height Adjustable Forks and Support Legs 2,500 Lb. Capacity Black / YellowUniform Capacity at 0 - 62" (lb.): 2,500
Uniform Capacity at 62 - 90" (lb.): 2,000		1243
SNM-90-FF-27 SNM-90-FF-27Steel Narrow Mast Stacker DC Powered 90 In. Raised Height Fixed Fork 27 In. Fork Width 2,500 Lb. Capacity Black / YellowUniform Capacity at 0 - 62" (lb.): 2,500
Uniform Capacity at 62 - 90" (lb.): 2,000		1154

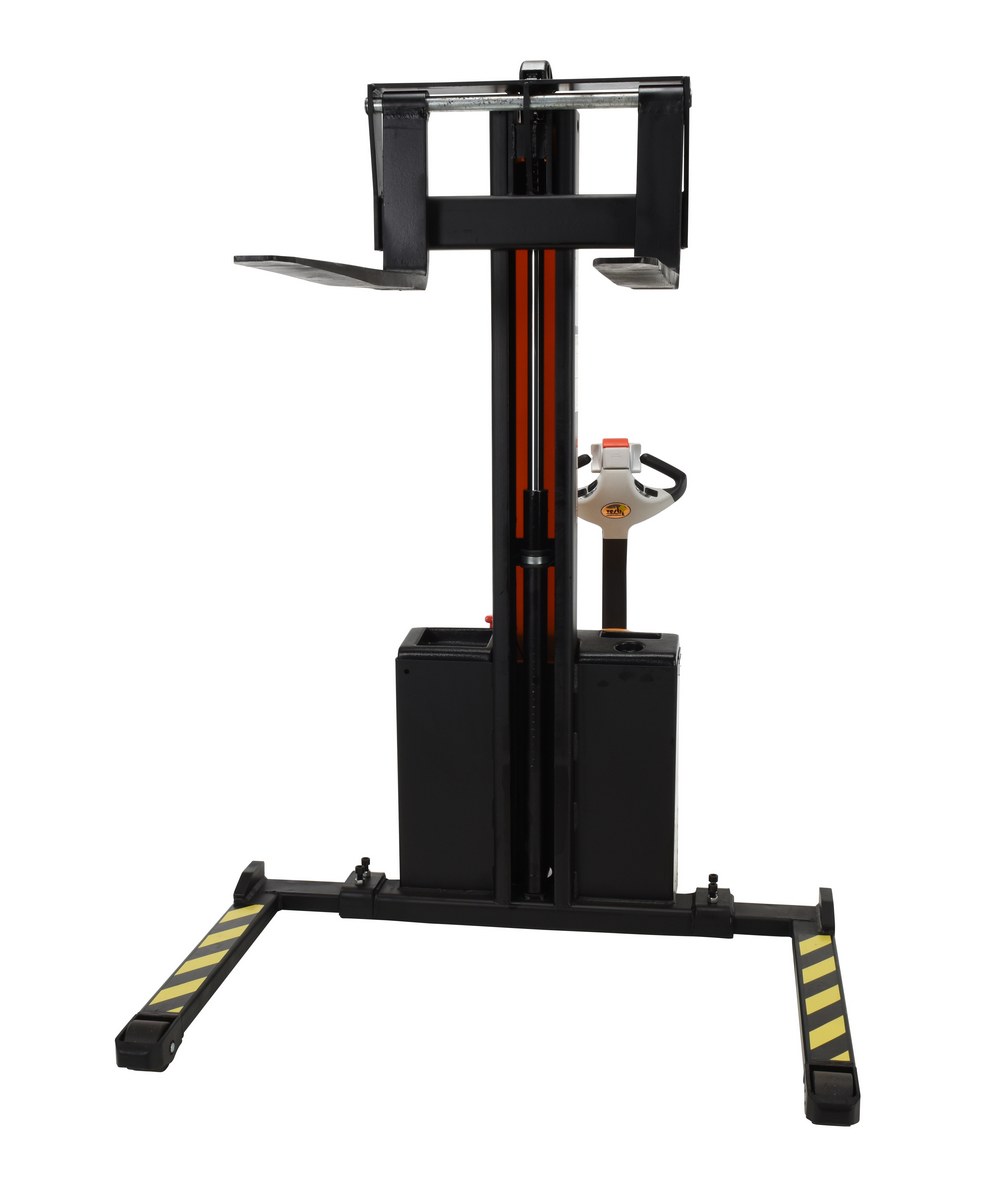

SNM15-62-AA SNM15-62-AASteel Narrow Mast Stacker DC Powered 62 In. Raised Height Adjustable Forks and Support Legs 1,500 Lb. Capacity Black / YellowUniform Capacity (lb.): 1,500
Service Range (in.): 2 to 62		1054

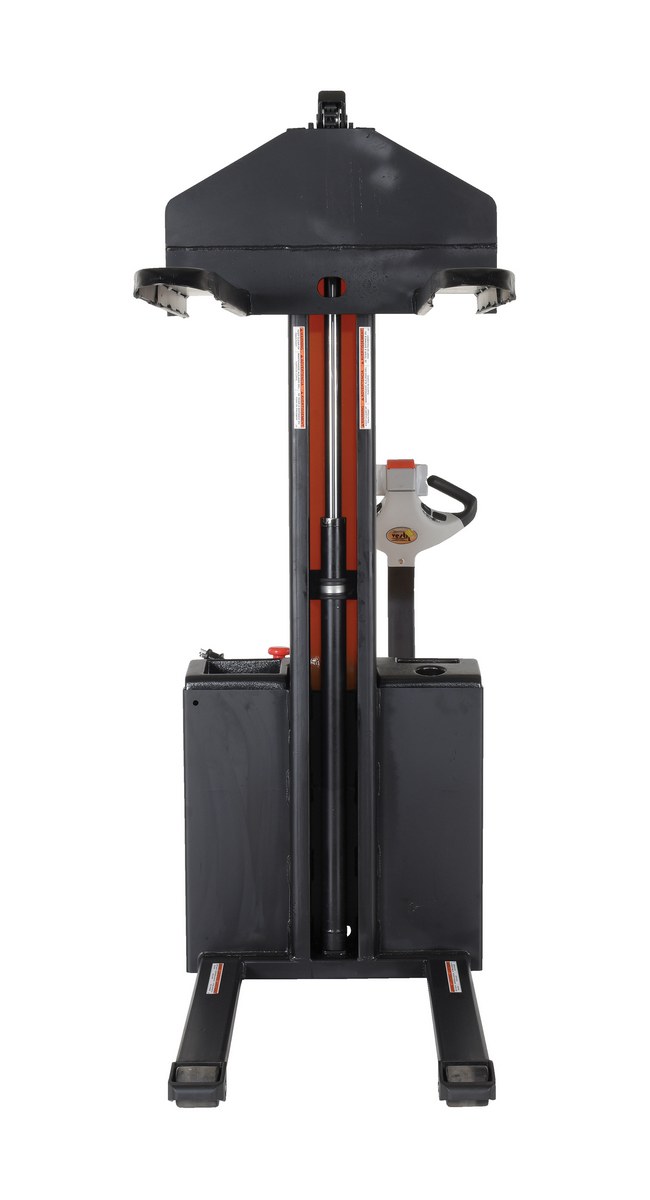

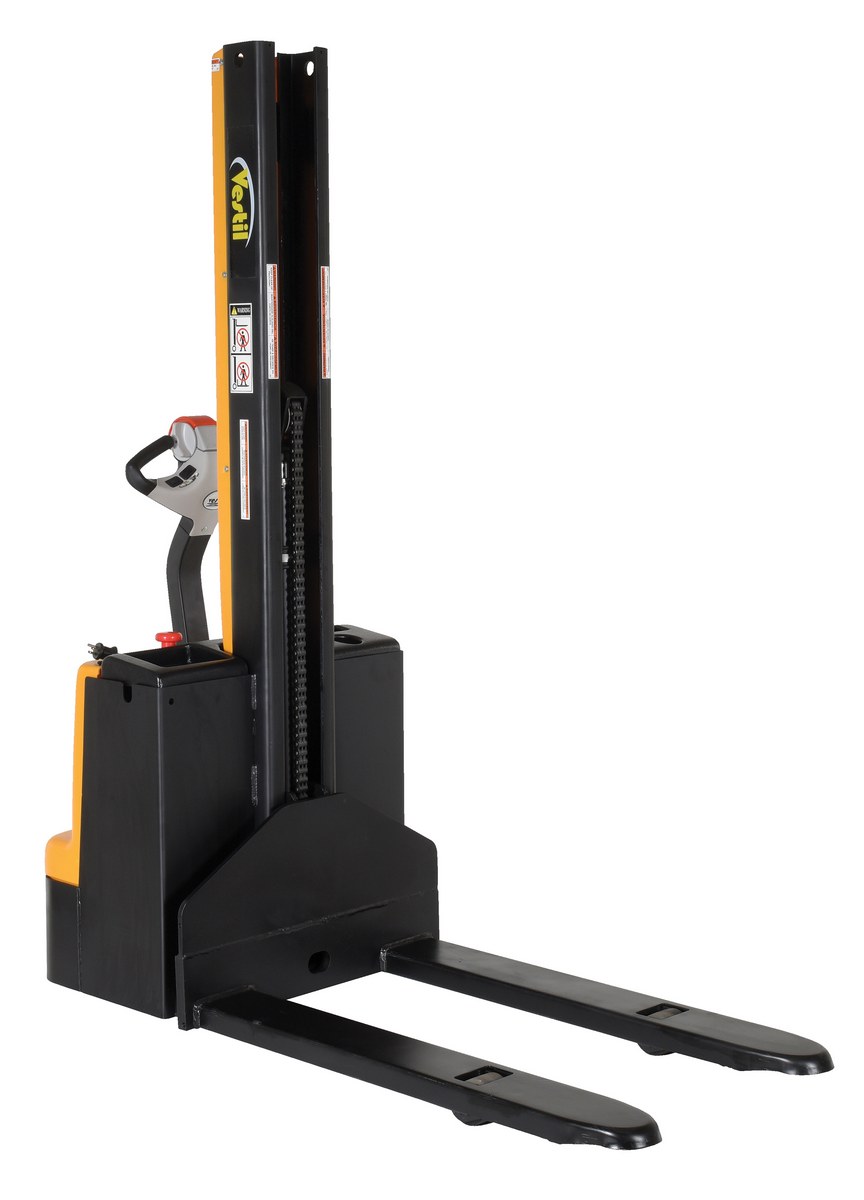

SNM15-62-FF-27 SNM15-62-FF-27Steel Narrow Mast Stacker DC Powered 62 In. Raised Height Fixed Fork 27 In. Fork Width 1,500 Lb. Capacity Black / YellowUniform Capacity (lb.): 1,500
Service Range (in.): 2 to 62		772

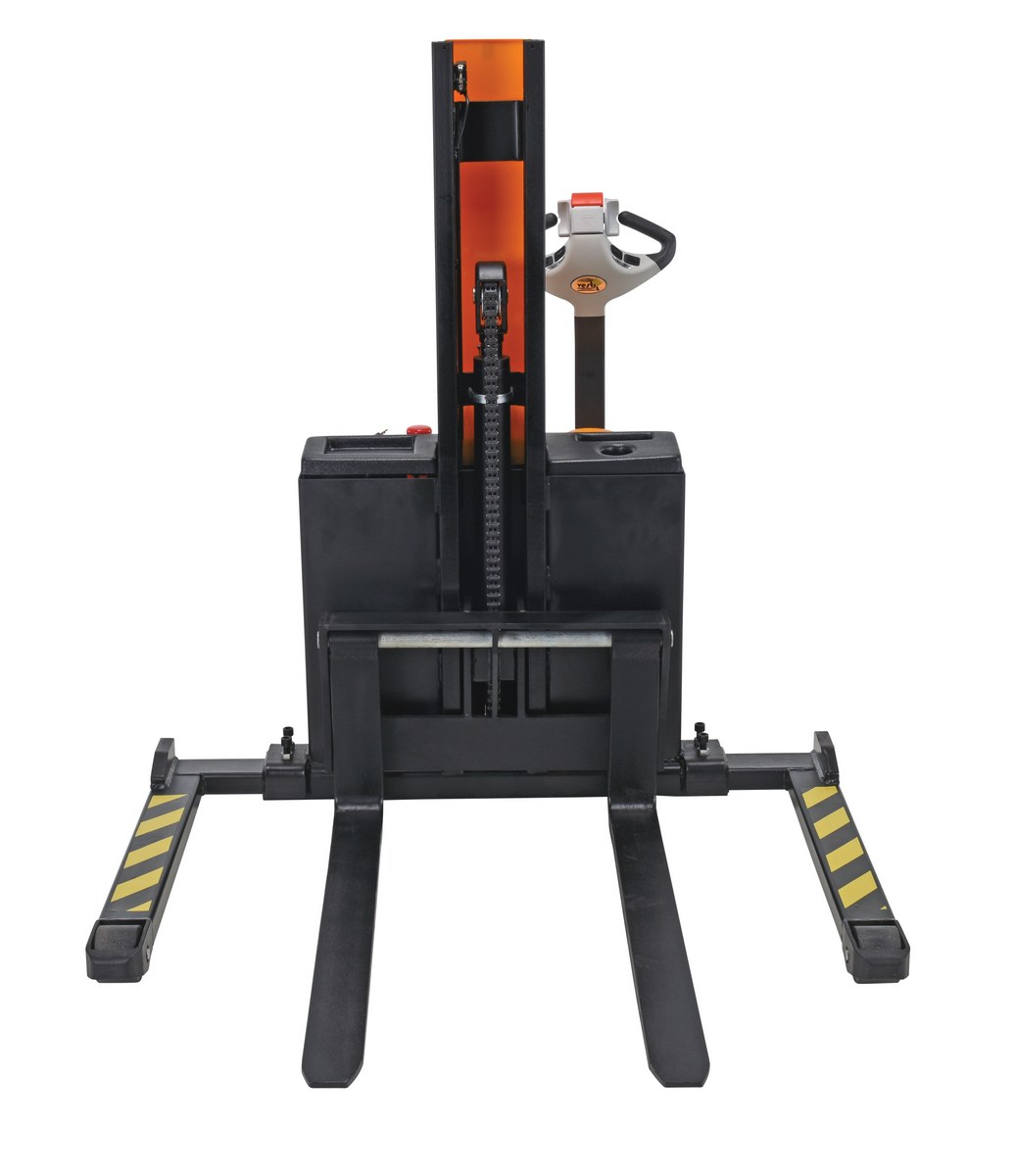

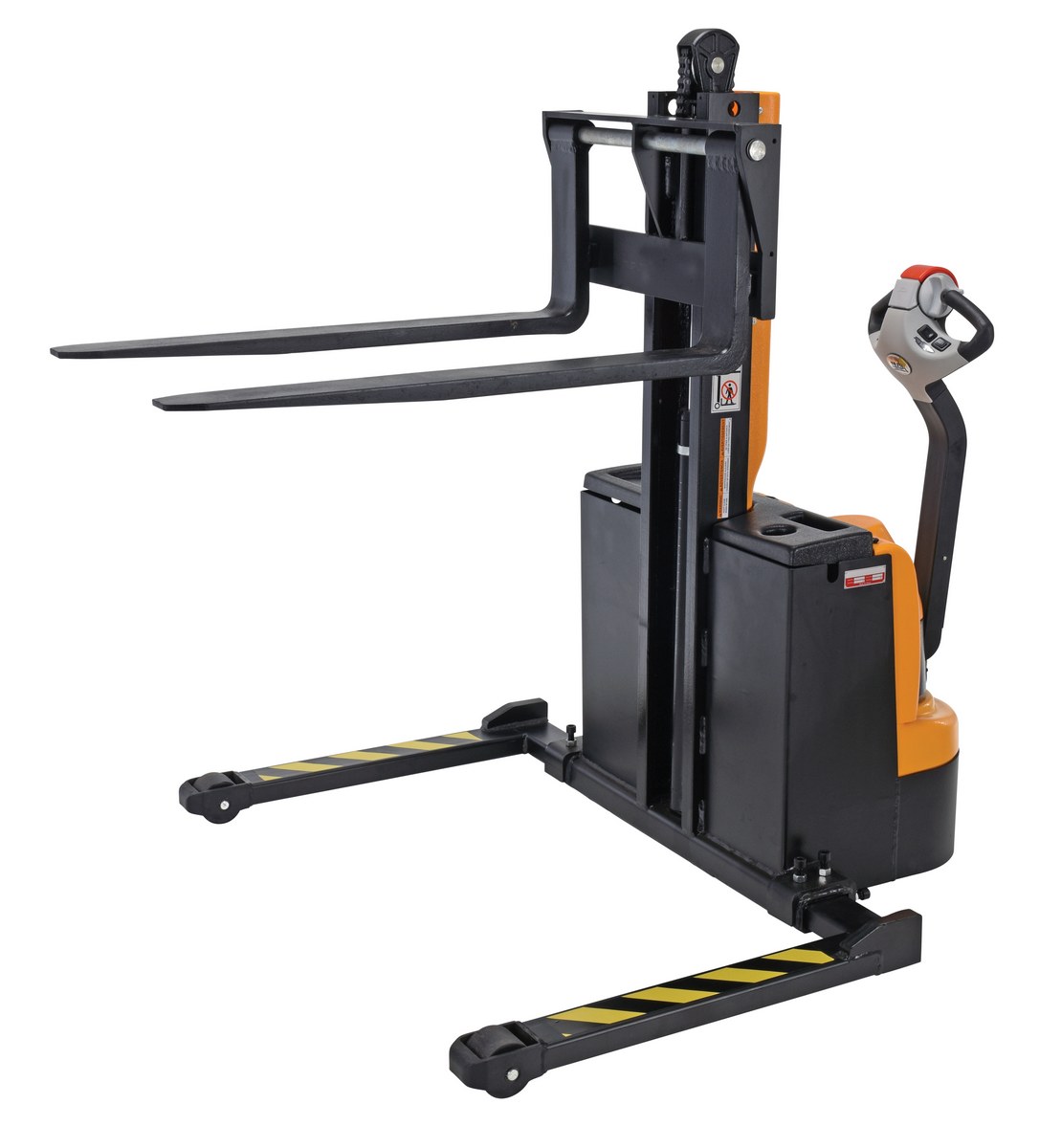

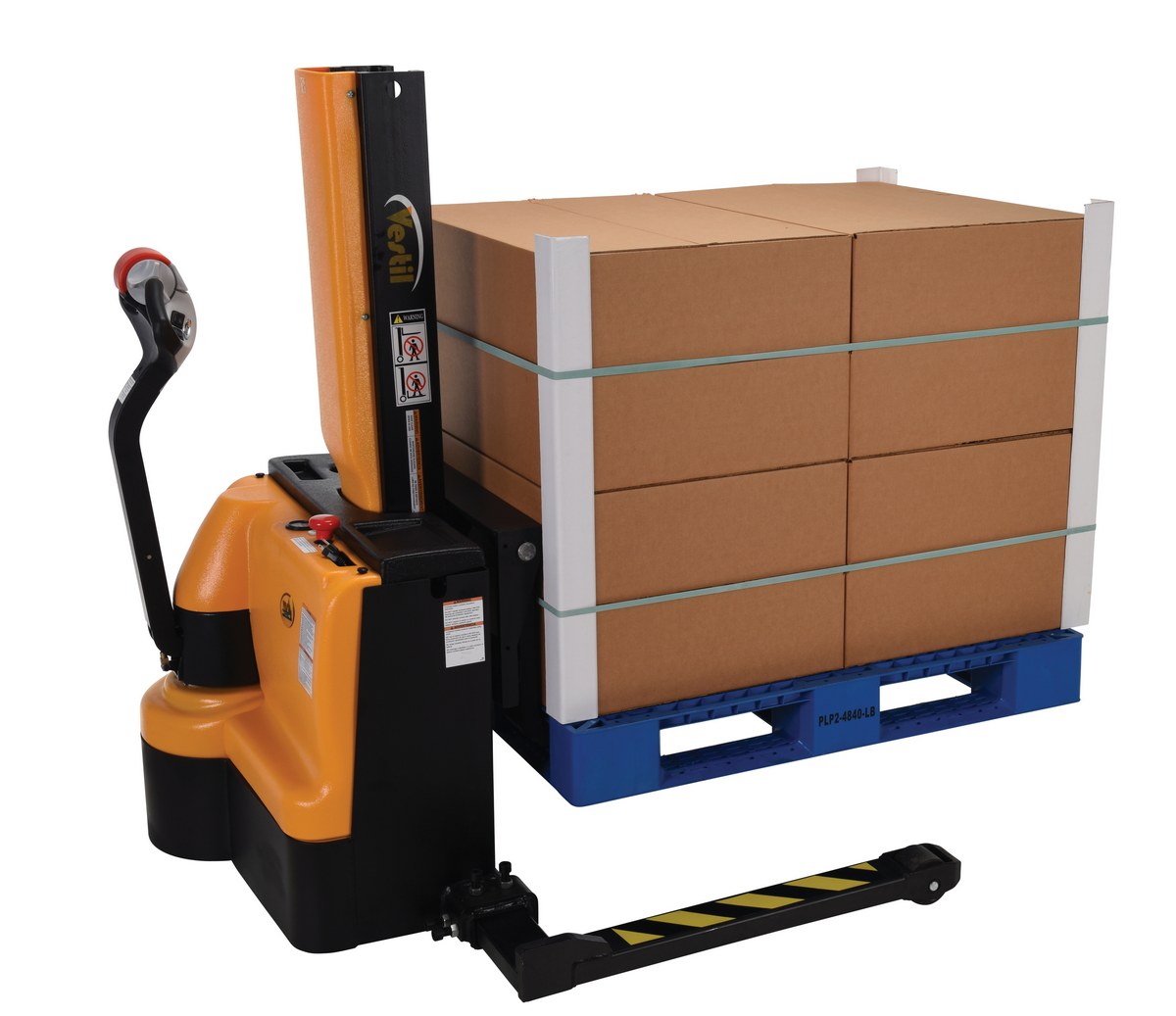

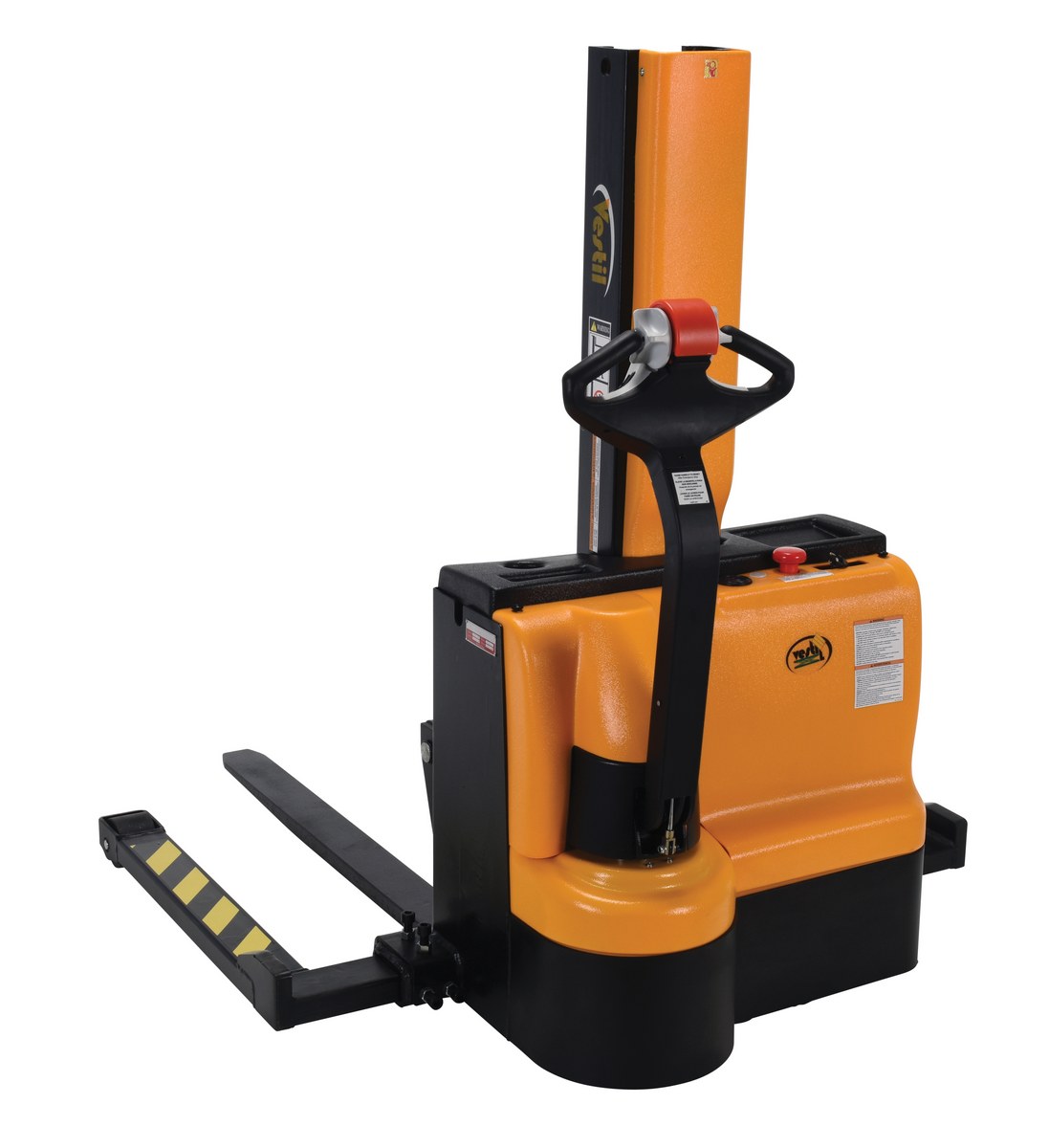

SNM3-43-AA SNM3-43-AASteel Narrow Mast Stacker DC Powered 43 In. Raised Height Adjustable Forks and Support Legs 3,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 3,000
Service Range (in.): 2 to 43-3/10		1121

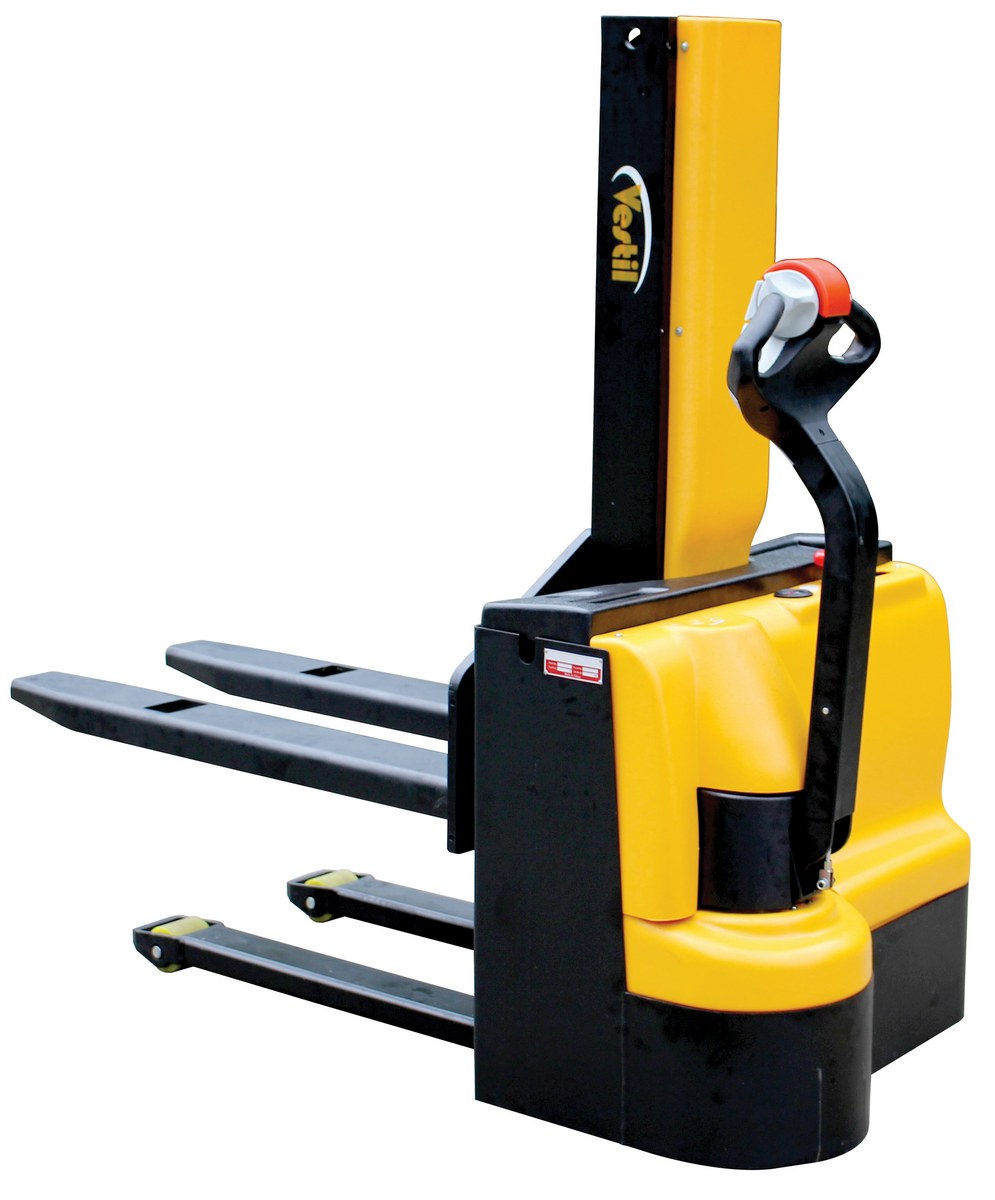

SNM3-43-FF-21 SNM3-43-FF-21Steel Narrow Mast Stacker DC Powered 43 In. Raised Height Fixed Fork 21 In. Fork Width 3,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 3,000
Service Range (in.): 3-3/8 to 43		969

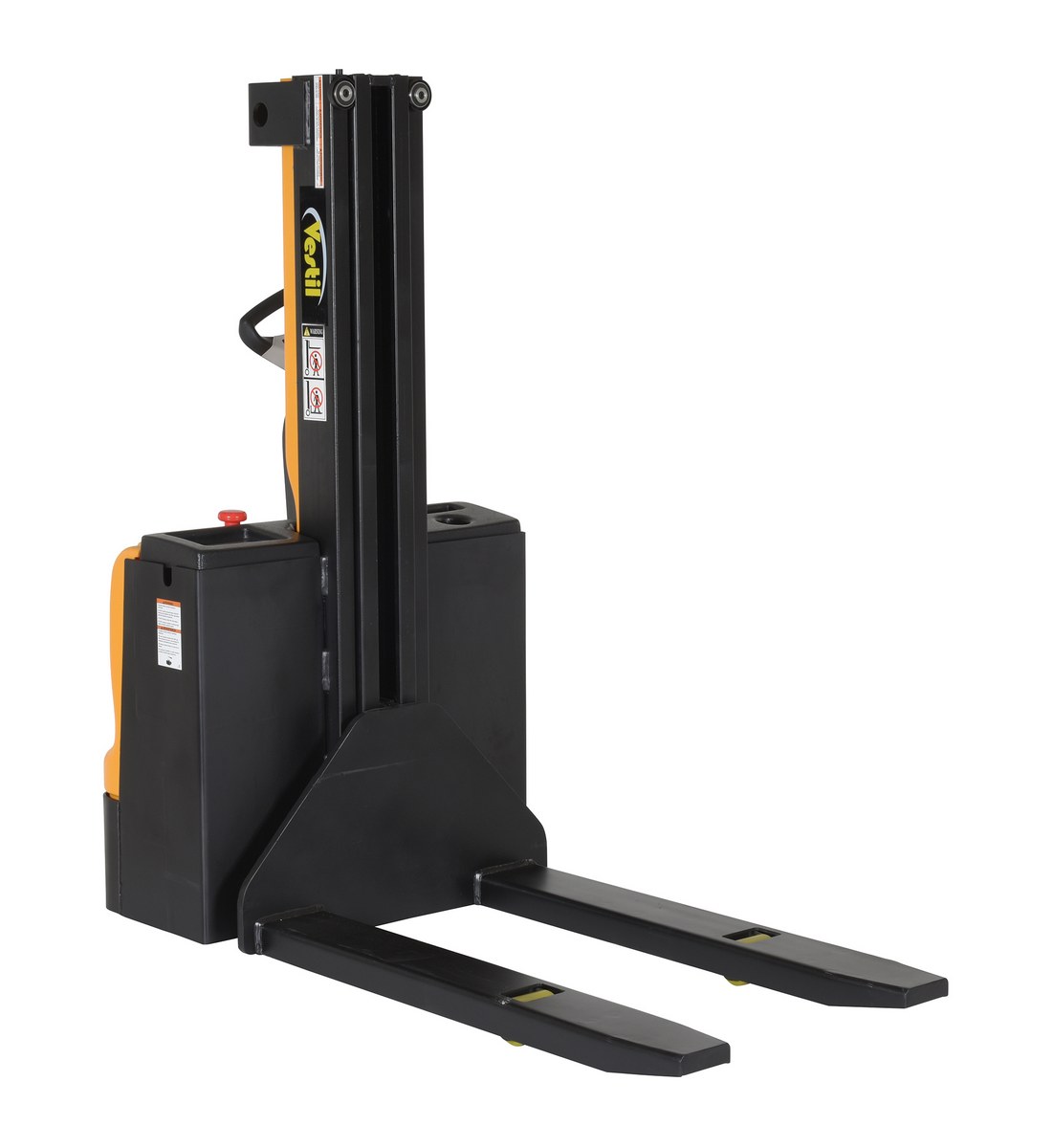

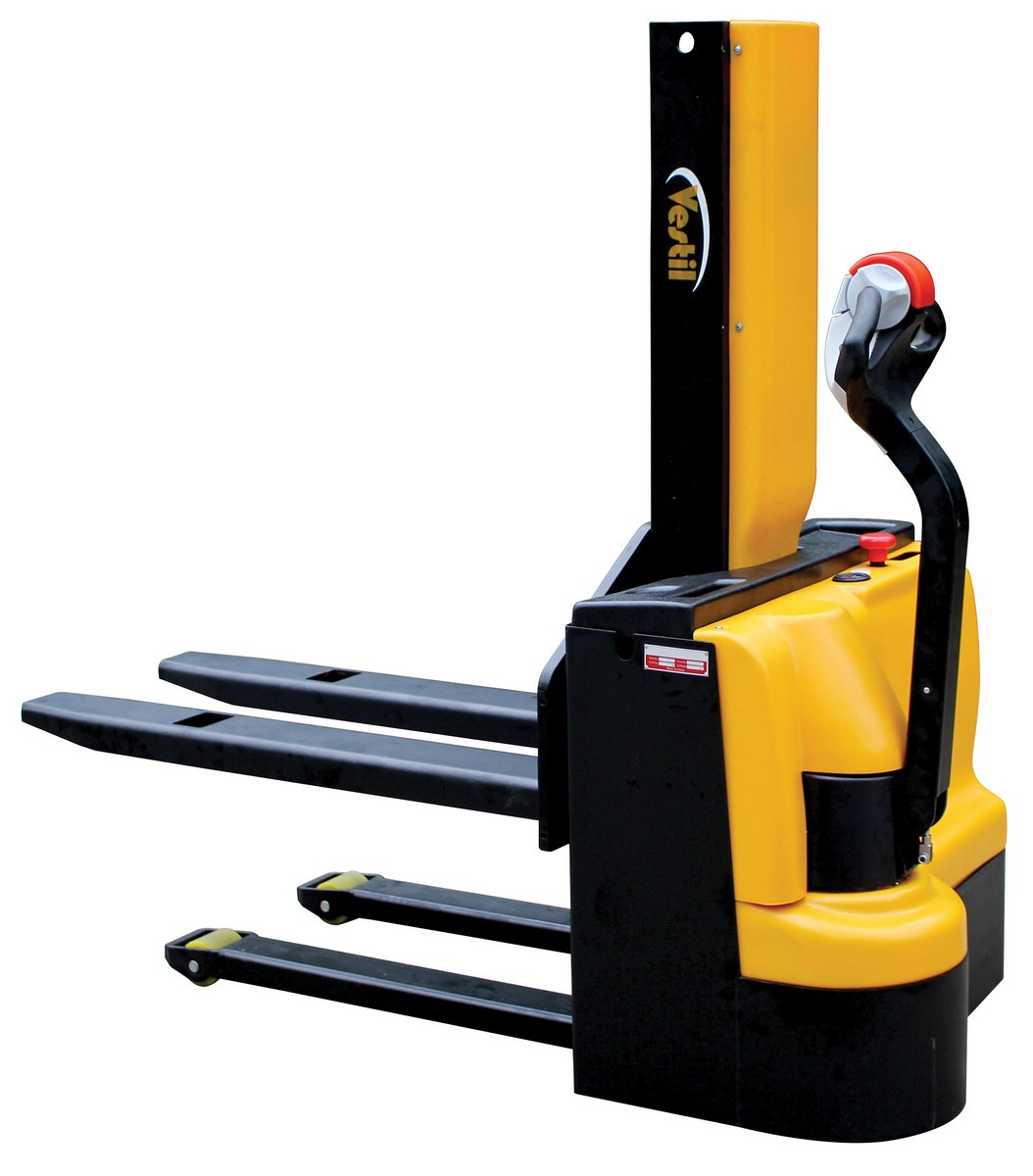

SNM3-43-FF-27 SNM3-43-FF-27Steel Narrow Mast Stacker DC Powered 43 In. Raised Height Fixed Fork 27 In. Fork Width 3,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 3,000
Service Range (in.): 3-3/8 to 43-3/8		1014

Options


Model Image PDFs Description Wt (lbs.)
AGM-UPG-2-12V Warranty PDFCompliance Certificate AGM Battery Upgrade (2x12V) must be purchased with new unit 80
SL-DK Warranty PDFCompliance Certificate Solid Platform 46
SNM-AA-DRR-FK - Drum/Roll/Reel forks 140
