VWS-770-AA

Printer Friendly
Available
VWS-770-AA
VWS-770-AA VWS-770-AA VWS-770-AA VWS-770-AA

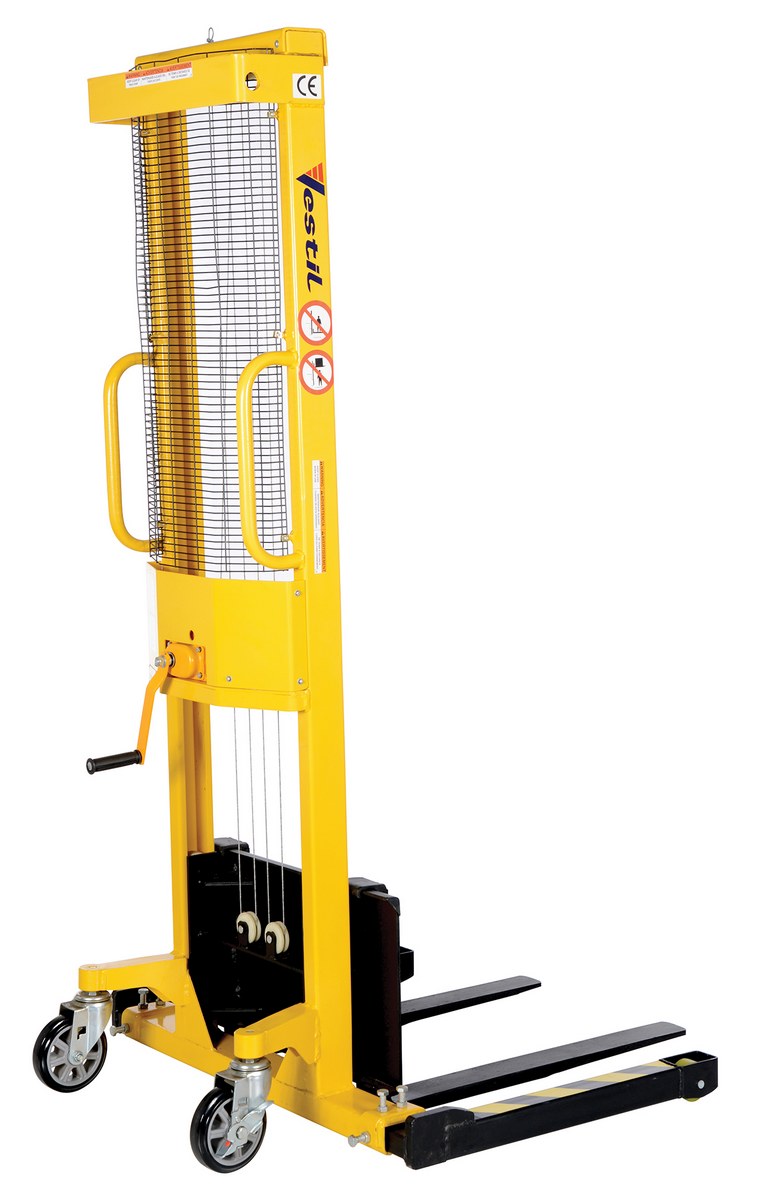

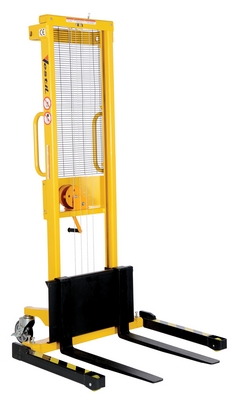

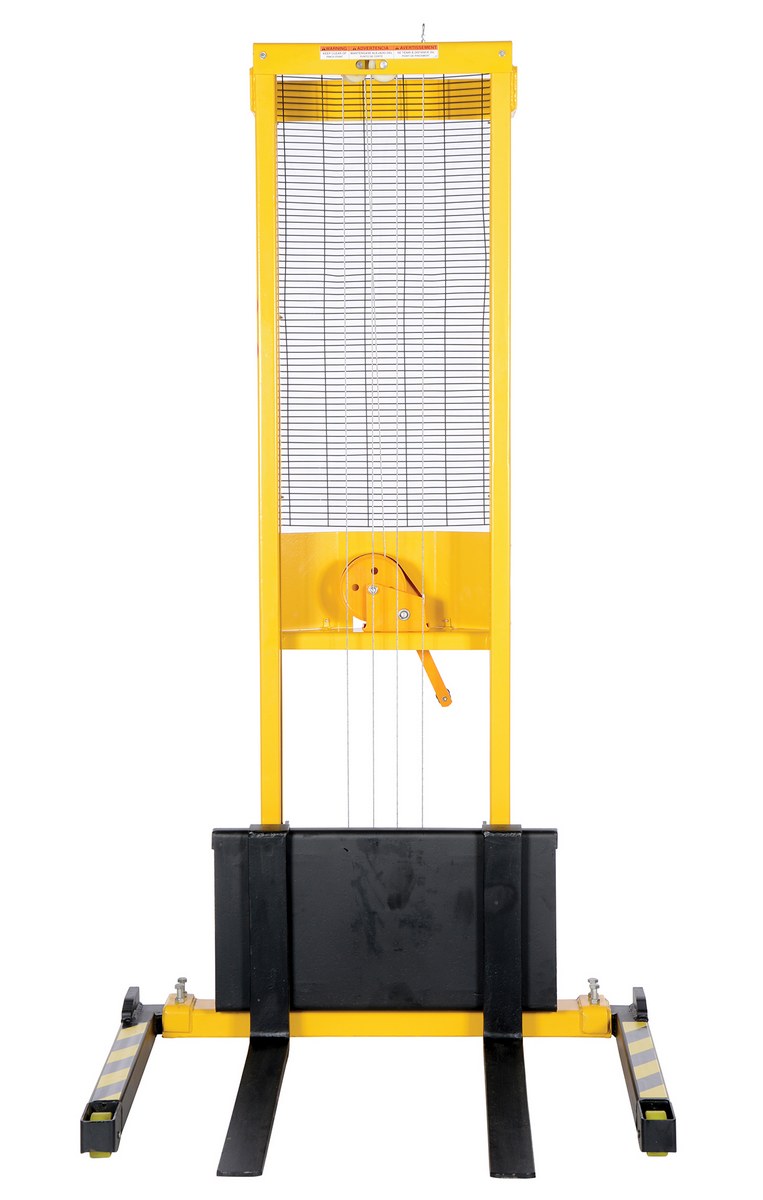

Steel Stacker with Adjustable Manual Hand Winch 770 Lb. Capacity Black / Yellow

The manual stacker is designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. Maintenance free and easy to use. The full height push handle allows for easy steering and excellent visibility through a welded mesh guard with an optional removable platform available. The hand winch stacker features a heavy-duty mast and a unique winch design for easier and safer lifting. The lift and lower is done by hand winch and a steel cable mechanism. The two (2) rigid and two (2) swivel wheels with brakes make it easy for maneuvering. The unit features both adjustable forks and adjustable legs.

  • Manual stacker is maintenance free and easy to use
  • Includes a heavy-duty mast and a winch design for easier and safer lifting
  • The lift and lower is a steel cable mechanism for simple use
  • Features adjustable forks and legs more than one application
Assembled Wt.(lbs.): 293 Assembled Size: 42.25"W x 47"L x 78.1875"H

Total Ship Wt.(lbs.): 396 (only 1 package) Package 1 Size: 45"W x 64"D x 85"H Color: Black / Yellow

Uniform Capacity (lb.): 770 Service Range (in.): 1-9/16 to 59 Fork Length (in.): 29-15/16
Fork Width (in.): 3-1/8 Leg Width (in.): 2-3/8 Adjustable Straddle Leg Spacing (in.): 42-1/4 to 54 (OD)
Adjustable Fork Spacing (in.): 6-1/4 to 26-3/4 (OD) Mast: Single Operation: Hand Winch
Rear Caster Quantity/Diameter/Width (in.): (2) 5-9/10 x 1-7/16 Rear Caster Material: Poly on Poly Front Caster Quantity/Diameter/Width (in.): (2) 2-9/10 x 1-7/16
Front Caster Material: Poly on Poly Lift per Crank Revolution (in.): 25/32 Overall Mast Height (in.): 78-3/16
Horizontal Load Center (in.): 16

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: VWS-770-AA
Available
VWS-770-AA

Steel Stacker with Adjustable Manual Hand Winch 770 Lb. Capacity Black / Yellow

The manual stacker is designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. Maintenance free and easy to use. The full height push handle allows for easy steering and excellent visibility through a welded mesh guard with an optional removable platform available. The hand winch stacker features a heavy-duty mast and a unique winch design for easier and safer lifting. The lift and lower is done by hand winch and a steel cable mechanism. The two (2) rigid and two (2) swivel wheels with brakes make it easy for maneuvering. The unit features both adjustable forks and adjustable legs.

  • Manual stacker is maintenance free and easy to use
  • Includes a heavy-duty mast and a winch design for easier and safer lifting
  • The lift and lower is a steel cable mechanism for simple use
  • Features adjustable forks and legs more than one application
Dimensions: 42.25"W x 47"L x 78.1875"H Sell UOM: -- Color: Black / Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 396 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 770 Service Range (in.): 1-9/16 to 59 Fork Length (in.): 29-15/16
Fork Width (in.): 3-1/8 Leg Width (in.): 2-3/8 Adjustable Straddle Leg Spacing (in.): 42-1/4 to 54 (OD)
Adjustable Fork Spacing (in.): 6-1/4 to 26-3/4 (OD) Mast: Single Operation: Hand Winch
Rear Caster Quantity/Diameter/Width (in.): (2) 5-9/10 x 1-7/16 Rear Caster Material: Poly on Poly Front Caster Quantity/Diameter/Width (in.): (2) 2-9/10 x 1-7/16
Front Caster Material: Poly on Poly Lift per Crank Revolution (in.): 25/32 Overall Mast Height (in.): 78-3/16
Horizontal Load Center (in.): 16
