VHPS-NM-1000-AA

Printer Friendly
Available
VHPS-NM-1000-AA
VHPS-NM-1000-AA VHPS-NM-1000-AA VHPS-NM-1000-AA VHPS-NM-1000-AA VHPS-NM-1000-AA

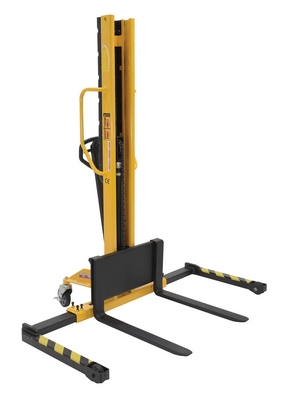

Steel Manual Stacker Narrow Mast Adjustable Forks/Legs 1,000 Lb. Capacity Black / Yellow

Sturdy and compact to fit through standard doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 7/8" lift per handle pump. Two rigid and two swivel wheels standard.

  • Narrow mast to fit in compact areas
  • Unique construction is maintenance free and easy to use
  • Full height push handle allows for easy steering
  • Hand pump design offers easier and safer lifting

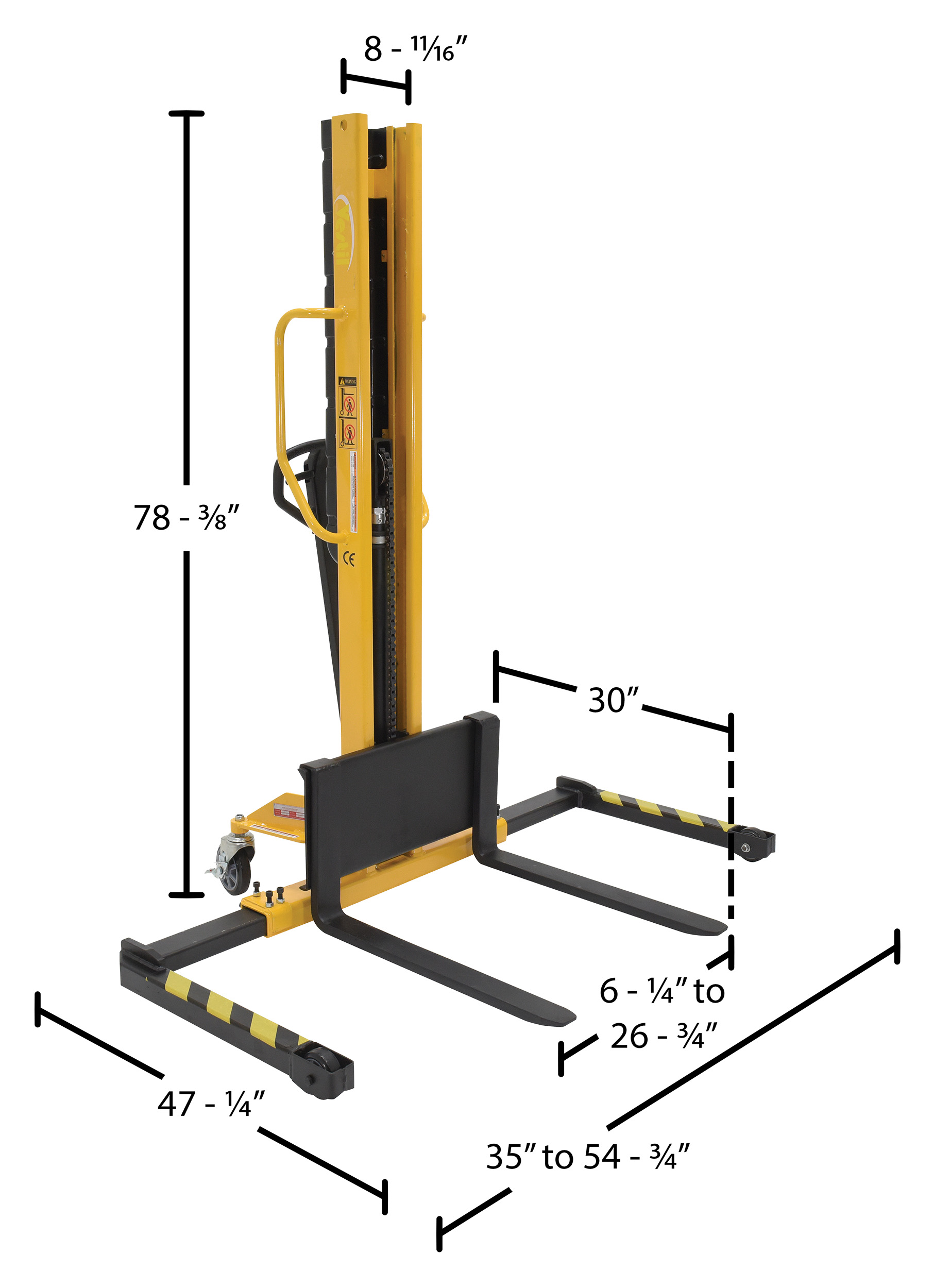

Assembled Wt.(lbs.): 590 Assembled Size: 54.75"W x 47.25"L x 78.375"H

Total Ship Wt.(lbs.): 472 (only 1 package) Package 1 Size: 64"W x 65"D x 84"H Color: Black / Yellow

Uniform Capacity (lb.): 1,000 Service Range (in.): 2-1/8 to 62 Fork Length (in.): 30
Fork Width (in.): 3-1/8 Leg Width (in.): 2-3/8 Adjustable Straddle Leg Spacing (in.): 35-7/16 to 50 (ID)
Adjustable Fork Spacing (in.): 6-1/4 to 26-3/4 (OD) Mast: Single Operation: Hand Pump
Rear Caster Quantity/Diameter/Width (in.): (2) 5-9/10 x 1-9/16 Rear Caster Material: Poly on Steel Front Caster Quantity/Diameter/Width (in.): (2) 4 x 2
Front Caster Material: Poly on Steel Pumps to Raise to Max Height (qty.): 74 Stroke per Pump (in.): 7/8
Time to Lower w/o Load (sec.): 18 Time to Lower w/ Load (sec.): 20 Overall Mast Height (in.): 78

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: VHPS-NM-1000-AA
Available
VHPS-NM-1000-AA

Steel Manual Stacker Narrow Mast Adjustable Forks/Legs 1,000 Lb. Capacity Black / Yellow

Sturdy and compact to fit through standard doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 7/8" lift per handle pump. Two rigid and two swivel wheels standard.

  • Narrow mast to fit in compact areas
  • Unique construction is maintenance free and easy to use
  • Full height push handle allows for easy steering
  • Hand pump design offers easier and safer lifting
Dimensions: 54.75"W x 47.25"L x 78.375"H Sell UOM: -- Color: Black / Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 472 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 1,000 Service Range (in.): 2-1/8 to 62 Fork Length (in.): 30
Fork Width (in.): 3-1/8 Leg Width (in.): 2-3/8 Adjustable Straddle Leg Spacing (in.): 35-7/16 to 50 (ID)
Adjustable Fork Spacing (in.): 6-1/4 to 26-3/4 (OD) Mast: Single Operation: Hand Pump
Rear Caster Quantity/Diameter/Width (in.): (2) 5-9/10 x 1-9/16 Rear Caster Material: Poly on Steel Front Caster Quantity/Diameter/Width (in.): (2) 4 x 2
Front Caster Material: Poly on Steel Pumps to Raise to Max Height (qty.): 74 Stroke per Pump (in.): 7/8
Time to Lower w/o Load (sec.): 18 Time to Lower w/ Load (sec.): 20 Overall Mast Height (in.): 78
