← All Products- ← Ergonomic Solutions- ← Stackers -← Manual & Electric Stackers- VHPS-3000-AA-17

VHPS-3000-AA-17

Printer Friendly
Available
VHPS-3000-AA-17
VHPS-3000-AA-17 VHPS-3000-AA-17 VHPS-3000-AA-17 VHPS-3000-AA-17 VHPS-3000-AA-17

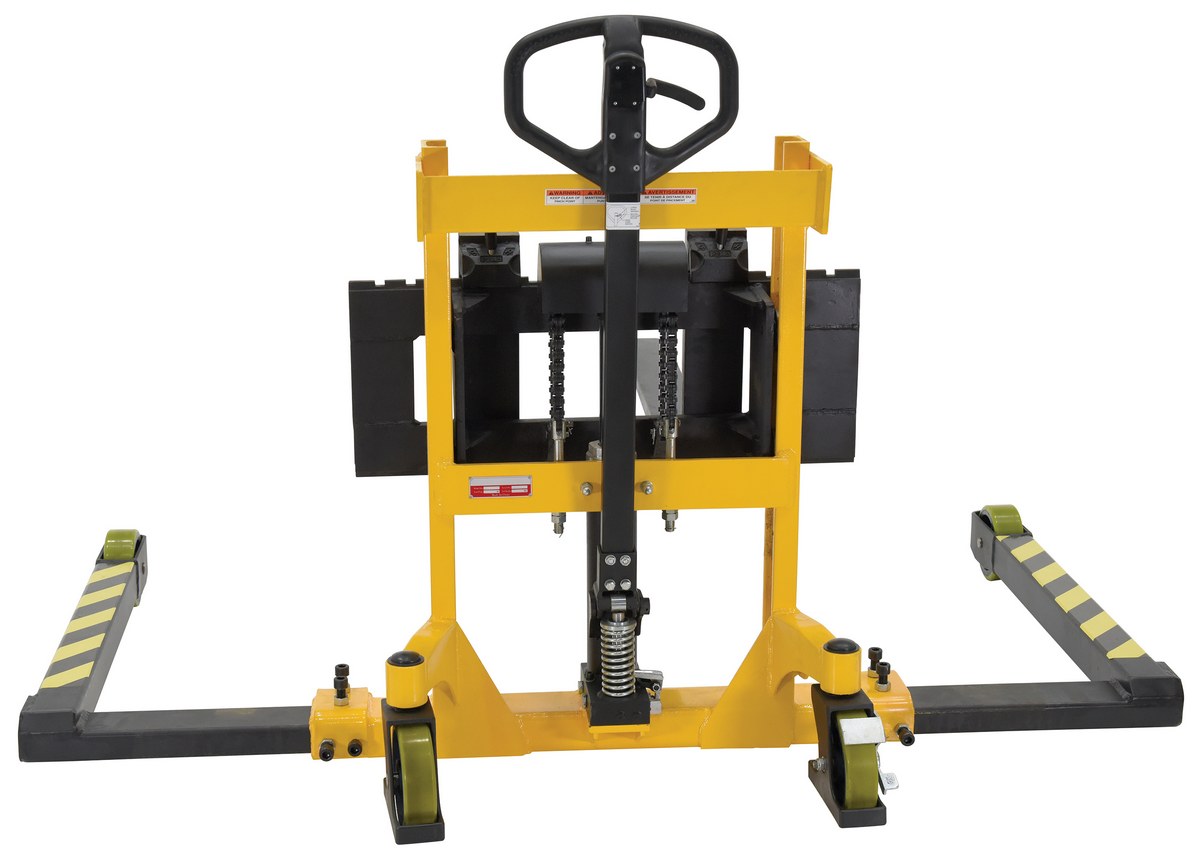

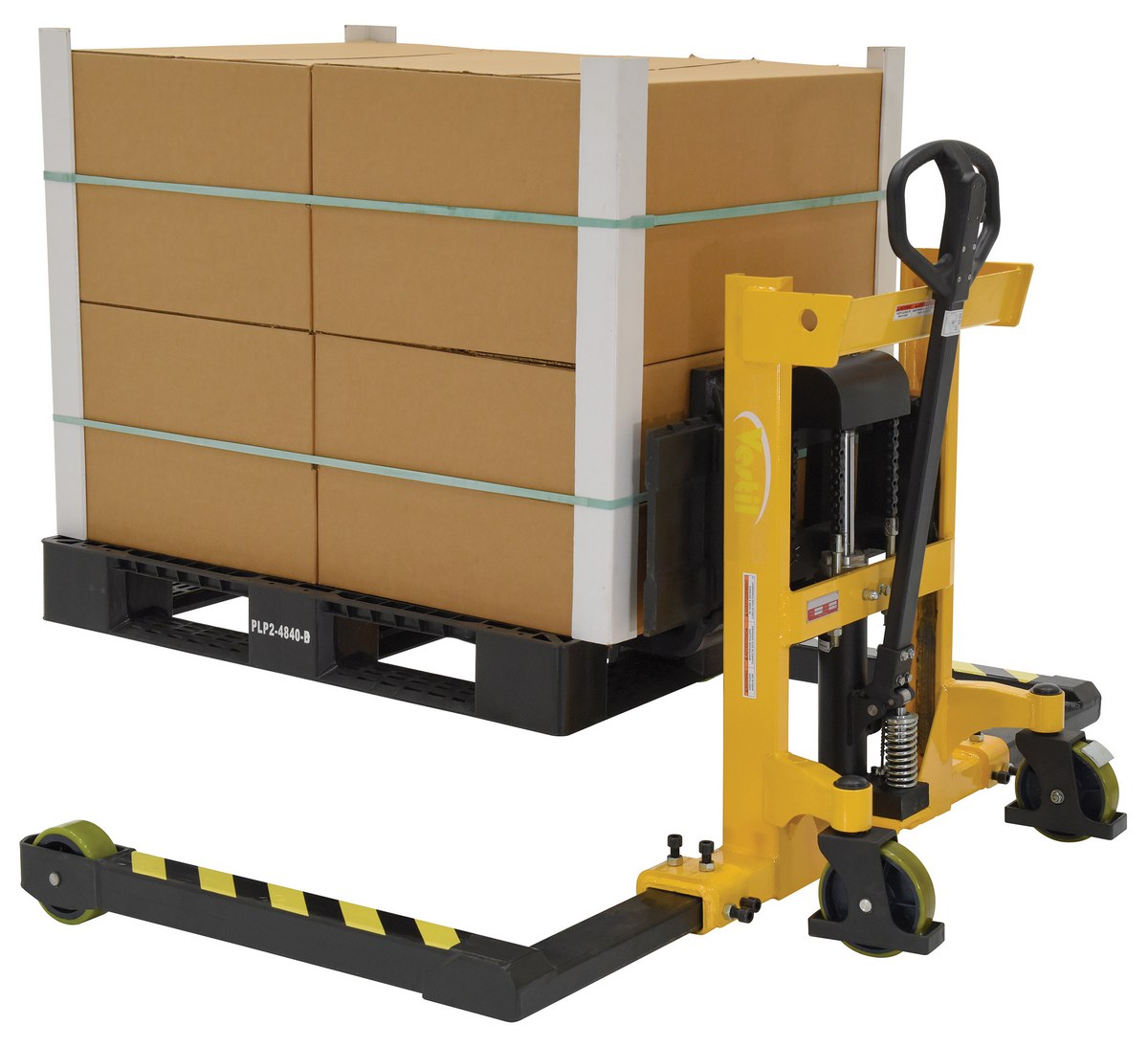

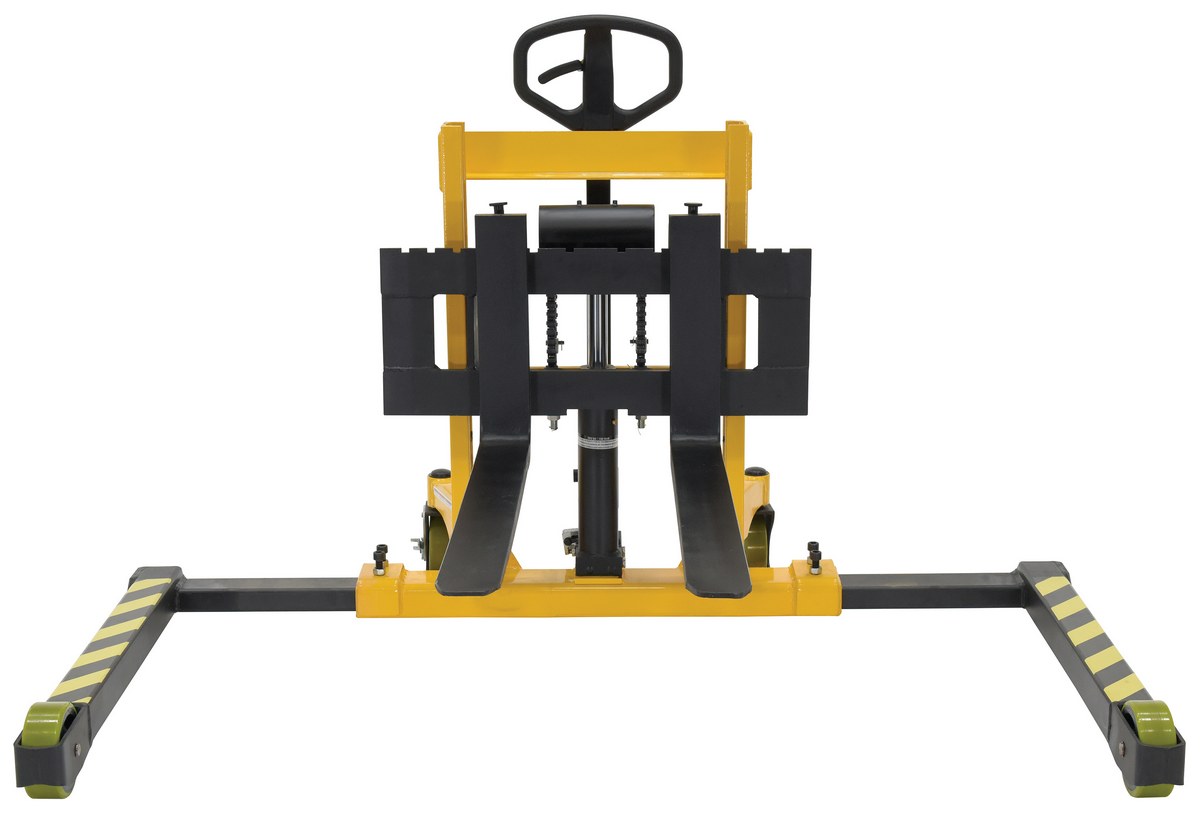

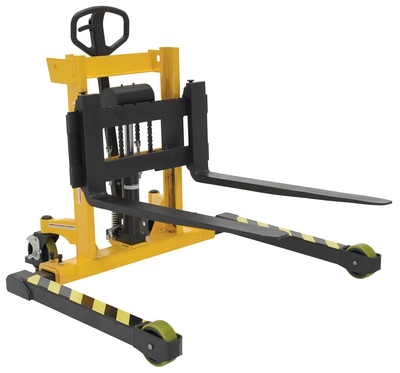

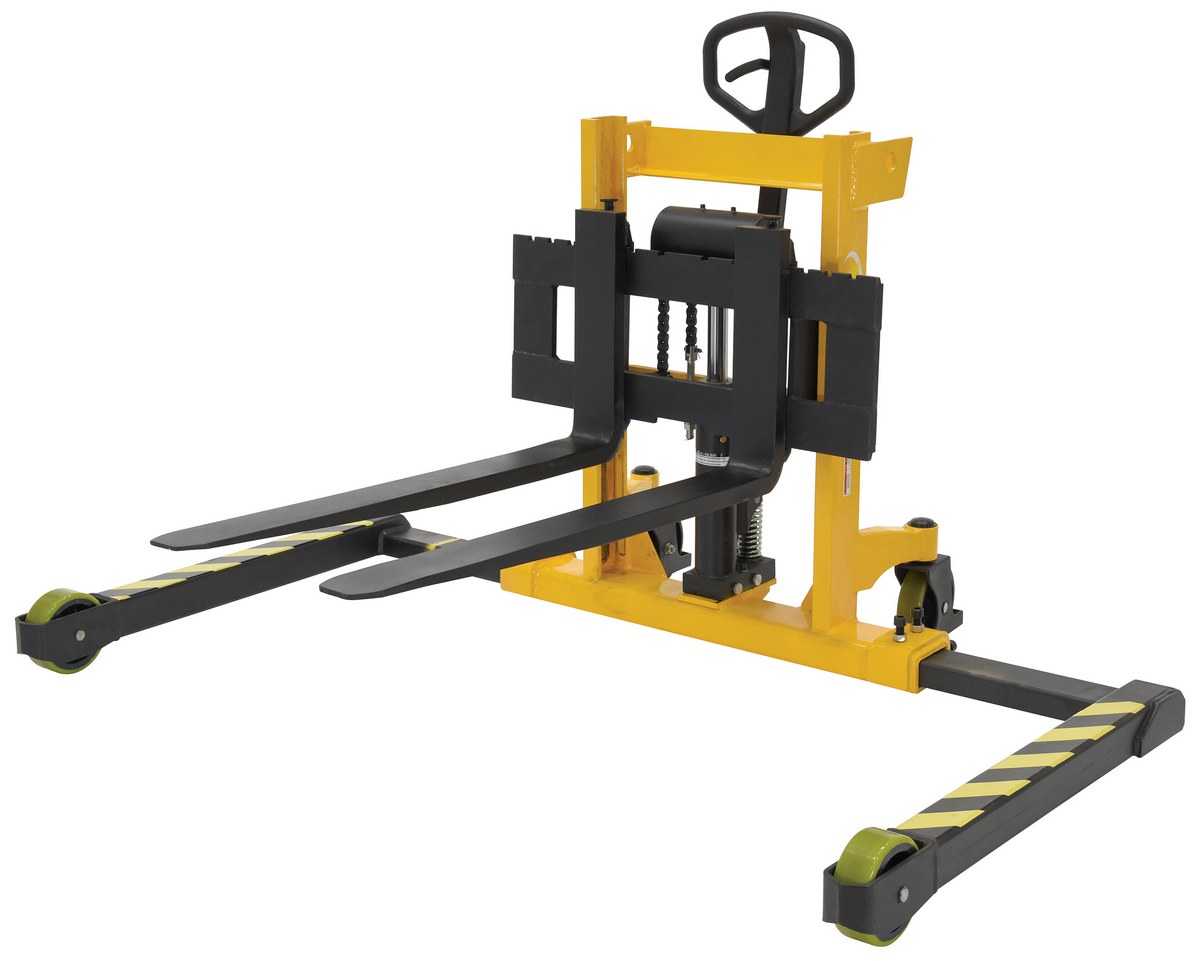

Steel Stacker Manual Pump 2-5/8 In. - 17 In. Fork Height 3,000 Lb. Capacity Black / Yellow

Manual Hydraulic hand pump stackers are sturdy and compact to fit through standard height doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 1" lift per handle pump. Two rigid and two swivel wheels standard.

  • Manual lift design for precise positioning
  • Casters with brakes for safety
  • Adjustable forks for lifting an assortment of products
  • Large load capacity
Assembled Wt.(lbs.): 709 Assembled Size: 60.25"W x 48"L x 47.25"H

Total Ship Wt.(lbs.): 766 (only 1 package) Package 1 Size: 65"W x 66"D x 51"H Color: Black / Yellow

Uniform Capacity (lb.): 3,000 Service Range (in.): 2-5/8 to 17 Fork Length (in.): 42-1/8
Fork Width (in.): 3-15/16 Adjustable Leg Spacing (in.): 40 to 50 (ID) Adjustable Fork Spacing (in.): 8-1/2 to 26-3/4 (OD)
Operation: Hand Pump Rear Caster Quantity/Diameter/Width (in.): (2) 7 x 2 Rear Caster Material: Poly on Steel
Front Caster Quantity/Diameter/Width (in.): (2) 6 x 2 Front Caster Material: Poly on Steel

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: VHPS-3000-AA-17
Available
VHPS-3000-AA-17

Steel Stacker Manual Pump 2-5/8 In. - 17 In. Fork Height 3,000 Lb. Capacity Black / Yellow

Manual Hydraulic hand pump stackers are sturdy and compact to fit through standard height doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 1" lift per handle pump. Two rigid and two swivel wheels standard.

  • Manual lift design for precise positioning
  • Casters with brakes for safety
  • Adjustable forks for lifting an assortment of products
  • Large load capacity
Dimensions: 60.25"W x 48"L x 47.25"H Sell UOM: -- Color: Black / Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 766 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 3,000 Service Range (in.): 2-5/8 to 17 Fork Length (in.): 42-1/8
Fork Width (in.): 3-15/16 Adjustable Leg Spacing (in.): 40 to 50 (ID) Adjustable Fork Spacing (in.): 8-1/2 to 26-3/4 (OD)
Operation: Hand Pump Rear Caster Quantity/Diameter/Width (in.): (2) 7 x 2 Rear Caster Material: Poly on Steel
Front Caster Quantity/Diameter/Width (in.): (2) 6 x 2 Front Caster Material: Poly on Steel
