SNM3-43-AA

Printer Friendly
Available
SNM3-43-AA
SNM3-43-AA SNM3-43-AA SNM3-43-AA SNM3-43-AA

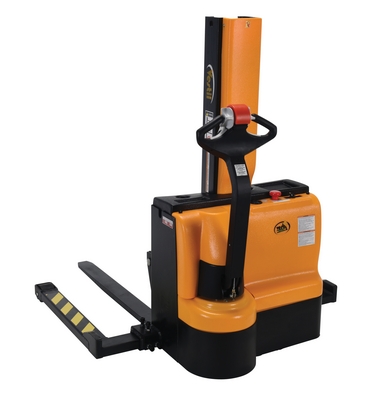

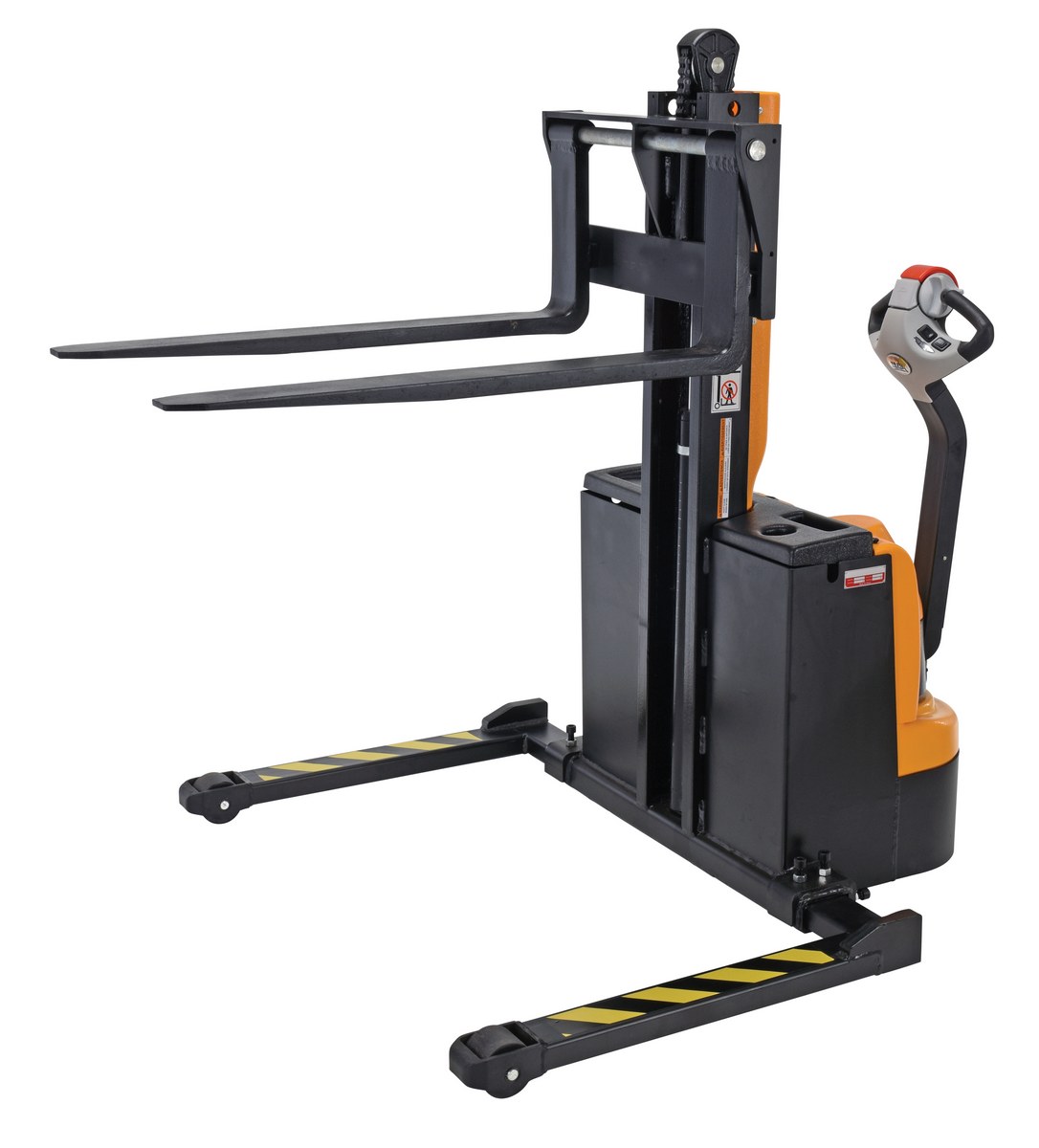

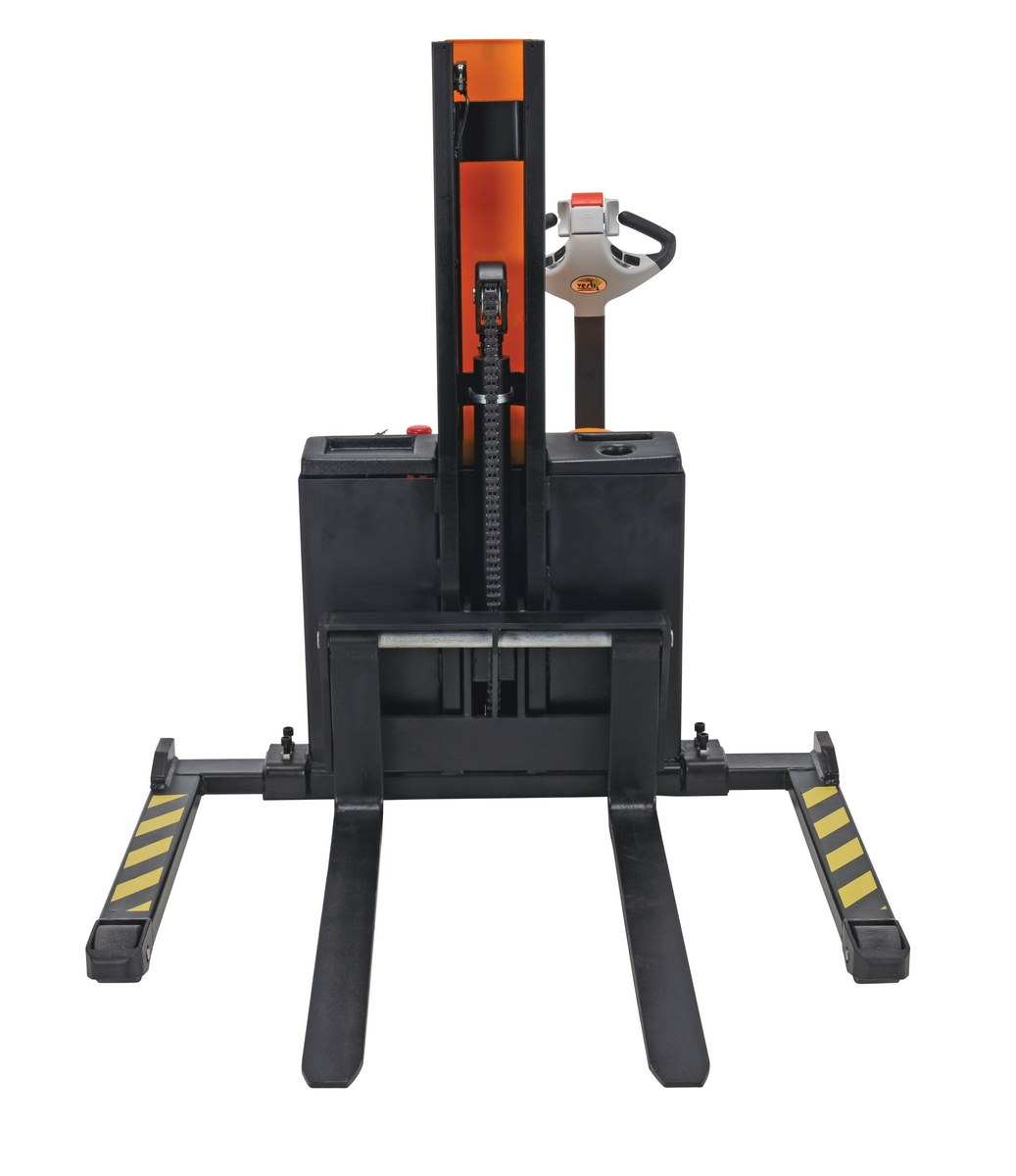

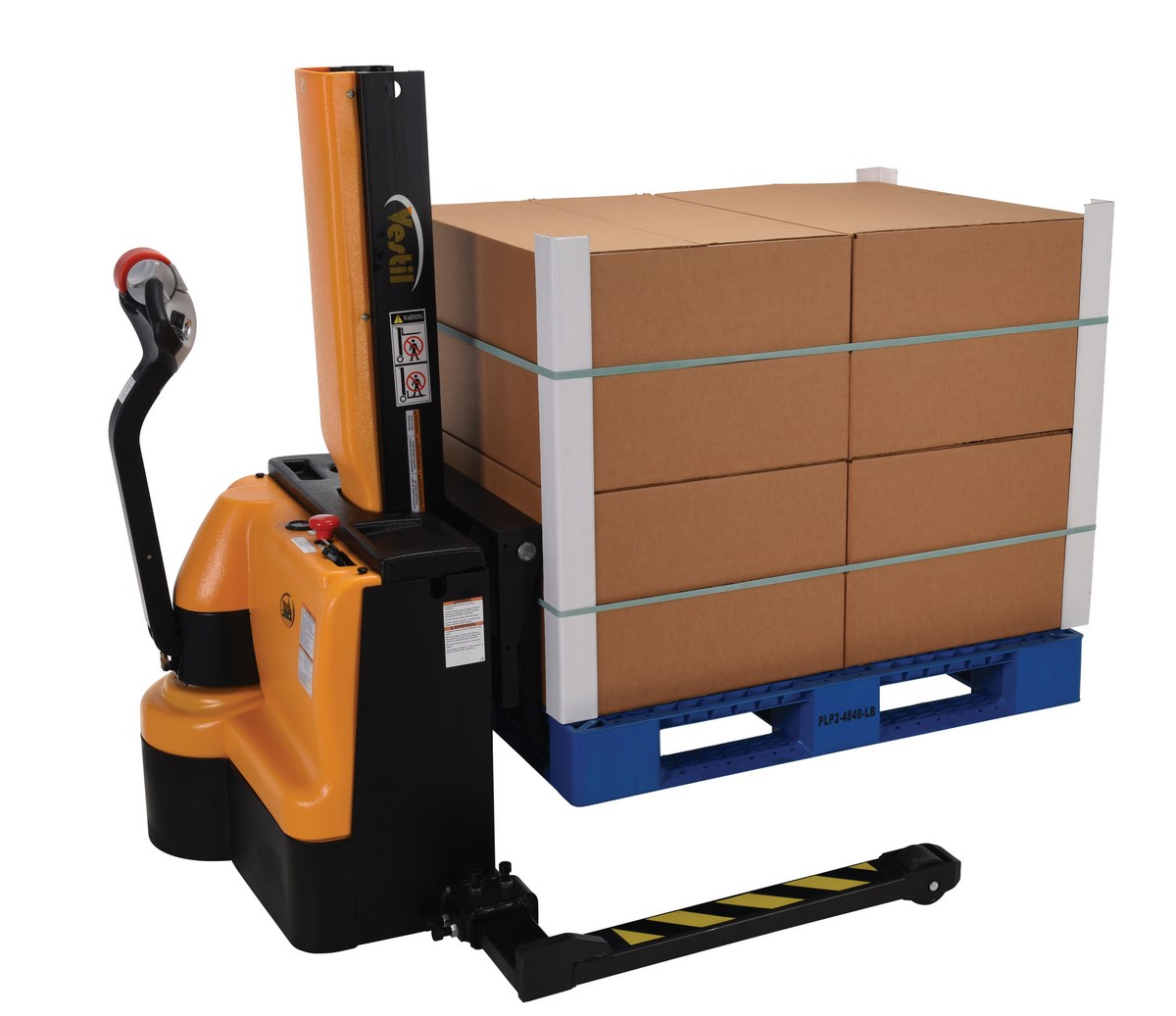

Steel Narrow Mast Stacker DC Powered 43 In. Raised Height Adjustable Forks and Support Legs 3,000 Lb. Capacity Black / Yellow

The narrow mast stacker is great for the shipping and manufacturing facilities. The stacker provides a fast efficient solution to loading and unloading products in closely confined areas. The stacker features a simple throttle design for lifting control, as well as, infinite forward and reverse speed adjustments. The unit drives on poly on steel steering and load wheels, which provide excellent maneuverability. A battery charger, gauge and horn are included. Models are available with fixed or adjustable forks as well as fixed or adjustable leg supports.

  • Emergency reverse belly switch instantly reverses direction
  • Stacker is an efficient solution to loading and unloading in closely confined areas
  • Throttle design lifts and controls speed adjustments for ideal operation and optimal results
  • Includes poly-on-steel wheels for excellent maneuverability and adjustable forks for maximum efficiency
Assembled Wt.(lbs.): 1150 Assembled Size: 57"W x 67"L x 63.25"H

Total Ship Wt.(lbs.): 1121 (only 1 package) Package 1 Size: 60"W x 74"D x 67"H Color: Black / Yellow

Uniform Capacity (lb.): 3,000 Service Range (in.): 2 to 43-3/10 Fork Width/Length (in.): 4 x 42-1/8
Adjustable Fork Spacing (in.): 8-3/8 to 26-3/4 (OD) Adjustable Leg Spacing (in.): 40-1/8 to 50 (ID) Overall Mast Height (in.): 62-3/4
Drive Motor: DC 24V / 1.0 KW Lift Motor: DC 24V / 2.0 KW Battery: (2) 12V / 80 Ah
Battery Charger: 24V / 12 amp Raise Time w/ Load: 5.9" / sec Raise Time w/o Load: 4" / sec
Lower Time w/ Load: 2.95" / sec Lower Time w/o Load: 3.15" / sec Travel Speed - Loaded (MPH): 2.79
Travel Speed - Unloaded (MPH): 3.4 Operation Time with Constant Use (hrs.): 3 to 4 Operation Time with Intermittent Use (hrs.): 8

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: SNM3-43-AA
Available
SNM3-43-AA

Steel Narrow Mast Stacker DC Powered 43 In. Raised Height Adjustable Forks and Support Legs 3,000 Lb. Capacity Black / Yellow

The narrow mast stacker is great for the shipping and manufacturing facilities. The stacker provides a fast efficient solution to loading and unloading products in closely confined areas. The stacker features a simple throttle design for lifting control, as well as, infinite forward and reverse speed adjustments. The unit drives on poly on steel steering and load wheels, which provide excellent maneuverability. A battery charger, gauge and horn are included. Models are available with fixed or adjustable forks as well as fixed or adjustable leg supports.

  • Emergency reverse belly switch instantly reverses direction
  • Stacker is an efficient solution to loading and unloading in closely confined areas
  • Throttle design lifts and controls speed adjustments for ideal operation and optimal results
  • Includes poly-on-steel wheels for excellent maneuverability and adjustable forks for maximum efficiency
Dimensions: 57"W x 67"L x 63.25"H Sell UOM: -- Color: Black / Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 1121 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 3,000 Service Range (in.): 2 to 43-3/10 Fork Width/Length (in.): 4 x 42-1/8
Adjustable Fork Spacing (in.): 8-3/8 to 26-3/4 (OD) Adjustable Leg Spacing (in.): 40-1/8 to 50 (ID) Overall Mast Height (in.): 62-3/4
Drive Motor: DC 24V / 1.0 KW Lift Motor: DC 24V / 2.0 KW Battery: (2) 12V / 80 Ah
Battery Charger: 24V / 12 amp Raise Time w/ Load: 5.9" / sec Raise Time w/o Load: 4" / sec
Lower Time w/ Load: 2.95" / sec Lower Time w/o Load: 3.15" / sec Travel Speed - Loaded (MPH): 2.79
Travel Speed - Unloaded (MPH): 3.4 Operation Time with Constant Use (hrs.): 3 to 4 Operation Time with Intermittent Use (hrs.): 8
