SNM-90-FF-27

Printer Friendly
Available
SNM-90-FF-27
SNM-90-FF-27 SNM-90-FF-27 SNM-90-FF-27 SNM-90-FF-27 SNM-90-FF-27 SNM-90-FF-27

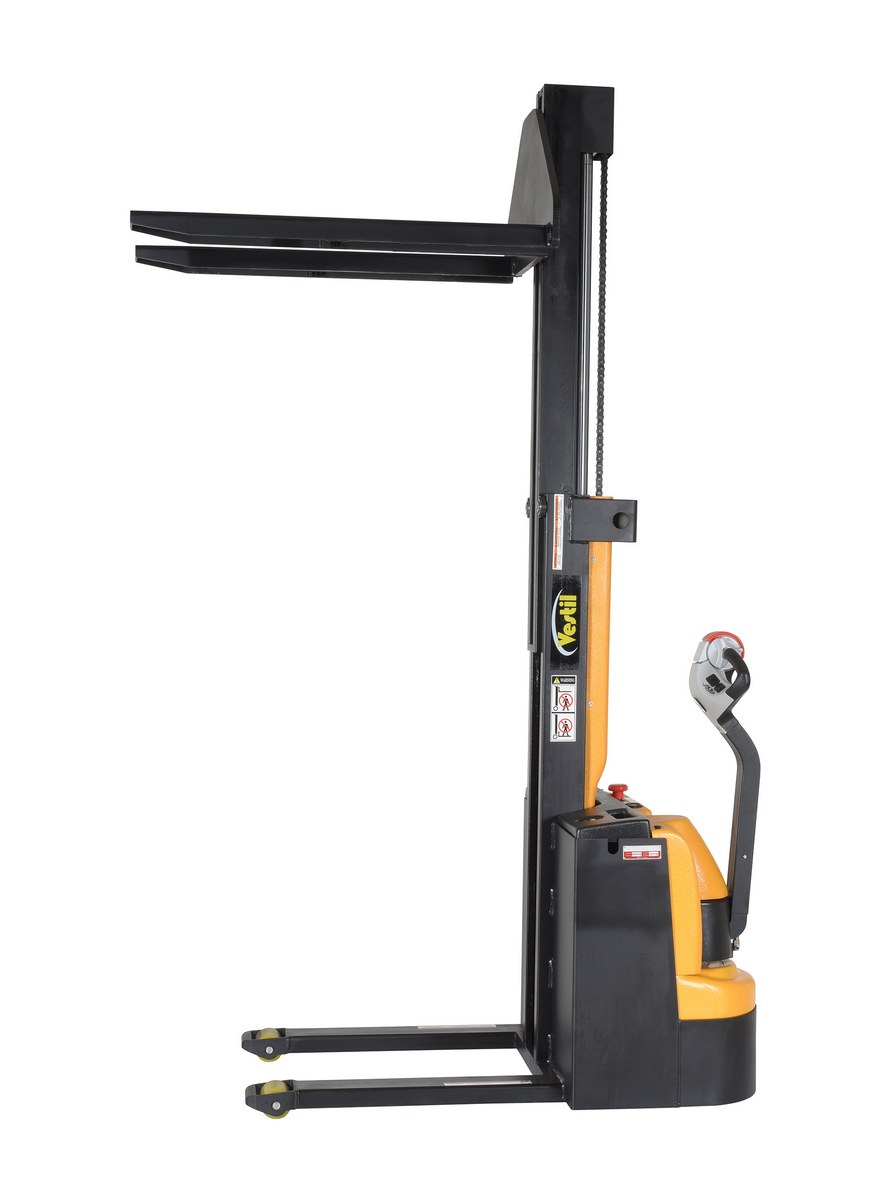

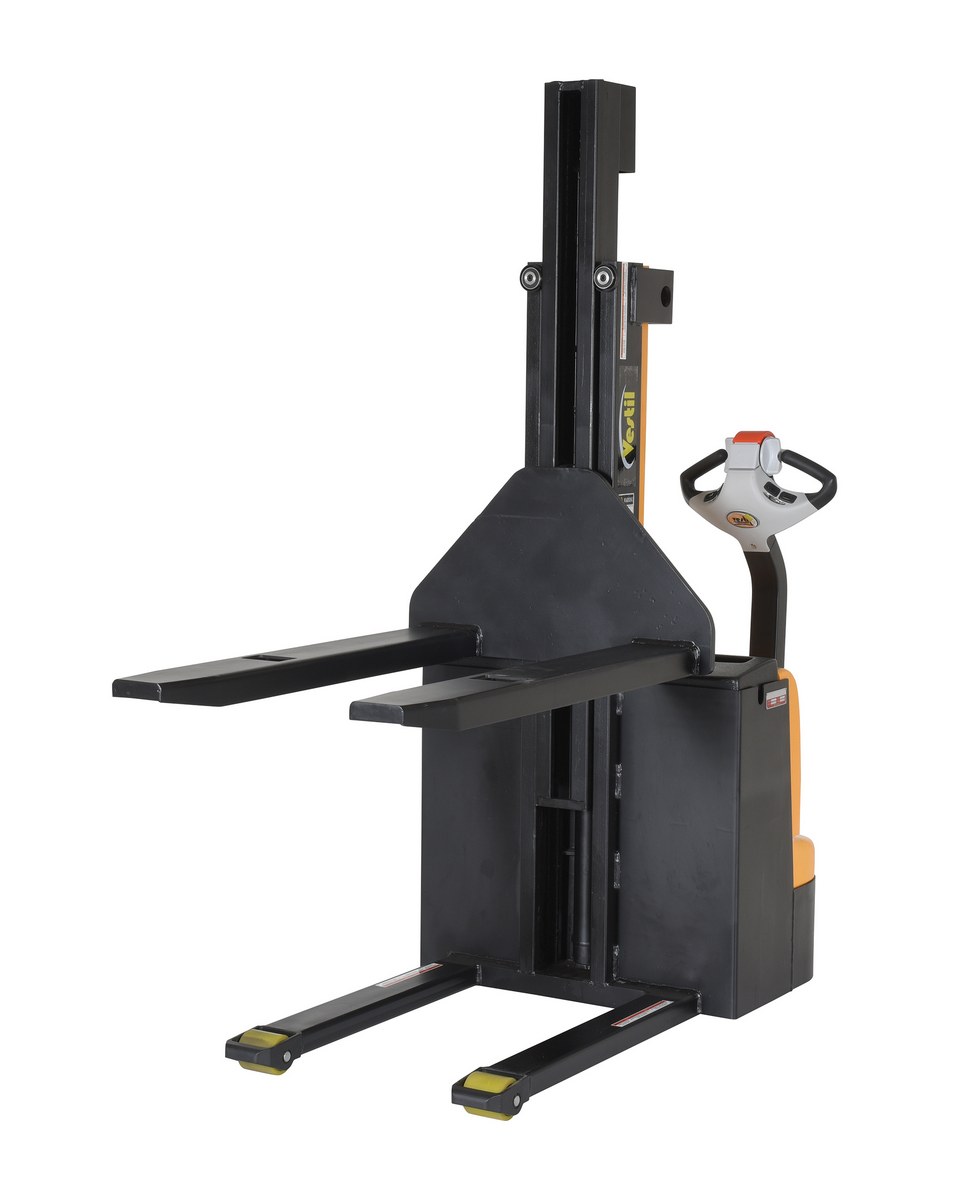

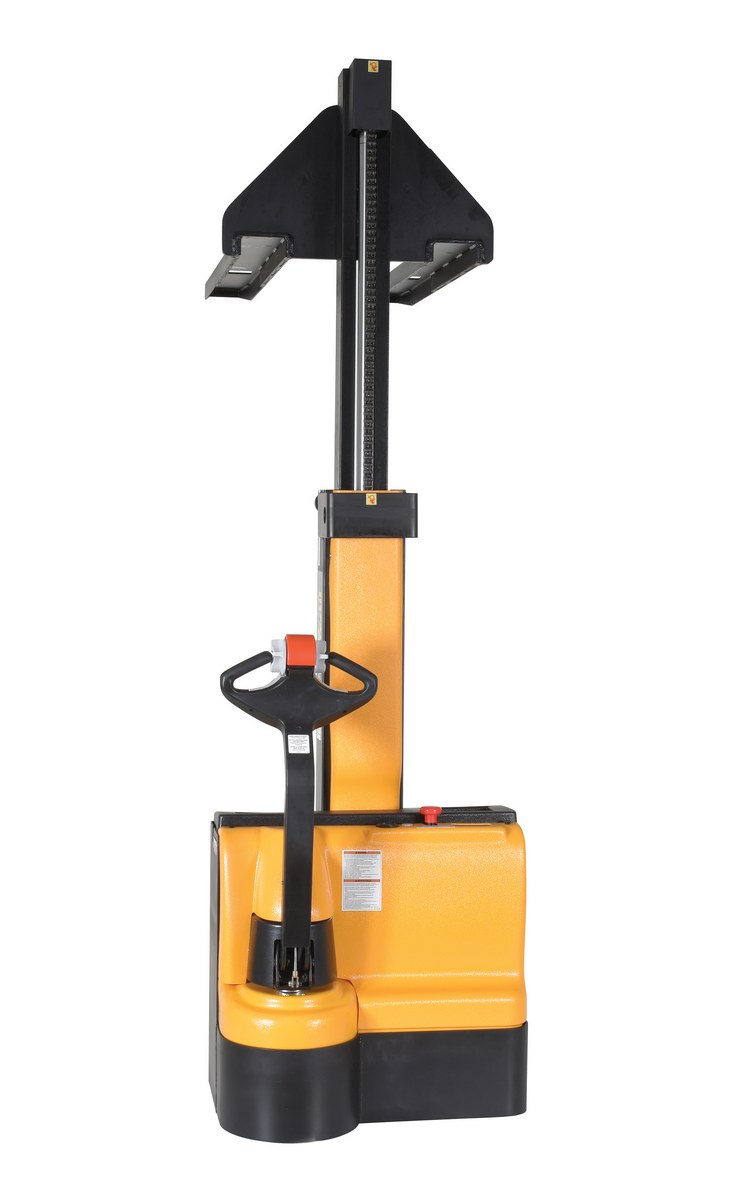

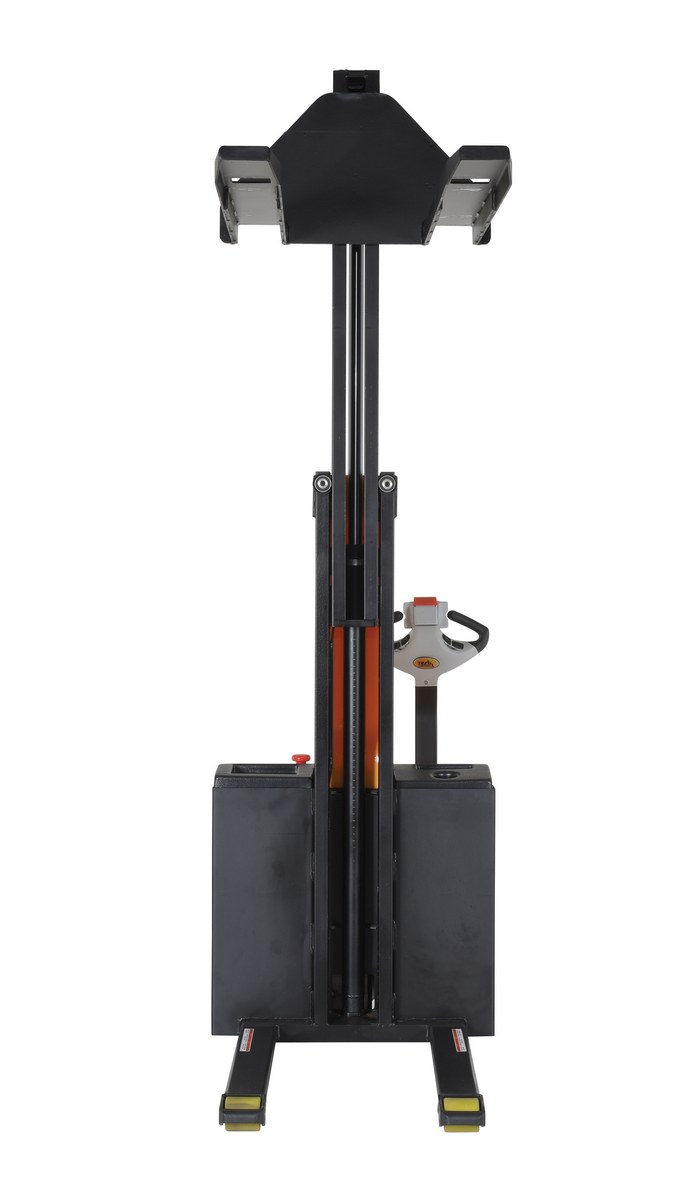

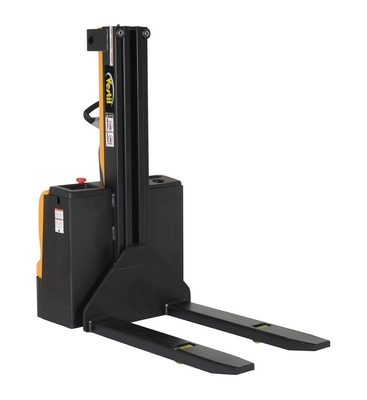

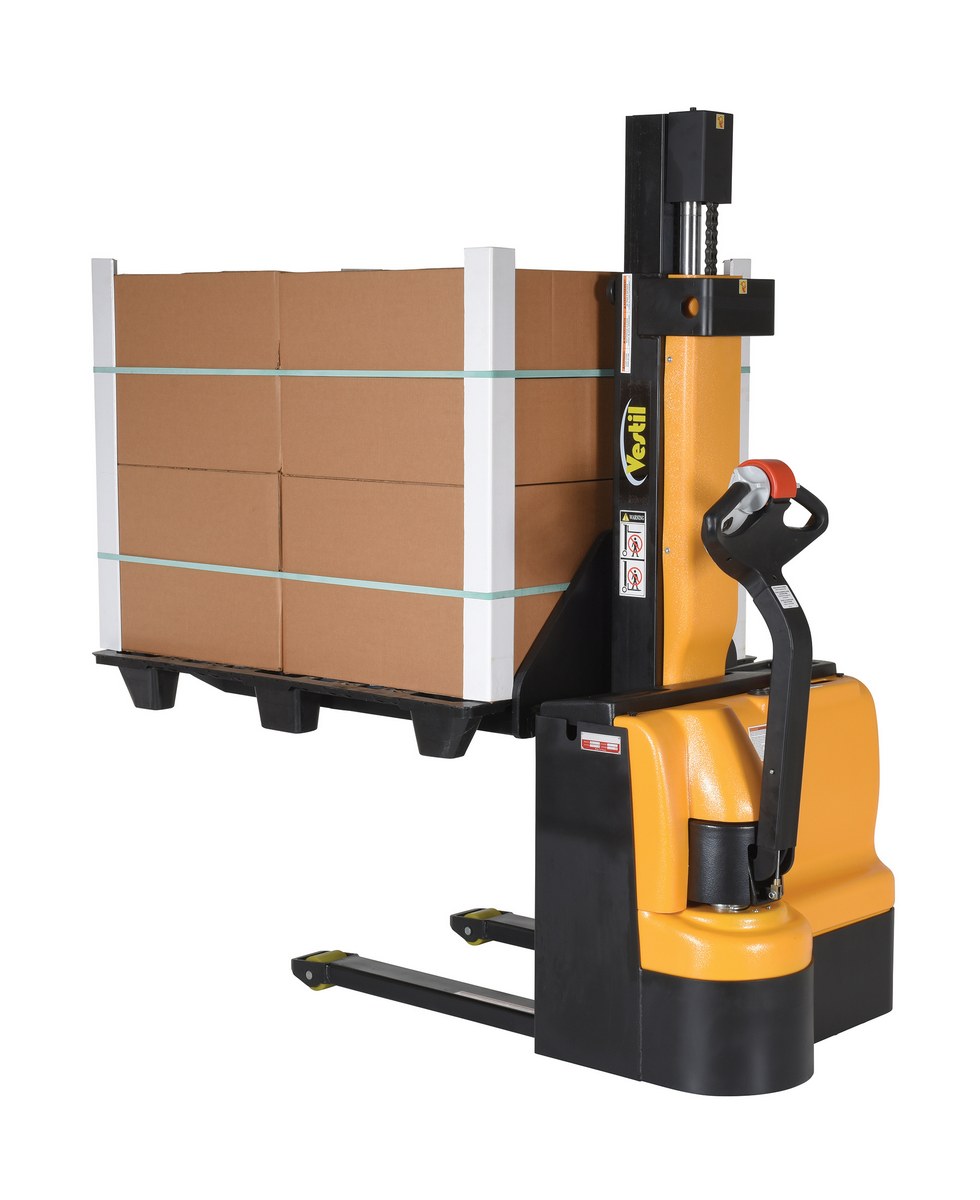

Steel Narrow Mast Stacker DC Powered 90 In. Raised Height Fixed Fork 27 In. Fork Width 2,500 Lb. Capacity Black / Yellow

The narrow mast stacker is great for the shipping and manufacturing facilities. The stacker provides a fast efficient solution to loading and unloading products in closely confined areas. The stacker features a simple throttle design for lifting control, as well as, infinite forward and reverse speed adjustments. The unit drives on poly on steel steering and load wheels, which provide excellent maneuverability. A battery charger, gauge and horn are included. Models are available with fixed or adjustable forks as well as fixed or adjustable leg supports.

  • Emergency reverse belly switch instantly reverses direction
  • Stacker is an efficient solution to loading and unloading in closely confined areas
  • Throttle design lifts and controls speed adjustments for ideal operation and optimal results
  • Includes poly-on-steel wheels for excellent maneuverability and fixed forks for maximum efficiency
Assembled Wt.(lbs.): 1112 Assembled Size: 32.5"W x 66.6875"L x 64"H

Total Ship Wt.(lbs.): 1154 (only 1 package) Package 1 Size: 37"W x 79"D x 69"H Color: Black / Yellow Non-Returnable

Uniform Capacity at 0 - 62" (lb.): 2,500 Uniform Capacity at 62 - 90" (lb.): 2,000 Service Range (in.): 3-1/4 to 90
Fork Width/Length (in.): 5-9/10 x 42 Fixed Fork Spacing (in.): 26-3/4 Overall Mast Height - Retracted (in.): 63-7/8
Overall Mast Height - Extended (in.): 107-9/16 Drive Motor: DC 24V / 1.0 KW Lift Motor: DC 24V / 2.0 KW
Battery: (2) 12V / 80-95 Ah Battery Charger: 24V / 12 amp Operation Time with Constant Use (hrs.): 3 to 4
Operation Time with Intermittent Use (hrs.): 8 Travel Speed - Loaded (MPH): 3.1 Travel Speed - Unloaded (MPH): 3.8

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: SNM-90-FF-27
Available
SNM-90-FF-27

Steel Narrow Mast Stacker DC Powered 90 In. Raised Height Fixed Fork 27 In. Fork Width 2,500 Lb. Capacity Black / Yellow

The narrow mast stacker is great for the shipping and manufacturing facilities. The stacker provides a fast efficient solution to loading and unloading products in closely confined areas. The stacker features a simple throttle design for lifting control, as well as, infinite forward and reverse speed adjustments. The unit drives on poly on steel steering and load wheels, which provide excellent maneuverability. A battery charger, gauge and horn are included. Models are available with fixed or adjustable forks as well as fixed or adjustable leg supports.

  • Emergency reverse belly switch instantly reverses direction
  • Stacker is an efficient solution to loading and unloading in closely confined areas
  • Throttle design lifts and controls speed adjustments for ideal operation and optimal results
  • Includes poly-on-steel wheels for excellent maneuverability and fixed forks for maximum efficiency
Dimensions: 32.5"W x 66.6875"L x 64"H Sell UOM: -- Color: Black / Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 1154 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity at 0 - 62" (lb.): 2,500 Uniform Capacity at 62 - 90" (lb.): 2,000 Service Range (in.): 3-1/4 to 90
Fork Width/Length (in.): 5-9/10 x 42 Fixed Fork Spacing (in.): 26-3/4 Overall Mast Height - Retracted (in.): 63-7/8
Overall Mast Height - Extended (in.): 107-9/16 Drive Motor: DC 24V / 1.0 KW Lift Motor: DC 24V / 2.0 KW
Battery: (2) 12V / 80-95 Ah Battery Charger: 24V / 12 amp Operation Time with Constant Use (hrs.): 3 to 4
Operation Time with Intermittent Use (hrs.): 8 Travel Speed - Loaded (MPH): 3.1 Travel Speed - Unloaded (MPH): 3.8
