Model Details

← All Products- ← Ergonomic Solutions- ← Stackers -← Narrow Mast Stackers with Powered Drive and Powered Lift- SNM-62-FF-21

SNM-62-FF-21

Printer Friendly
Available
SNM-62-FF-21
SNM-62-FF-21 SNM-62-FF-21 SNM-62-FF-21 SNM-62-FF-21 SNM-62-FF-21

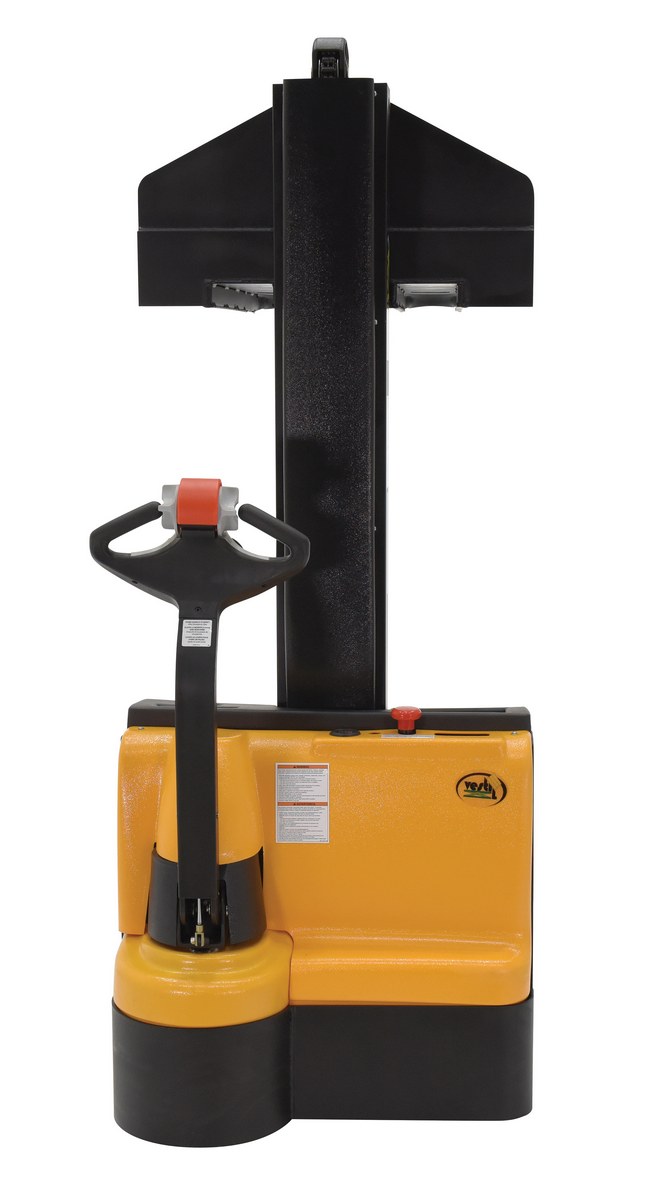

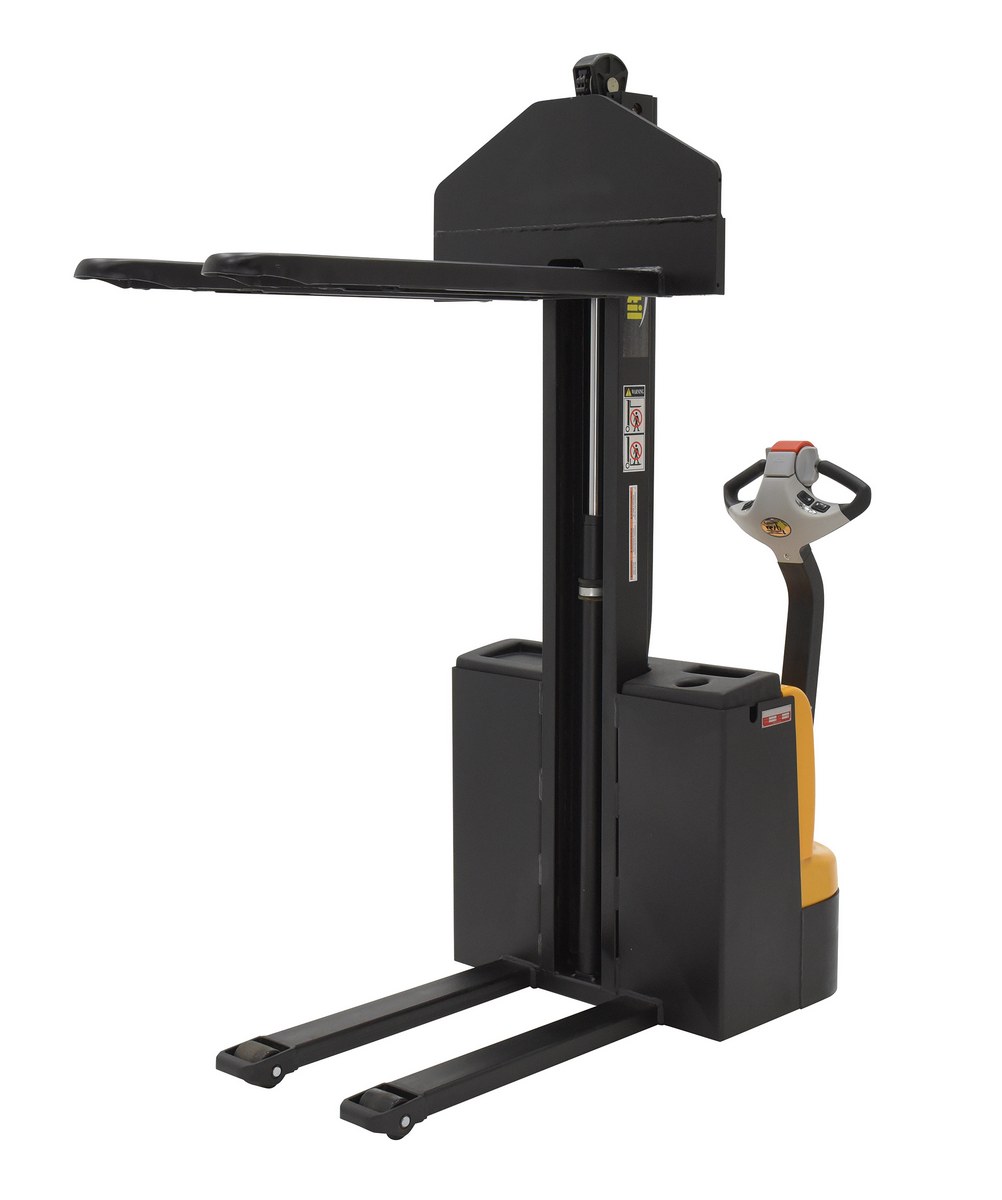

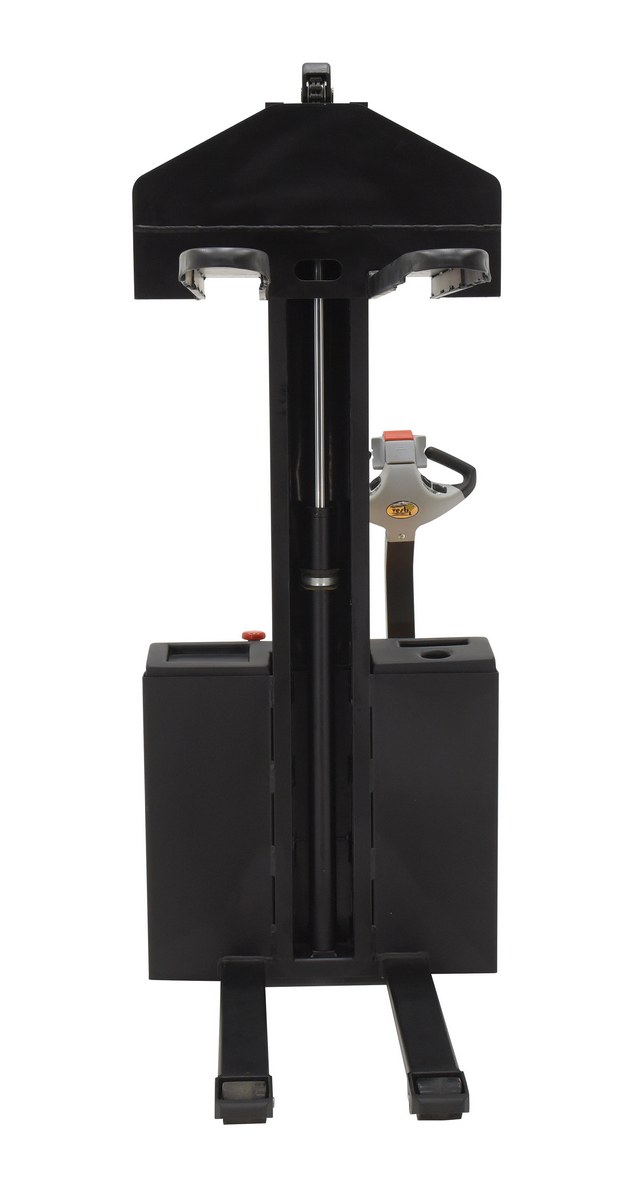

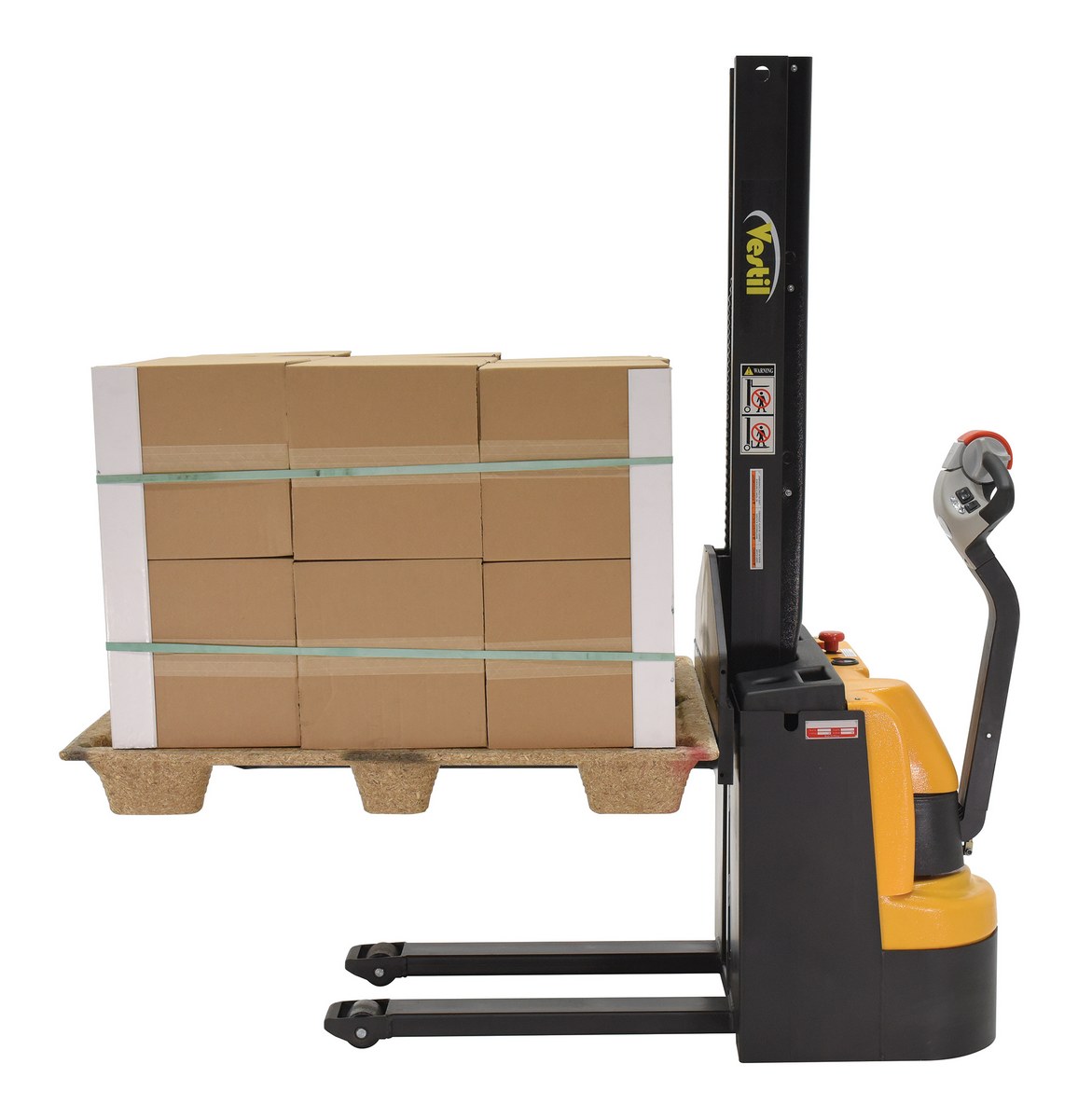

Steel Narrow Mast Stacker DC Powered 62 In. Raised Height Fixed Fork 21 In. Fork Width 2,200 Lb. Capacity Black / Yellow

The narrow mast stacker is great for the shipping and manufacturing facilities. The stacker provides a fast efficient solution to loading and unloading products in closely confined areas. The stacker features a simple throttle design for lifting control, as well as, infinite forward and reverse speed adjustments. The unit drives on poly on steel steering and load wheels, which provide excellent maneuverability. A battery charger, gauge and horn are included. Models are available with fixed or adjustable forks as well as fixed or adjustable leg supports.

  • Emergency reverse belly switch instantly reverses direction
  • Stacker is an efficient solution to loading and unloading in closely confined areas
  • Throttle design lifts and controls speed adjustments for ideal operation and optimal results
  • Includes poly-on-steel wheels for excellent maneuverability and fixed forks for maximum efficiency
Assembled Wt.(lbs.): 932 Assembled Size: 32"W x 68.5"L x 78.5"H

Total Ship Wt.(lbs.): 899 (only 1 package) Package 1 Size: 60"W x 75"D x 84"H Color: Black / Yellow Non-Returnable

Uniform Capacity (lb.): 2,200 Service Range (in.): 2-3/8 to 62 Fork Width/Length (in.): 5-9/10 x 42-1/8
Fixed Fork Spacing (in.): 20-1/2 Overall Mast Height (in.): 78-3/4 Drive Motor (in.): DC 24V / 1.0 KW
Lift Motor (in.): DC 24V / 2.0 KW Battery: (2) 12V / 80-95 Ah Battery Charger: 24V / 12 amp
Operation Time with Constant Use (hrs.): 3-4 Operation Time with Intermittent Use (hrs.): 8 Travel Speed - Loaded (MPH): 2.8
Travel Speed - Unloaded (MPH): 3.4

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: SNM-62-FF-21
Available
SNM-62-FF-21

Steel Narrow Mast Stacker DC Powered 62 In. Raised Height Fixed Fork 21 In. Fork Width 2,200 Lb. Capacity Black / Yellow

The narrow mast stacker is great for the shipping and manufacturing facilities. The stacker provides a fast efficient solution to loading and unloading products in closely confined areas. The stacker features a simple throttle design for lifting control, as well as, infinite forward and reverse speed adjustments. The unit drives on poly on steel steering and load wheels, which provide excellent maneuverability. A battery charger, gauge and horn are included. Models are available with fixed or adjustable forks as well as fixed or adjustable leg supports.

  • Emergency reverse belly switch instantly reverses direction
  • Stacker is an efficient solution to loading and unloading in closely confined areas
  • Throttle design lifts and controls speed adjustments for ideal operation and optimal results
  • Includes poly-on-steel wheels for excellent maneuverability and fixed forks for maximum efficiency
Dimensions: 32"W x 68.5"L x 78.5"H Sell UOM: -- Color: Black / Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 899 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 2,200 Service Range (in.): 2-3/8 to 62 Fork Width/Length (in.): 5-9/10 x 42-1/8
Fixed Fork Spacing (in.): 20-1/2 Overall Mast Height (in.): 78-3/4 Drive Motor (in.): DC 24V / 1.0 KW
Lift Motor (in.): DC 24V / 2.0 KW Battery: (2) 12V / 80-95 Ah Battery Charger: 24V / 12 amp
Operation Time with Constant Use (hrs.): 3-4 Operation Time with Intermittent Use (hrs.): 8 Travel Speed - Loaded (MPH): 2.8
Travel Speed - Unloaded (MPH): 3.4
