Model Details

UNI-5448-2-YEL-208-3

UNI-5448-2-YEL-208-3

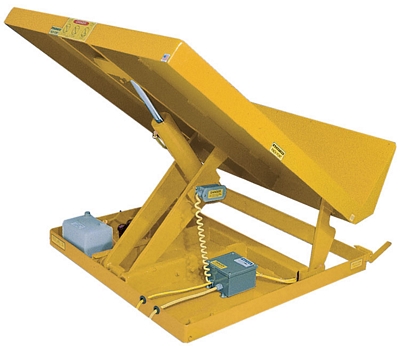

Steel Lift Table 54 In. x 48 In. AC Powered 208 Volt 3 Phase 2,000 Lb. Capacity Yellow

The single scissor lift & tilt table is designed to position containers within easy reach of assembly line workers and machine operators. The unique design reduces fatigue by minimizing repetitive bending and stretching required to obtain components from containers. This scissor table comes with a high lip on the tilt side which makes it ideal for parts transfer and assembly. The selector pedal allows the operator to lift while tilting, or tilt then lift. The motor is totally enclosed standard with optional voltages available. Other standard features include: a two-button handheld control, integrated maintenance lock, pressure plated pump, pressure compensated flow valve, lowering valve, independent oil return, and an adjustable upward travel switch. Scissor table must be lagged to the floor.

  • Ergonomic design minimizes bending and twisting
  • Welded steel construction provides long lasting rugged use
  • 40 Degrees tilt angle offers better ergonomics and operator comfort
  • Platform end lip safely supports containers when tilted
Total Ship Wt.(lbs.): 885 (only 1 package) Size: 54"W x 51.5"L x 20"H Color: Yellow Non-Returnable

Uniform Capacity (lb.): 2000 Platform Width (in.): 54 Platform Length (in.): 48
Level Height (in.): 8 Maximum Tilt Degree: 40 Power Unit: Internal
Lip Height (in.): 12 Motor Horsepower: 2 Voltage/Phase: 208/3
Hertz: 60

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: UNI-5448-2-YEL-208-3


UNI-5448-2-YEL-208-3

Steel Lift Table 54 In. x 48 In. AC Powered 208 Volt 3 Phase 2,000 Lb. Capacity Yellow

The single scissor lift & tilt table is designed to position containers within easy reach of assembly line workers and machine operators. The unique design reduces fatigue by minimizing repetitive bending and stretching required to obtain components from containers. This scissor table comes with a high lip on the tilt side which makes it ideal for parts transfer and assembly. The selector pedal allows the operator to lift while tilting, or tilt then lift. The motor is totally enclosed standard with optional voltages available. Other standard features include: a two-button handheld control, integrated maintenance lock, pressure plated pump, pressure compensated flow valve, lowering valve, independent oil return, and an adjustable upward travel switch. Scissor table must be lagged to the floor.

  • Ergonomic design minimizes bending and twisting
  • Welded steel construction provides long lasting rugged use
  • 40 Degrees tilt angle offers better ergonomics and operator comfort
  • Platform end lip safely supports containers when tilted
Dimensions: 54"W x 51.5"L x 20"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215222747 GTIN: 00691215222747
Warranty: -- Shipping Weight: 885 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2000 Platform Width (in.): 54 Platform Length (in.): 48
Level Height (in.): 8 Maximum Tilt Degree: 40 Power Unit: Internal
Lip Height (in.): 12 Motor Horsepower: 2 Voltage/Phase: 208/3
Hertz: 60
