Model Details

← All Products- ← Ergonomic Solutions- ← Stackers -← Narrow Mast Stackers with Powered Lift- SLNM-98-AA

SLNM-98-AA

Printer Friendly
Available
SLNM-98-AA
SLNM-98-AA SLNM-98-AA SLNM-98-AA SLNM-98-AA

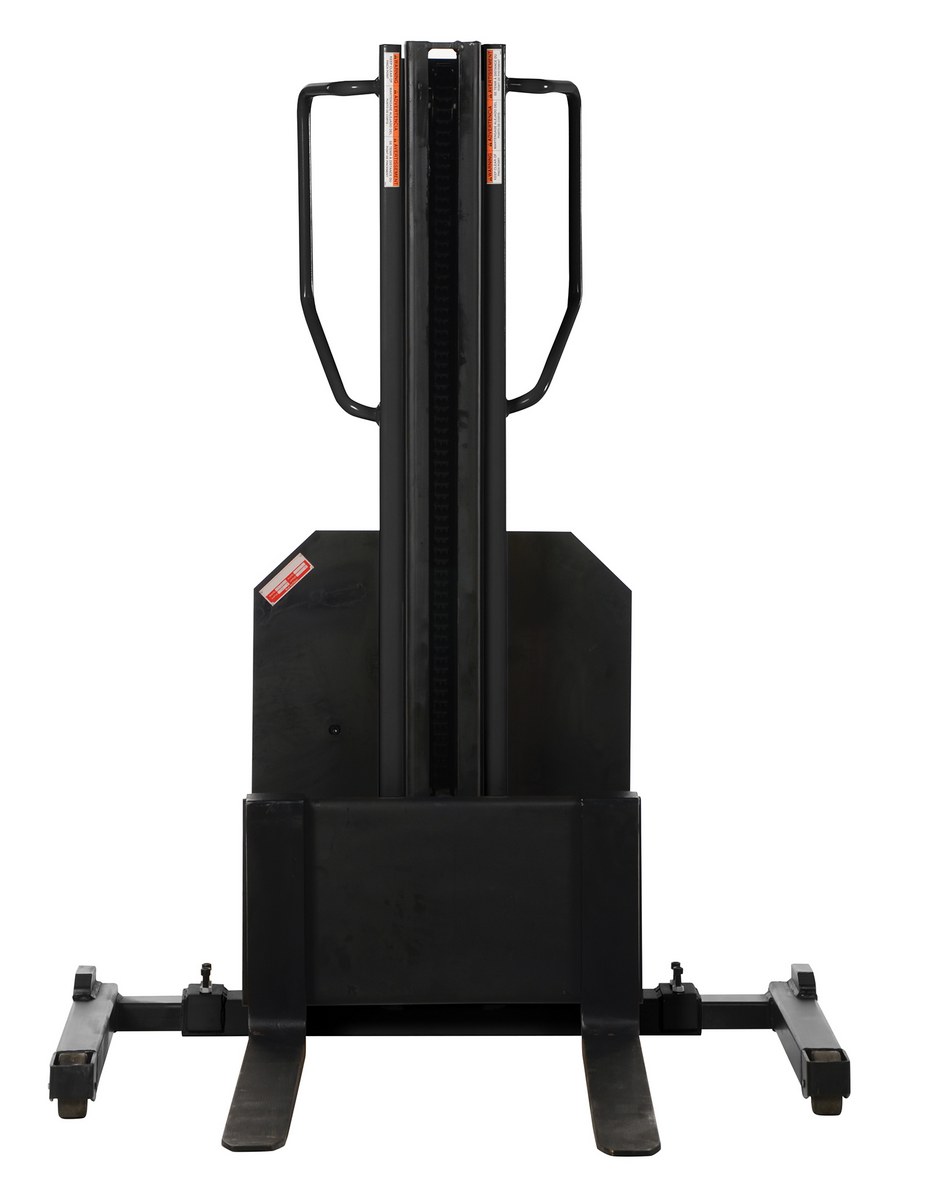

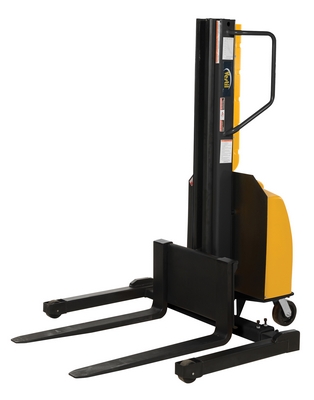

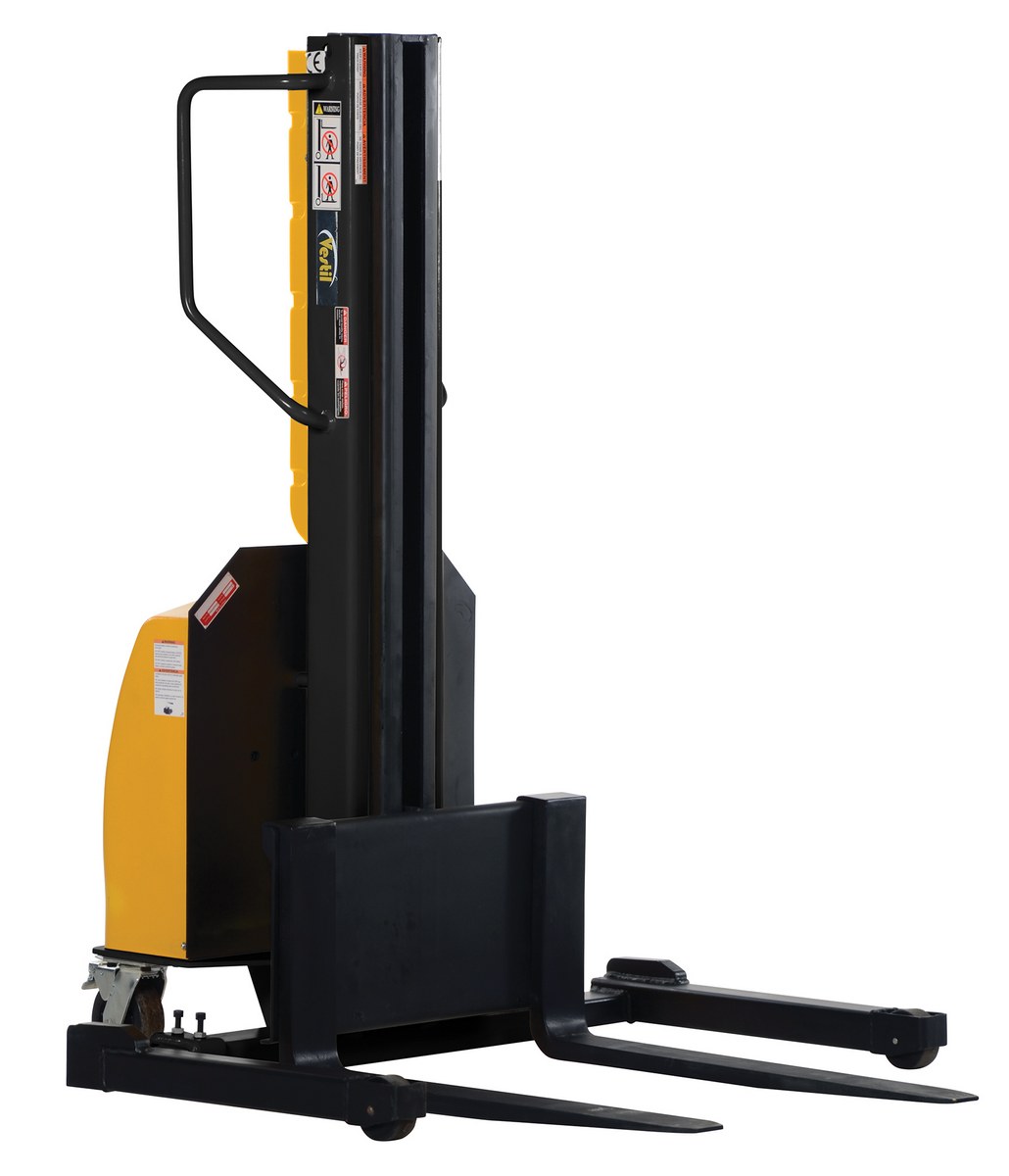

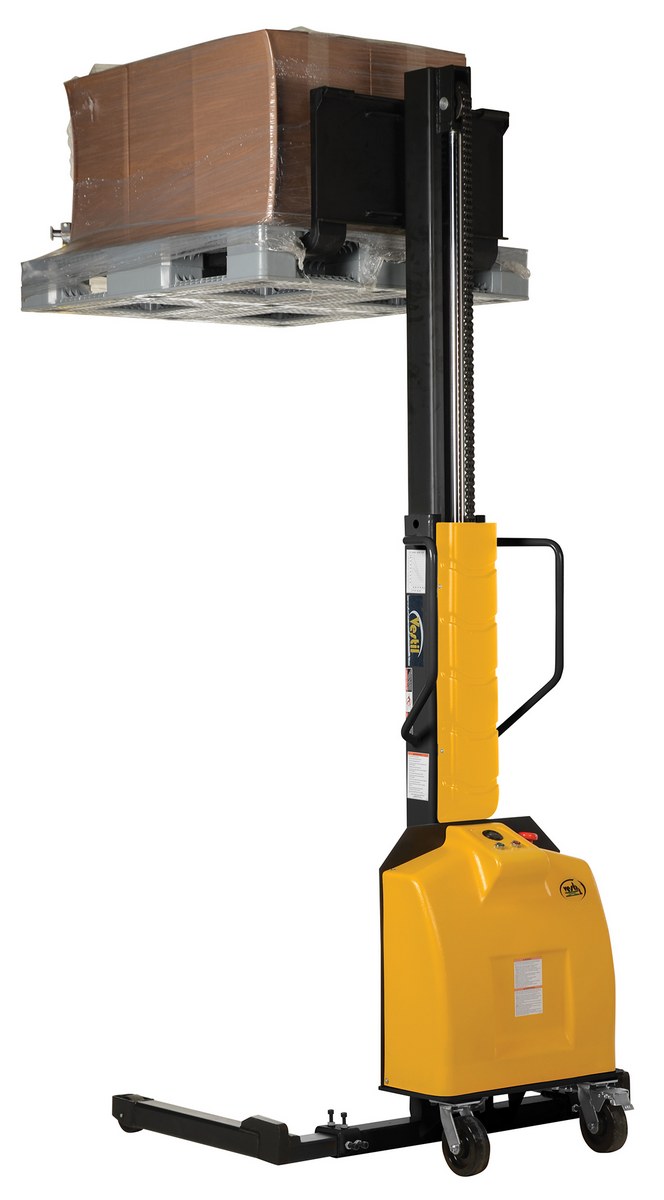

Steel Narrow Mast Stacker DC Powered 98 In. Raised Height Adjustable Forks and Support Legs 1,500 Lb. Capacity Yellow

The narrow mast stacker is great for the shipping and manufacturing facilities. The stacker provides a fast efficient solution to loading and unloading products in closely confined areas. The unit features a simple push button design for lifting control, nylon steering and load wheels for excellent maneuverability, and a battery charger and gauge. Models are available with fixed or adjustable forks as well as fixed or adjustable leg supports.

  • Narrow mast stacker is ideal for shipping and manufacturing facilities
  • Stacker is an efficient solution to loading and unloading in closely confined areas
  • Push-button design lifts and controls speed adjustments for ideal operation and optimal results
  • Includes nylon wheels for excellent maneuverability and adjustable forks for maximum efficiency
Assembled Wt.(lbs.): 620 Assembled Size: 44.825"W x 53"L x 68.5"H

Total Ship Wt.(lbs.): 798 (only 1 package) Package 1 Size: 60"W x 64"D x 78"H Color: Yellow

Uniform Capacity 0 - 63" (lb.): 1,500 Uniform Capacity 63 - 98" (lb.): 1,000 Service Range (in.): 2 to 98
Fork Width/Length (in.): 4 x 36 Adjustable Fork Spacing (in.): 8 to 27 (OD) Adjustable Leg Spacing (in.): 40-1/8 to 50 (ID)
Overall Mast Height (in.): 68-1/2 Lift Motor: DC 12V / 1.3 KW Battery: 12V / 140 Ah
Battery Charger: 12V / 6 amp Raise Time w/ Load: 5.9" / sec Raise Time w/o Load: 2.95" / sec
Lower Time w/ Load: 4" / sec Lower Time w/o Load: 3.15" / sec

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: SLNM-98-AA
Available
SLNM-98-AA

Steel Narrow Mast Stacker DC Powered 98 In. Raised Height Adjustable Forks and Support Legs 1,500 Lb. Capacity Yellow

The narrow mast stacker is great for the shipping and manufacturing facilities. The stacker provides a fast efficient solution to loading and unloading products in closely confined areas. The unit features a simple push button design for lifting control, nylon steering and load wheels for excellent maneuverability, and a battery charger and gauge. Models are available with fixed or adjustable forks as well as fixed or adjustable leg supports.

  • Narrow mast stacker is ideal for shipping and manufacturing facilities
  • Stacker is an efficient solution to loading and unloading in closely confined areas
  • Push-button design lifts and controls speed adjustments for ideal operation and optimal results
  • Includes nylon wheels for excellent maneuverability and adjustable forks for maximum efficiency
Dimensions: 44.825"W x 53"L x 68.5"H Sell UOM: -- Color: Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 798 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity 0 - 63" (lb.): 1,500 Uniform Capacity 63 - 98" (lb.): 1,000 Service Range (in.): 2 to 98
Fork Width/Length (in.): 4 x 36 Adjustable Fork Spacing (in.): 8 to 27 (OD) Adjustable Leg Spacing (in.): 40-1/8 to 50 (ID)
Overall Mast Height (in.): 68-1/2 Lift Motor: DC 12V / 1.3 KW Battery: 12V / 140 Ah
Battery Charger: 12V / 6 amp Raise Time w/ Load: 5.9" / sec Raise Time w/o Load: 2.95" / sec
Lower Time w/ Load: 4" / sec Lower Time w/o Load: 3.15" / sec
