SL-137-AA-PTDS

Printer Friendly
Available
SL-137-AA-PTDS
SL-137-AA-PTDS SL-137-AA-PTDS

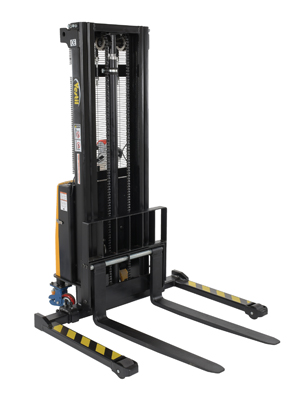

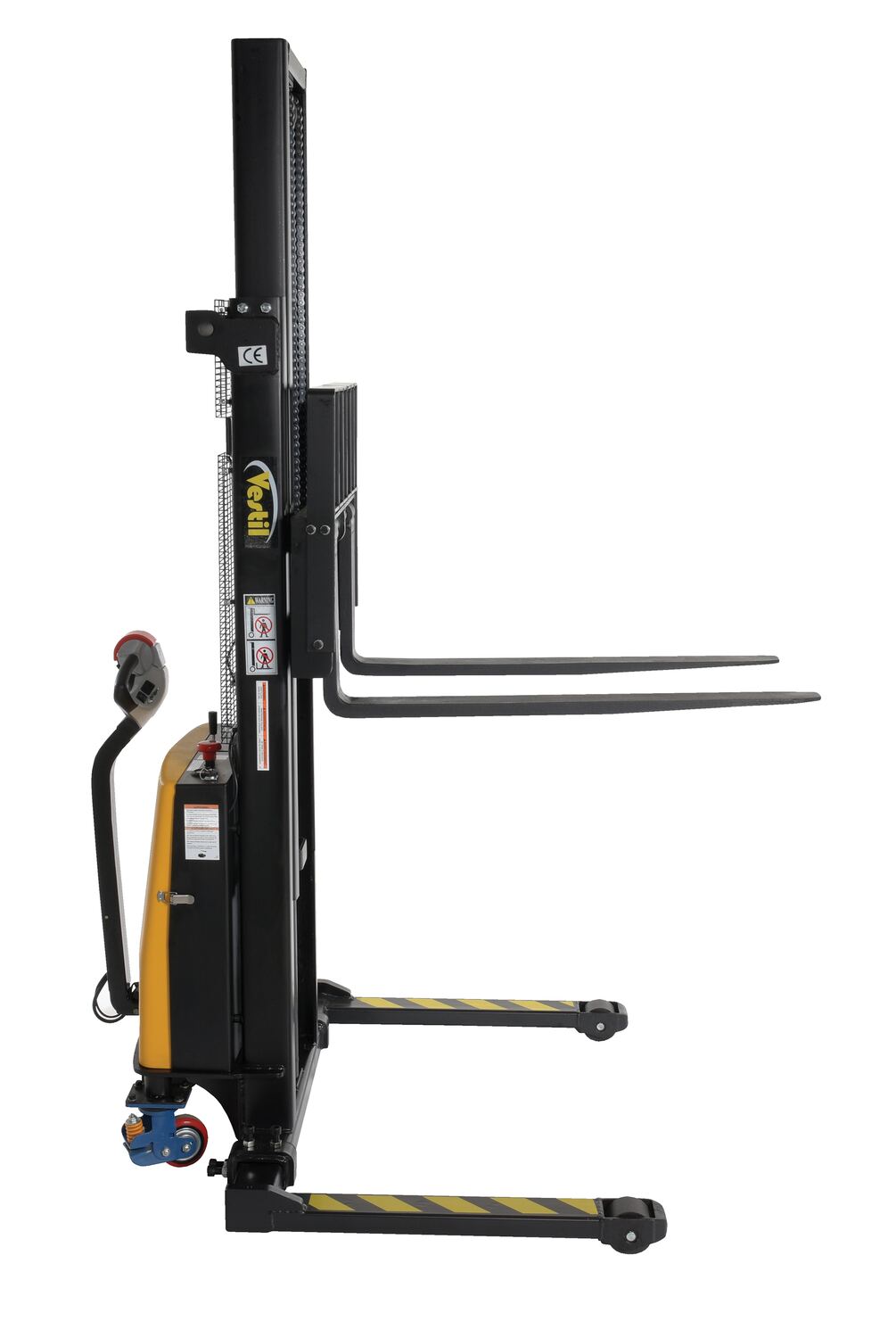

Steel Adjustable Stacker with Power Traction Drive System 137 In. Raised Height 2,000 Lb. Capacity Black / Yellow

Semi-electric Stackers with powered lift will raise and lower loads quickly and easily. All models are easily maneuverable using the standard pulling handle. Stackers are highly efficient and durable. Powered traction drive system allows the user to transfer the unit and materials easily across an array of surfaces.

  • Powered fork height adjustment provides user friendly adjustment
  • Pivoting steering handle allows for easy pushing or pulling
  • Battery level gauge allows operator to monitor battery life
  • Steel construction offers highly efficient and durable use
Assembled Wt.(lbs.): 1295 Assembled Size: 58"W x 66.125"L x 88.5625"H

Total Ship Wt.(lbs.): 1378 (only 1 package) Package 1 Size: 64"W x 75"D x 94"H Color: Black / Yellow Non-Returnable

Uniform Capacity at 0 - 62" (lb.): 2,000 Uniform Capacity at 62 - 118" (lb.): 1,500 Uniform Capacity at 118 - 137" (lb.): 1,000
Service Range (in.): 2 to 137 Fork Width/Length (in.): 4 x 42 Adjustable Fork Spacing (in.): 8 to 26-3/4
Adjustable Leg Spacing (in.): 40-1/8 to 50 Drive Motor: DC 24V / 0.4 KW Phase: Single Phase
Battery: (2) 12V / 95 Ah Charger: DC 24V / 6 amp Number of Casters / Wheels: 4
Rear Caster Diameter/Width (in): 7 x 2-1/2 Front Caster Diameter/Width (in): 4 x 2-9/10 Caster Material: Nylon
Power Source: Electric - Corded Travel Speed w/ Load (MPH): 1.5 Travel Speed w/o Load (MPH): 2.2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 days Limited Warranty

Details For Model: SL-137-AA-PTDS
Available
SL-137-AA-PTDS

Steel Adjustable Stacker with Power Traction Drive System 137 In. Raised Height 2,000 Lb. Capacity Black / Yellow

Semi-electric Stackers with powered lift will raise and lower loads quickly and easily. All models are easily maneuverable using the standard pulling handle. Stackers are highly efficient and durable. Powered traction drive system allows the user to transfer the unit and materials easily across an array of surfaces.

  • Powered fork height adjustment provides user friendly adjustment
  • Pivoting steering handle allows for easy pushing or pulling
  • Battery level gauge allows operator to monitor battery life
  • Steel construction offers highly efficient and durable use
Dimensions: 58"W x 66.125"L x 88.5625"H Sell UOM: -- Color: Black / Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 1378 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity at 0 - 62" (lb.): 2,000 Uniform Capacity at 62 - 118" (lb.): 1,500 Uniform Capacity at 118 - 137" (lb.): 1,000
Service Range (in.): 2 to 137 Fork Width/Length (in.): 4 x 42 Adjustable Fork Spacing (in.): 8 to 26-3/4
Adjustable Leg Spacing (in.): 40-1/8 to 50 Drive Motor: DC 24V / 0.4 KW Phase: Single Phase
Battery: (2) 12V / 95 Ah Charger: DC 24V / 6 amp Number of Casters / Wheels: 4
Rear Caster Diameter/Width (in): 7 x 2-1/2 Front Caster Diameter/Width (in): 4 x 2-9/10 Caster Material: Nylon
Power Source: Electric - Corded Travel Speed w/ Load (MPH): 1.5 Travel Speed w/o Load (MPH): 2.2
