SL-137-AA

Printer Friendly
Available
SL-137-AA
SL-137-AA SL-137-AA SL-137-AA SL-137-AA SL-137-AA

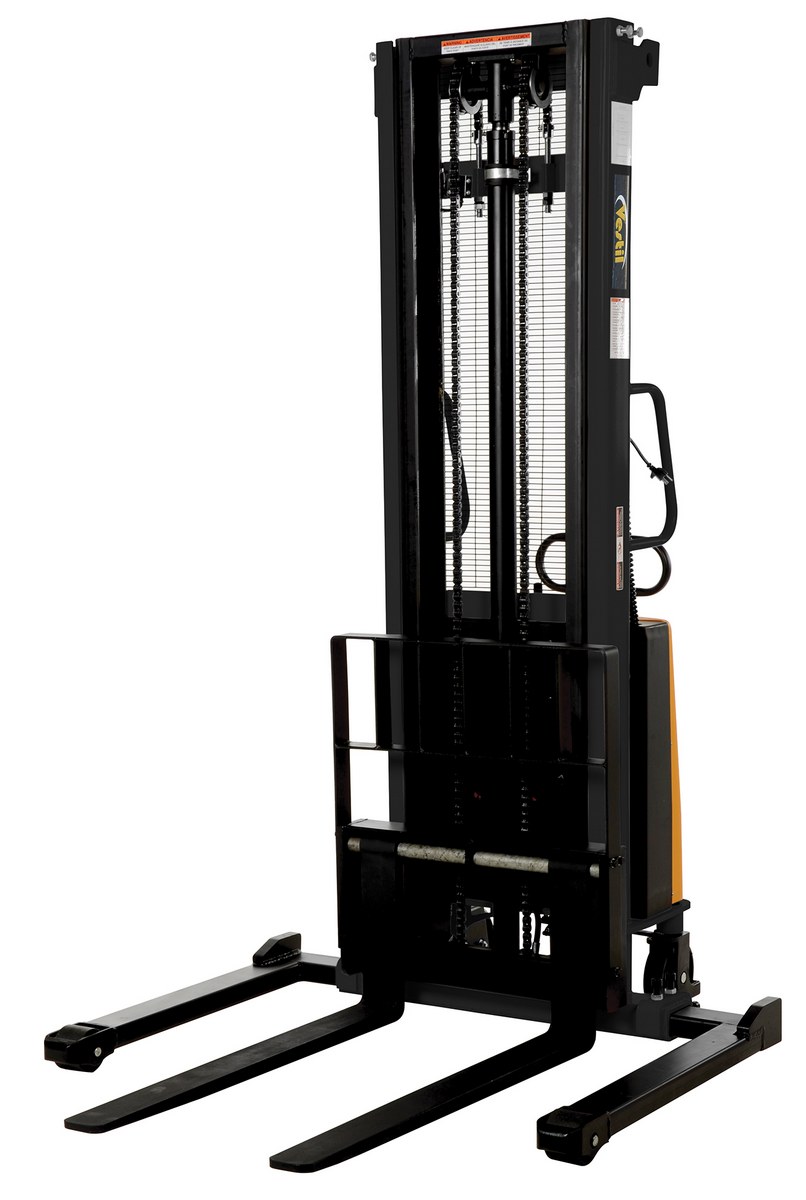

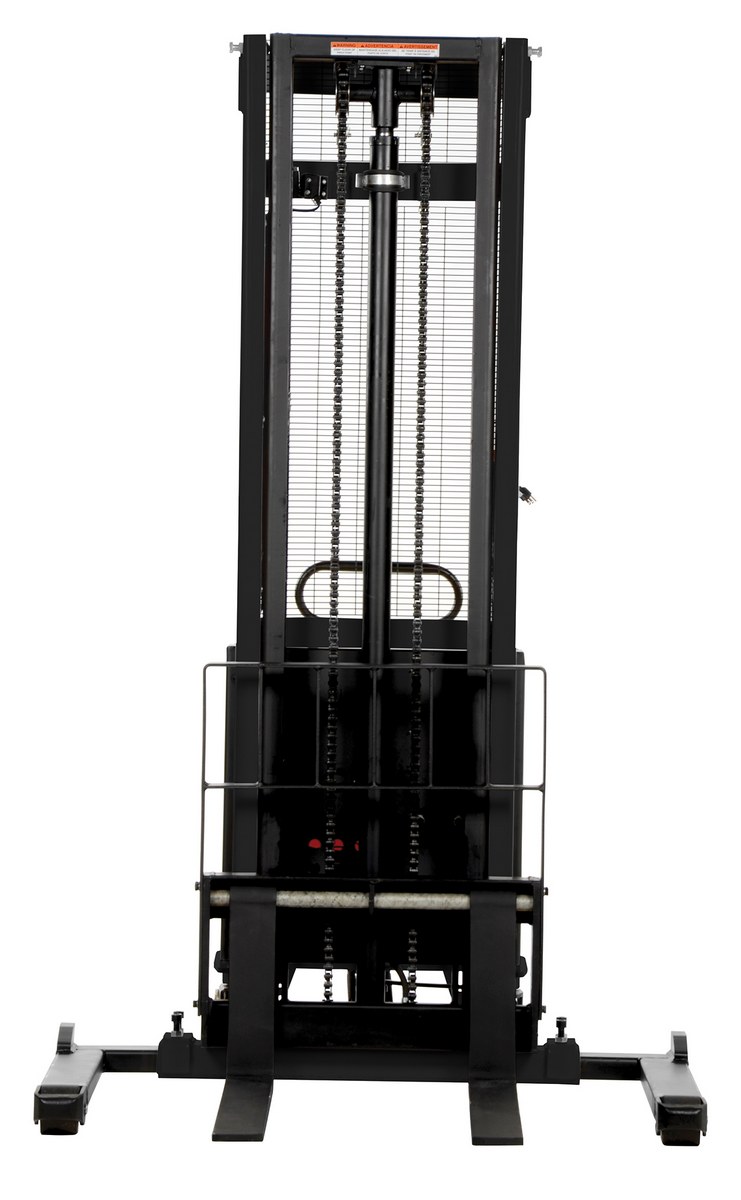

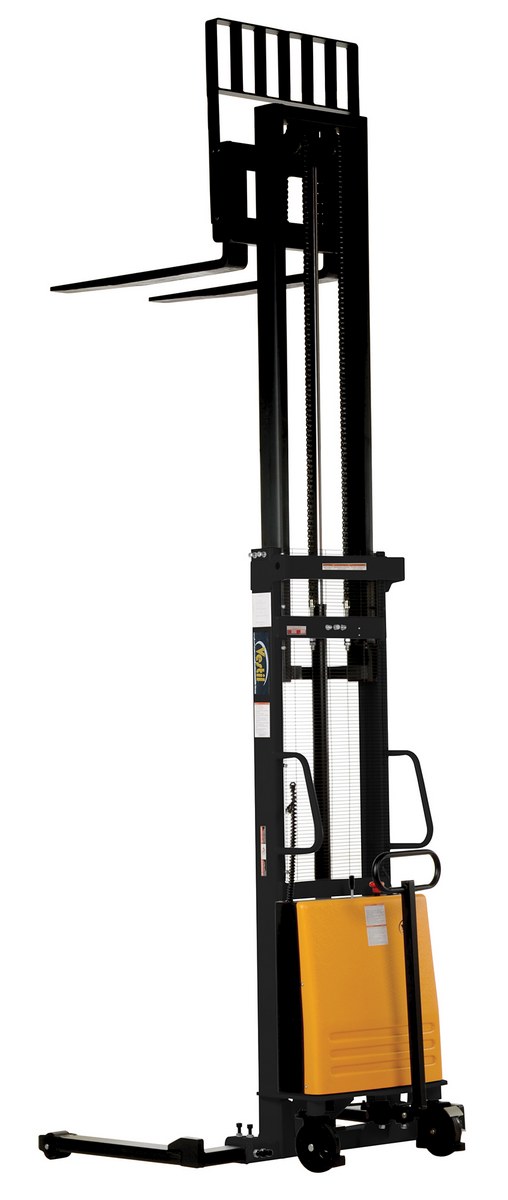

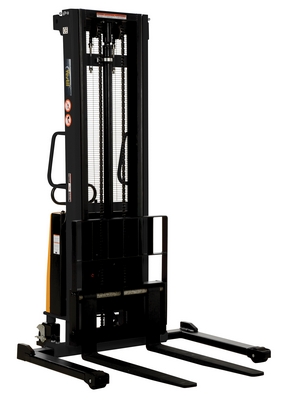

Steel Adjustable Stacker with Powered Lift 137 In. Raised Height 2,000 Lb. Capacity Black / Yellow

The stacker powered lift is a semi-electric stacker with a powered lift that will raise and lower loads quickly and easily. The manual push operation stacker is made using high quality material and parts. The stacker is easily maneuvered using the standard pulling handle with adjustable forks and adjustable support legs. The stacker is highly efficient and durable while working with pallets or skids. It features an integral battery charger and battery level gauge.

  • Powered fork height adjustment provides user friendly adjustment
  • Pivoting steering handle allows for easy pushing or pulling
  • Battery level gauge allows operator to monitor battery life
  • Steel construction offers highly efficient and durable use
Assembled Wt.(lbs.): 1140 Assembled Size: 58"W x 66.125"L x 88.5625"H

Total Ship Wt.(lbs.): 1265 (only 1 package) Package 1 Size: 65"W x 80"D x 97"H Color: Black / Yellow

Uniform Capacity at 0 - 62" (lb.): 2,000 Uniform Capacity at 63 - 118" (lb.): 1,500 Uniform Capacity at 118 - 137" (lb.): 1,000
Service Range (in.): 1-3/8 to 137 Fork Width/Length (in.): 4 x 42 Adjustable Fork Spacing (in.): 8 to 26-3/4
Adjustable Leg Spacing (in.): 46 to 58 Lift Motor: DC 12V / 1.8 KW Battery: (1) 12V / 135 Ah
Battery Charger: 120 - 240V Input, 12V/5 amp Overall Mast Height (in.): 157-1/2 Mast: Double
Safety Shield?: Yes Steering Wheel (in.): 7 x 2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: SL-137-AA
Available
SL-137-AA

Steel Adjustable Stacker with Powered Lift 137 In. Raised Height 2,000 Lb. Capacity Black / Yellow

The stacker powered lift is a semi-electric stacker with a powered lift that will raise and lower loads quickly and easily. The manual push operation stacker is made using high quality material and parts. The stacker is easily maneuvered using the standard pulling handle with adjustable forks and adjustable support legs. The stacker is highly efficient and durable while working with pallets or skids. It features an integral battery charger and battery level gauge.

  • Powered fork height adjustment provides user friendly adjustment
  • Pivoting steering handle allows for easy pushing or pulling
  • Battery level gauge allows operator to monitor battery life
  • Steel construction offers highly efficient and durable use
Dimensions: 58"W x 66.125"L x 88.5625"H Sell UOM: -- Color: Black / Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 1265 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity at 0 - 62" (lb.): 2,000 Uniform Capacity at 63 - 118" (lb.): 1,500 Uniform Capacity at 118 - 137" (lb.): 1,000
Service Range (in.): 1-3/8 to 137 Fork Width/Length (in.): 4 x 42 Adjustable Fork Spacing (in.): 8 to 26-3/4
Adjustable Leg Spacing (in.): 46 to 58 Lift Motor: DC 12V / 1.8 KW Battery: (1) 12V / 135 Ah
Battery Charger: 120 - 240V Input, 12V/5 amp Overall Mast Height (in.): 157-1/2 Mast: Double
Safety Shield?: Yes Steering Wheel (in.): 7 x 2
