PMC-SNM-FF-62

Printer Friendly
Available
PMC-SNM-FF-62
PMC-SNM-FF-62 PMC-SNM-FF-62 PMC-SNM-FF-62 PMC-SNM-FF-62 PMC-SNM-FF-62 PMC-SNM-FF-62 PMC-SNM-FF-62 PMC-SNM-FF-62 PMC-SNM-FF-62 PMC-SNM-FF-62

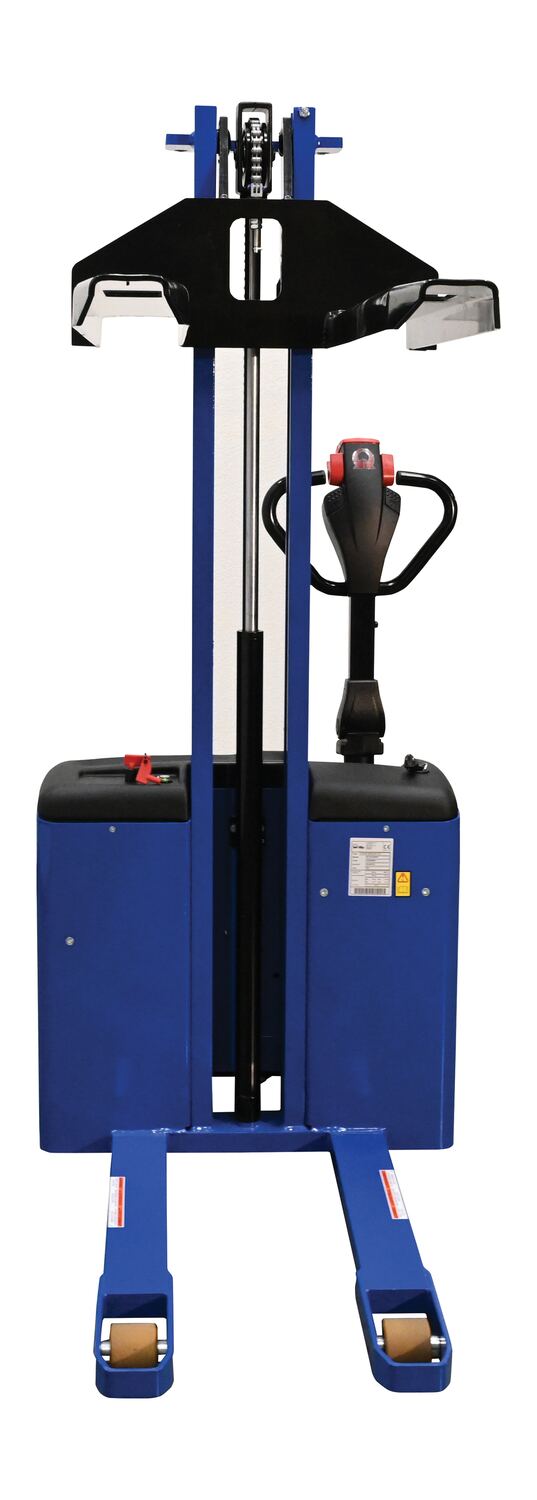

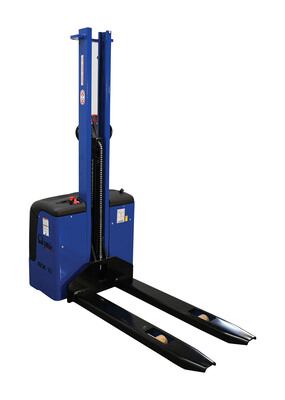

Steel Pramac DC Powered Narrow Mast Stacker Fixed Forks 67 In. x 31 In. x 73-1/2 In. 2200 Lb. Capacity Blue / Black

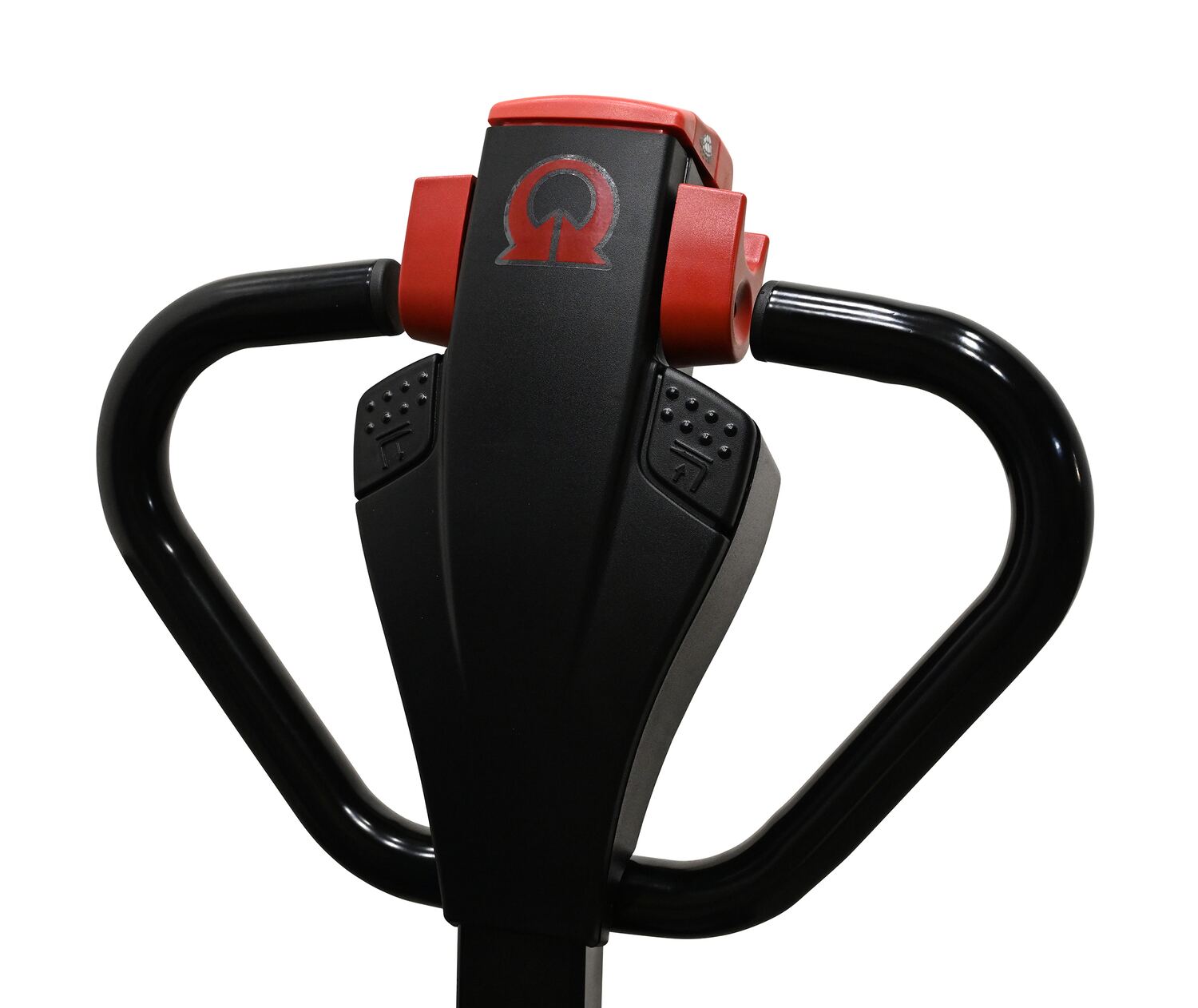

Electric power drive and lift. Ergonomic handle with a full control and safety system. Features "tortoise" push button for slow motion, a safety punch button with warning buzzer, and on-board battery charger. DC powered with two (2) 12V batteries.

  • Fixed forks for constant readiness
  • Powered model for quick movement
  • Blue finish
  • High handle for ergonomic steering
Assembled Wt.(lbs.): 810 Assembled Size: 31.25"W x 66"L x 77.55"H

Total Ship Wt.(lbs.): 874 (only 1 package) Package 1 Size: 31"W x 67"D x 80"H Color: Blue / Black Non-Returnable

Uniform Capacity (lb.): 2,200 Service Range (in.): 3-1/2 to 59-1/2 Fork Width/Length (in.): 5-9/10 x 45-43/50
Fork Spacing (in.): 22 Overall Mast Height (in.): 77-1/2 Drive Motor: DC 24V / 0.35 KW
Lift Motor: DC 24V / 2.2 KW Battery: (2) 12V / 70~80 Ah Travel Speed w/ Load (MPH): 2.2
Travel Speed w/o Load (MPH): 2.5 Lift Speed w/ Load: 4.3" / sec Lift Speed w/o Load: 7.08" / sec

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: PMC-SNM-FF-62
Available
PMC-SNM-FF-62

Steel Pramac DC Powered Narrow Mast Stacker Fixed Forks 67 In. x 31 In. x 73-1/2 In. 2200 Lb. Capacity Blue / Black

Electric power drive and lift. Ergonomic handle with a full control and safety system. Features "tortoise" push button for slow motion, a safety punch button with warning buzzer, and on-board battery charger. DC powered with two (2) 12V batteries.

  • Fixed forks for constant readiness
  • Powered model for quick movement
  • Blue finish
  • High handle for ergonomic steering
Dimensions: 31.25"W x 66"L x 77.55"H Sell UOM: -- Color: Blue / Black
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 874 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 2,200 Service Range (in.): 3-1/2 to 59-1/2 Fork Width/Length (in.): 5-9/10 x 45-43/50
Fork Spacing (in.): 22 Overall Mast Height (in.): 77-1/2 Drive Motor: DC 24V / 0.35 KW
Lift Motor: DC 24V / 2.2 KW Battery: (2) 12V / 70~80 Ah Travel Speed w/ Load (MPH): 2.2
Travel Speed w/o Load (MPH): 2.5 Lift Speed w/ Load: 4.3" / sec Lift Speed w/o Load: 7.08" / sec
