ATWR-24-10-60

Printer Friendly
Available
ATWR-24-10-60
ATWR-24-10-60 ATWR-24-10-60 ATWR-24-10-60 ATWR-24-10-60

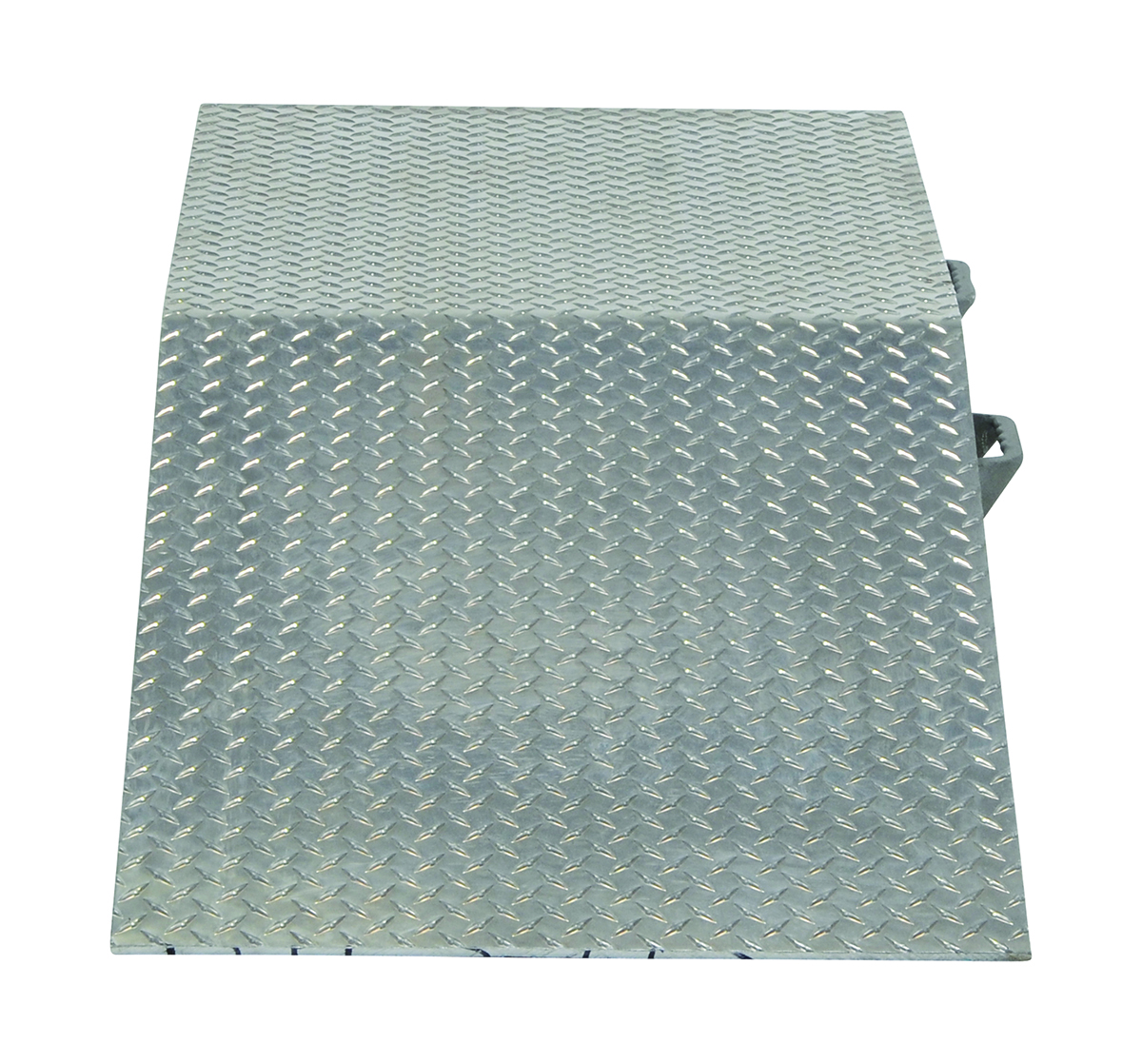

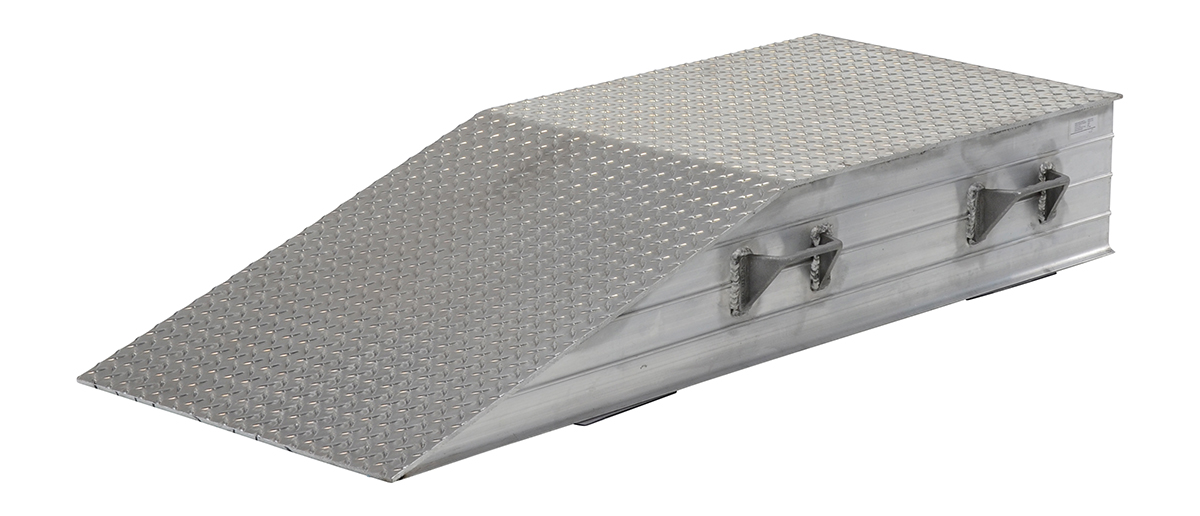

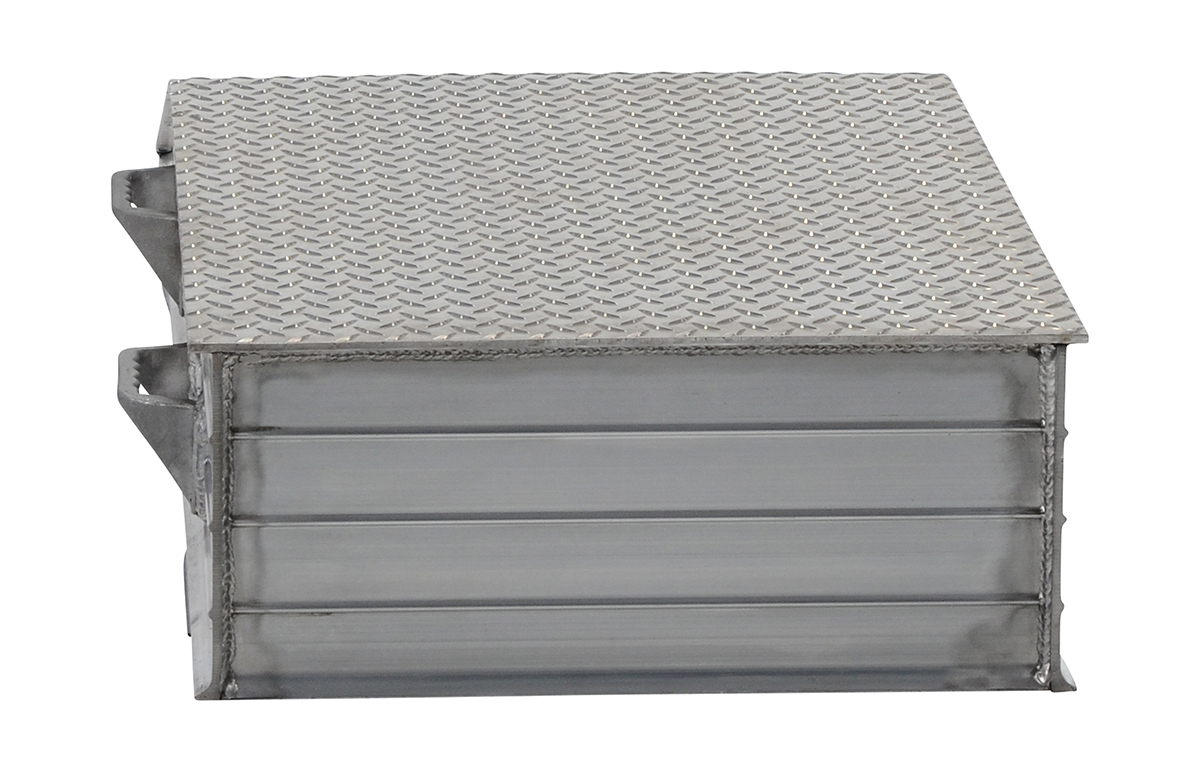

Aluminum Heavy Duty Wheel Riser 60 In. x 24 In. x 9-7/8 In. 30000 Lb. Capacity Silver

Elevate semi-trailers to loading docks for maximum serviceability during loading and unloading operations. Manufactured from heavy-duty aluminum tread plate for positive traction. All welded aluminum construction. 30,000 lbs. uniform capacity per pair (1/4" thick material). Wheel risers are designed to raise the trailer for secure loading and unloading.

  • Ramp design can be stacked for compact storage when not in use
  • Raised diamond tread plate surface provides a non-slip grip
  • 30" angled approach length
  • Built in compliance with OSHA/ANSI B56.1 part 3 sec 7
Assembled Wt.(lbs.): 99 Assembled Size: 24"W x 60"L x 9.875"H

Total Ship Wt.(lbs.): 133 (only 1 package) Package 1 Size: 40"W x 60"D x 16"H Color: Silver

Uniform Capacity Per Pair - [Sold Each] (lb.): 30,000 Treadplate Thickness (in.): 1/4 Level Length (in.): 30
Ramp Incline (degrees): 18 OSHA: 1910.30 (a) ANSI: B56.1 part 3 sec 7
Overall Width (in.): 24 Overall Height (in.): 9-7/8 Overall Length (in.): 60

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: ATWR-24-10-60
Available
ATWR-24-10-60

Aluminum Heavy Duty Wheel Riser 60 In. x 24 In. x 9-7/8 In. 30000 Lb. Capacity Silver

Elevate semi-trailers to loading docks for maximum serviceability during loading and unloading operations. Manufactured from heavy-duty aluminum tread plate for positive traction. All welded aluminum construction. 30,000 lbs. uniform capacity per pair (1/4" thick material). Wheel risers are designed to raise the trailer for secure loading and unloading.

  • Ramp design can be stacked for compact storage when not in use
  • Raised diamond tread plate surface provides a non-slip grip
  • 30" angled approach length
  • Built in compliance with OSHA/ANSI B56.1 part 3 sec 7
Dimensions: 24"W x 60"L x 9.875"H Sell UOM: -- Color: Silver
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 133 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity Per Pair - [Sold Each] (lb.): 30,000 Treadplate Thickness (in.): 1/4 Level Length (in.): 30
Ramp Incline (degrees): 18 OSHA: 1910.30 (a) ANSI: B56.1 part 3 sec 7
Overall Width (in.): 24 Overall Height (in.): 9-7/8 Overall Length (in.): 60
