Product Family Overview


Winch Operated Truck Jib Cranes
SERIES: WTJ

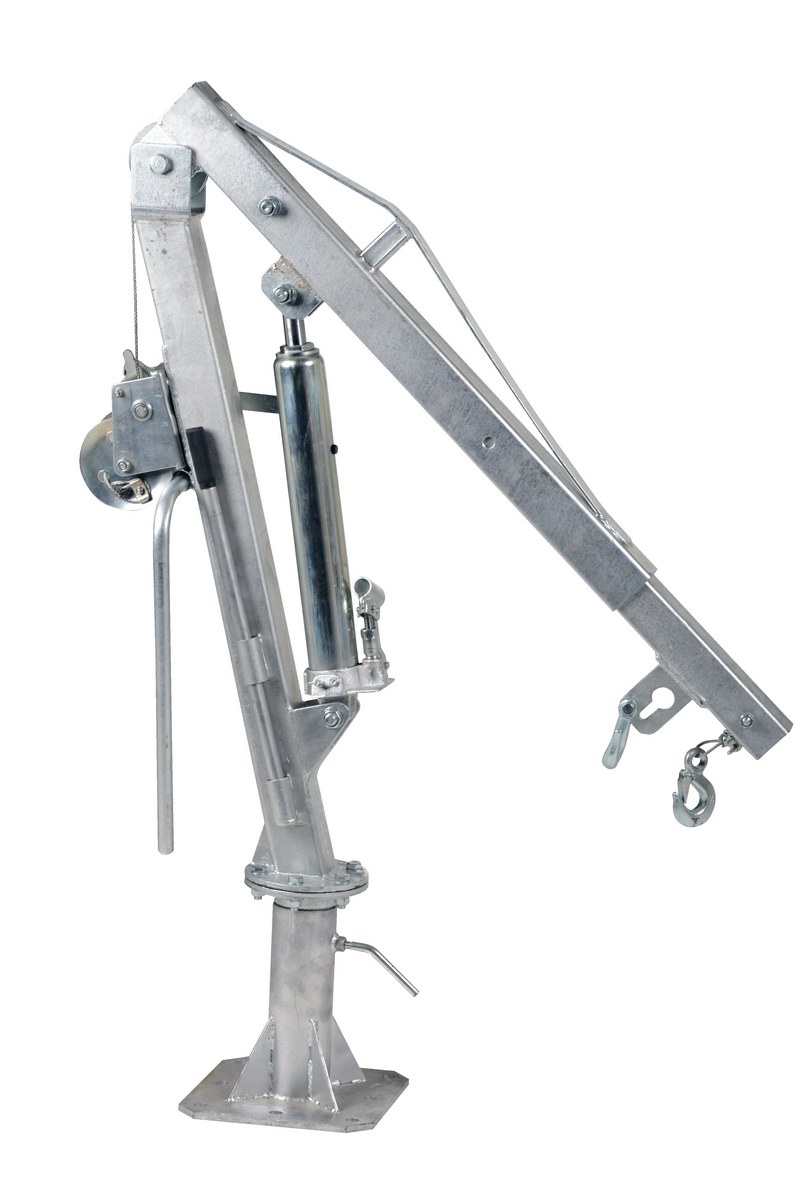

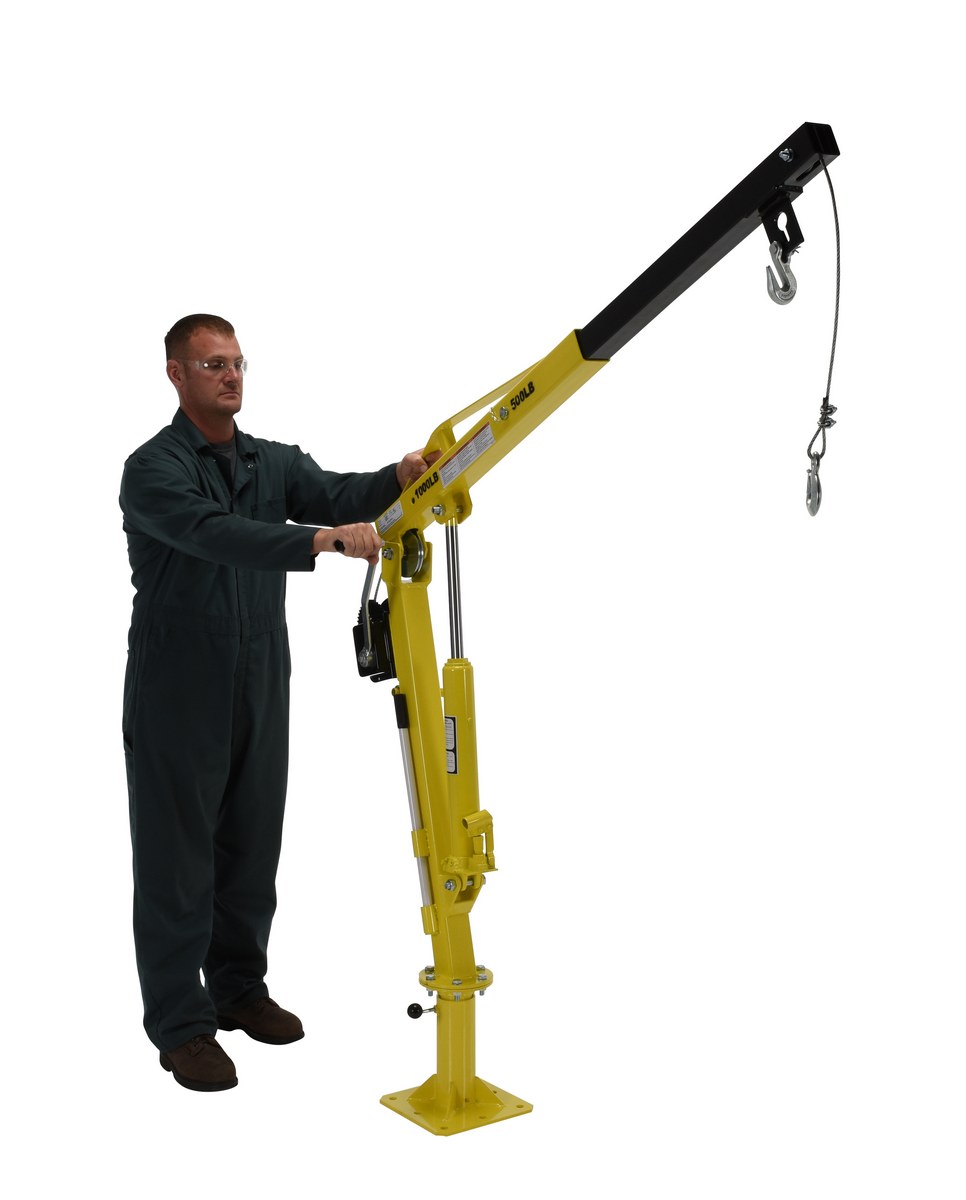

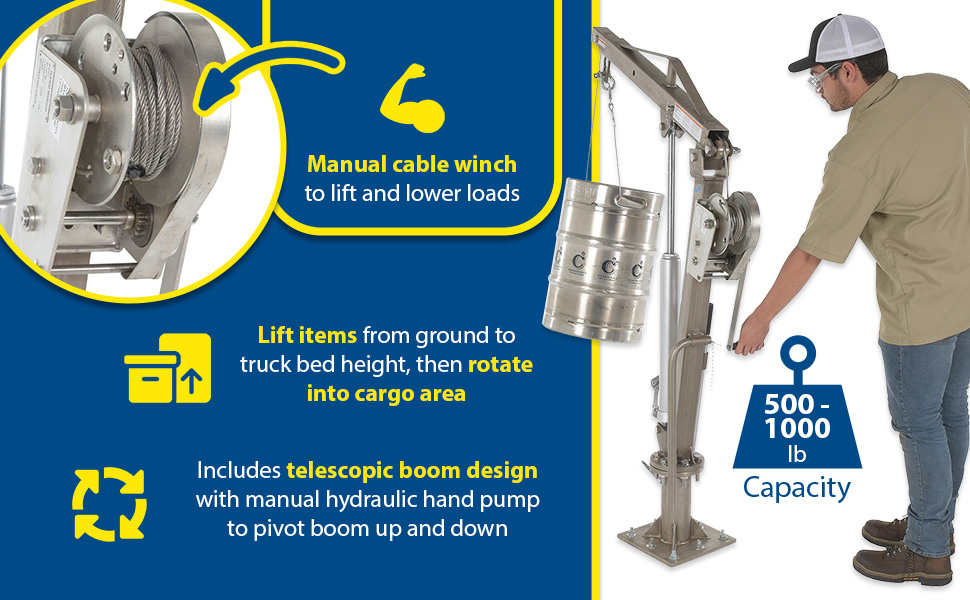

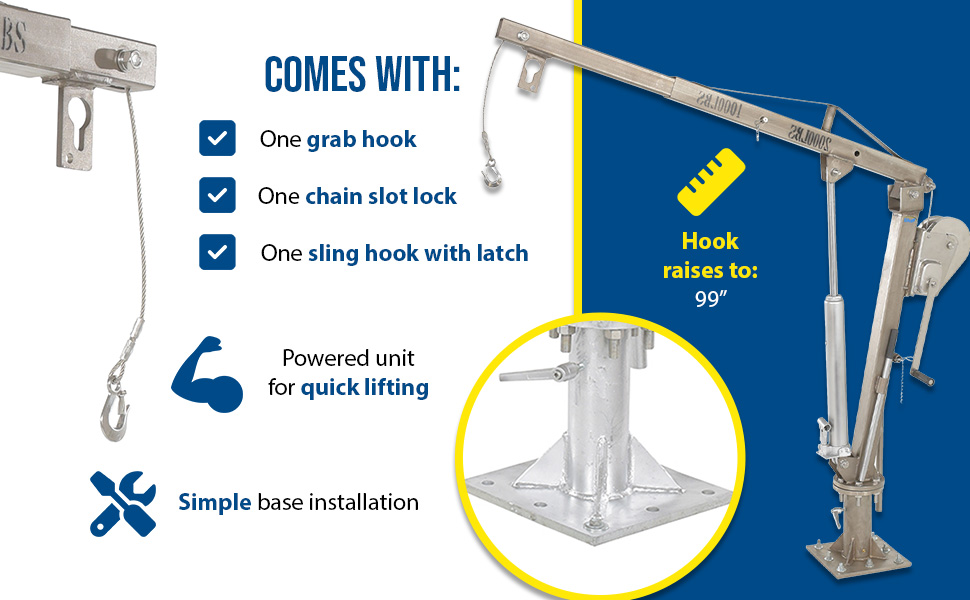

WTJ-2%20B.jpgInstalled in your pick-up truck bed, this winch operated jib crane will help lift loads. Lift items from ground to truck bed height, then rotate into cargo area. Includes telescopic boom design with manual hydraulic hand pump to pivot boom up and down. Manual cable winch to lift and lower loads up to 500 pounds. Friction brake winch locks automatically when operator turns the handle counterclockwise to lower load. Cable usable length for all models is 24', except WTJ-2 (9' model WTJ-2). Unit comes with one fixed hook, one chain slot lock, and one cable hook with latch. The crane swivels on a 360 degree base. Safety yellow, galvanized or stainless steel finish available. Welded steel construction. 12V DC power option available.

WTJ-2%20B.jpgInstalled in your pick-up truck bed, this winch operated jib crane will help lift loads. Lift items from ground to truck bed height, then rotate into cargo area. Includes telescopic boom design with manual hydraulic hand pump to pivot boom up and down. Manual cable winch to lift and lower loads up to 500 pounds. Friction brake winch locks automatically when operator turns the handle counterclockwise to lower load. Cable usable length for all models is 24', except WTJ-2 (9' model WTJ-2). Unit comes with one fixed hook, one chain slot lock, and one cable hook with latch. The crane swivels on a 360 degree base. Safety yellow, galvanized or stainless steel finish available. Welded steel construction. 12V DC power option available.

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

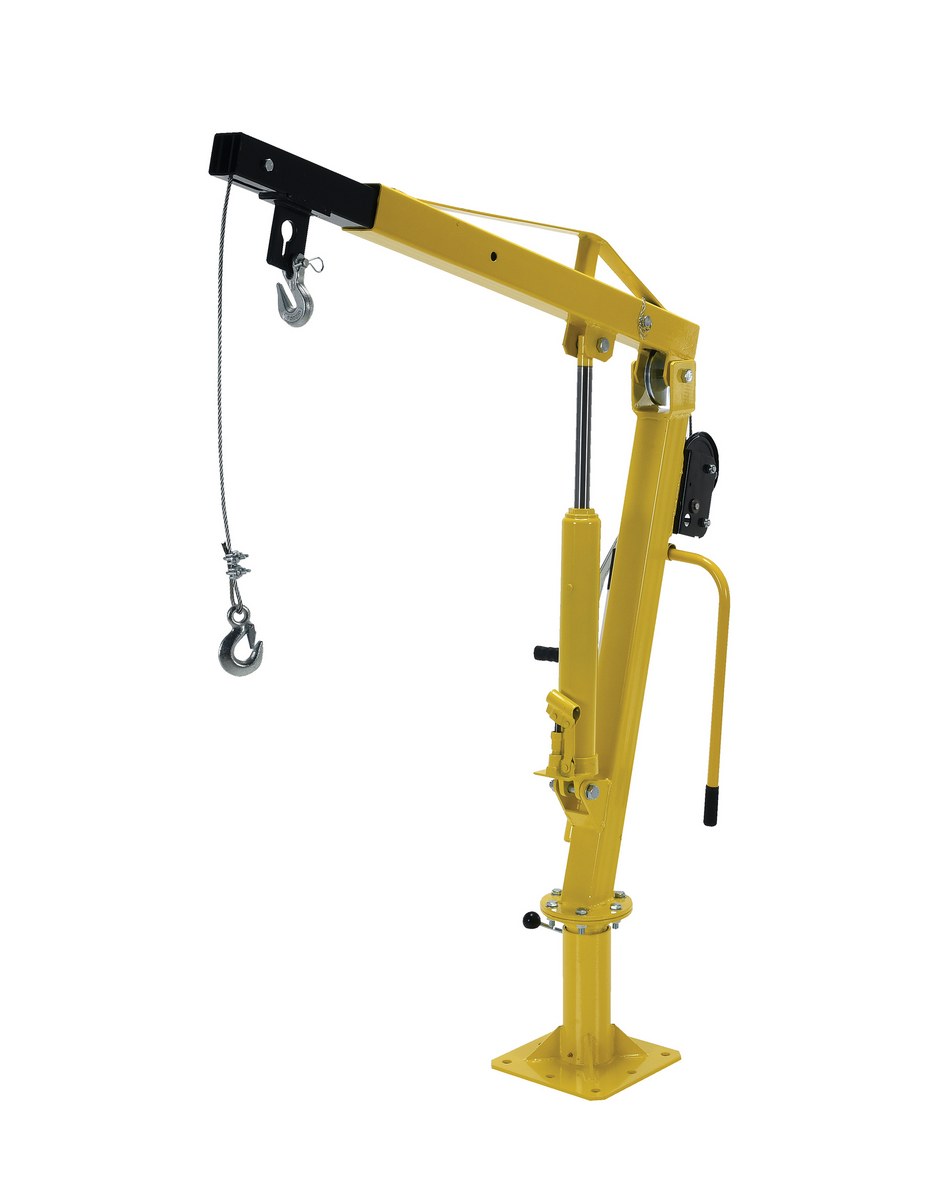

WTJ-2 WTJ-290 Days Limited WarrantySteel Winch Truck Jib Crane 500 Lb. Extended Capacity YellowUniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500
135

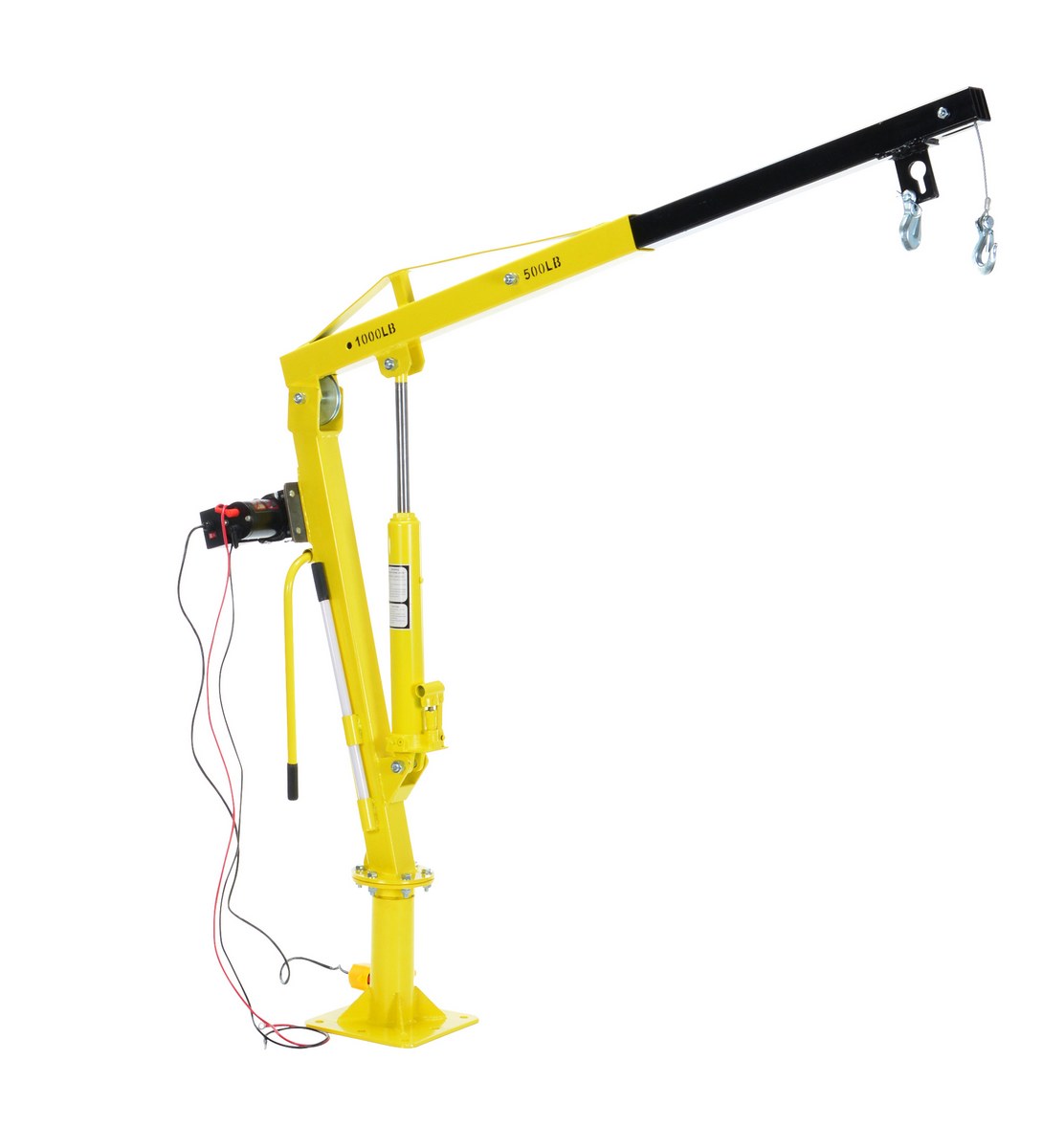

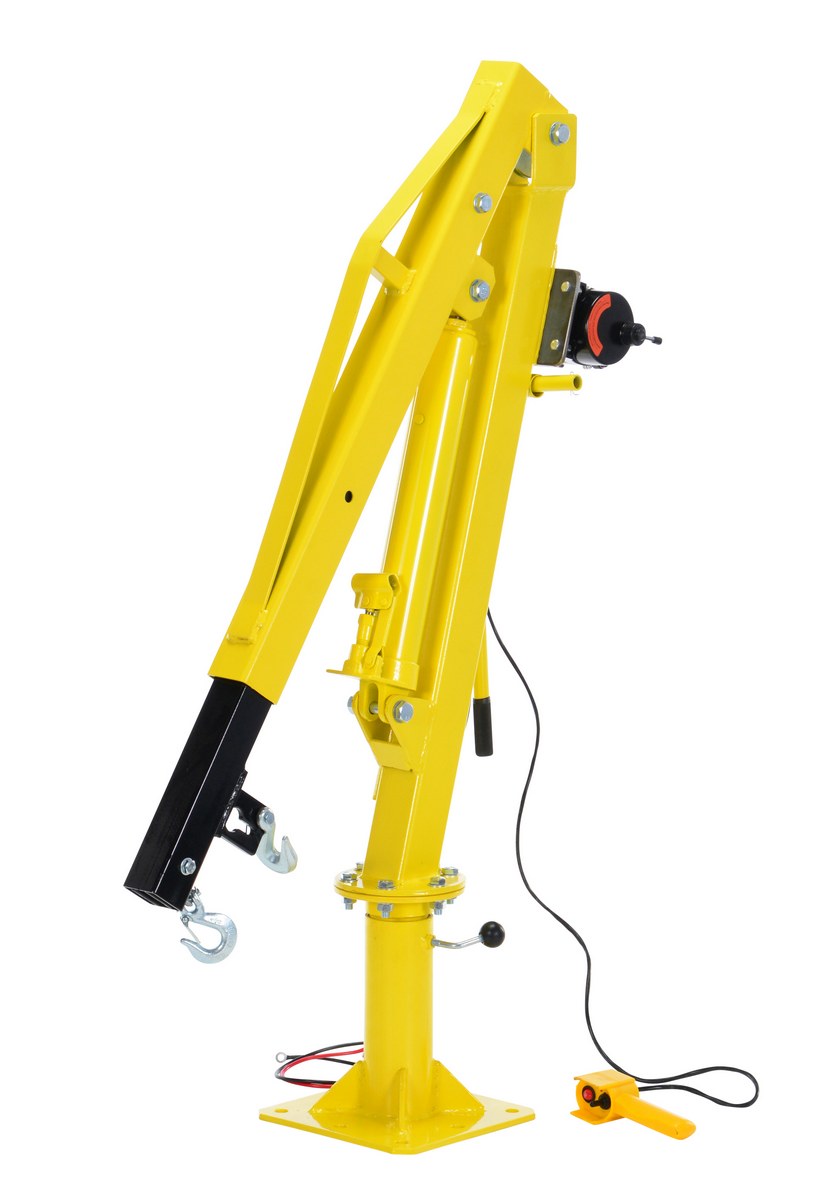

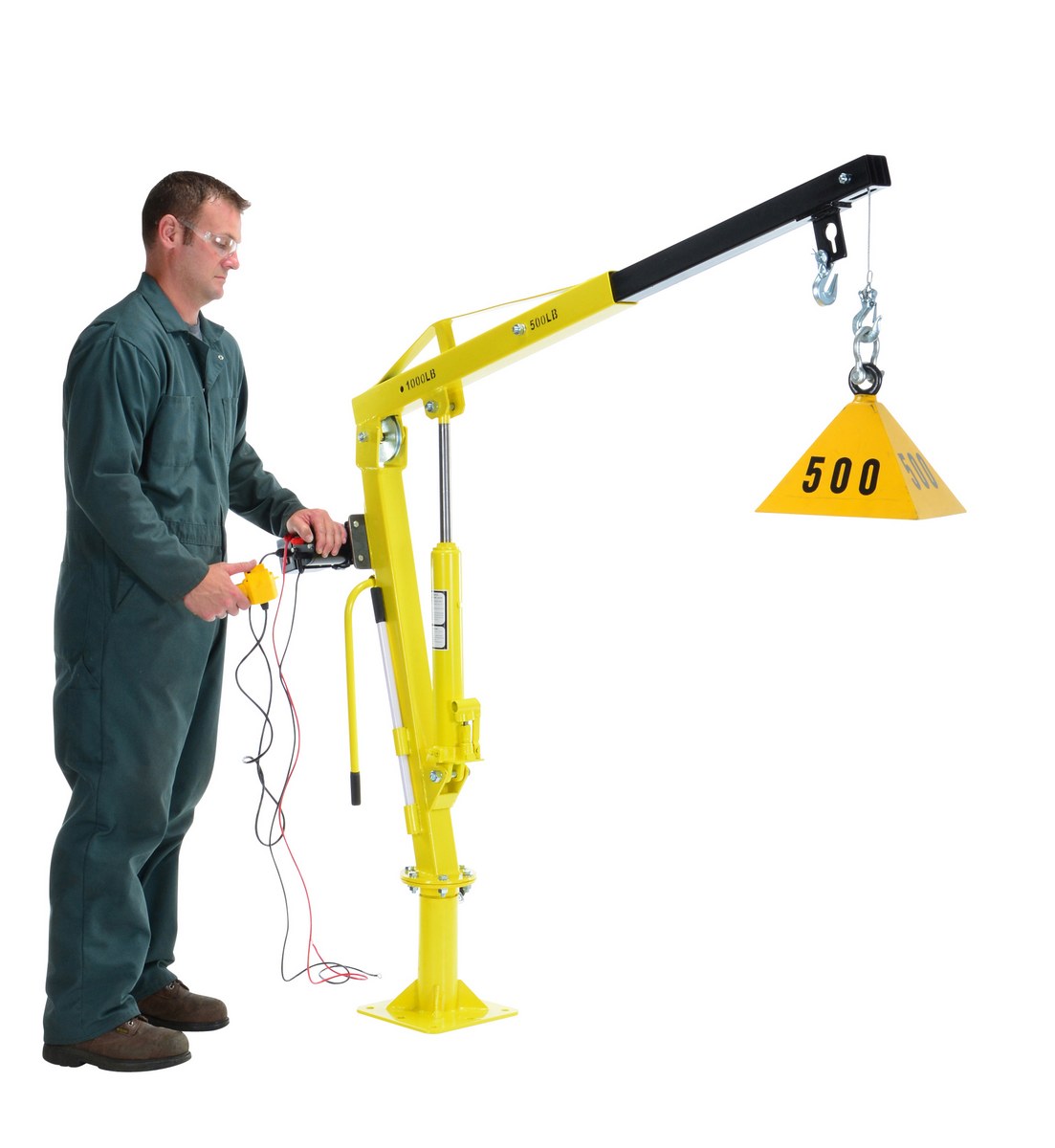

WTJ-2-DC WTJ-2-DC90 Days Limited WarrantySteel DC Powered Winch Truck Jib Crane 500 Lb. Extended Capacity YellowUniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500
160

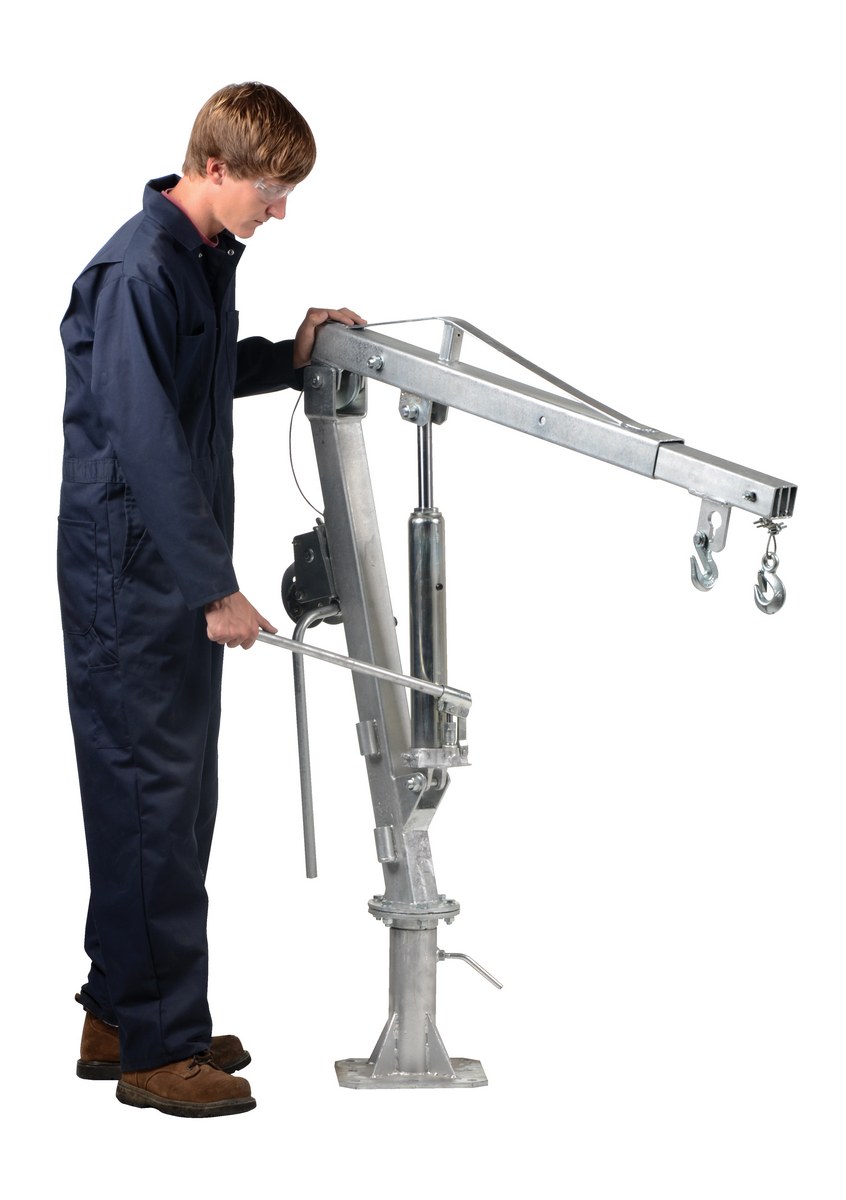

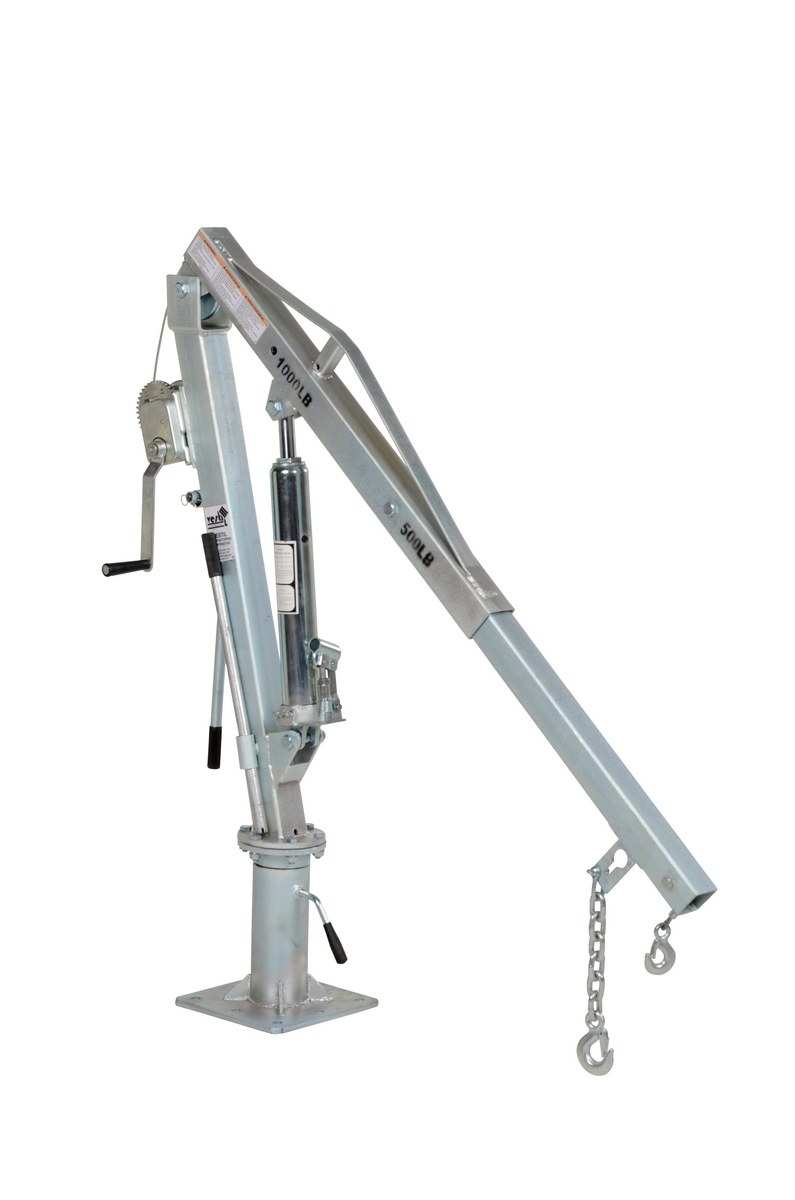

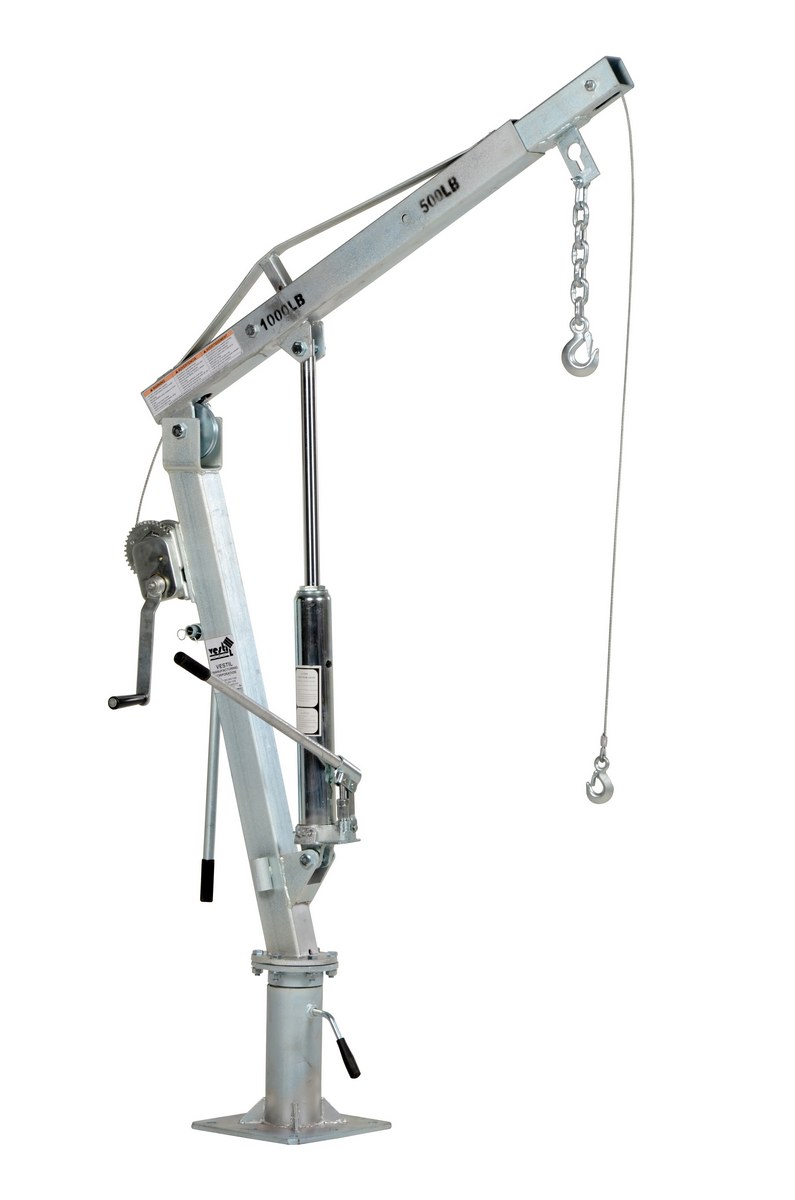

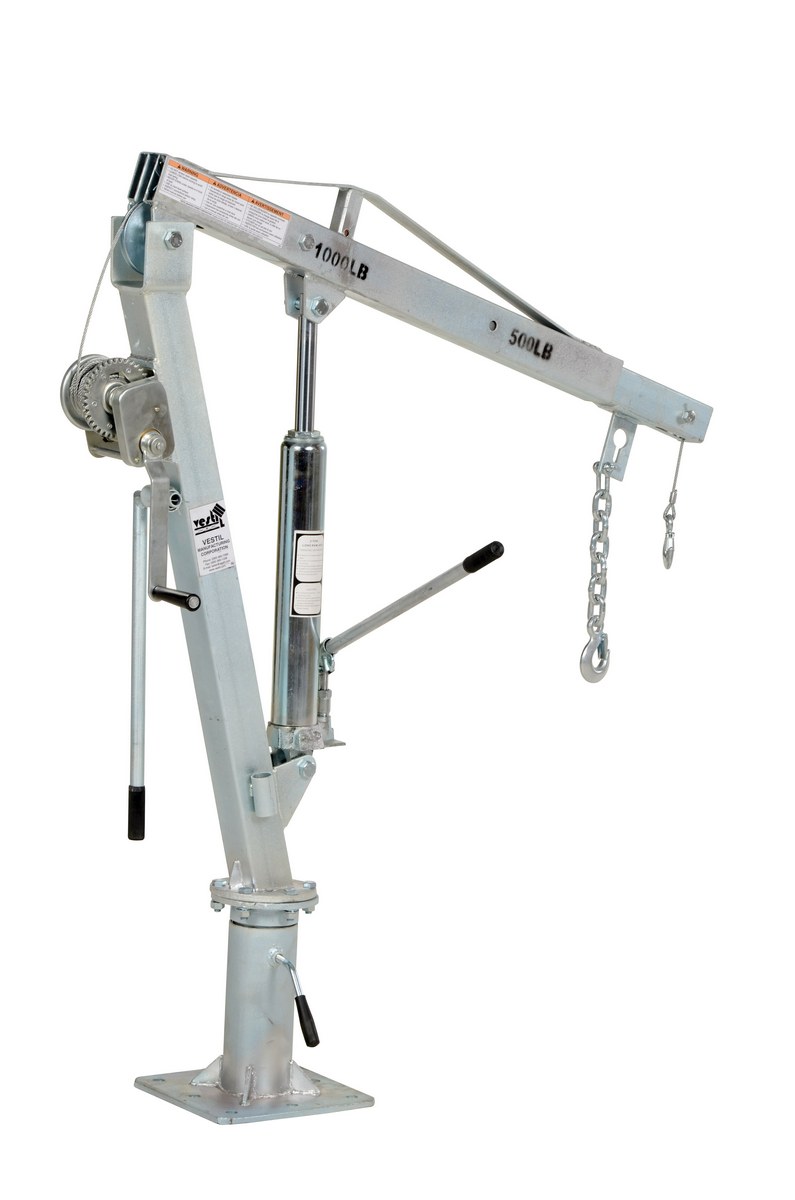

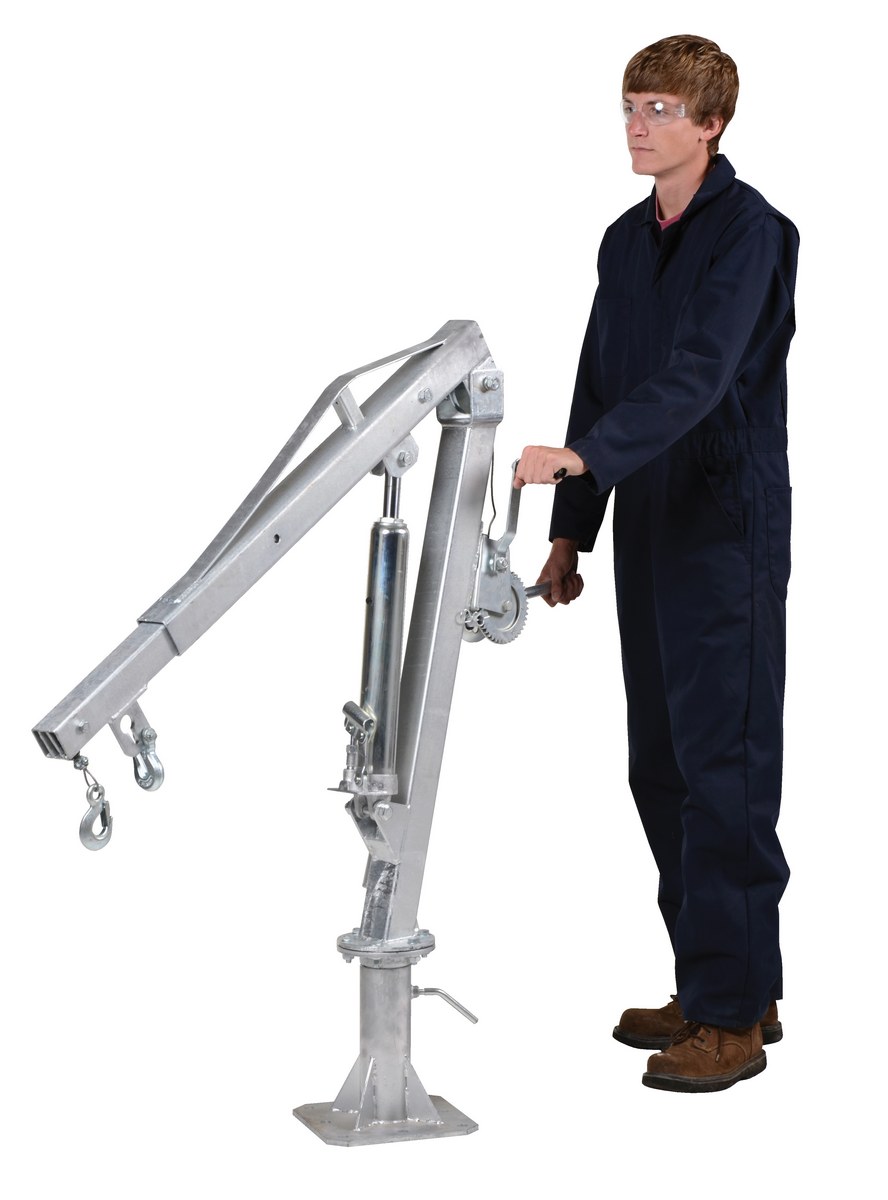

WTJ-2-G WTJ-2-G90 Days Limited WarrantyGalvanized Steel Winch Truck Jib Crane 500 Lb. Extended Capacity GrayUniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500
134

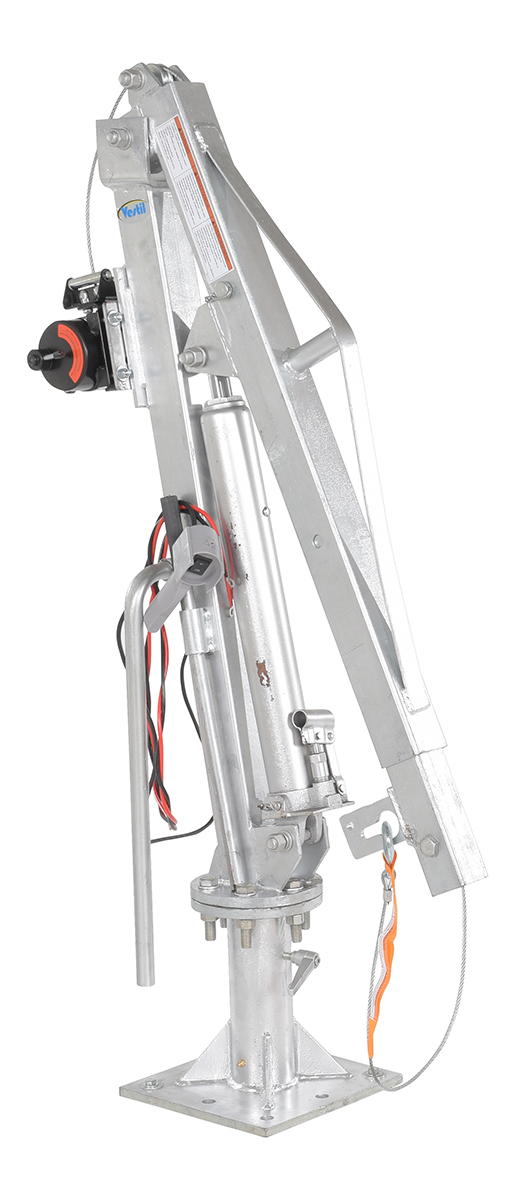

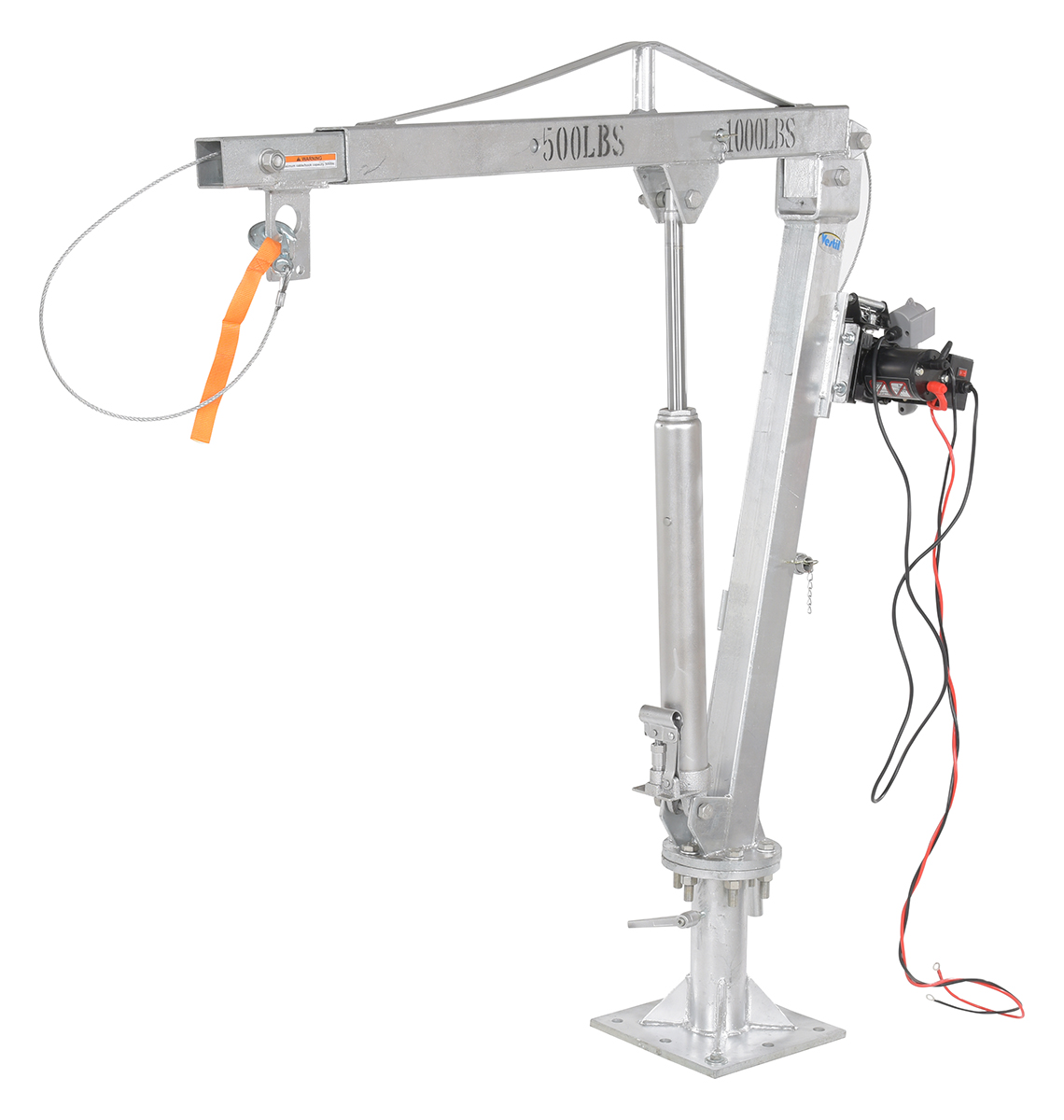

WTJ-2-G-DC WTJ-2-G-DC90 Days Limited WarrantyGalvanized Steel DC Powered Winch Truck Jib Crane 500 Lb. Extended Capacity GrayUniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500
165

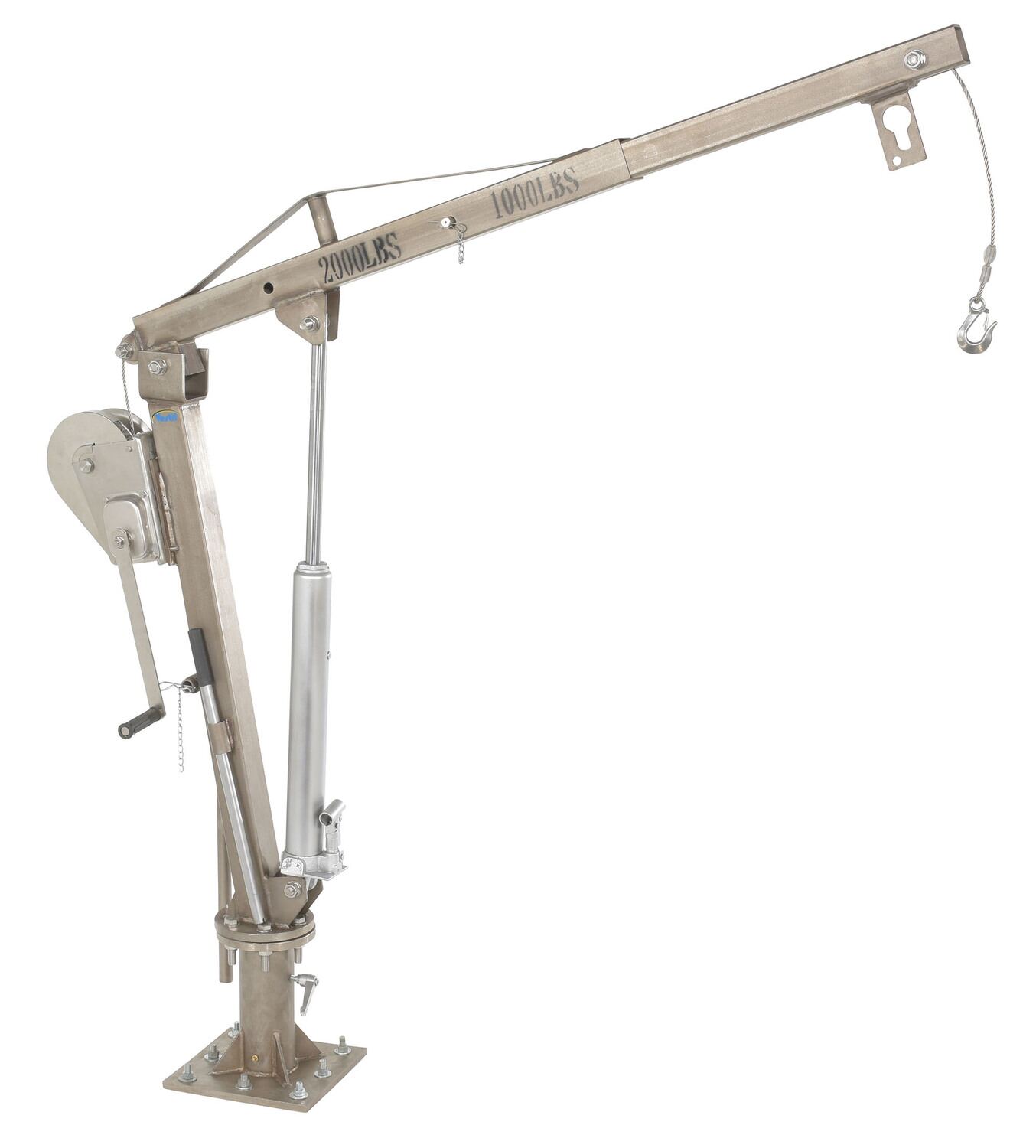

WTJ-2-SS WTJ-2-SS90 Days Limited WarrantyStainless Steel Winch Truck Jib Crane 550 Lb. Extended Capacity SilverUniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500
134

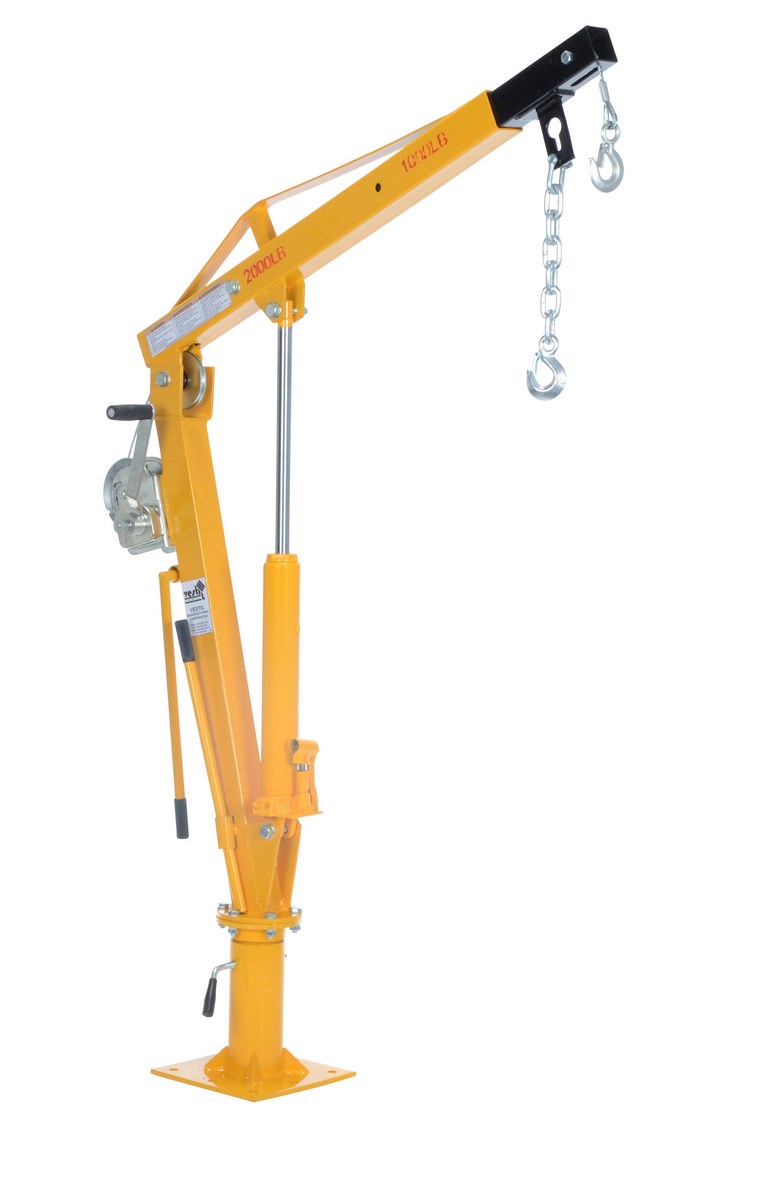

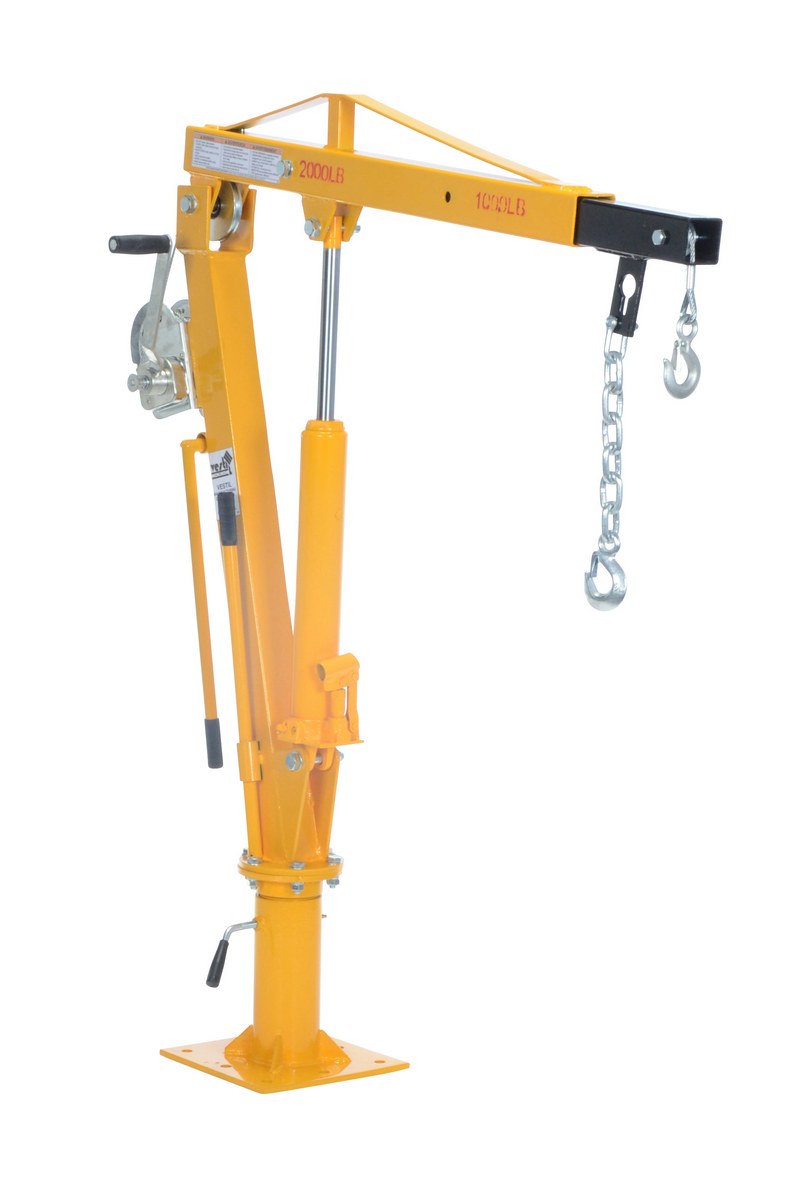

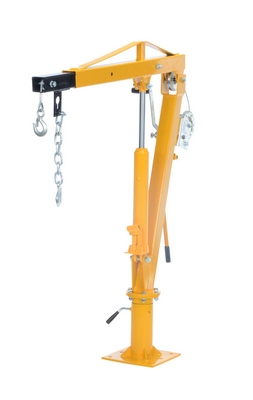

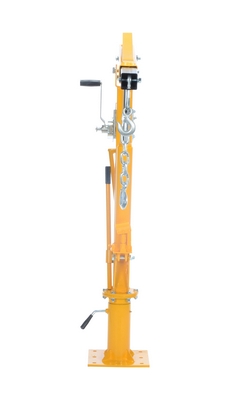

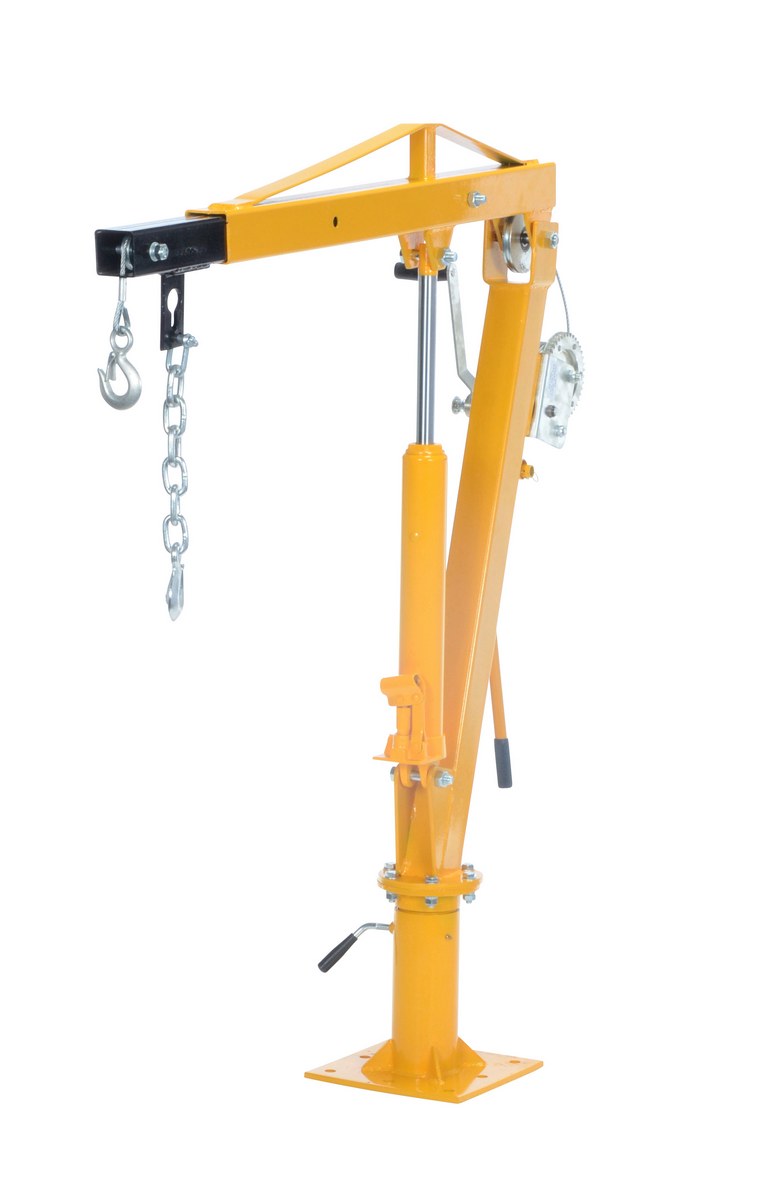

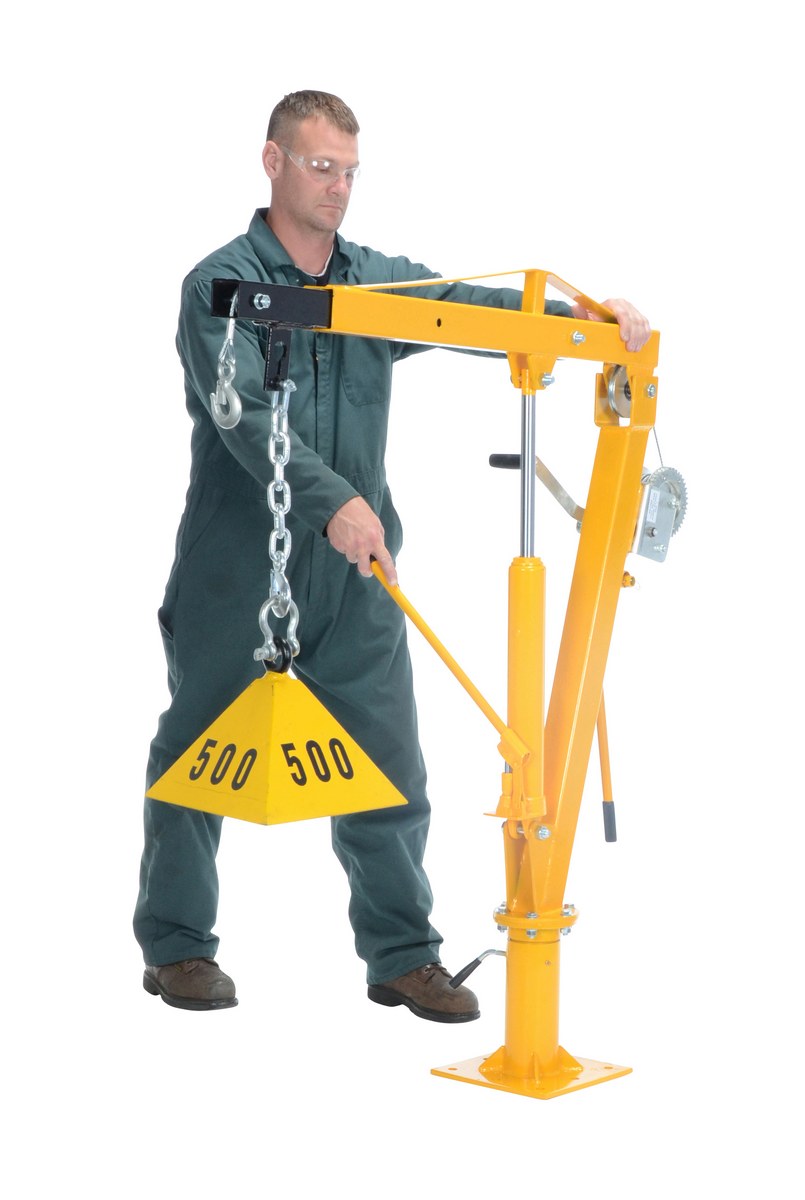

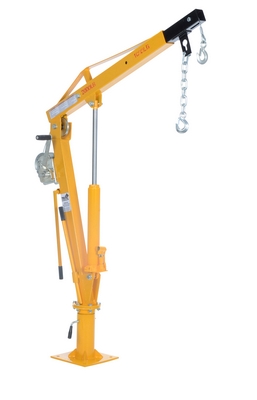

WTJ-4 WTJ-490 Days Limited WarrantySteel Winch Truck Jib Crane 44 In. Reach 1,000 Lb. Extended Capacity YellowUniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 1,000
145

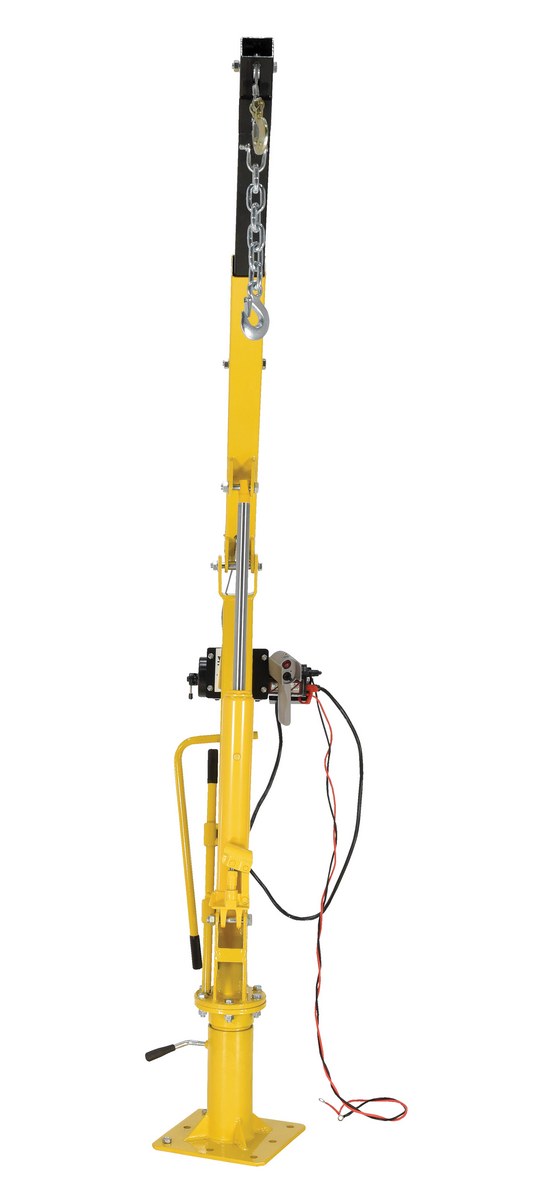

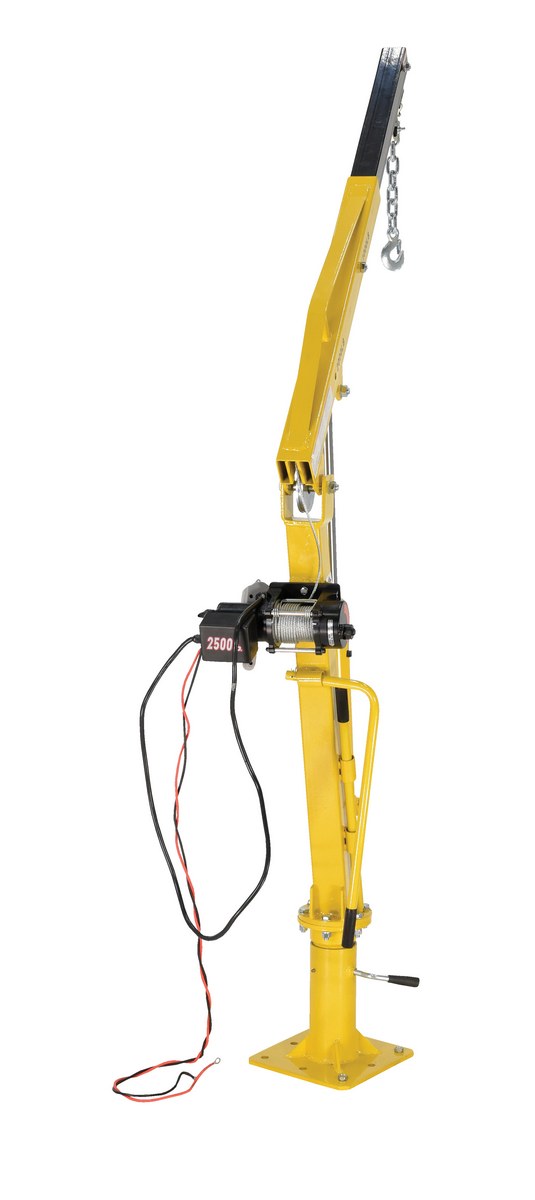

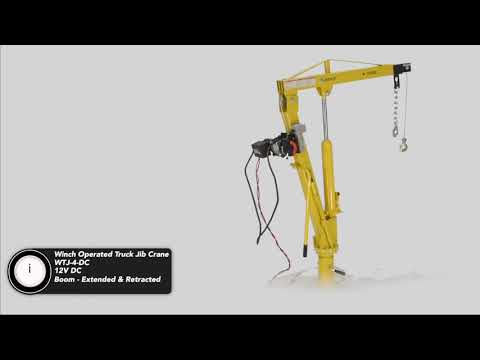

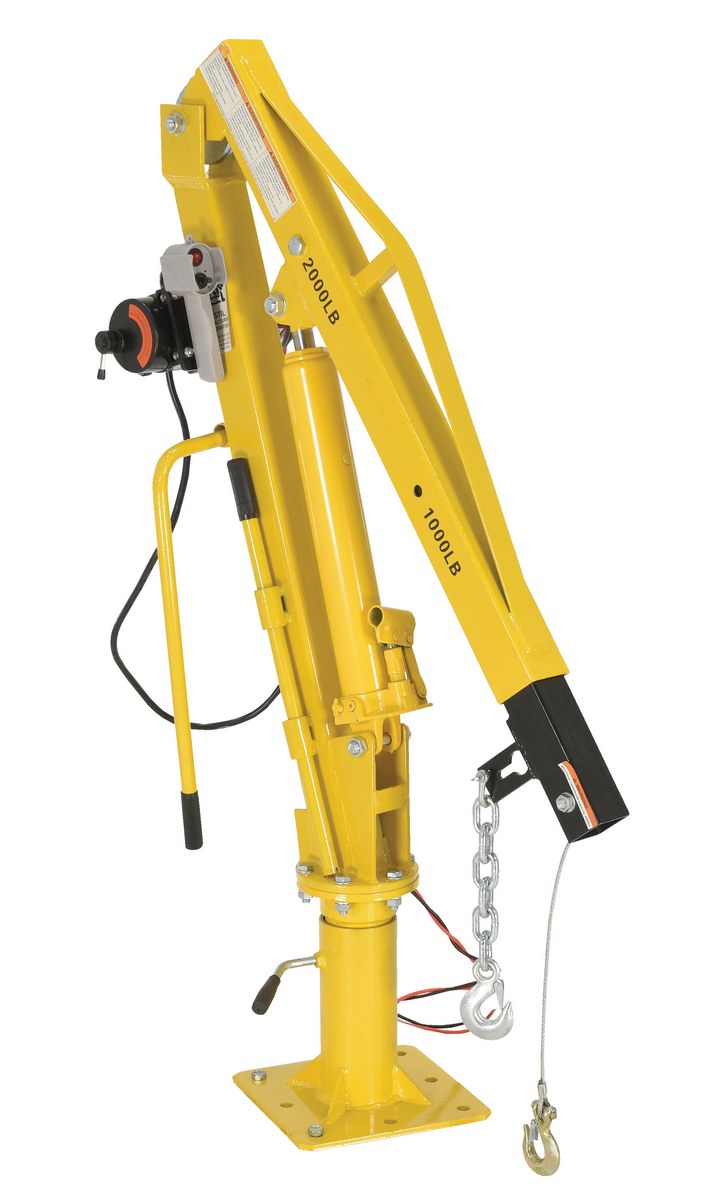

WTJ-4-DC WTJ-4-DC90 Days Limited WarrantySteel DC Powered Winch Truck Jib Crane 44 In. Reach 1,000 Lb. Extended Capacity YellowUniform Capacity (lb.): 1000
Raised Height (in.): 86-1/2
204

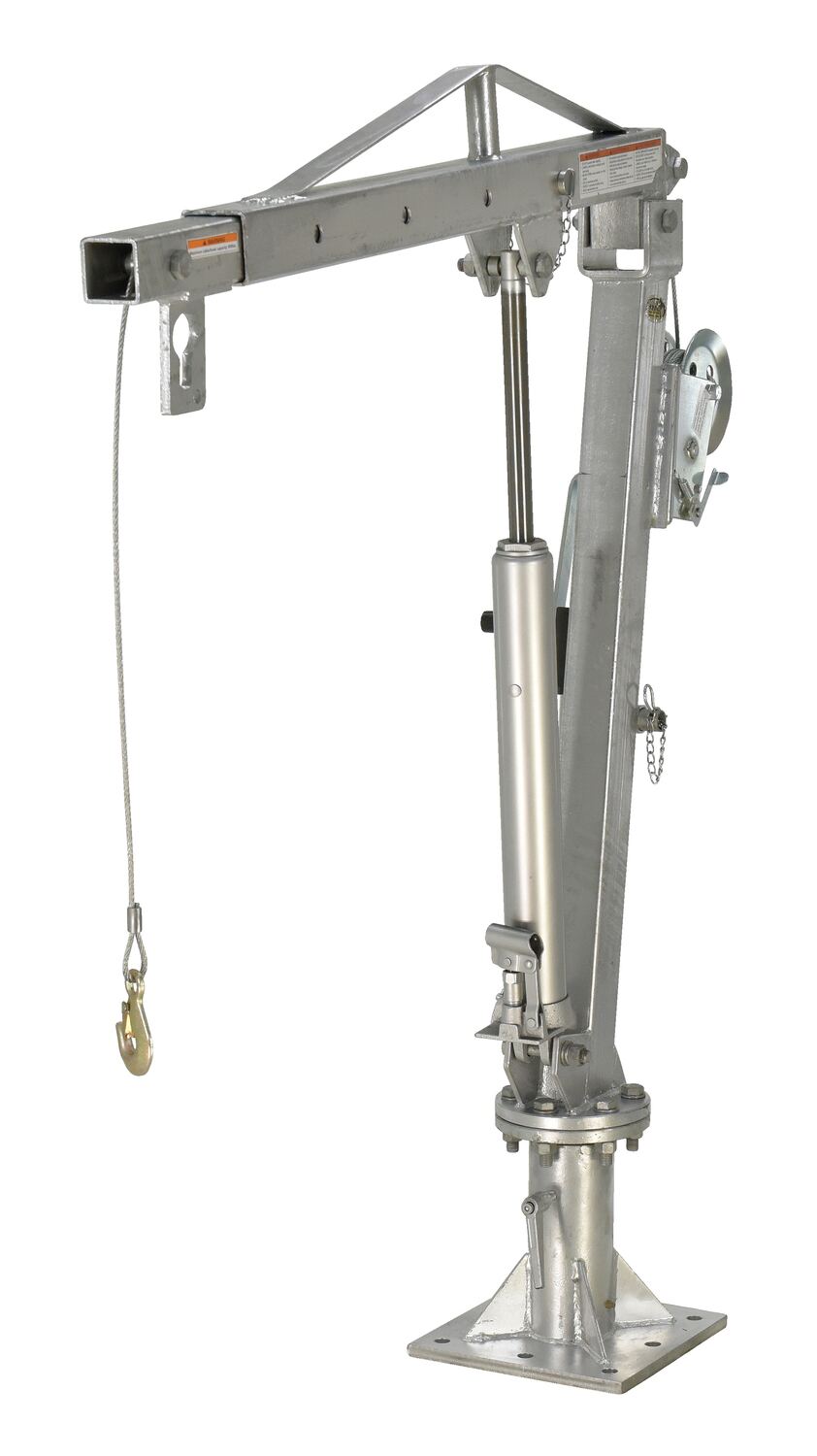

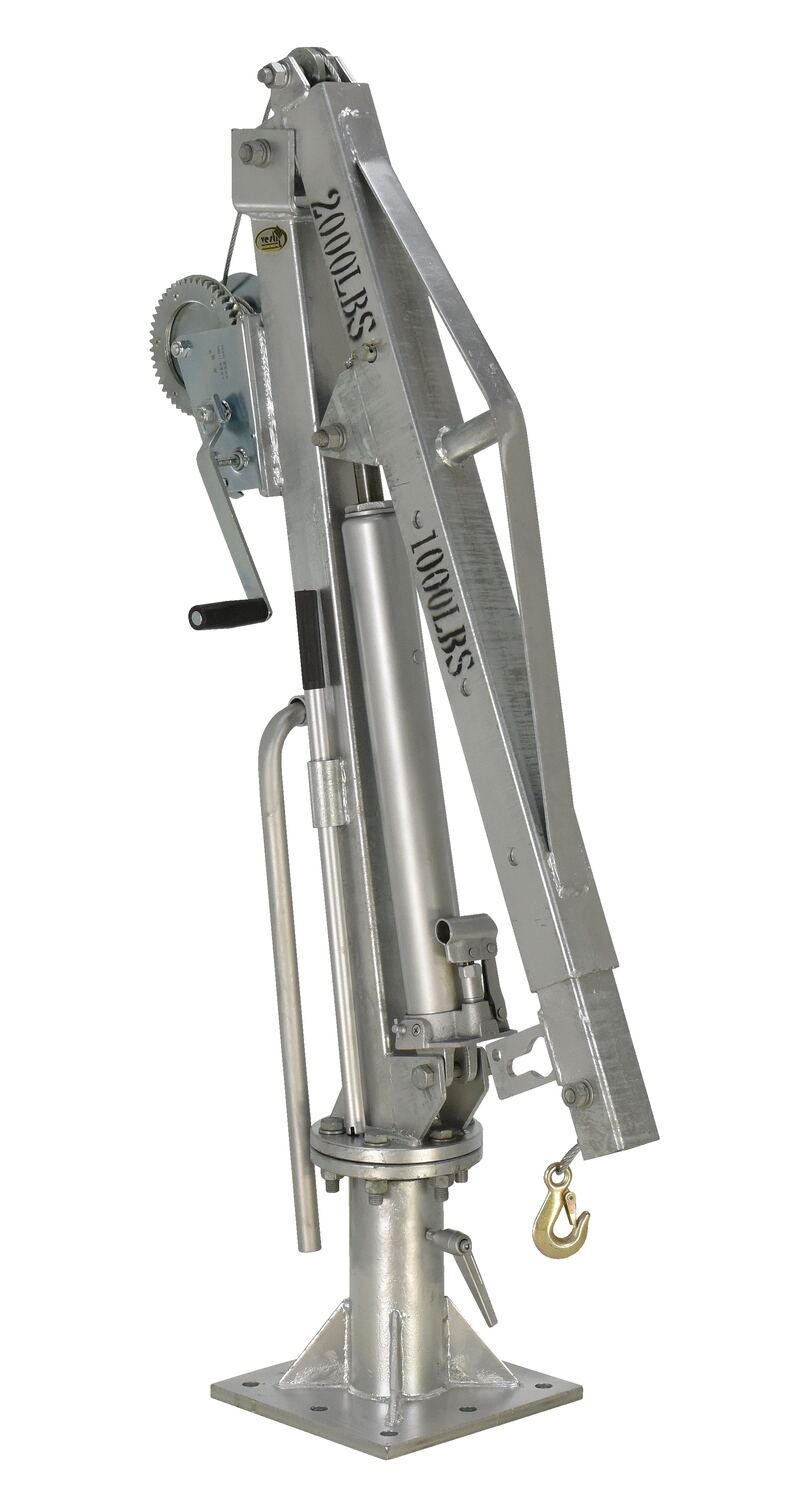

WTJ-4-G WTJ-4-G90 Days Limited WarrantyGalvanized Steel Winch Truck Jib Crane 52 In. Reach 1,000 Lb. Extended Capacity GrayUniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 1,000
218

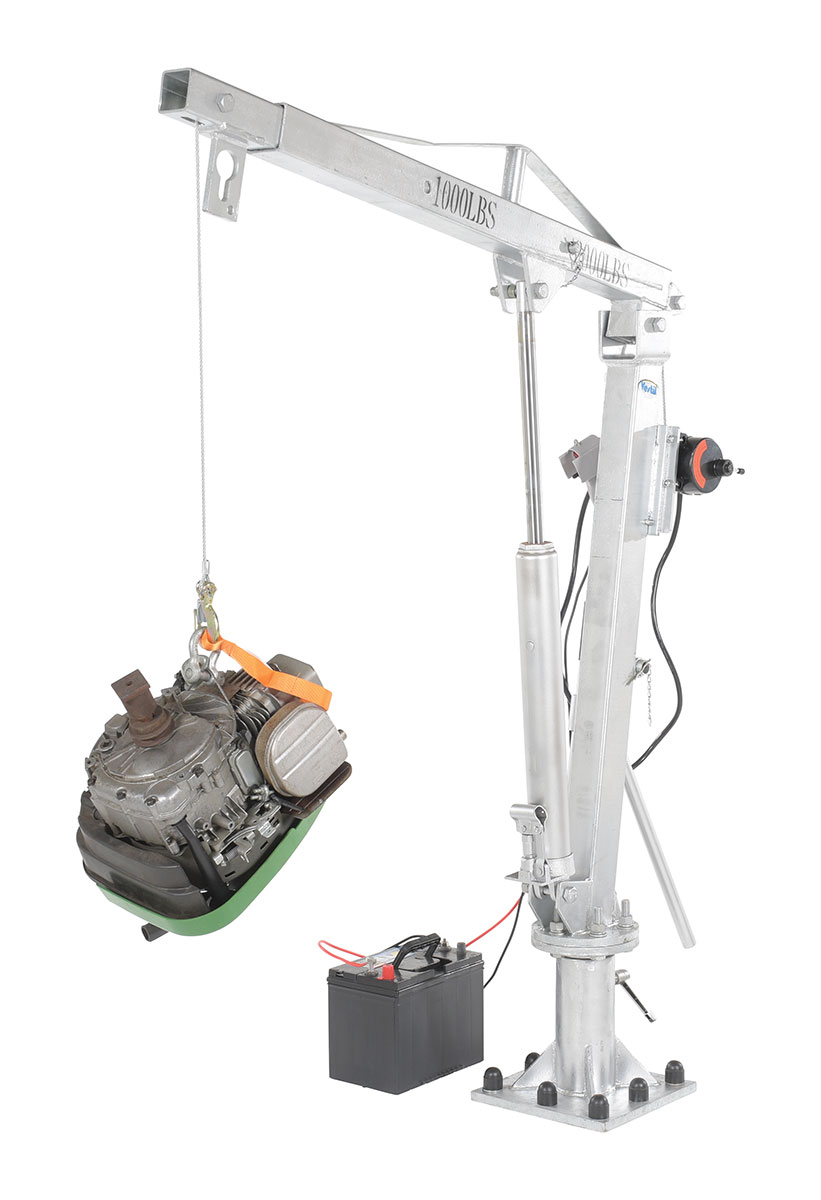

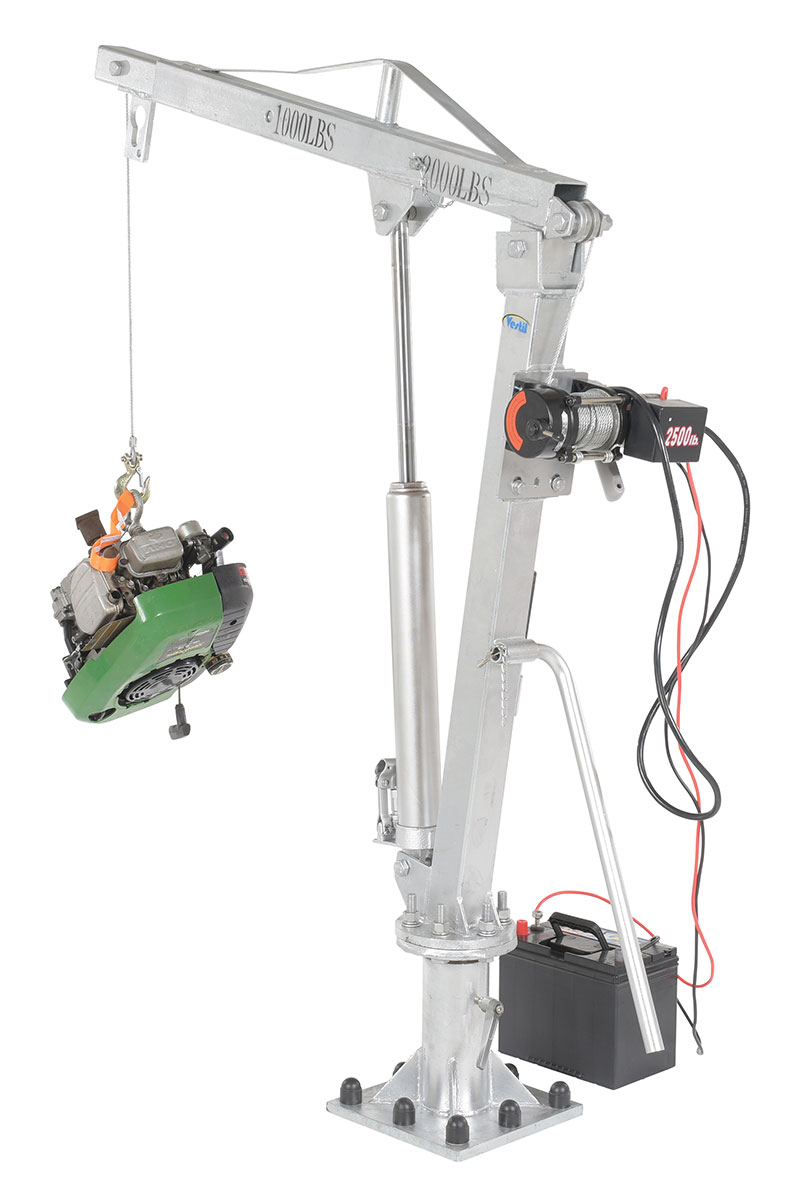

WTJ-4-G-DC WTJ-4-G-DC90 Days Limited WarrantyGalvanized Steel DC Powered Winch Truck Jib Crane 52 In. Reach 1,000 Lb. Extended Capacity GrayExtended Maximum Hook Height (in.): 97
Extended Minimum Hook Height (in.): Zero
245

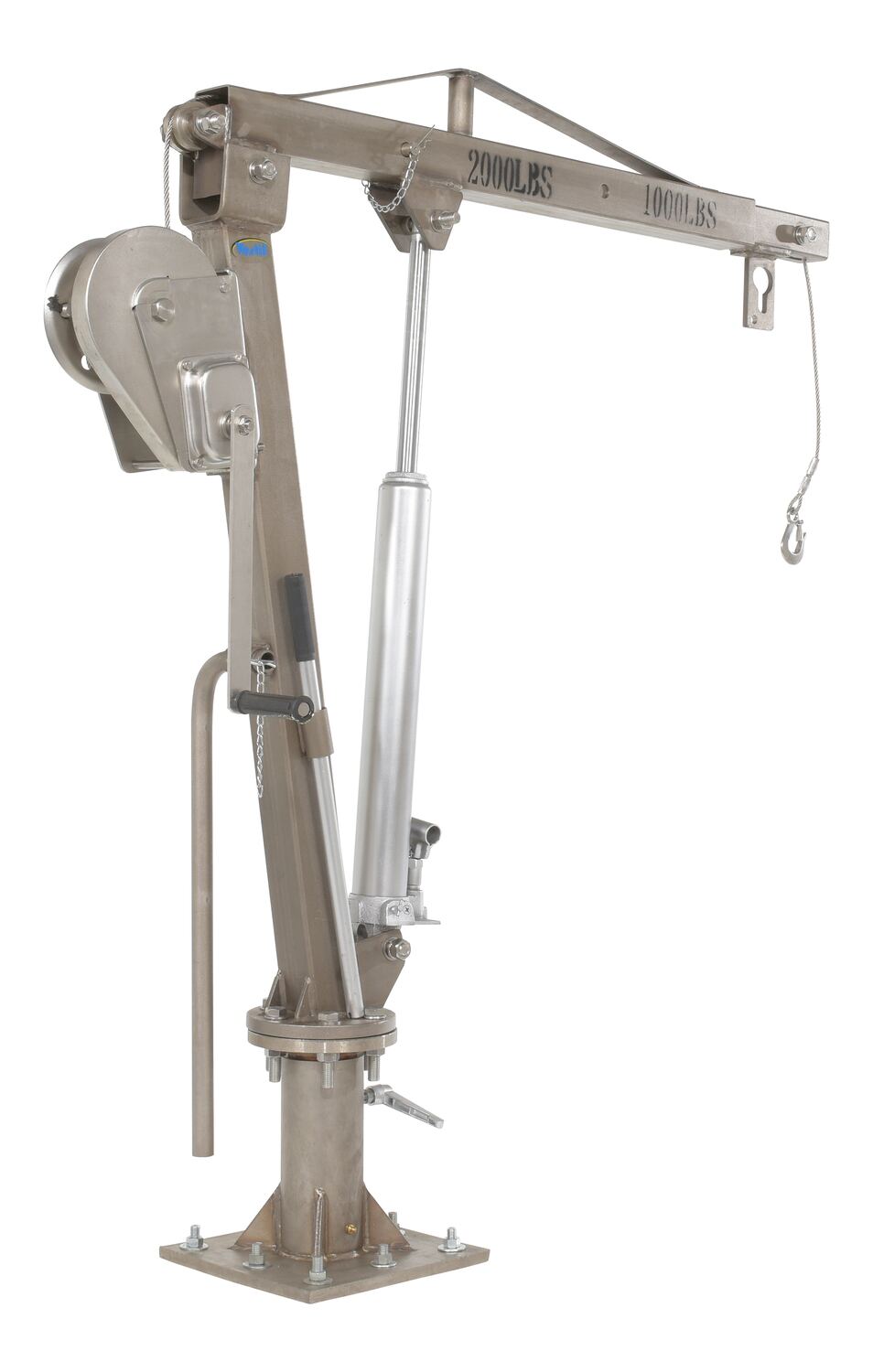

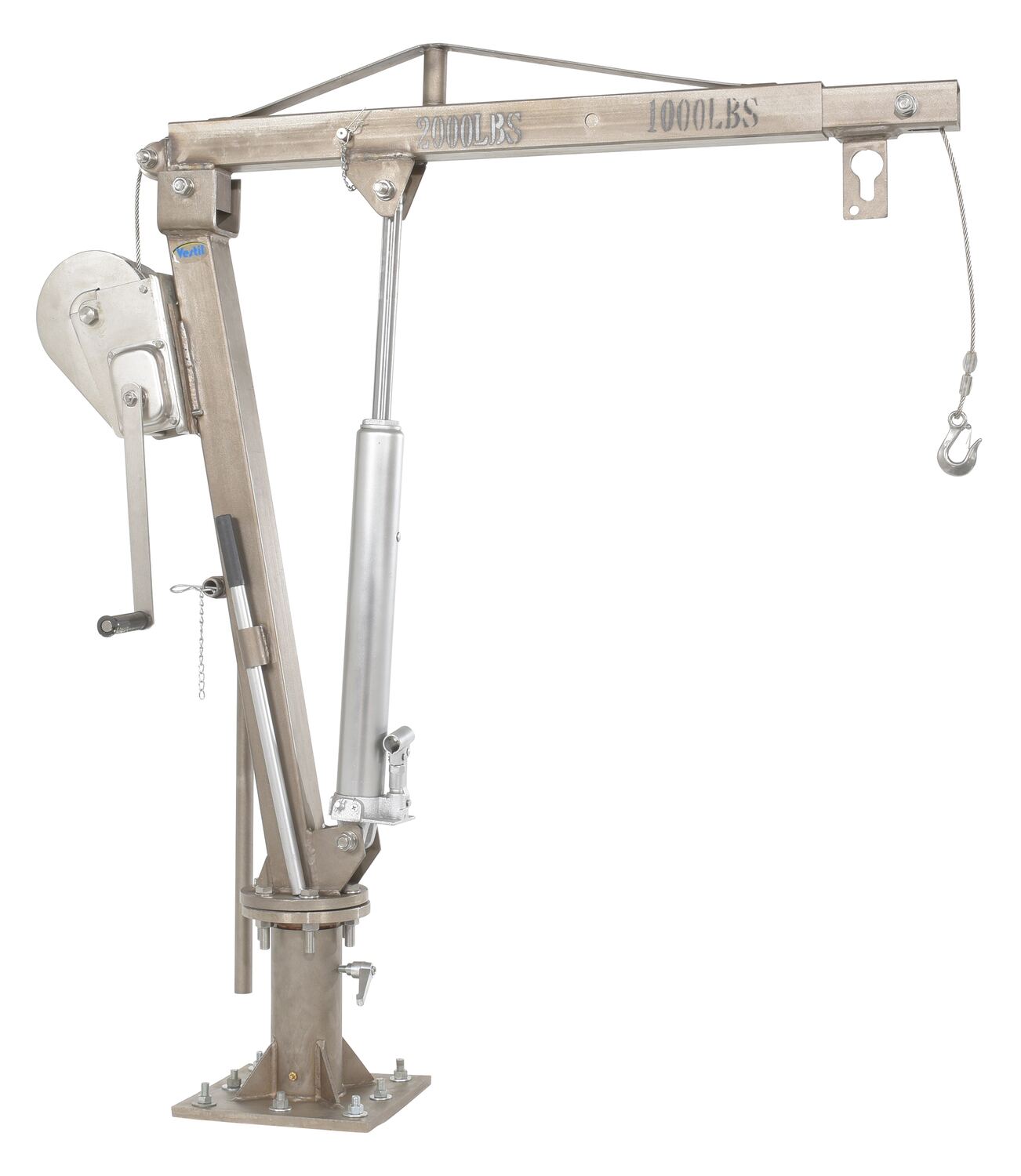

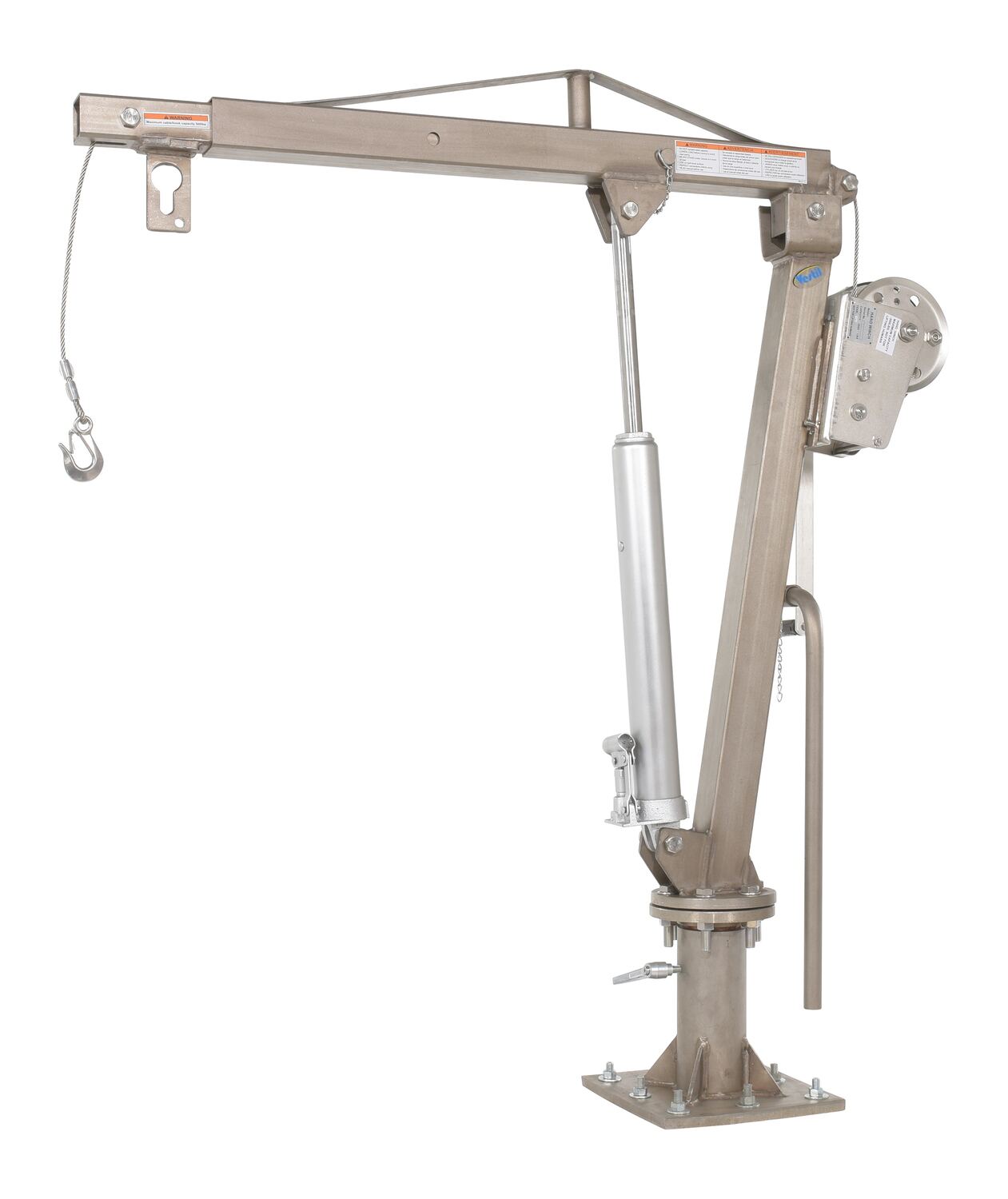

WTJ-4-SS WTJ-4-SS90 Days Limited WarrantyStainless Steel Winch Truck Jib Crane 52 In. Reach 1,000 Lb. Extended Capacity SilverUniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 1,000
218

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

WTJ-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500

WTJ-2-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500

WTJ-2-G
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500

WTJ-2-G-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500

WTJ-2-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 500

WTJ-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 1,000
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 1,000

WTJ-4-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Raised Height (in.): 86-1/2
Uniform Capacity (lb.): 1000
Raised Height (in.): 86-1/2

WTJ-4-G
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 1,000
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 1,000

WTJ-4-G-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Extended Maximum Hook Height (in.): 97
Extended Minimum Hook Height (in.): Zero
Extended Maximum Hook Height (in.): 97
Extended Minimum Hook Height (in.): Zero

WTJ-4-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 1,000
Uniform Cable Winch Capacity (lb.): 500
Extended Fixed Hook Capacity (lb.): 1,000

Winch Operated Truck Jib Cranes PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


WTJ-2

WTJ-2-DC

WTJ-2-G

WTJ-2-G-DC

WTJ-2-SS

WTJ-4

WTJ-4-DC

WTJ-4-G

WTJ-4-G-DC

WTJ-4-SS

SDS Sheets

Hydraulic Oil SDS Sheet for: WTJ-2
Hydraulic Oil SDS Sheet for: WTJ-2-DC
Hydraulic Oil SDS Sheet for: WTJ-2-G
Hydraulic Oil SDS Sheet for: WTJ-2-G-DC
Hydraulic Oil SDS Sheet for: WTJ-2-SS
Hydraulic Oil SDS Sheet for: WTJ-4
Hydraulic Oil SDS Sheet for: WTJ-4-DC
Hydraulic Oil SDS Sheet for: WTJ-4-G
Hydraulic Oil SDS Sheet for: WTJ-4-G-DC
Hydraulic Oil SDS Sheet for: WTJ-4-SS

Other PDF's


Directory Links Of Available PDF's For All Products


Q: Does the truck jib come with a charger?

A: The WTJ is intended to be hooked up to a truck battery. If using the jib in some other application other than mounting on a truck, we suggest a 12V car battery that can be purchased at most stores locally. If the jib is hooked up to truck, a charger is not needed. If using in some other application, a charger can be purchased with the battery.


Q: What material is the cable made of?

A: The cable is stainless steel


Q: What type of anchor should be used when installing jib on concrete?

A: Because this is a lifting crane type product, we would recommend J-Anchors be poured into the concreate pad. Because we do not know the current condition, density, age, etc. of the concreate, we cannot recommend a standard anchor bolt.
