Air Balance Jib Lifters

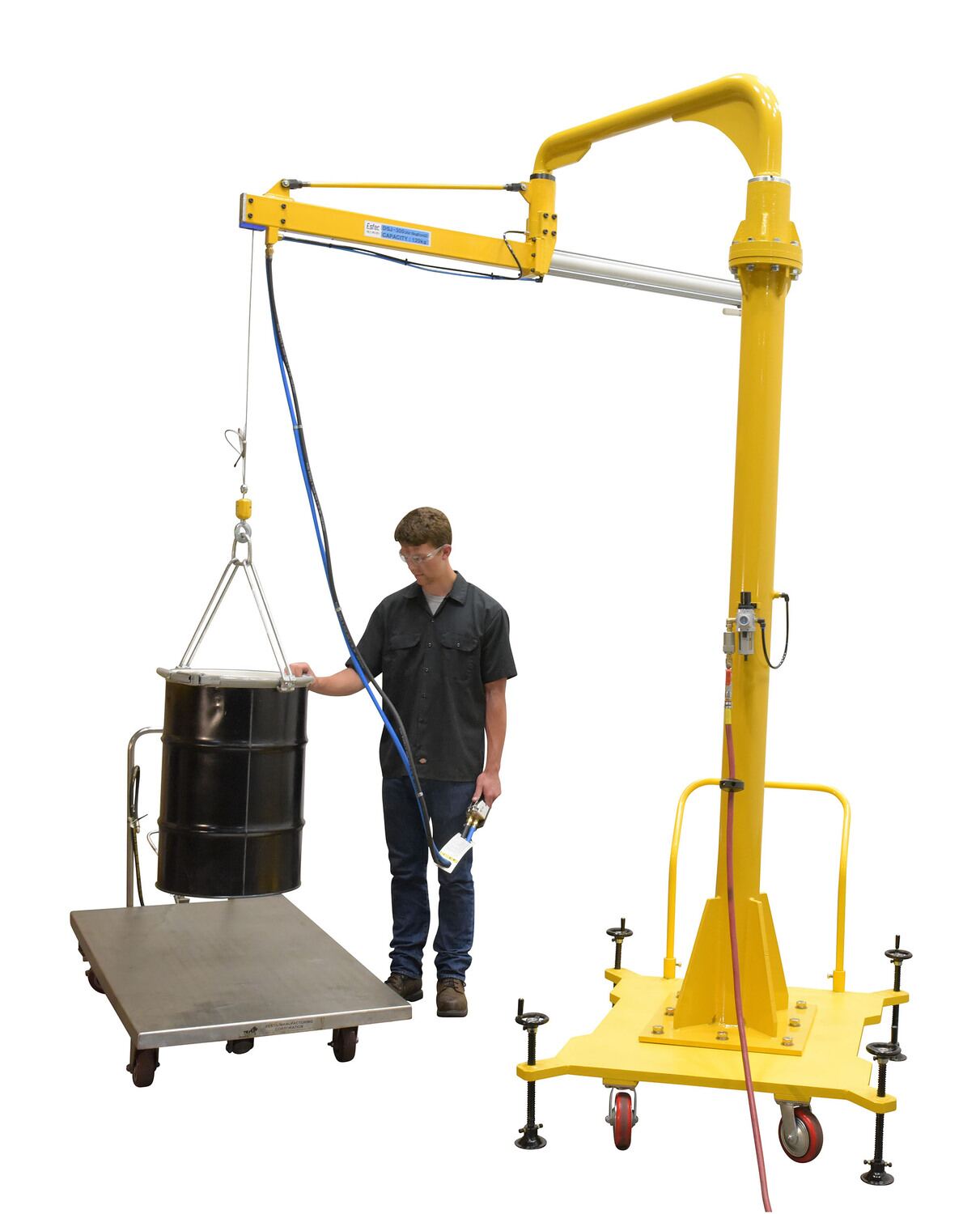

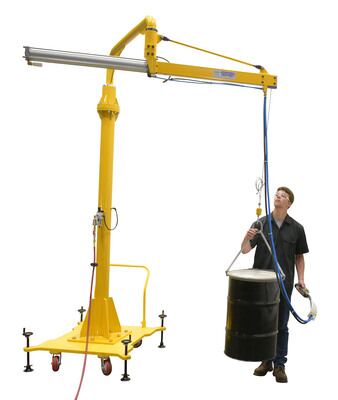

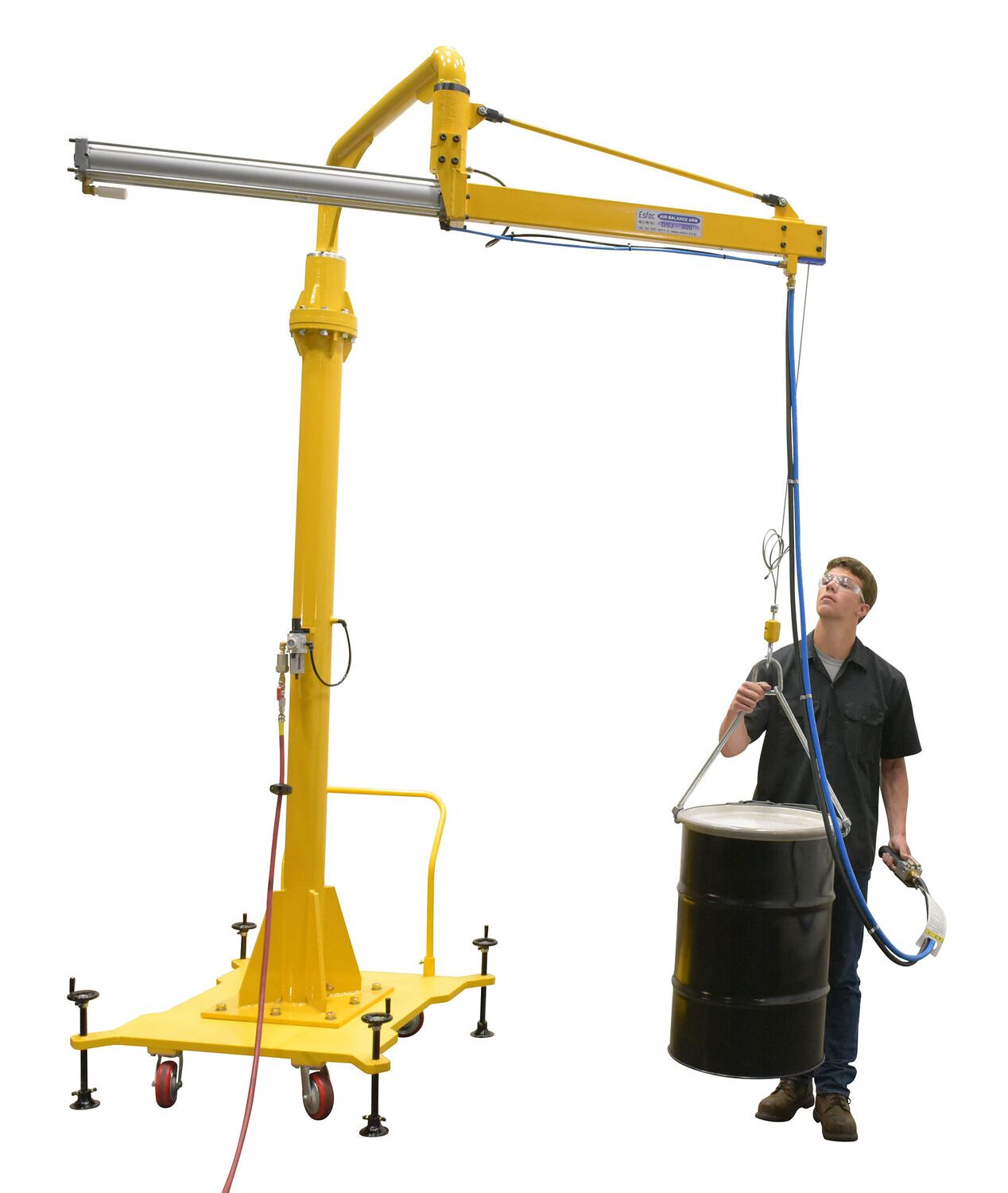

model: DSJ-300-P

Air Balance Jib Lifters

SERIES: DSL, DSJ, DSC

The Air Balancers achieve high performance, excellent safety, and low cost in the handling of heavy materials. Effortlessly handle materials in a three dimensional work space. The push-button hand control operates the pneumatic cylinder, raising and lowering the cable, in turn, positioning the load. Arm rotation is 360 degrees. Air pressure 100 psi.

Performance, safety, low cost, and ideal for heavy materials
Handle materials in a three dimensional work space

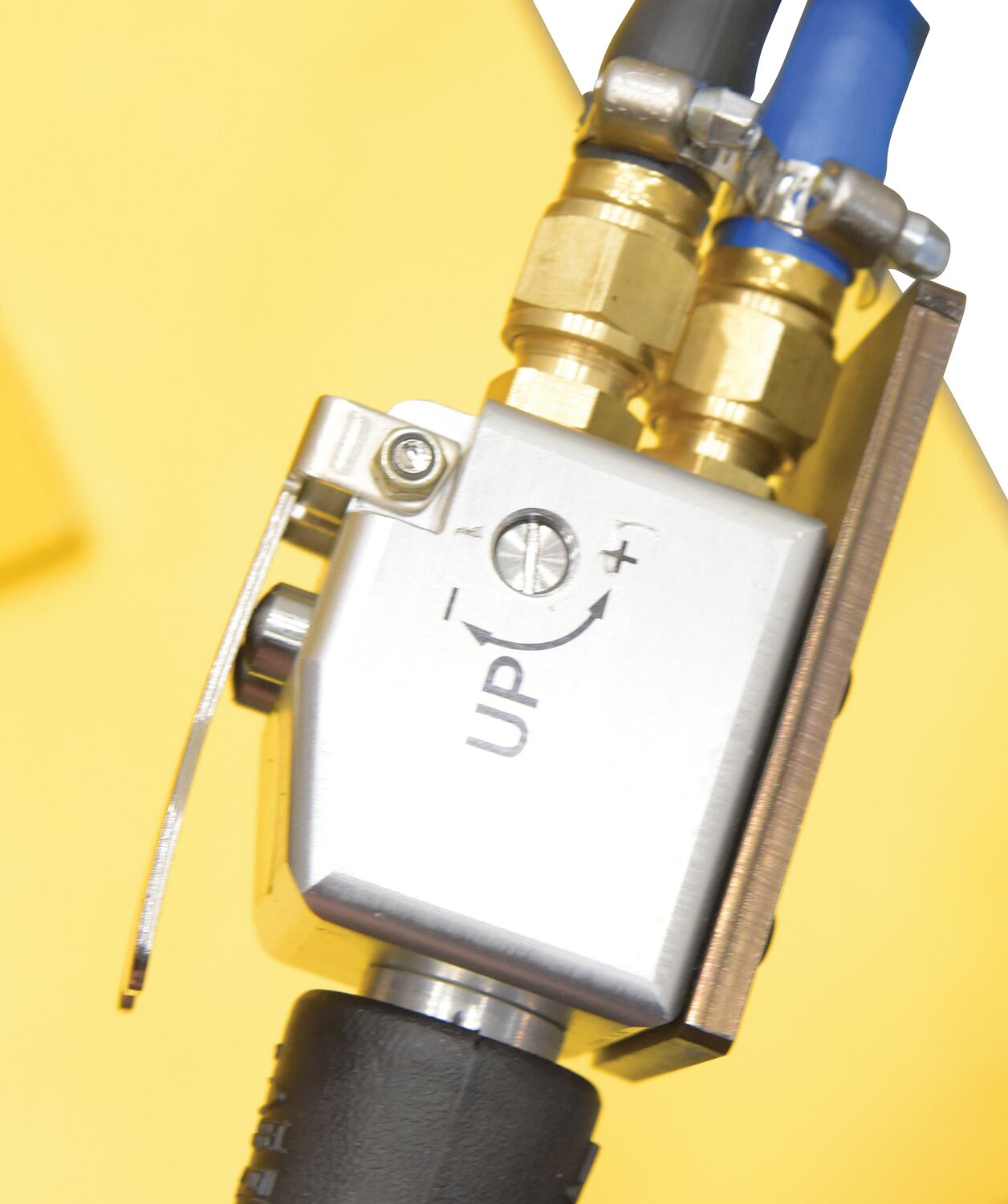

Push-button hand control operates the pneumatic cylinder
Position the load by raising and lowering the cable

Air Balance Jib Lifters

model: DSJ-300-P

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

For More Details of the Option Click the Red Model Button

Model	Image	Details	Icons	Wt.
No options available for this product.

Model	Image	PDFs	Description	Capacity (lbs)	Wt. (lbs)
VAC-6			Pneumatic Vacuum	250	32
LMEC-DH			Double Hook	250	20

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

PDFs will open in a new window when clicked.

Manuals

DSL-300

DSJ-300

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

DSJ-300

DSJ-300-P

DSL-300-P

Testing Certificates

DSJ-300

DSJ-300-C

DSJ-300-P

DSL-300

DSL-300-C

DSL-300-P

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product

Print Friendly

Related or Similar Products:

More From Vacuum Lifters

Specialty Vaccum Lifters

Specialty Vaccum Lifters

Air Balance Jib Lifters

The Air Balancers achieve high performance, excellent safety, and low cost in the handling of heavy materials. Effortlessly handle materials in a three dimensional work space. The push-button hand control operates the pneumatic cylinder, raising and lowering the cable, in turn, positioning the load. Arm rotation is 360 degrees. Air pressure 100 psi.

Performance, safety, low cost, and ideal for heavy materials
Handle materials in a three dimensional work space
Push-button hand control operates the pneumatic cylinder
Position the load by raising and lowering the cable

Model #		Description	Attributes	Net Wt. (lbs)

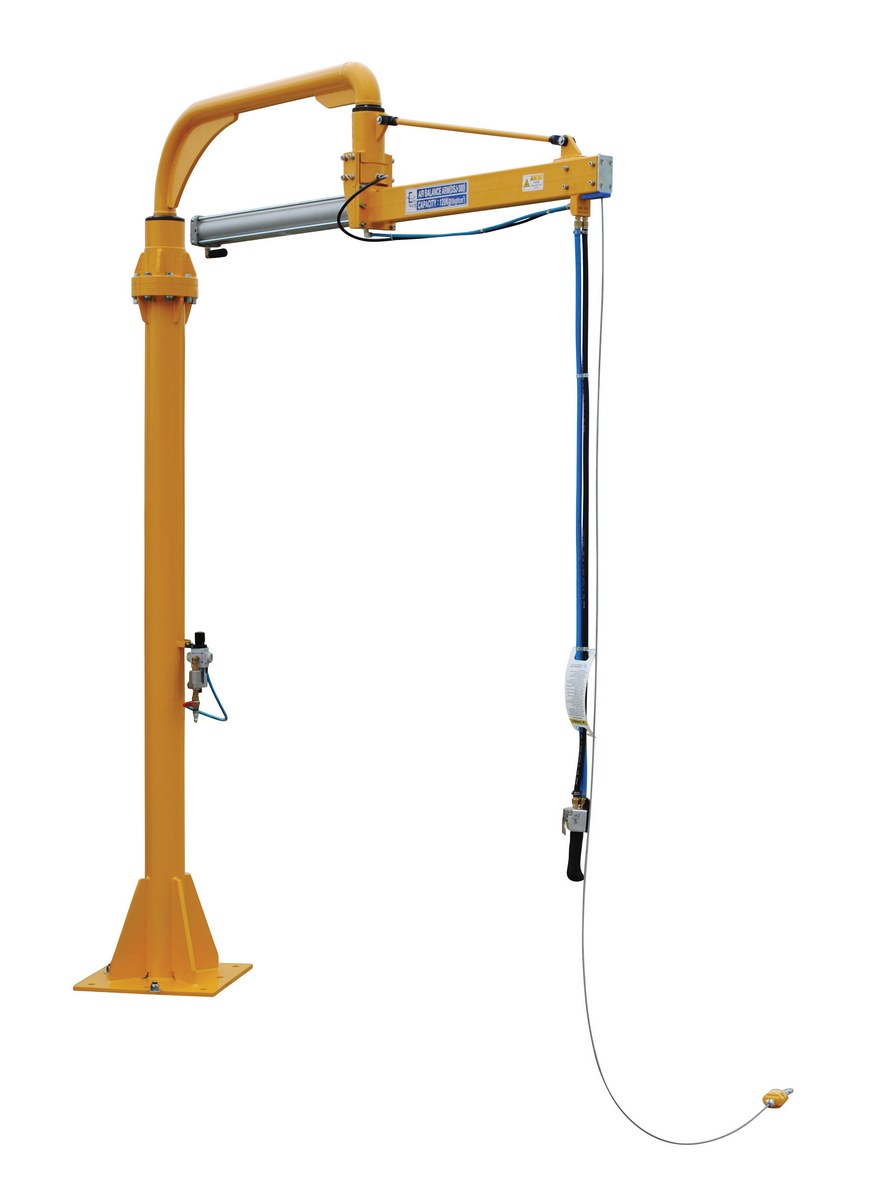

DSJ-300		Steel Air Balance Jib Lifter Floor Mounted Maximum Arm Length 92 In. 250 Lb. Capacity Yellow	Uniform Capacity (lb.): 250 Up/Down Stroke (in.): 57	647
DSJ-300-C		Steel Air Balance Jib Lifter Ceiling Mounted Maximum Arm Length 93 In. 250 Lb. Capacity Yellow	Uniform Capacity (lb.): 250 Up/Down Stroke (in.): 57-1/2	471

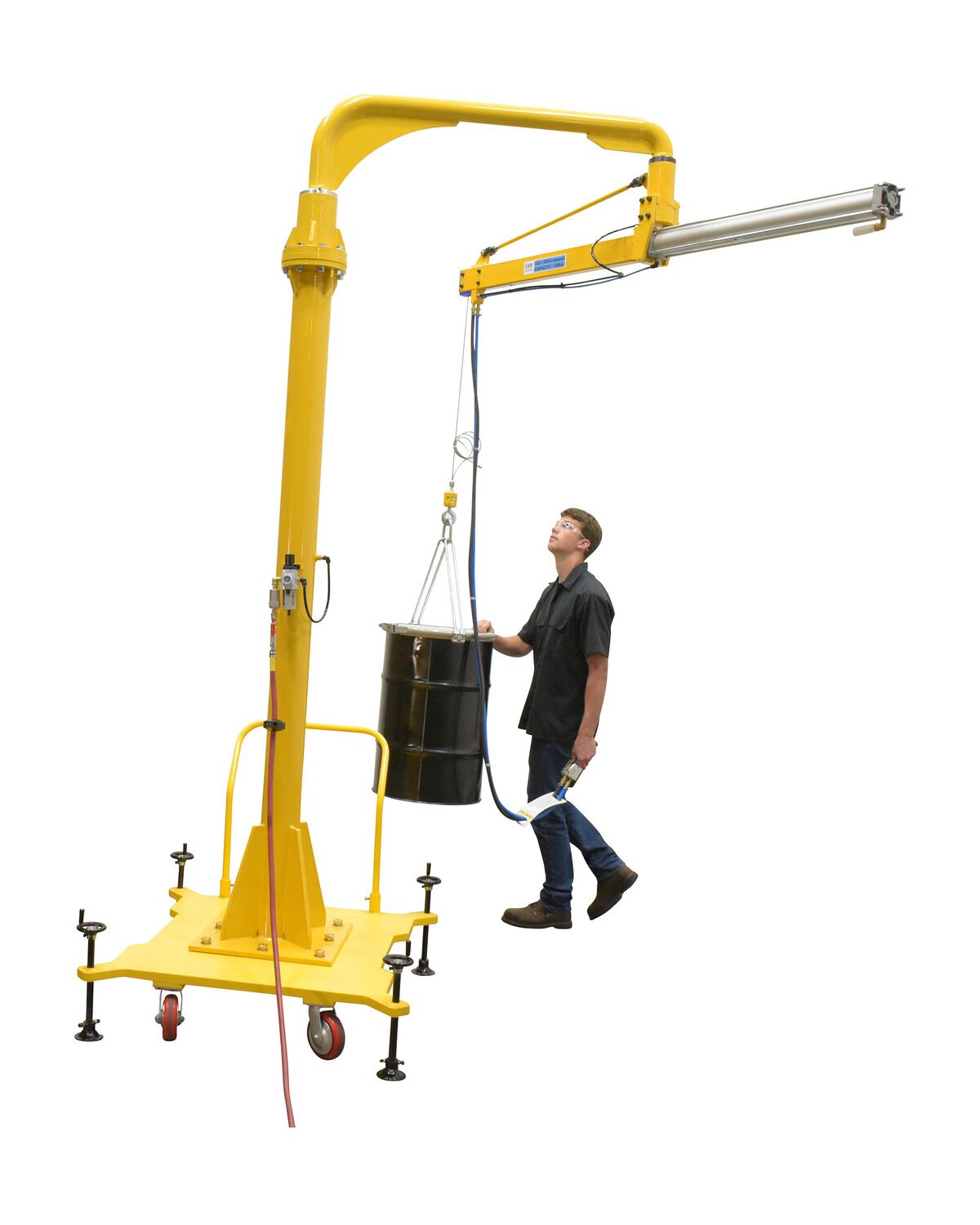

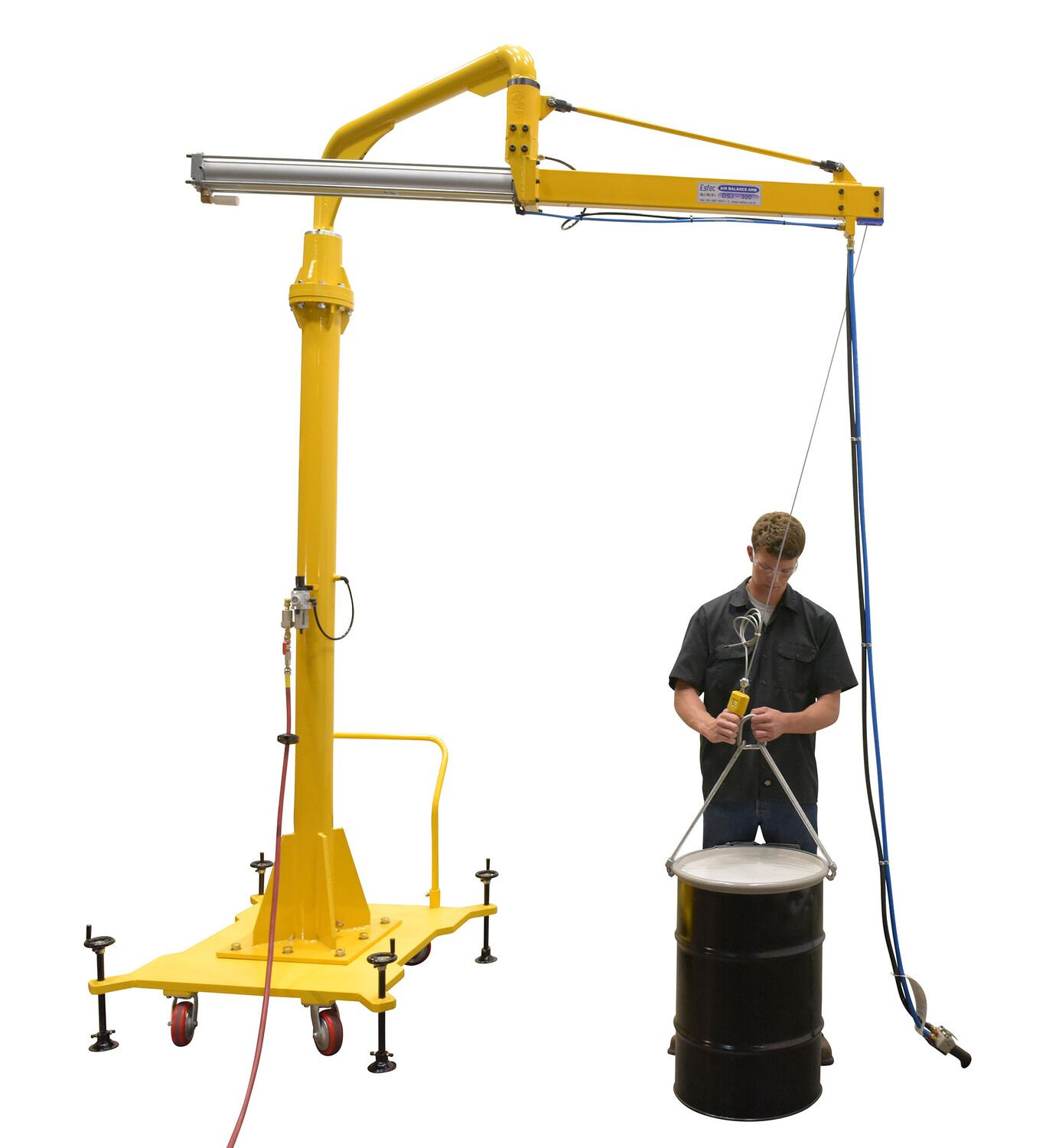

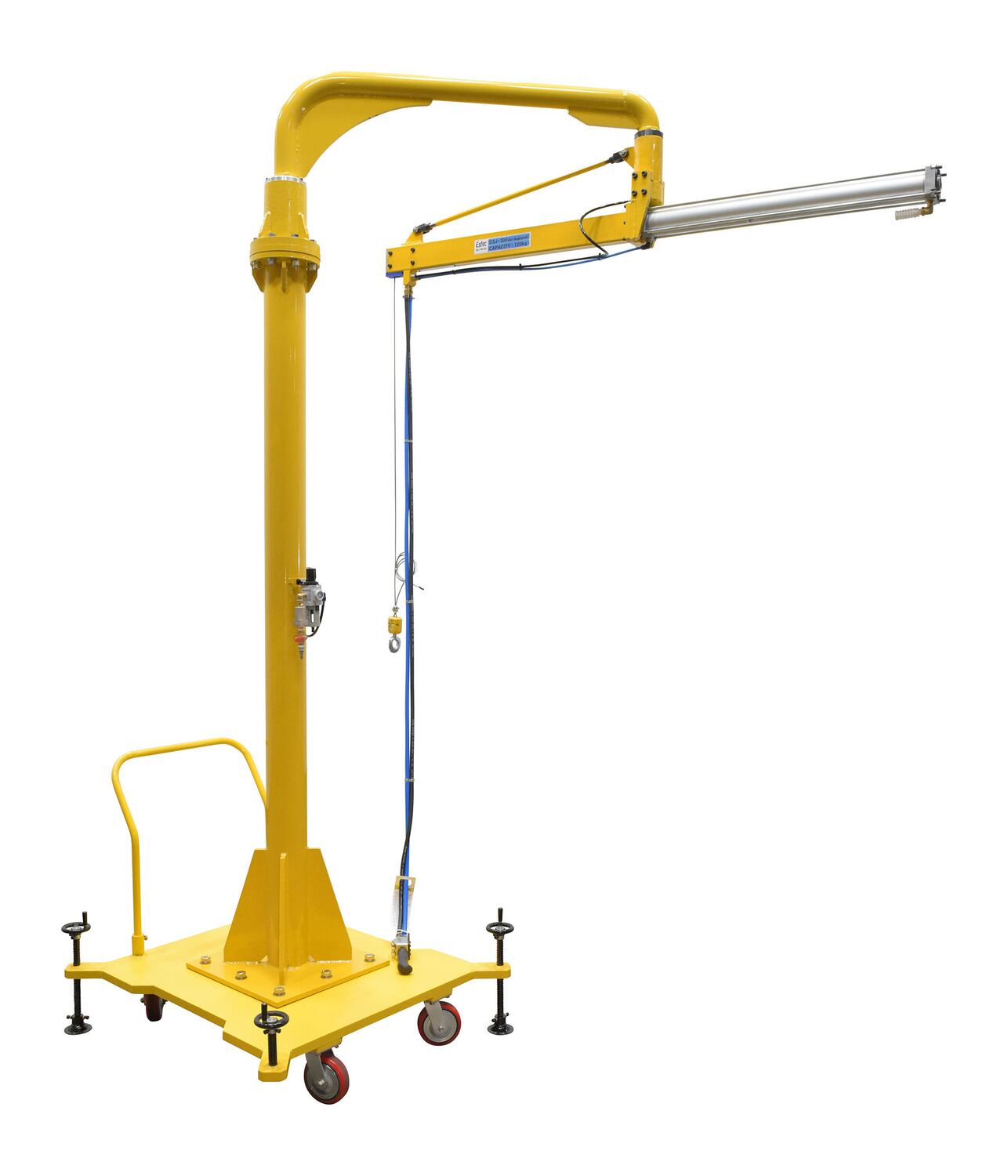

DSJ-300-P		Steel Air Balanced Lifter Portable Maximum Arm Length 93 In. 250 Lb. Capacity	Uniform Capacity (lb.): 250 Up/Down Stroke (in.): 57-1/2	1043

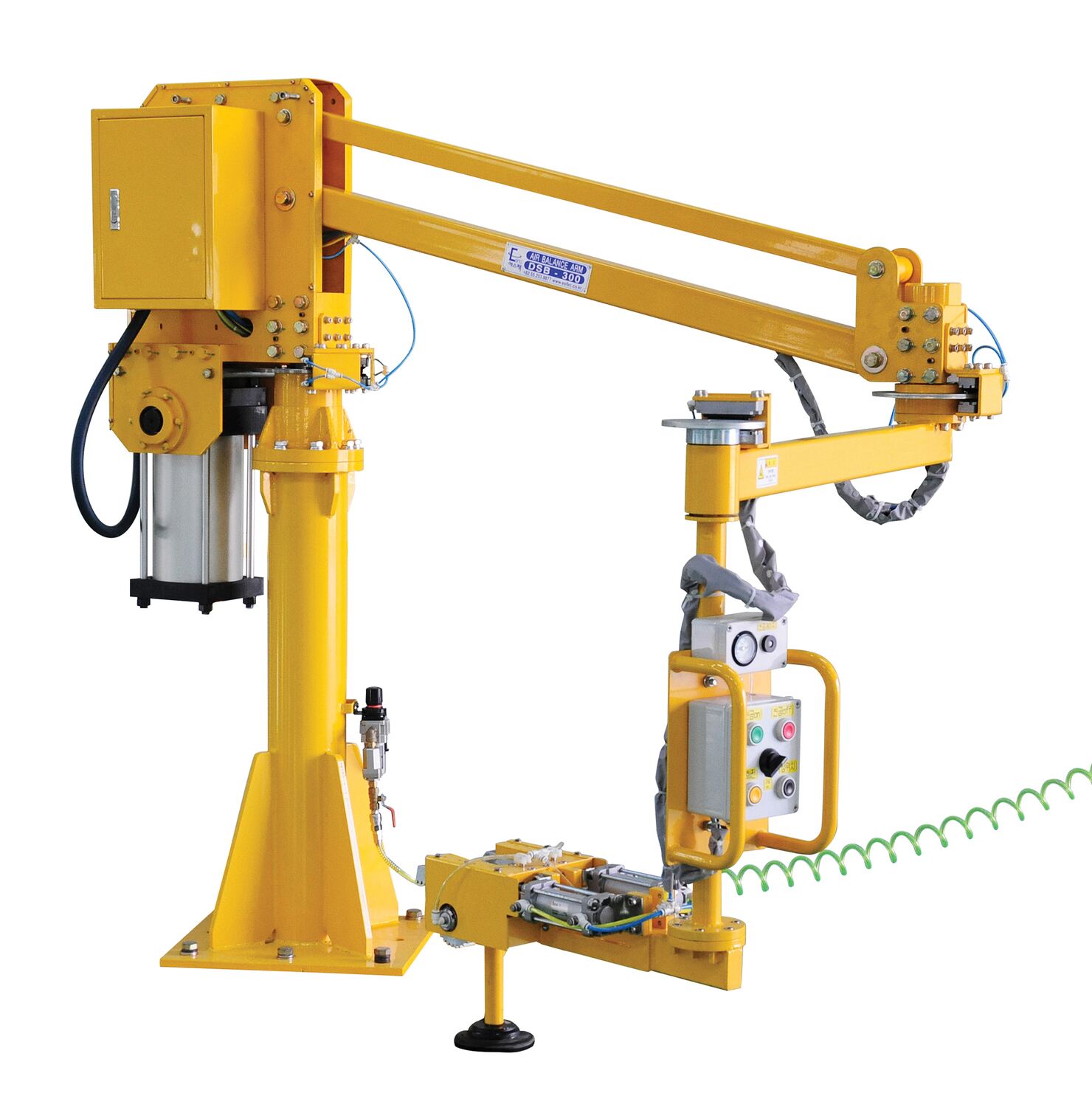

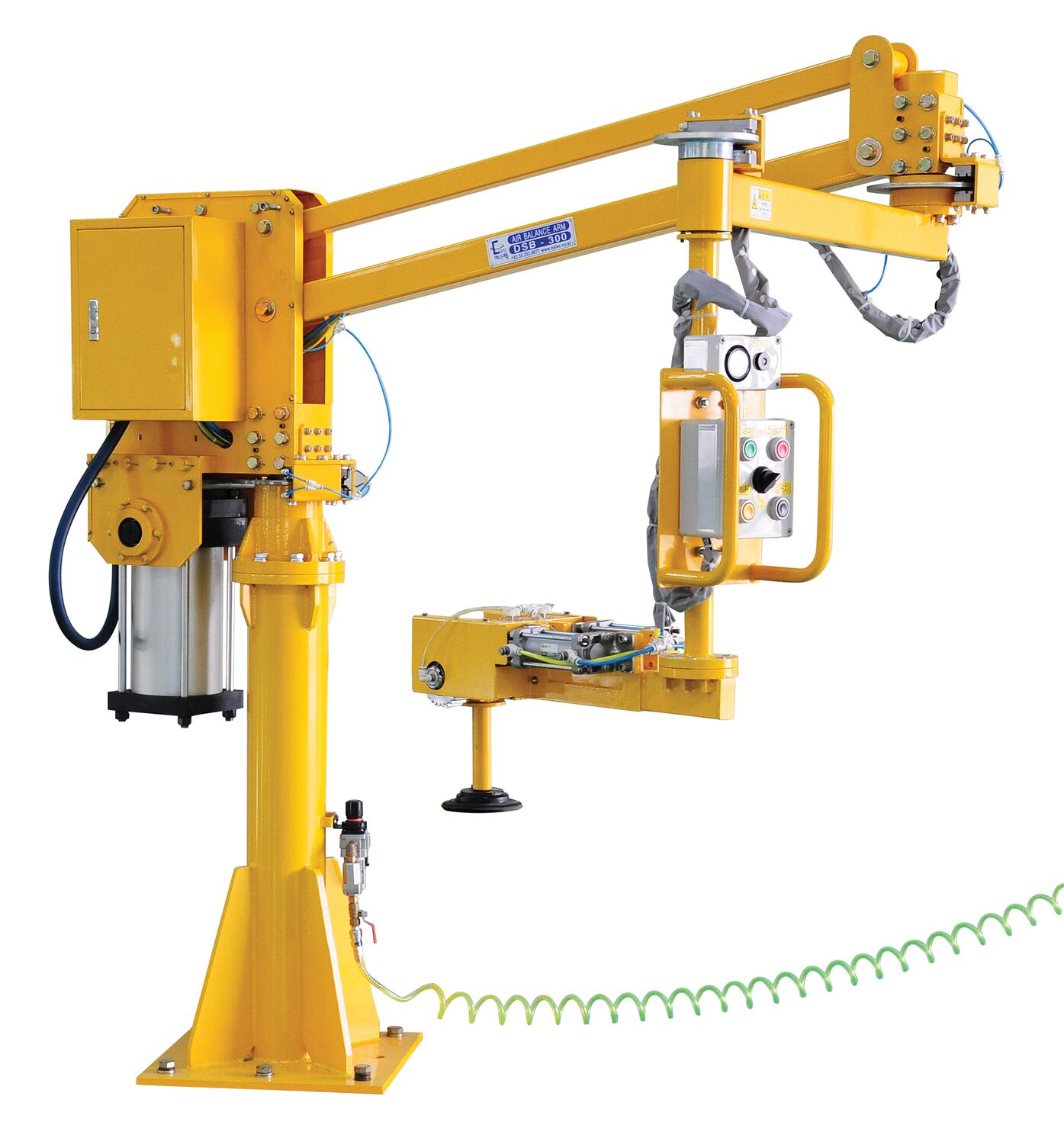

DSL-300		Steel Air Balance Jib Lifter Floor Mounted Maximum Arm Length 78-1/4 In. 250 Lb. Capacity Yellow	Uniform Capacity (lb.): 250 Up/Down Stroke (in.): 47-1/4	697
DSL-300-C		Steel Air Balance Jib Lifter Ceiling Mounted Maximum Arm Length 78-1/4 In. 250 Lb. Capacity Yellow	Uniform Capacity (lb.): 250 Up/Down Stroke (in.): 47-1/4	515

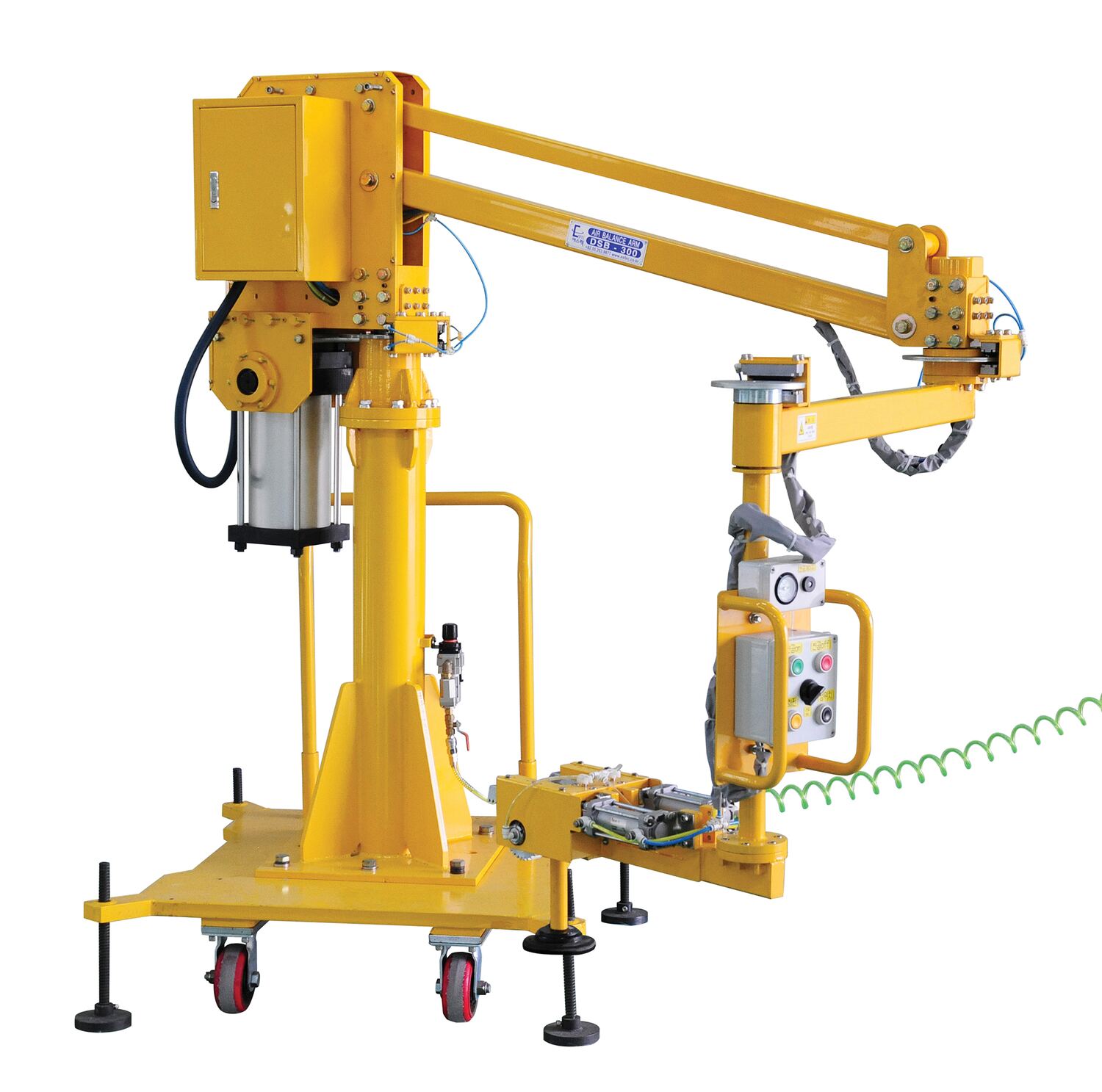

DSL-300-P		Steel Air Balanced Lifter Portable Maximum Arm Length 78-1/4 In. 250 Lb. Capacity Yellow	Uniform Capacity (lb.): 250 Up/Down Stroke (in.): 47-1/4	1087

Options

Model	Image	PDFs	Description	Capacity (lbs)	Wt. (lbs)
VAC-6			Pneumatic Vacuum	250	32
LMEC-DH			Double Hook	250	20
