Model Details

← All Products- ← Ergonomic Solutions- ← Stackers -← Combination Hand Pump and Electric Stackers- SE/HP-63-AA-AIR

SE/HP-63-AA-AIR

- Temporarily Unavailable - Please Contact Sales

Printer Friendly
SE/HP-63-AA-AIR
SE/HP-63-AA-AIR SE/HP-63-AA-AIR SE/HP-63-AA-AIR SE/HP-63-AA-AIR SE/HP-63-AA-AIR SE/HP-63-AA-AIR SE/HP-63-AA-AIR SE/HP-63-AA-AIR SE/HP-63-AA-AIR SE/HP-63-AA-AIR SE/HP-63-AA-AIR SE/HP-63-AA-AIR SE/HP-63-AA-AIR

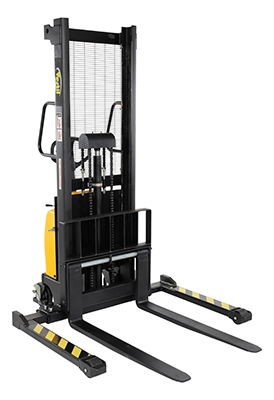

Steel/Fiberglass Hand Pump Air Powered Stacker with Adjustable Forks and Legs 63 In. Raised Height 2,000 Lb. Capacity Black / Yellow

An economical alternative air powered lift stacker. Ideal for maintenance and commercial applications. Compact design and strong steel construction. An economical lift to handle tasks such as transporting dies, molds, and skids. Requires 80-100 psi factory air supply for operation. All models are easily maneuverable using the standard pull handle. Forks measures 26." wide by 42" long. Individual forks are 6" wide.

  • Adjustable forks to meet users needs
  • Air powered operation
  • Robust capacity for heavy loads
  • Precise positioning capabilities
Assembled Wt.(lbs.): 780 Assembled Size: 48"W x 63.5"L x 79"H

Total Ship Wt.(lbs.): 958 (only 1 package) Package 1 Size: 60"W x 64"D x 84"H Color: Black / Yellow Non-Returnable

Uniform Capacity (lb.): 2,000 Adjustable Fork Spacing (in.): 8-3/8 to 26-3/4 (OD) Fork Width/Length (in.): 4 x 42
Service Range (in.): 2-9/16 to 63 Adjustable Leg Spacing (in.): 40-1/8 to 50 (ID) Overall Mast Height (in.): 78-5/8
Required PSI: 80-100

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: SE/HP-63-AA-AIR
SE/HP-63-AA-AIR

Steel/Fiberglass Hand Pump Air Powered Stacker with Adjustable Forks and Legs 63 In. Raised Height 2,000 Lb. Capacity Black / Yellow

An economical alternative air powered lift stacker. Ideal for maintenance and commercial applications. Compact design and strong steel construction. An economical lift to handle tasks such as transporting dies, molds, and skids. Requires 80-100 psi factory air supply for operation. All models are easily maneuverable using the standard pull handle. Forks measures 26." wide by 42" long. Individual forks are 6" wide.

  • Adjustable forks to meet users needs
  • Air powered operation
  • Robust capacity for heavy loads
  • Precise positioning capabilities
Dimensions: 48"W x 63.5"L x 79"H Sell UOM: -- Color: Black / Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 958 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 2,000 Adjustable Fork Spacing (in.): 8-3/8 to 26-3/4 (OD) Fork Width/Length (in.): 4 x 42
Service Range (in.): 2-9/16 to 63 Adjustable Leg Spacing (in.): 40-1/8 to 50 (ID) Overall Mast Height (in.): 78-5/8
Required PSI: 80-100
