SE/HP-118-AA

Printer Friendly
Available
SE/HP-118-AA
SE/HP-118-AA SE/HP-118-AA SE/HP-118-AA SE/HP-118-AA SE/HP-118-AA

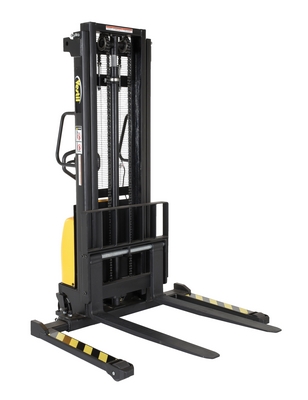

Steel/Plastic Hand Pump DC Powered Stacker with Adjustable Forks and Legs 118 In. Raised Height 2,000 Lb. Capacity Black / Yellow

An economical alternative DC powered lift stacker. Ideal for maintenance and commercial applications. This unit can be used as manual hand pump lift or electric powered lift. Ideal when power is not available. High quality hydraulic pump and DC lift system. Compact design and strong steel construction. An economical lift to handle tasks such as transporting dies, molds, and skids. Powered with two (2) 12V AGM batteries. Integral battery charger, battery level gauge, and adjustable lowering speed. All models are easily maneuverable using the standard pull handle. Forks measures 26." wide by 42" long. Individual forks are 6" wide.

  • Adjustable forks to fit multiple sizes
  • Works well with pallets and skids
  • Handle design makes portability convenient
  • Ability for powered or manual lifting
Assembled Wt.(lbs.): 1095 Assembled Size: 53"W x 67"L x 78"H

Total Ship Wt.(lbs.): 1160 (only 1 package) Package 1 Size: 60"W x 64"D x 84"H Color: Black / Yellow

Uniform Capacity at 0 - 63" (lb.): 2,000 Uniform Capacity at 63 - 118" (lb.): 1,500 Fork Width/Length (in.): 4 x 42
Service Range (in.): 1-1/2 to 118 Adjustable Fork Spacing (in.): 8 to 26-3/4 (OD) Adjustable Leg Spacing (in.): 40 to 50 (ID)
Overall Mast Height (in.): 72-3/4 Lift Motor: DC 24V / 1.3 KW Battery: (2) 12V / 40 Ah
Battery Charger: 24V / 10 amp Raise Time w/ Load: 1.67" / sec Raise Time w/o Load: 2.33" / sec
Lower Time w/ Load: 4.76" / sec Lower Time w/o Load: 2.8" / sec

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: SE/HP-118-AA
Available
SE/HP-118-AA

Steel/Plastic Hand Pump DC Powered Stacker with Adjustable Forks and Legs 118 In. Raised Height 2,000 Lb. Capacity Black / Yellow

An economical alternative DC powered lift stacker. Ideal for maintenance and commercial applications. This unit can be used as manual hand pump lift or electric powered lift. Ideal when power is not available. High quality hydraulic pump and DC lift system. Compact design and strong steel construction. An economical lift to handle tasks such as transporting dies, molds, and skids. Powered with two (2) 12V AGM batteries. Integral battery charger, battery level gauge, and adjustable lowering speed. All models are easily maneuverable using the standard pull handle. Forks measures 26." wide by 42" long. Individual forks are 6" wide.

  • Adjustable forks to fit multiple sizes
  • Works well with pallets and skids
  • Handle design makes portability convenient
  • Ability for powered or manual lifting
Dimensions: 53"W x 67"L x 78"H Sell UOM: -- Color: Black / Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 1160 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity at 0 - 63" (lb.): 2,000 Uniform Capacity at 63 - 118" (lb.): 1,500 Fork Width/Length (in.): 4 x 42
Service Range (in.): 1-1/2 to 118 Adjustable Fork Spacing (in.): 8 to 26-3/4 (OD) Adjustable Leg Spacing (in.): 40 to 50 (ID)
Overall Mast Height (in.): 72-3/4 Lift Motor: DC 24V / 1.3 KW Battery: (2) 12V / 40 Ah
Battery Charger: 24V / 10 amp Raise Time w/ Load: 1.67" / sec Raise Time w/o Load: 2.33" / sec
Lower Time w/ Load: 4.76" / sec Lower Time w/o Load: 2.8" / sec
