Pallet Lifters

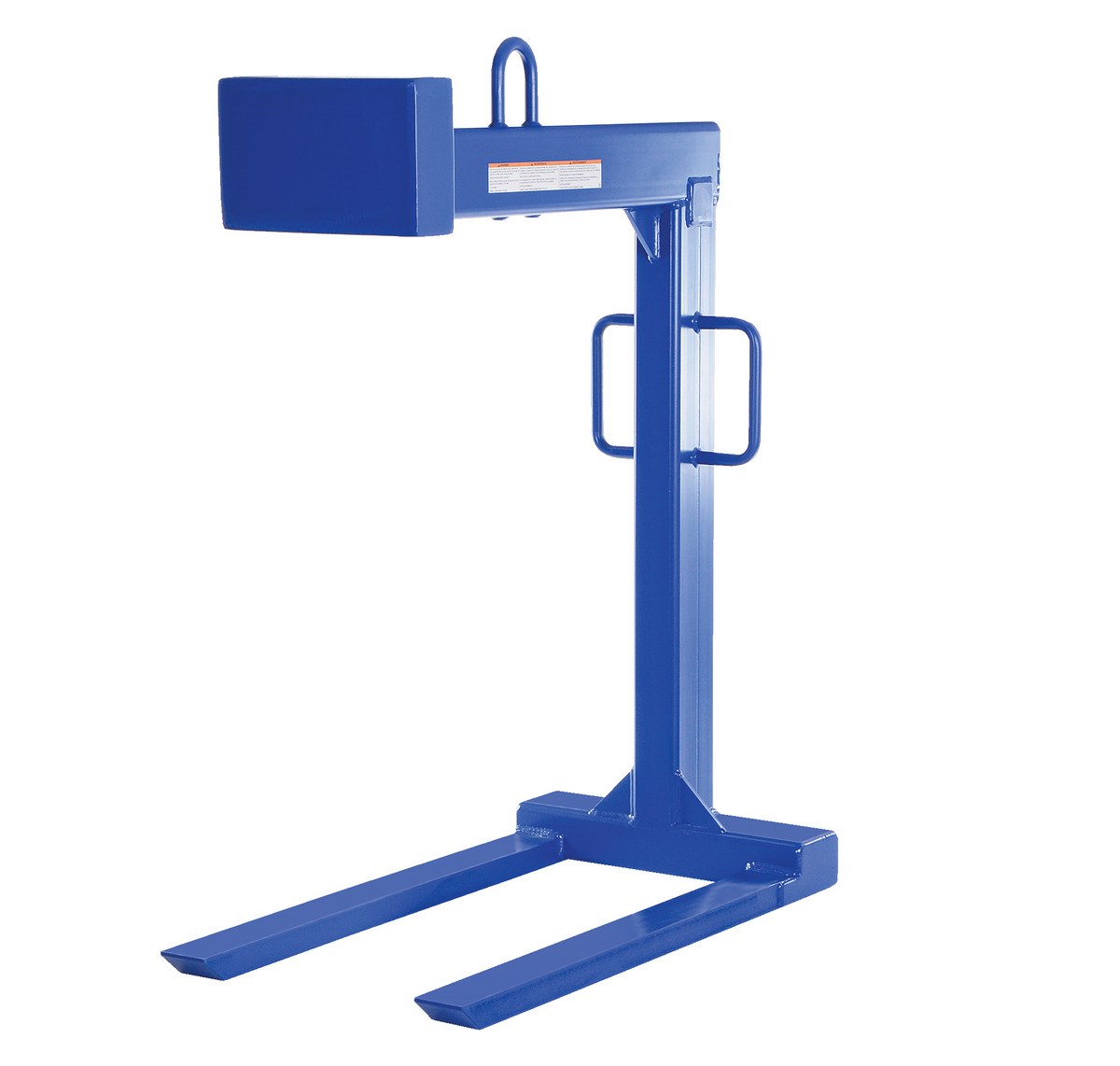

model: HDP-4-42

Pallet Lifters

SERIES: HDP

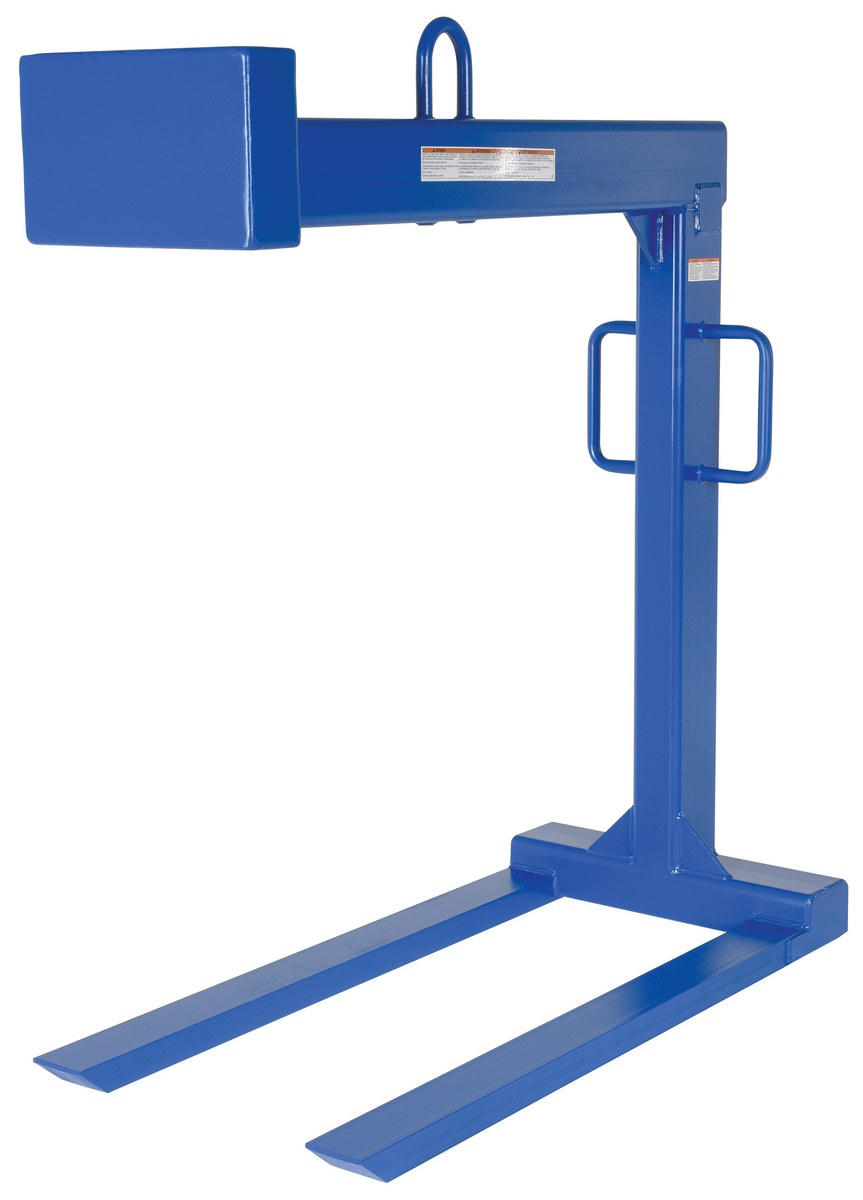

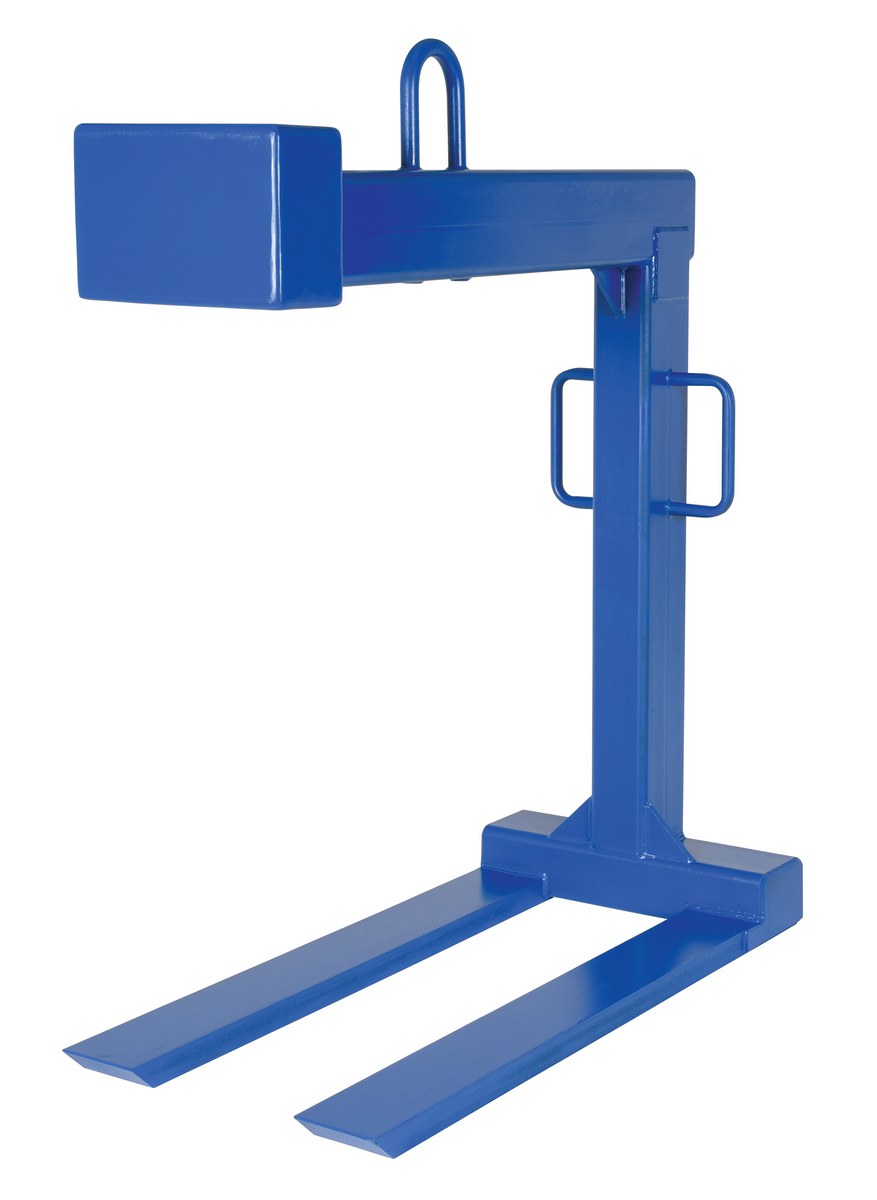

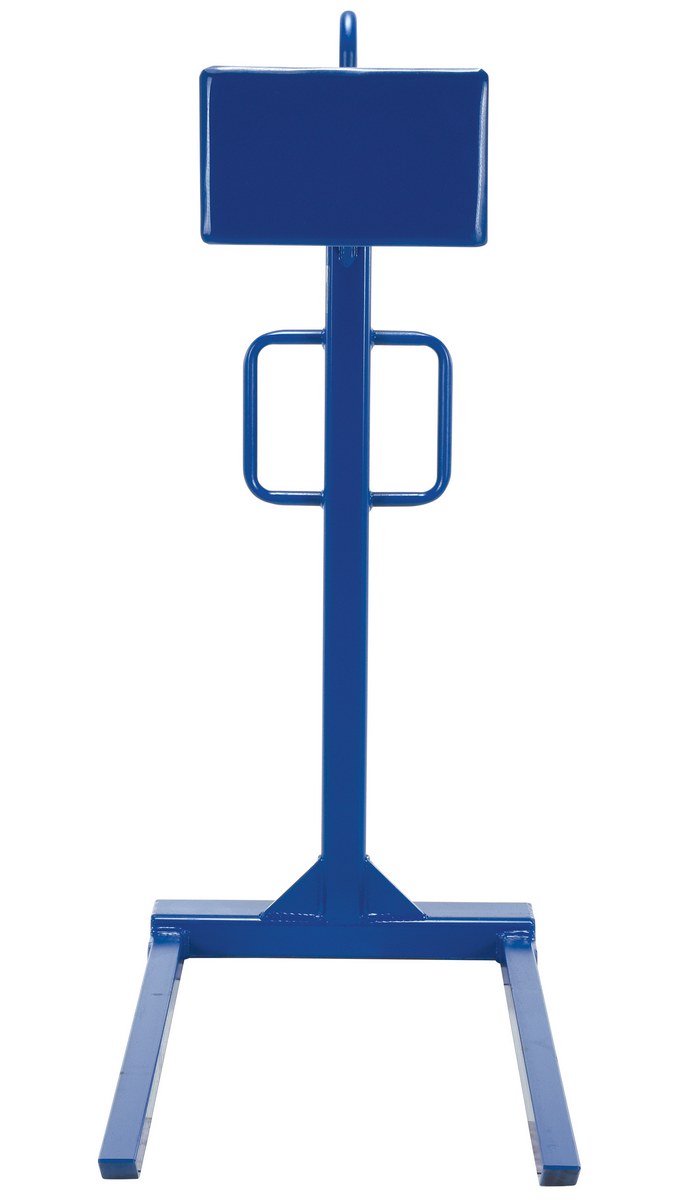

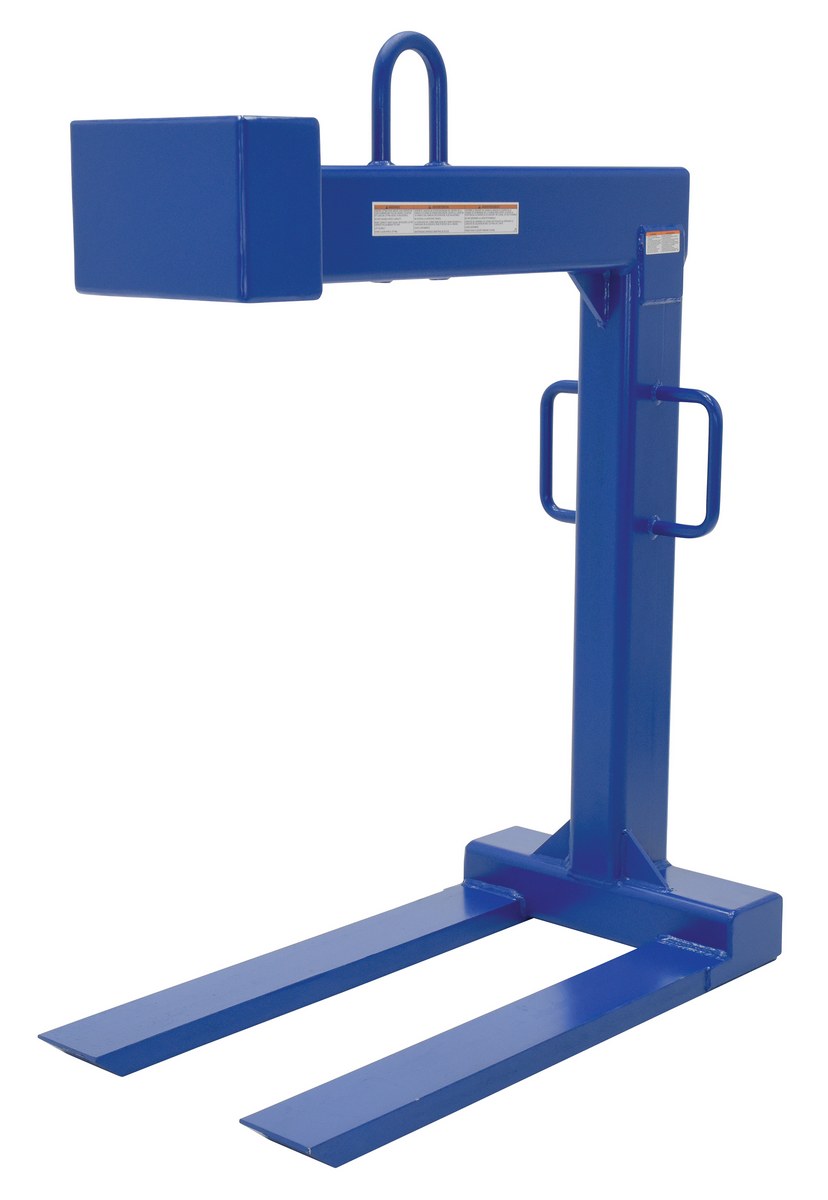

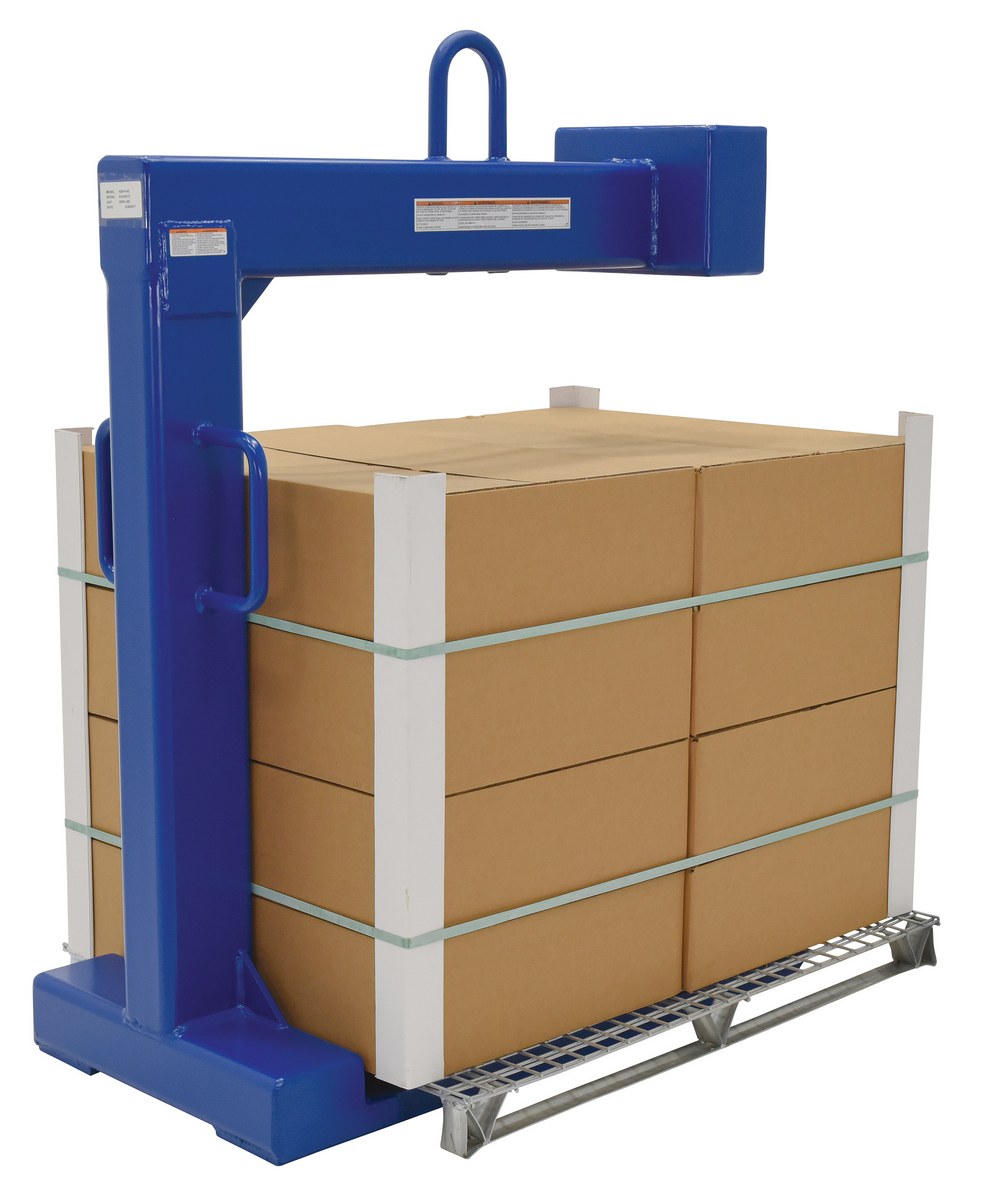

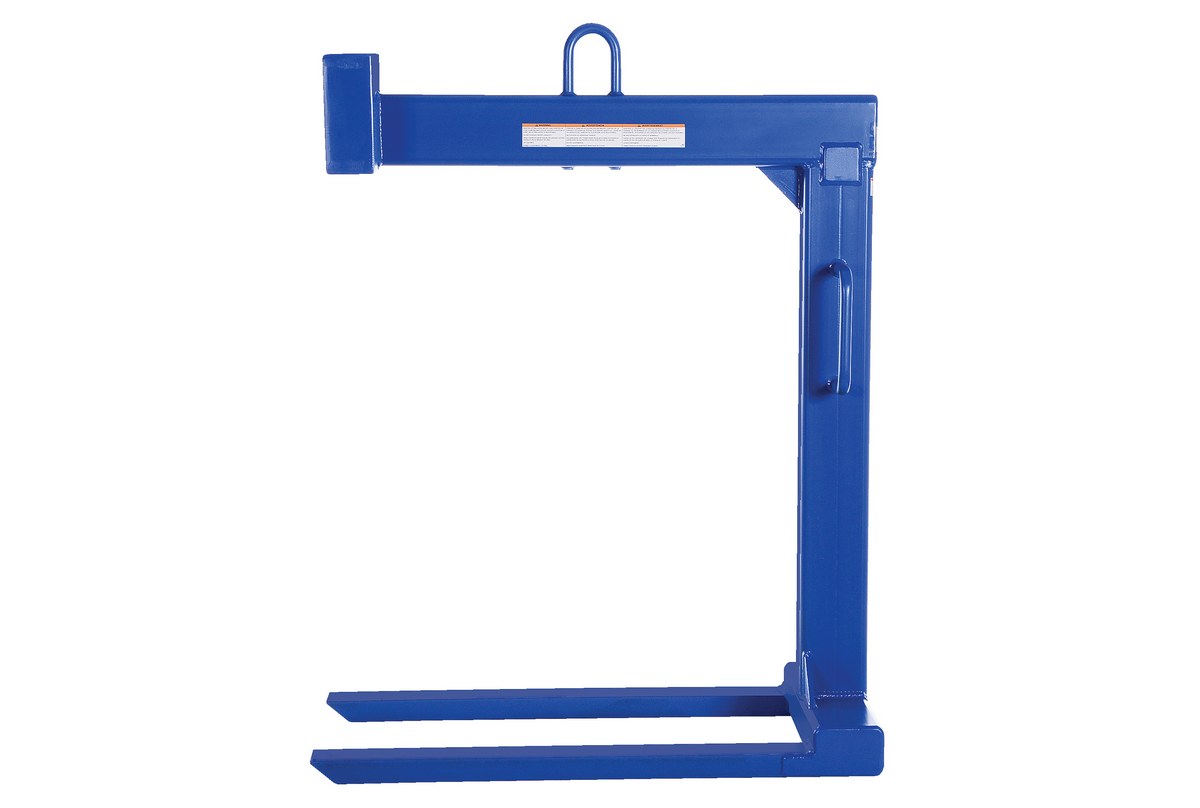

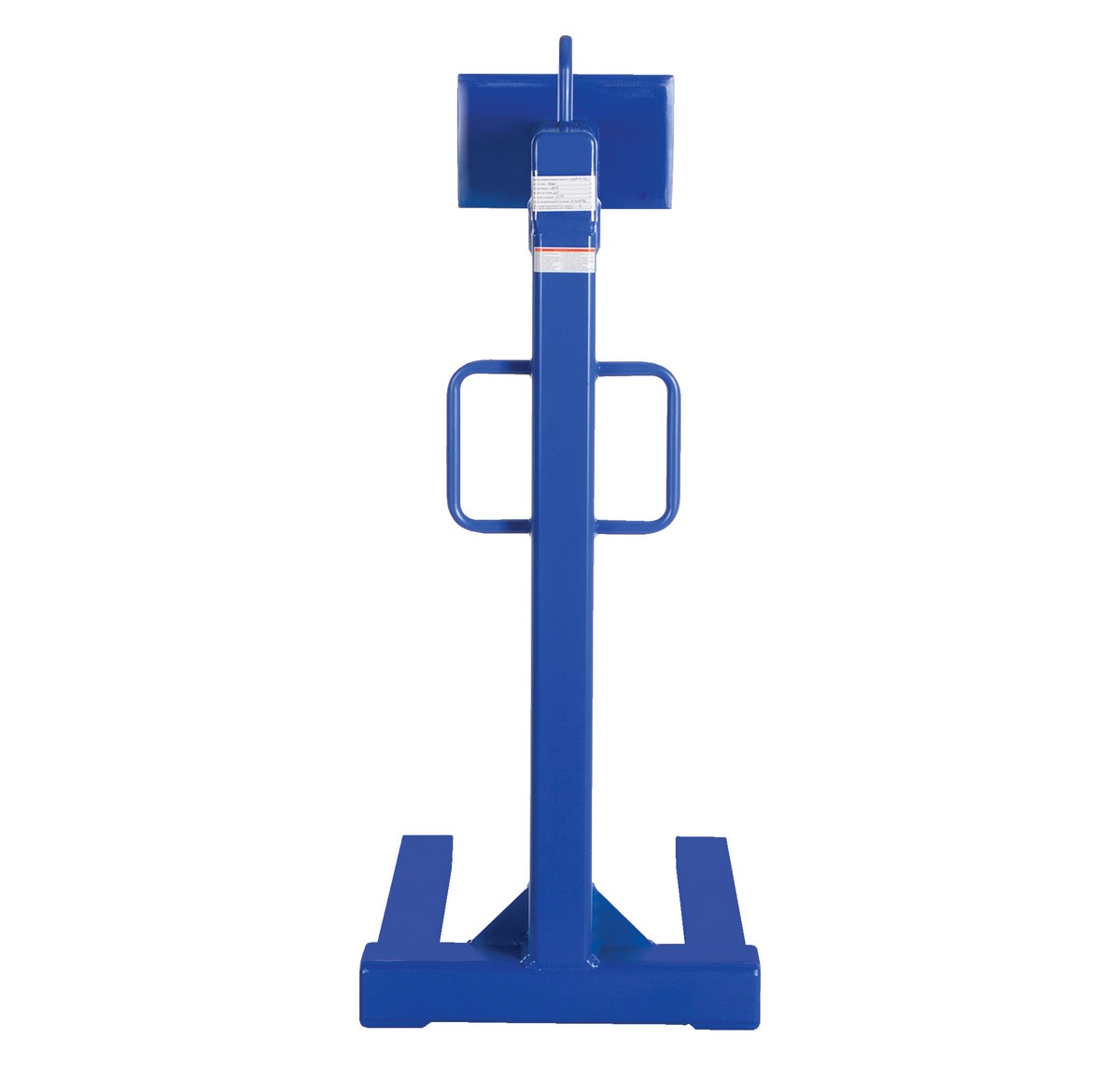

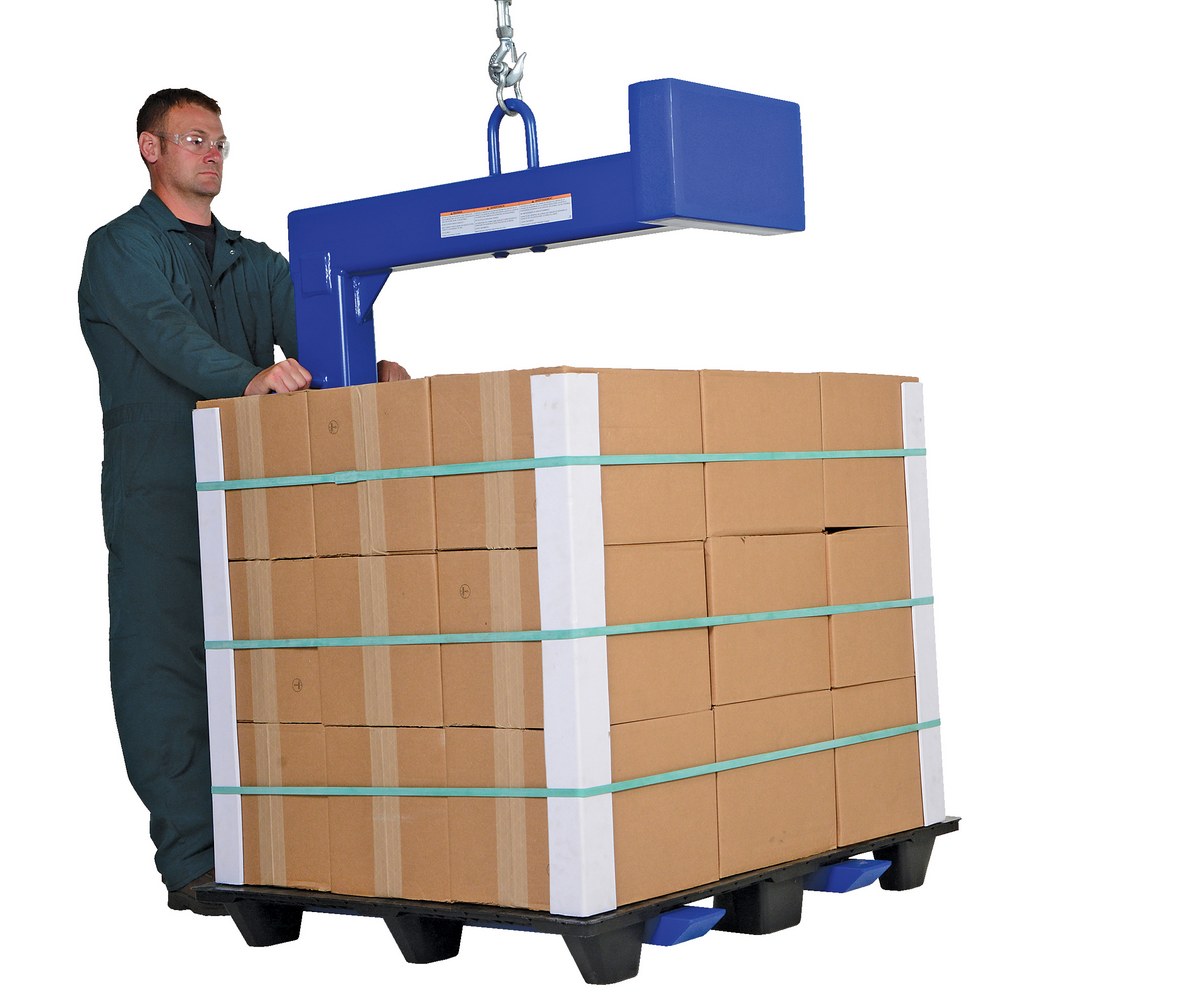

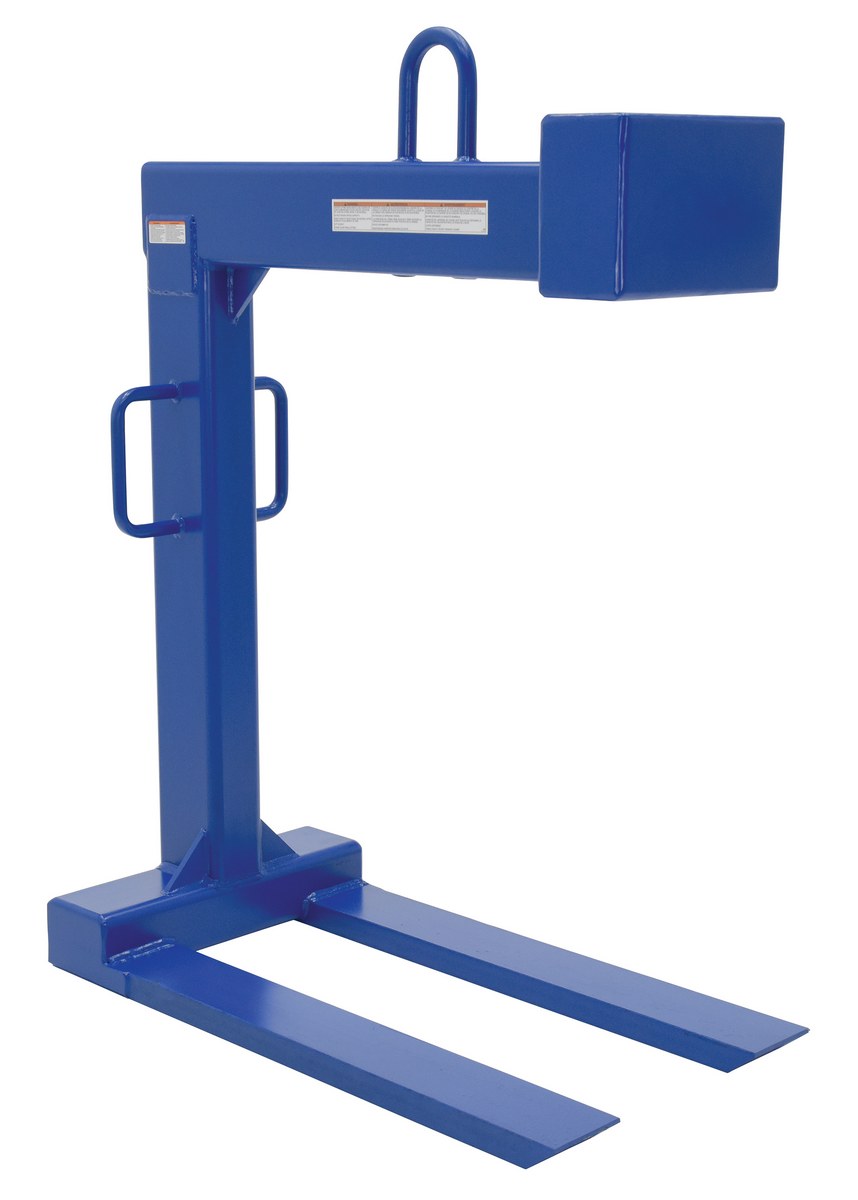

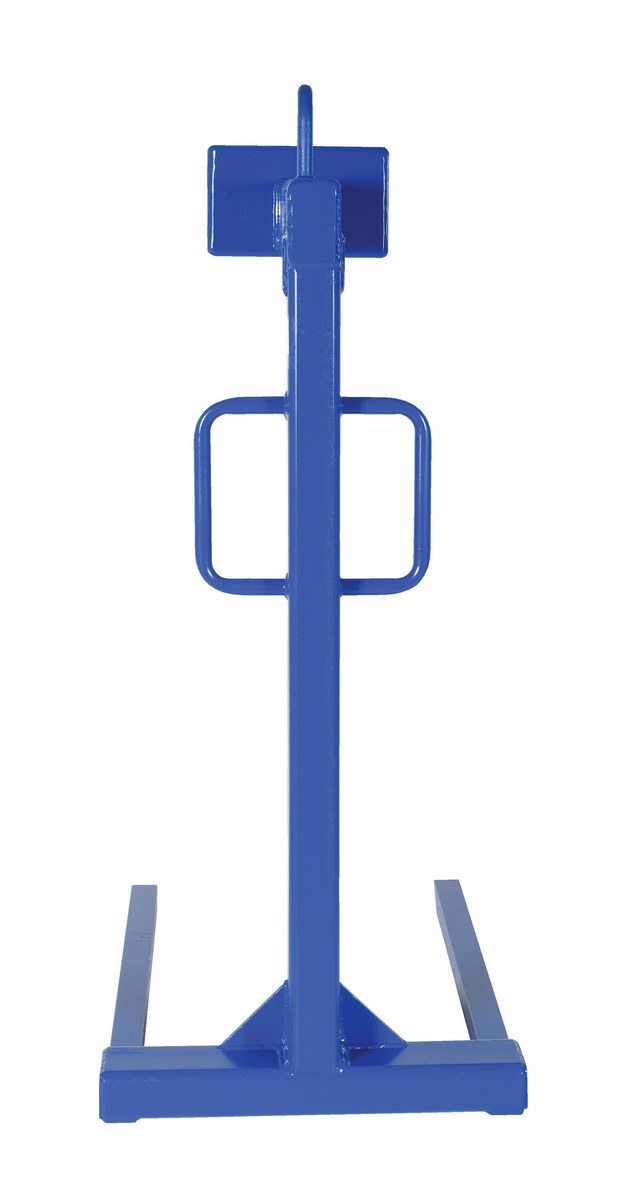

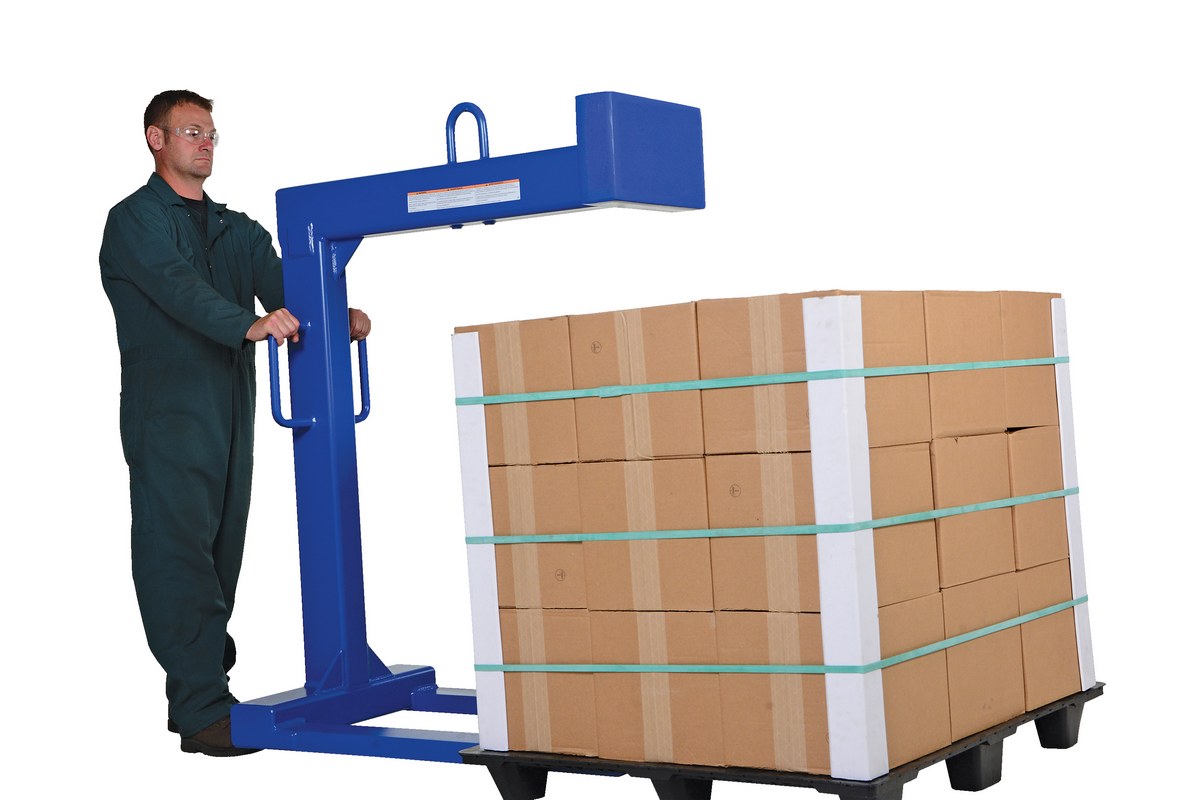

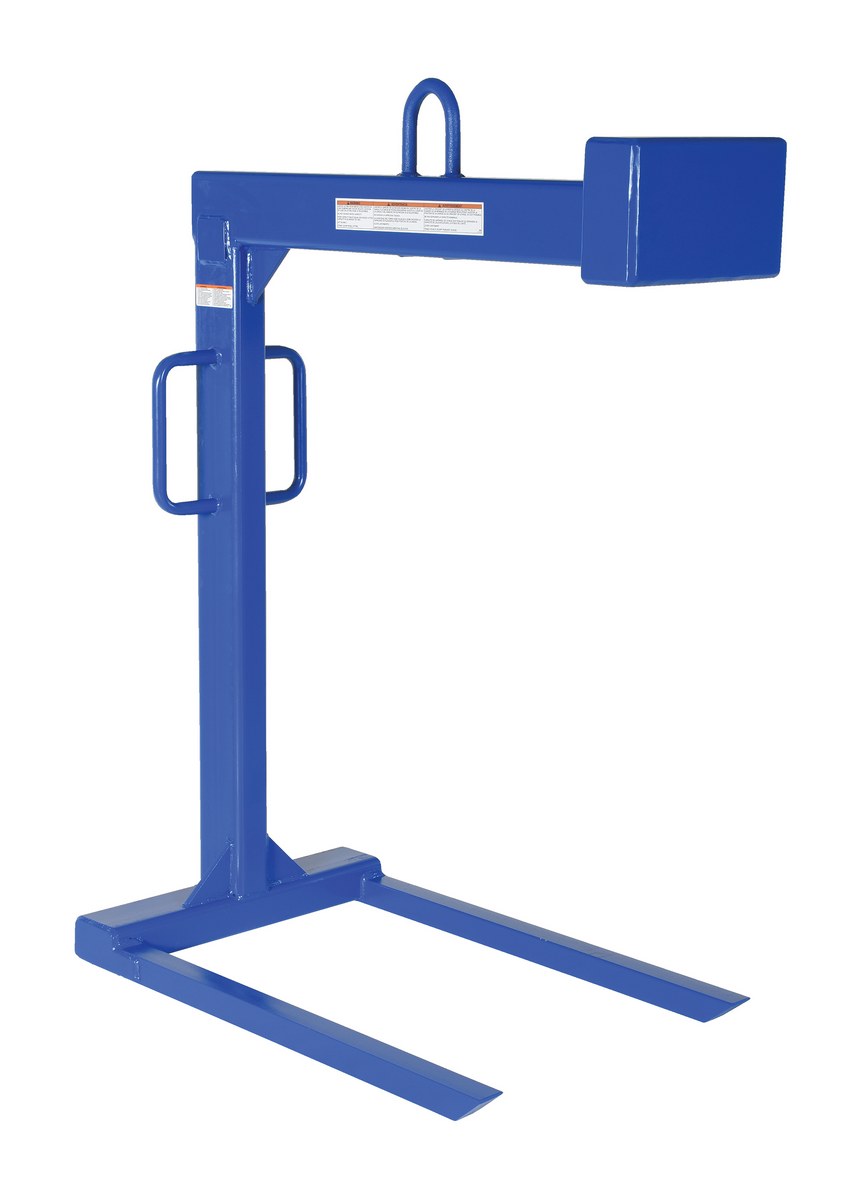

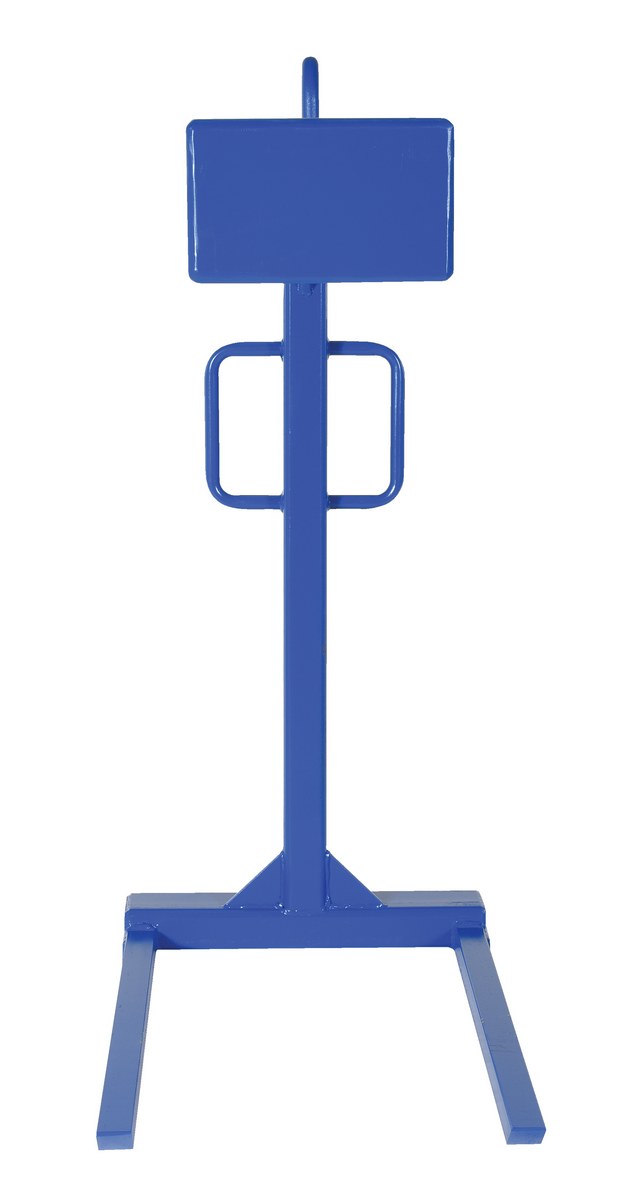

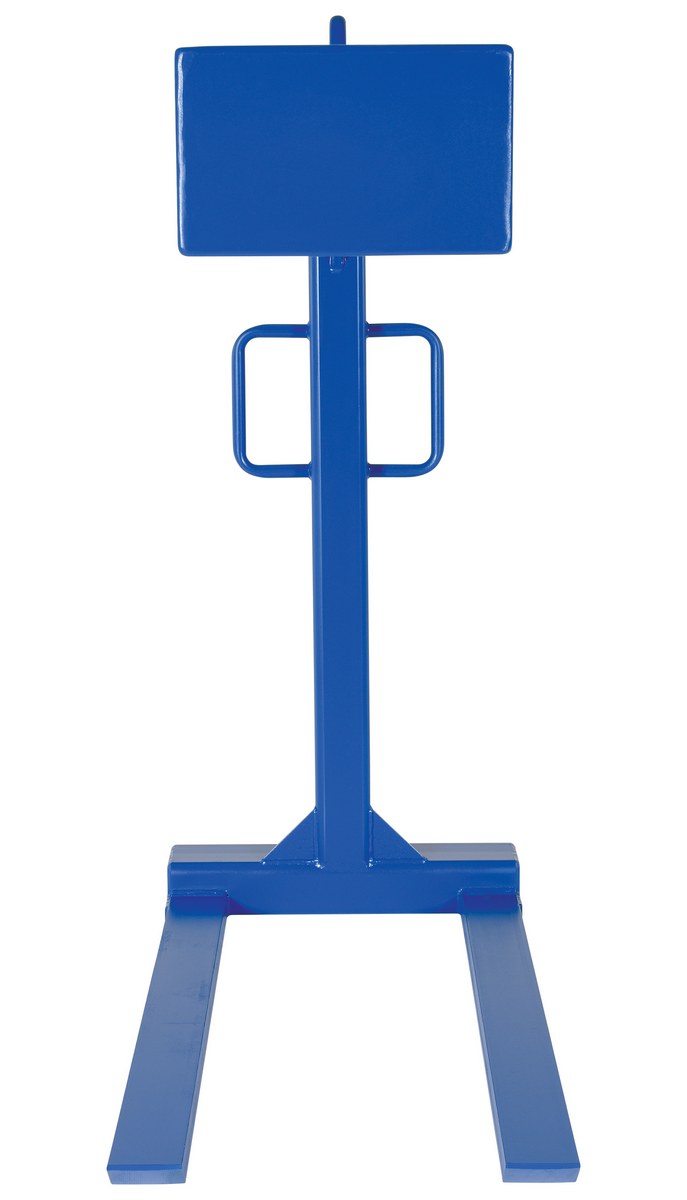

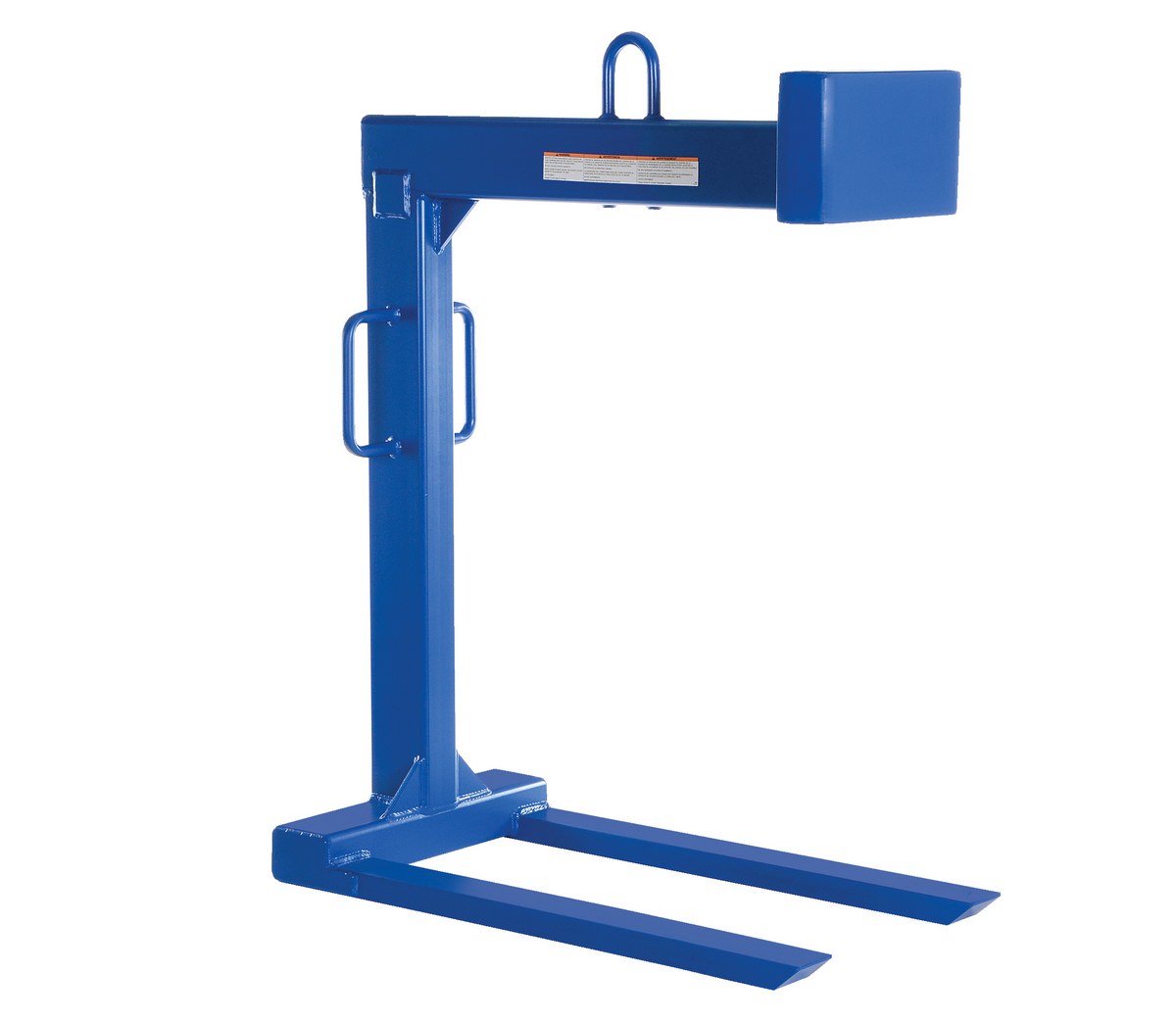

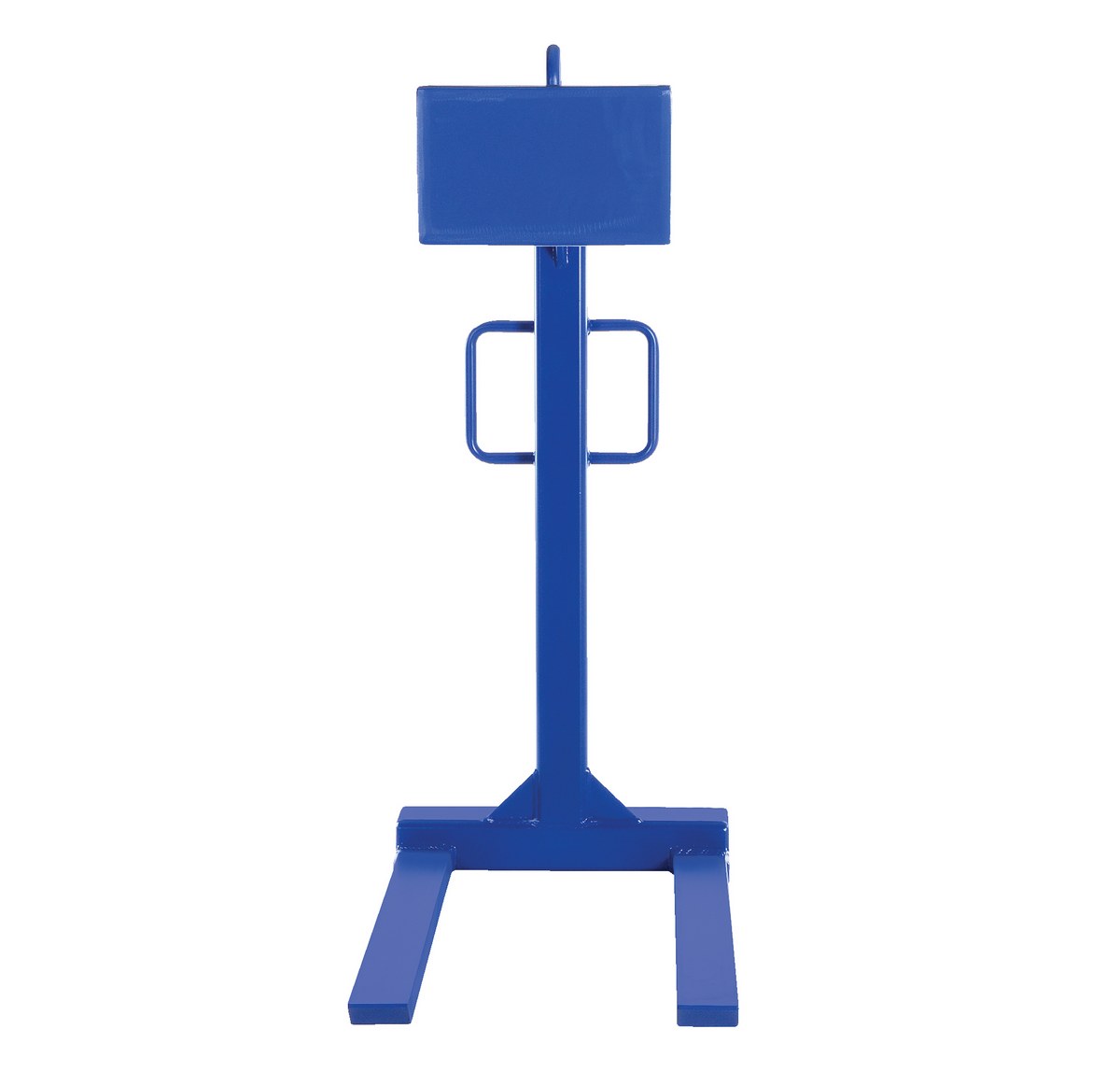

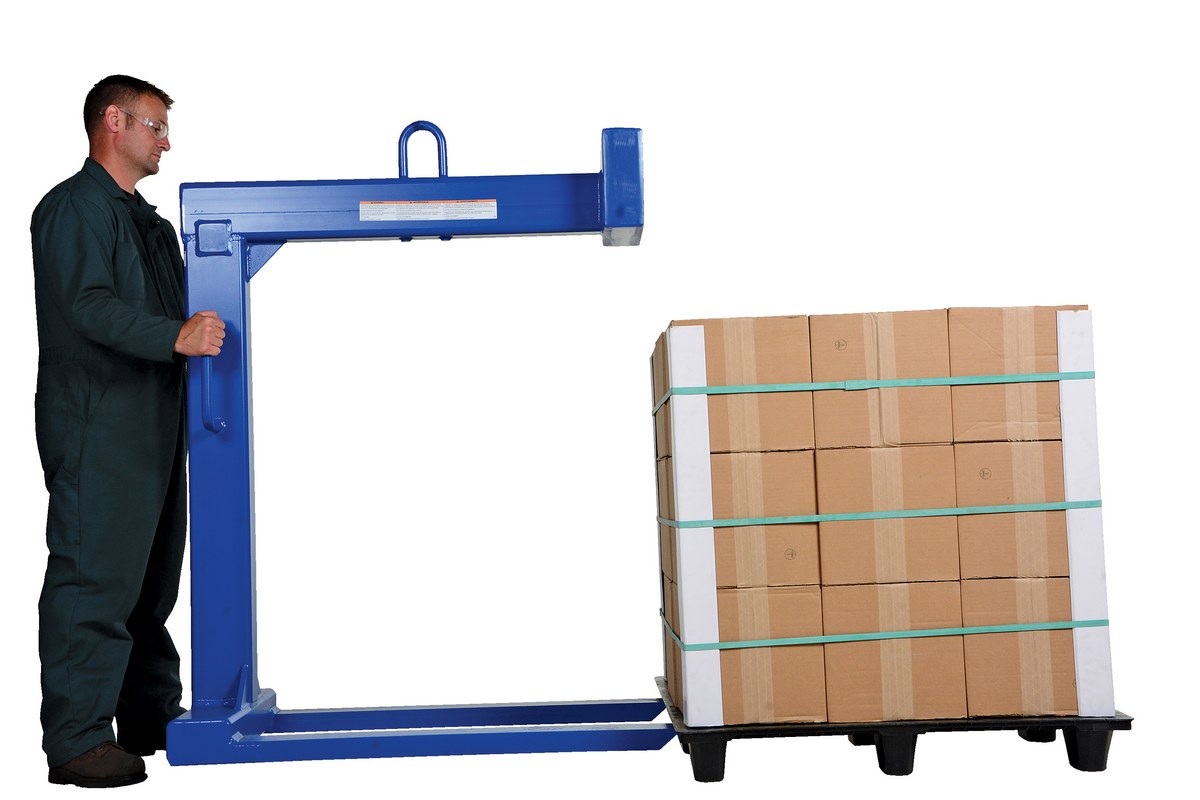

Easily convert a crane or hoist to an aerial-like fork truck. These Pallet Lifters are designed to assist during construction work, ship loading, unpaved storage areas, open-top trucks and even barges. This solid steel construction lifters contains tapered forks to allow easy access under pallets. Main support contains handles to allow personnel to handle the unit. Large square head acts as a counterweight to keep the unit level without a load. Unit meets ASME B30.20 Standard 1993. Painted Finish.

Tapered forks allow easy access under pallets
Main support contains handles to allow positioning
Large square head serves as a counterweight to keep level without a load
Unit meets ASME B30.20 standard 1993

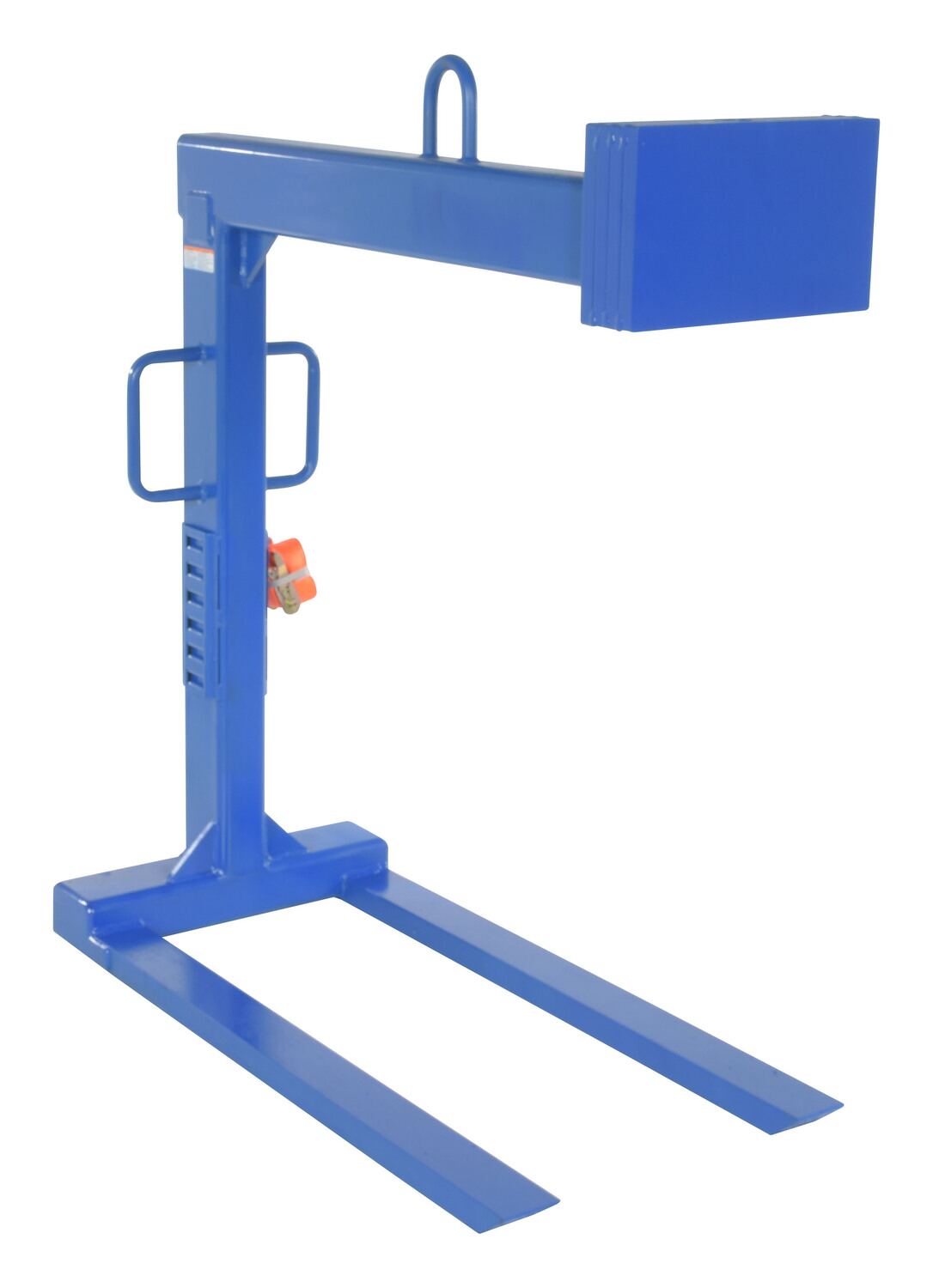

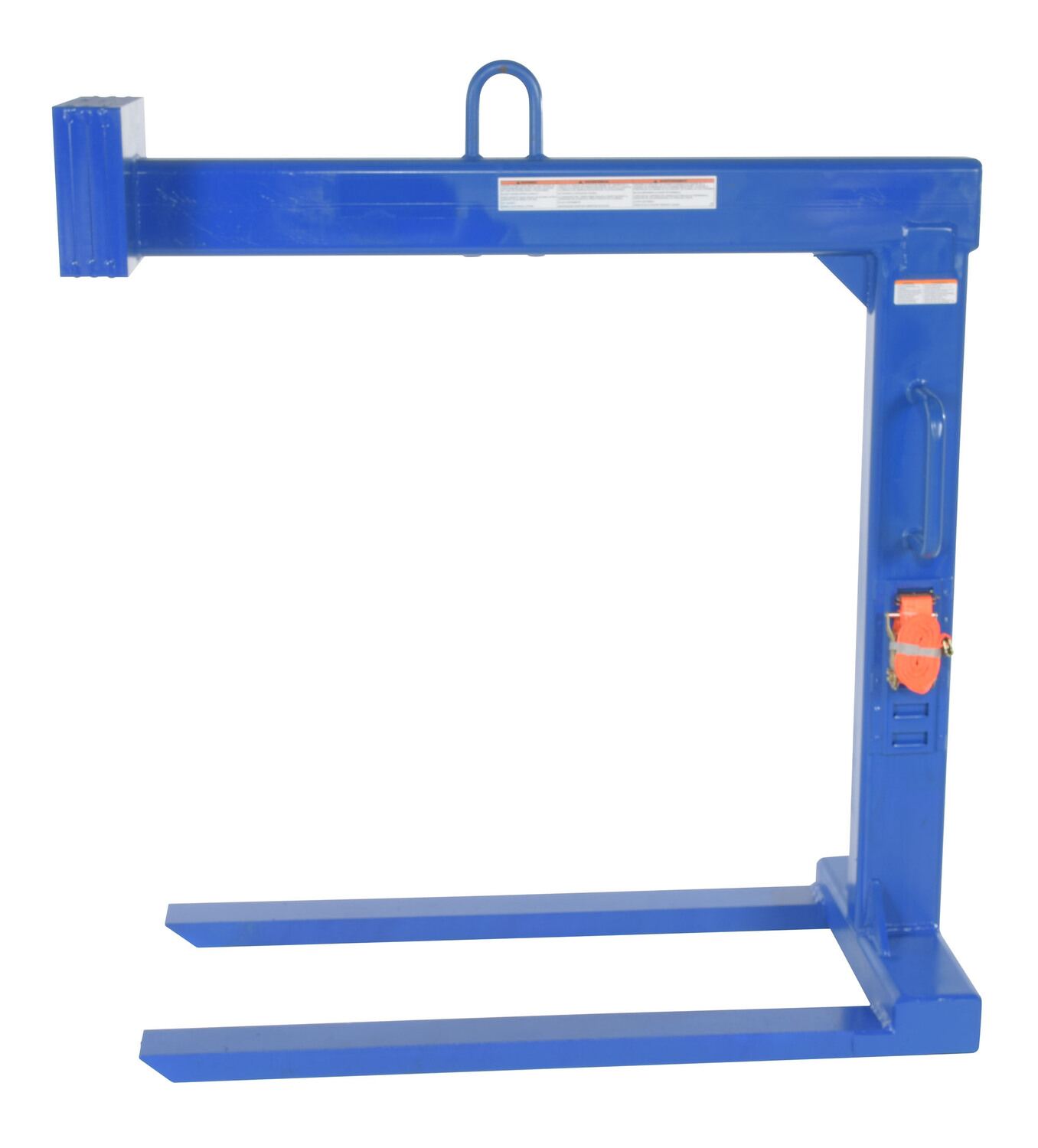

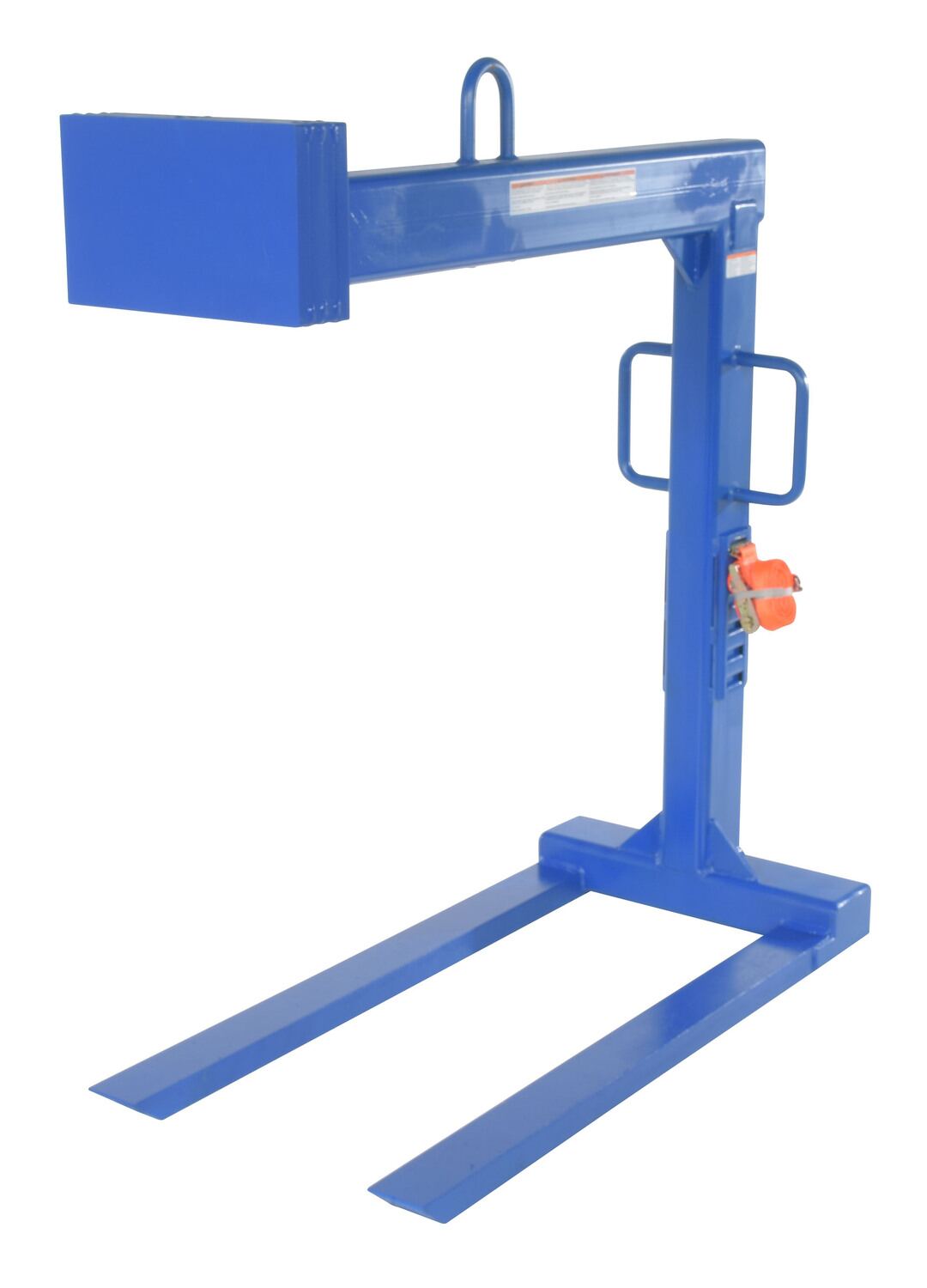

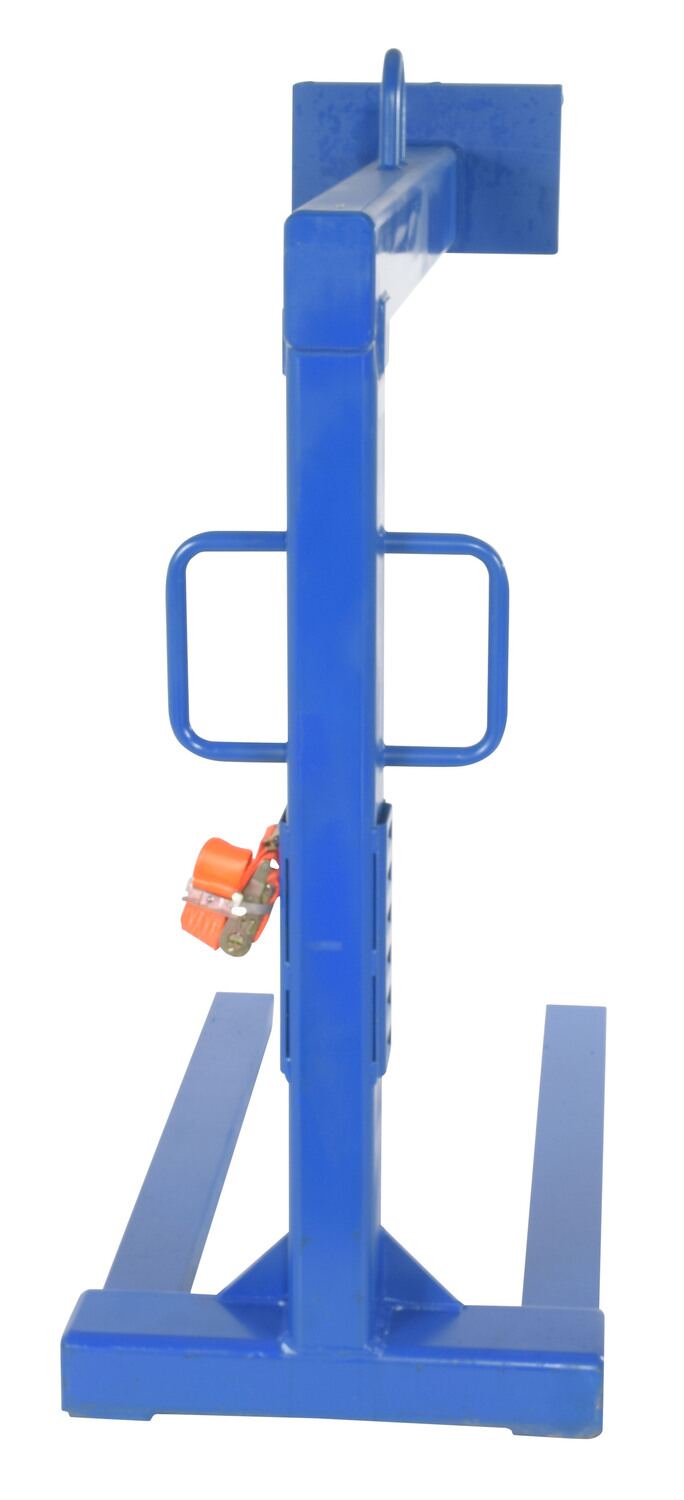

Optional Tie Down Track for HDP's - Factory Installed Option Only

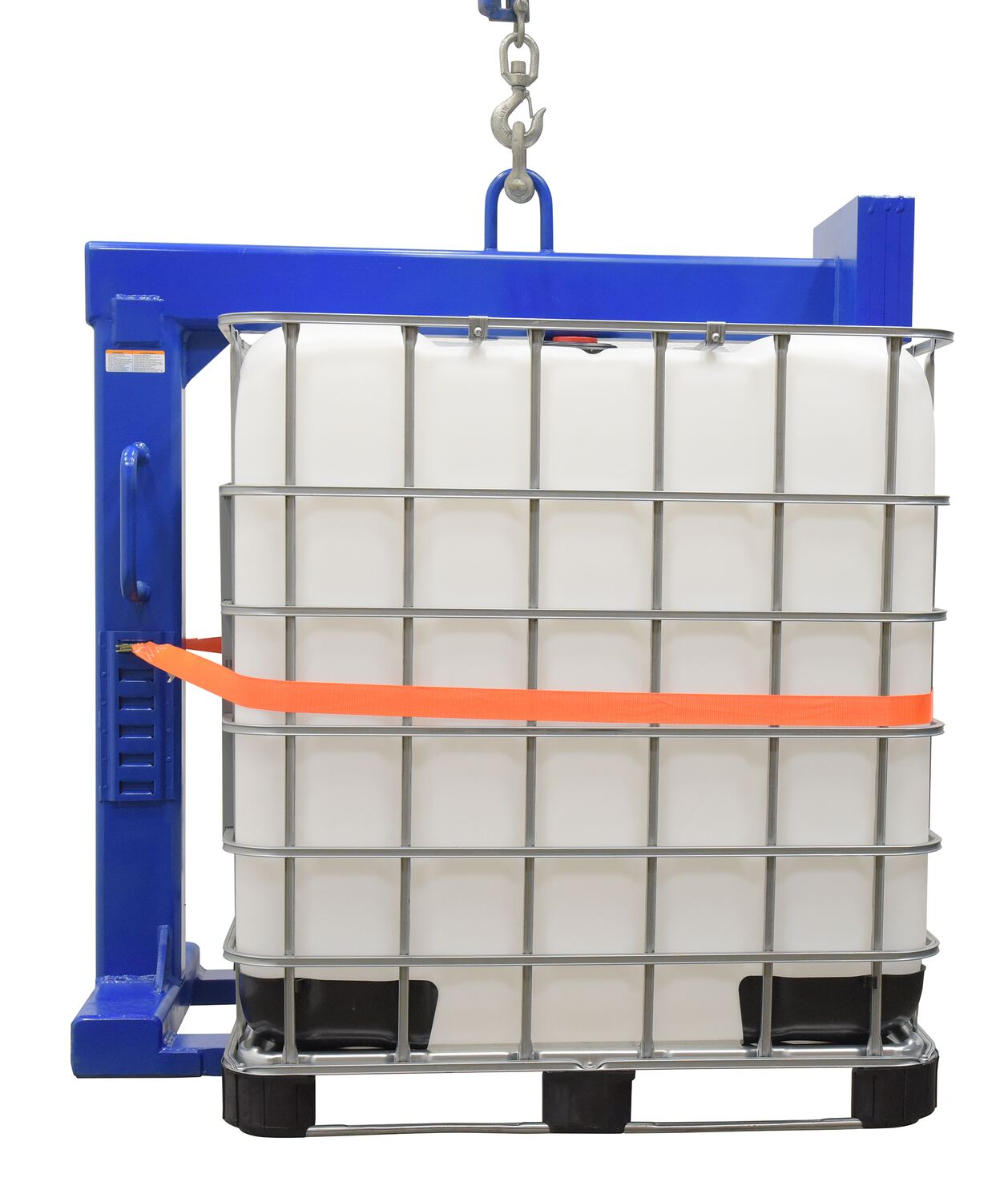

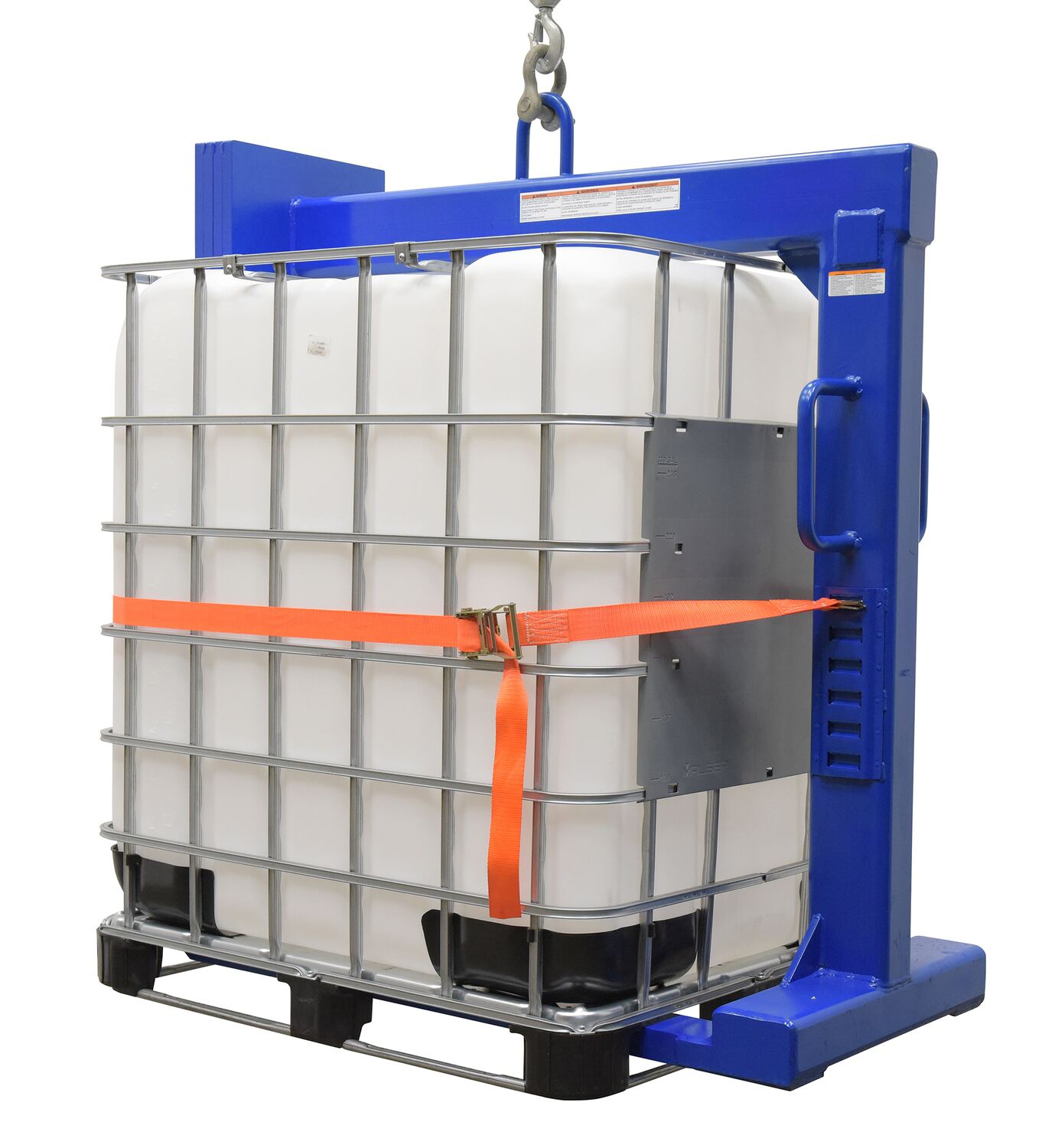

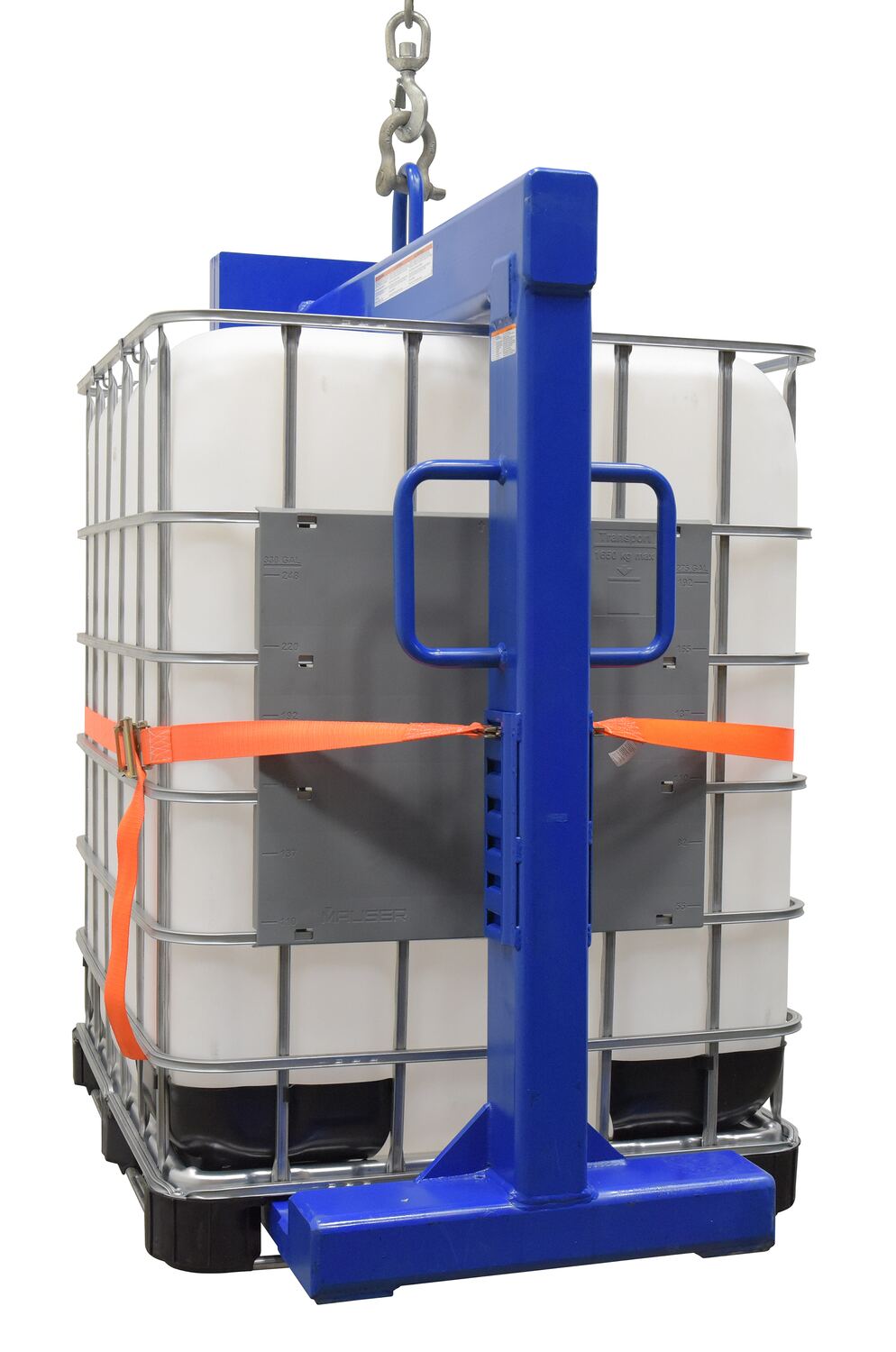

Give your products more security with the addition of the optional tie down track. The track is constructed of steel and includes six slots, allowing the user to position the (included) strap at varying heights. The design minimizes set up time, while increasing user safety. With the track welded to the vertical post of the pallet lifter, straps can then be quickly secured to the track and around many products.

Pallet Lifters

model: HDP-4-42

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

For More Details of the Option Click the Red Model Button

Model	Image	Details	Icons	Wt.
HDP-2-AB		Factory Installed Steel Adjustable Bail For 2000 Lb. Capacit…	90 Days Limited Warranty

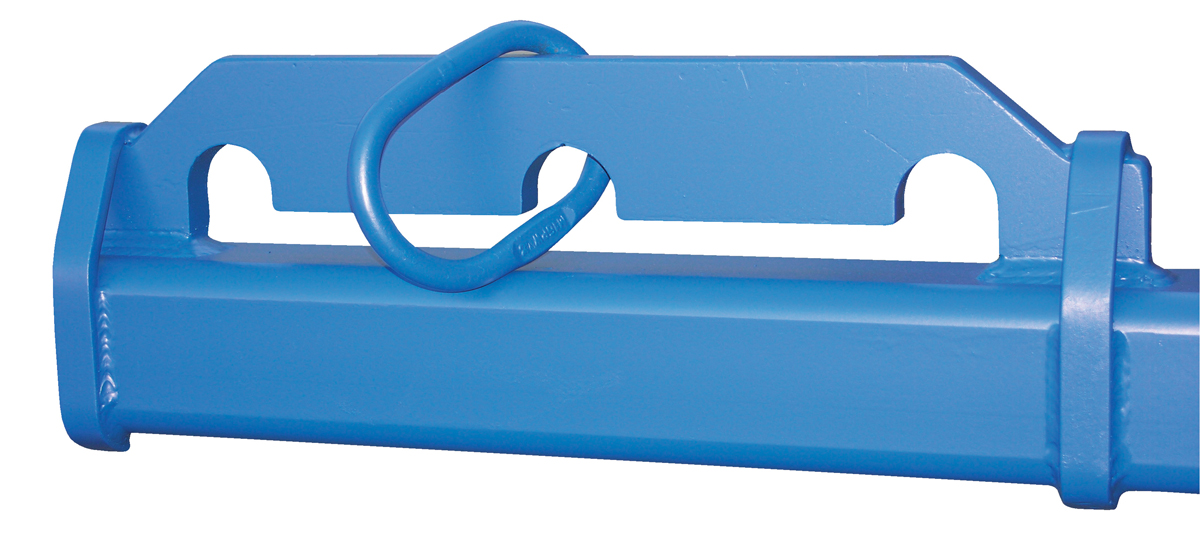

HDP-4-AB		Factory Installed Steel Adjustable Bail For 4000 Lb. Capacit…	90 Days Limited Warranty
HDP-6-AB		Factory Installed Steel Adjustable Bail For 6000 Lb. Capacit…	90 Days Limited Warranty
HDP-TIE-DOWN		Steel Factory Installed Optional HDP Tie Down Blue	90 Days Limited Warranty NEW	3

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

PDFs will open in a new window when clicked.

Manuals

HDP

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

HDP-2-36

HDP-2-42

HDP-2-48

HDP-4-36

HDP-4-42

HDP-4-48

HDP-6-42

HDP-6-48

HDP-6-54

Testing Certificates

HDP-2-36

HDP-2-42

HDP-2-48

HDP-2-AB

HDP-4-36

HDP-4-42

HDP-4-48

HDP-4-AB

HDP-6-42

HDP-6-48

HDP-6-54

HDP-6-AB

SDS Sheets

No SDS Sheets For This Product

Other PDFs

Overhead Pallet Lifters Mailing Brochure

Print Friendly

Related or Similar Products:

More From Overhead Load Lifters

Coil Lifter

Overhead Coil Hooks

Overhead Coil Hooks

Square Bar Stock Lifter

Square Bar Stock Lifter

Steel Sheet Lifter

Steel Sheet Lifter

Reel Lifter

Heavy Duty Load Lifter

Heavy Duty Load Lifter

Pallet Lifters

Easily convert a crane or hoist to an aerial-like fork truck. These Pallet Lifters are designed to assist during construction work, ship loading, unpaved storage areas, open-top trucks and even barges. This solid steel construction lifters contains tapered forks to allow easy access under pallets. Main support contains handles to allow personnel to handle the unit. Large square head acts as a counterweight to keep the unit level without a load. Unit meets ASME B30.20 Standard 1993. Painted Finish.

Tapered forks allow easy access under pallets
Main support contains handles to allow positioning
Large square head serves as a counterweight to keep level without a load
Unit meets ASME B30.20 standard 1993

Optional Tie Down Track for HDP's - Factory Installed Option Only
Give your products more security with the addition of the optional tie down track. The track is constructed of steel and includes six slots, allowing the user to position the (included) strap at varying heights. The design minimizes set up time, while increasing user safety. With the track welded to the vertical post of the pallet lifter, straps can then be quickly secured to the track and around many products.

Model #		Description	Attributes	Net Wt. (lbs)
HDP-2-36		Steel Pallet Lifter 36 In. Fork 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Fork Spacing (in.): 21	436

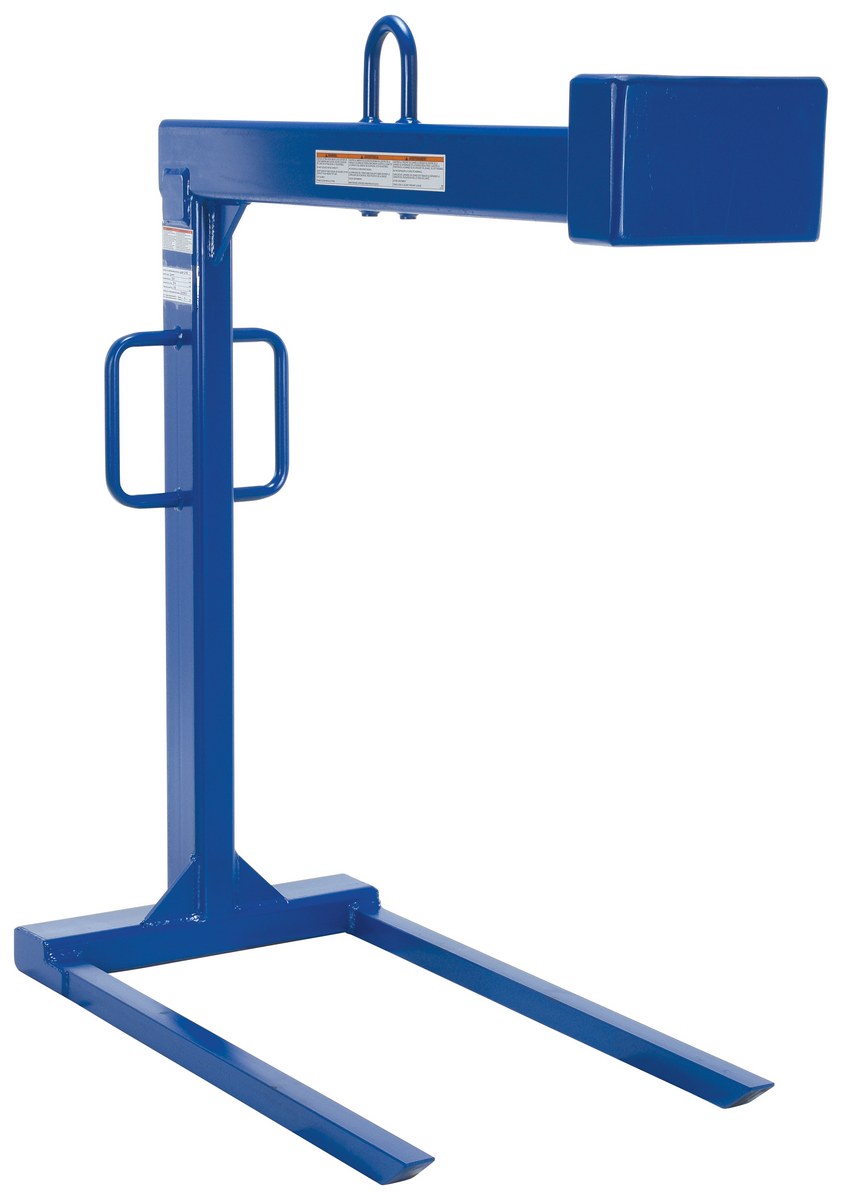

HDP-2-42		Steel Pallet Lifter 42 In. Fork 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Fork Spacing (in.): 21	470

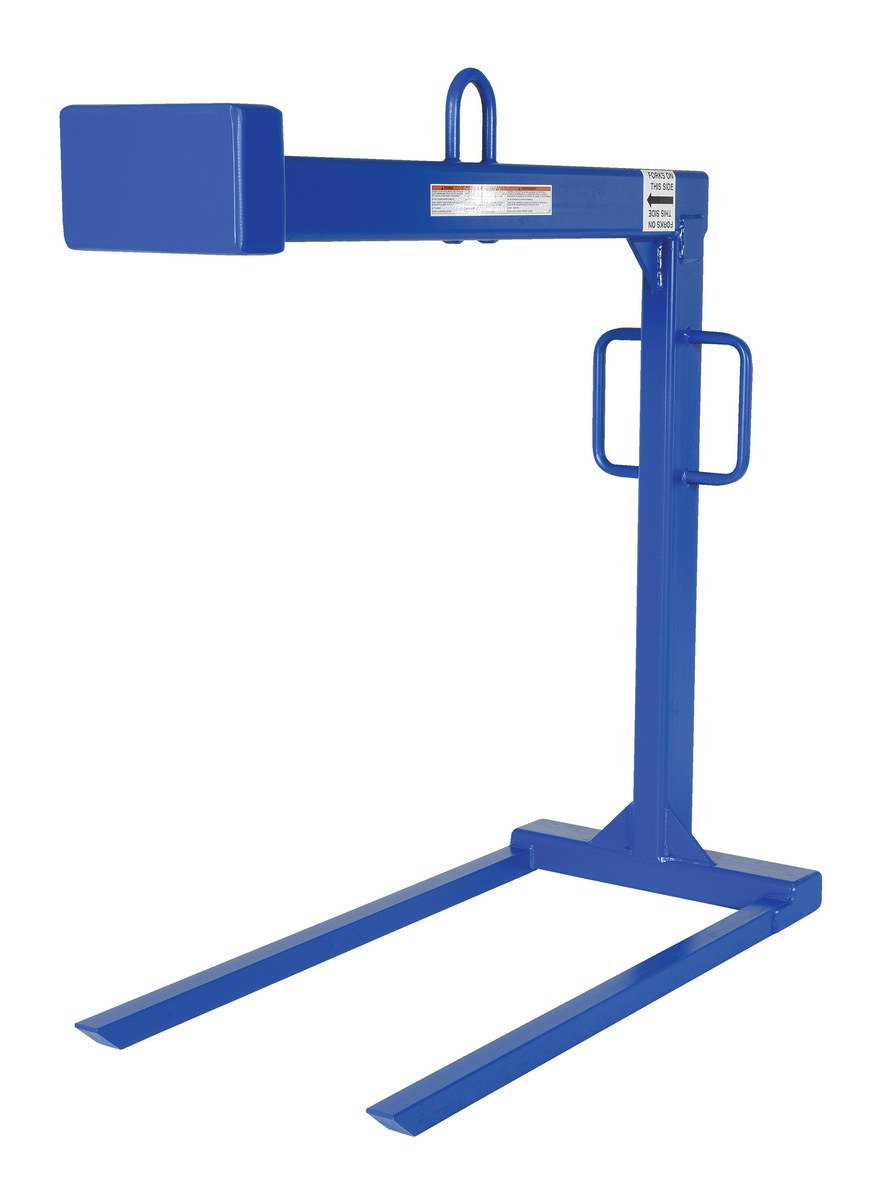

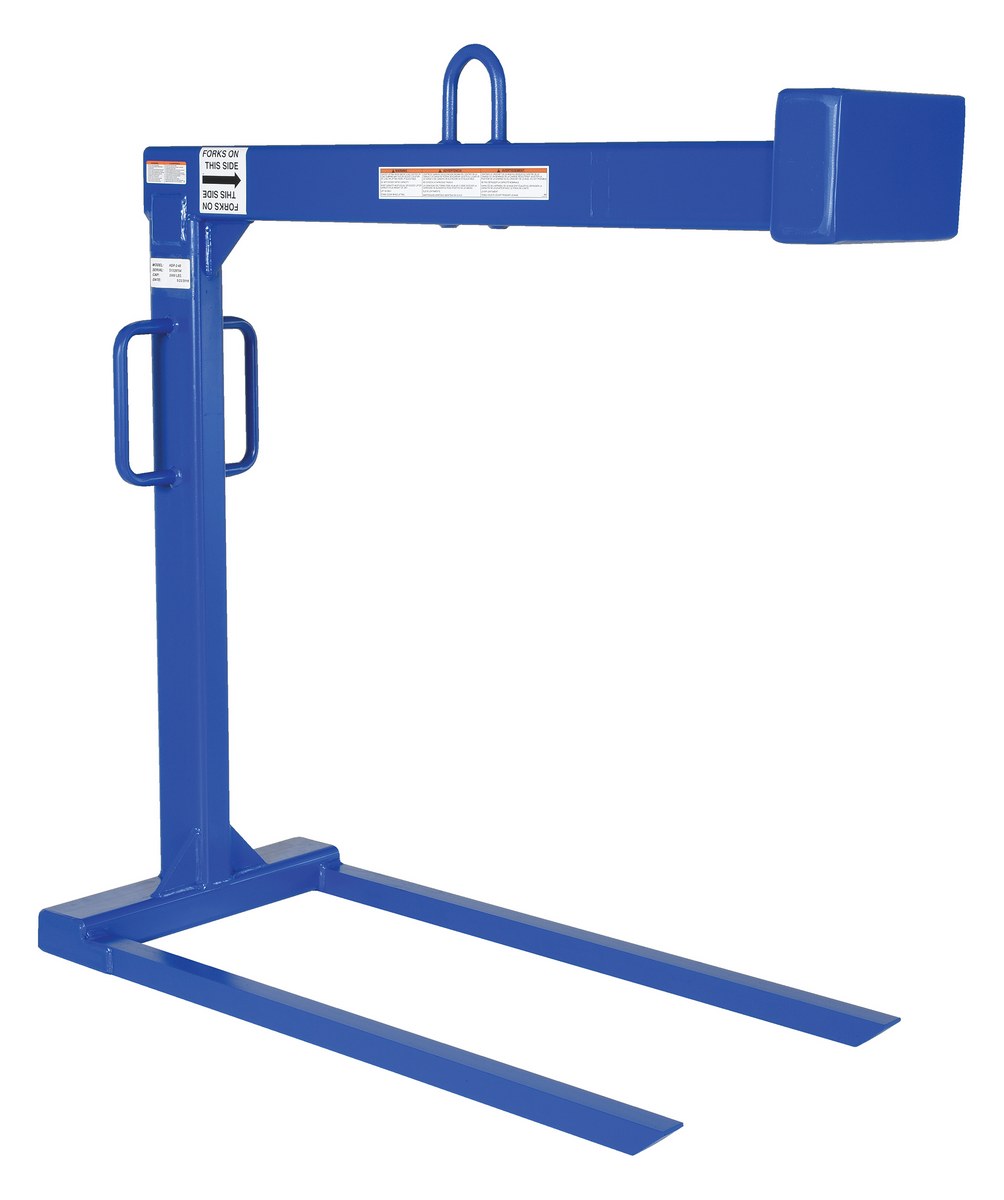

HDP-2-48		Steel Pallet Lifter 48 In. Fork 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Fork Spacing (in.): 21	474

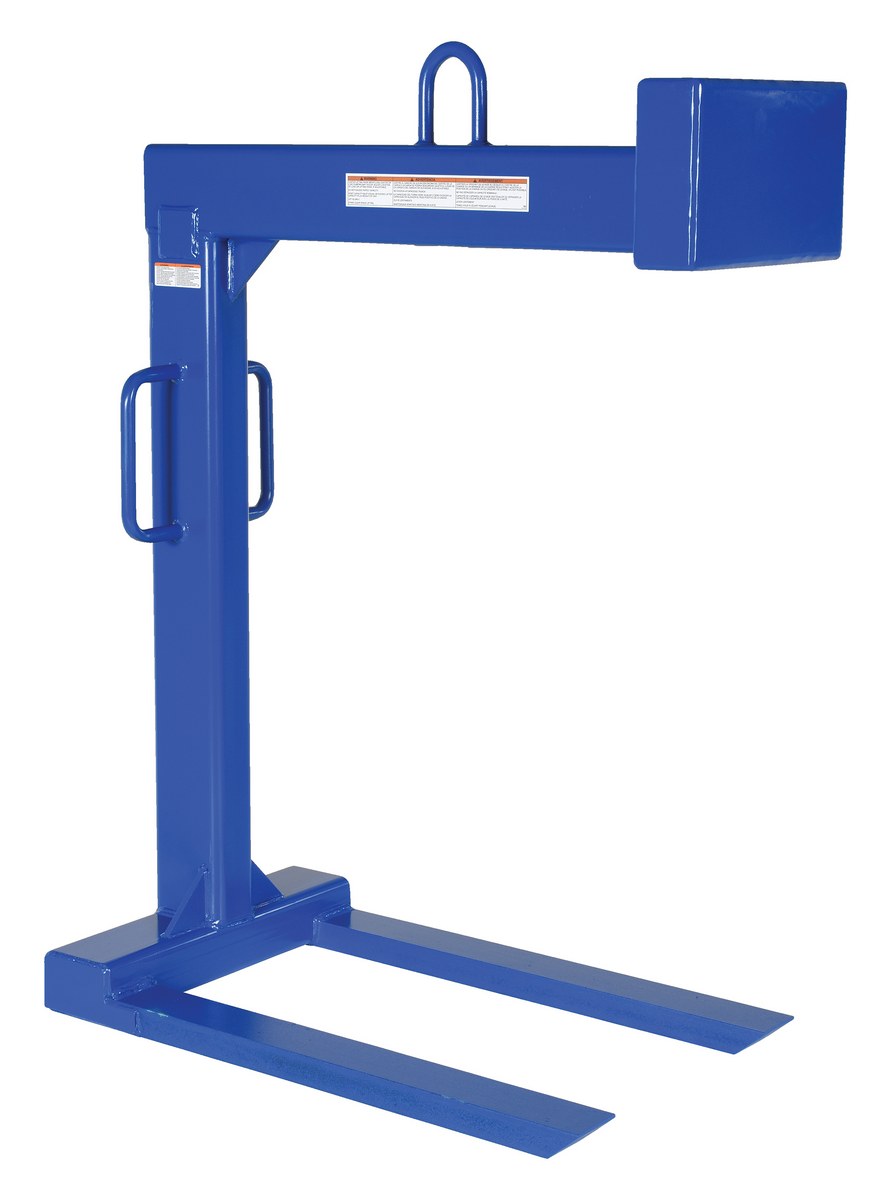

HDP-4-36		Steel Pallet Lifter 36 In. Fork 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Fork Spacing (in.): 17	629
HDP-4-42		Steel Pallet Lifter 42 In. Fork 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Fork Spacing (in.): 17	658

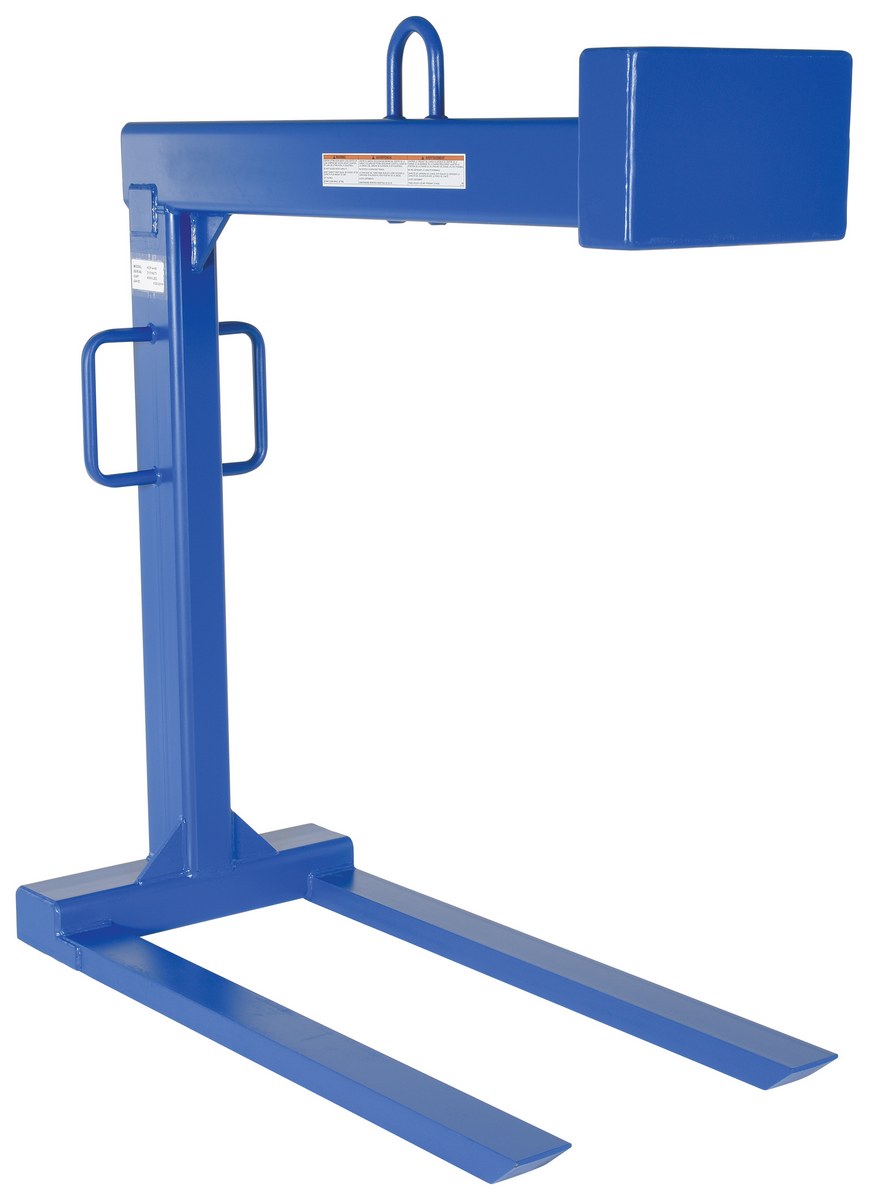

HDP-4-48		Steel Pallet Lifter 48 In. Fork 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Fork Spacing (in.): 17	693
HDP-6-42		Steel Pallet Lifter 42 In. Fork 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Fork Spacing (in.): 13	675

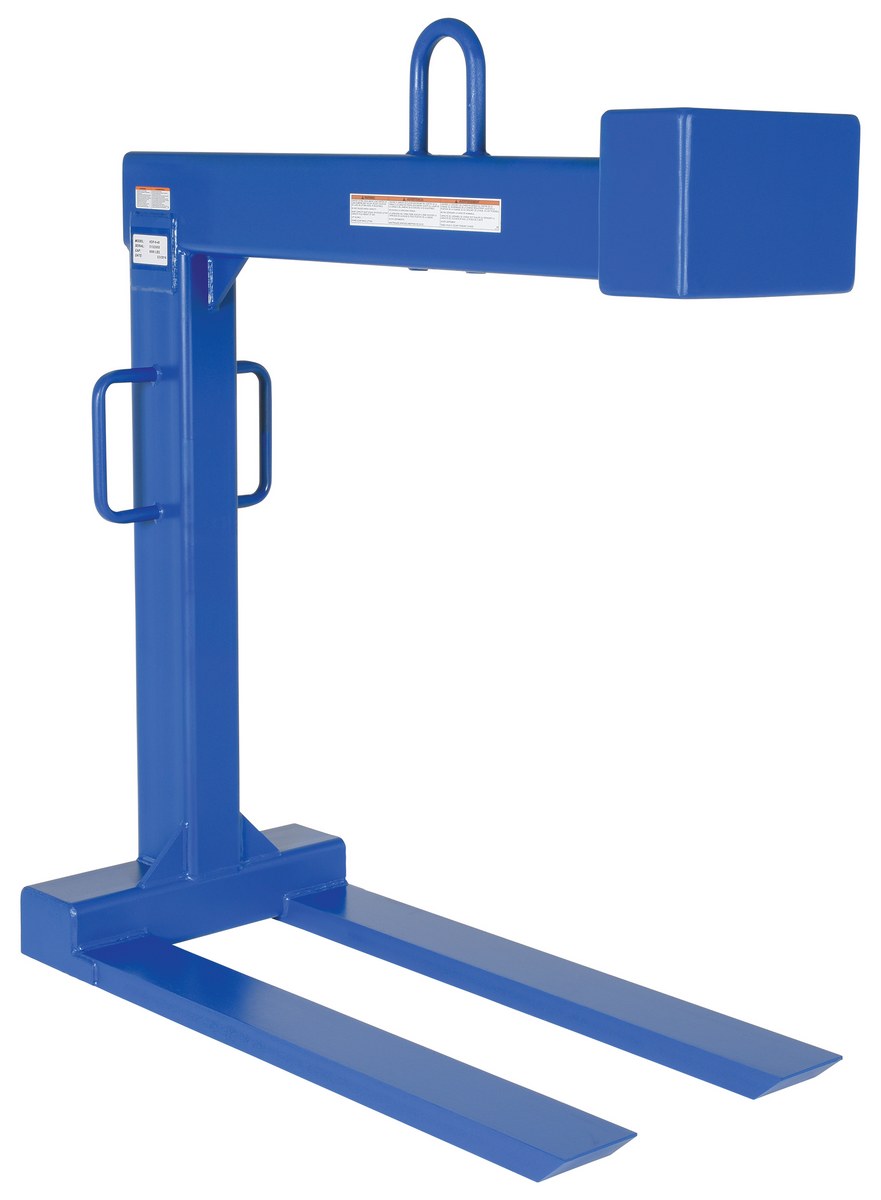

HDP-6-48		Steel Pallet Lifter 48 In. Fork 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Fork Spacing (in.): 13	1005
HDP-6-54		Steel Pallet Lifter 54 In. Fork 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Fork Spacing (in.): 13	1006
