Low Profile Manual Trollies

- - - -

Description
Model Chart
PDF's
Image Gallery

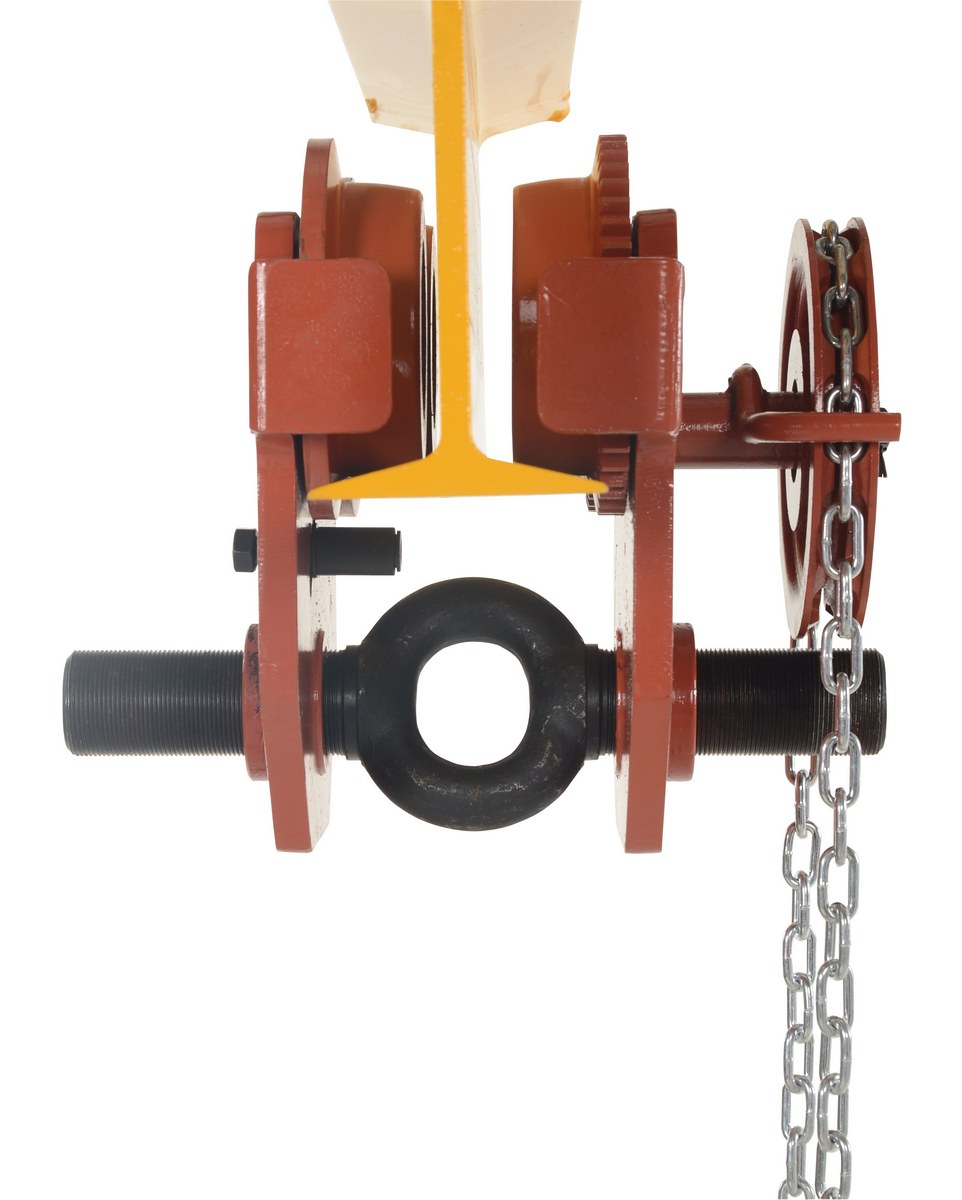

E-MT-8-C_D.jpg E-MT-8-C_B.jpg E-MT-8-C_A.jpg E-MT-8-C_C.jpg
Low Profile Manual Trollies

model: E-MT-8-C



Featured Overhead Lifting


Heavy Duty Load Lifter
Floor Mounted Jibs
Wall Jibs
Fixed Height Aluminum Gantry Cranes
Magnetic Lifters
Pallet Truck Hoist
Counter Balanced Floor Cranes
Compact & Lightweight Lever Hoist (disc brake)
Hand Chain Hoists
model chart

Product Family Overview

Print Friendly
Low Profile Manual Trollies
SERIES: E-MT

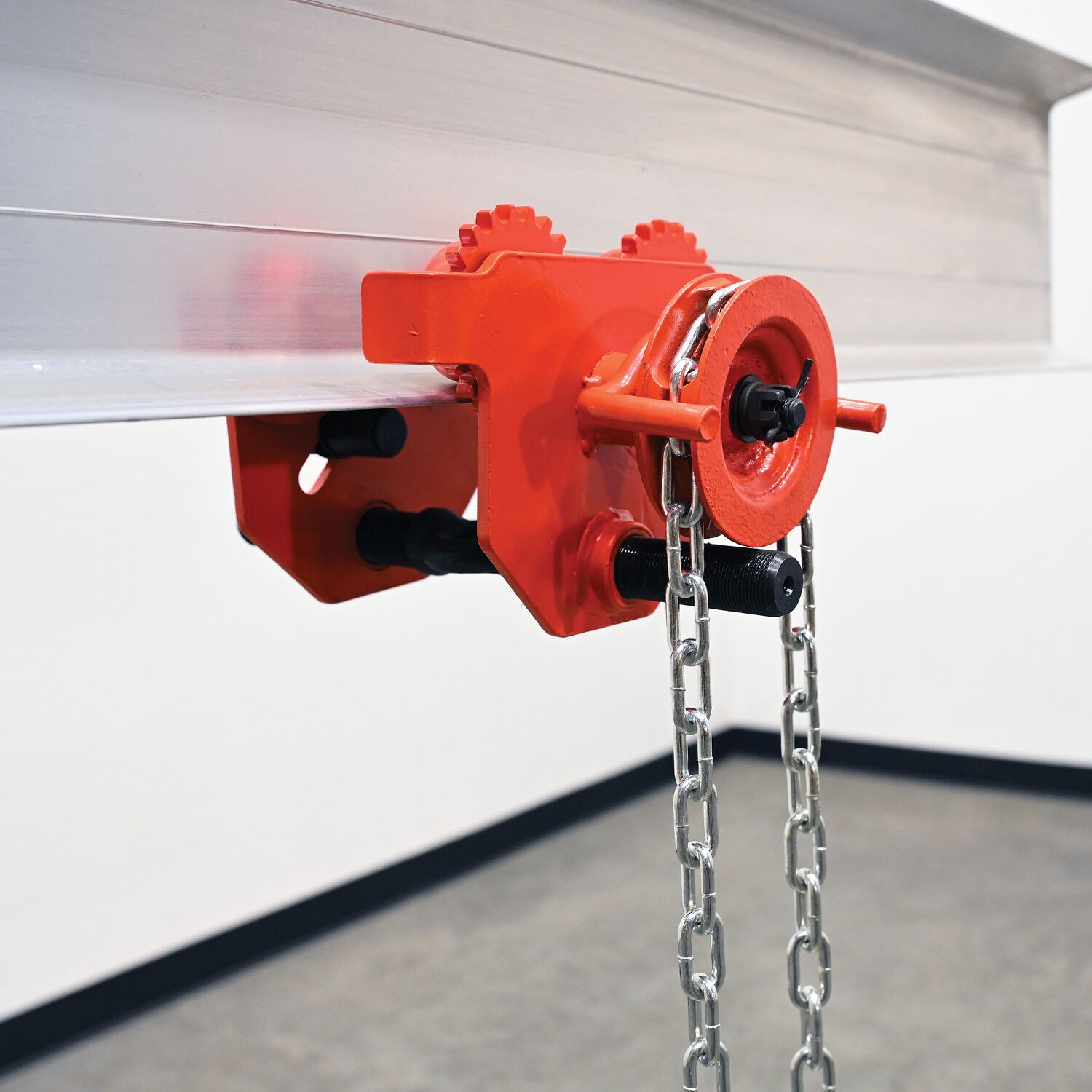

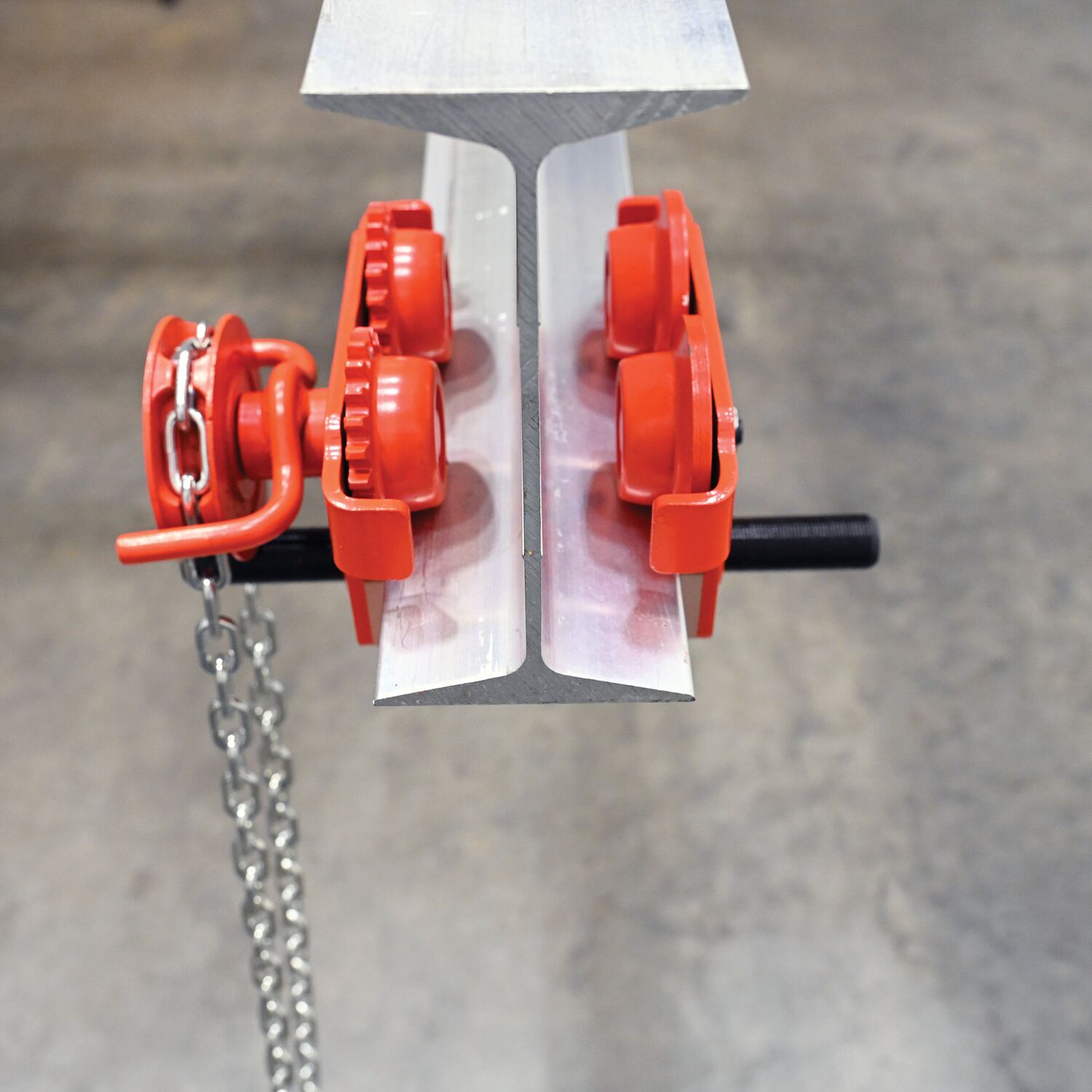

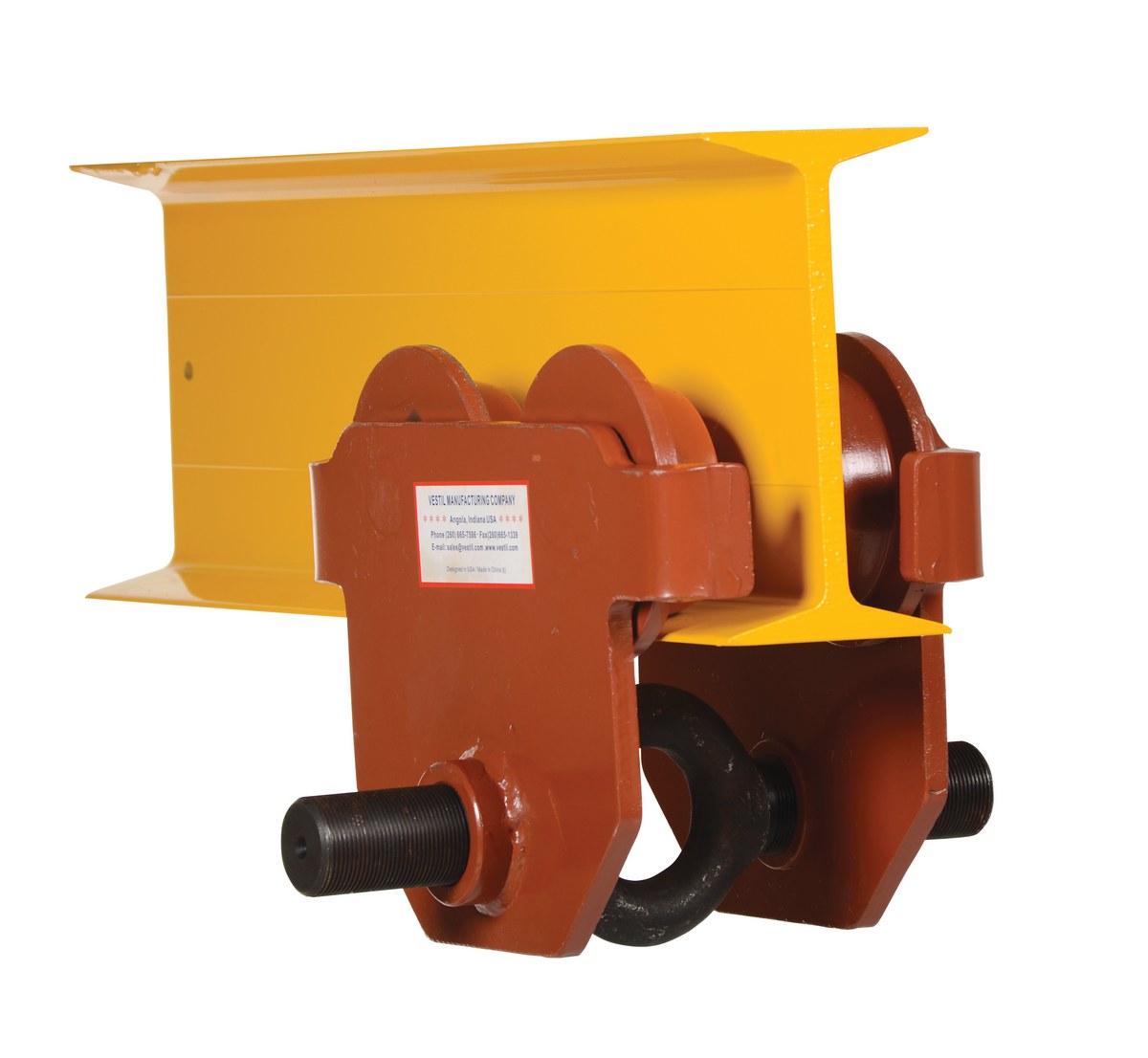

These trollies have been designed to quickly install on virtually any S, H,W, and M type I-beam. The width of the trolley is adjusted by rotating the center rod with lifting eye clockwise or counterclockwise. Once hoist (not included) is attached, center rod cannot be rotated which prevents trolley width from accidentally changing. Choose either push trolley or geared trolley. Geared trolley is ideal for use when precise positioning of the trolley is required. The trolley includes four rollers with sealed bearings for long life. A lifting eye is located at the bottom of the trolley for attaching a hoist (not included). Steel construction and painted finish. Headroom is measured from the bottom of wheel to bottom of hooking eye.

  • Special design works with S, H, W and M type I-beams

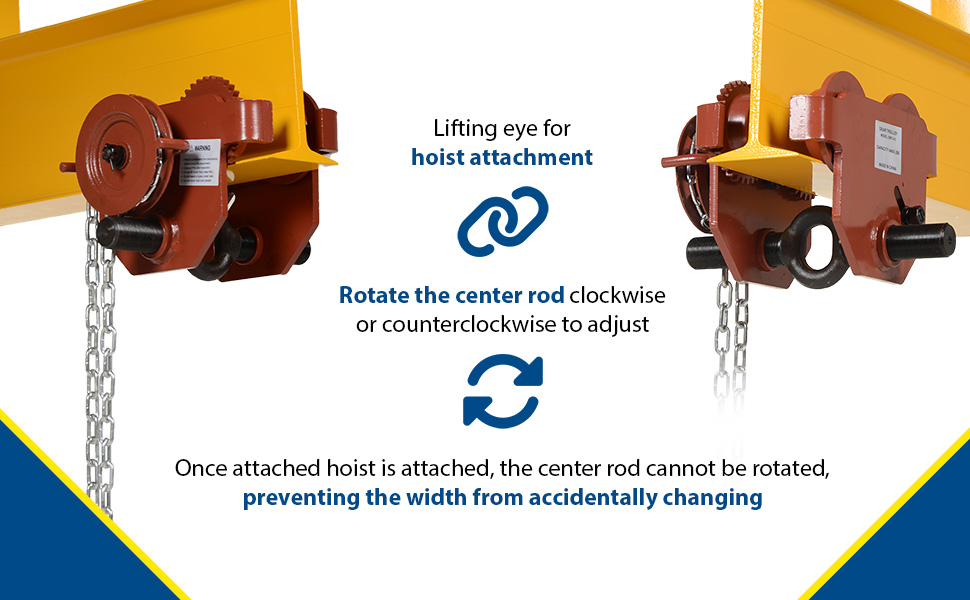

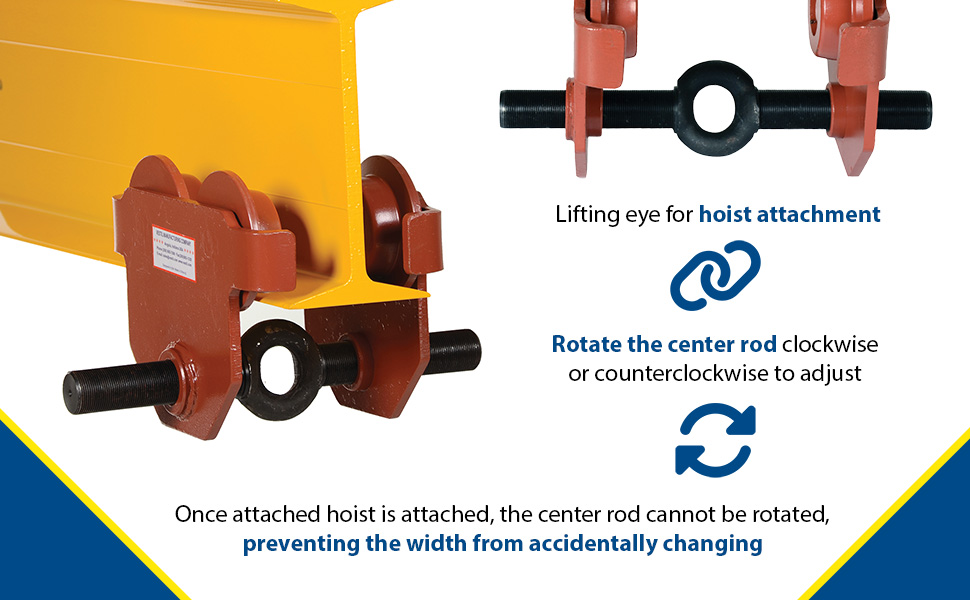

  • Turning center screw with eye easily adjusts trolley width
  • Solid steel construction provides long lasting rugged use
  • Sealed bearings provide long life

These trollies have been designed to quickly install on virtually any S, H,W, and M type I-beam. The width of the trolley is adjusted by rotating the center rod with lifting eye clockwise or counterclockwise. Once hoist (not included) is attached, center rod cannot be rotated which prevents trolley width from accidentally changing. Choose either push trolley or geared trolley. Geared trolley is ideal for use when precise positioning of the trolley is required. The trolley includes four rollers with sealed bearings for long life. A lifting eye is located at the bottom of the trolley for attaching a hoist (not included). Steel construction and painted finish. Headroom is measured from the bottom of wheel to bottom of hooking eye.

  • Special design works with S, H, W and M type I-beams
  • Turning center screw with eye easily adjusts trolley width
  • Solid steel construction provides long lasting rugged use
  • Sealed bearings provide long life

Other Hoists & Trollies

 Quick Install Manual Trollies Air Powered Chain Hoists Variable Speed Electric Chain Hoists High Speed Electric Chain Hoist

Additional Models In This Family
view entire Image Gallery

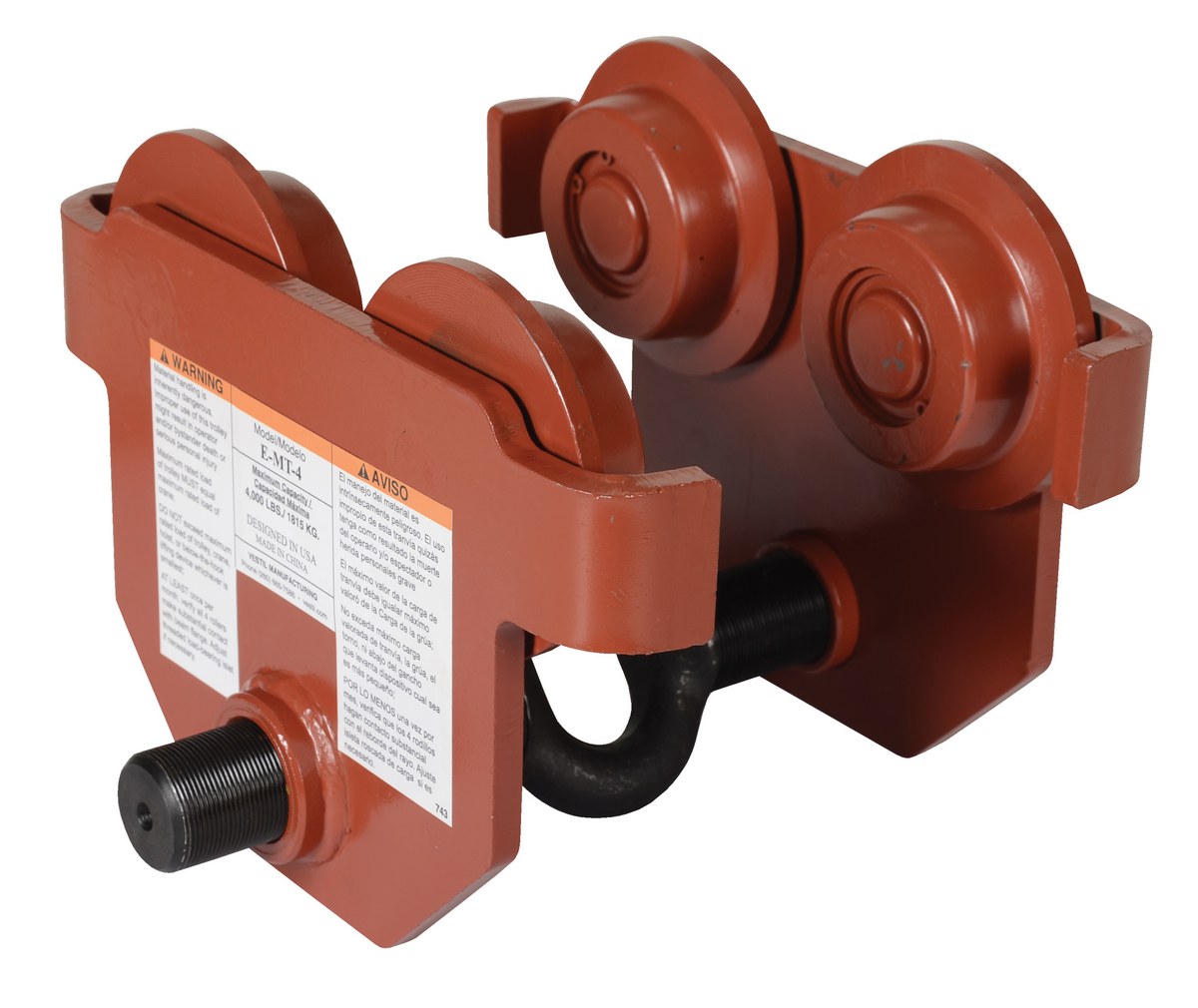

E-MT-4

E-MT-4

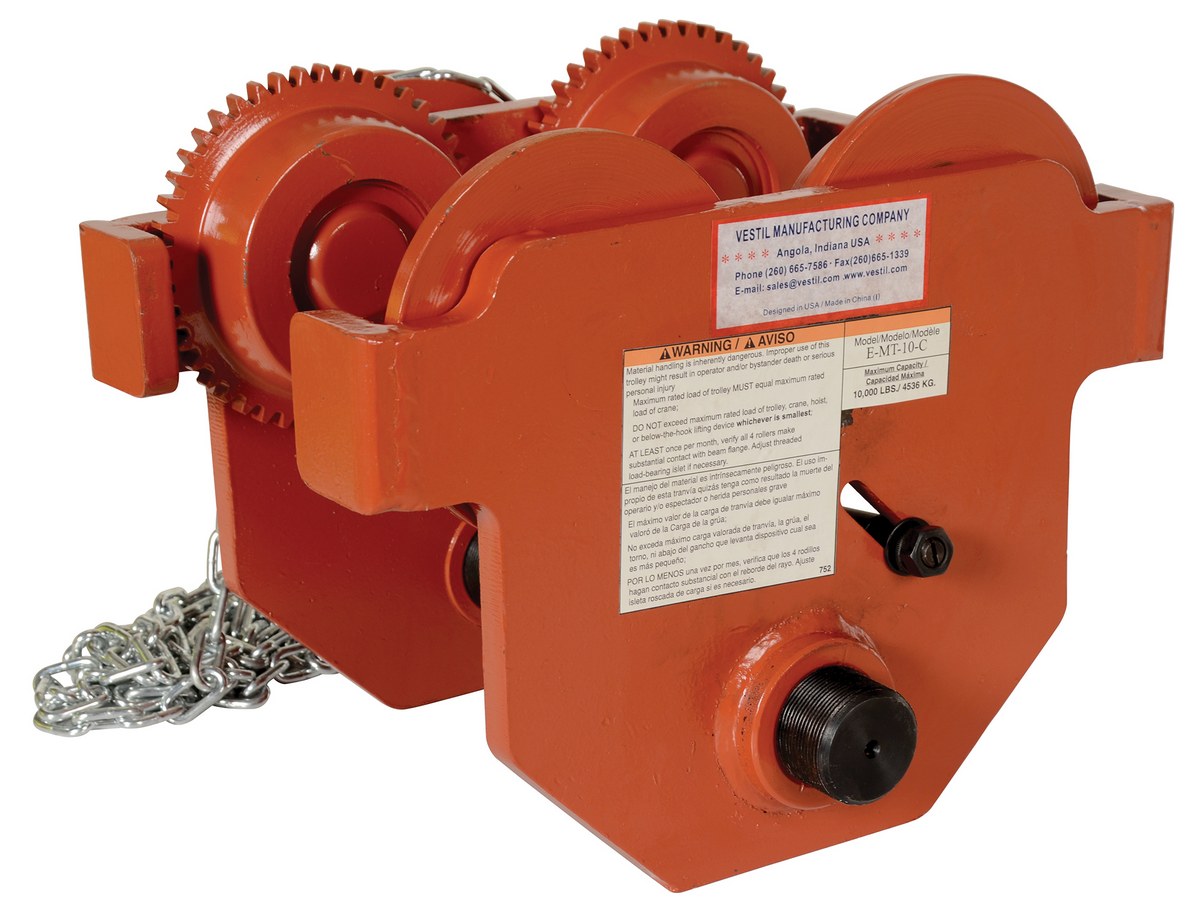

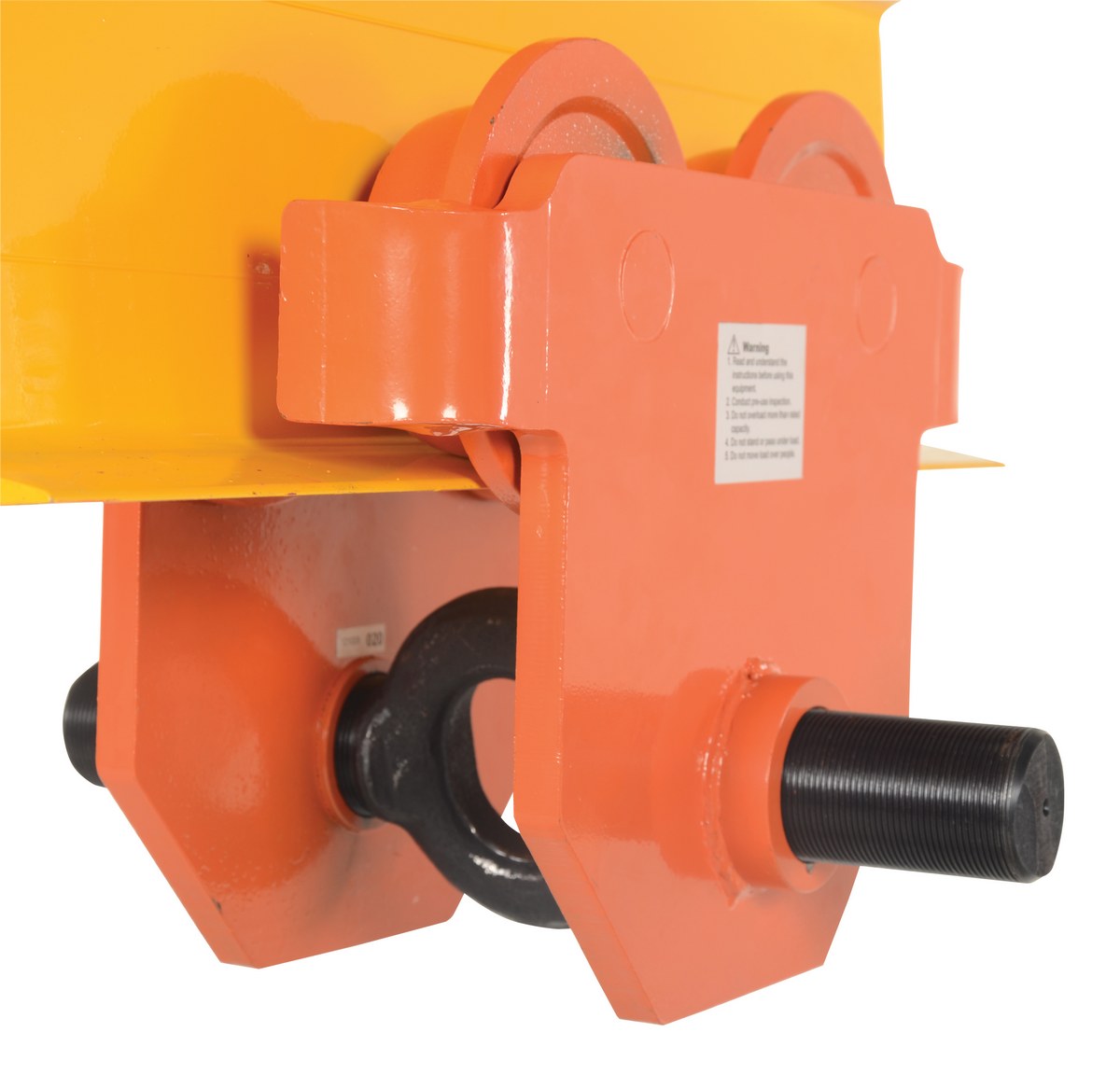

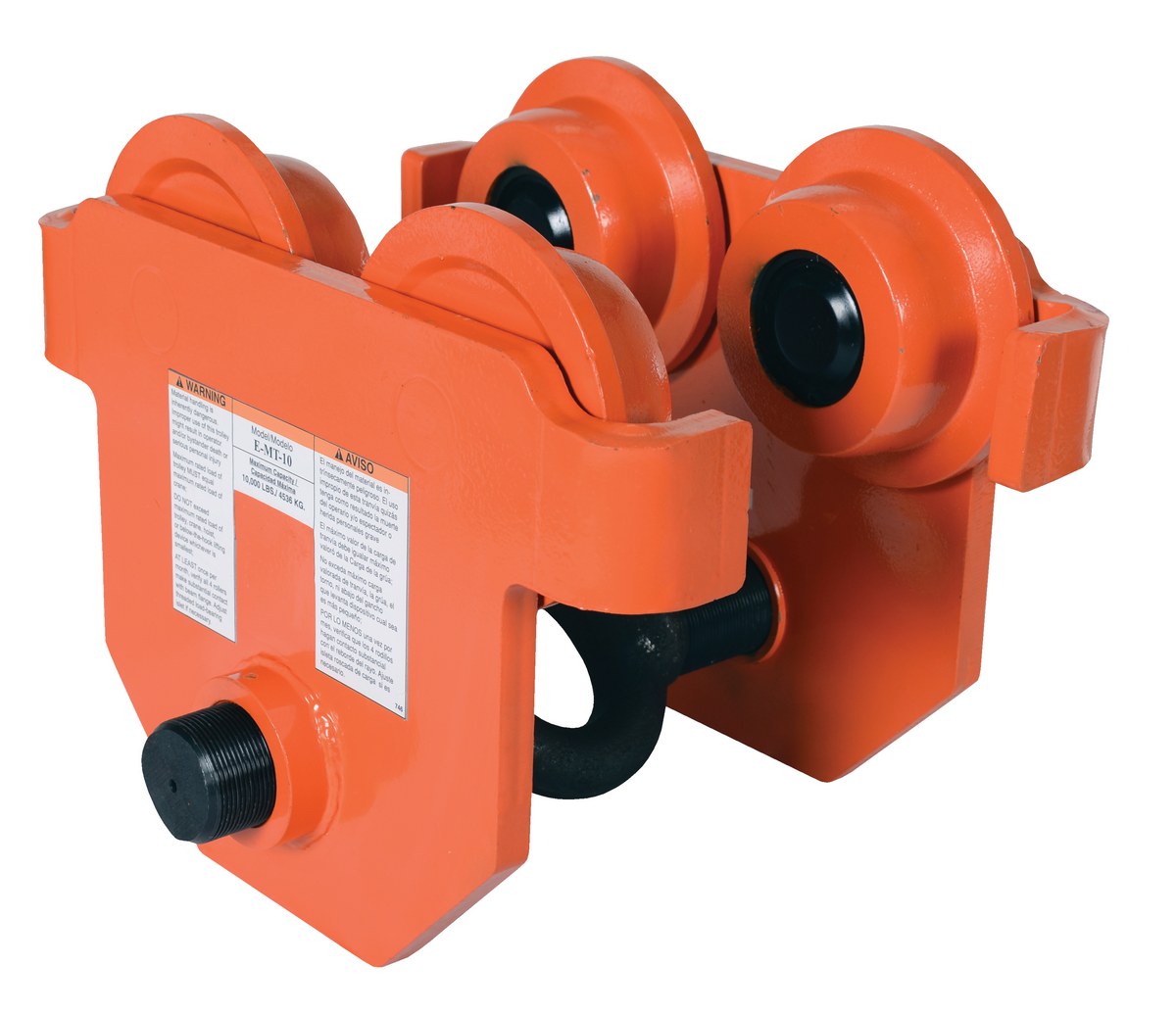

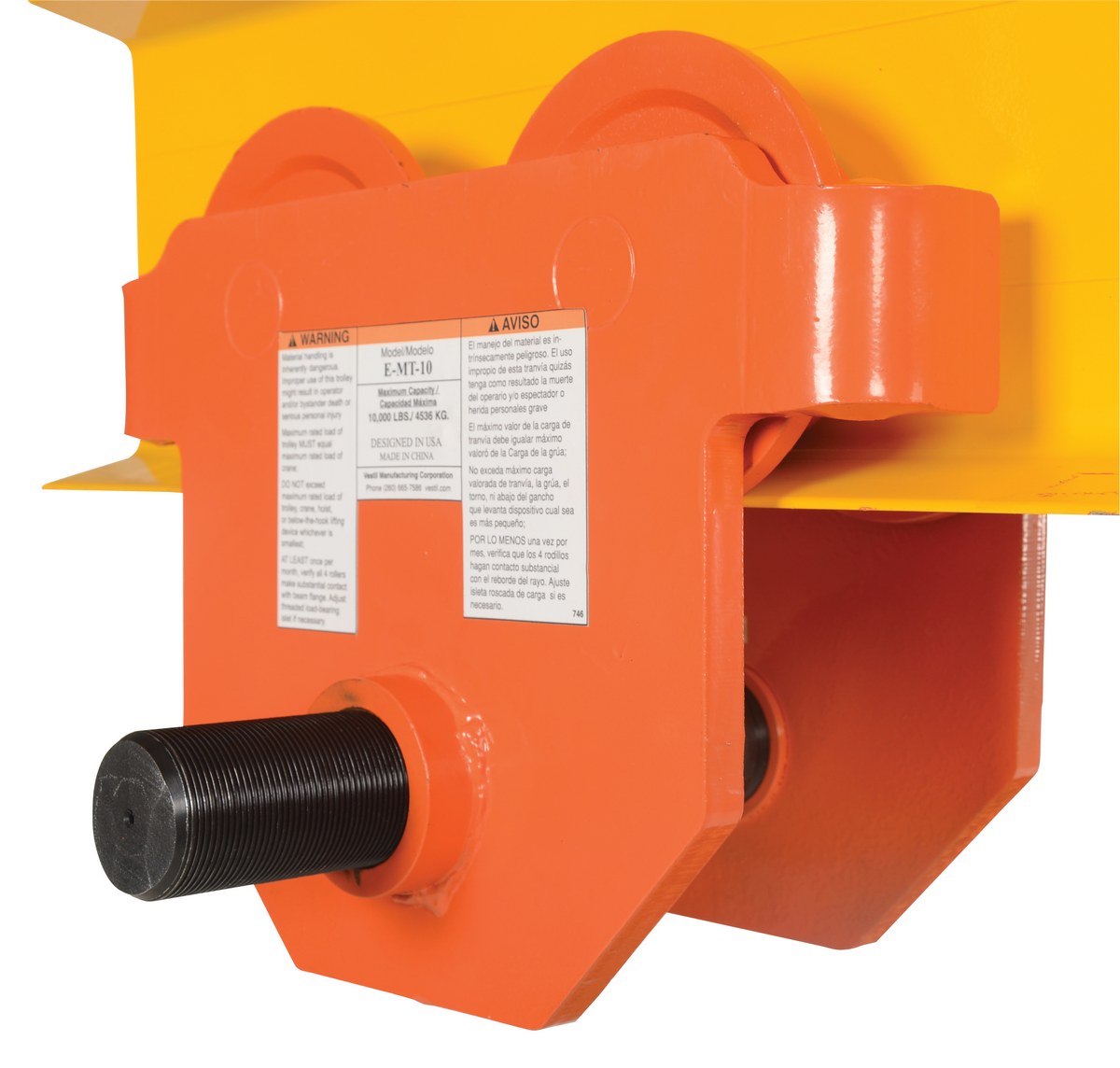

E-MT-10-C

E-MT-10-C

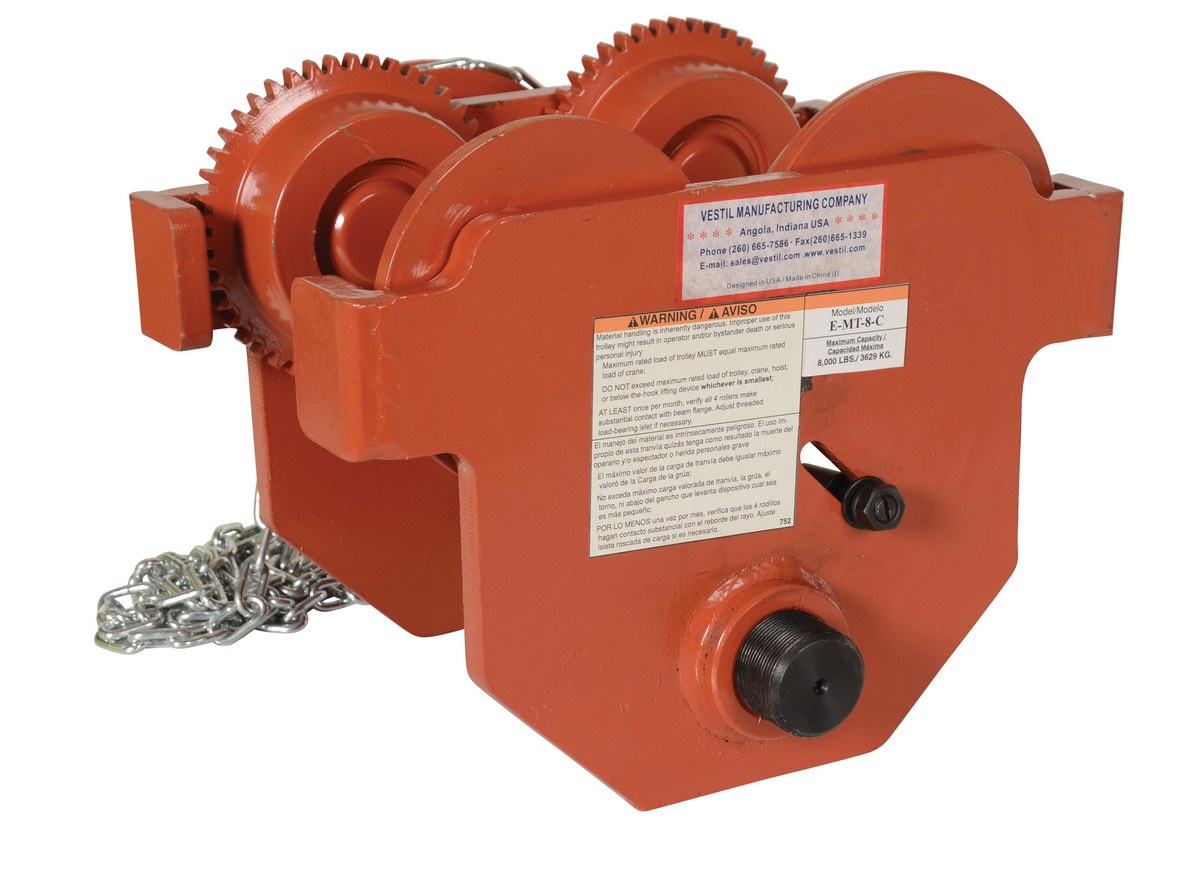

E-MT-8-C

E-MT-8-C

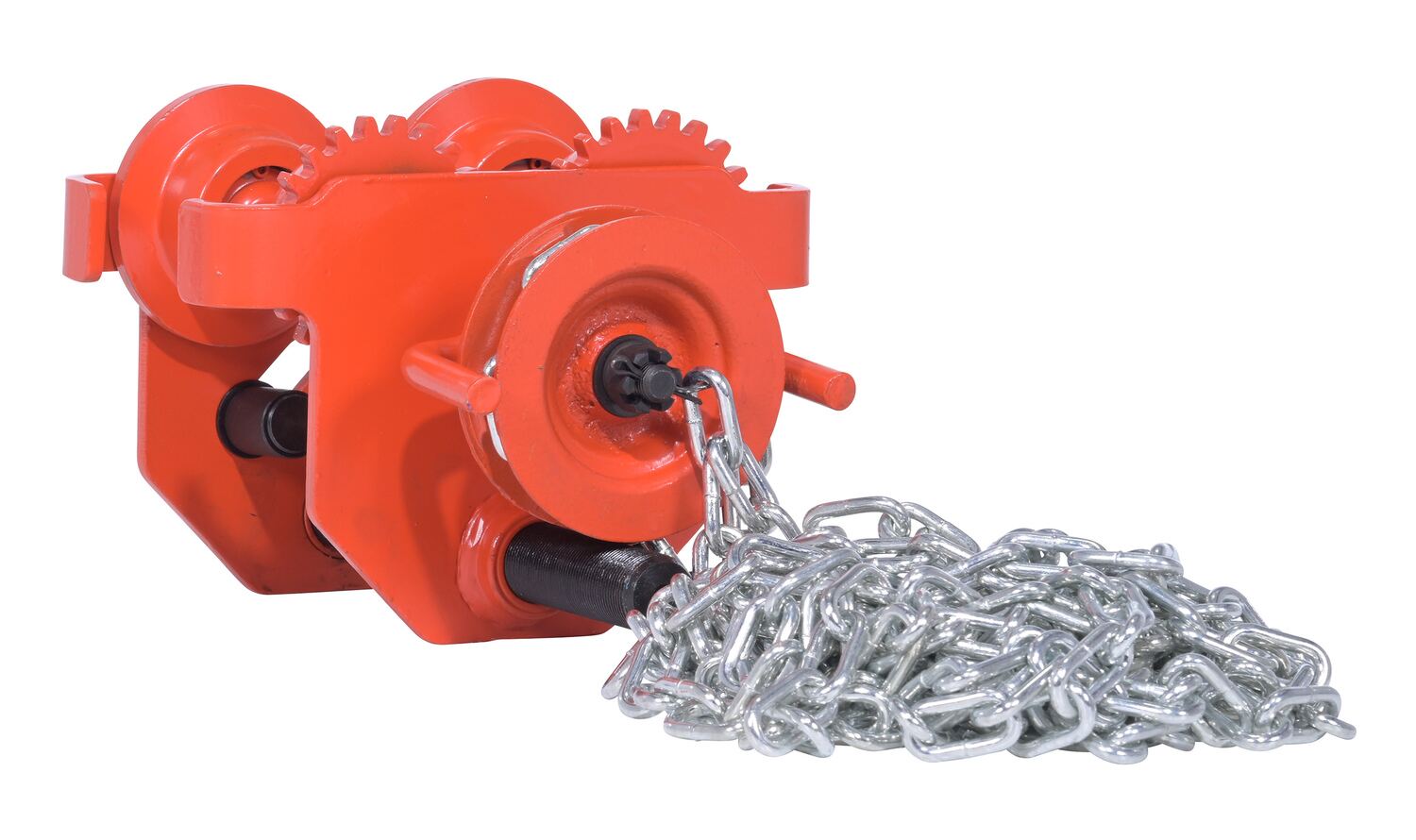

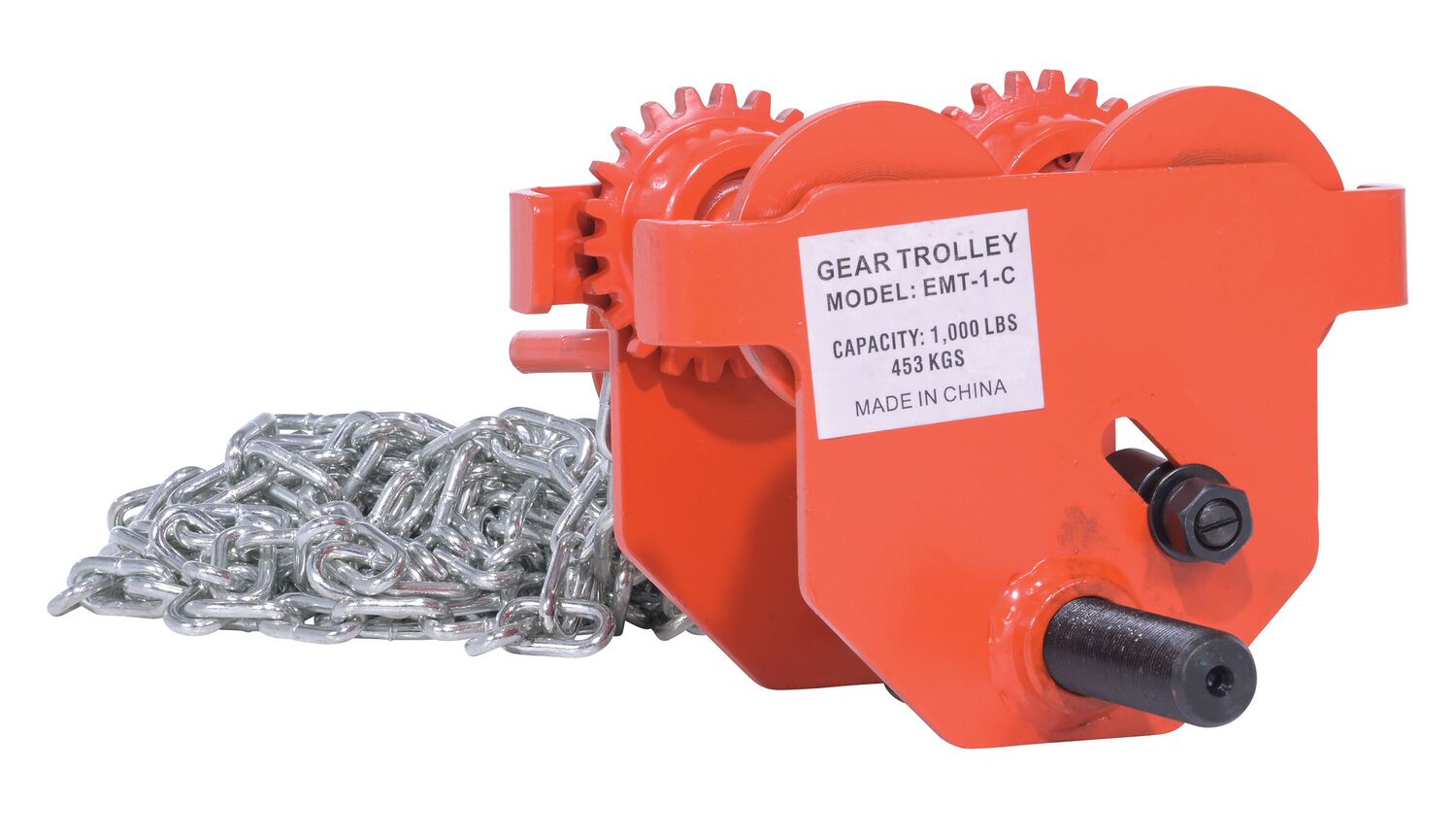

E-MT-1-C

E-MT-1-C

E-MT-1-C

E-MT-1-C

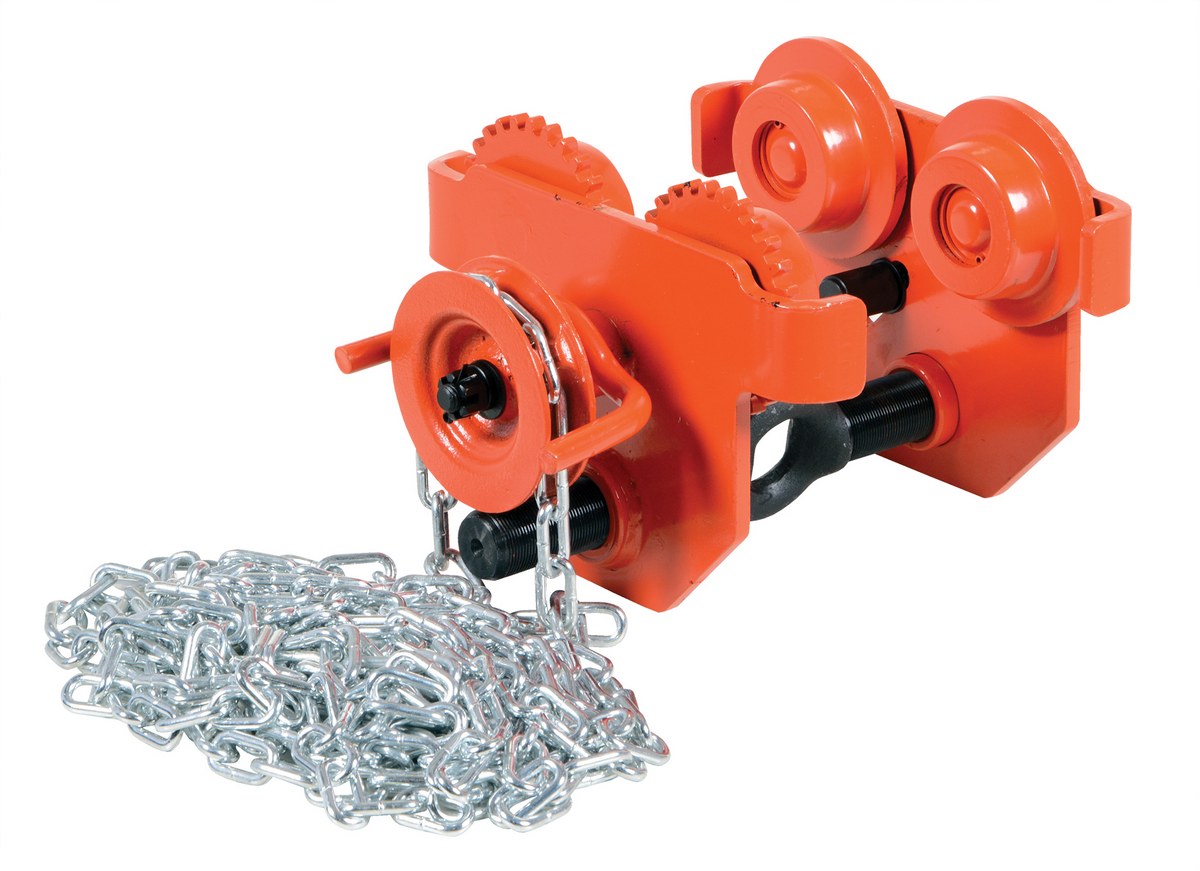

E-MT-2-C

E-MT-2-C

E-MT-4

E-MT-4

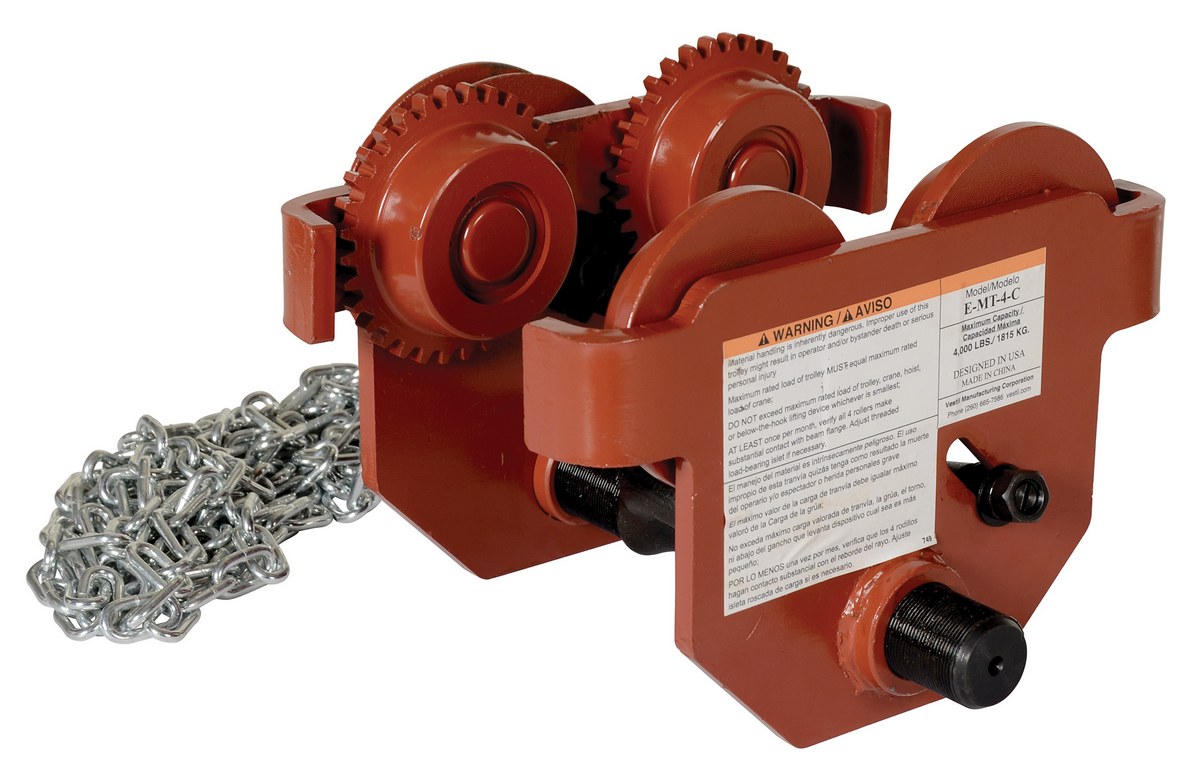

E-MT-4-C

E-MT-4-C

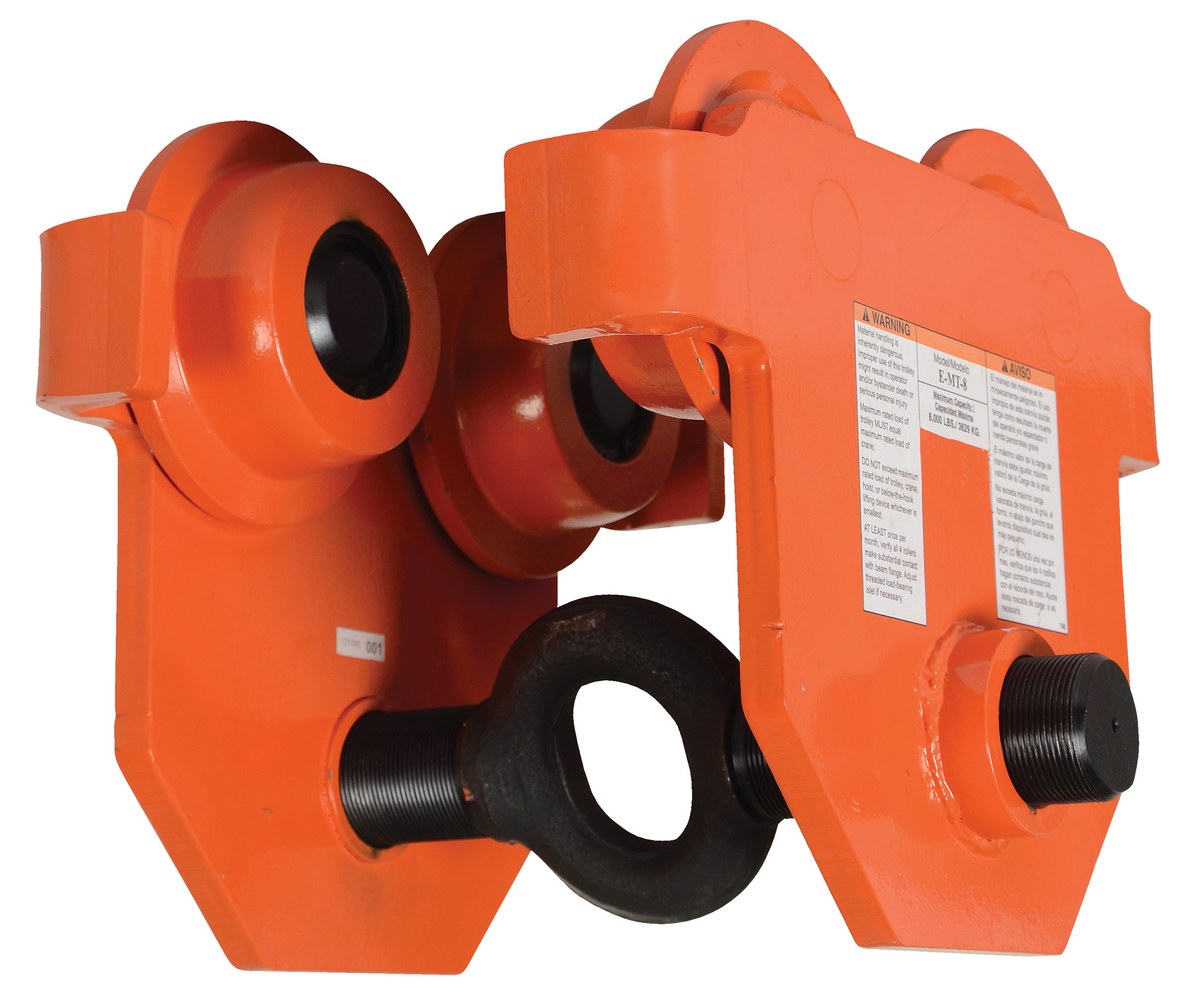

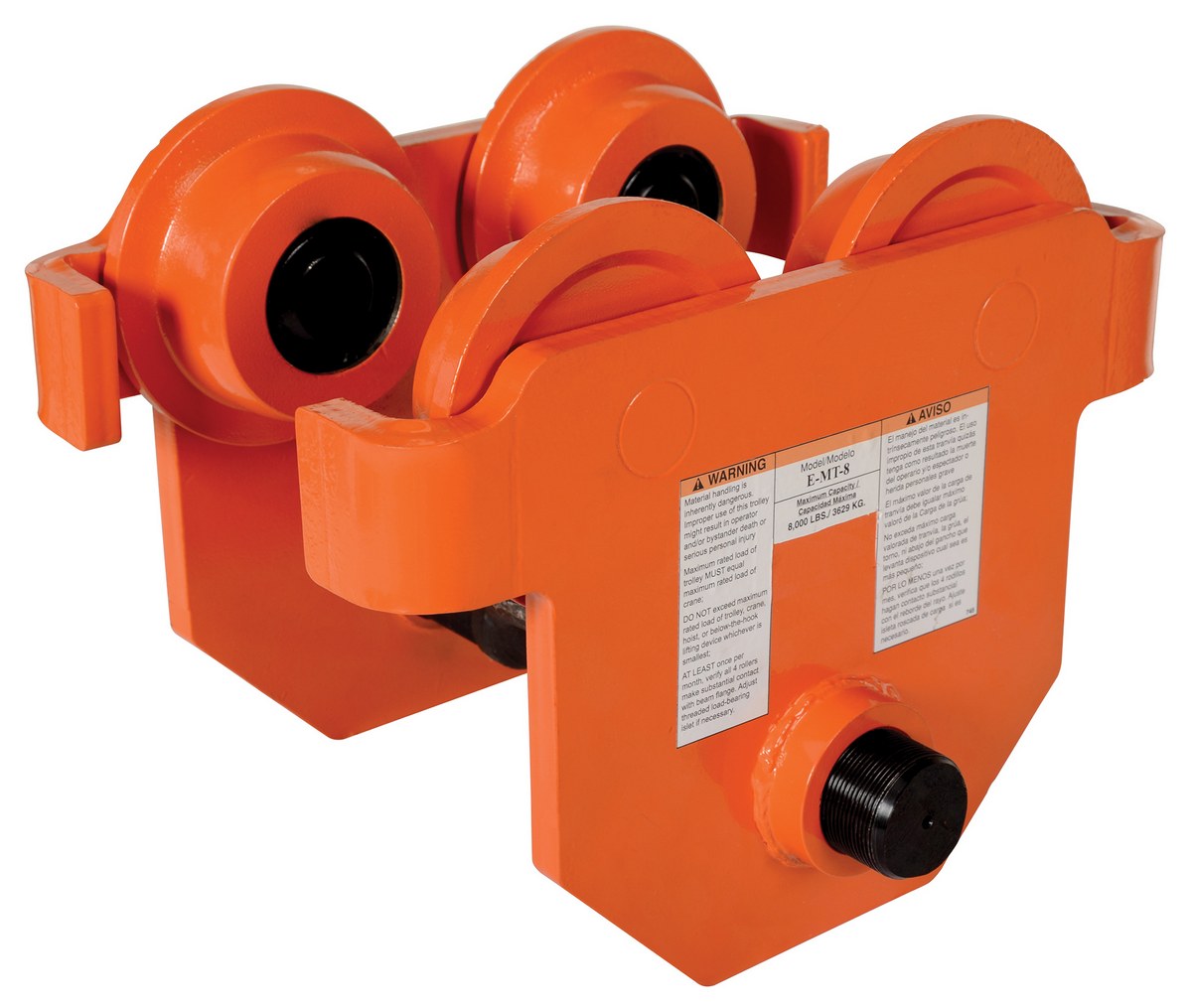

E-MT-8

E-MT-8

E-MT-1-C

E-MT-1-C

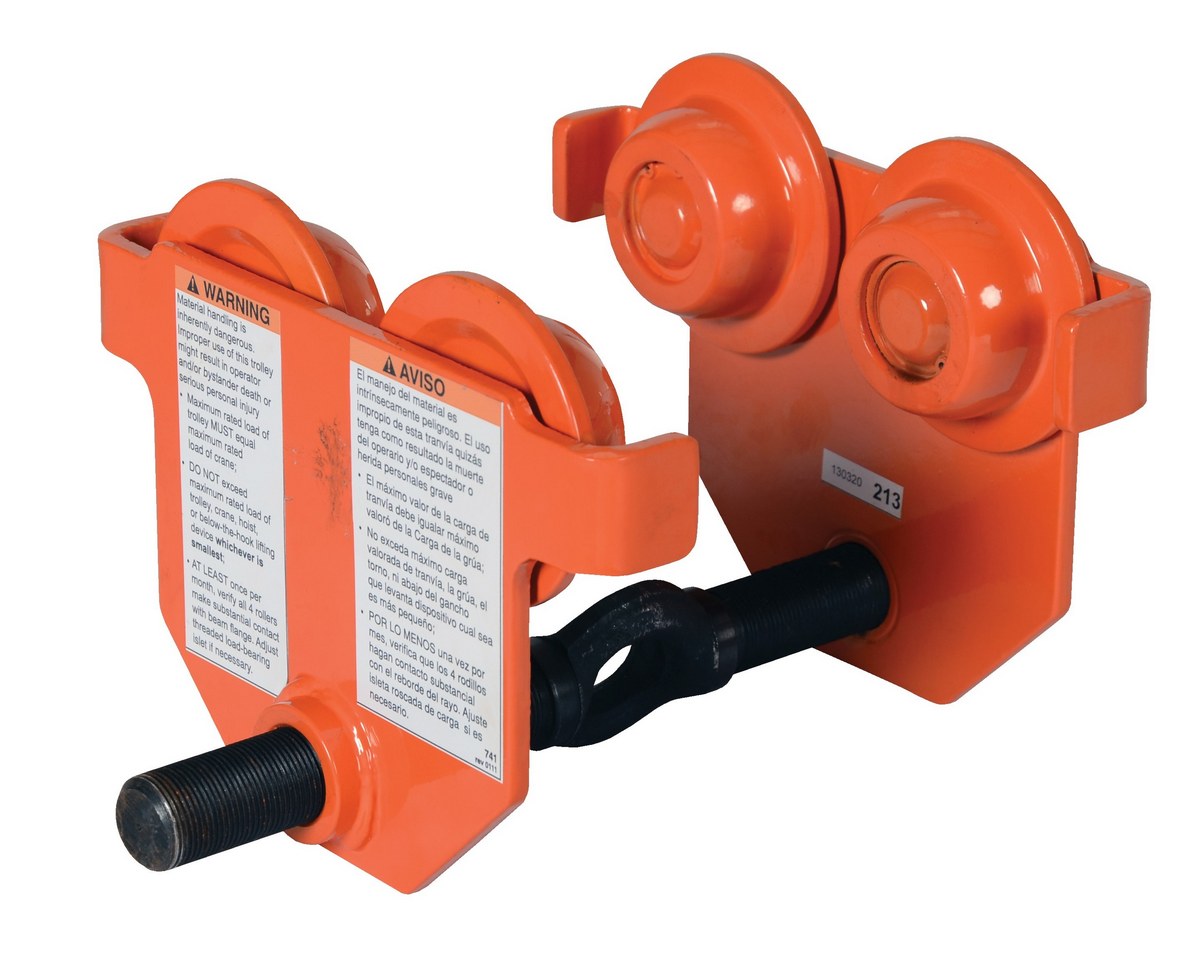

E-MT-1

E-MT-1

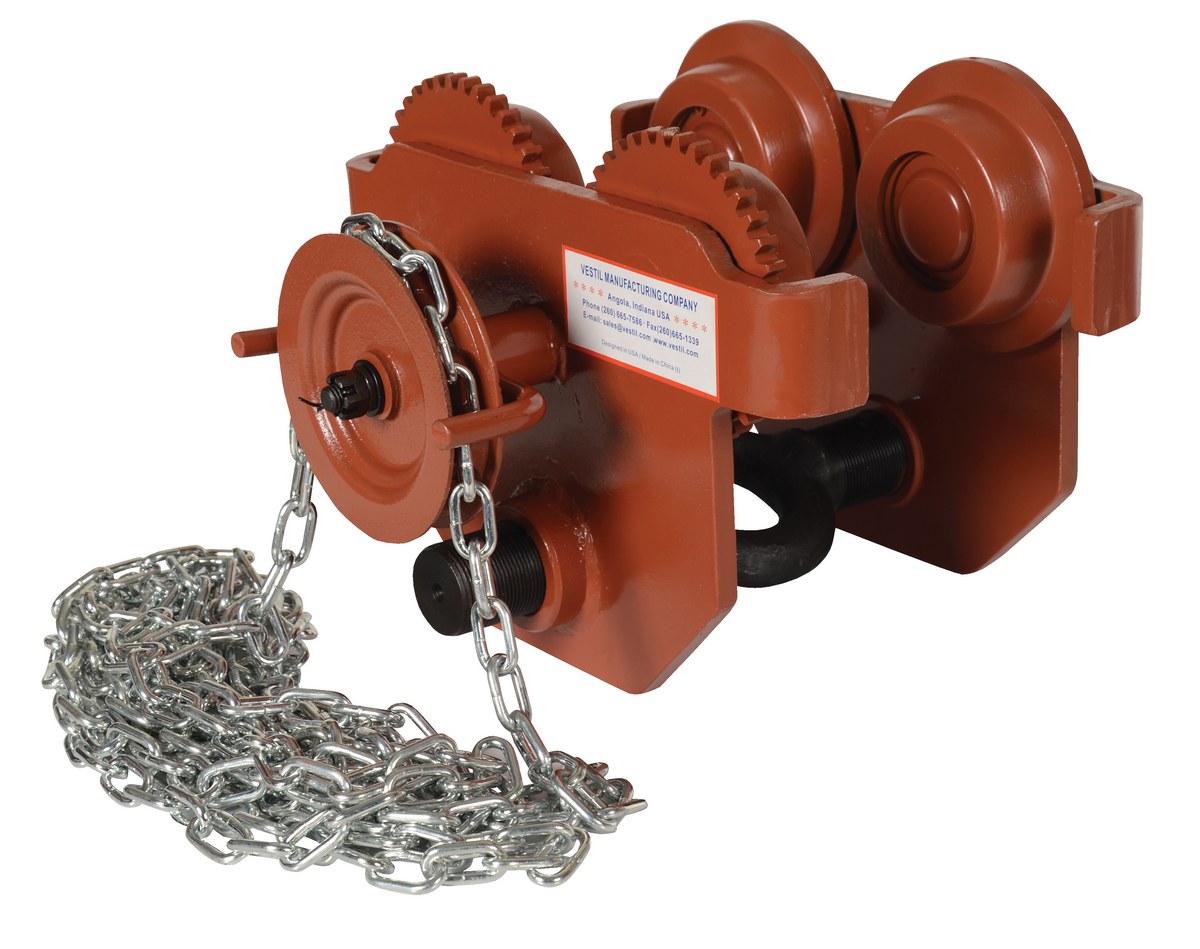

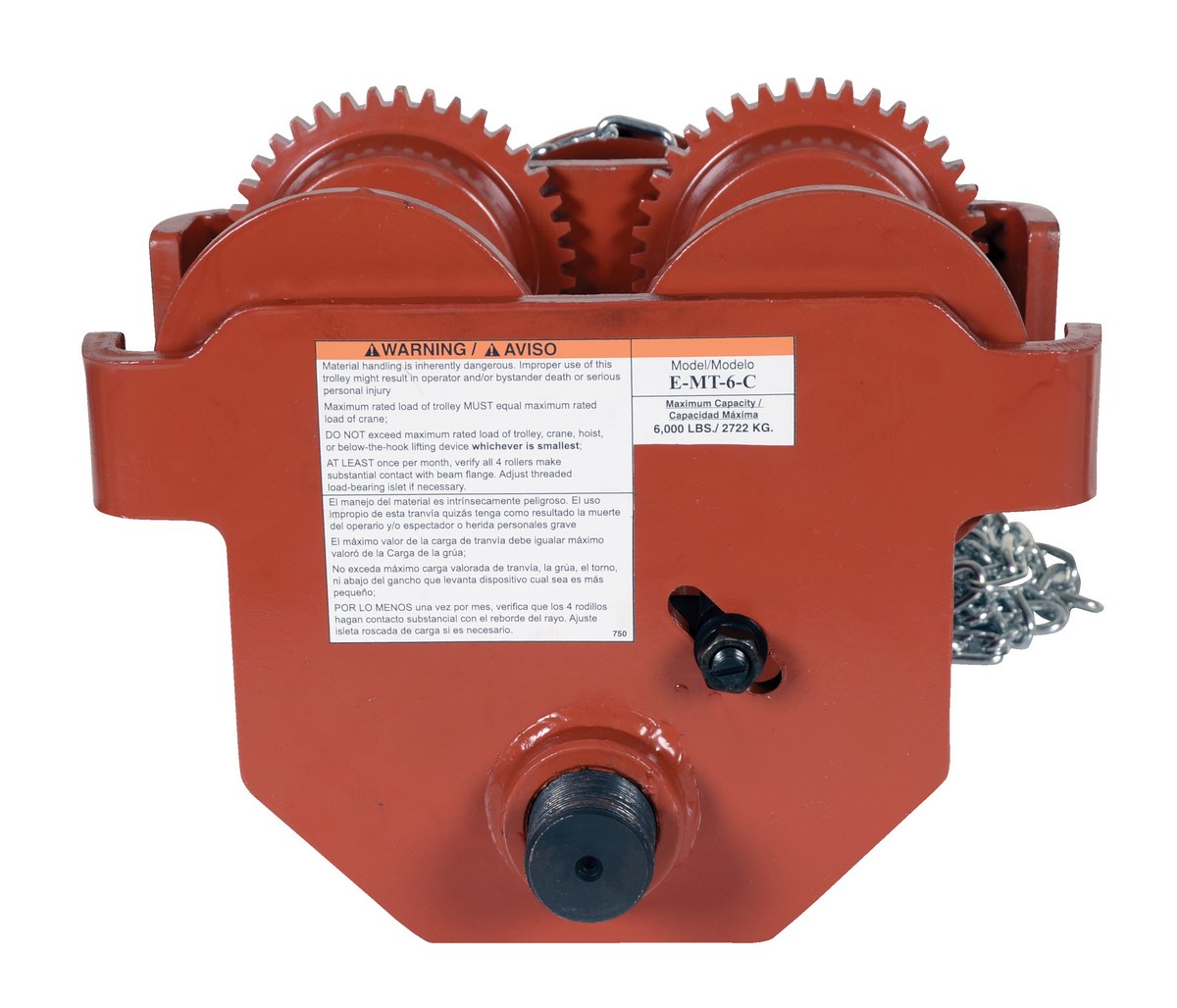

E-MT-6-C

E-MT-6-C

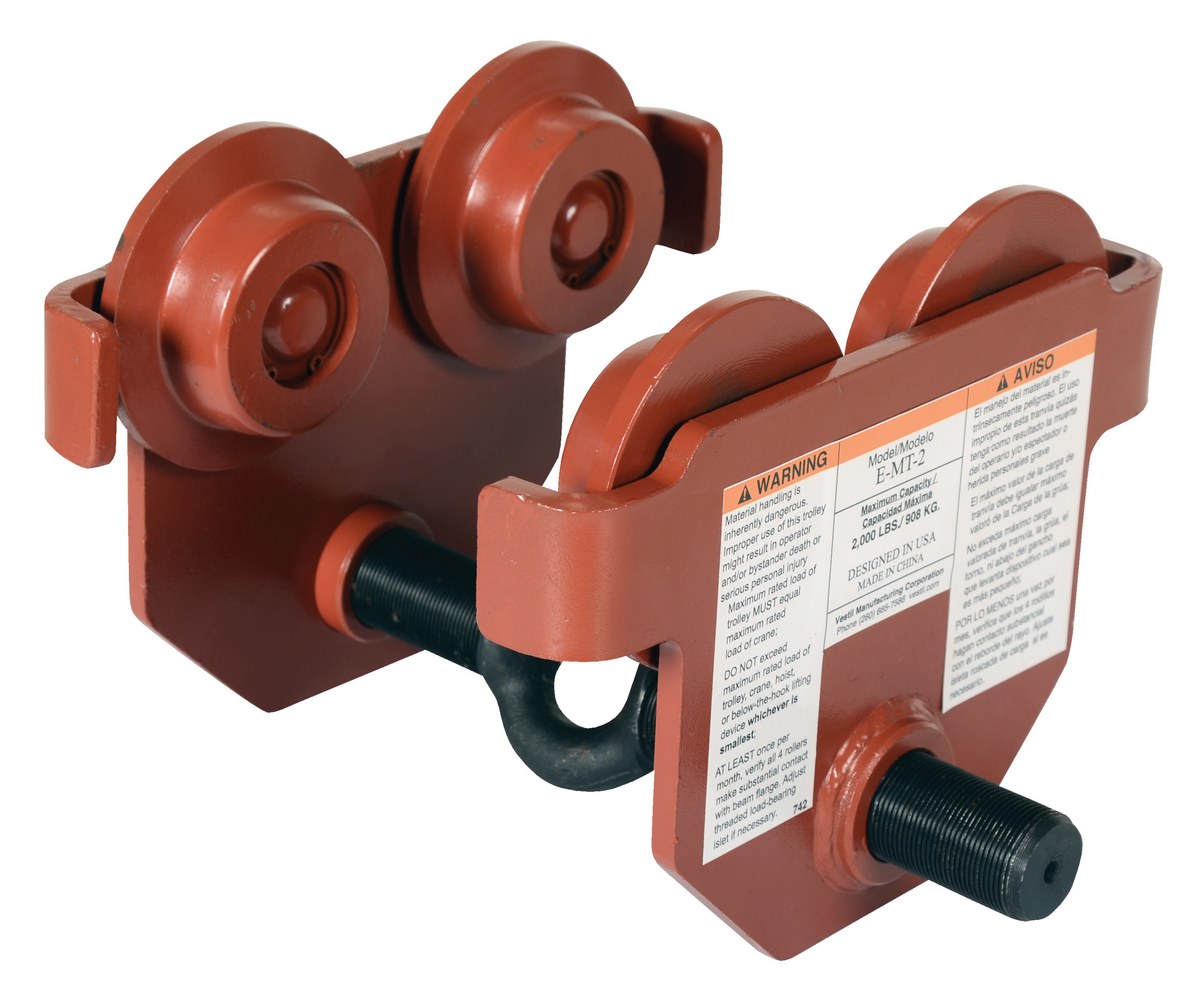

E-MT-2

E-MT-2

E-MT-1

E-MT-1

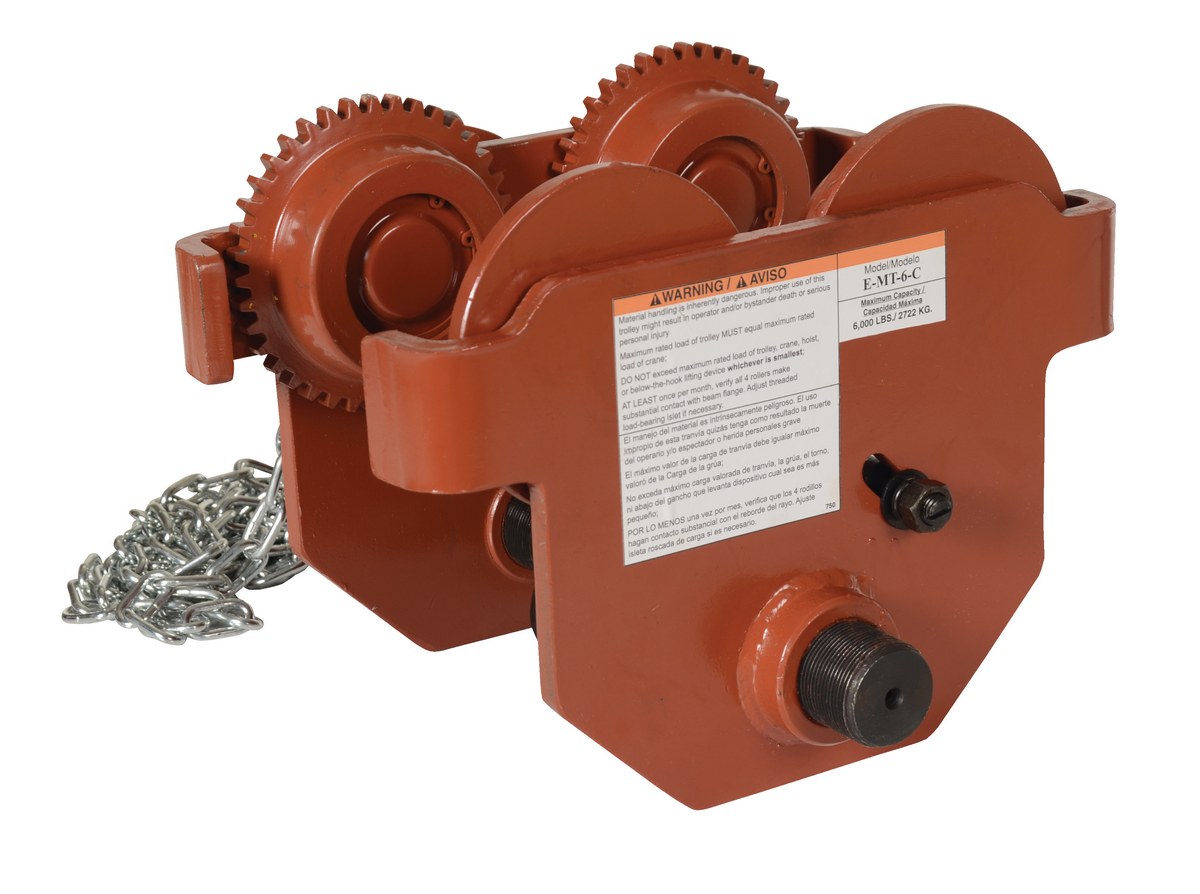

E-MT-6-C

E-MT-6-C

model chart
How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

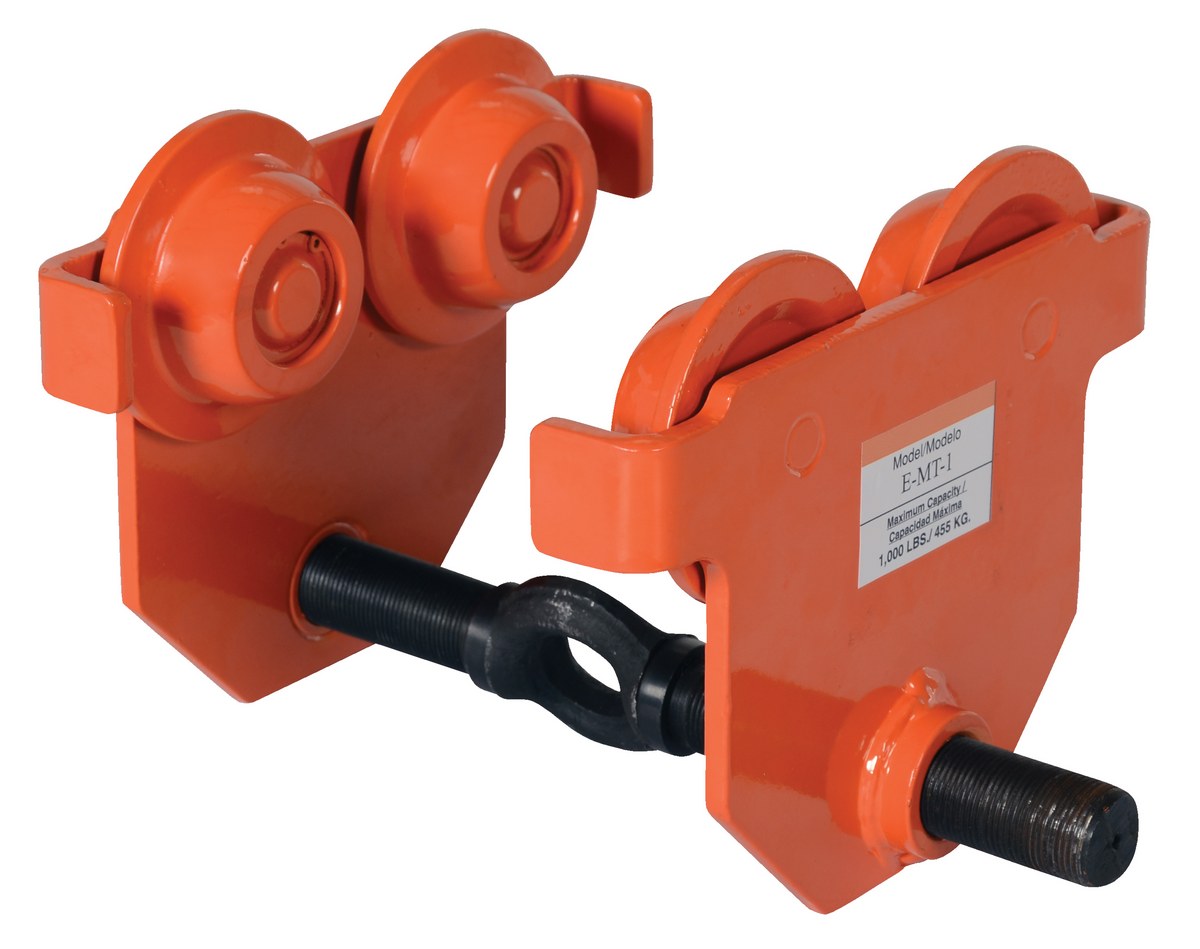

E-MT-1 E-MT-190 Days Limited WarrantySteel Push Eye Manual Trolley 1000 Lb. Capacity OrangeUniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2 to 8-5/8		12

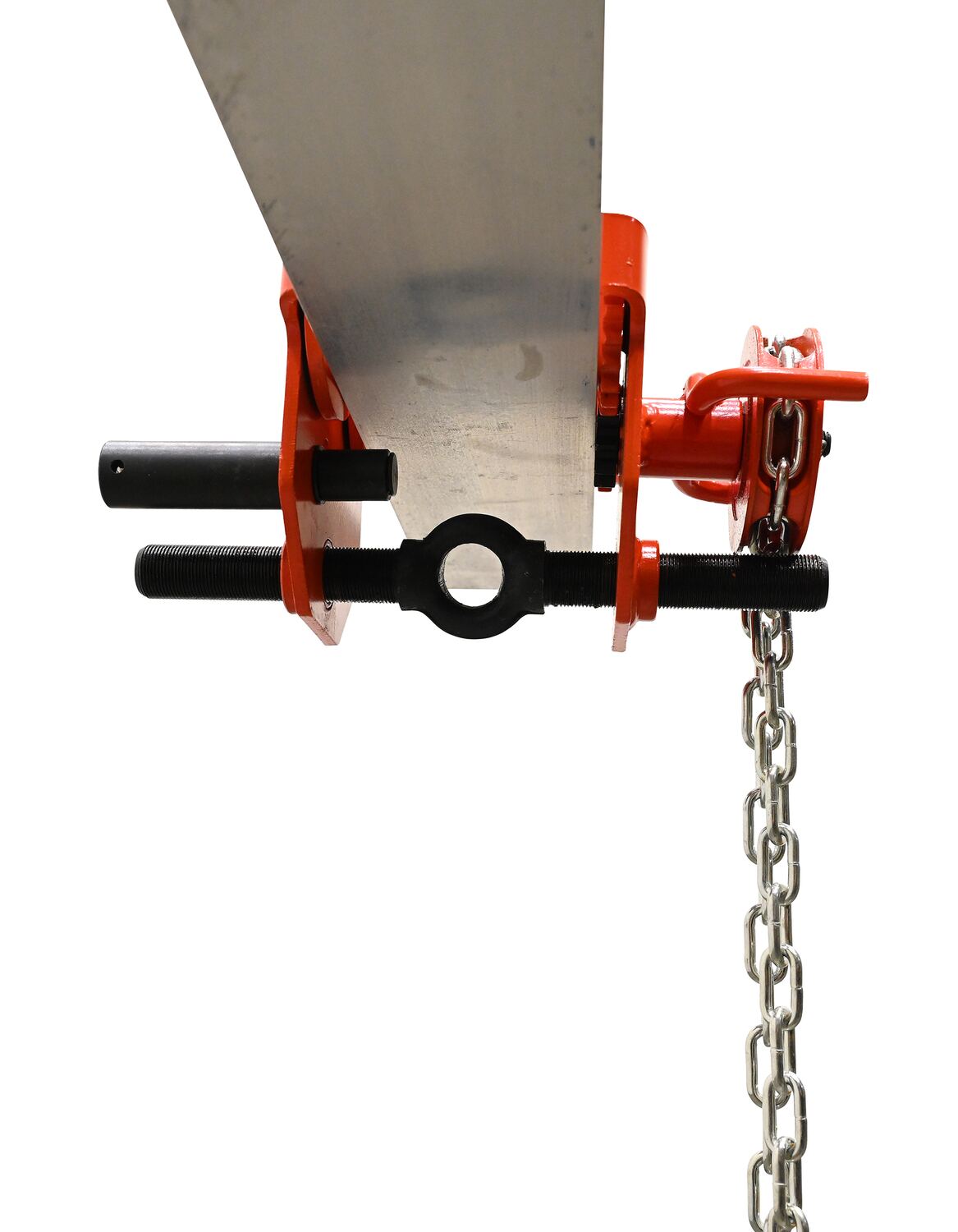

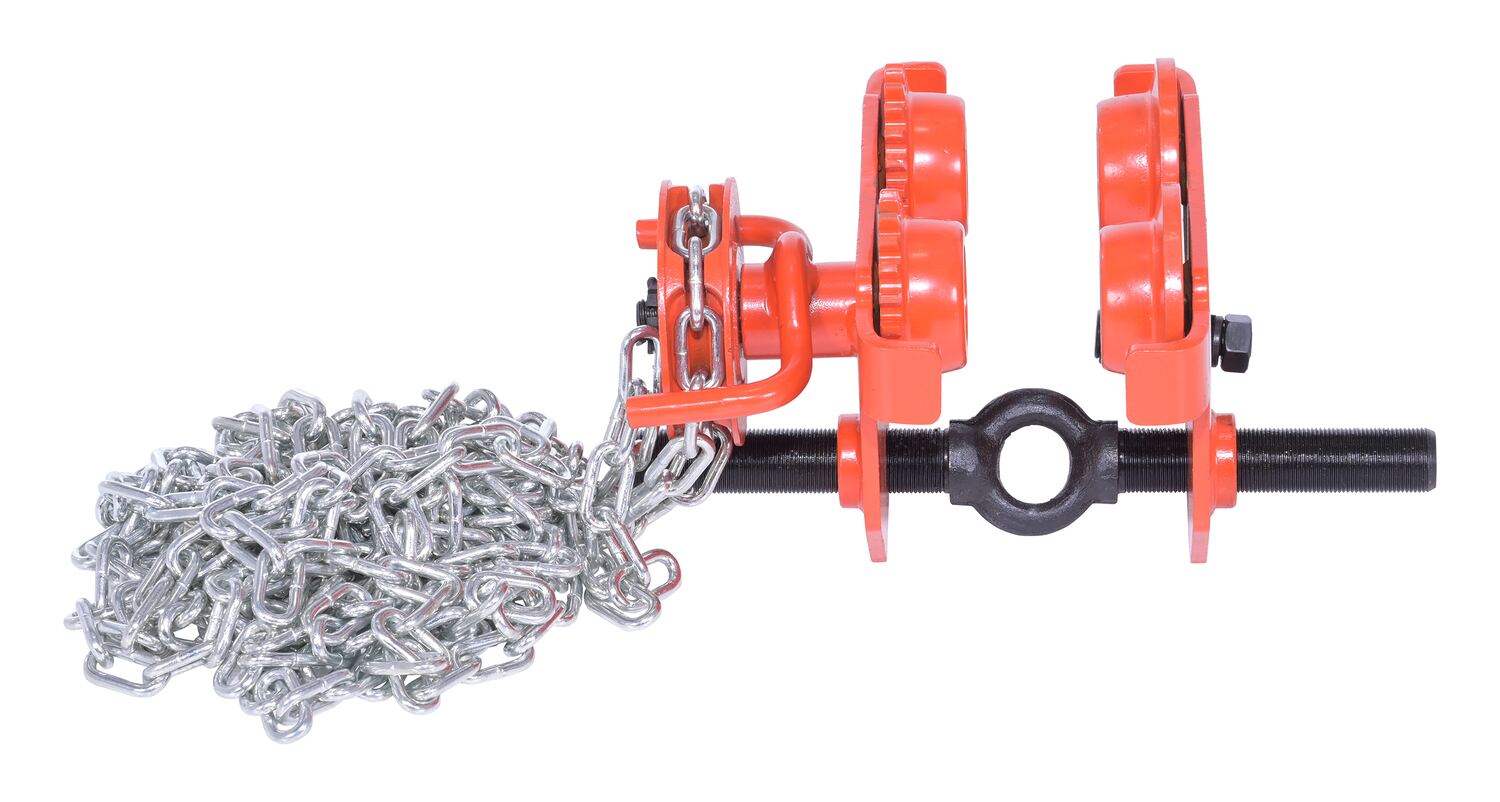

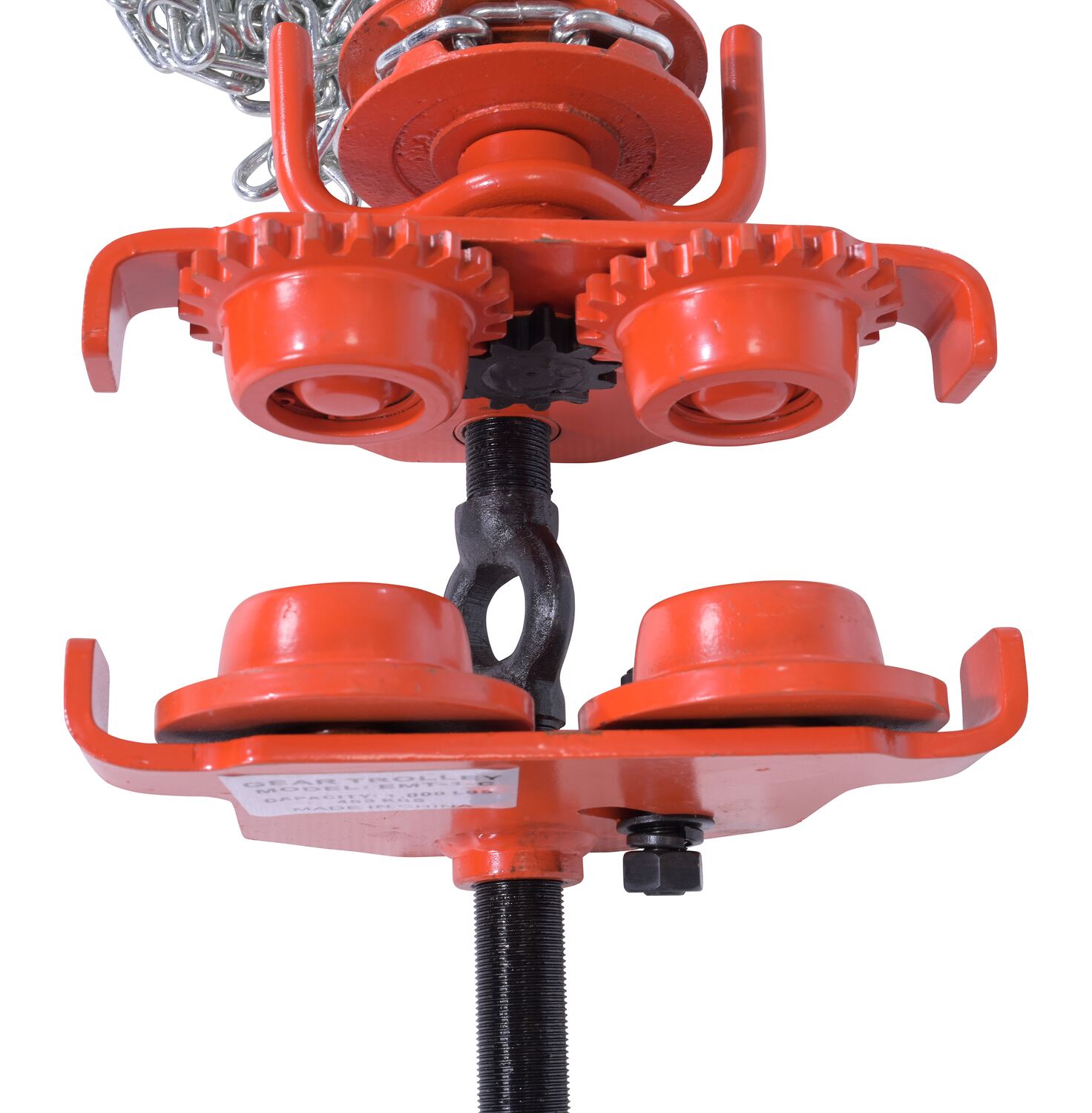

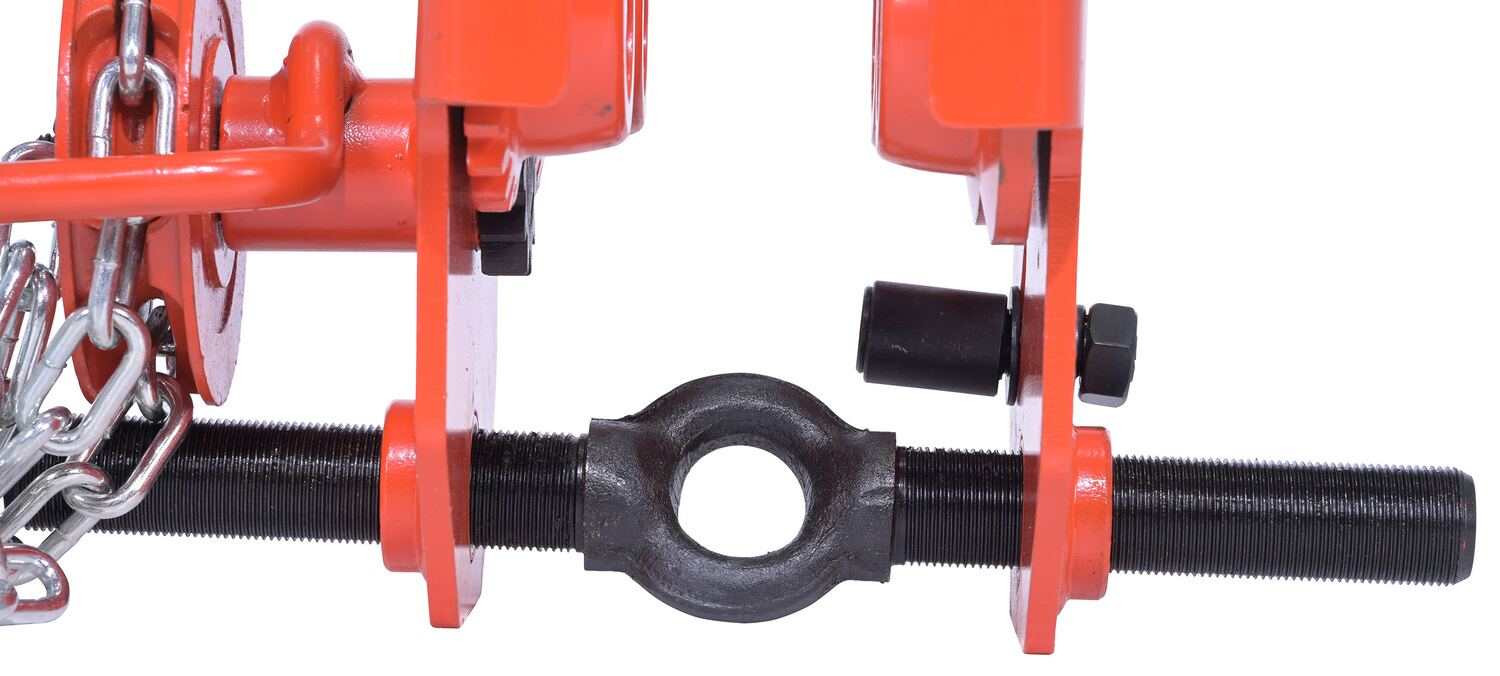

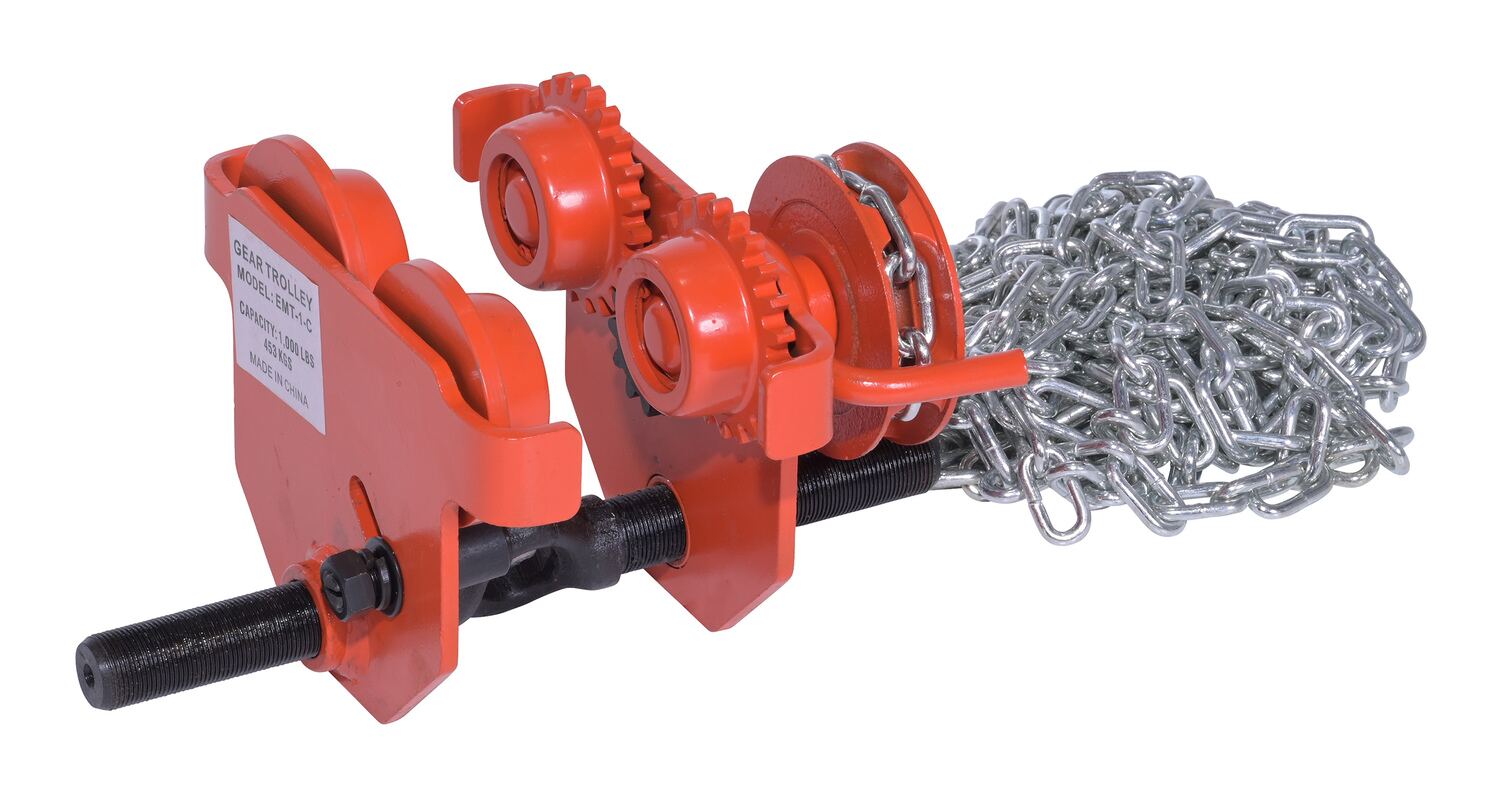

E-MT-1-C E-MT-1-C90 Days Limited WarrantySteel Geared Eye Manual Trolley 1000 Lb. Capacity OrangeUniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2-1/2 to 5-1/2		21
E-MT-10 E-MT-1090 Days Limited WarrantySteel Push Eye Manual Trolley 10000 Lb. Capacity OrangeUniform Capacity (lb.): 10,000
Fits Beam Flange Width (in.): 3 to 9		82
E-MT-10-C E-MT-10-C90 Days Limited WarrantySteel Geared Eye Manual Trolley 10000 Lb. Capacity OrangeUniform Capacity (lb.): 10,000
Fits Beam Flange Width (in.): 3 to 9		103

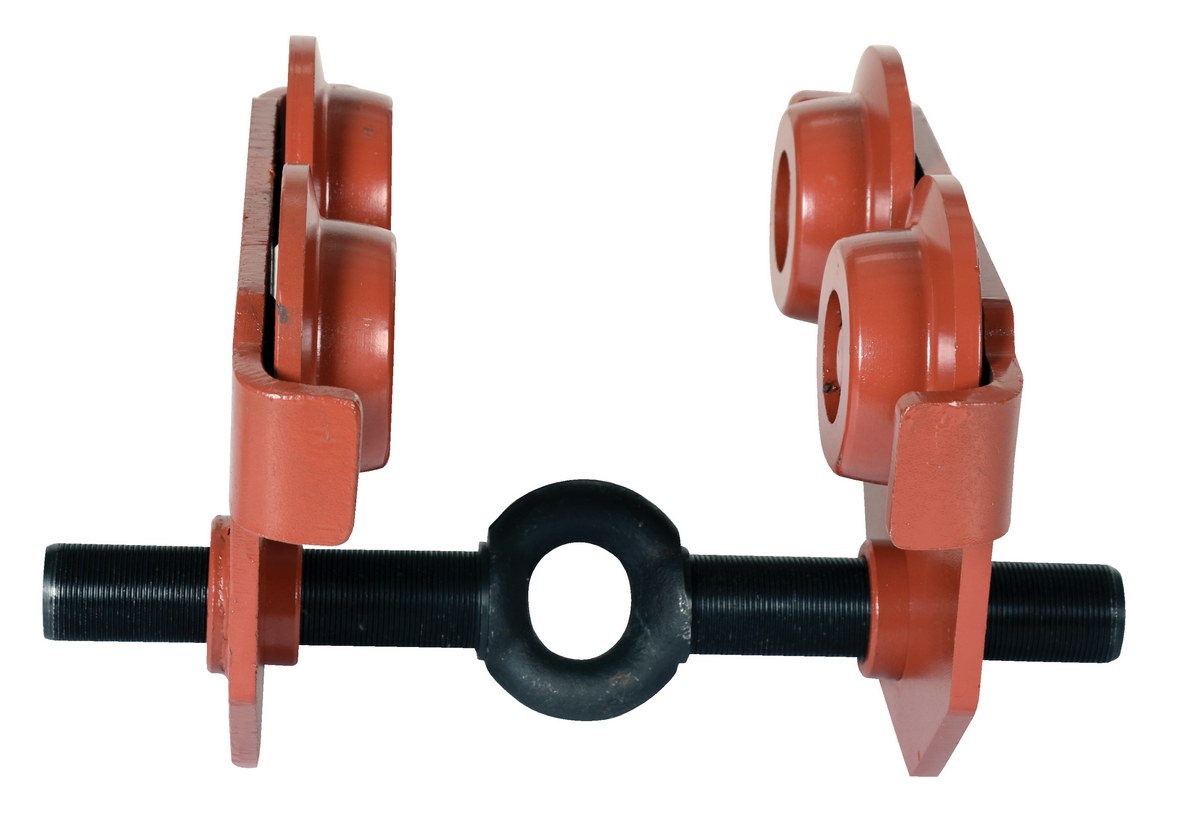

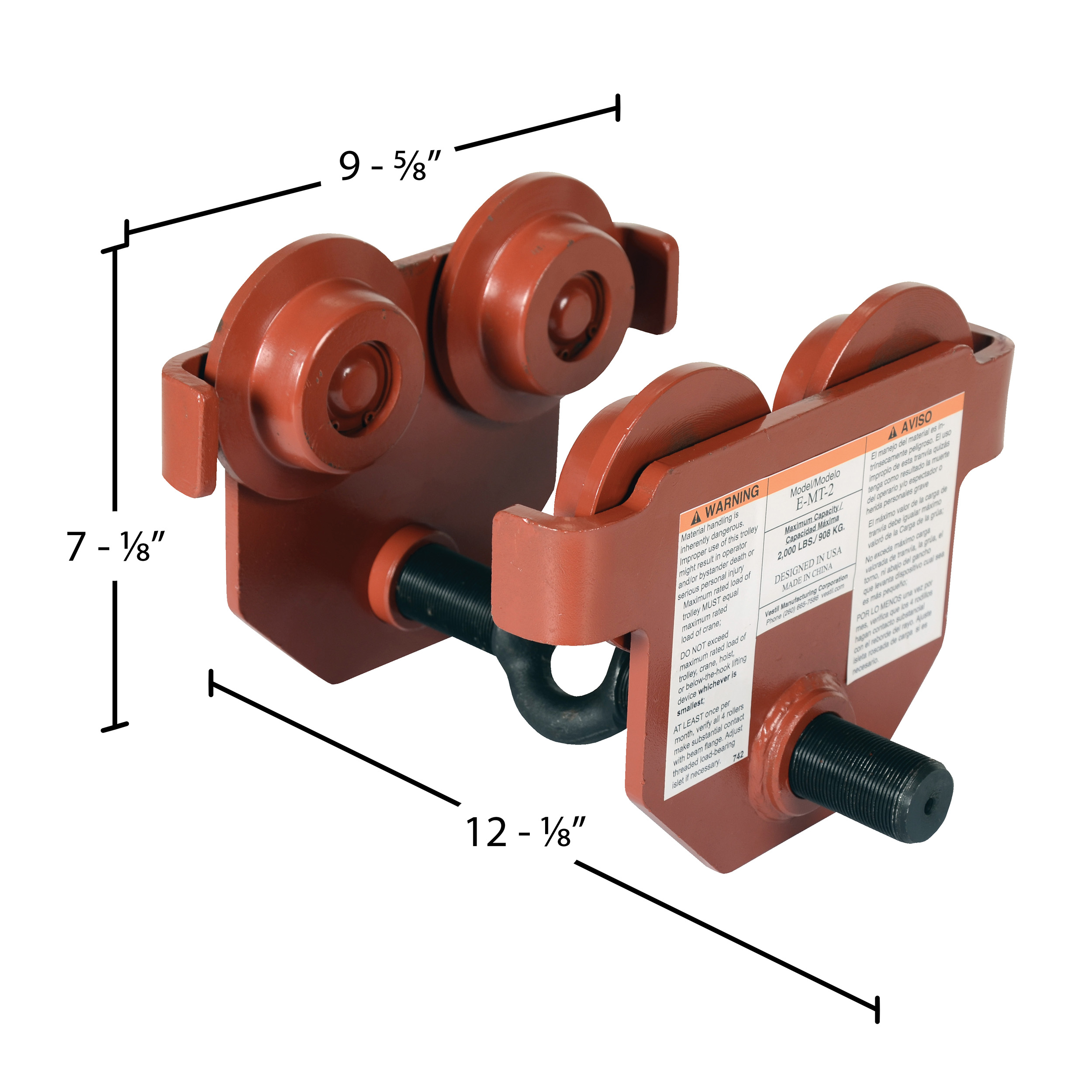

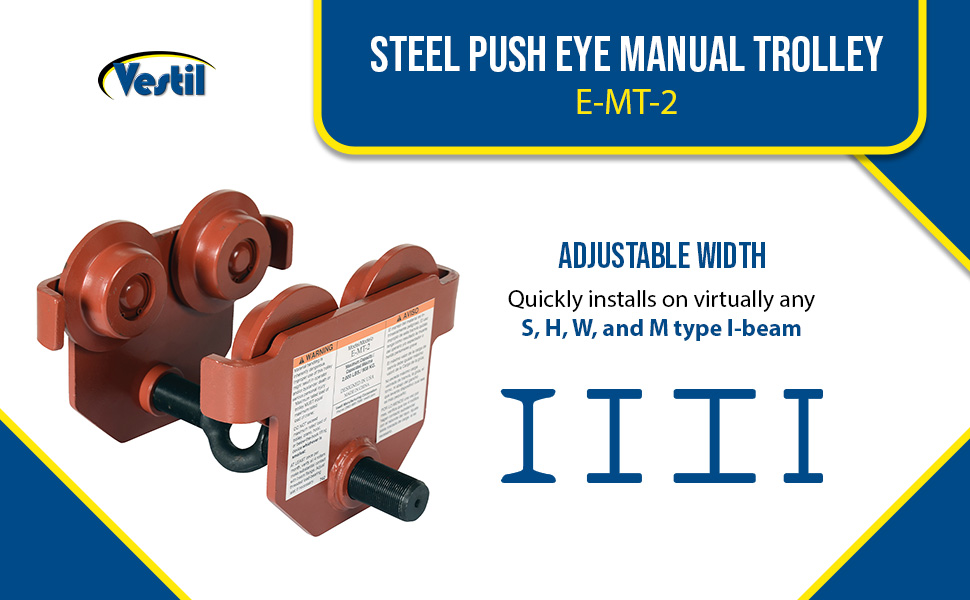

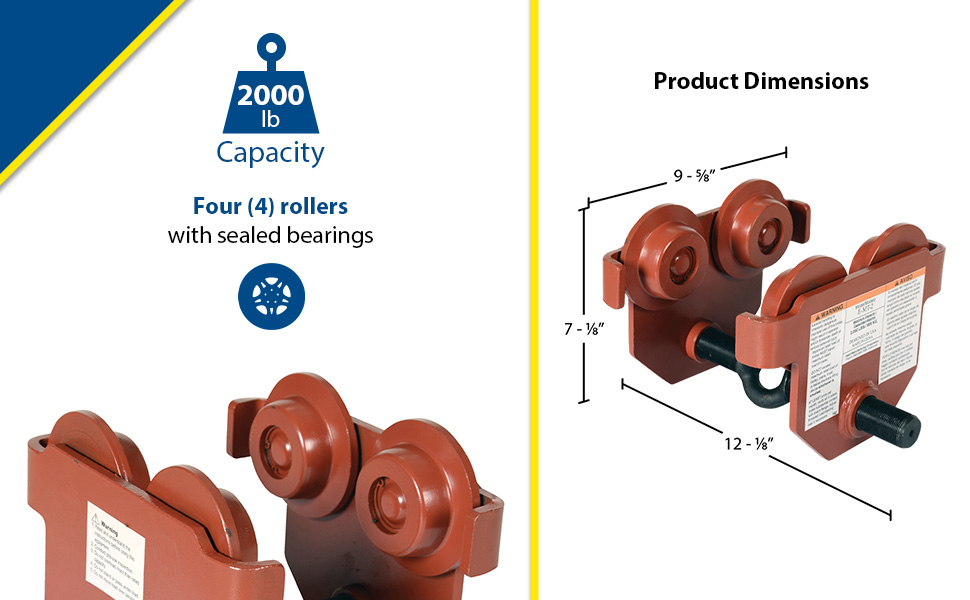

E-MT-2 E-MT-290 Days Limited WarrantySteel Push Eye Manual Trolley 2000 Lb. Capacity OrangeUniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 10-1/8		20
E-MT-2-C E-MT-2-C90 Days Limited WarrantySteel Geared Eye Manual Trolley 2000 Lb. Capacity OrangeUniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 5-1/2		29

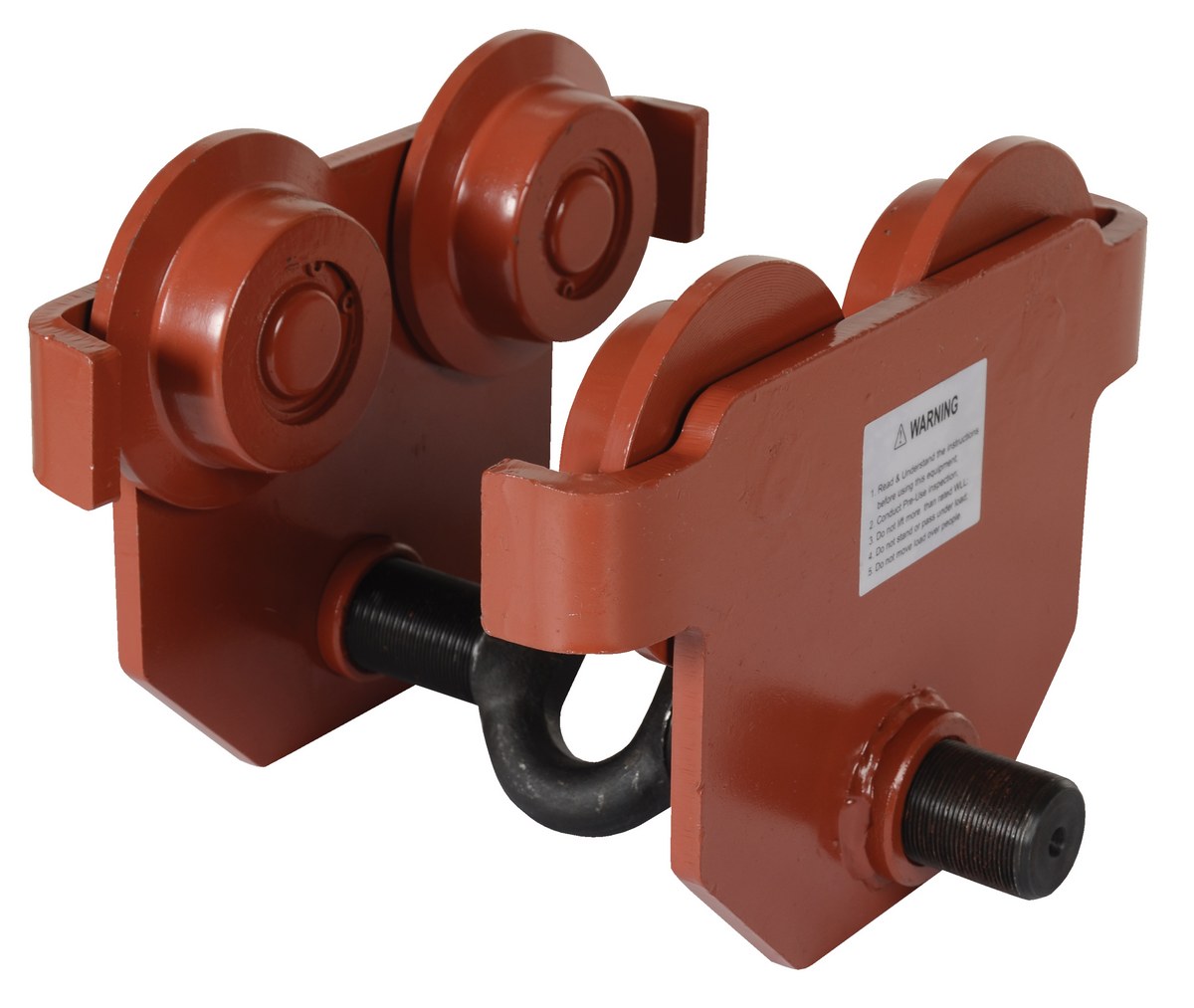

E-MT-4 E-MT-490 Days Limited WarrantySteel Push Eye Manual Trolley 4000 Lb. Capacity OrangeUniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 2-1/2 to 8-5/8		31

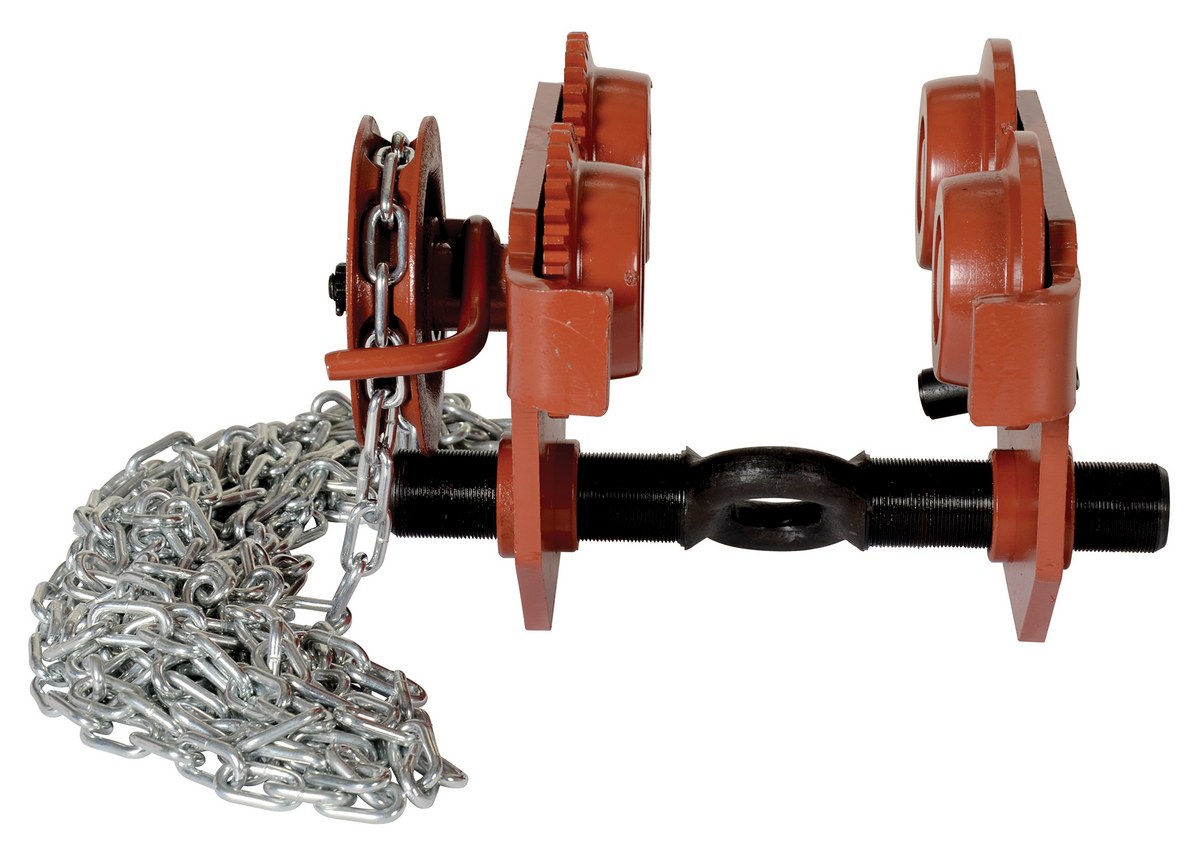

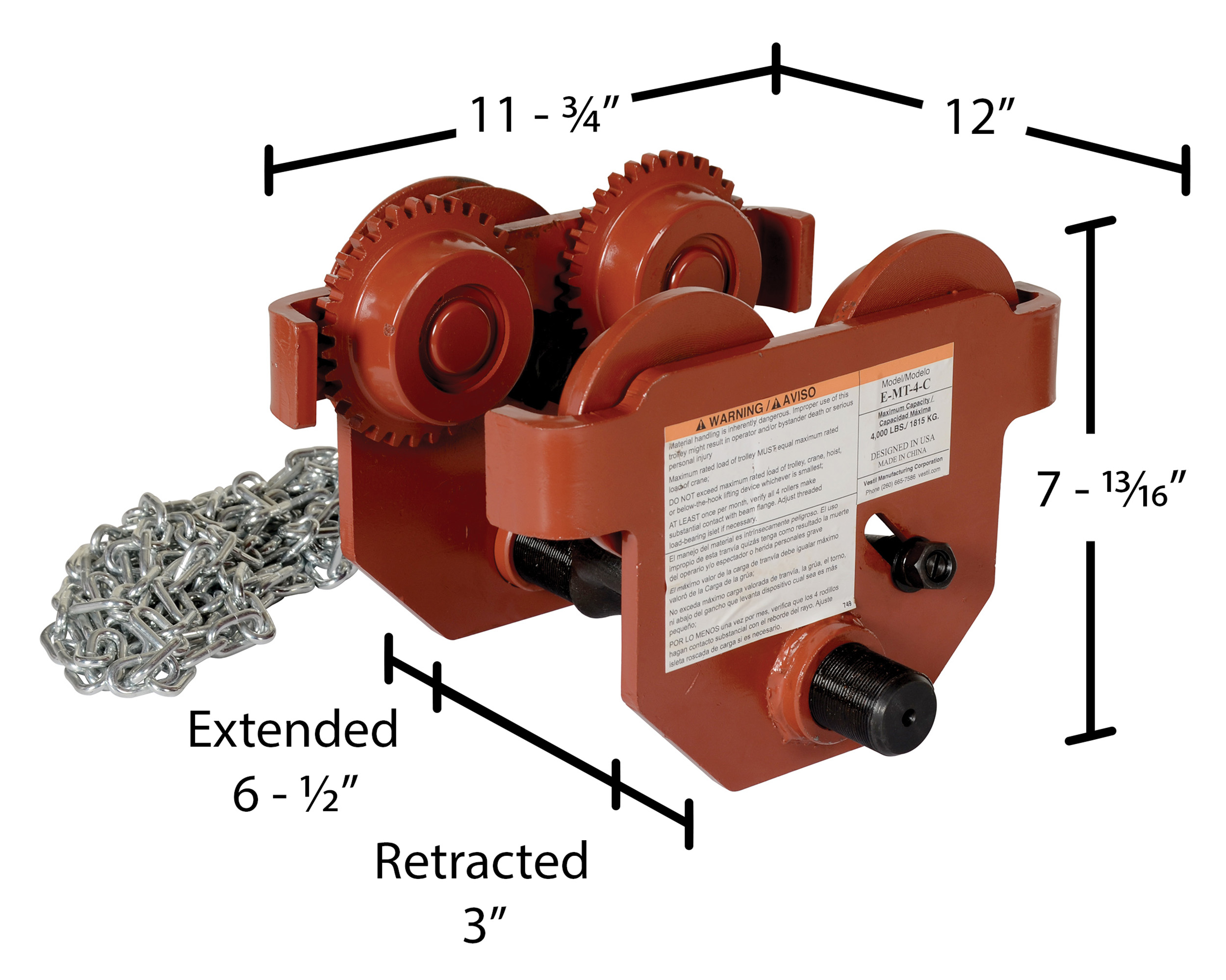

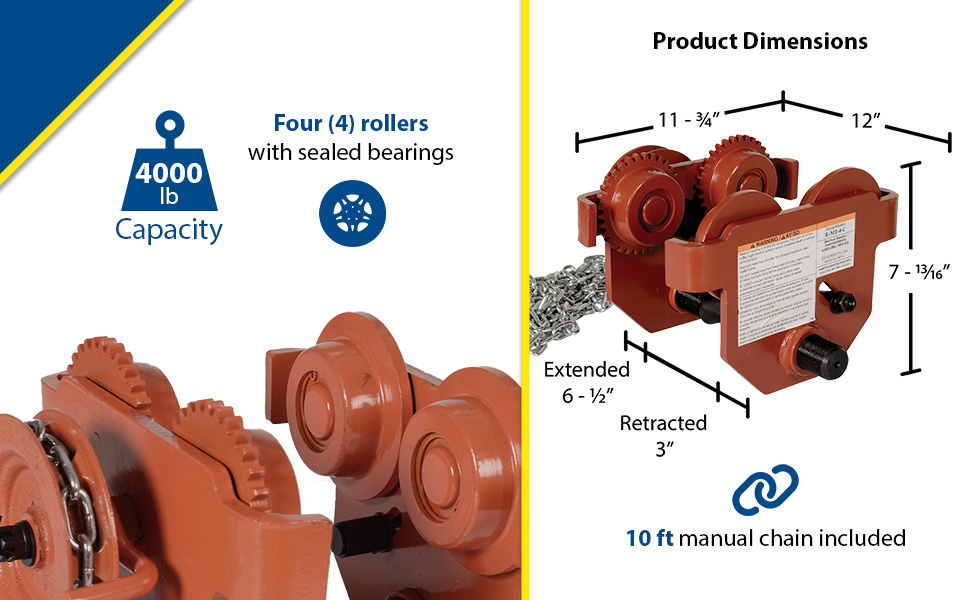

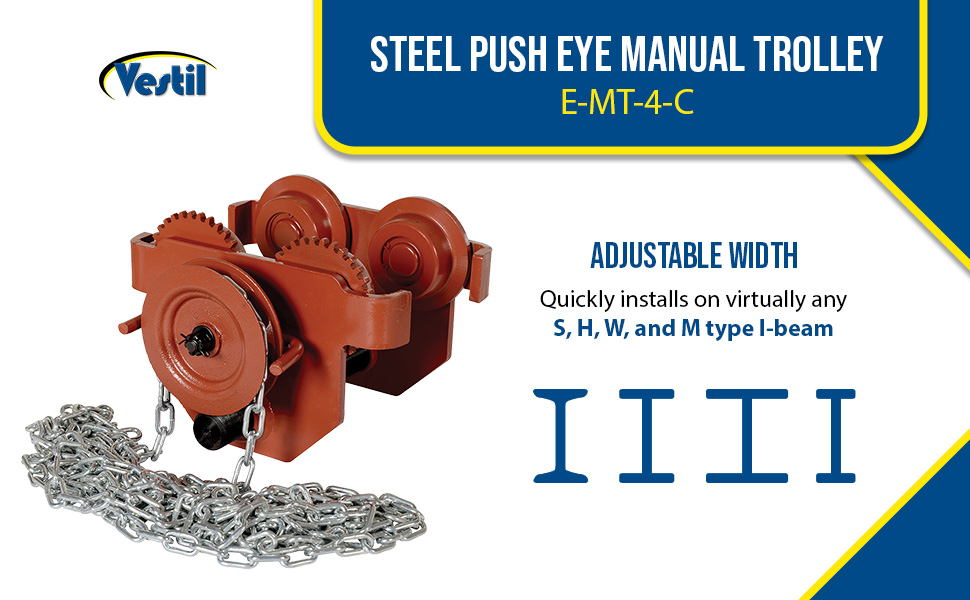

E-MT-4-C E-MT-4-C90 Days Limited WarrantySteel Geared Eye Manual Trolley 4000 Lb. Capacity OrangeUniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3 to 6-1/2		41

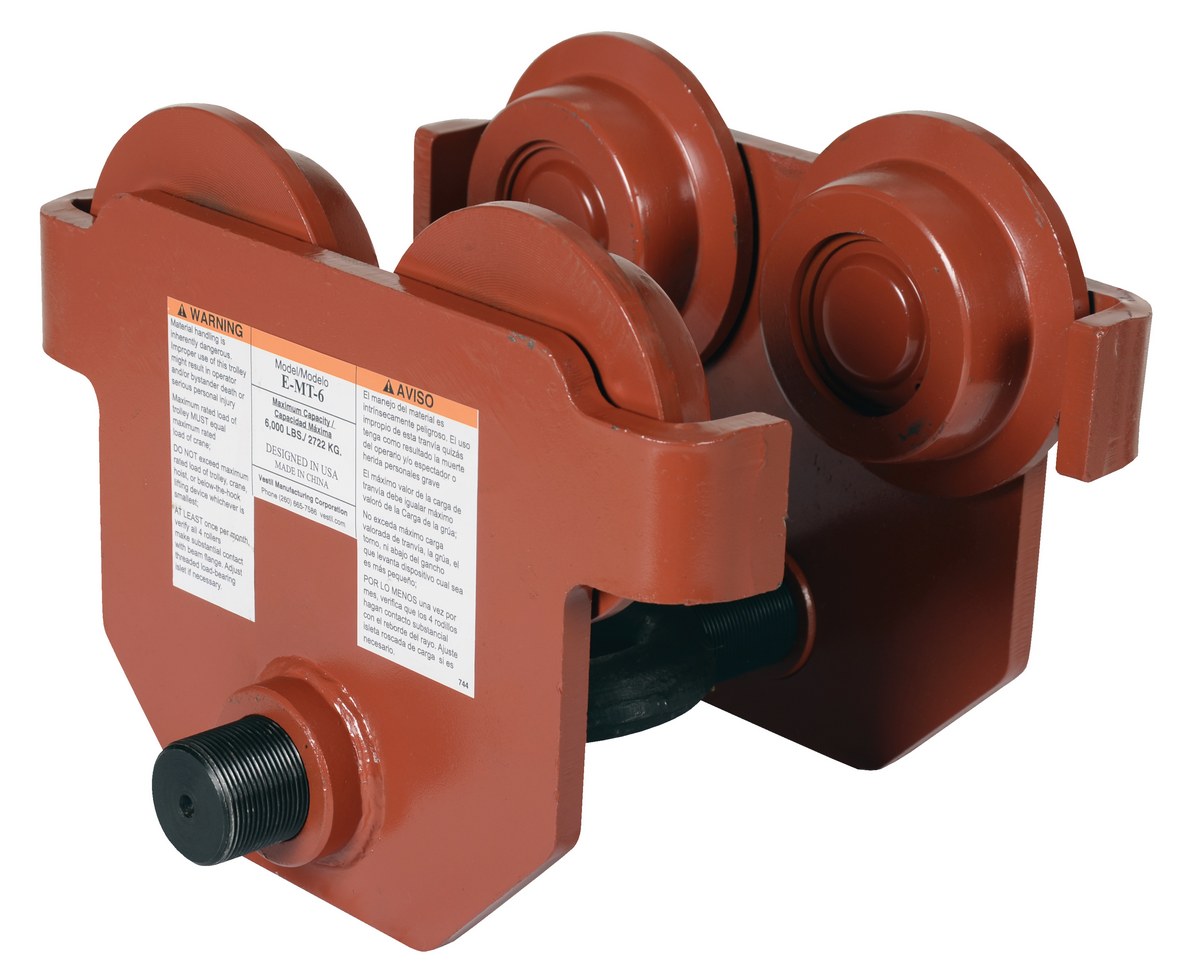

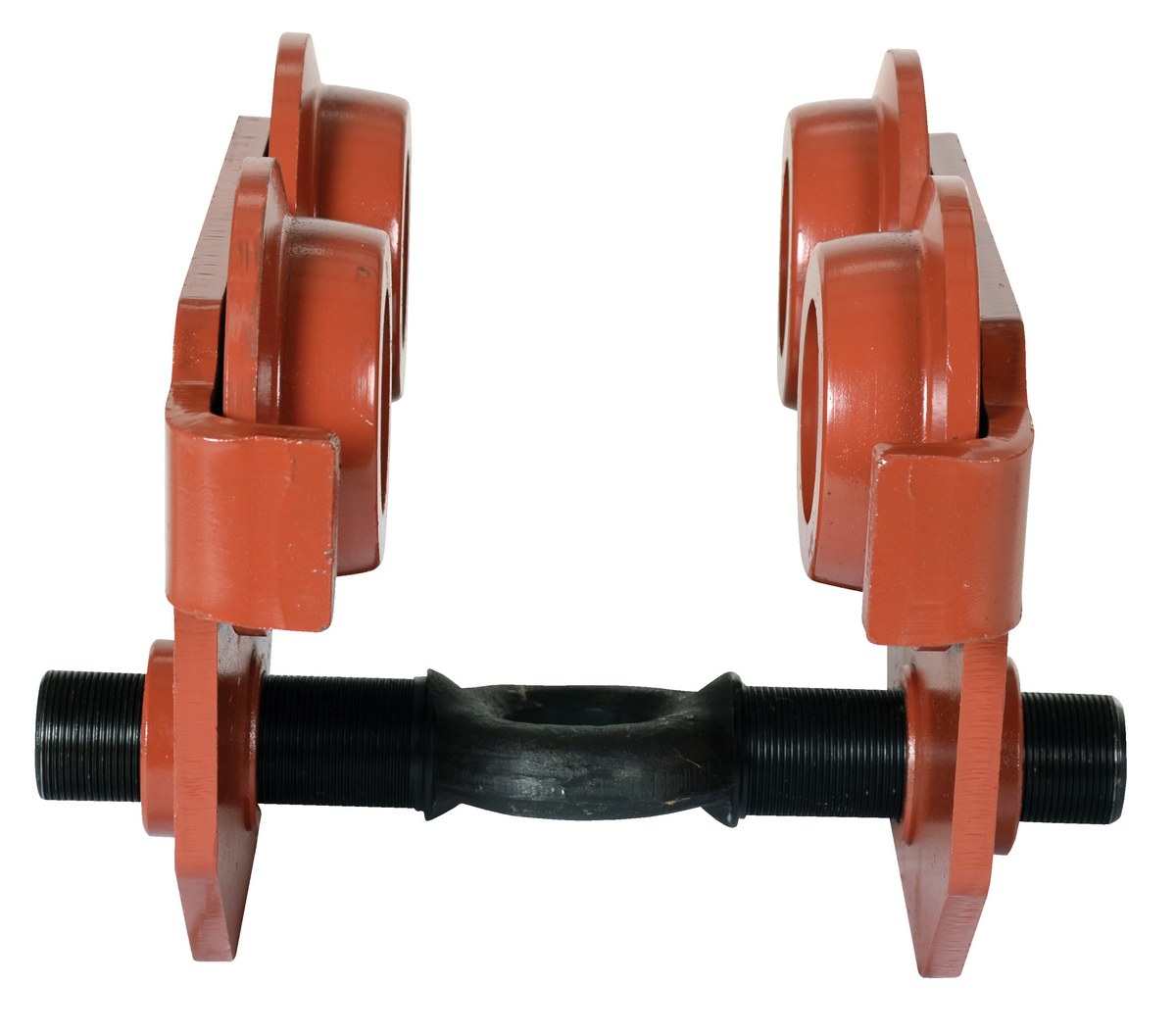

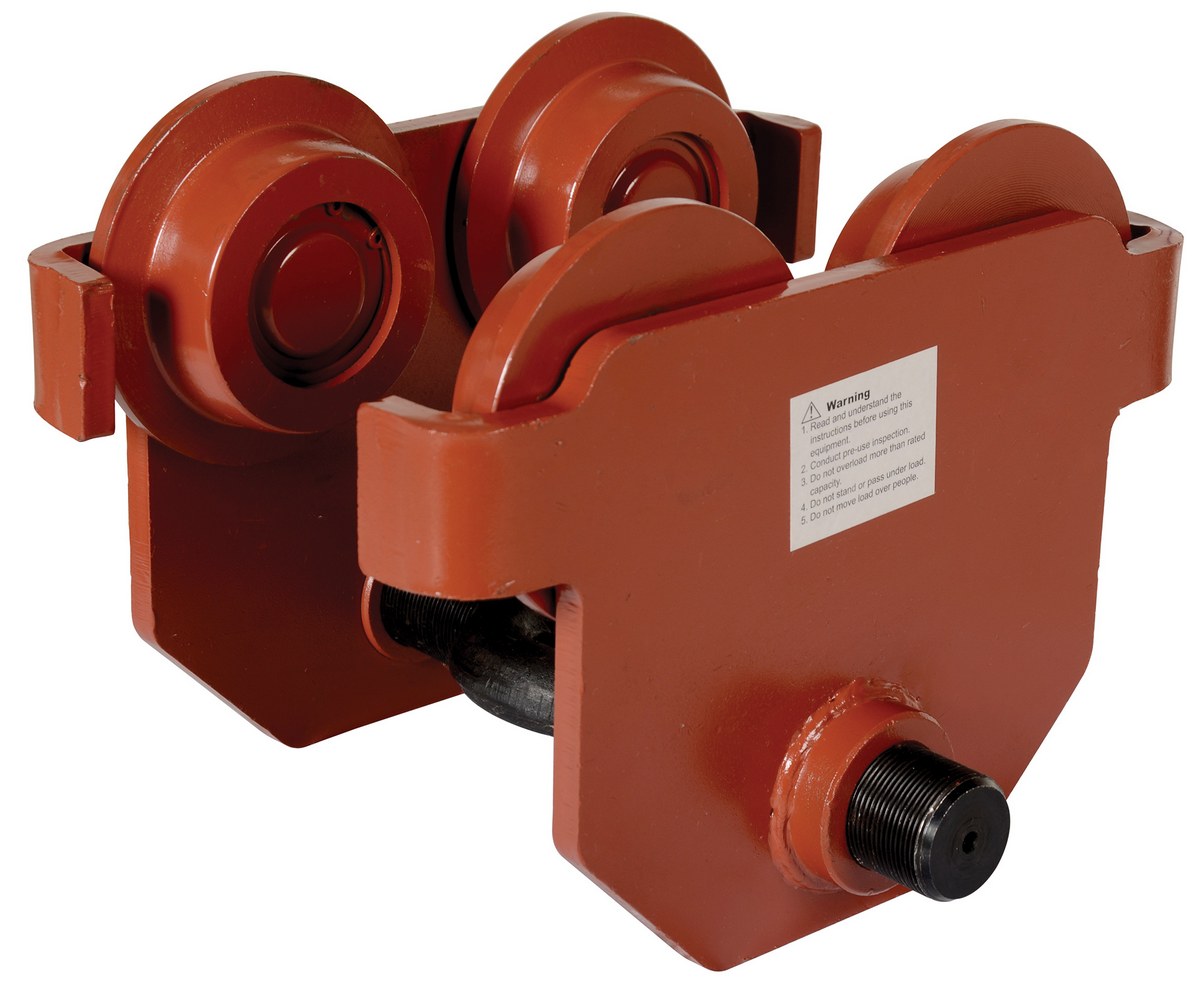

E-MT-6 E-MT-690 Days Limited WarrantySteel Push Eye Manual Trolley 6000 Lb. Capacity OrangeUniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3 to 8-5/8		52

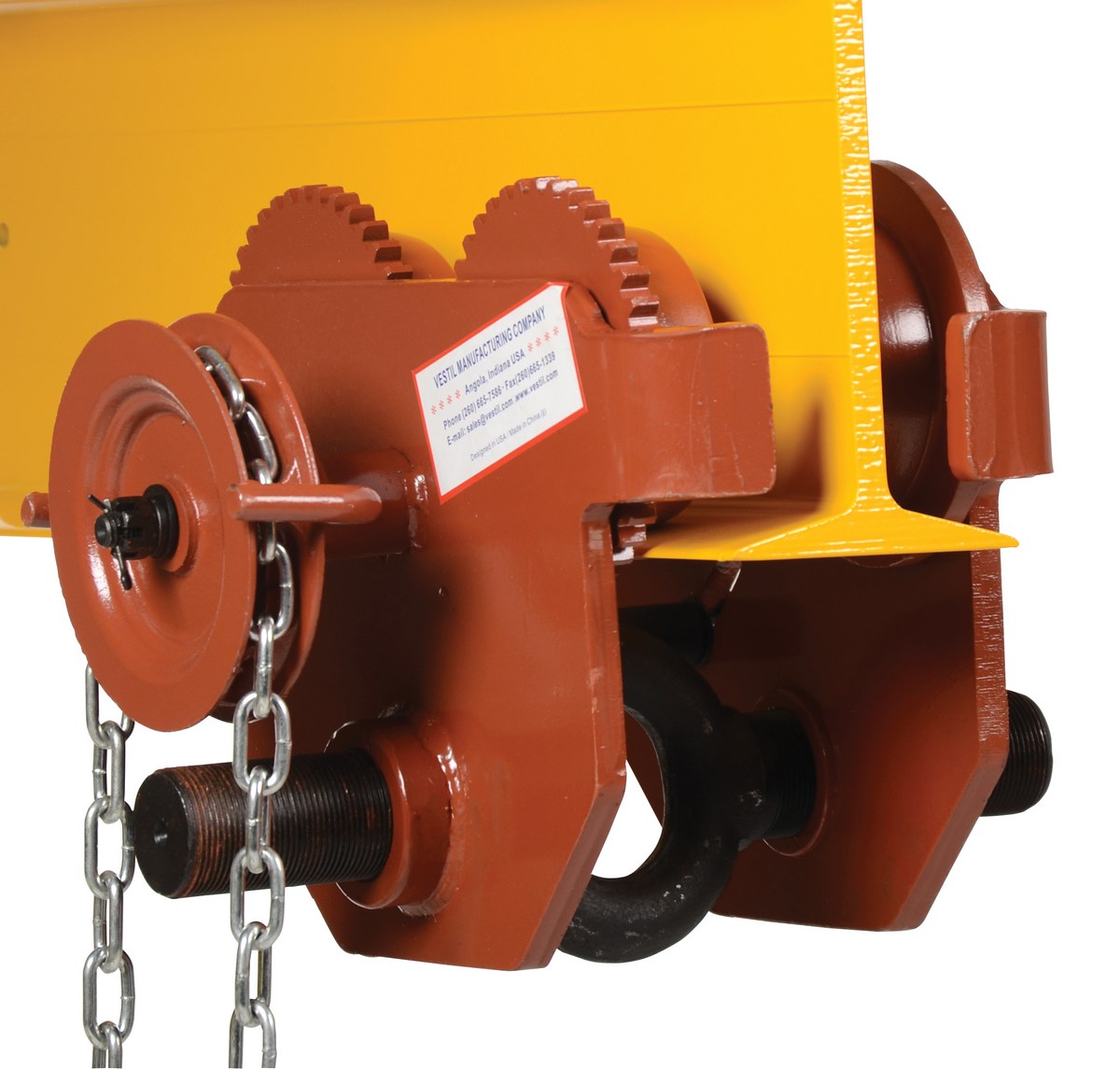

E-MT-6-C E-MT-6-C90 Days Limited WarrantySteel Geared Eye Manual Trolley 6000 Lb. Capacity OrangeUniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3 to 8		62

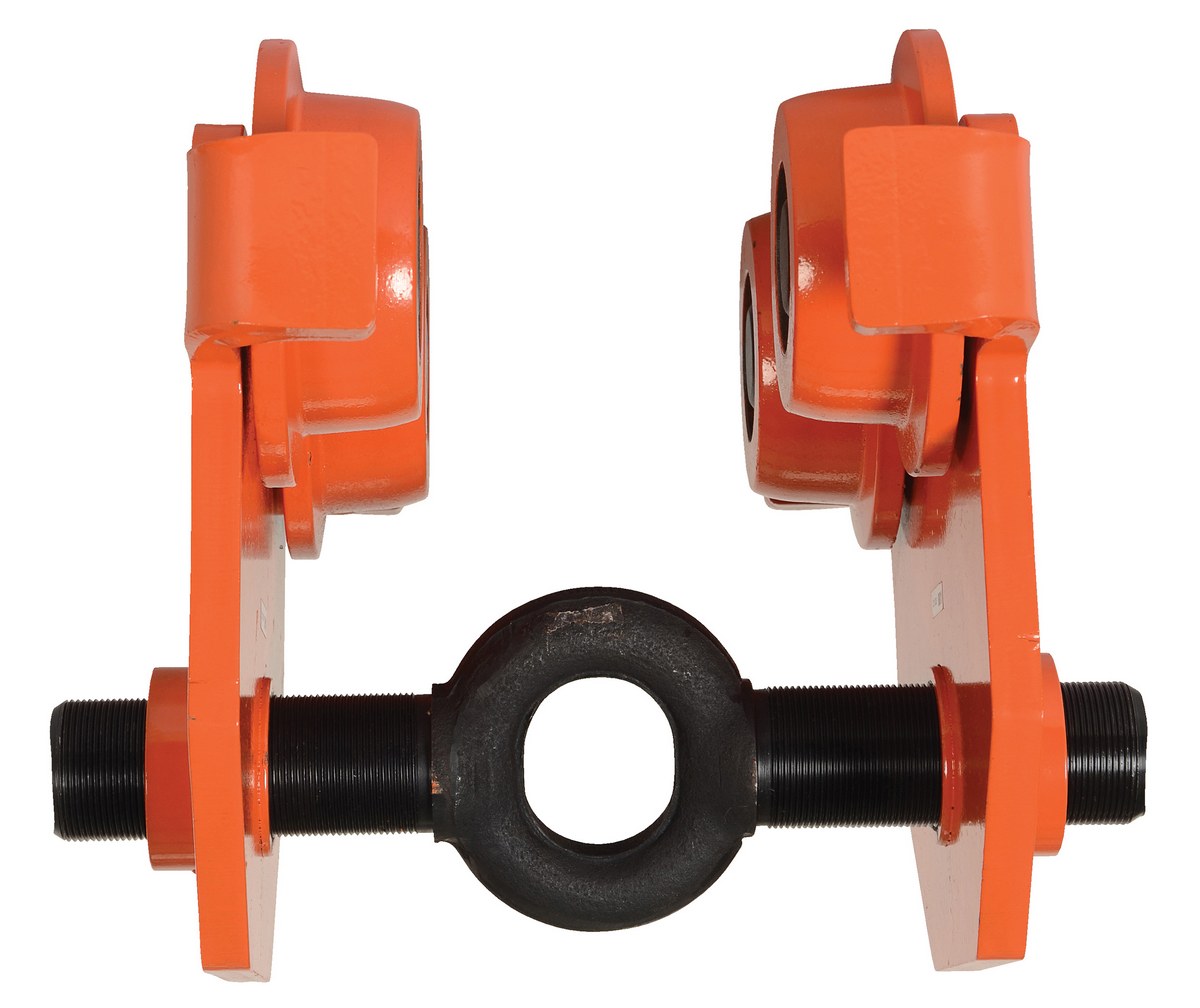

E-MT-8 E-MT-890 Days Limited WarrantySteel Push Eye Manual Trolley 8000 Lb. Capacity OrangeUniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 3 to 9		62
E-MT-8-C E-MT-8-C90 Days Limited WarrantySteel Geared Eye Manual Trolley 8000 Lb. Capacity OrangeUniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 3 to 9		100

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

E-MT-1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2 to 8-5/8
Uniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2 to 8-5/8

E-MT-1-C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2-1/2 to 5-1/2
Uniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2-1/2 to 5-1/2

E-MT-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Fits Beam Flange Width (in.): 3 to 9
Uniform Capacity (lb.): 10,000
Fits Beam Flange Width (in.): 3 to 9

E-MT-10-C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Fits Beam Flange Width (in.): 3 to 9
Uniform Capacity (lb.): 10,000
Fits Beam Flange Width (in.): 3 to 9

E-MT-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 10-1/8
Uniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 10-1/8

E-MT-2-C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 5-1/2
Uniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 5-1/2

E-MT-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 2-1/2 to 8-5/8
Uniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 2-1/2 to 8-5/8

E-MT-4-C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3 to 6-1/2
Uniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3 to 6-1/2

E-MT-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3 to 8-5/8
Uniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3 to 8-5/8

E-MT-6-C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3 to 8
Uniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3 to 8

E-MT-8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 3 to 9
Uniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 3 to 9

E-MT-8-C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 3 to 9
Uniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 3 to 9
Low Profile Manual Trollies PDF's will open in a new window when clicked.

Manuals


E-MT
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


E-MT-1

E-MT-1-C

E-MT-10

E-MT-10-C

E-MT-2

E-MT-2-C

E-MT-4

E-MT-4-C

E-MT-6

E-MT-6-C

E-MT-8

E-MT-8-C

Testing Certificates


E-MT-1

E-MT-1-C

E-MT-10

E-MT-10-C

E-MT-2

E-MT-2-C

E-MT-4

E-MT-4-C

E-MT-6

E-MT-6-C

E-MT-8

E-MT-8-C

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Related or Similar Products:

Beam Clamps
Product

Beam Clamps

Quick Install Manual Trollies
Product

Quick Install Manual Trollies

Low Headroom Combination Chain Hoist/Trolley
Product

Low Headroom Combination Chain Hoist/Trolley

Compact & Lightweight Lever Hoist (disc brake)
Product

Compact & Lightweight Lever Hoist (disc brake)

Professional Lever Hoists (disc brake)
Product

Professional Lever Hoists (disc brake)

Mighty Mini Lever Hoists (disc brake)
Product

Mighty Mini Lever Hoists (disc brake)

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Low Profile Manual Trollies




These trollies have been designed to quickly install on virtually any S, H,W, and M type I-beam. The width of the trolley is adjusted by rotating the center rod with lifting eye clockwise or counterclockwise. Once hoist (not included) is attached, center rod cannot be rotated which prevents trolley width from accidentally changing. Choose either push trolley or geared trolley. Geared trolley is ideal for use when precise positioning of the trolley is required. The trolley includes four rollers with sealed bearings for long life. A lifting eye is located at the bottom of the trolley for attaching a hoist (not included). Steel construction and painted finish. Headroom is measured from the bottom of wheel to bottom of hooking eye.

  • Special design works with S, H, W and M type I-beams
  • Turning center screw with eye easily adjusts trolley width
  • Solid steel construction provides long lasting rugged use
  • Sealed bearings provide long life

Model # Description Attributes Net Wt.
(lbs)
E-MT-1 E-MT-1Steel Push Eye Manual Trolley 1000 Lb. Capacity OrangeUniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2 to 8-5/8		12
E-MT-1-C E-MT-1-CSteel Geared Eye Manual Trolley 1000 Lb. Capacity OrangeUniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2-1/2 to 5-1/2		21
E-MT-10 E-MT-10Steel Push Eye Manual Trolley 10000 Lb. Capacity OrangeUniform Capacity (lb.): 10,000
Fits Beam Flange Width (in.): 3 to 9		82
E-MT-10-C E-MT-10-CSteel Geared Eye Manual Trolley 10000 Lb. Capacity OrangeUniform Capacity (lb.): 10,000
Fits Beam Flange Width (in.): 3 to 9		103
E-MT-2 E-MT-2Steel Push Eye Manual Trolley 2000 Lb. Capacity OrangeUniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 10-1/8		20
E-MT-2-C E-MT-2-CSteel Geared Eye Manual Trolley 2000 Lb. Capacity OrangeUniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 5-1/2		29
E-MT-4 E-MT-4Steel Push Eye Manual Trolley 4000 Lb. Capacity OrangeUniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 2-1/2 to 8-5/8		31
E-MT-4-C E-MT-4-CSteel Geared Eye Manual Trolley 4000 Lb. Capacity OrangeUniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3 to 6-1/2		41
E-MT-6 E-MT-6Steel Push Eye Manual Trolley 6000 Lb. Capacity OrangeUniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3 to 8-5/8		52
E-MT-6-C E-MT-6-CSteel Geared Eye Manual Trolley 6000 Lb. Capacity OrangeUniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3 to 8		62
E-MT-8 E-MT-8Steel Push Eye Manual Trolley 8000 Lb. Capacity OrangeUniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 3 to 9		62
E-MT-8-C E-MT-8-CSteel Geared Eye Manual Trolley 8000 Lb. Capacity OrangeUniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 3 to 9		100
