Product Family Overview


Powered Stretch Wrap Machines
SERIES: SWA

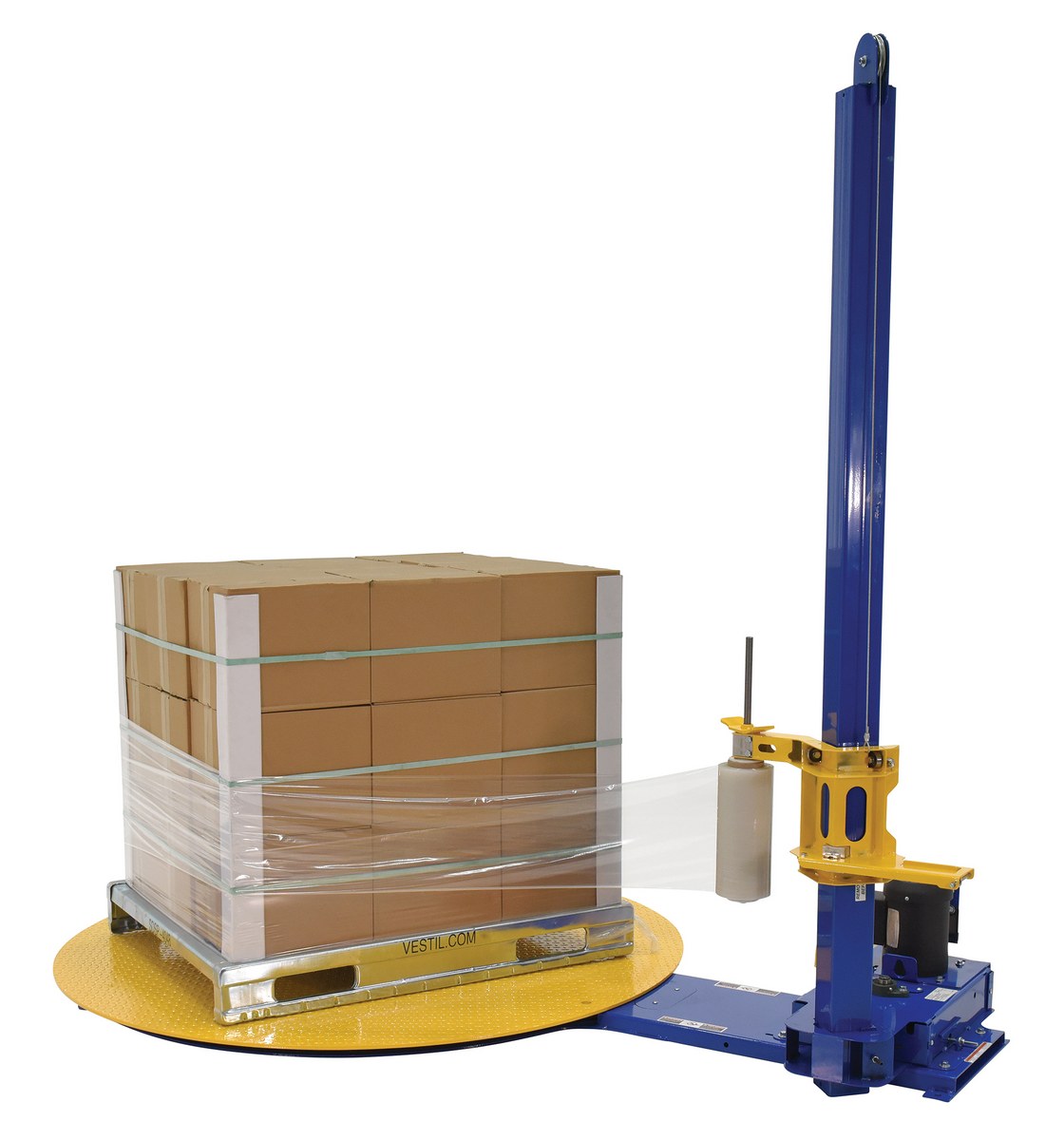

The Powered Stretch Wrap Machine increases productivity in the shipping department or at the end of a production line. This unit is complete with a powered turntable (RPM is variable from 3 to 12) and counter-balanced stretch film mast. This Stretch Wrap Machine is easy to operate, simply depress the foot pedal and manually move the mast up and down. The film-wrap tension is controlled with an adjustable, friction-brake assembly. Film placement is controlled manually by moving the carriage assembly up and down on the vertical mast. An easy-to-release, hand operated carriage-brake allows the carriage to move freely making film application fast and easy. The system will accept 10 (in.) to 20 (in.) material. The unit ships with mast disconnected-simply raise mast and clamp into place.

The standard manual film wrap delivery can be upgraded to 115V 1-phase AC powered mast option (PMO). The hand held control is used to raise/lower the film while the foot control is used to operate the turntable. Optional Approach Ramp allows the operator to load and unload the machine with a pallet truck.

  • Stretch wrap design increases shipping productivity
  • Simple depress foot pedal powers turntable
  • Manual mast allows user to wrap the needed areas
  • Steel construction provides a long lasting rugged use

The Powered Stretch Wrap Machine increases productivity in the shipping department or at the end of a production line. This unit is complete with a powered turntable (RPM is variable from 3 to 12) and counter-balanced stretch film mast. This Stretch Wrap Machine is easy to operate, simply depress the foot pedal and manually move the mast up and down. The film-wrap tension is controlled with an adjustable, friction-brake assembly. Film placement is controlled manually by moving the carriage assembly up and down on the vertical mast. An easy-to-release, hand operated carriage-brake allows the carriage to move freely making film application fast and easy. The system will accept 10 (in.) to 20 (in.) material. The unit ships with mast disconnected-simply raise mast and clamp into place.

The standard manual film wrap delivery can be upgraded to 115V 1-phase AC powered mast option (PMO). The hand held control is used to raise/lower the film while the foot control is used to operate the turntable. Optional Approach Ramp allows the operator to load and unload the machine with a pallet truck.

  • Stretch wrap design increases shipping productivity
  • Simple depress foot pedal powers turntable
  • Manual mast allows user to wrap the needed areas
  • Steel construction provides a long lasting rugged use

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

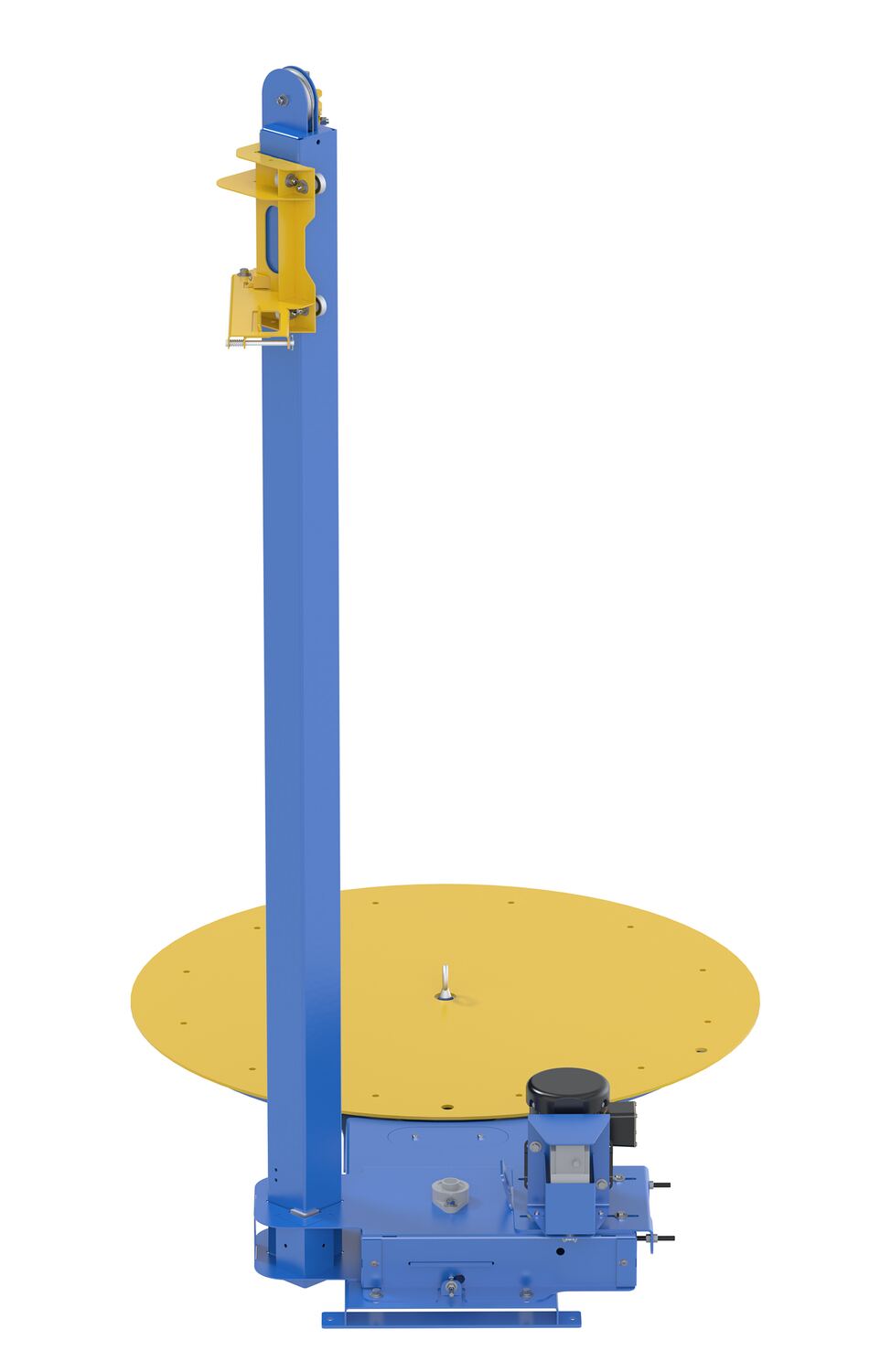

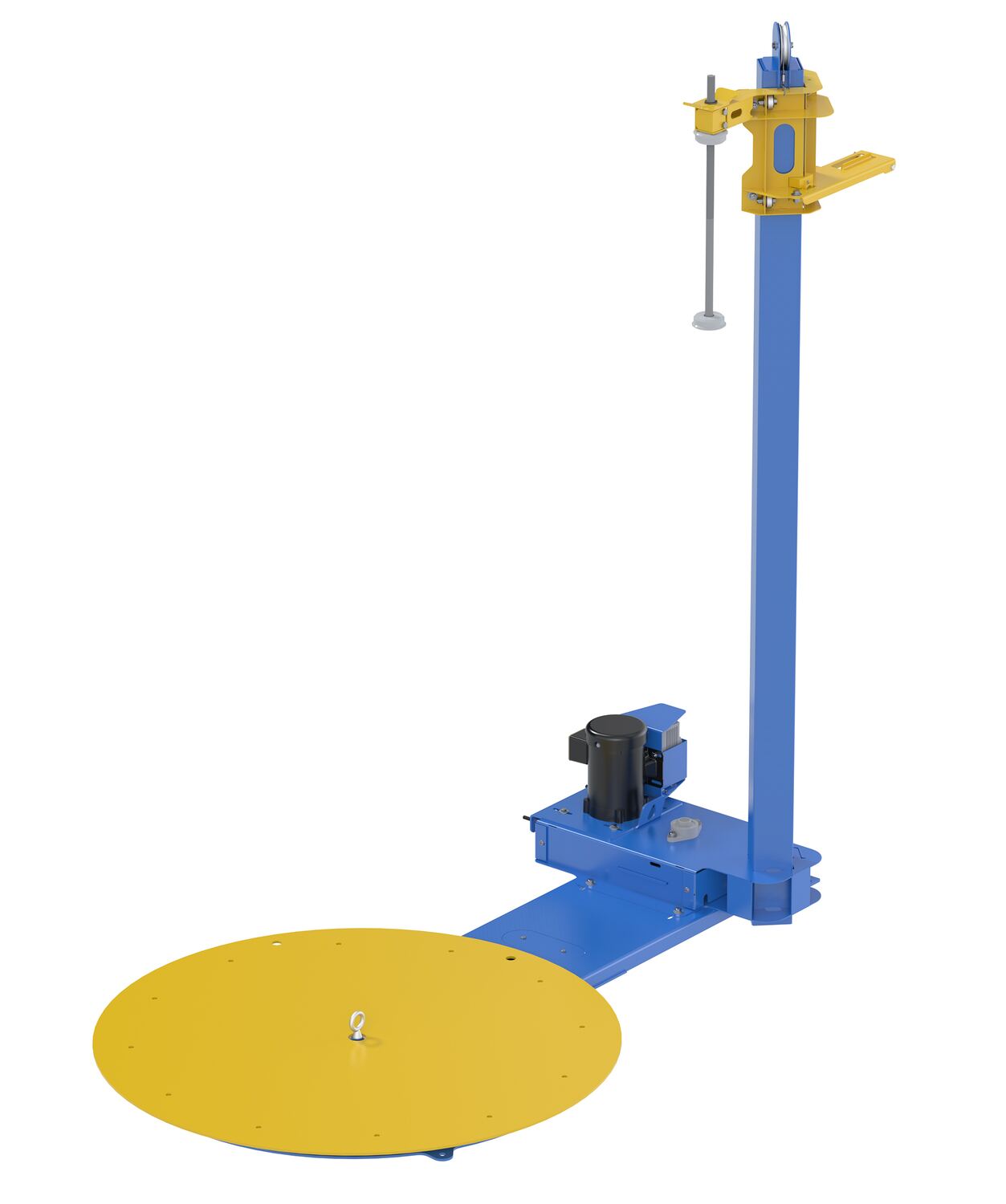

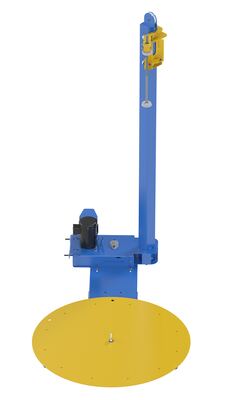

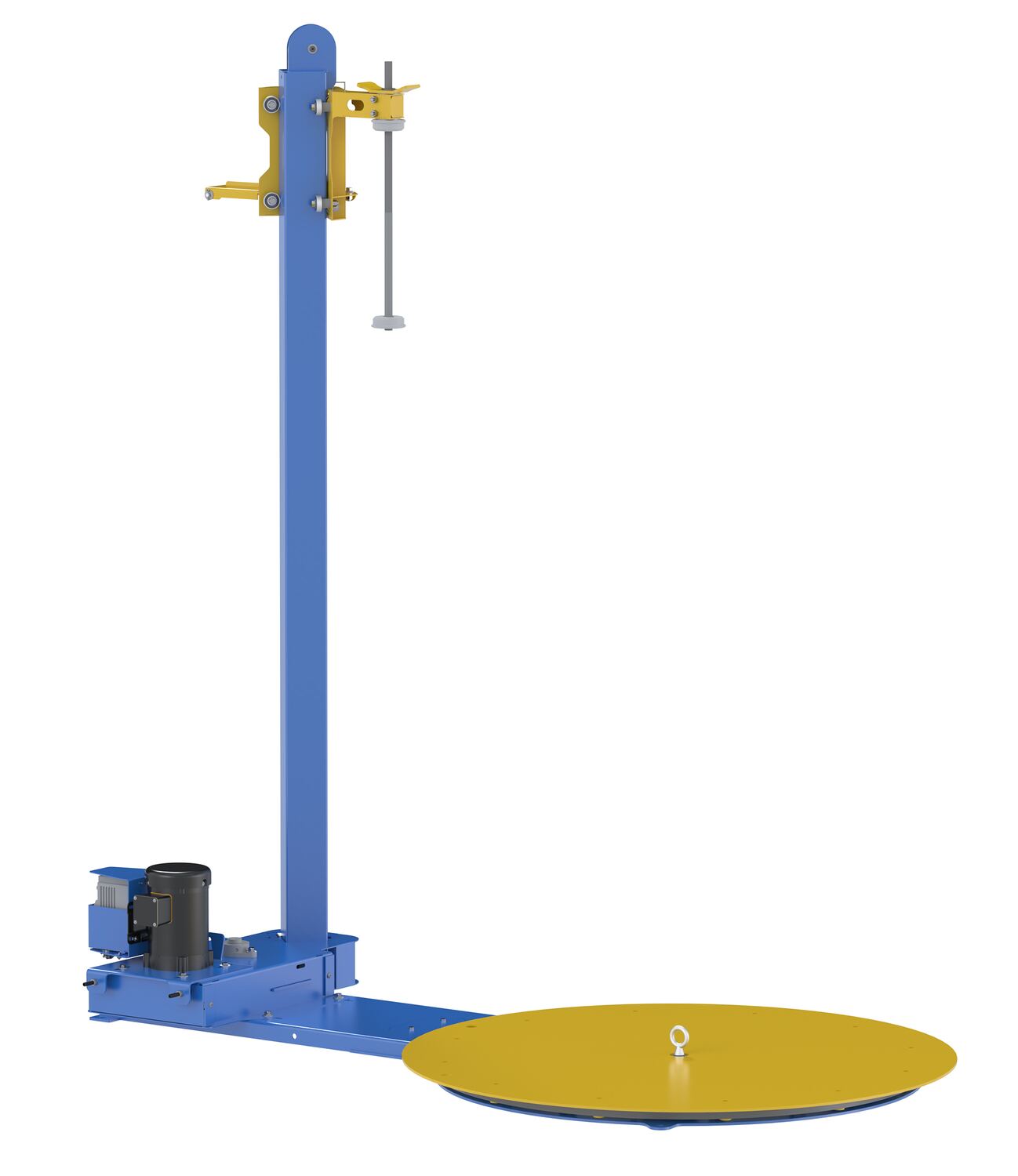

SWA-50 SWA-501 Year Limited WarrantySteel Semi-Automatic Stretch Wrap Machine 50 In. Turntable Diameter 4,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 4,000
Turntable Diameter (in.): 50
615

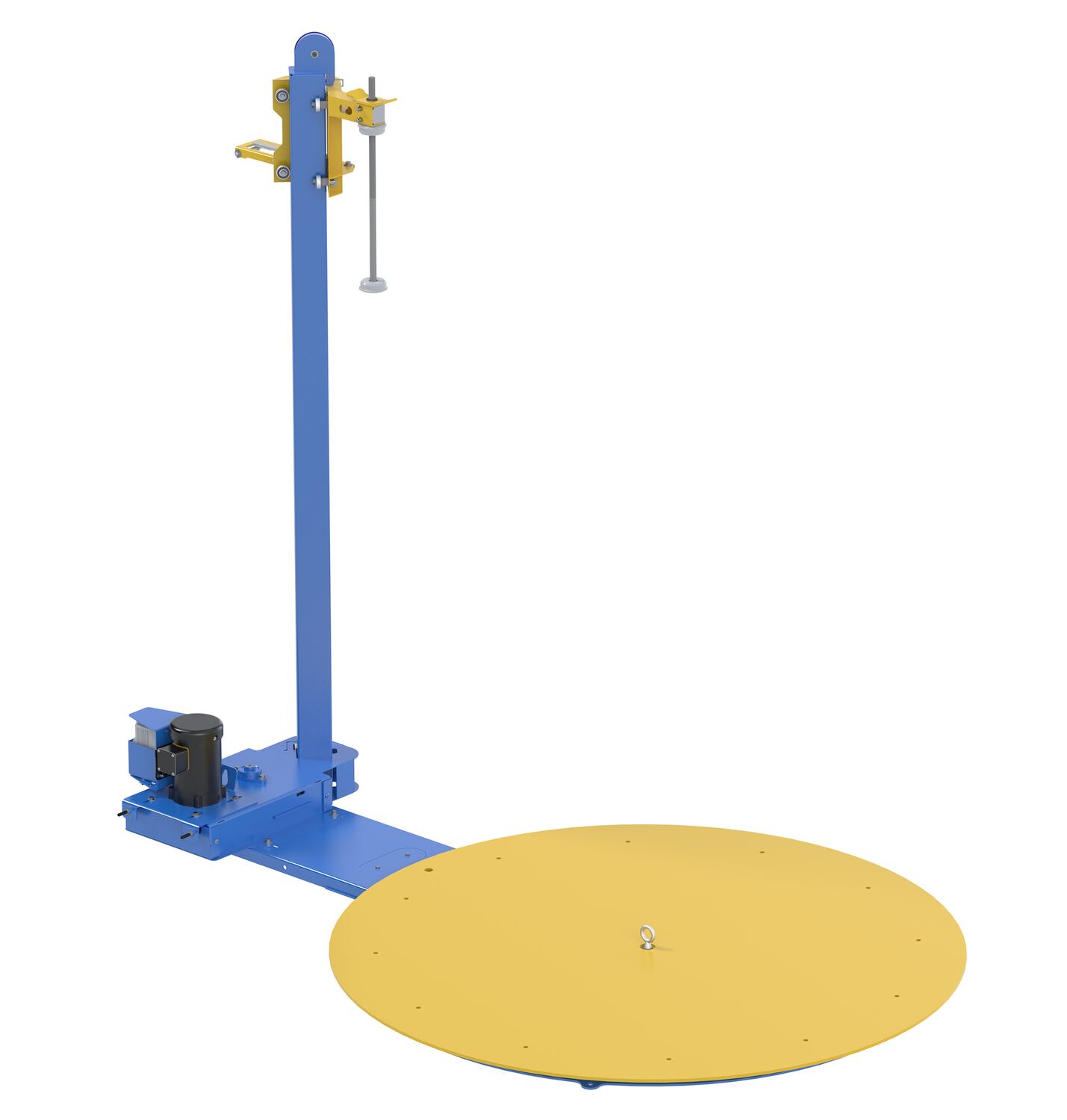

SWA-70 SWA-701 Year Limited WarrantySteel Semi-Automatic Stretch Wrap Machine 70 In. Turntable Diameter 4,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 4,000
Turntable Diameter (in.): 70
985

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

SWA-50
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Turntable Diameter (in.): 50
Uniform Capacity (lb.): 4,000
Turntable Diameter (in.): 50

SWA-70
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Turntable Diameter (in.): 70
Uniform Capacity (lb.): 4,000
Turntable Diameter (in.): 70
For More Details of the Option Click the Red Model Button
PMO-VCC-208/230-1 90 Days Limited WarrantyFactory Installed Voltage Change 208-230 Volt Single Phase For Power Mast UnitsDC Voltage: 208/230
Phase: 1
PMO-VCC-208/230-3 90 Days Limited WarrantyFactory Installed Voltage Change 208-230 Volt Three Phase For Power Mast UnitsDC Voltage: 208/230
Phase: 3
PMO-VCC-460-3 90 Days Limited WarrantyFactory Installed Voltage Change 460 Volt Three Phase For Power Mast UnitsDC Voltage: 460
Phase: 3

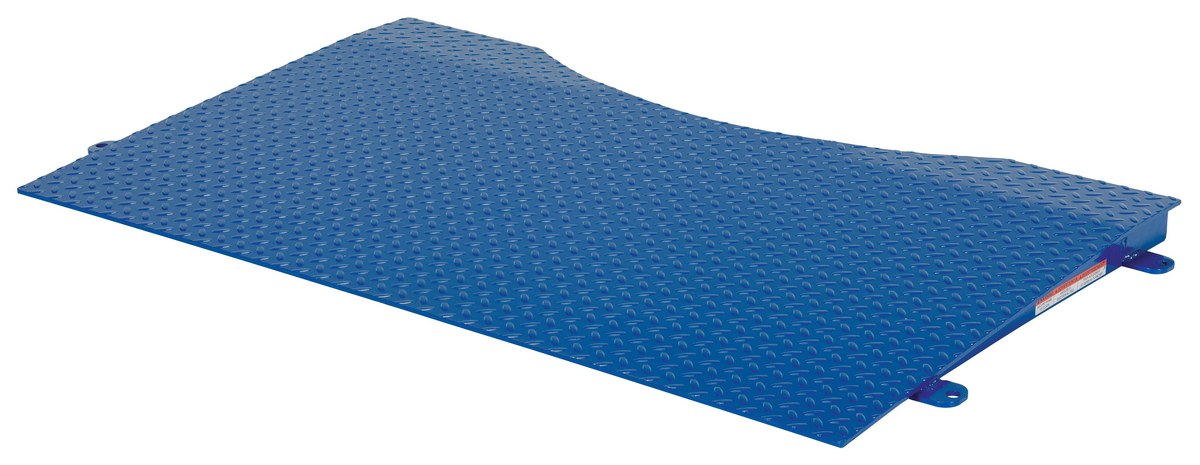

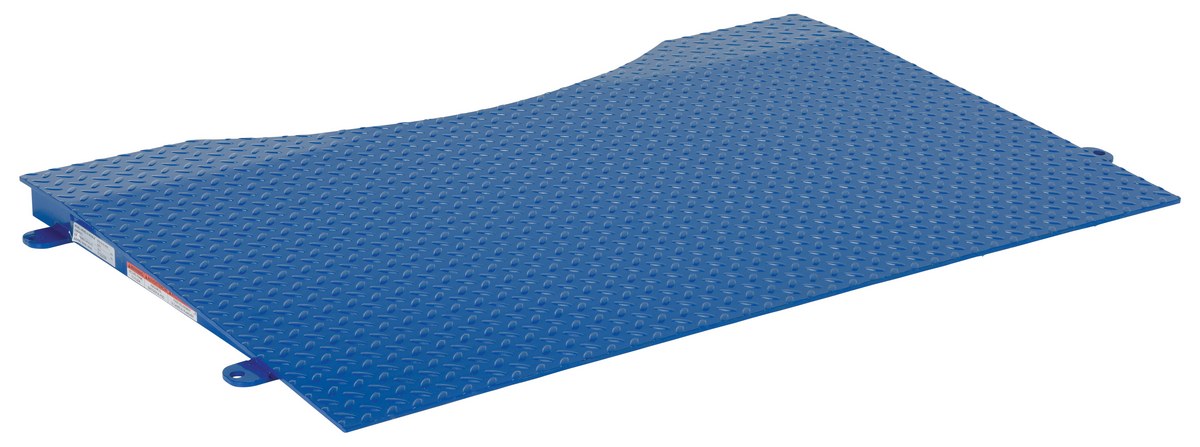

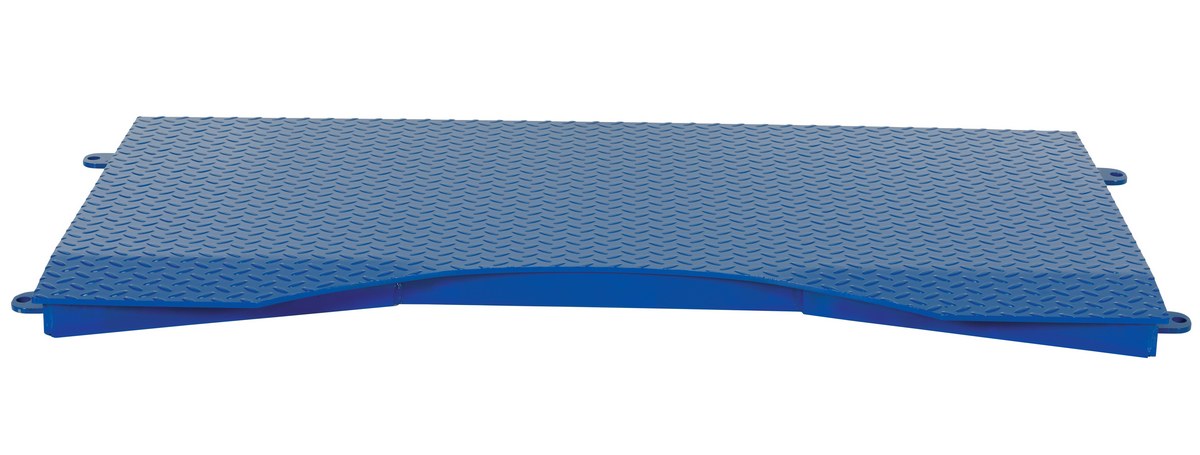

SWA-50-R-4848 SWA-50-R-484890 Days Limited WarrantySteel Approach Ramp 48 In. x 48 In. 4,000 Lb. Capacity Blue For Use With Model SWA-50Maximum Capacity (lb.): 4000
Usable Width (in.): 48
196

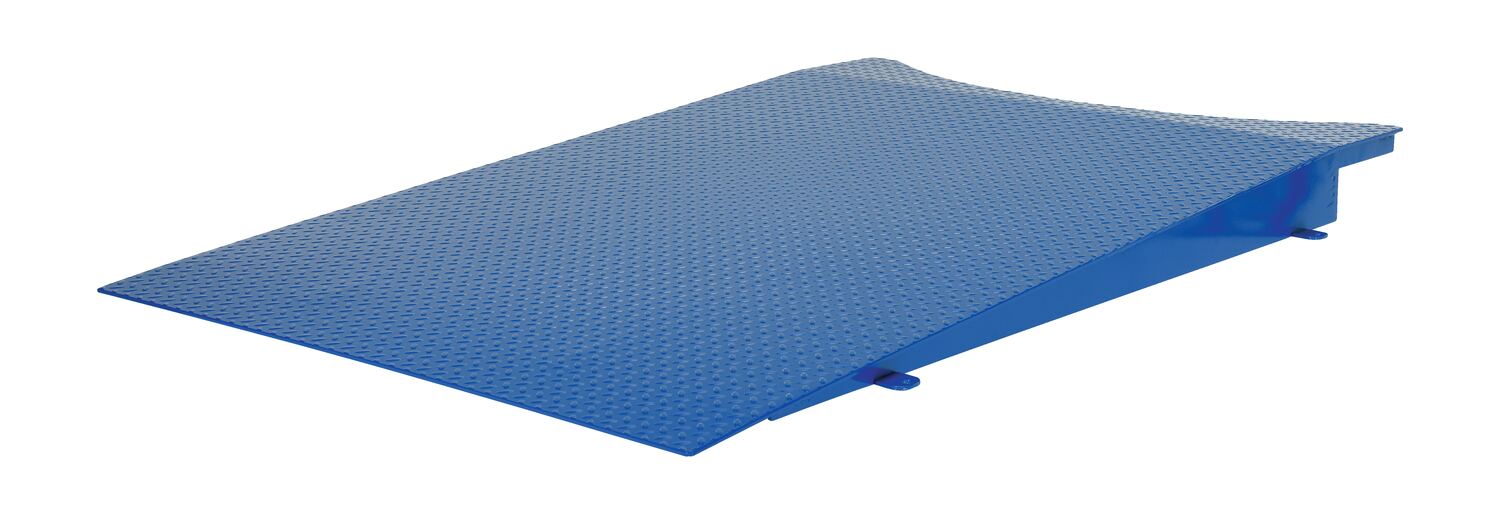

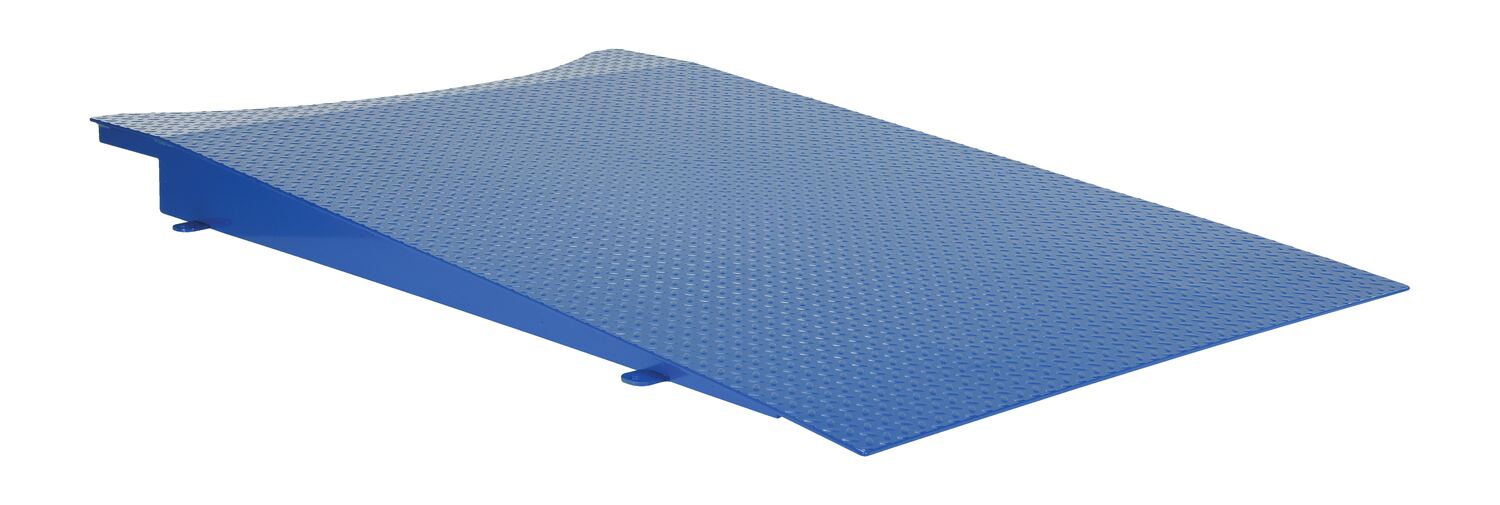

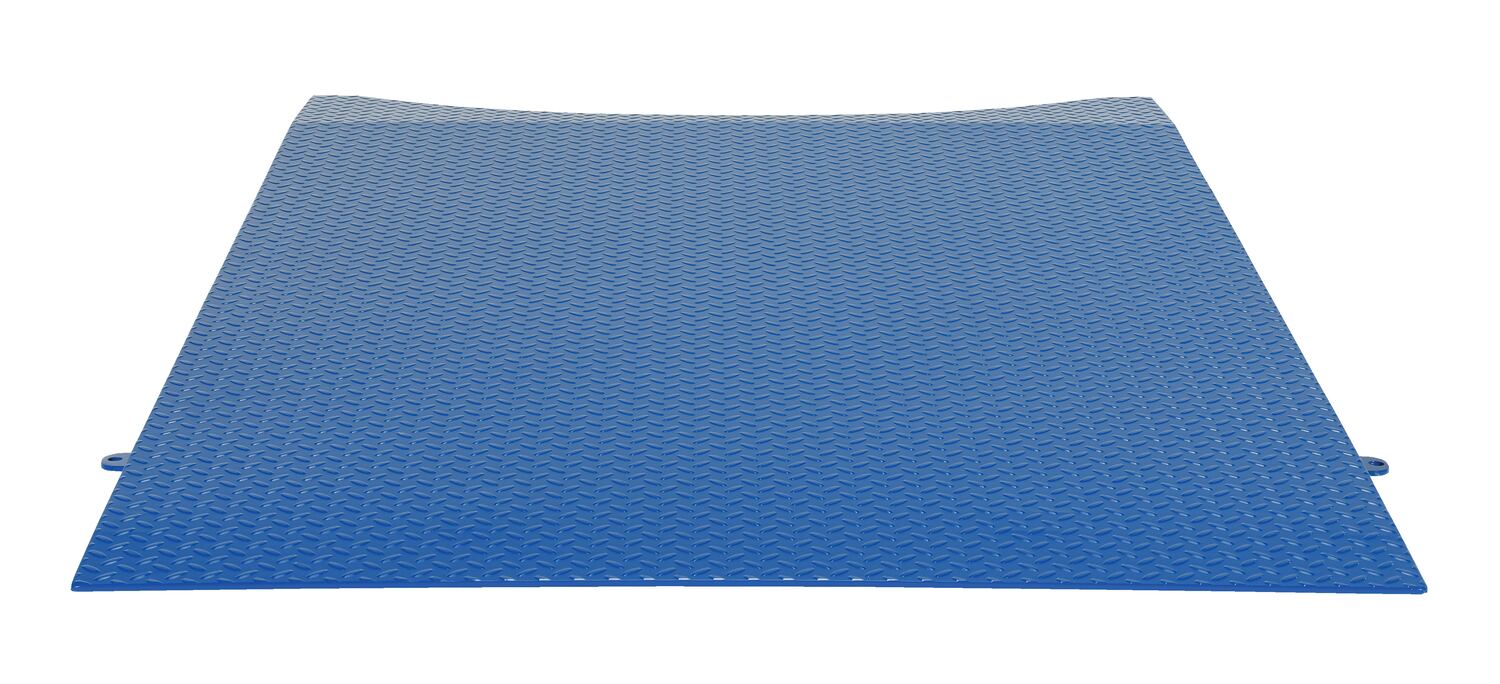

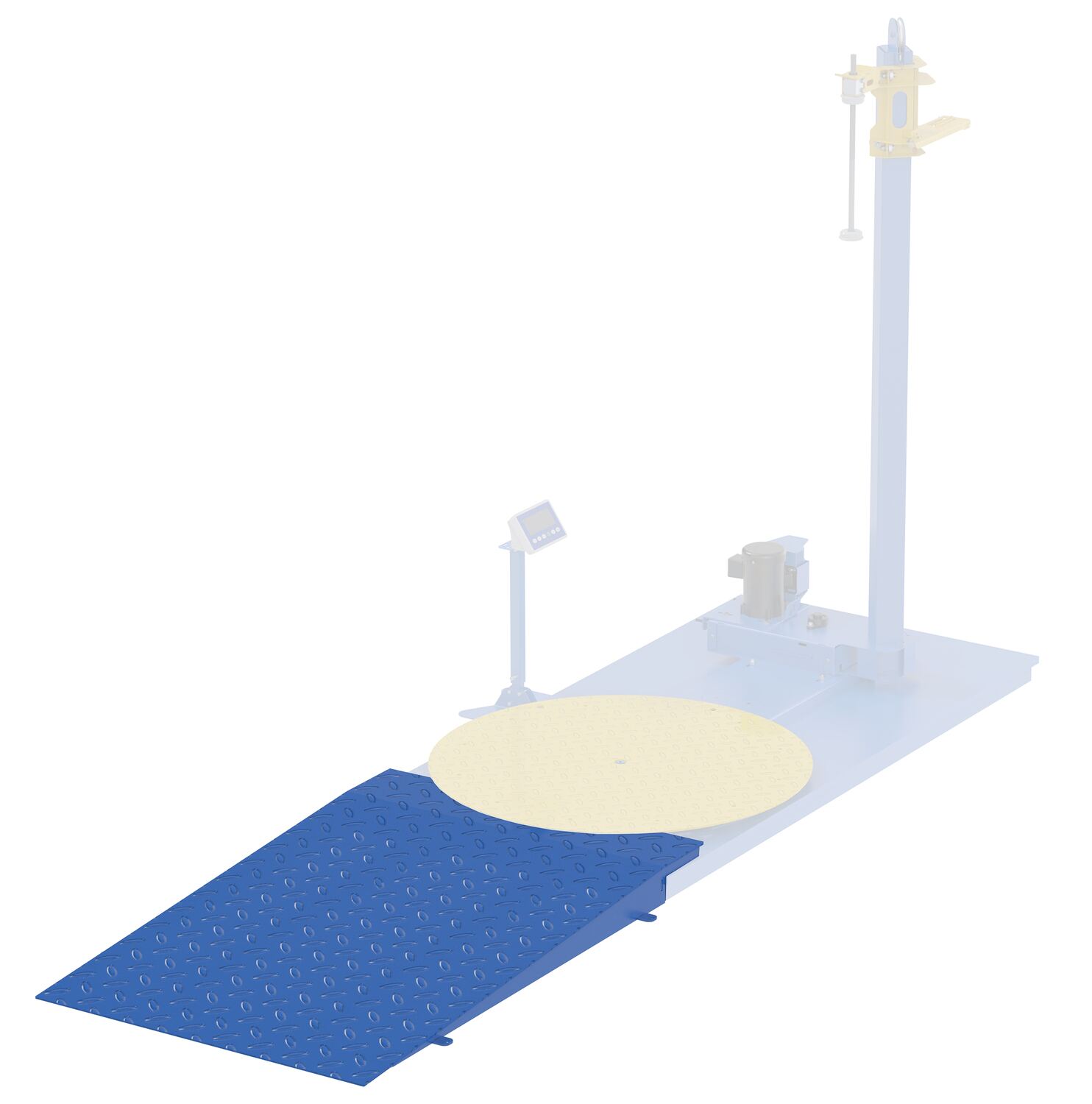

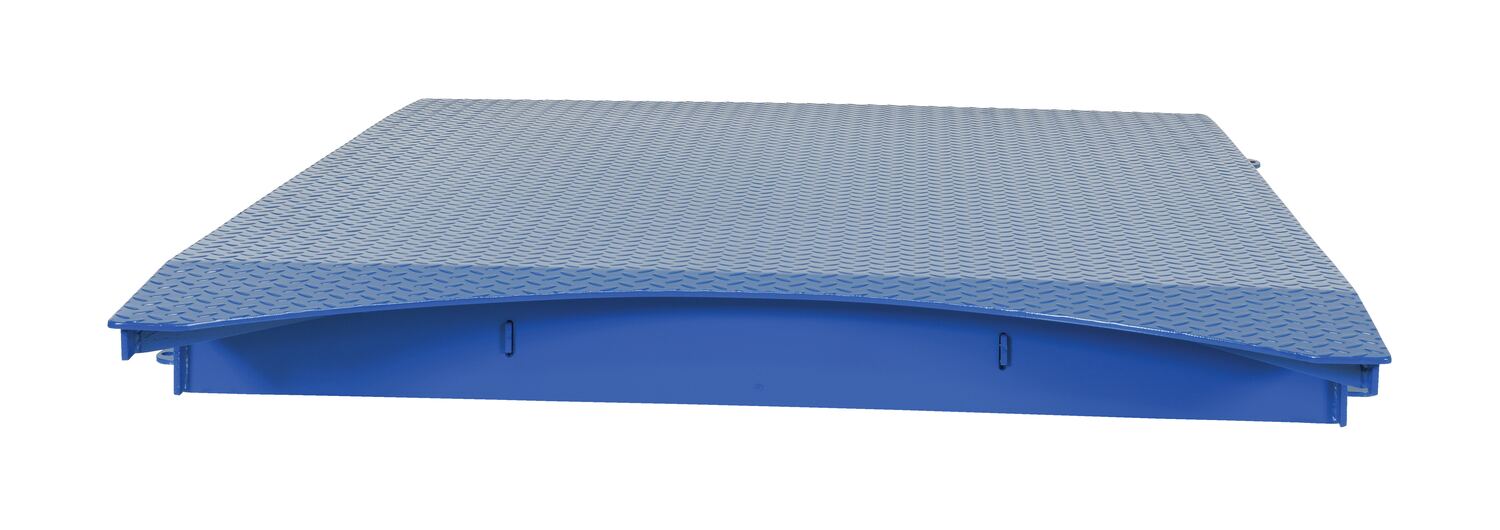

SWA-50-R-4860-SCL SWA-50-R-4860-SCL90 Days Limited WarrantySteel Approach Ramp 48 In. x 60 In. 4,000 Lb. Capacity Blue For Use With Model SWA-50 and SWA-50-ScaleMaximum Capacity (lb.): 4000
Usable Width (in.): 48
346

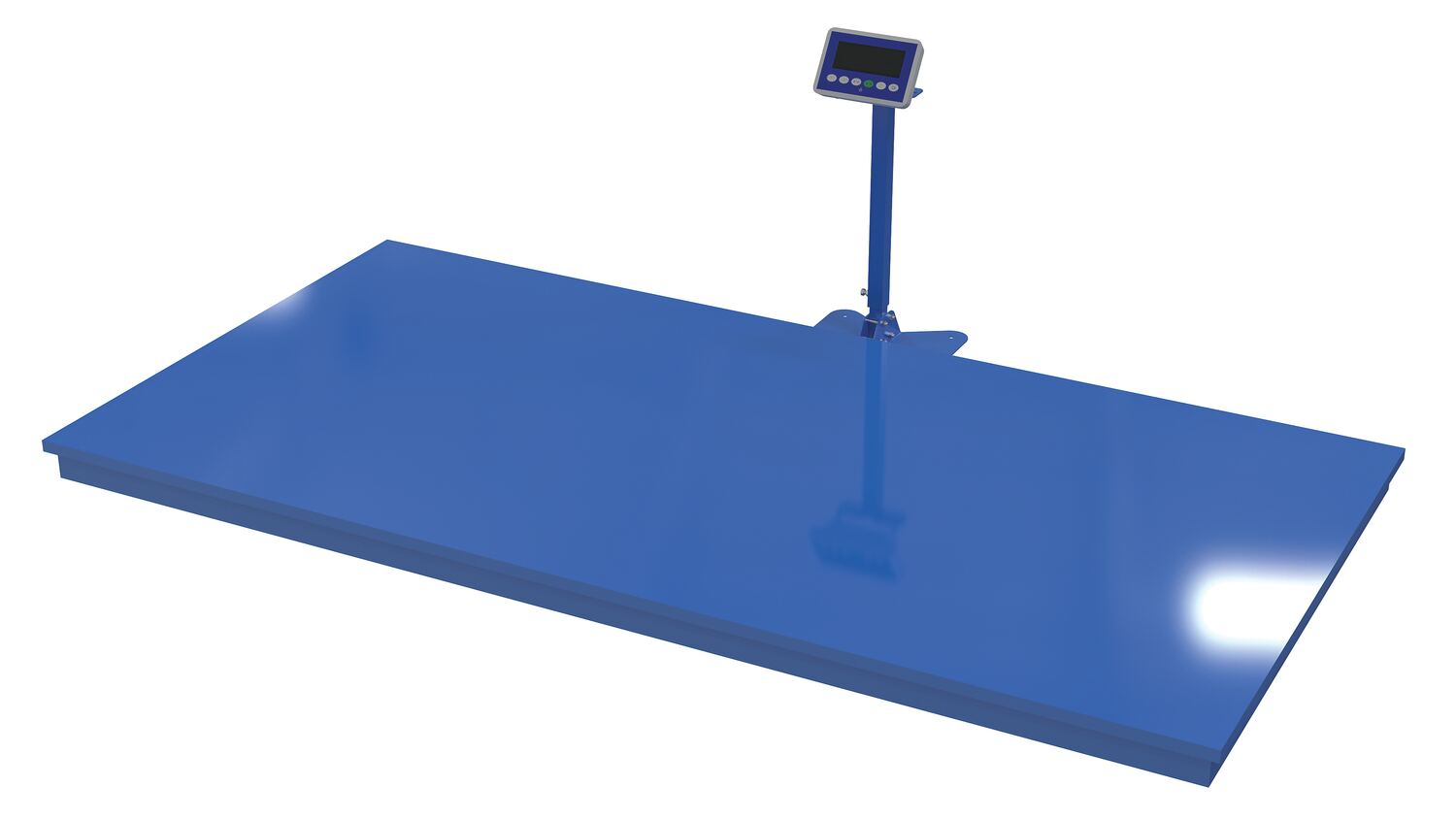

SWA-50-SCALE SWA-50-SCALE1 Year Limited WarrantyFactory Installed Digital Stretch Wrap Scale For Use With SWA-50Uniform Capacity (lb.): 5,000
Scale Height (in.): 3-1/2
680

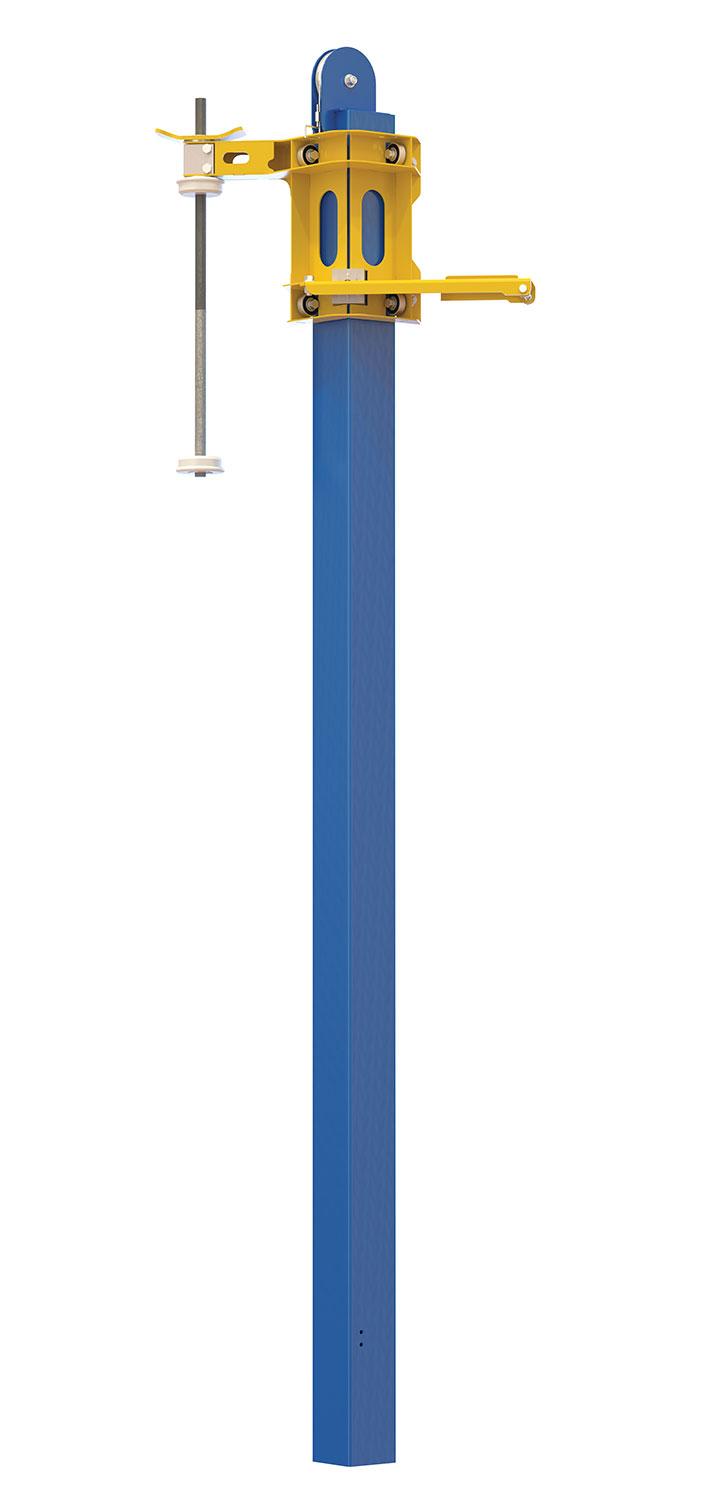

SWA-5070LP-M-RF SWA-5070LP-M-RF1 Year Limited WarrantySteel Manual Mast 84 In. Wrap Height Blue / Yellow For Use With Model SWA-50Wrap Height (in.): 84
153

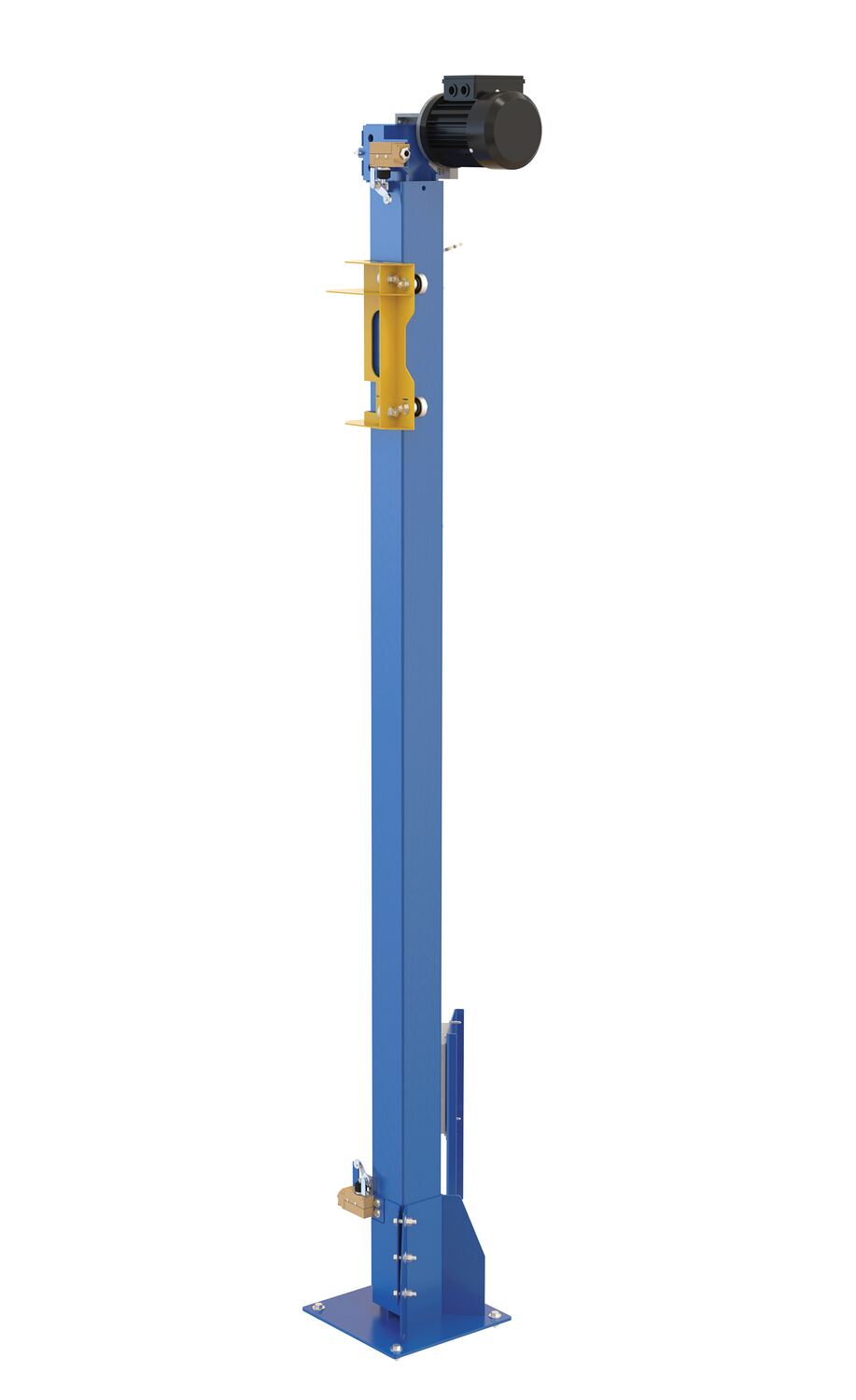

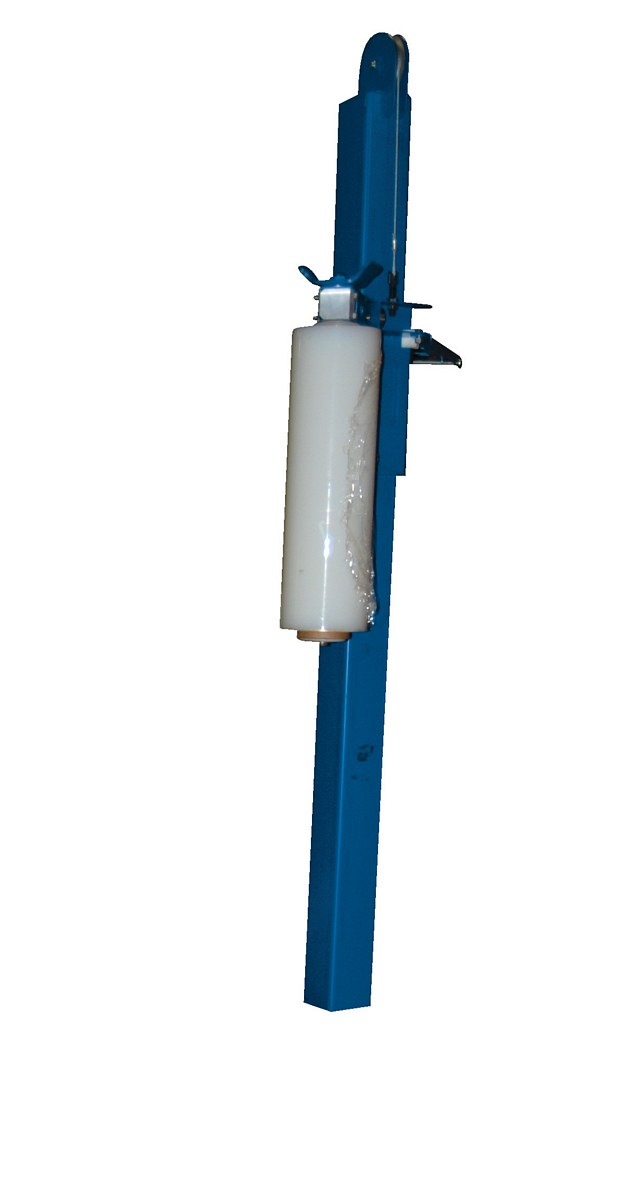

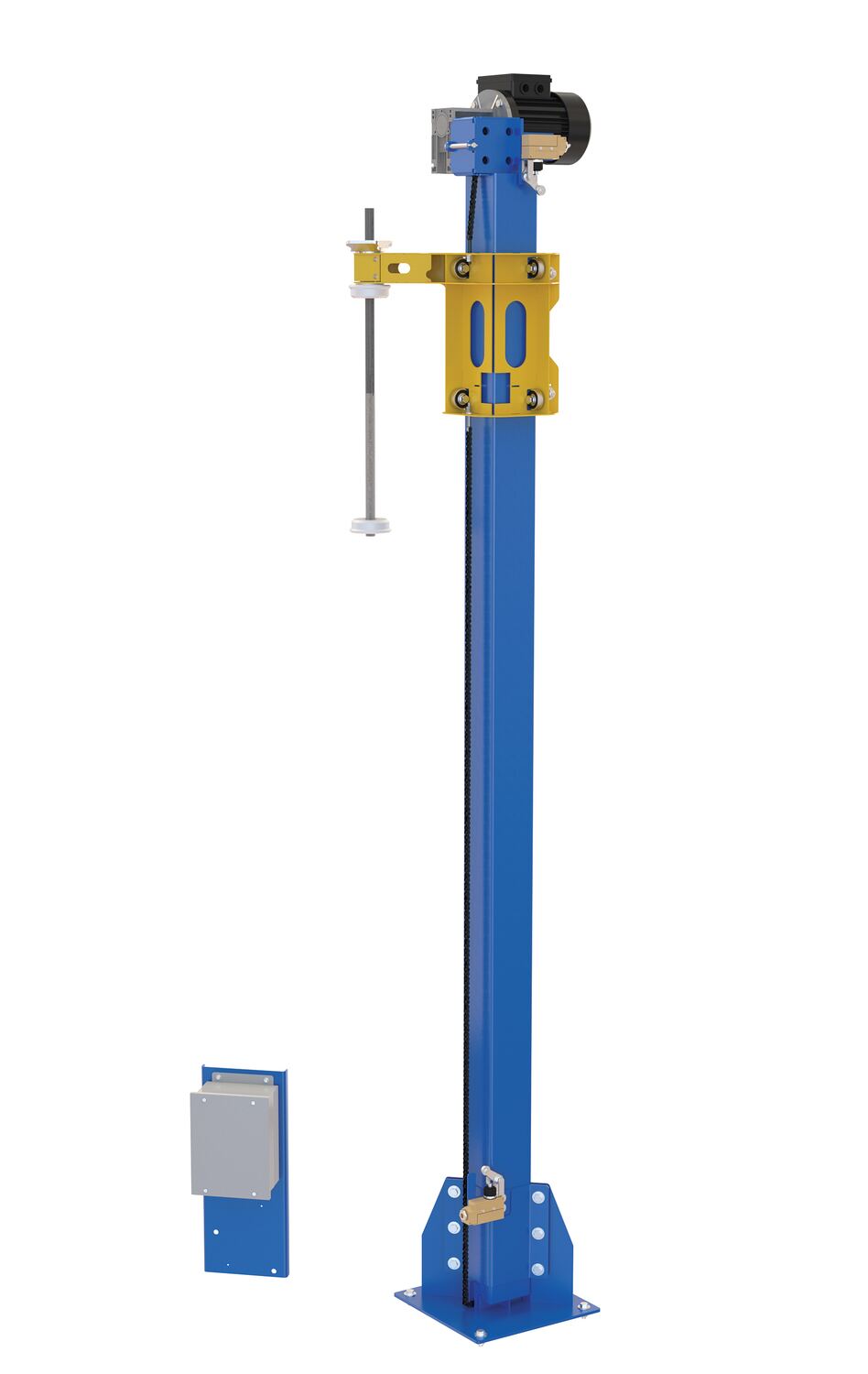

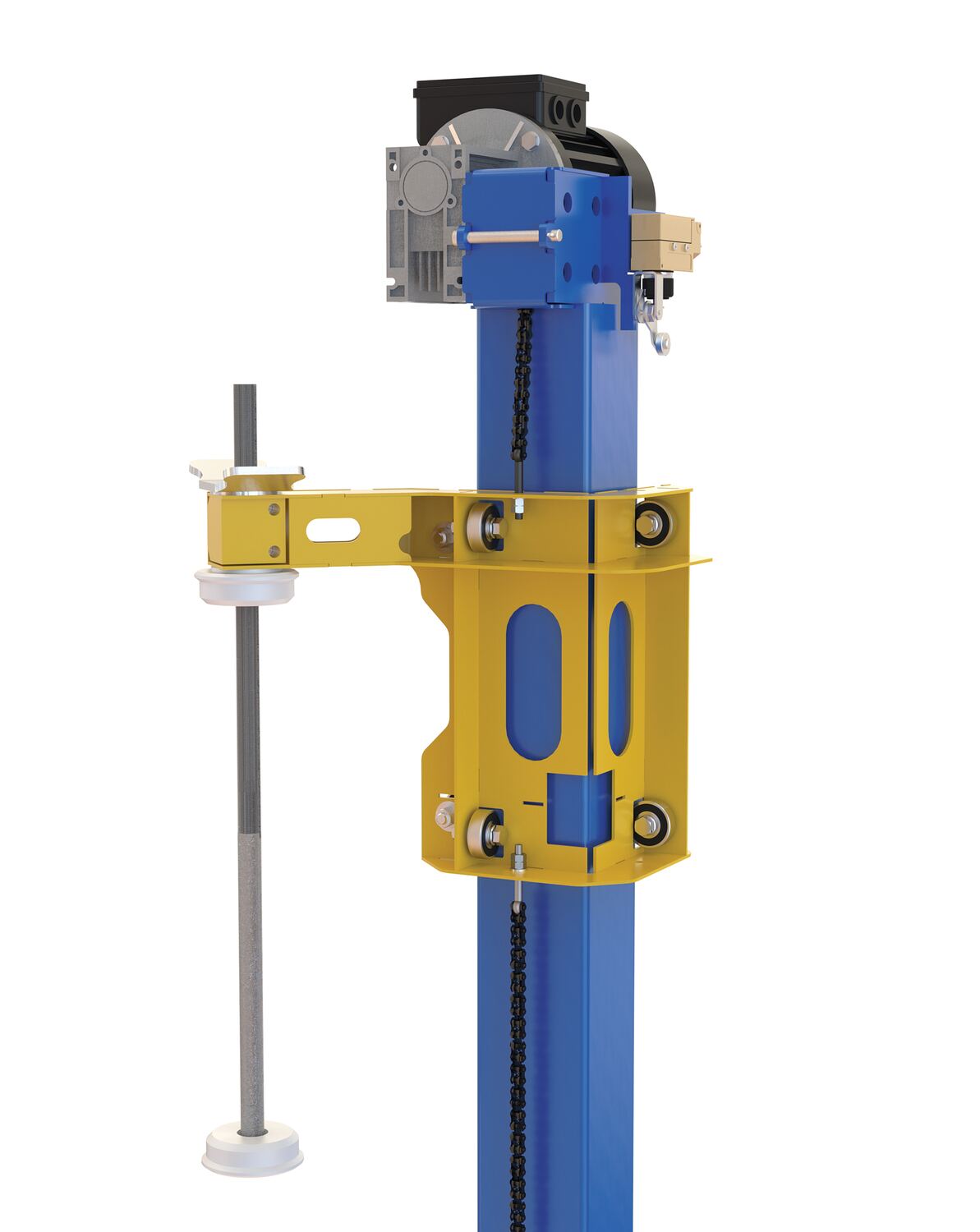

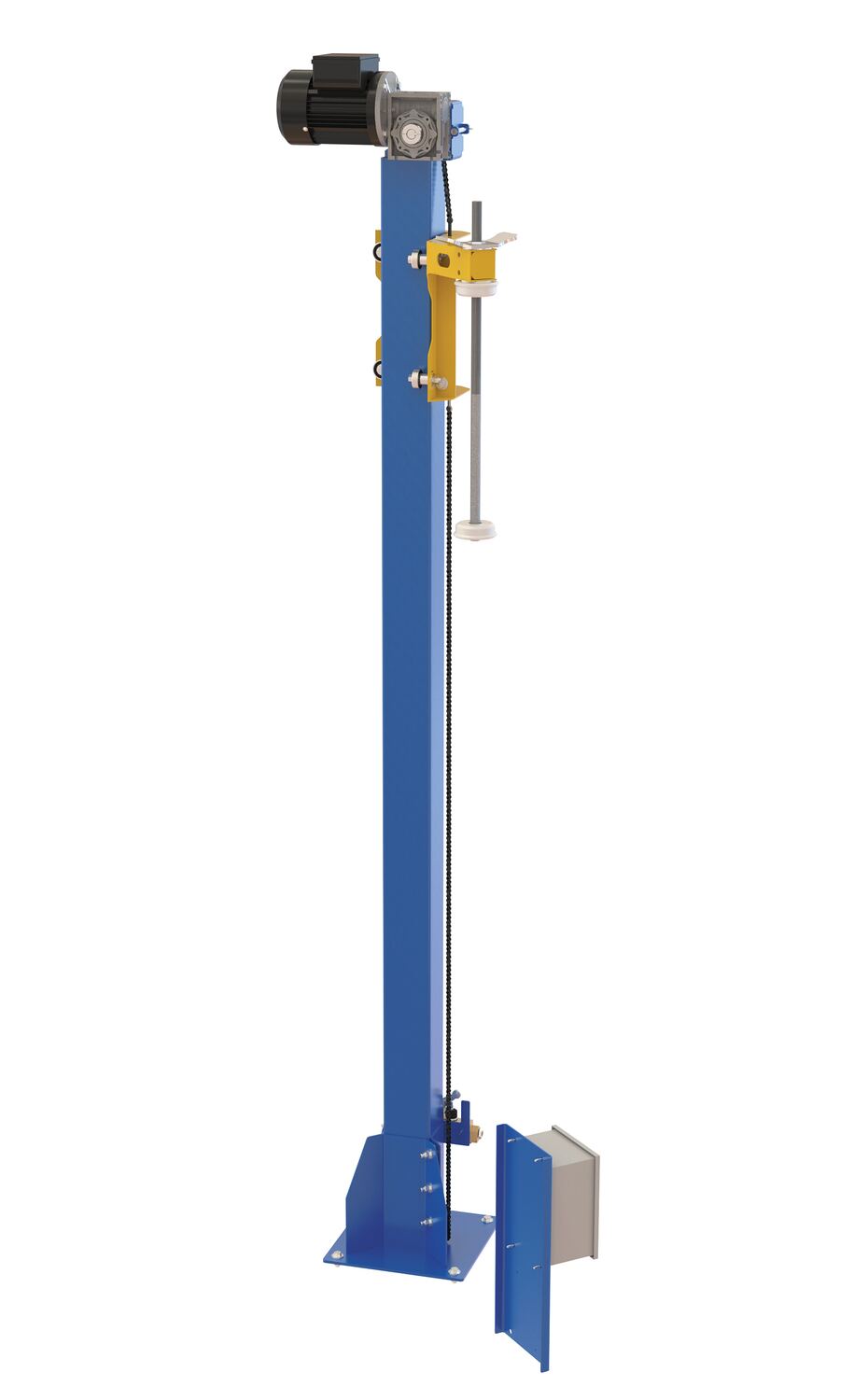

SWA-5070LP-PMO SWA-5070LP-PMO1 Year Limited WarrantyFactory Installed AC Powered 115 Volt Single Phase Unit For Stretch Wrap Machine SWA-50 And SWA-70Wrap Height (in.): 80-9/16
Motor Voltage/Phase: 115/1
183

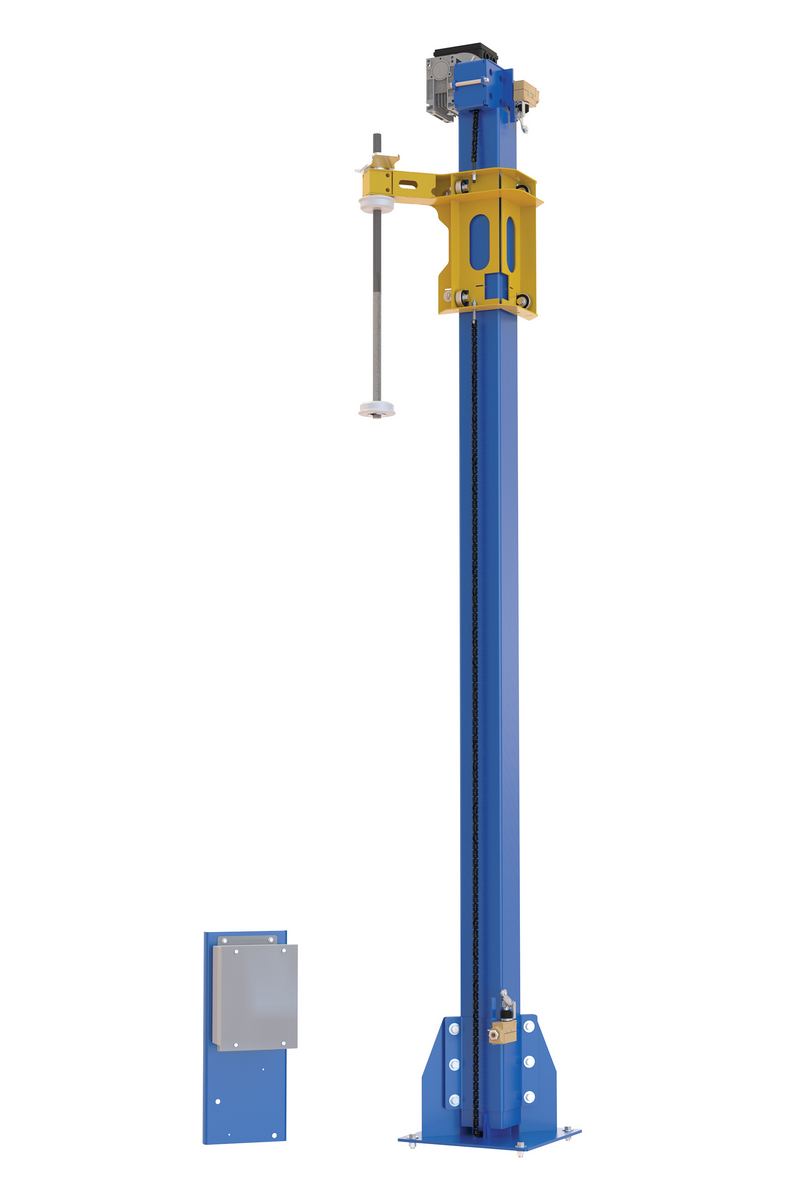

SWA-5070LP-PMO-RF SWA-5070LP-PMO-RF1 Year Limited WarrantySteel Retrofit Power Mast Wrap Machine 80-9/16 In. Wrap Height Blue / Yellow For Use With Model SWA-50Wrap Height (in.): 80-9/16
Motor Voltage/Phase: 115/1
183

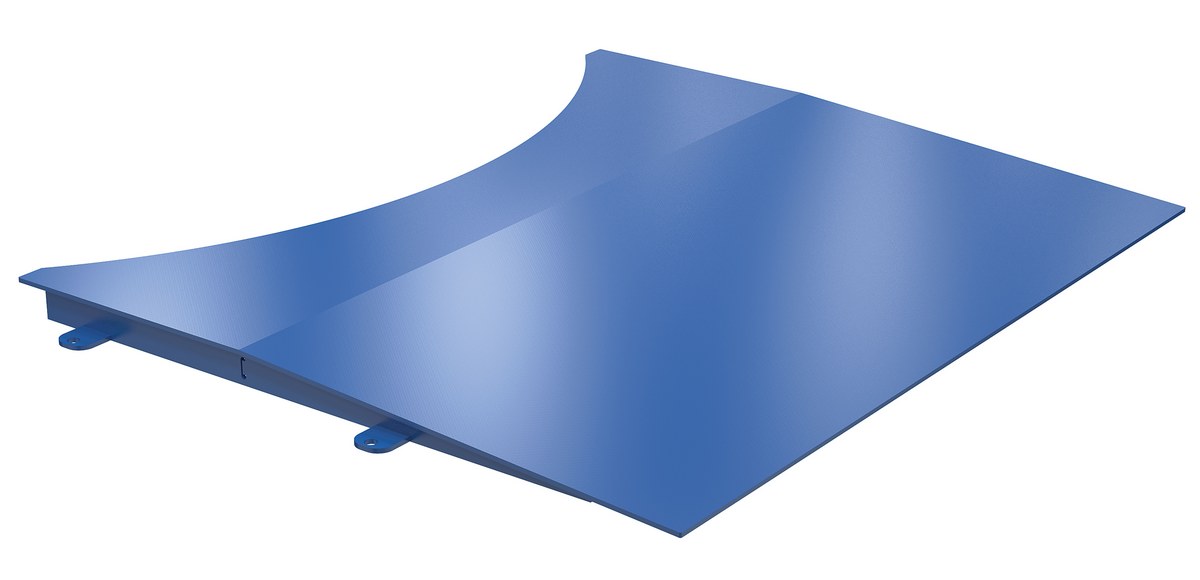

SWA-70-R-4848 SWA-70-R-484890 Days Limited WarrantySteel Approach Ramp 48 In. x 48 In. 4,000 Lb. Capacity Blue For Use With Model SWA-70Maximum Capacity (lb.): 4000
Usable Width (in.): 48
200

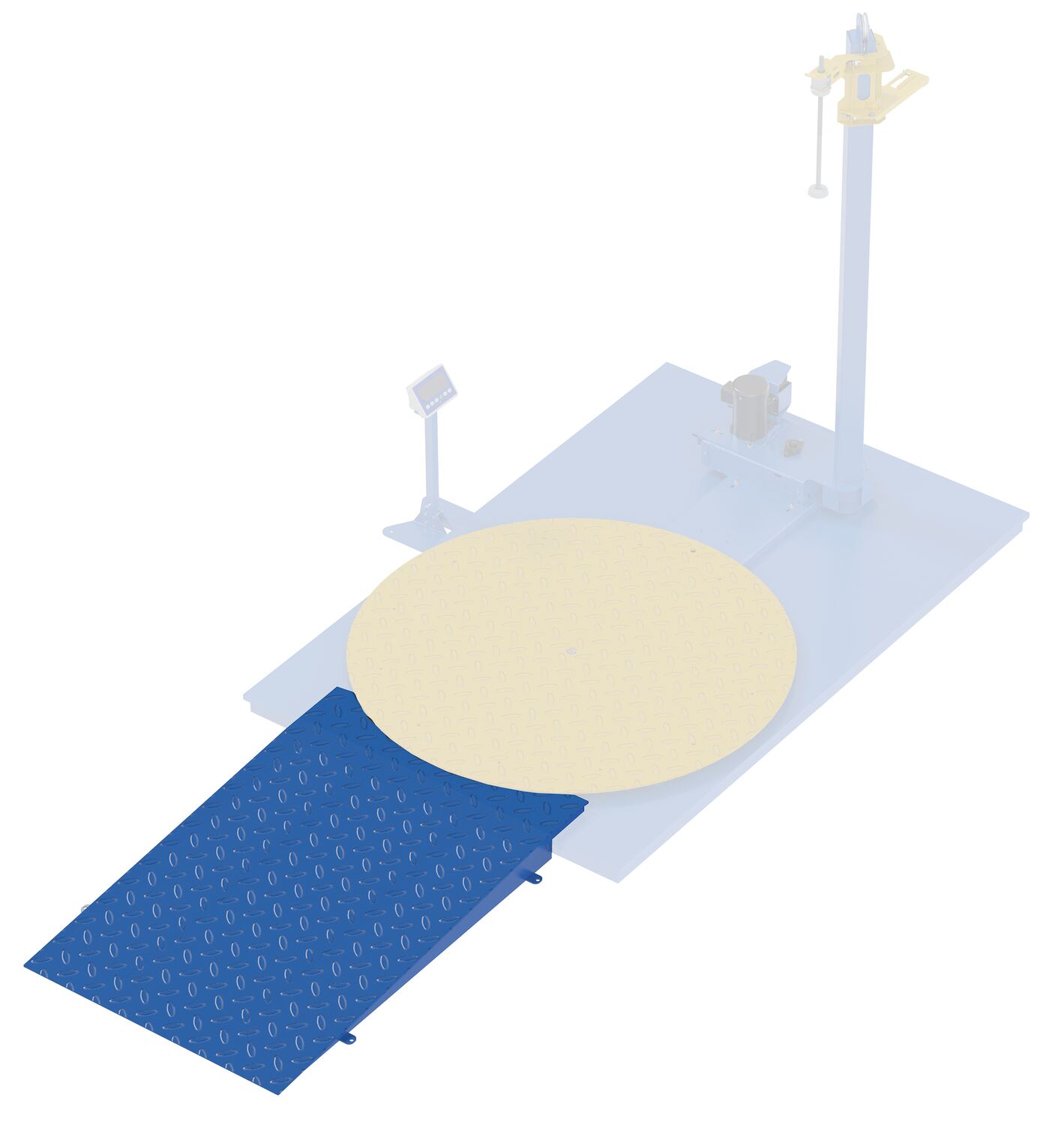

SWA-70-R-4860-SCL SWA-70-R-4860-SCL90 Days Limited WarrantySteel Approach Ramp 48 In. x 60 In. 4,000 Lb. Capacity Blue For Use With Model SWA-70 and SWA-70-ScaleMaximum Capacity (lb.): 4000
Usable Width (in.): 48
352

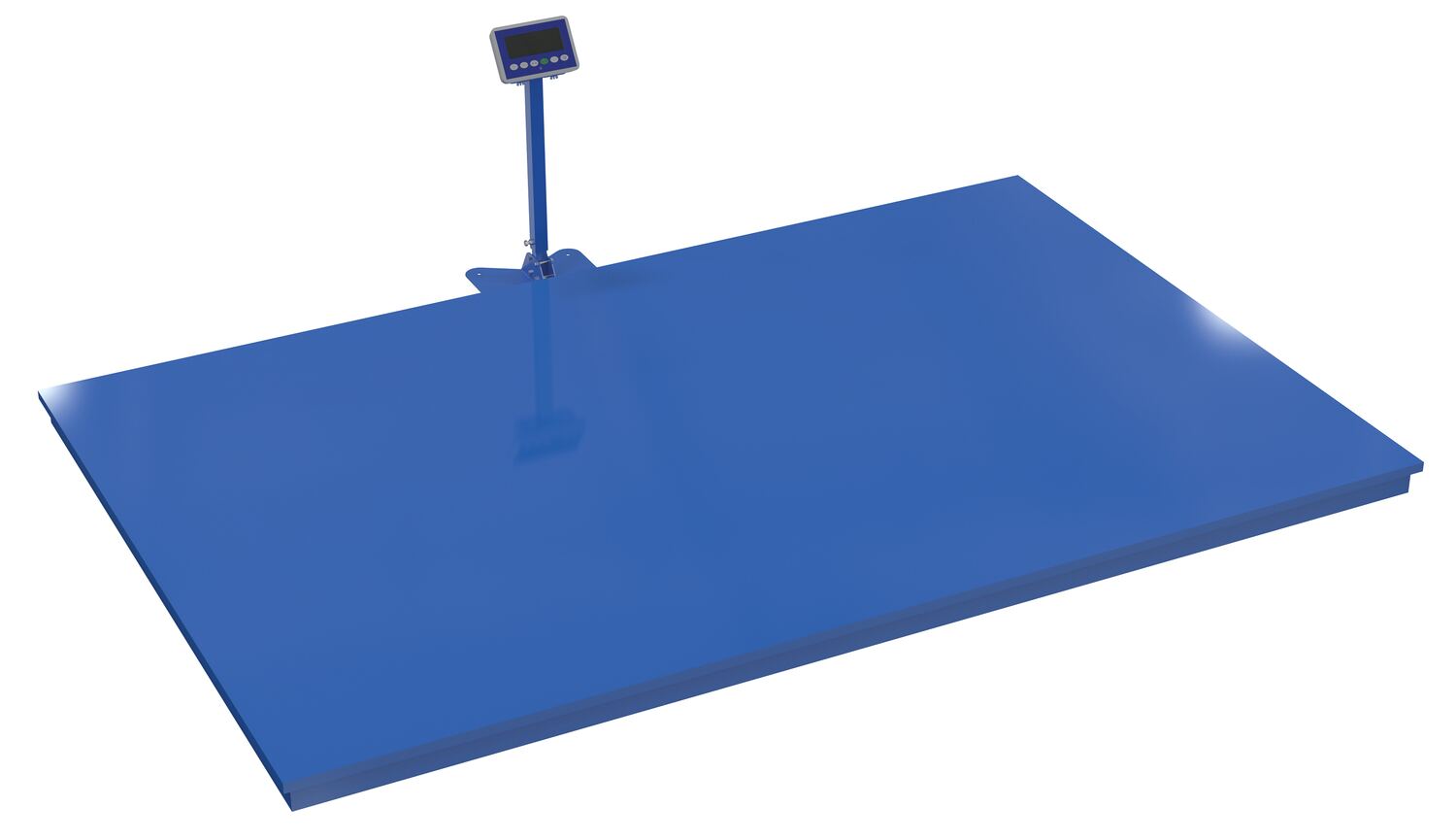

SWA-70-SCALE SWA-70-SCALE1 Year Limited WarrantyFactory Installed Digital Stretch Wrap Scale For Use With SWA-70Uniform Capacity (lb.): 10,000
Scale Height (in.): 3-1/2
884

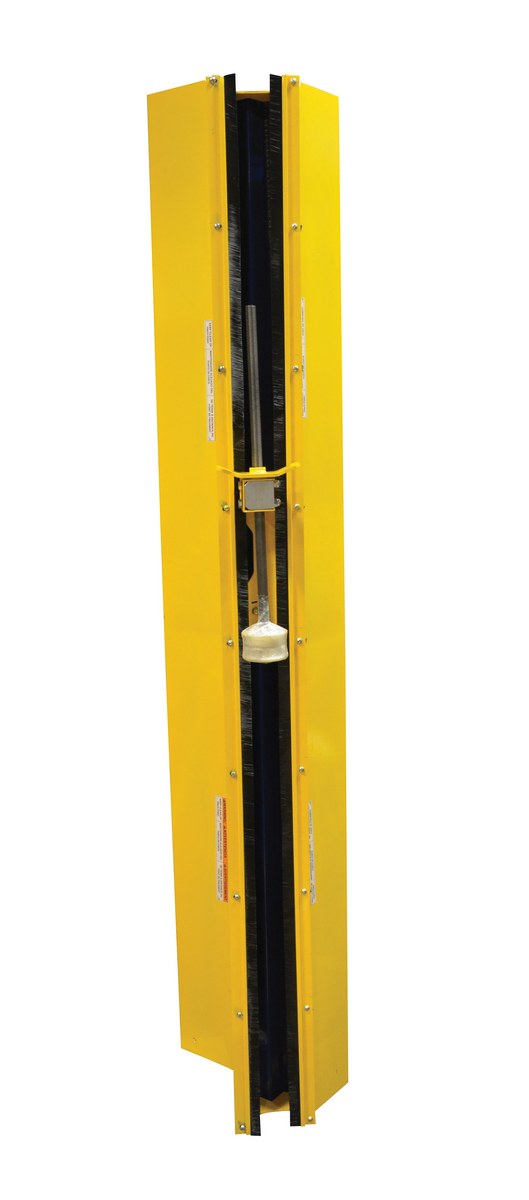

SWA-CG SWA-CG90 Days Limited WarrantySteel Stretch Wrap Power Mast Chain Guard Yellow-
110

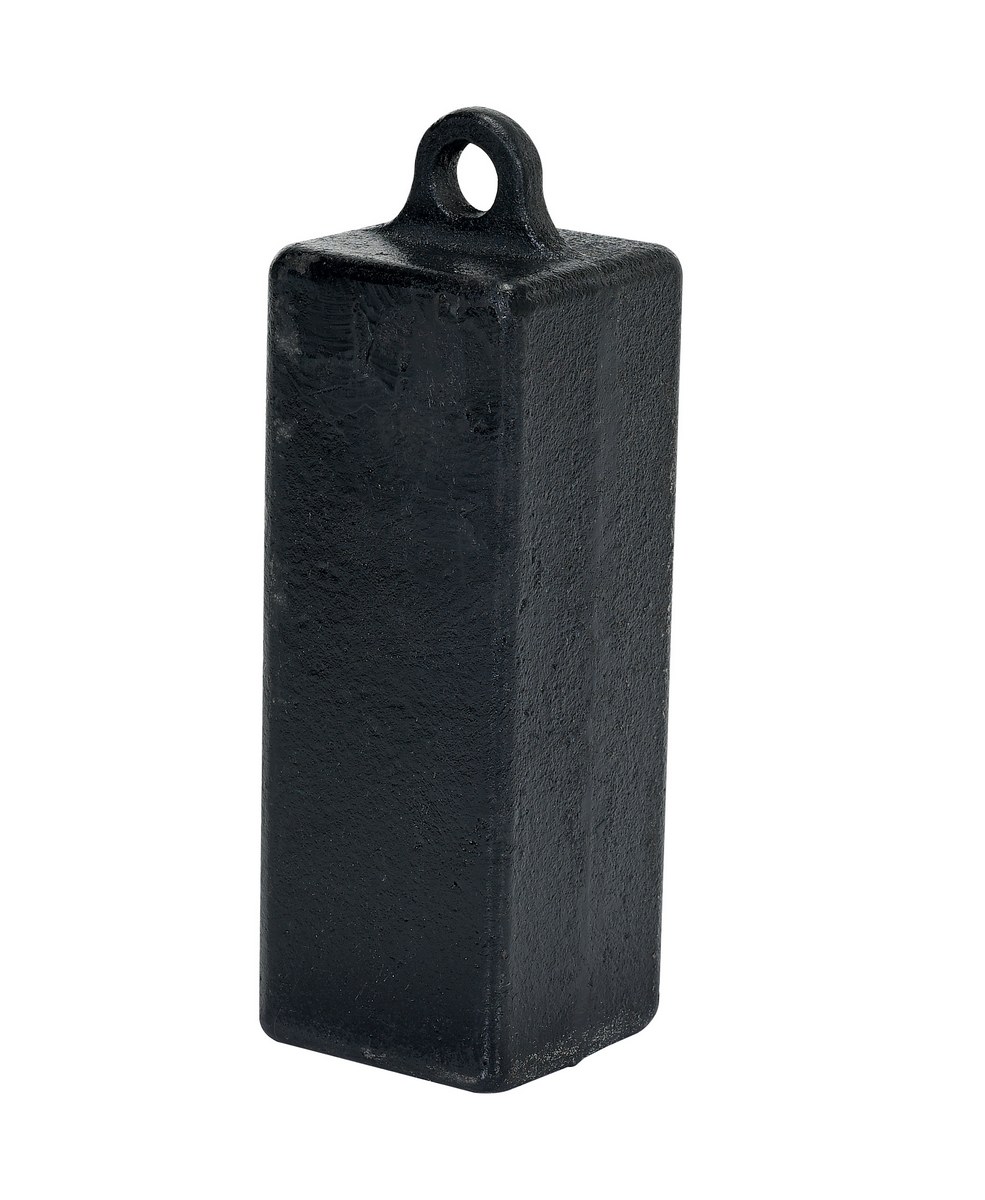

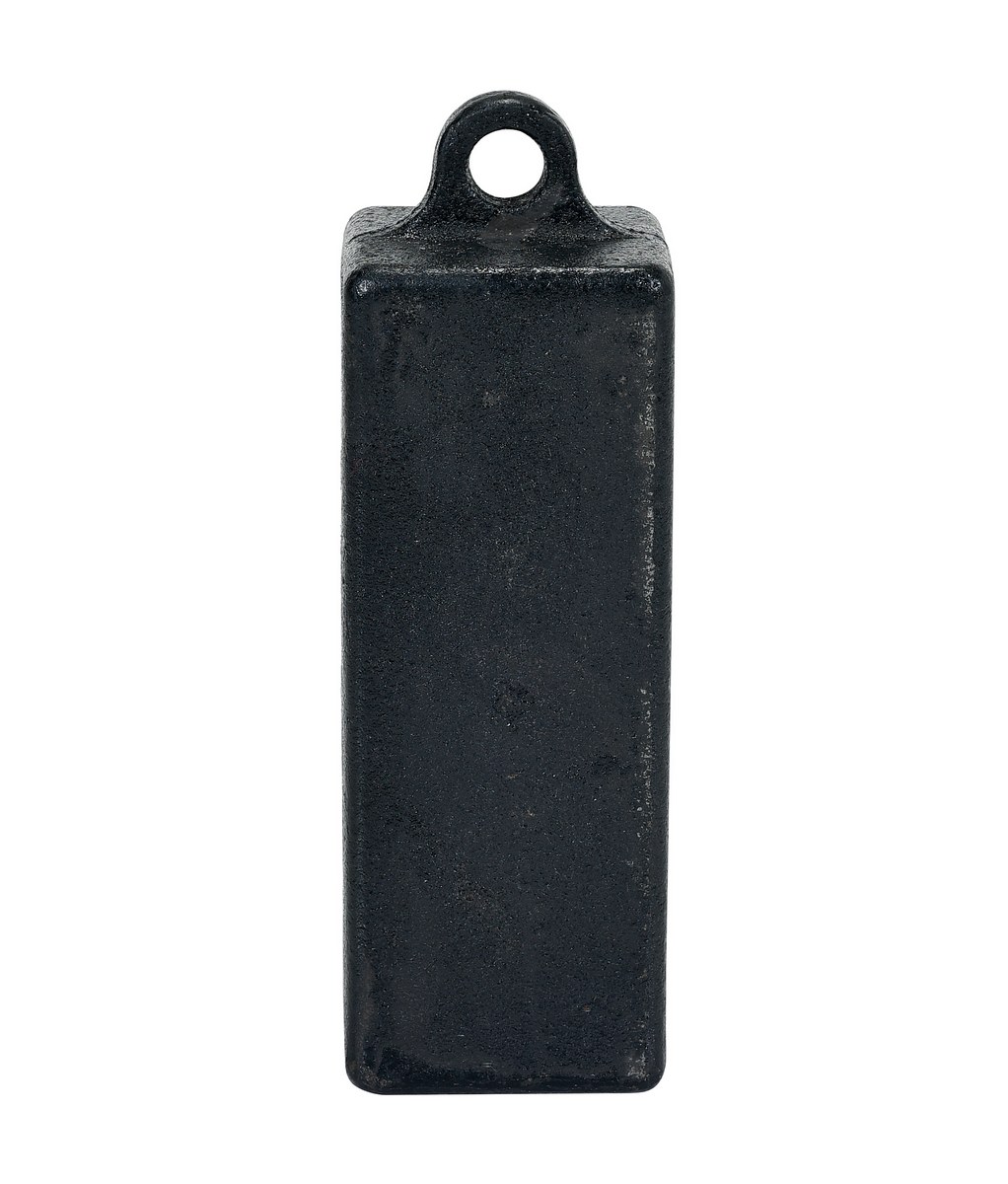

SWA-COUNT SWA-COUNT90 Days Limited WarrantyFactory Installed Carousel Rotation Counter Weight For Stretch Wrap MachinesBrand / Model Compatibility: SWA-50, SWA-70, SWA-54, SWA-60, SWA-48, SWA-48-PMO
Additional Contents: Factory Installed
27
SWA-FILM SWA-FILM30 Days Limited WarrantyPolyethylene Stretch Wrap-Wrap Machine 6,000 Ft. Film Length 80 Gauge ClearGage: 80
Roll Film Length (ft.): 6000
42
SWA-NRTL-COMP 1 Year Limited WarrantyFactory Provided Nationally Recognized Testing Lab Certification For Stretch Wrap MachinesBrand / Model Compatibility: SWA-50, SWA-70, SWA-54, SWA-60, SWA-48, SWA-48-PMO
Additional Contents: Factory Installed
601
SWA-VCC-208/230-1 30 Days Limited WarrantyFactory Installed Voltage Change 208/230 Volt Single Phase For Stretch Wrap Machine UnitsDC Voltage: 208/230
Phase: 1
SWA-VCC-208/230-3 30 Days Limited WarrantyFactory Installed Voltage Change 208/230 Volt Three Phase For Stretch Wrap Machine UnitsDC Voltage: 208/230
Phase: 3
SWA-VCC-460-3 30 Days Limited WarrantyFactory Installed Voltage Change 460 Volt Three Phase For Stretch Wrap Machine UnitsDC Voltage: 460
Phase: 3
Model Image Description Wt (lbs.)

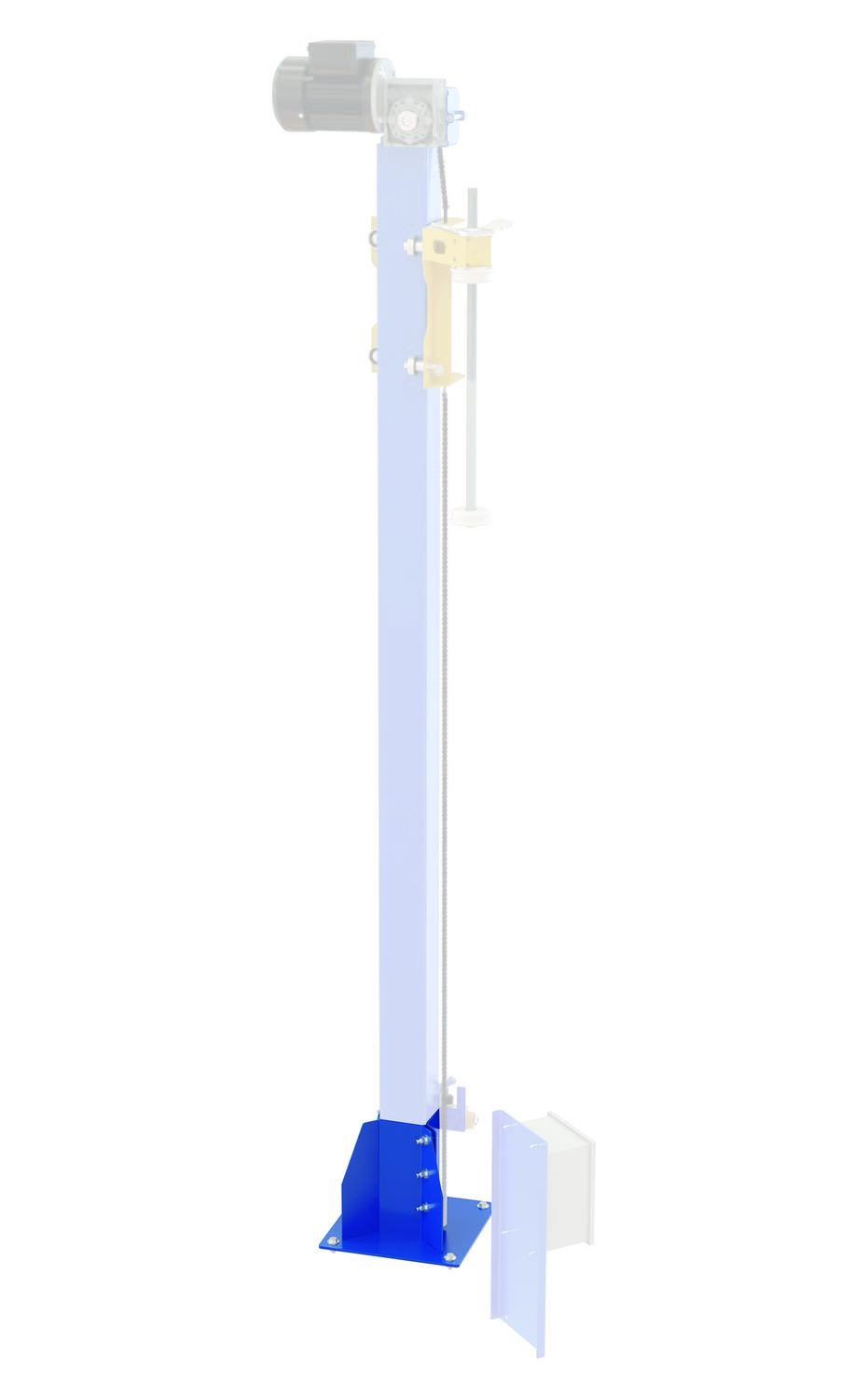

SWA-MST-FLR - Floor Mounted Mast Bracket for Stand-Alone Applications 21
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Powered Stretch Wrap Machines PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


SWA-50

SWA-50-R-4848

SWA-50-R-4860-SCL

SWA-50-SCALE

SWA-5070LP-M-RF

SWA-5070LP-PMO

SWA-5070LP-PMO-RF

SWA-70

SWA-70-R-4848

SWA-70-R-4860-SCL

SWA-70-SCALE

SWA-CG

SWA-COUNT

SWA-FILM

SWA-NRTL-COMP

SDS Sheets

Hydraulic Oil SDS Sheet for: PMO-VCC-460-3
Hydraulic Oil SDS Sheet for: SWA-VCC-208/230-1
Hydraulic Oil SDS Sheet for: SWA-VCC-208/230-3
Hydraulic Oil SDS Sheet for: SWA-VCC-460-3

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: Does this stretch wrap machine have fork pockets so it can be moved?

A: No it does not. Please see the SWA-54 and the SWA-60 that include fork pockets.
