Deluxe Roller Stands

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

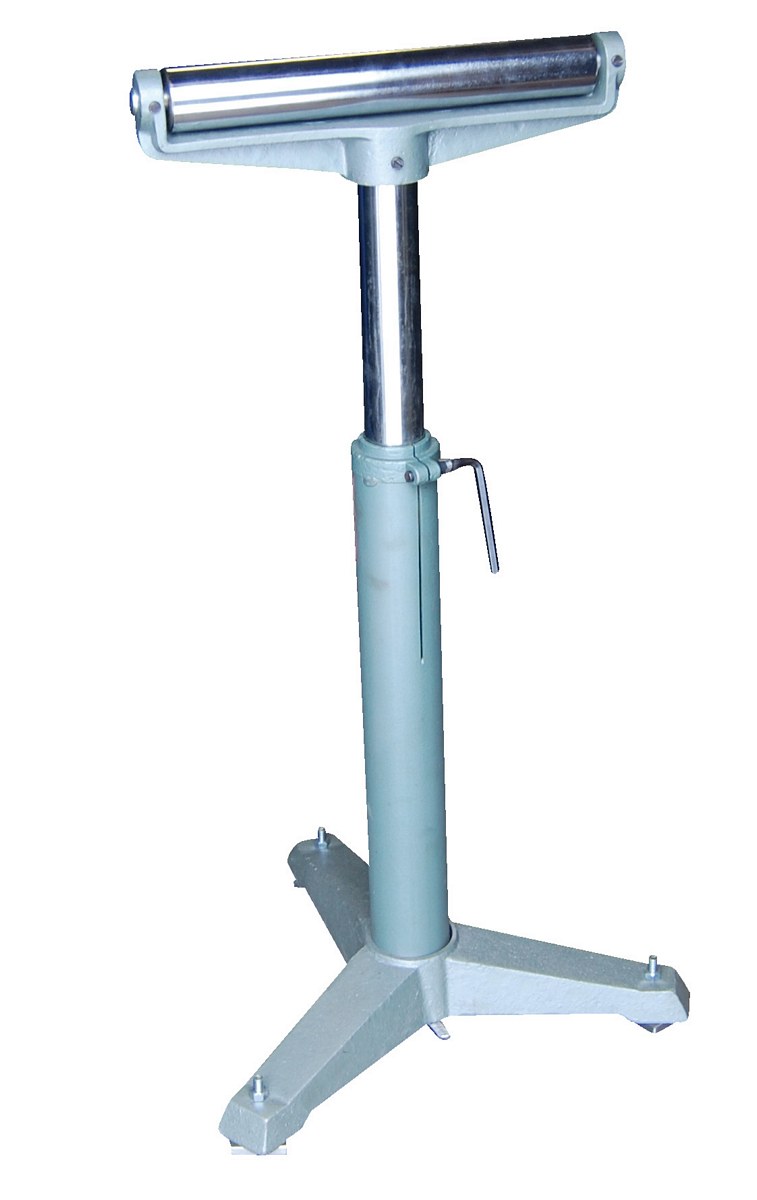

STAND-G-H_C.jpg STAND-G-H_A.jpg STAND-G-H_B.jpg
Deluxe Roller Stands

model: STAND-G-H



Featured Ergonomic Solutions


Hydraulic Post Tables w/ Rounded Tops
Pallet Trucks with Digital Scale
Hefti-Lifts
Ergonomic Matting
Portable Hand Winch Lifter
Deluxe Roller Stands
Electric/Hydraulic Box Dumpers
Ergonomic Work Chair and Stool
Fork Truck Jacks
model chart

Product Family Overview

Print Friendly
Deluxe Roller Stands
SERIES: STAND

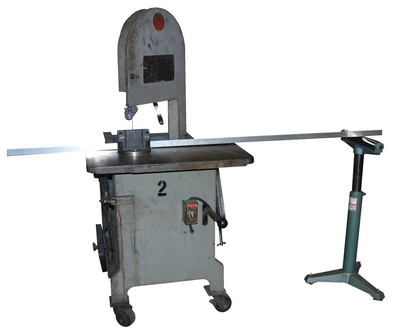

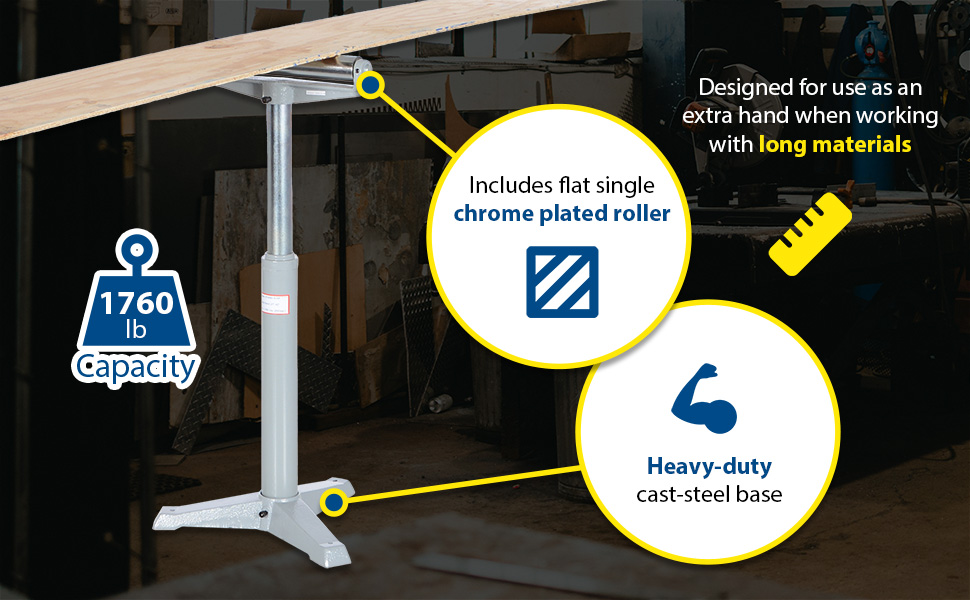

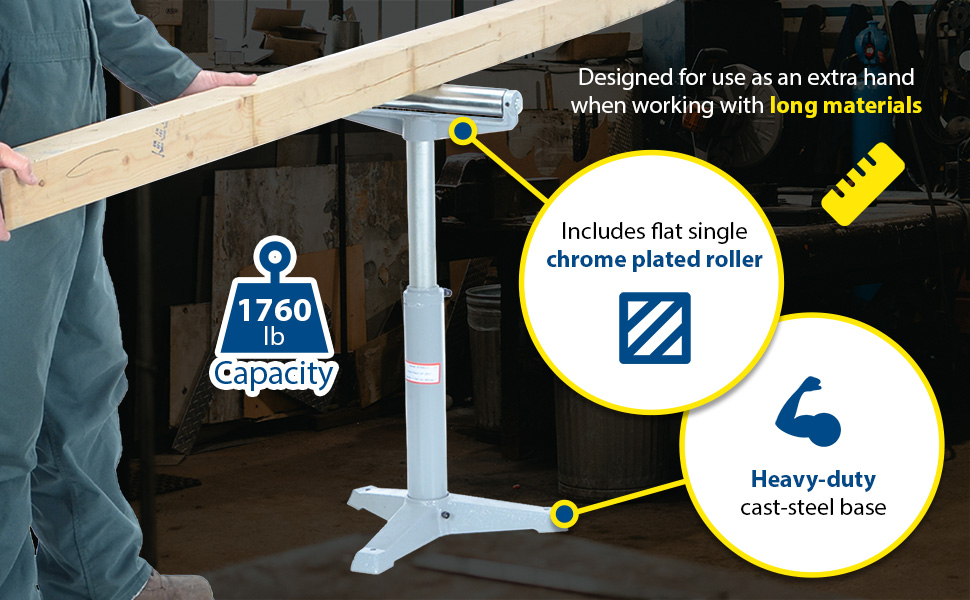

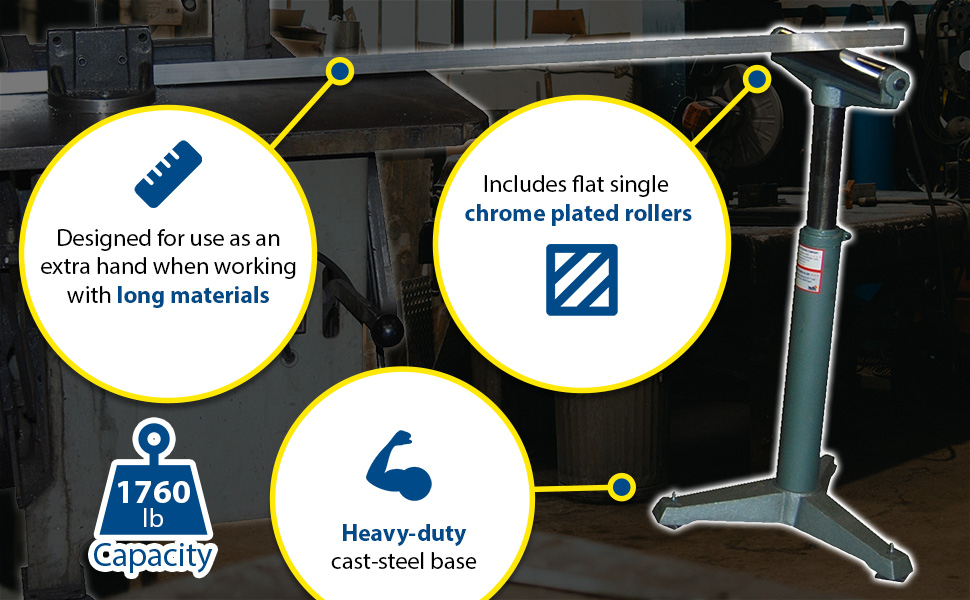

Designed for use as an extra hand when working with long materials. Each stand includes 2" chrome plated rollers and heavy-duty cast-steel base. Choose either v-groove roller design or flat single roller design. The height of each stand is adjusted with a friction lock screw or a gas charged cylinder. Great for use in machine and wood shops. Ships knockdown.

Stand-G models utilize a gas charged cylinder for maximum efficiency and precise positioning. The gas cylinder minimizes adjustment time and limits manual interaction with the unit.

Model STAND-T is ideal for most tubing and bar stock applications. The STAND-T ball roller span is infinitely adjustable from 1-9/16" to 6-1/8". Roller plates can also be rotated 180 degrees to create different offsets and to handle larger diameter tubing. Blue baked-in powder-coat finish for added toughness. Does not work with STAND-MF.

  • Easy height adjust for different leveled machines
  • Light weight construction is easily moved from one location to another
  • Handy design is used as an extra hand when working with long materials

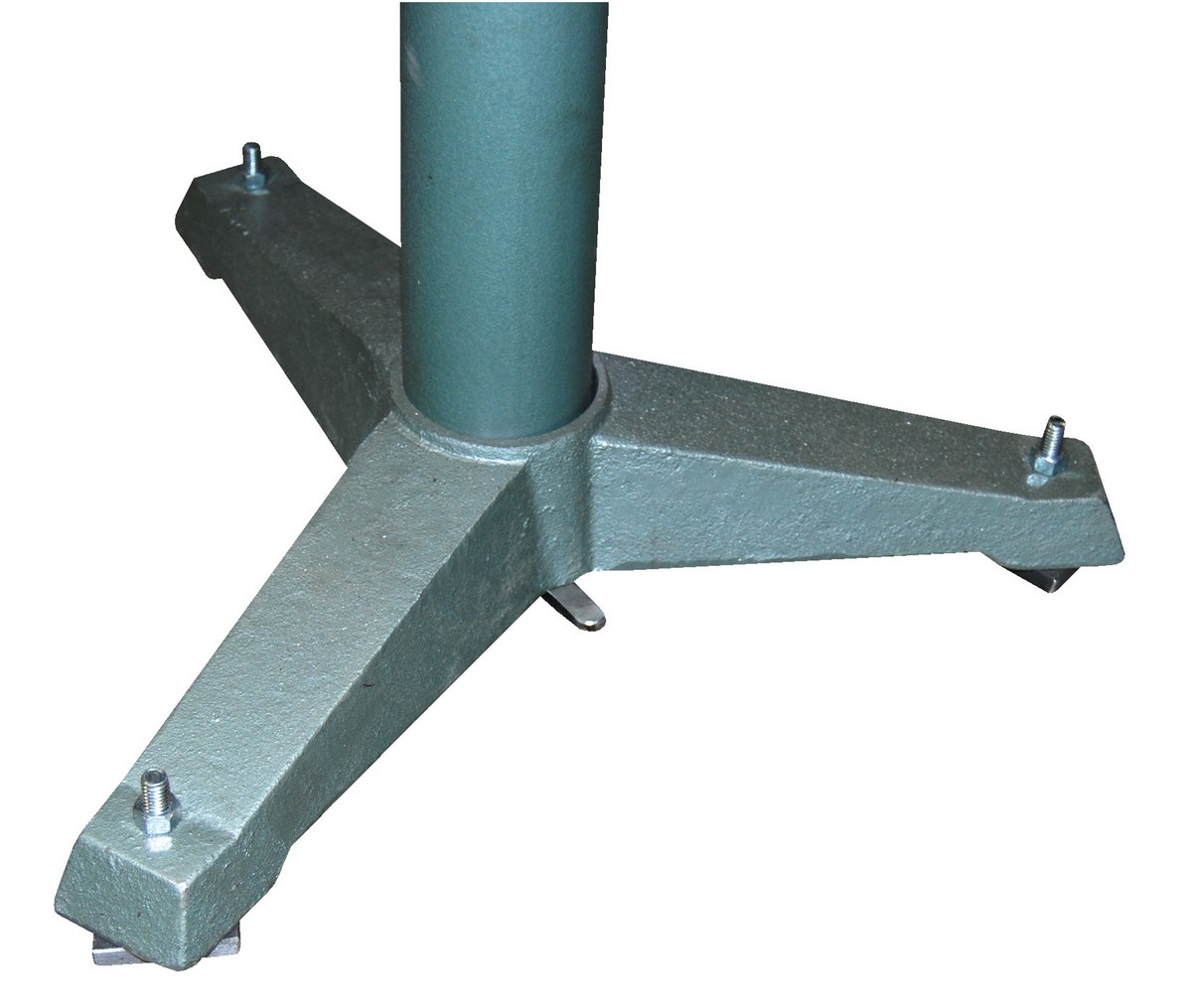

  • Cast steel base provides a solid reliable base


Designed for use as an extra hand when working with long materials. Each stand includes 2" chrome plated rollers and heavy-duty cast-steel base. Choose either v-groove roller design or flat single roller design. The height of each stand is adjusted with a friction lock screw or a gas charged cylinder. Great for use in machine and wood shops. Ships knockdown.

Stand-G models utilize a gas charged cylinder for maximum efficiency and precise positioning. The gas cylinder minimizes adjustment time and limits manual interaction with the unit.

Model STAND-T is ideal for most tubing and bar stock applications. The STAND-T ball roller span is infinitely adjustable from 1-9/16" to 6-1/8". Roller plates can also be rotated 180 degrees to create different offsets and to handle larger diameter tubing. Blue baked-in powder-coat finish for added toughness. Does not work with STAND-MF.

  • Easy height adjust for different leveled machines
  • Light weight construction is easily moved from one location to another
  • Handy design is used as an extra hand when working with long materials
  • Cast steel base provides a solid reliable base


Other Work Positioners

 Roll Lifters and Transporters Roll Material Transporter with DC Powered Lift Feature Hydraulic Work Positioner Vertical Roll Gripper/Rotator

Additional Models In This Family
view entire Image Gallery

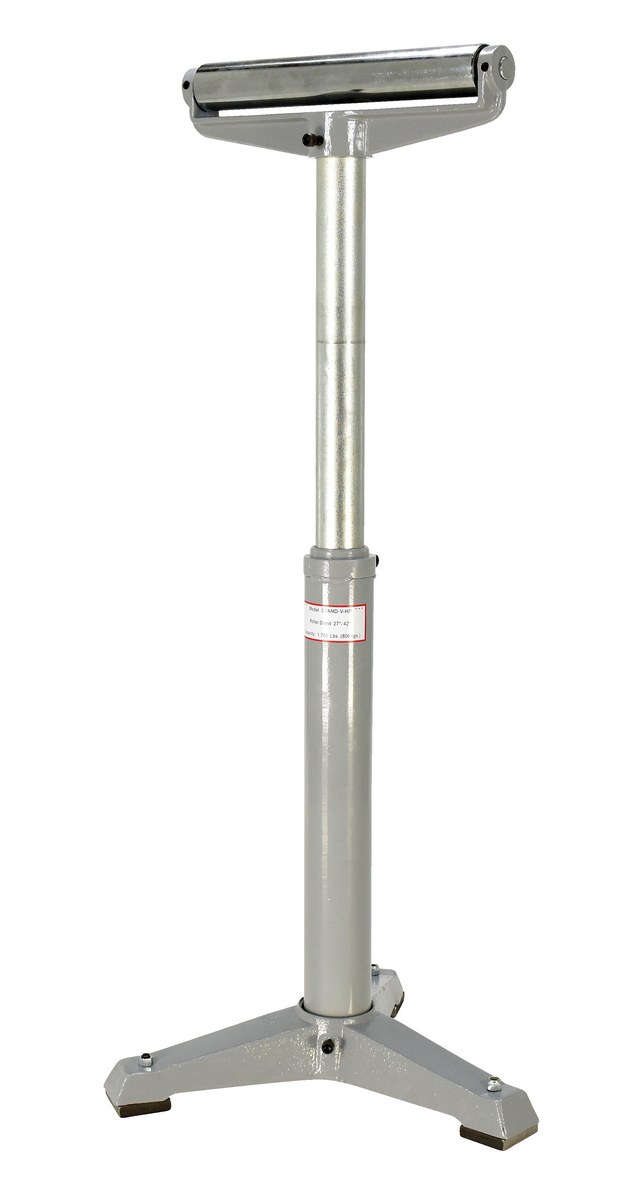

STAND-G-H-HP

STAND-G-H-HP

STAND-MF

STAND-MF

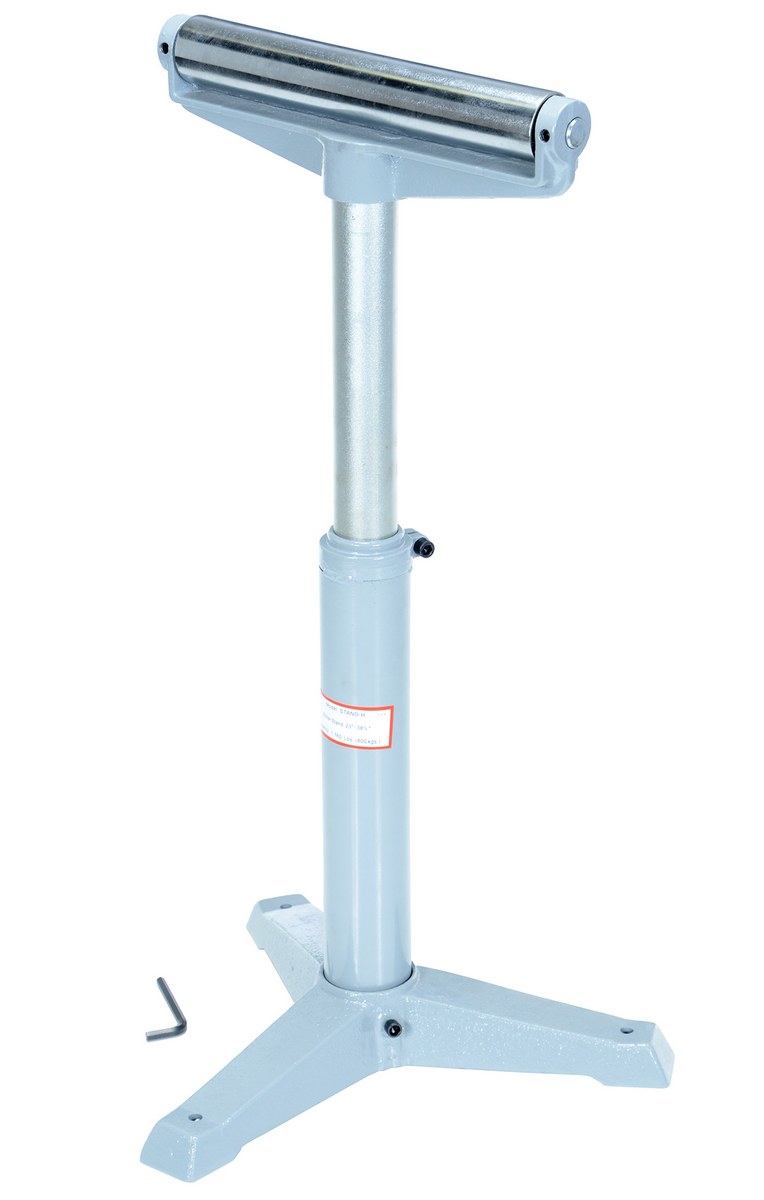

STAND-H

STAND-H

STAND-MF

STAND-MF

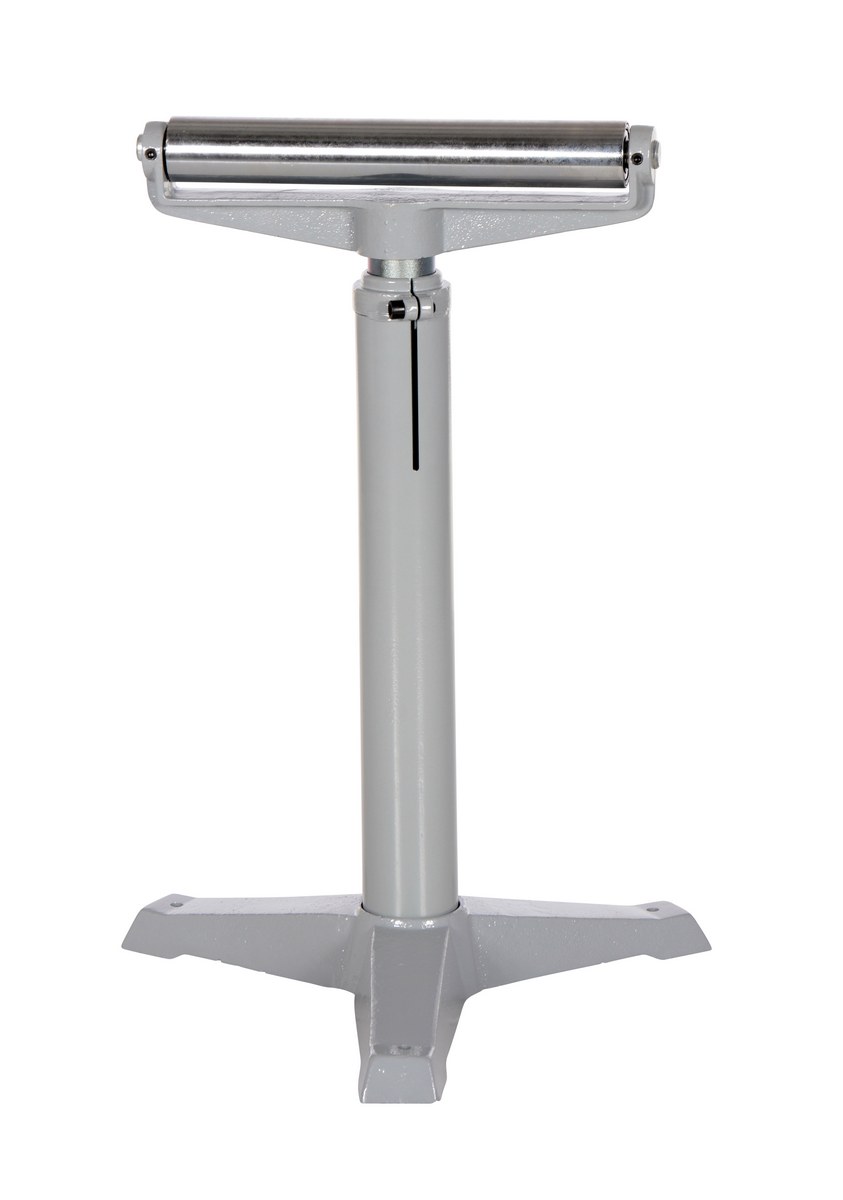

STAND-H-HP

STAND-H-HP

STAND-V

STAND-V

STAND-H-HP

STAND-H-HP

STAND-V

STAND-V

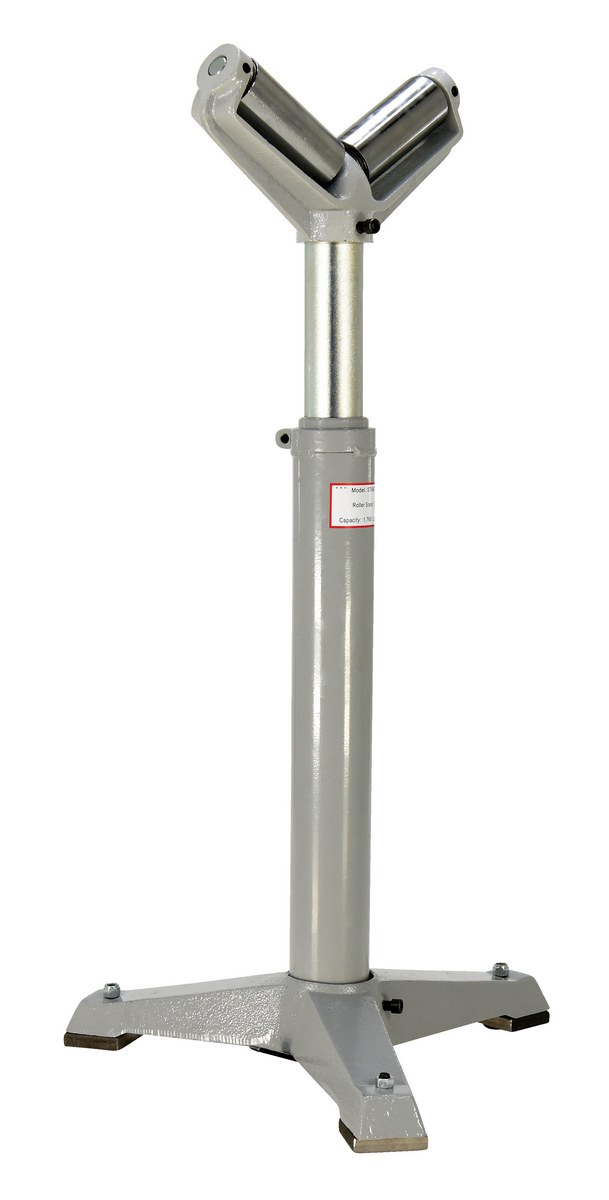

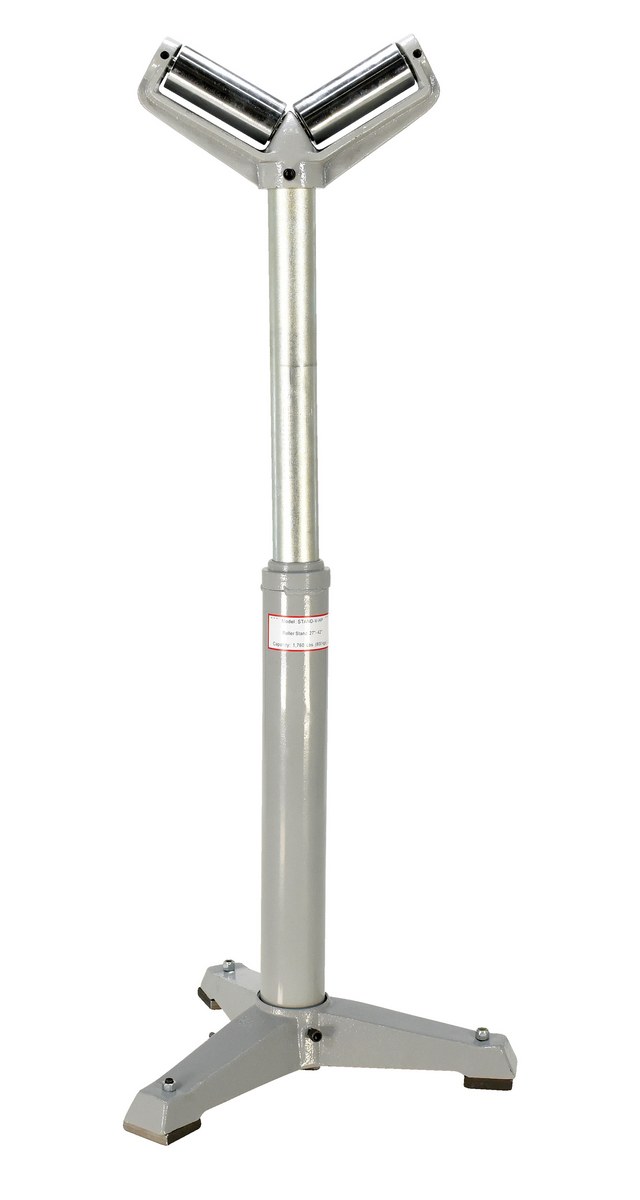

STAND-G-V-HP

STAND-G-V-HP

STAND-G-H-HP

STAND-G-H-HP

STAND-H

STAND-H

STAND-H-HP

STAND-H-HP

STAND-G-H

STAND-G-H

STAND-MF

STAND-MF

STAND-G-H-HP

STAND-G-H-HP

model chart
How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

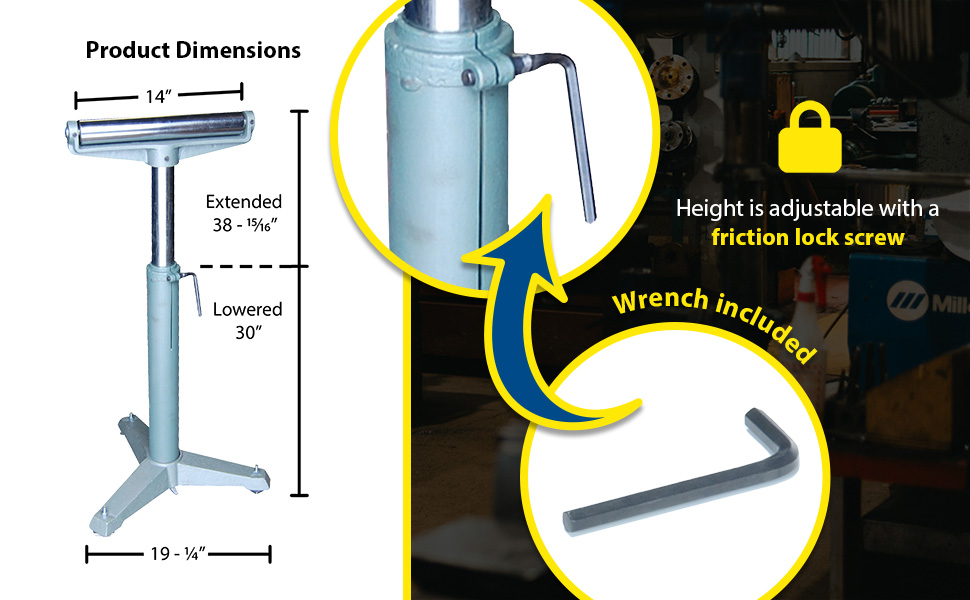

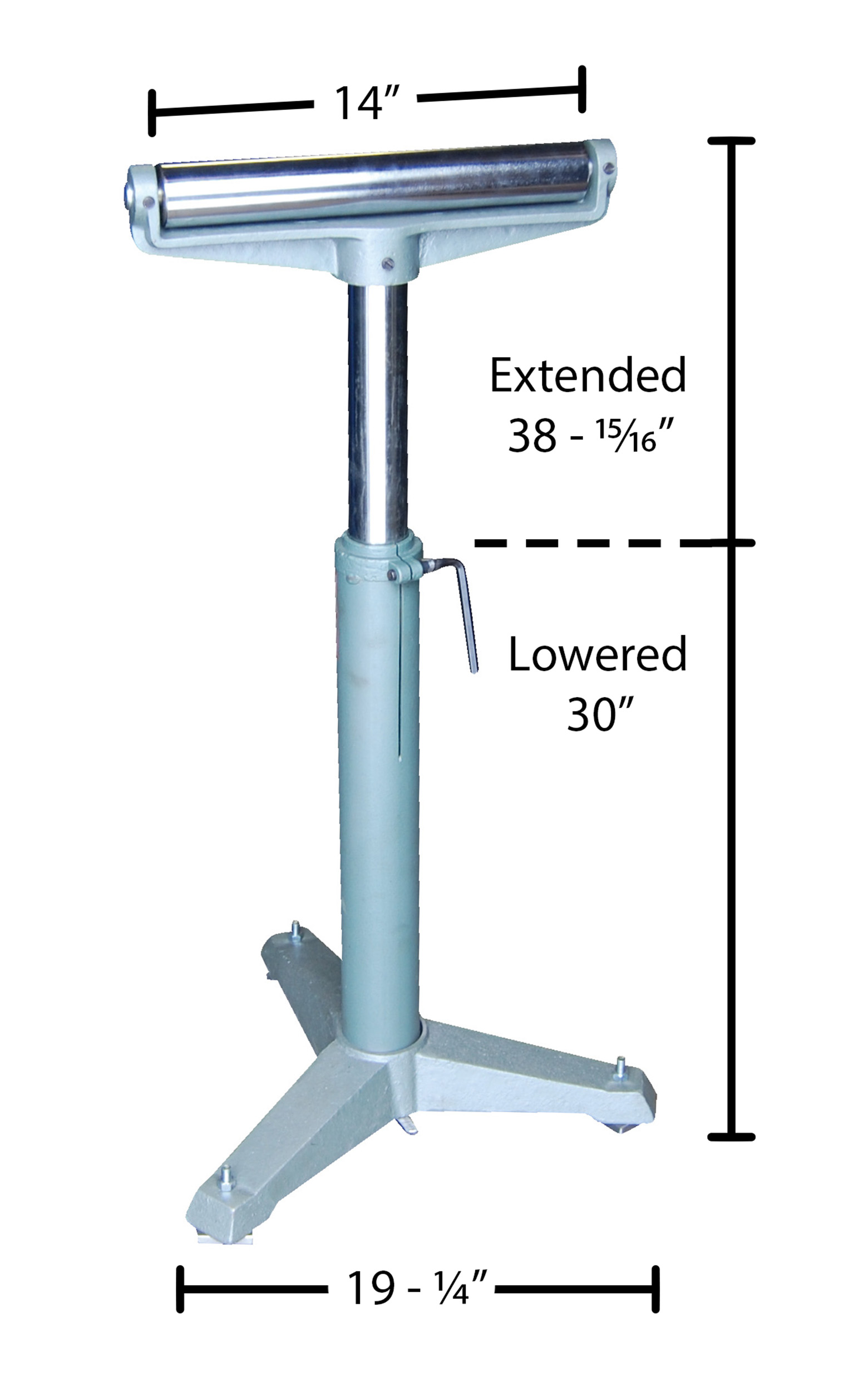

STAND-G-H STAND-G-H90 Days Limited WarrantySteel Horizontal Roller Stand 29 In. to 39-1/8 In. Raised Height 1,760 Lb. Capacity GrayUniform Capacity (lb.): 1760
Lowered Height (in.): 29		40

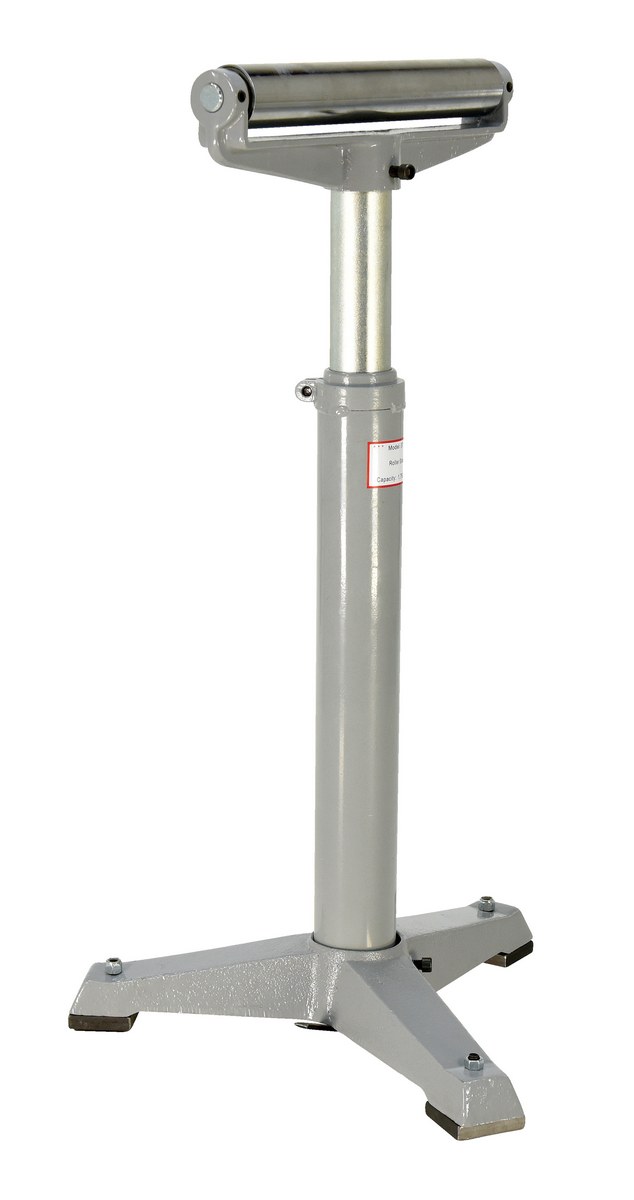

STAND-G-H-HP STAND-G-H-HP90 Days Limited WarrantySteel Horizontal Roller Stand 33 In. to 43 In. Raised Height 1,760 Lb. Capacity GrayUniform Capacity (lb.): 1760
Lowered Height (in.): 33		239

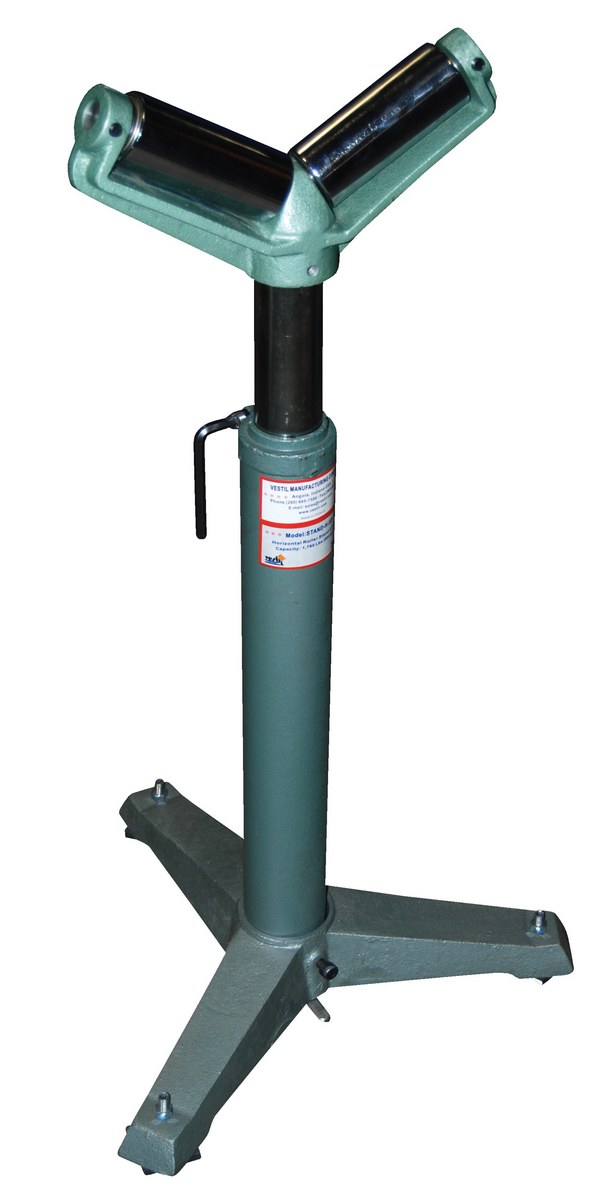

STAND-G-V STAND-G-V90 Days Limited WarrantySteel V Roller Stand 26 In. to 36 In. Raised Height 1,760 Lb. Capacity GrayUniform Capacity (lb.): 1760
Lowered Height (in.): 26		40
STAND-G-V-HP STAND-G-V-HP90 Days Limited WarrantySteel V Roller Stand 33 In. to 43 In. Raised Height 1,760 Lb. Capacity GrayUniform Capacity (lb.): 1760
Lowered Height (in.): 33		42

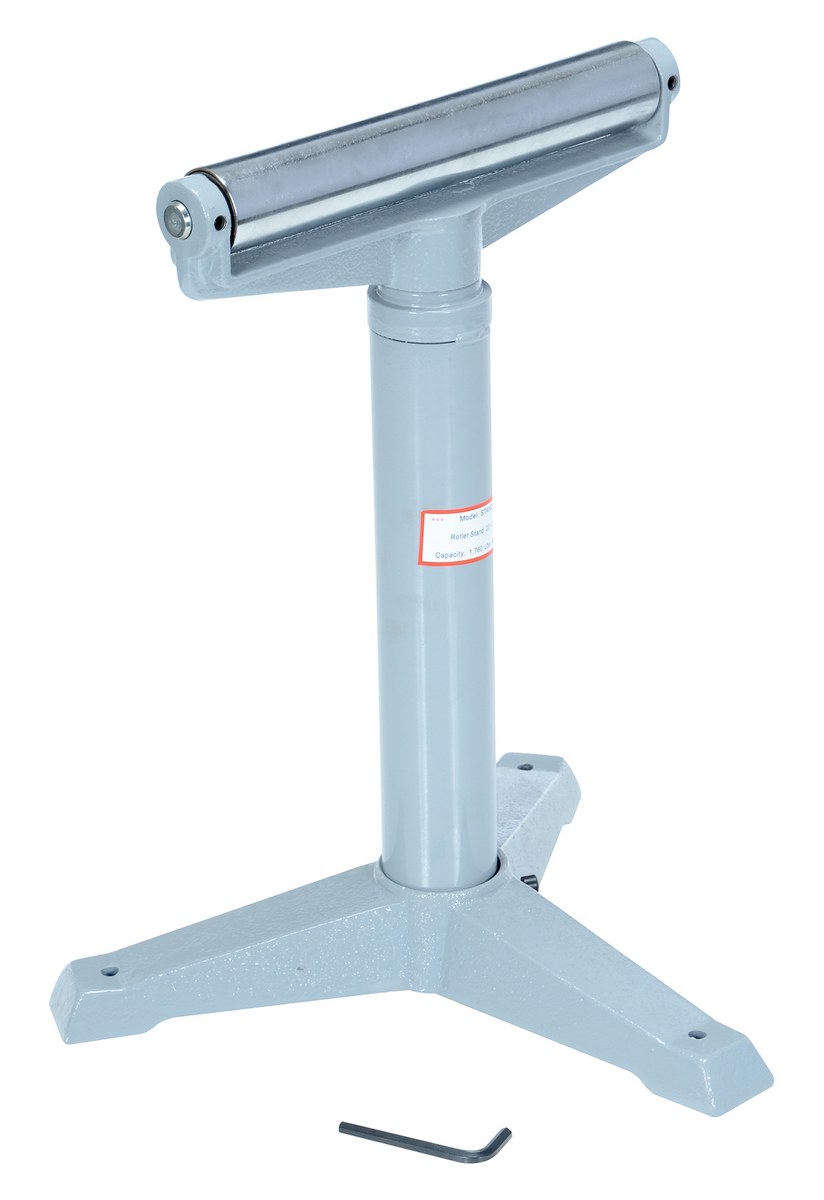

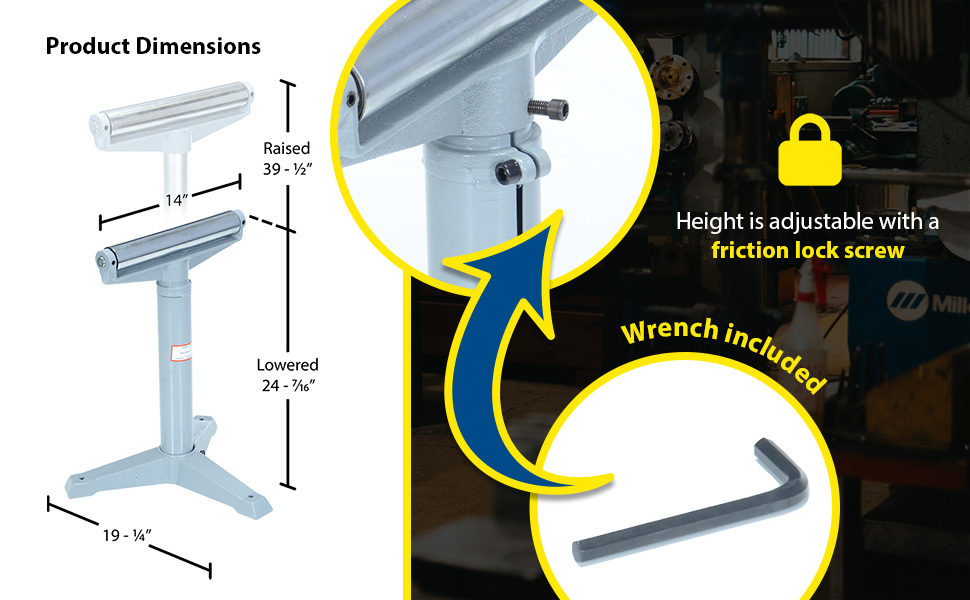

STAND-H STAND-H90 Days Limited WarrantySteel Horizontal Roller Stand 23 In. to 38-1/2 In. Raised Height 1,760 Lb. Capacity GrayUniform Capacity (lb.): 1760
Lowered Height (in.): 23		32

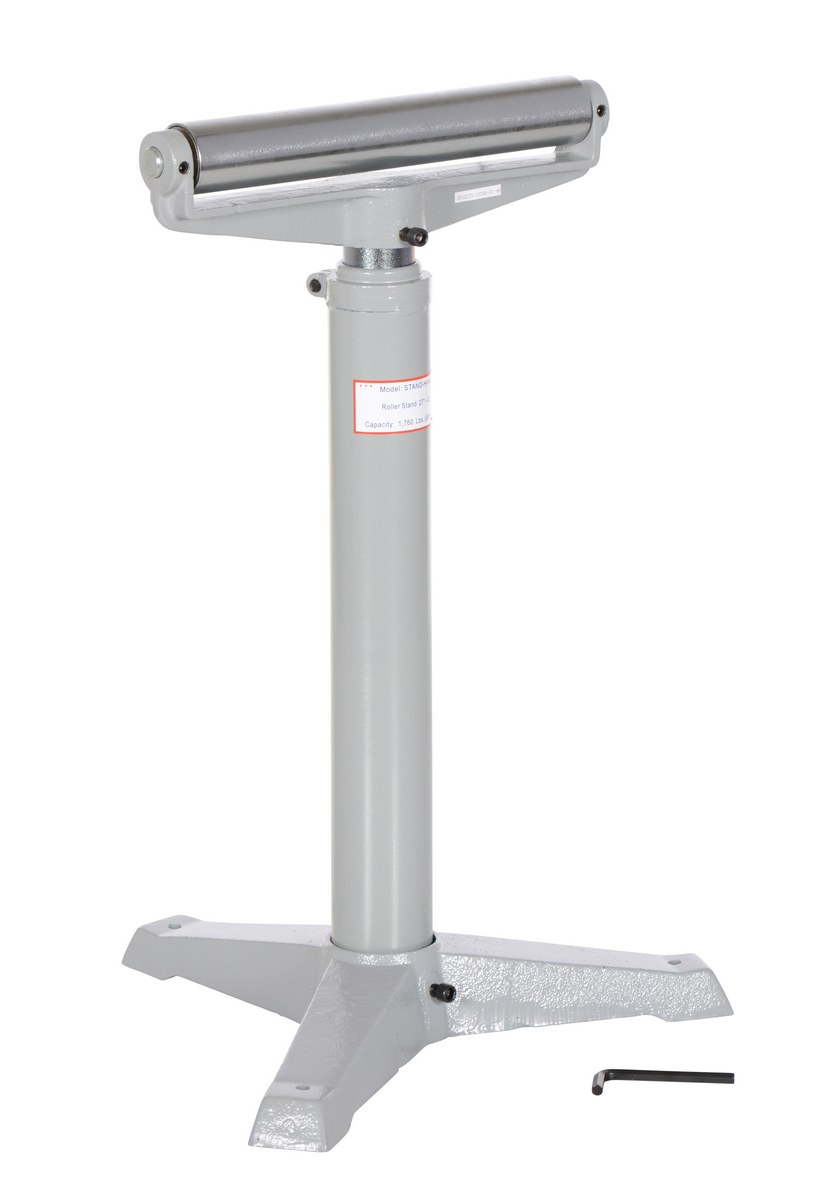

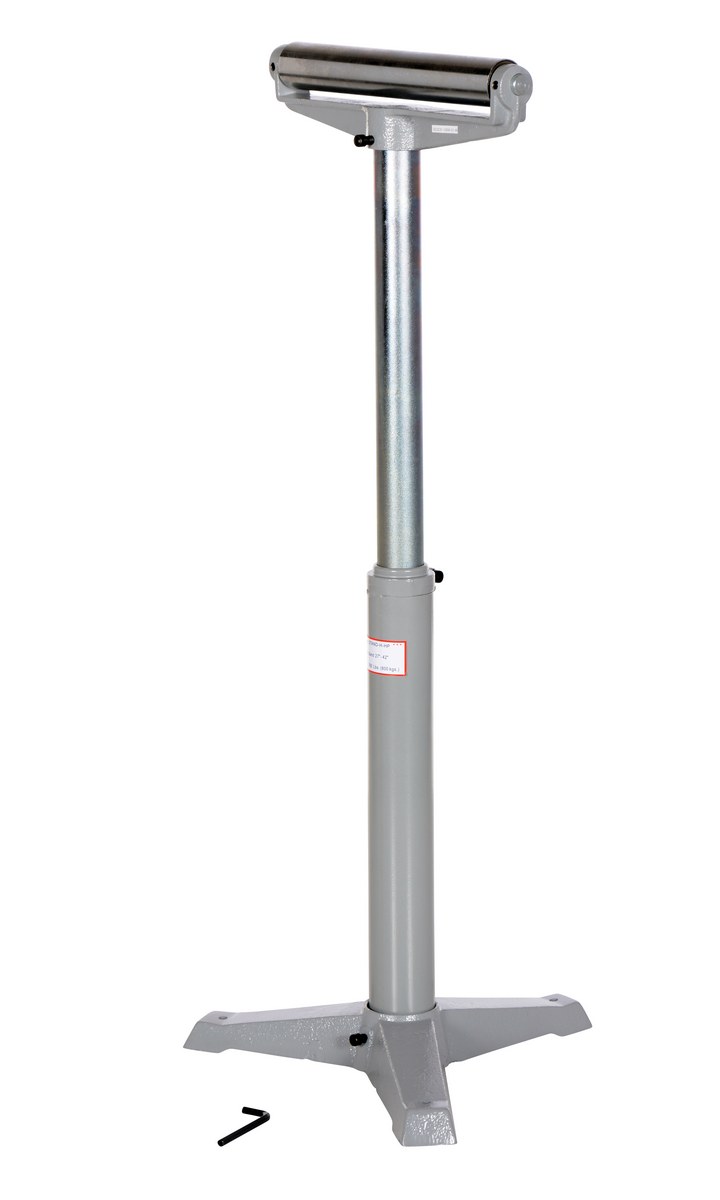

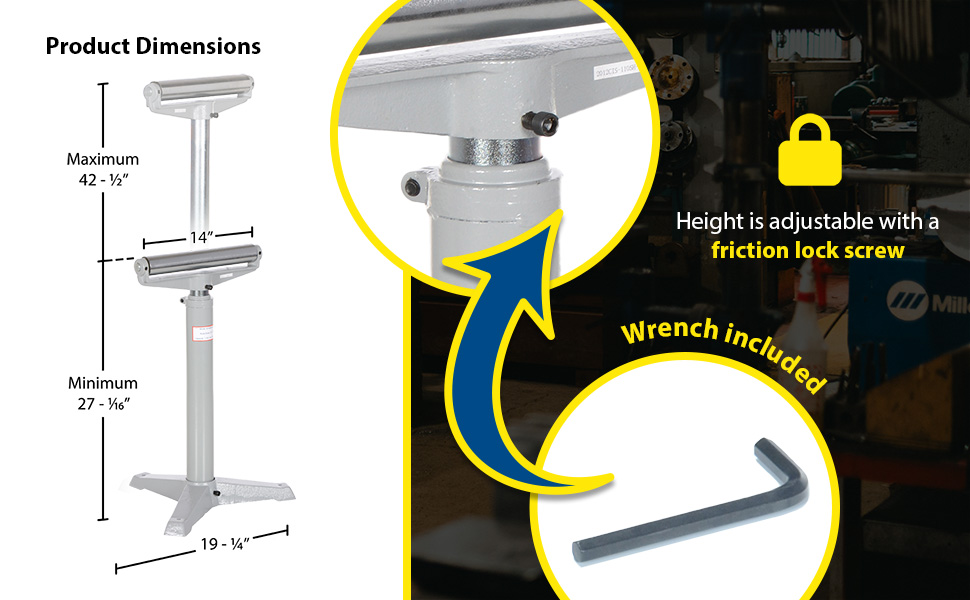

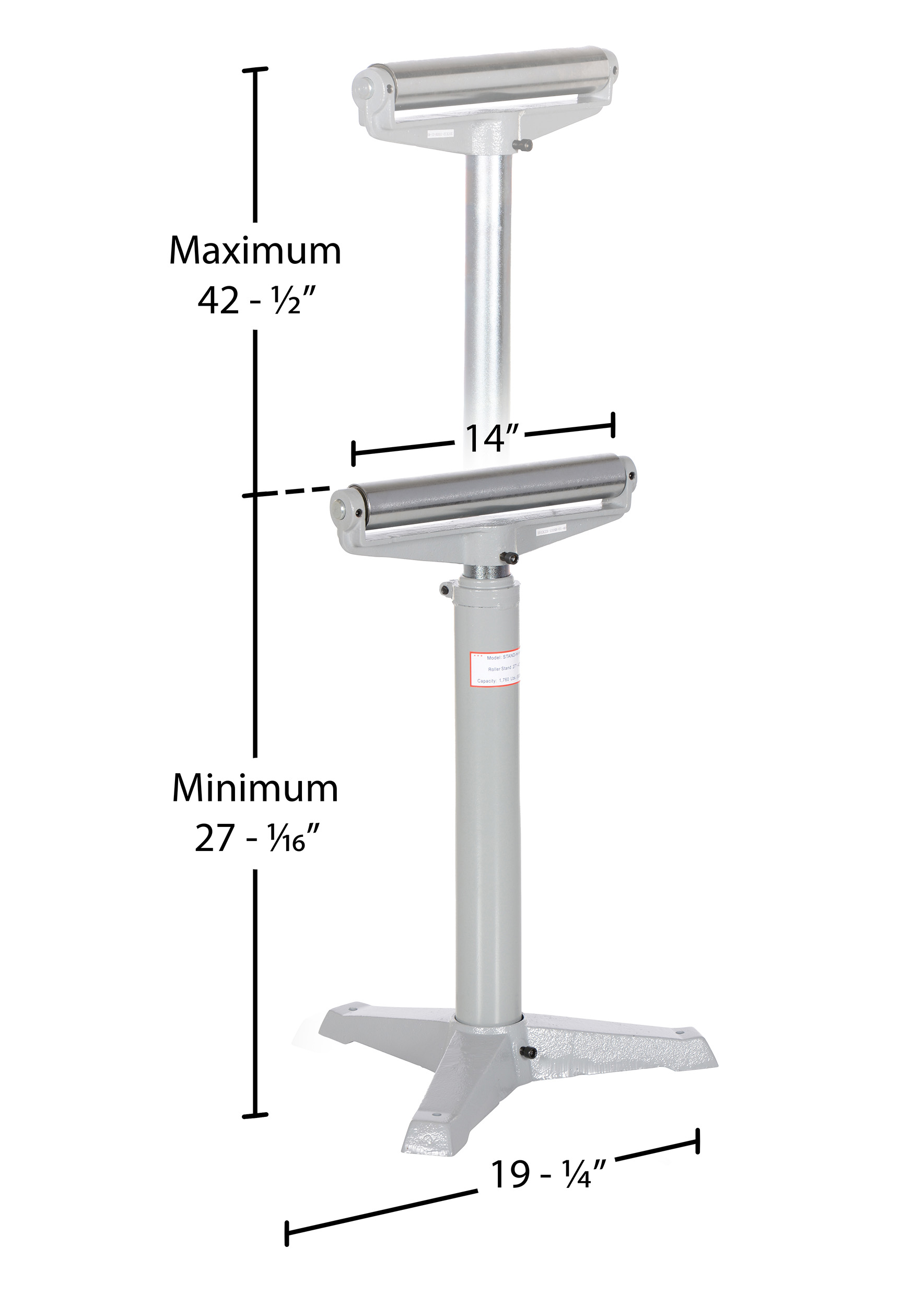

STAND-H-HP STAND-H-HP90 Days Limited WarrantySteel Horizontal Roller Stand 27 In. to 42 In. Raised Height 1,760 Lb. Capacity GrayUniform Capacity (lb.): 1760
Lowered Height (in.): 27		36

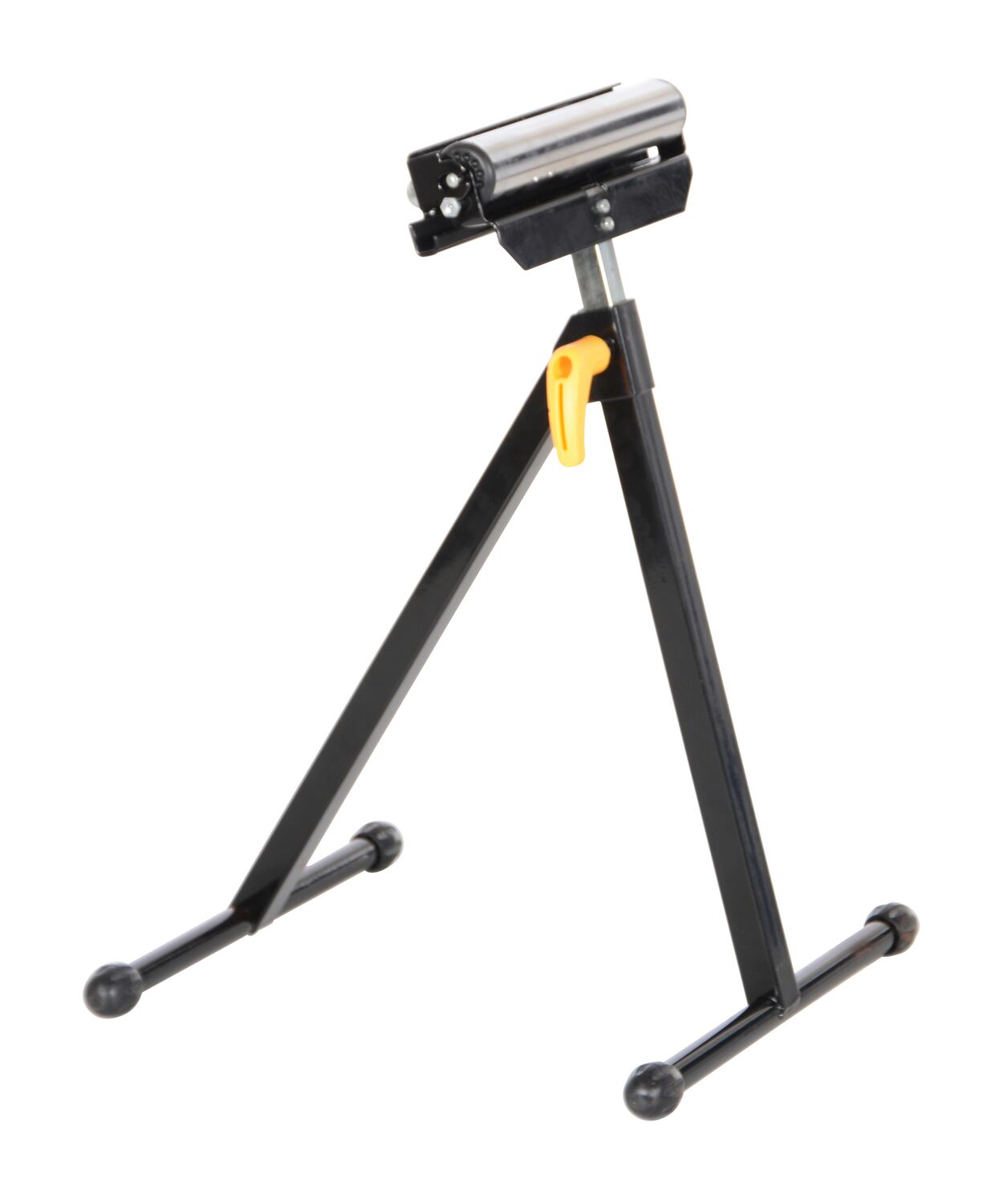

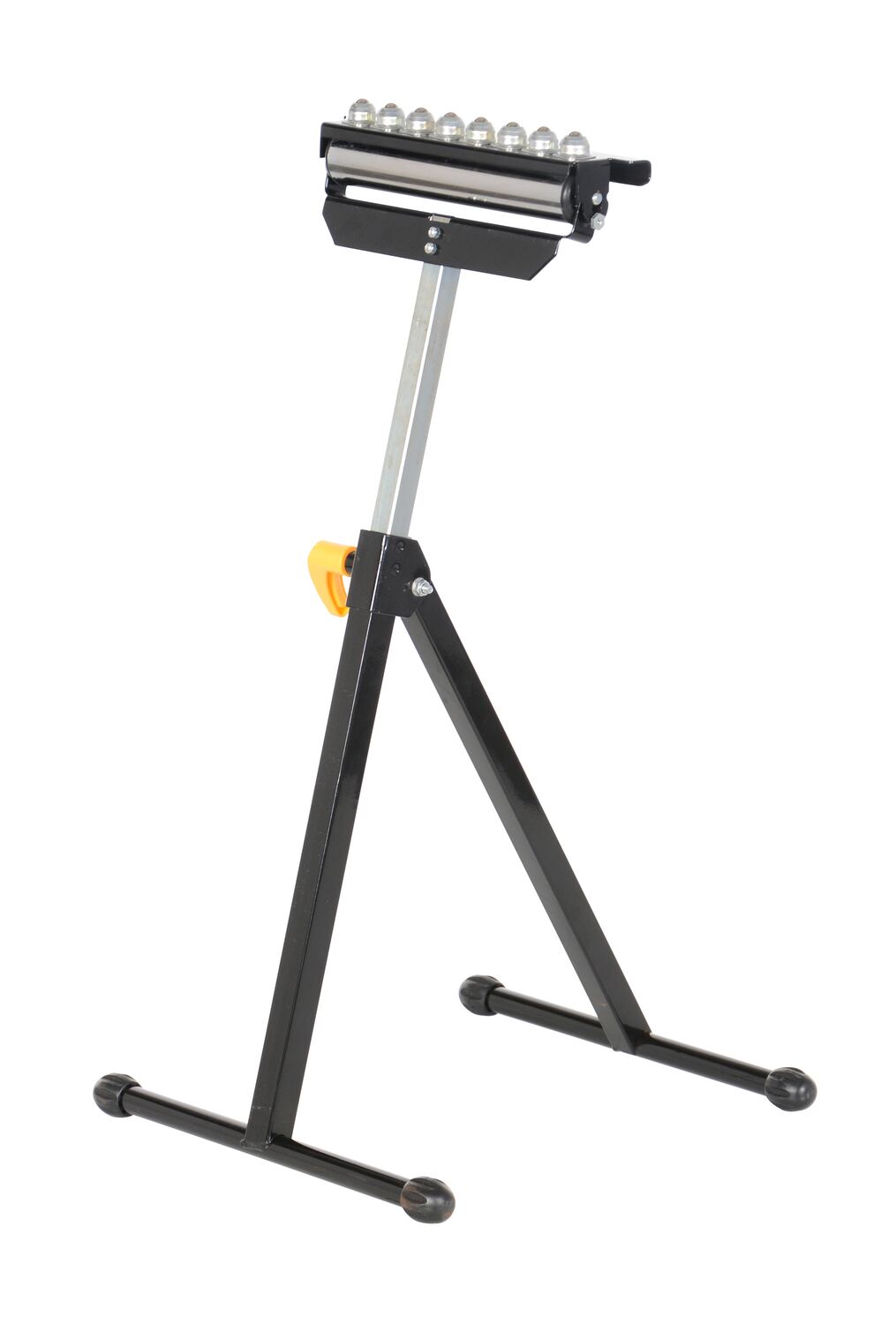

STAND-MF STAND-MF90 Days Limited WarrantySteel Roller Stand Four-Way 8 Ball Roller 28 In. to 44 In. Raised Height 125 Lb. Load Capacity BlackMaximum Load Capacity (lb.): 125
Lowered Height (in.): 27-1/2		15

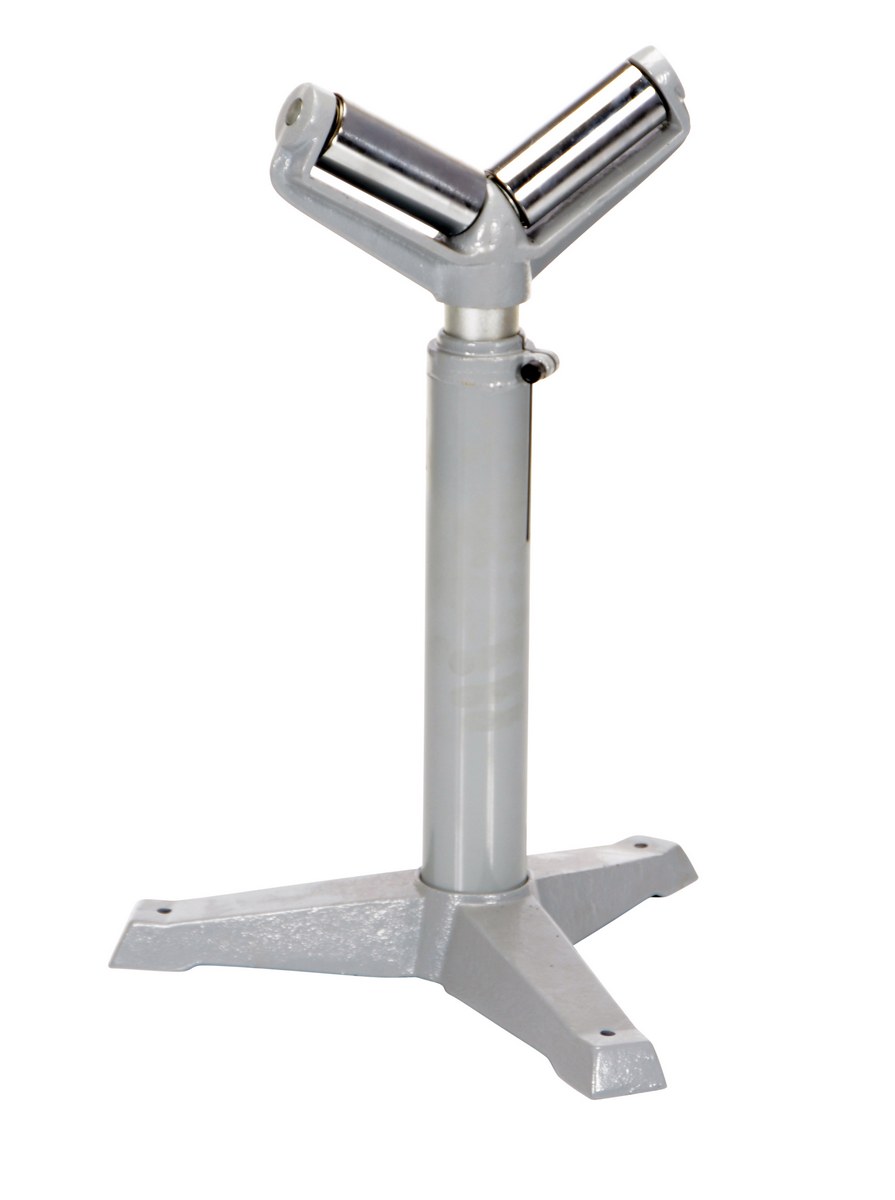

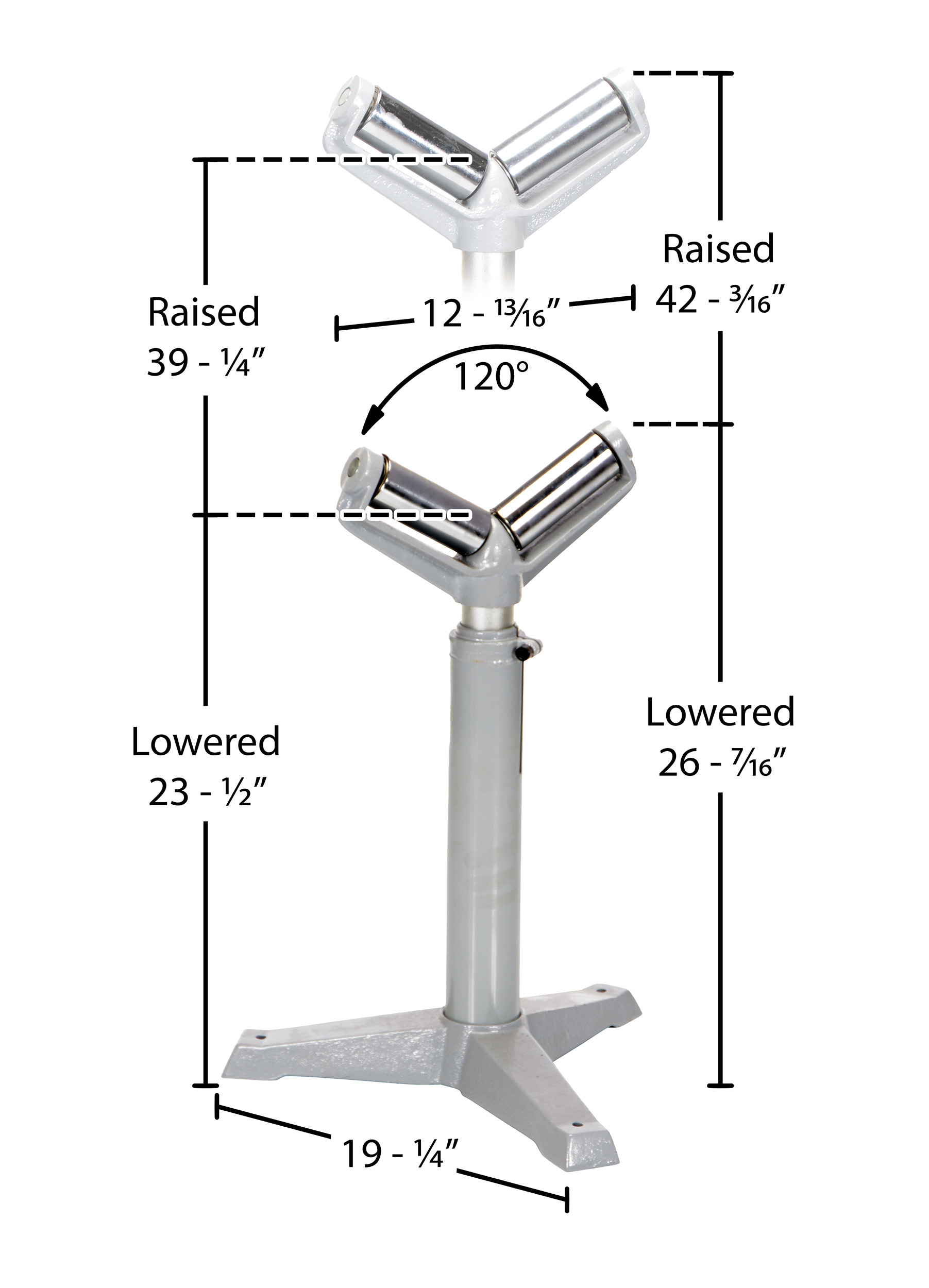

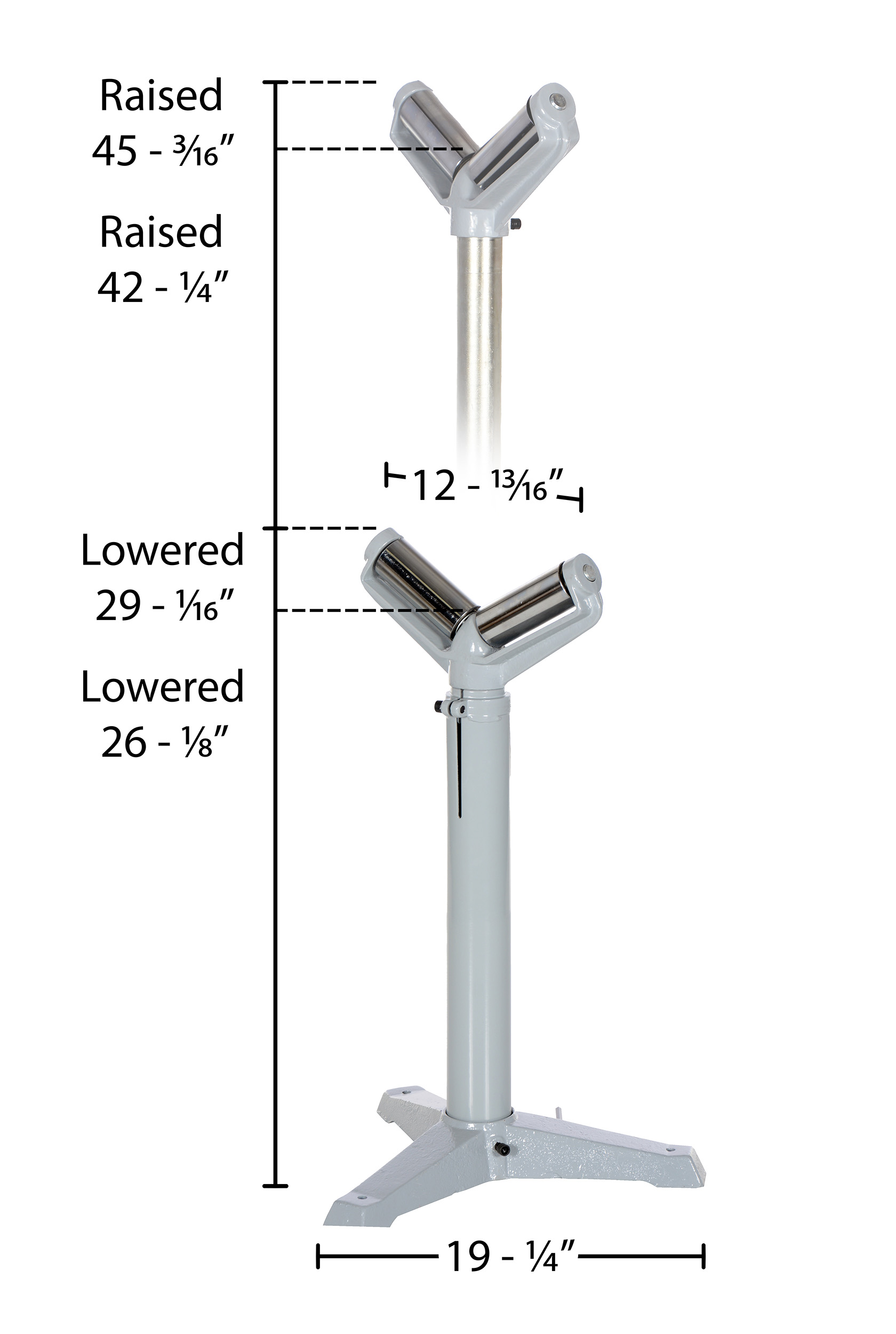

STAND-V STAND-V90 Days Limited WarrantySteel Roller Stand 23-1/2 to 39-1/4 Raised Height 1,760 Lb. Capacity SilverUniform Capacity (lb.): 1760
Lowered Height (in.): 23-1/2		35

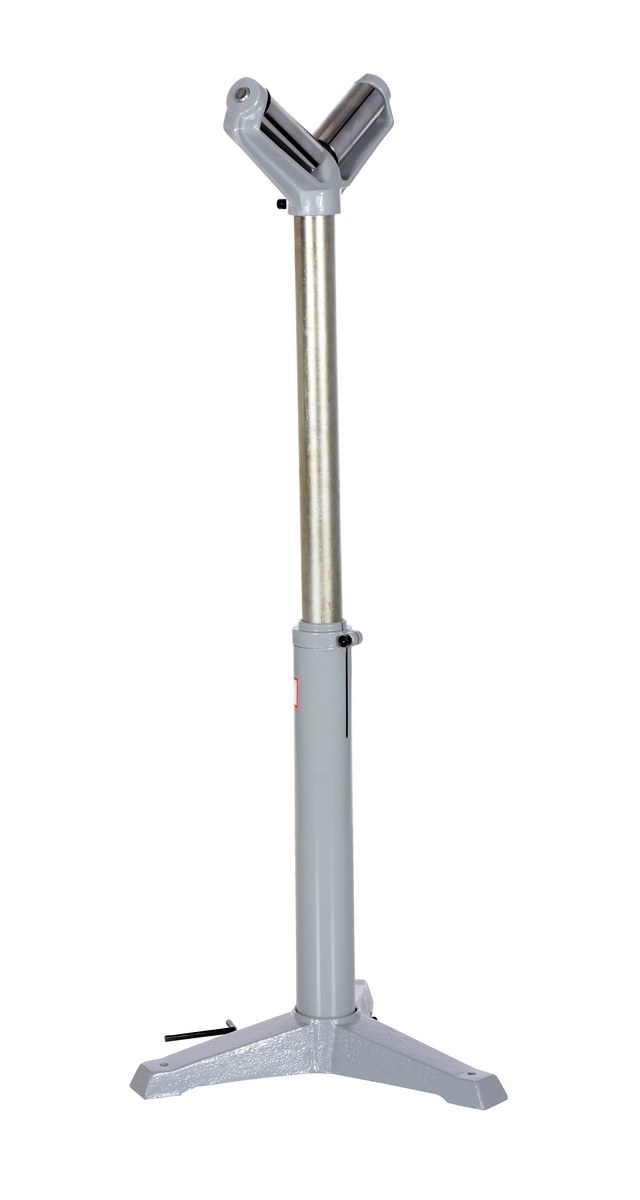

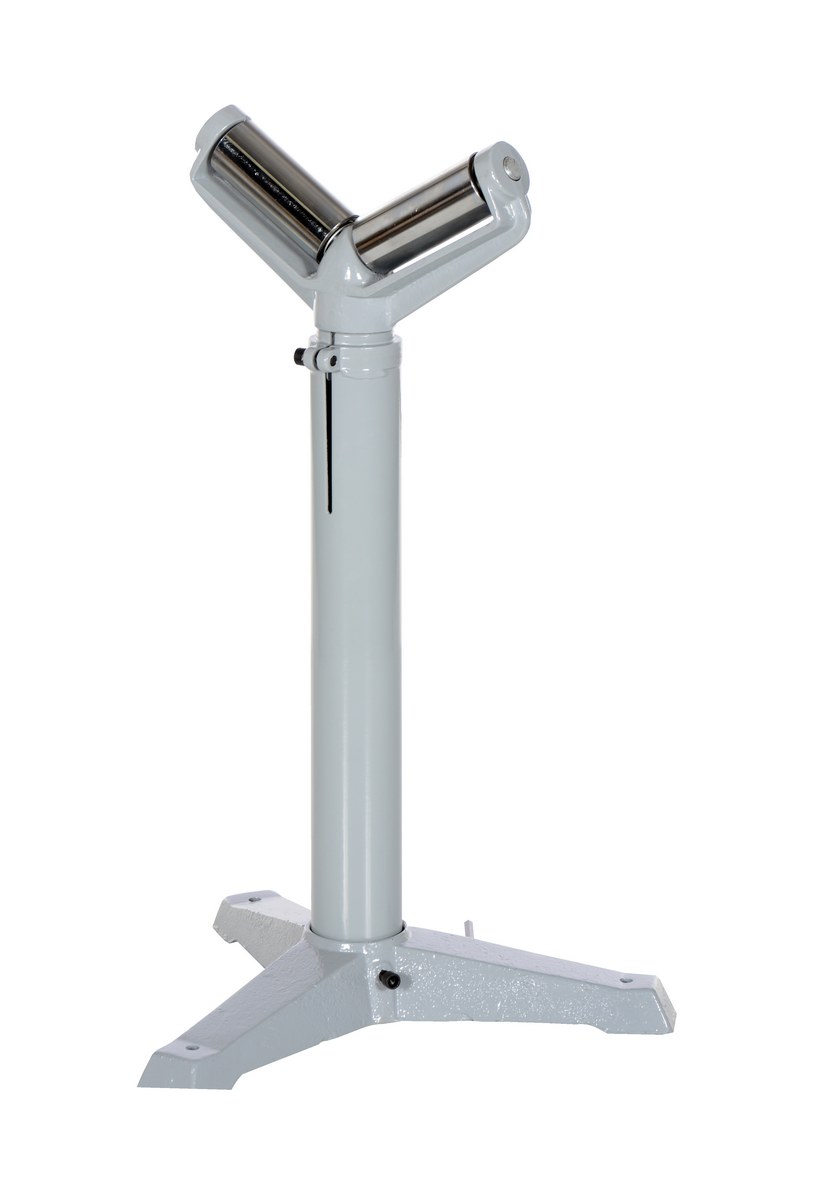

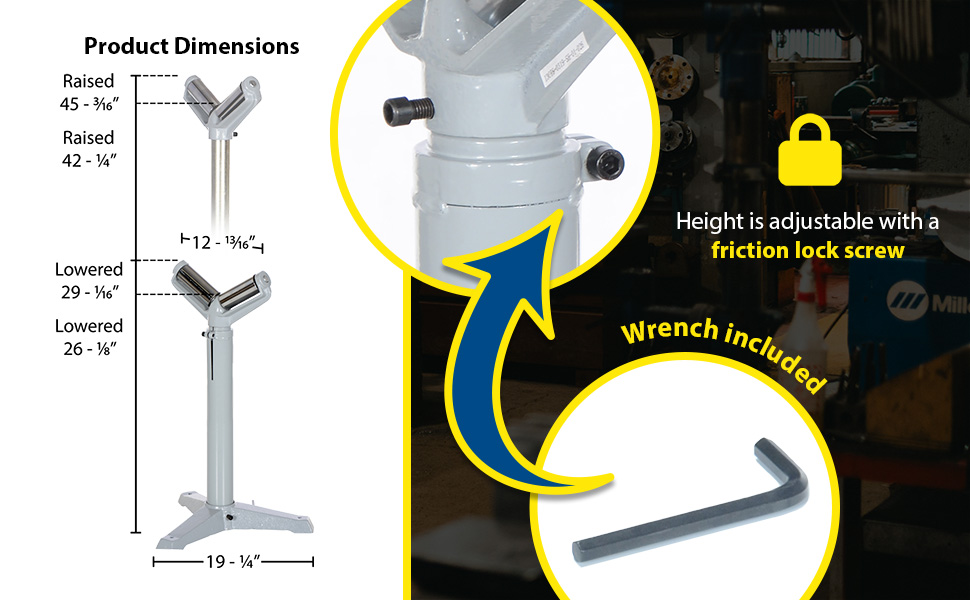

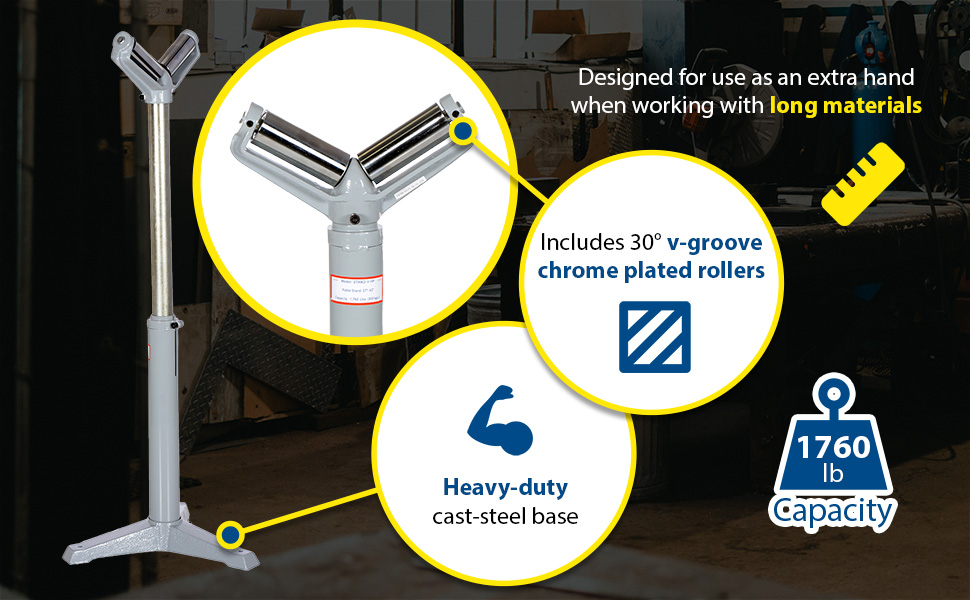

STAND-V-HP STAND-V-HP90 Days Limited WarrantySteel Roller Stand Quantity 27 In. to 42 In. Raised Height 1,760 Lb. Capacity SilverUniform Capacity (lb.): 1760
Lowered Height (in.): 27		36

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

STAND-G-H
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1760
Lowered Height (in.): 29
Uniform Capacity (lb.): 1760
Lowered Height (in.): 29

STAND-G-H-HP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1760
Lowered Height (in.): 33
Uniform Capacity (lb.): 1760
Lowered Height (in.): 33

STAND-G-V
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1760
Lowered Height (in.): 26
Uniform Capacity (lb.): 1760
Lowered Height (in.): 26

STAND-G-V-HP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1760
Lowered Height (in.): 33
Uniform Capacity (lb.): 1760
Lowered Height (in.): 33

STAND-H
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1760
Lowered Height (in.): 23
Uniform Capacity (lb.): 1760
Lowered Height (in.): 23

STAND-H-HP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1760
Lowered Height (in.): 27
Uniform Capacity (lb.): 1760
Lowered Height (in.): 27

STAND-MF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Maximum Load Capacity (lb.): 125
Lowered Height (in.): 27-1/2
Maximum Load Capacity (lb.): 125
Lowered Height (in.): 27-1/2

STAND-V
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1760
Lowered Height (in.): 23-1/2
Uniform Capacity (lb.): 1760
Lowered Height (in.): 23-1/2

STAND-V-HP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1760
Lowered Height (in.): 27
Uniform Capacity (lb.): 1760
Lowered Height (in.): 27
For More Details of the Option Click the Red Model Button

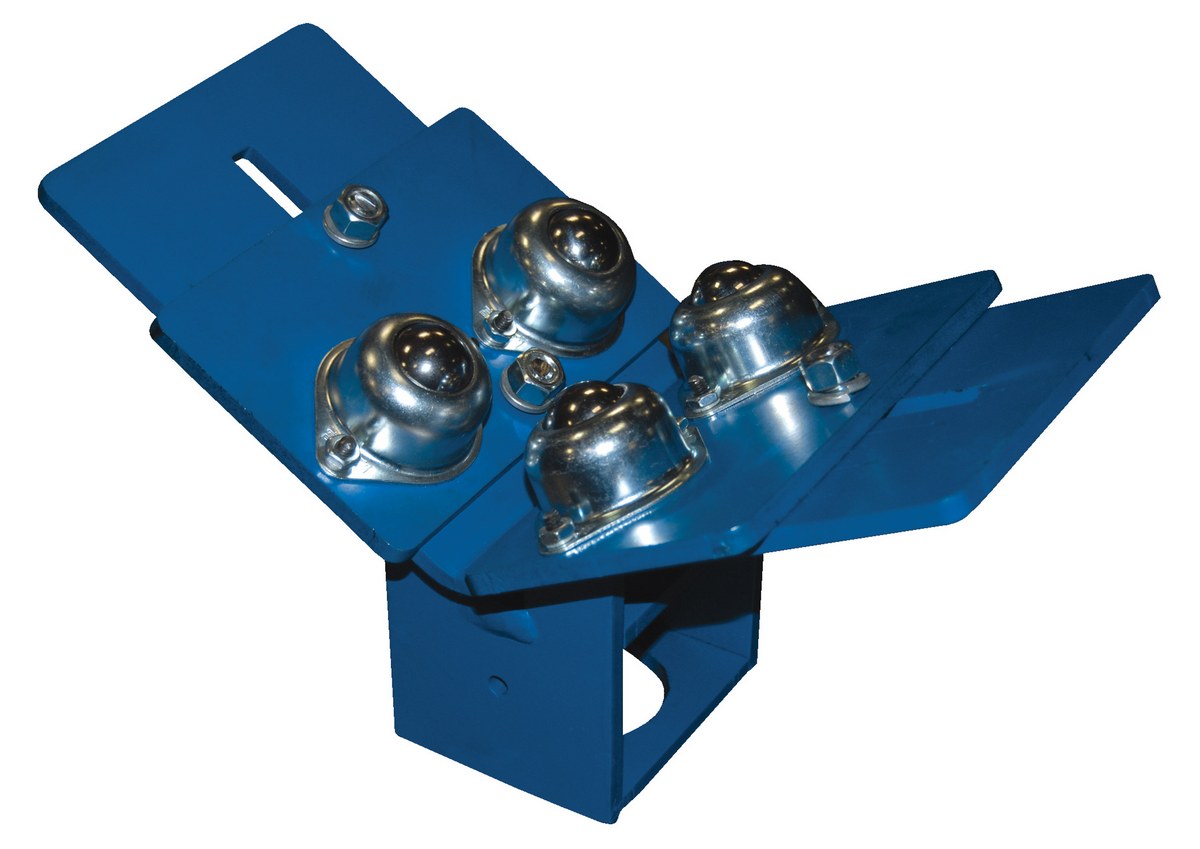

STAND-T STAND-T90 Days Limited WarrantySteel Roller Stand Roller Plate 300 Lb. Capacity BlueUniform Capacity (lb.): 300
Number of Single Ball Transfers: 4		12

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Deluxe Roller Stands PDF's will open in a new window when clicked.

Manuals


STAND-G-H
Owners Manual

STAND-G-H-HP
Owners Manual

STAND-G-V
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


STAND-G-H

STAND-G-H-HP

STAND-G-V

STAND-G-V-HP

STAND-H

STAND-H-HP

STAND-T

STAND-V

STAND-V-HP

Testing Certificates


STAND-G-H

STAND-G-H-HP

STAND-G-V

STAND-G-V-HP

STAND-H

STAND-H-HP

STAND-MF

STAND-T

STAND-V

STAND-V-HP

SDS Sheets

No SDS Sheets For This Product

Other PDF's

pdf-logo.gifSTAND-H Owners Manual

pdf-logo.gifSTAND-H-HP Owners Manual

pdf-logo.gifSTAND-V Owners Manual

pdf-logo.gifSTAND-V-HP Owners Manual

pdf-logo.gifSTAND-G, H, and V, Owners Manual


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: I am interested in the STAND-H - do these ship with the hex wrench included?

A: Yes the hex wrench is included.
