Product Family Overview


Shorty Scissor Lift Tables
SERIES: EHLTS,EHLTSD

Built with the same quality as all our lift tables, the EHLTS and EHLTSD maximize safety and durability. Designed to raise products up to an ergonomic working height. When tight spaces are what you have, consider a Shorty Scissor Table. Available in both a single and double leg styles these tables offer smaller deck sizes customized to your space requirements. Design features includes full perimeter pinch point guard and emergency internal safety velocity fuse. 460V 3-Phase external power unit and hand control is standard.

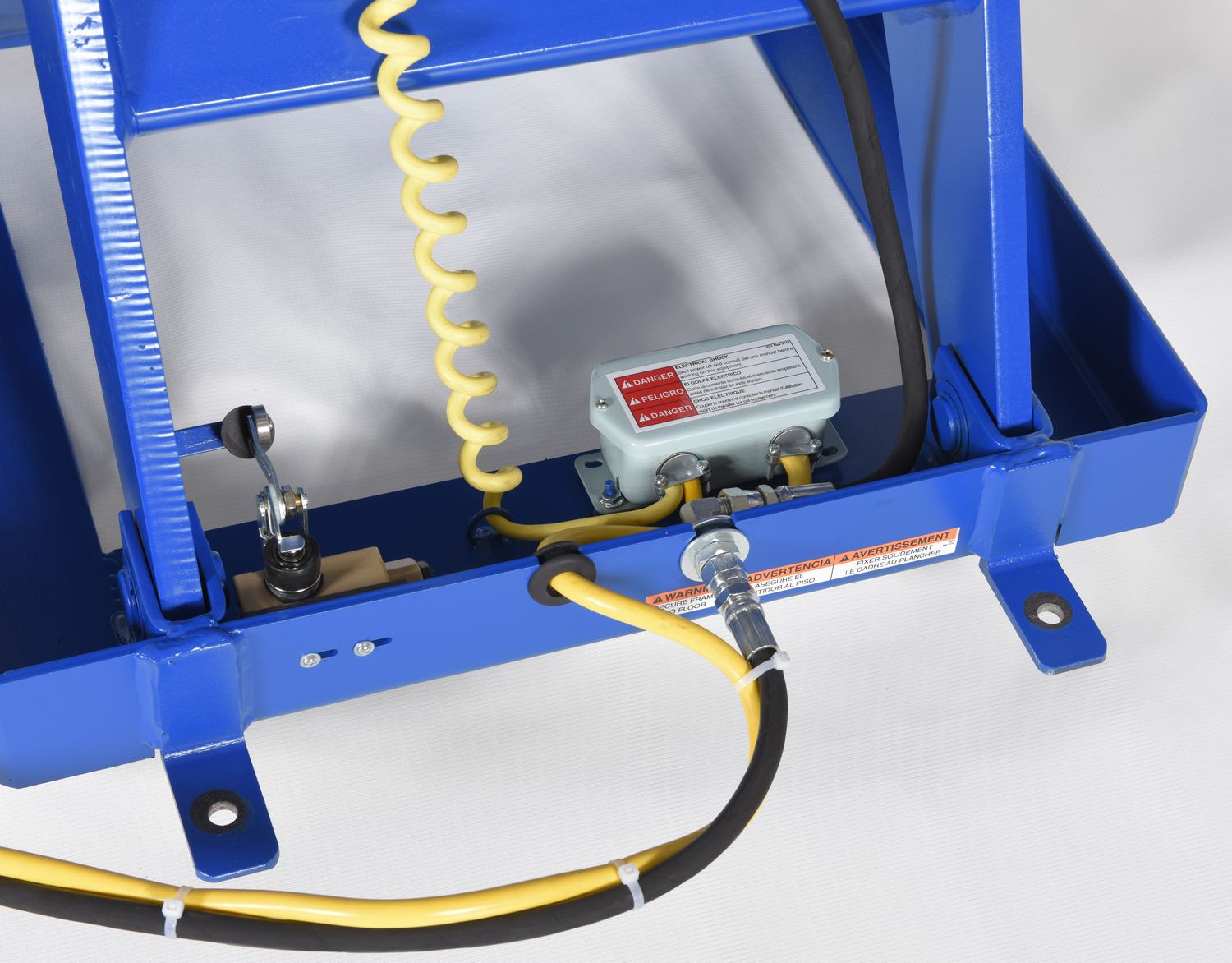

  • Four-sided electric toe-guard meets OSHA pinch point specification
  • Durable aluminum pressure-plated hydraulic pump provides maximum efficiency
  • Displacement-style hydraulic cylinders offer maximum strength
  • Welded steel construction provides reliable heavy-duty use
  • Utilizes small areas effectively

Built with the same quality as all our lift tables, the EHLTS and EHLTSD maximize safety and durability. Designed to raise products up to an ergonomic working height. When tight spaces are what you have, consider a Shorty Scissor Table. Available in both a single and double leg styles these tables offer smaller deck sizes customized to your space requirements. Design features includes full perimeter pinch point guard and emergency internal safety velocity fuse. 460V 3-Phase external power unit and hand control is standard.

  • Four-sided electric toe-guard meets OSHA pinch point specification
  • Durable aluminum pressure-plated hydraulic pump provides maximum efficiency
  • Displacement-style hydraulic cylinders offer maximum strength
  • Welded steel construction provides reliable heavy-duty use
  • Utilizes small areas effectively

Additional Models In This Family

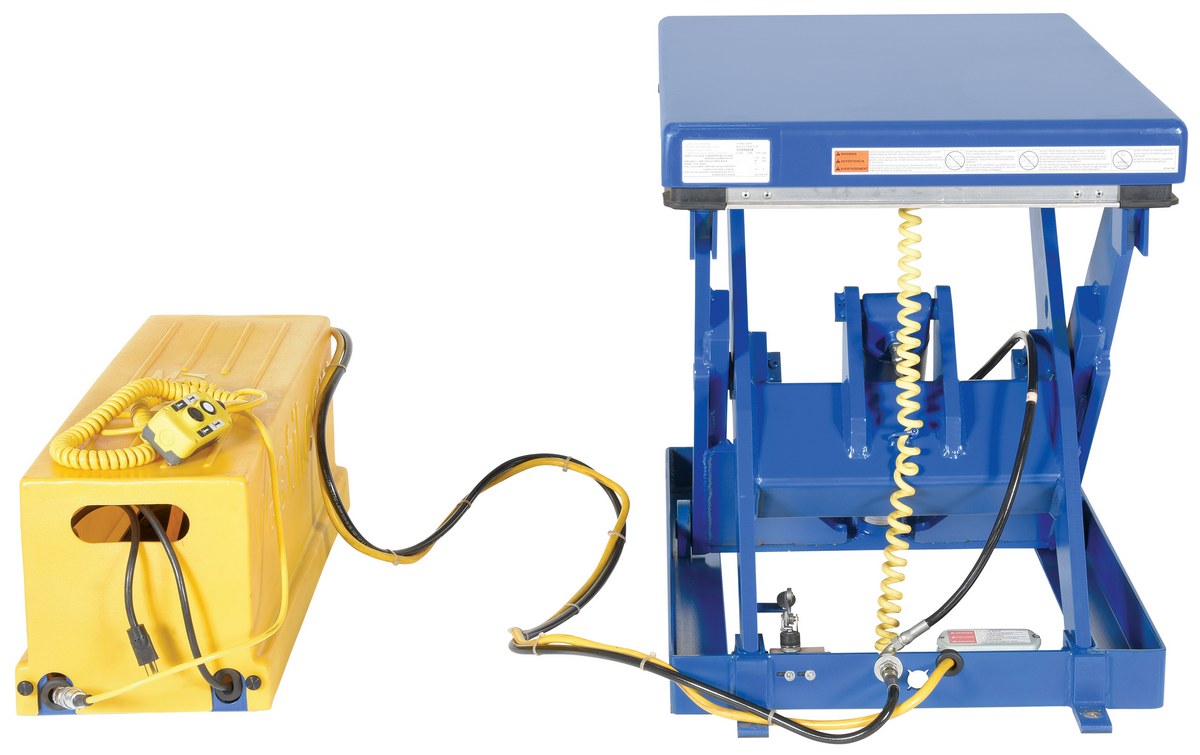

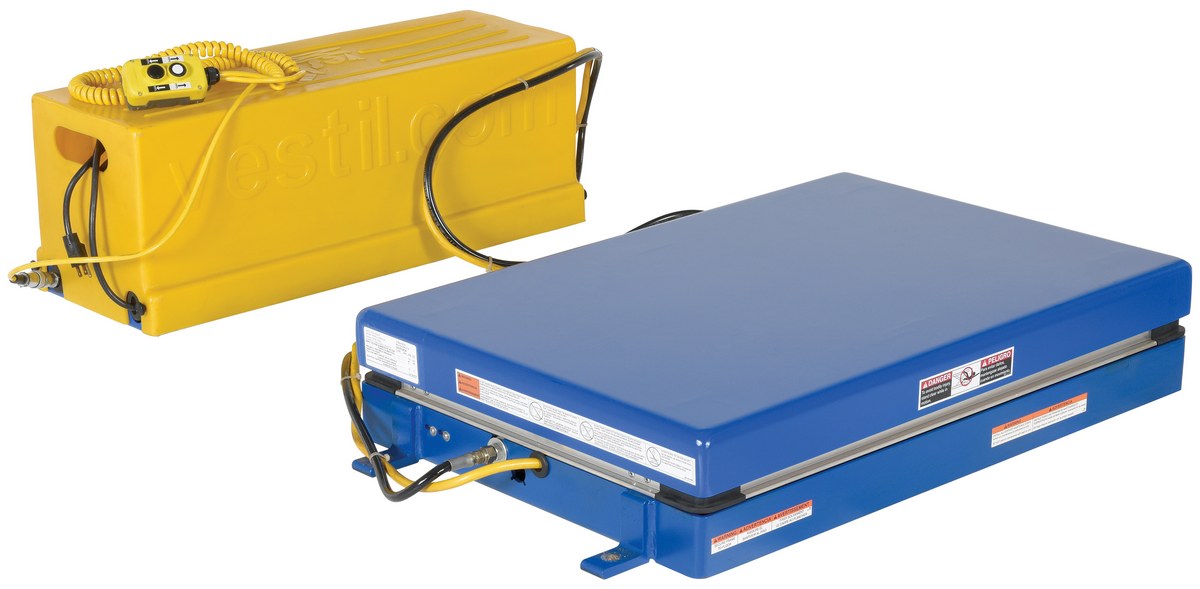

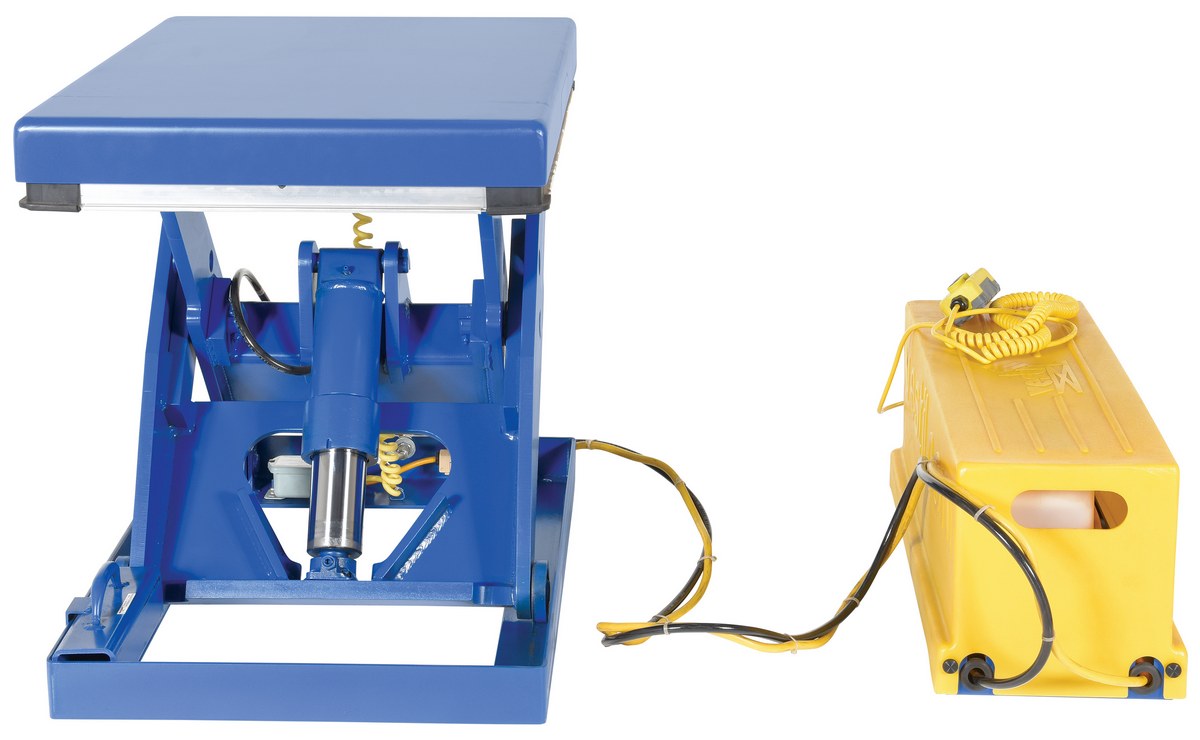

EHLTS-2436-2-31

model EHLTS-2436-2-31

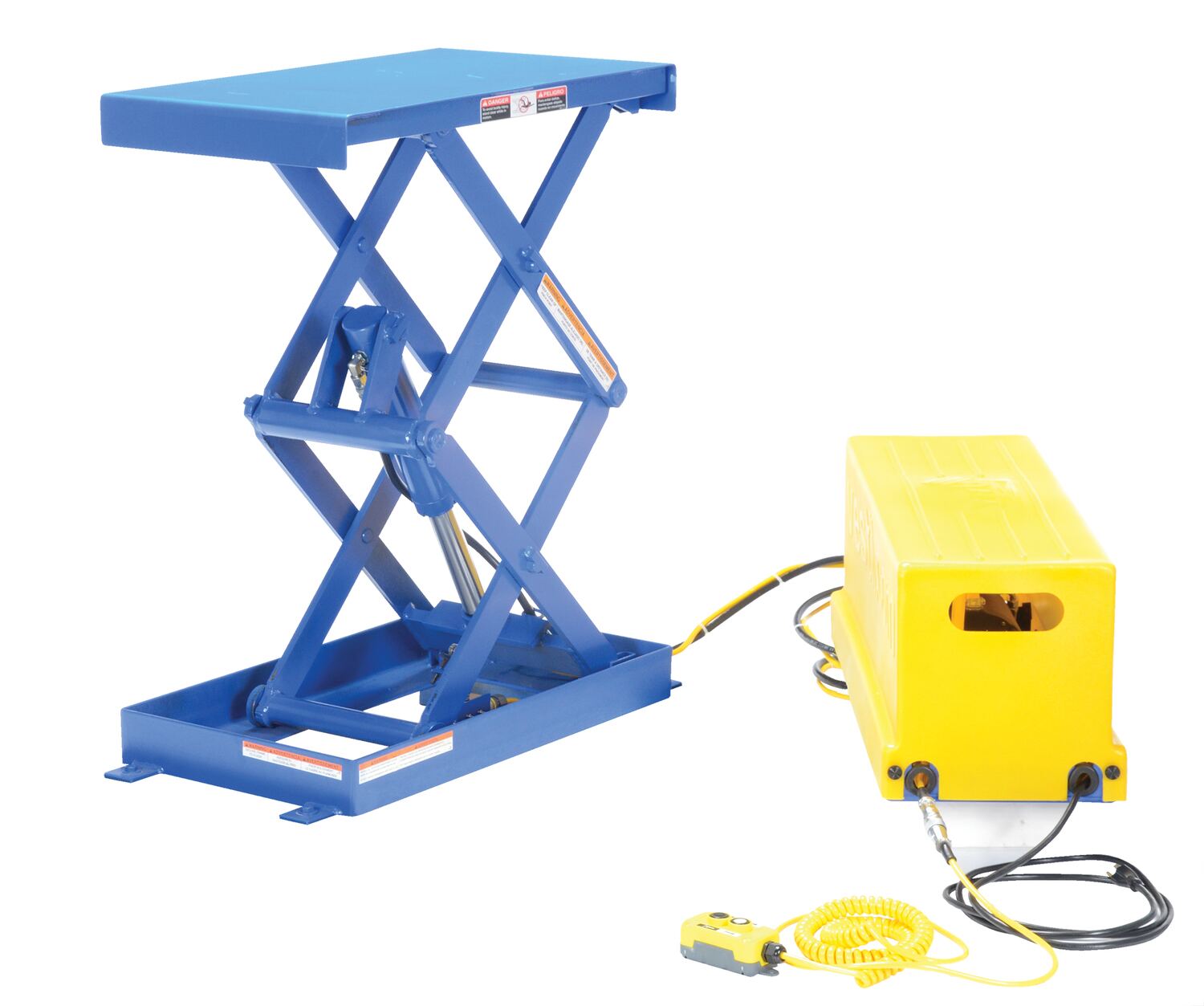

EHLTSD-1628-1-35

model EHLTSD-1628-1-35

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Shorty Scissor Lift Tables
Model Number Format
EHLTS - (width)(length) - capacity - raised height
Single Leg Set
Vertical
Travel
Platform
Width
Platform
Length
Capacity
(lbs.)
Raised
Height
Lowered
Height
Travel
Time (sec.)
Wt.
(lbs.)
24" 24"-48" 36"-48" 1,000 31" 7" 12 689
24" 24"-48" 36"-48" 2,000 31" 7" 12 769
24" 24"-48" 36"-48" 3,000 31" 7" 12 788
24" 24"-48" 36"-48" 4,000 31" 7" 23 850
23" 36"-48" 36"-48" 5,000 31" 8" 23 937

Travel Time Based on 3 Phase Power

Double Shorty Narrow Scissor Lift Tables
Model Image PDF Platform Size
(WxL)
Lowered
Height
Raised
Height
Capacity
(lbs.)
Voltage/
Phase
Wt.
(lbs.)
EHLTSD-1228-05-35 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 12"x28" 7" 35" 500 460/3 300
EHLTSD-1228-1-35 Warranty PDFCompliance Certificate 12"x28" 7" 35" 1,000 460/3 300
EHLTSD-1628-1-35 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 16"x28" 7" 35" 1,000 460/3 350
EHLTSD-2436-1-35 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 24"x36" 7" 35" 1,000 460/3 400
Double Shorty Scissor Lift Tables
Model Number Format
EHLTSD - (width)(length) - capacity - raised height
Double Leg Set
Vertical Travel Image Platform Width Platform Length Capacity
(lbs.)
Raised
Height
Lowered Height Travel Time (sec.) Wt.
(lbs.)
41" - 34"-48" 36"-48" 1,000 51" 10" 16 882
41" - 34"-48" 36"-48" 2,000 51" 10" 23 892
41" - 34"-48" 36"-48" 3,000 51" 10" 32 903
41" - 34"-48" 36"-48" 4,000 51" 10" 32 955
41" - 34"-48" 36"-48" 5,000 51" 10" 48 966
Travel Time Based on 3 Phase Power
EHLTS-3636-4-31
EHLTS-3636-5-31
EHLTS-4848-2-31
EHLTS-4848-4-31
EHLTS-4848-5-31
EHLTS-2436-2-31
EHLTS-2436-4-31
EHLTS-2436-5-31
EHLTS-3436-2-31
EHLTS-3436-4-31
EHLTS-3436-5-31
EHLTS-3636-2-31

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below

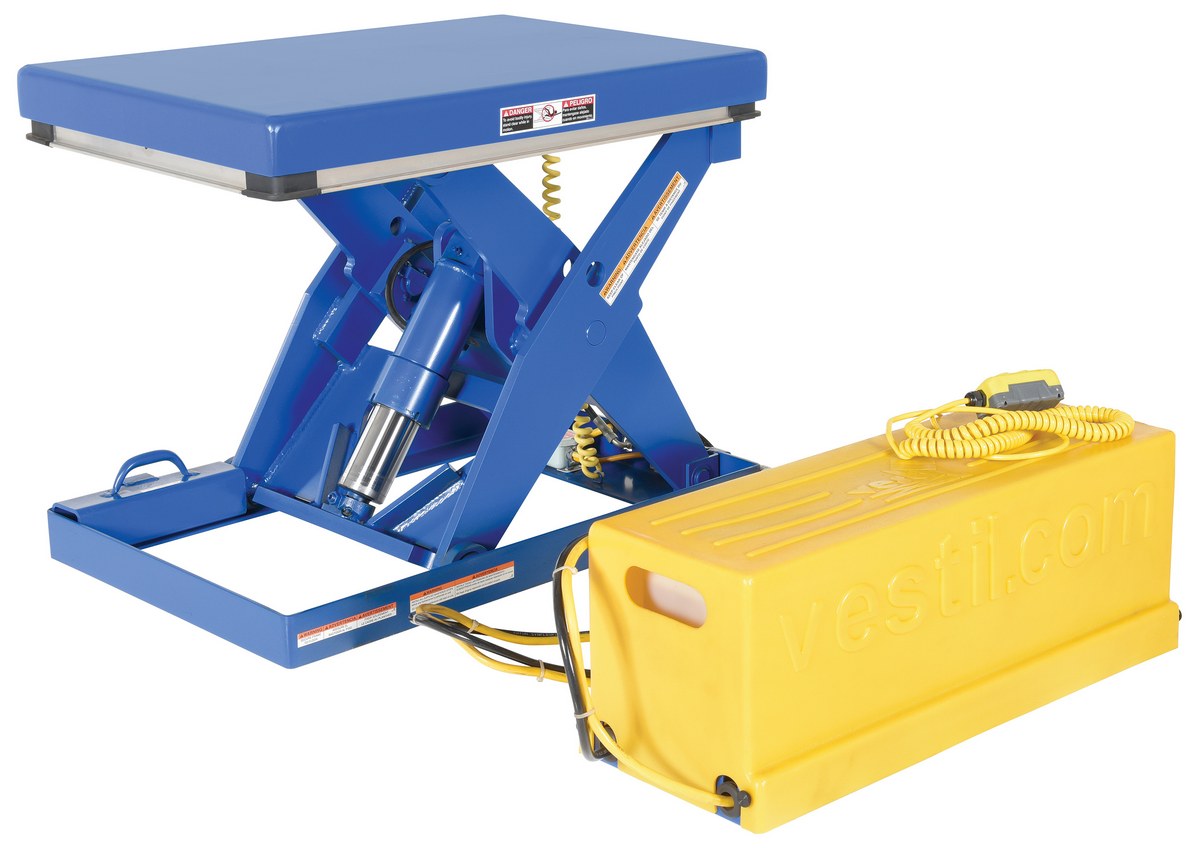

EHLTS-2436-2-31
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Raised Height (in.): 31
Uniform Capacity (lb.): 2000
Raised Height (in.): 31

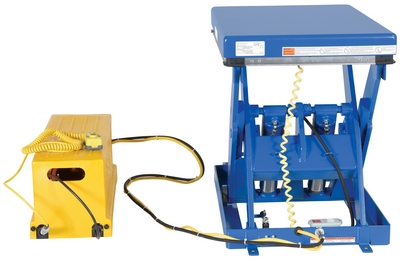

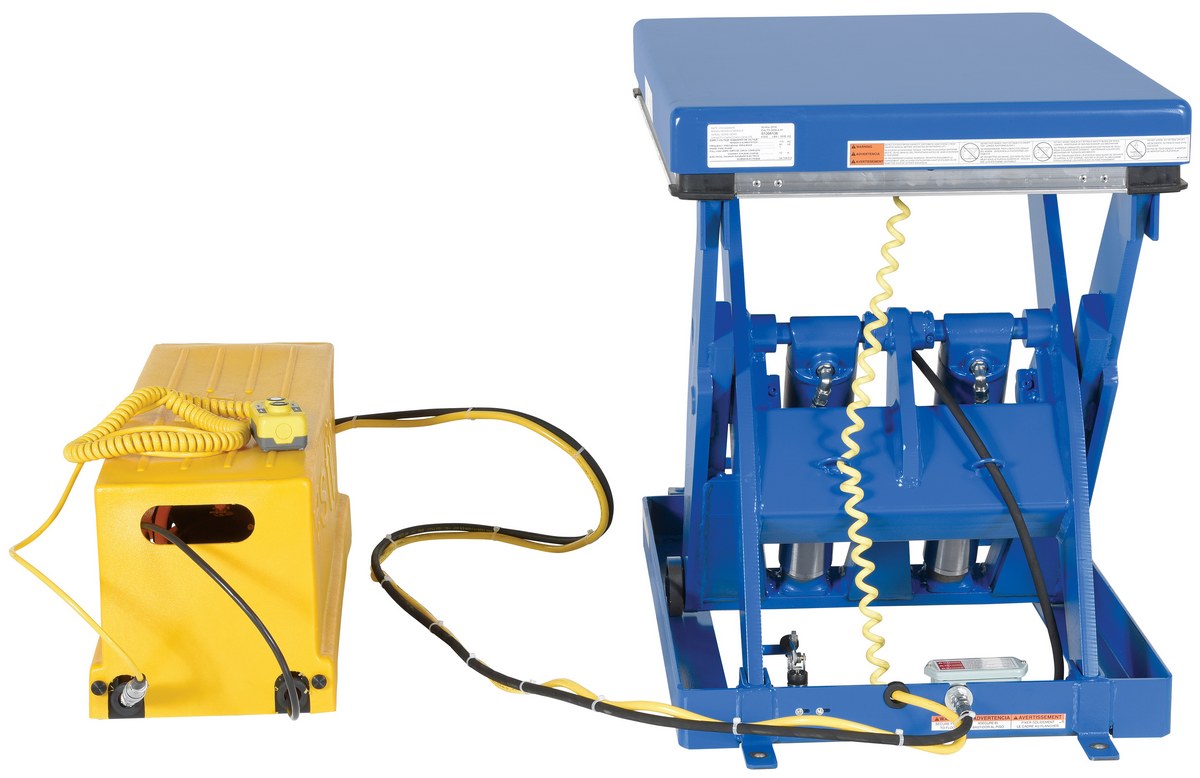

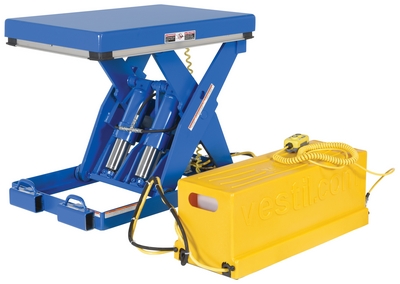

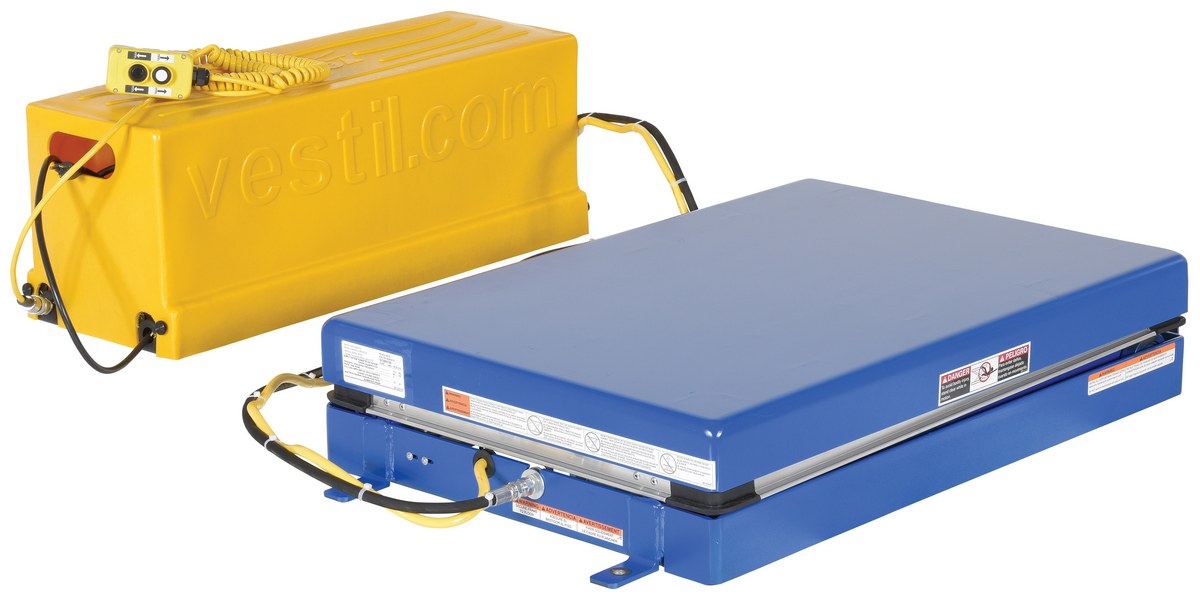

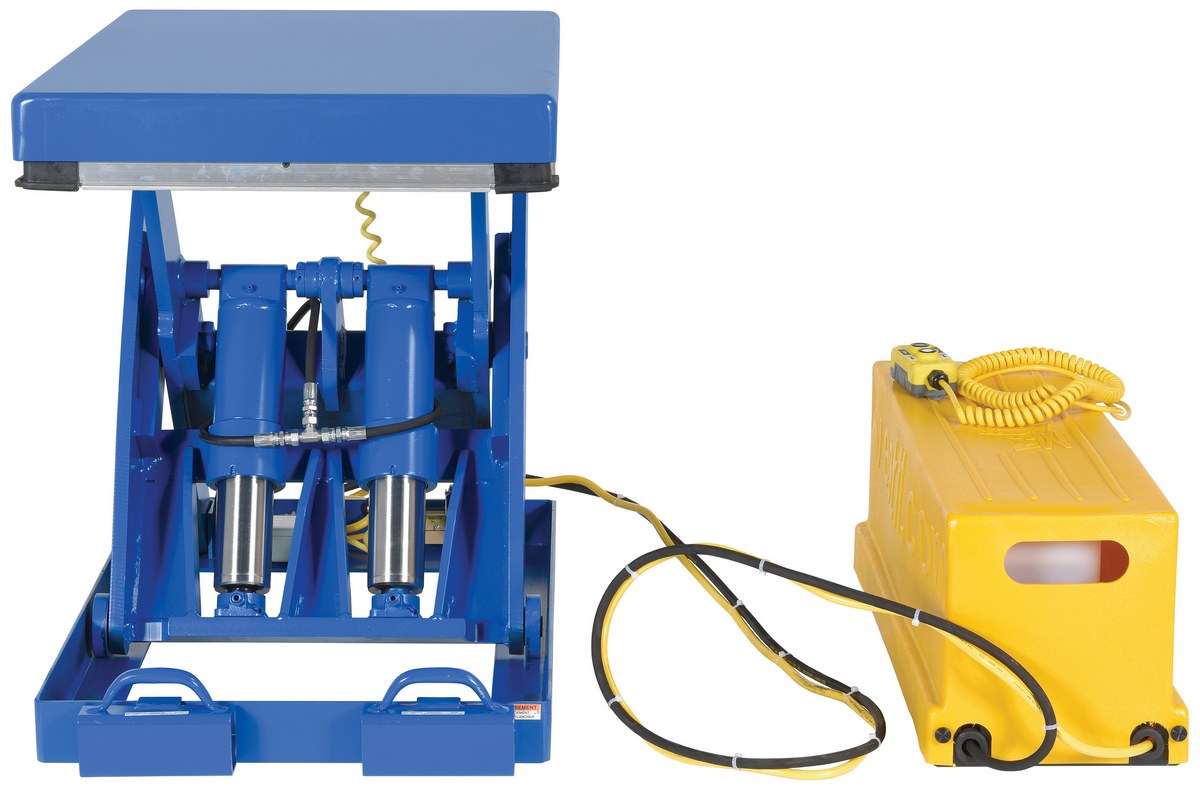

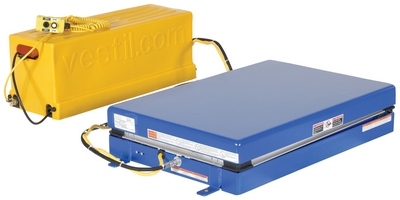

EHLTS-2436-4-31
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Raised Height (in.): 31
Uniform Capacity (lb.): 4000
Raised Height (in.): 31

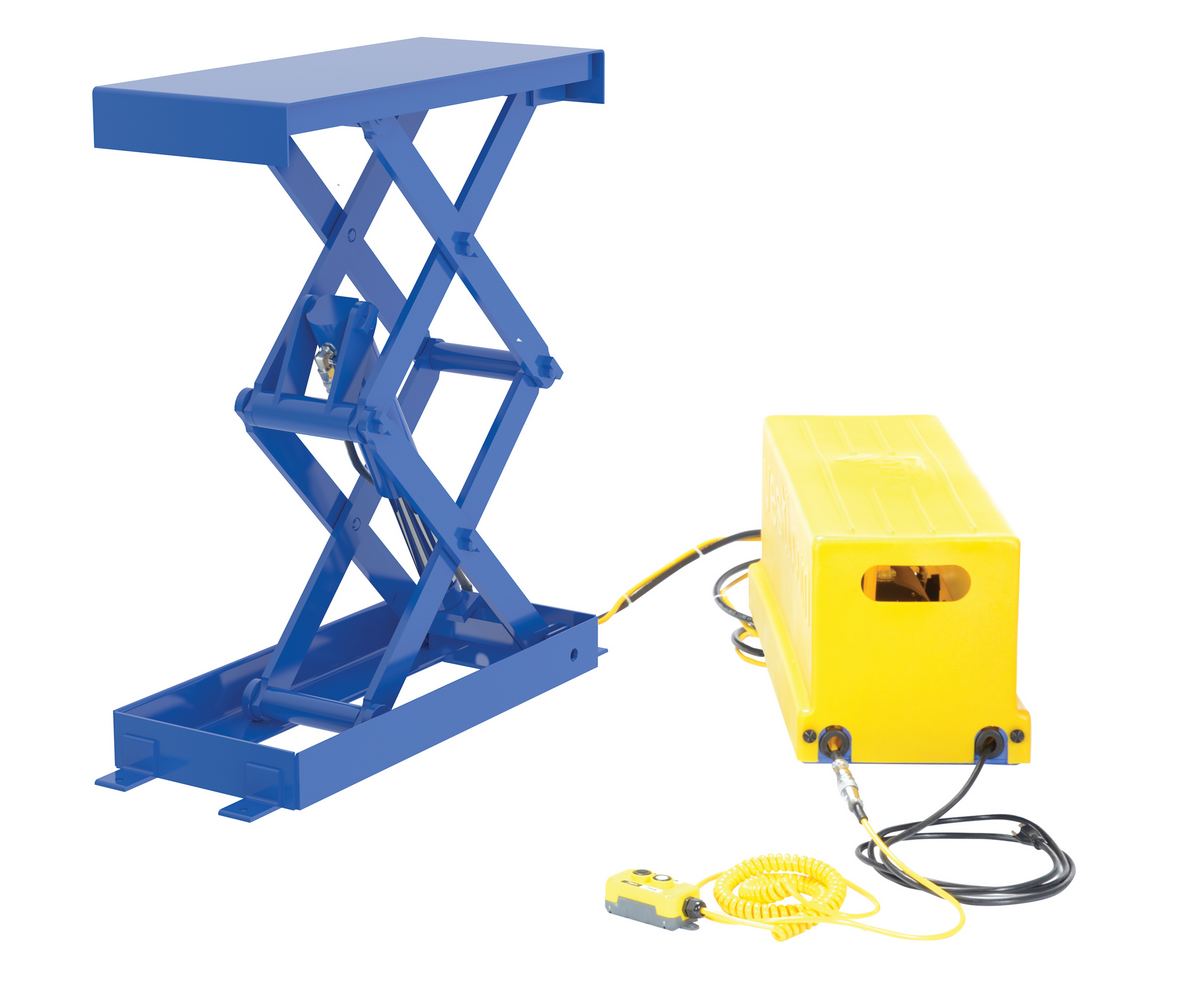

EHLTSD-1228-05-35
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Lowered Height (in.): 7
Uniform Capacity (lb.): 500
Lowered Height (in.): 7

EHLTSD-1628-1-35
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Lowered Height (in.): 7
Uniform Capacity (lb.): 1000
Lowered Height (in.): 7

EHLTSD-2436-1-35
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Lowered Height (in.): 7
Uniform Capacity (lb.): 1000
Lowered Height (in.): 7

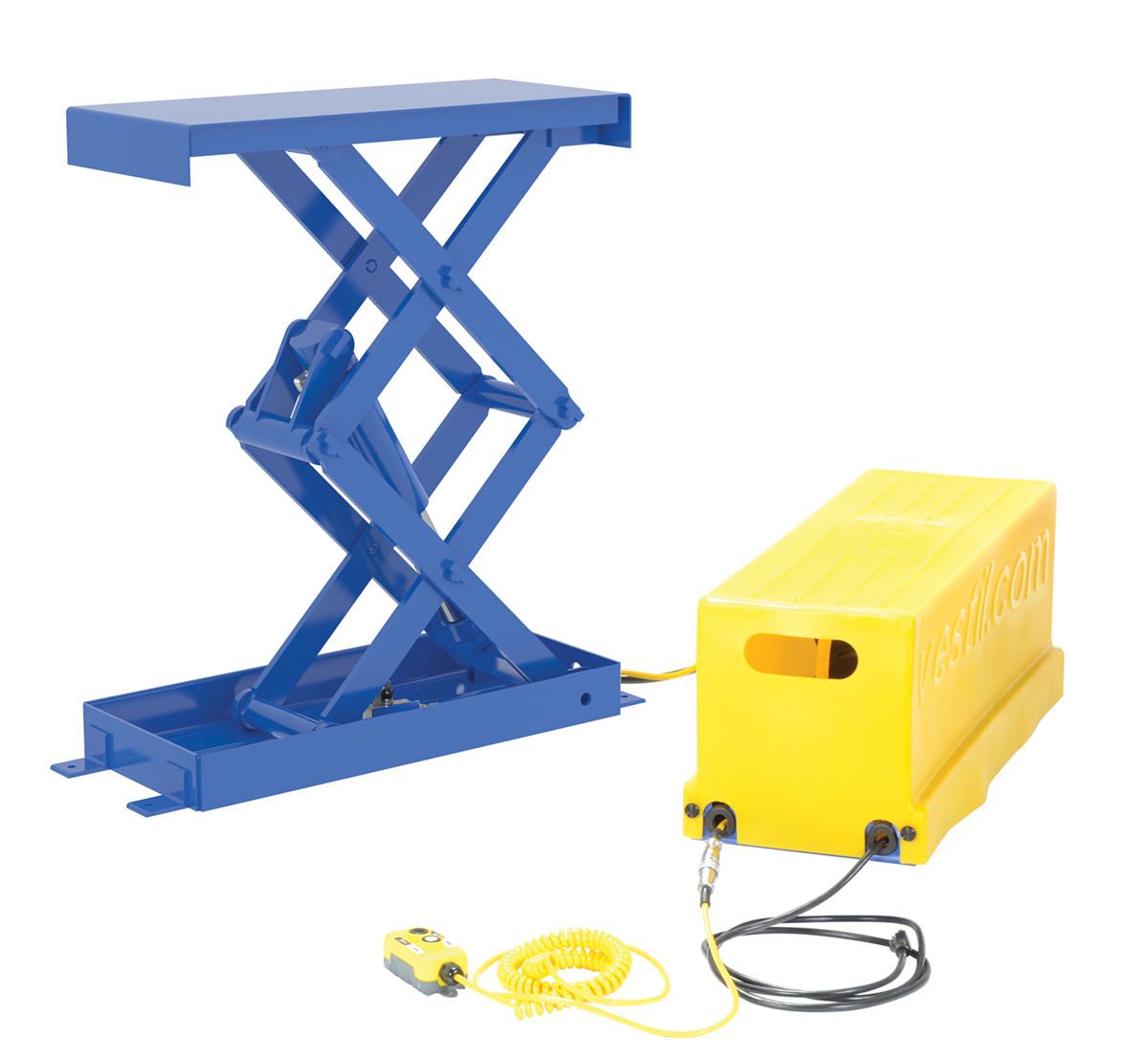

EHLTSD-2448-1-35
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Lowered Height (in.): 7
Uniform Capacity (lb.): 1000
Lowered Height (in.): 7
For More Details of the Option Click the Red Model Button

Options For Electric Hydraulic Equipment

Available at the time of sale for most of the powered products listed in the Ergonomic Solutions section.

Model Description
Integeral Scale for Scissor Tables Scales for lift tables
Radio Remote Control Option 2 and 4 button hand controllers
Programmable Height Option Multiple working heights at the touch of a button
Manual Built-In Carousel Option Manual carousel (factory installed on new units only)
Safety Accordion Skirt Keep people and debris from getting under the lift. Customer Installed. Contact factory.
ADDL-HH-25-10 Synthetic Rubber 1/4 In. 10 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black
ADDL-HH-25-20 Synthetic Rubber 1/4 In. 20 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Shorty Scissor Lift Tables PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


EHLTS-1-31

EHLTS-2-31

EHLTS-2436-2-31

EHLTS-2436-4-31

EHLTS-3-31

EHLTS-4-31

EHLTS-5-31

EHLTSD-1228-05-35

EHLTSD-1228-1-35

EHLTSD-1628-1-35

EHLTSD-2436-1-35

EHLTSD-2448-1-35

SDS Sheets

Hydraulic Oil SDS Sheet for: EHLTS-2436-2-31
Hydraulic Oil SDS Sheet for: EHLTS-2436-4-31
Hydraulic Oil SDS Sheet for: EHLTSD-1228-05-35
Hydraulic Oil SDS Sheet for: EHLTSD-1228-1-35
Hydraulic Oil SDS Sheet for: EHLTSD-1628-1-35
Hydraulic Oil SDS Sheet for: EHLTSD-2436-1-35
Hydraulic Oil SDS Sheet for: EHLTSD-2448-1-35

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What is the standard voltage and phase? Can the voltage and phase be changed?

A: The lift tables come standard 460 V 3 phase. The voltage and phase can be changed. For details, please see "options for electric hydraulic equipment" or contact a sales associate for voltage options.






Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Shorty Scissor Lift Tables




Built with the same quality as all our lift tables, the EHLTS and EHLTSD maximize safety and durability. Designed to raise products up to an ergonomic working height. When tight spaces are what you have, consider a Shorty Scissor Table. Available in both a single and double leg styles these tables offer smaller deck sizes customized to your space requirements. Design features includes full perimeter pinch point guard and emergency internal safety velocity fuse. 460V 3-Phase external power unit and hand control is standard.

  • Four-sided electric toe-guard meets OSHA pinch point specification
  • Durable aluminum pressure-plated hydraulic pump provides maximum efficiency
  • Displacement-style hydraulic cylinders offer maximum strength
  • Welded steel construction provides reliable heavy-duty use
  • Utilizes small areas effectively


Model # Description Attributes Net Wt.
(lbs)
EHLTS-2436-2-31 EHLTS-2436-2-31Steel Single Leg Shorty Scissor Lift Table 24 In. x 36 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Raised Height (in.): 31
567
EHLTS-2436-4-31 EHLTS-2436-4-31Steel Single Leg Shorty Scissor Lift Table 24 In. x 36 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Raised Height (in.): 31
605
EHLTSD-1228-05-35 EHLTSD-1228-05-35Steel Double Leg Shorty Scissor Lift Table 12 In. x 28 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Lowered Height (in.): 7
300
EHLTSD-1628-1-35 EHLTSD-1628-1-35Steel Double Leg Shorty Scissor Lift Table 16 In. x 28 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Lowered Height (in.): 7
350
EHLTSD-2436-1-35 EHLTSD-2436-1-35Steel Double Leg Shorty Scissor Lift Table 24 In. x 36 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Lowered Height (in.): 7
400
EHLTSD-2448-1-35 EHLTSD-2448-1-35Steel Double Leg Shorty Scissor Lift Table 24 In. x 48 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Lowered Height (in.): 7
386

Options


Options For Electric Hydraulic Equipment

Available at the time of sale for most of the powered products listed in the Ergonomic Solutions section.

Model Description
Integeral Scale for Scissor Tables Scales for lift tables
Radio Remote Control Option 2 and 4 button hand controllers
Programmable Height Option Multiple working heights at the touch of a button
Manual Built-In Carousel Option Manual carousel (factory installed on new units only)
Safety Accordion Skirt Keep people and debris from getting under the lift. Customer Installed. Contact factory.
ADDL-HH-25-10 Synthetic Rubber 1/4 In. 10 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black
ADDL-HH-25-20 Synthetic Rubber 1/4 In. 20 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black
