Leveling Jacks

model: LJ-9

Leveling Jacks

SERIES: LJ

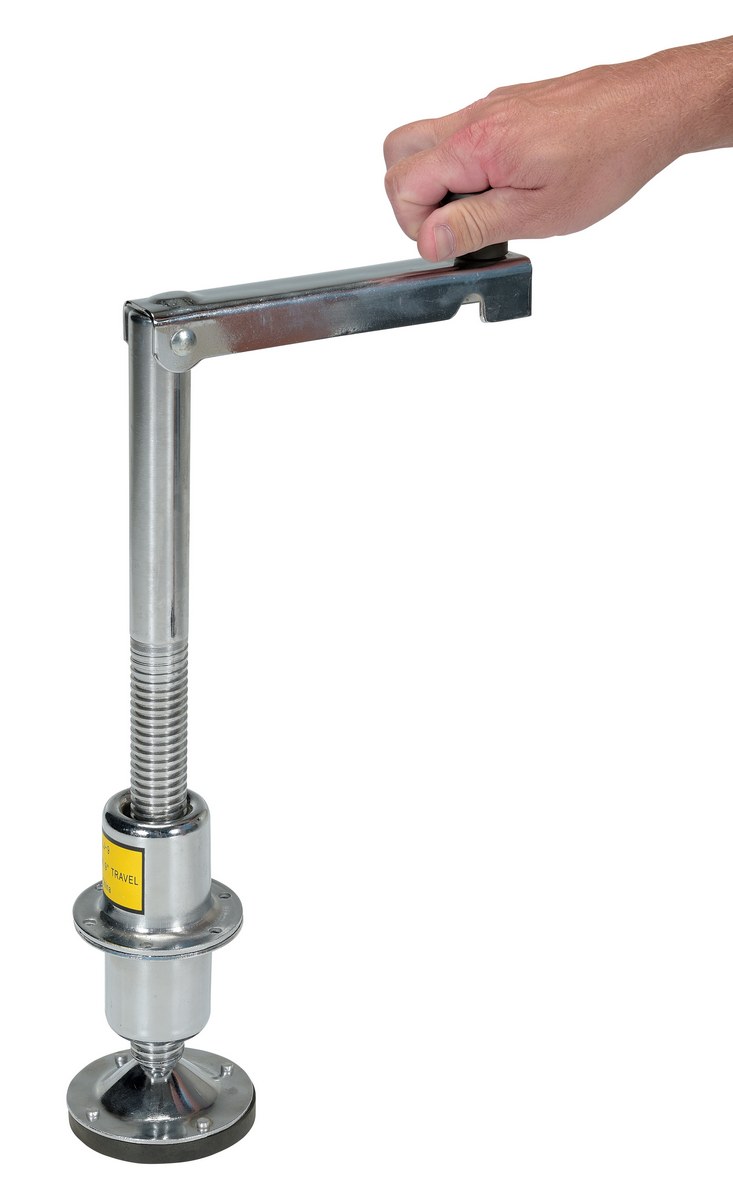

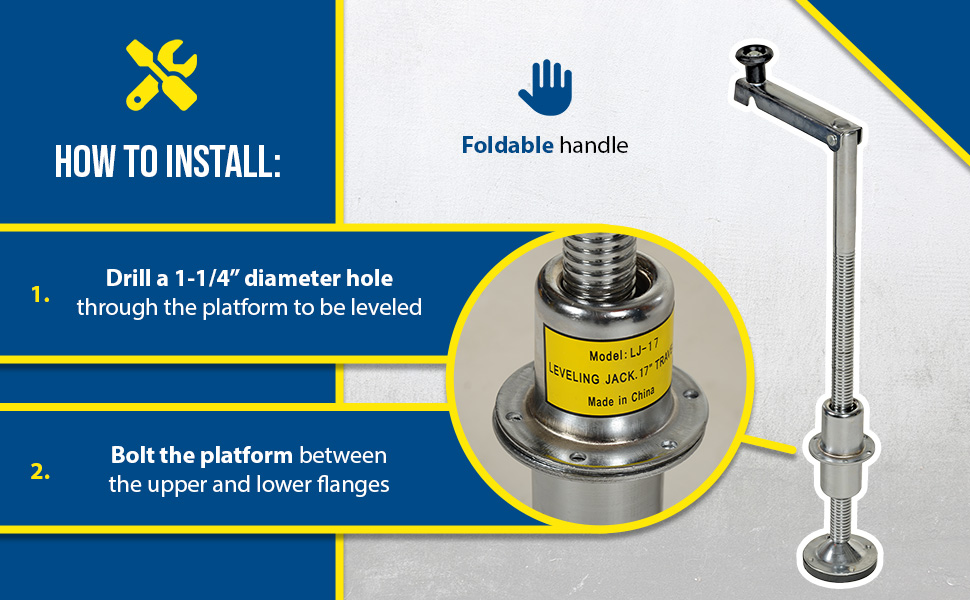

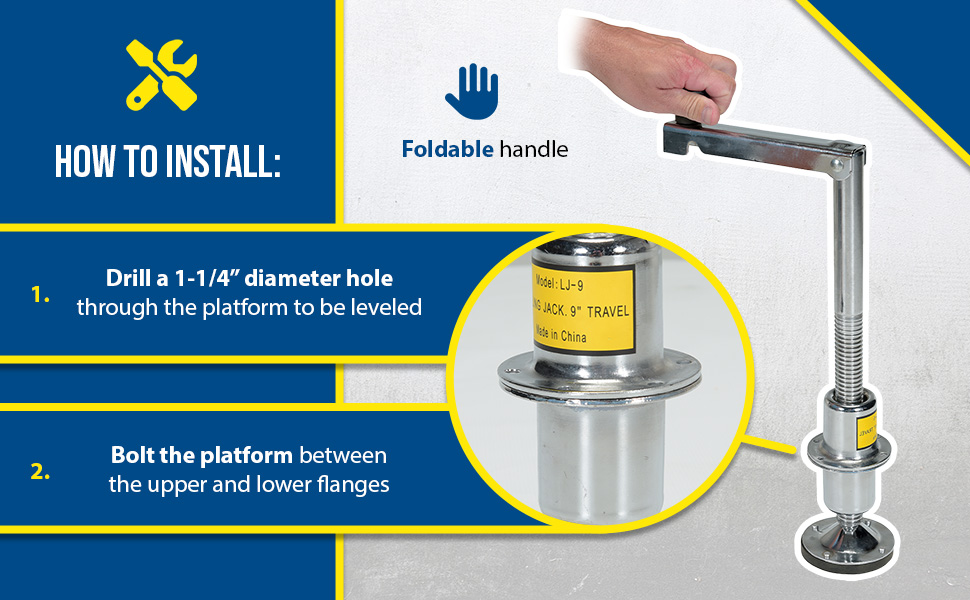

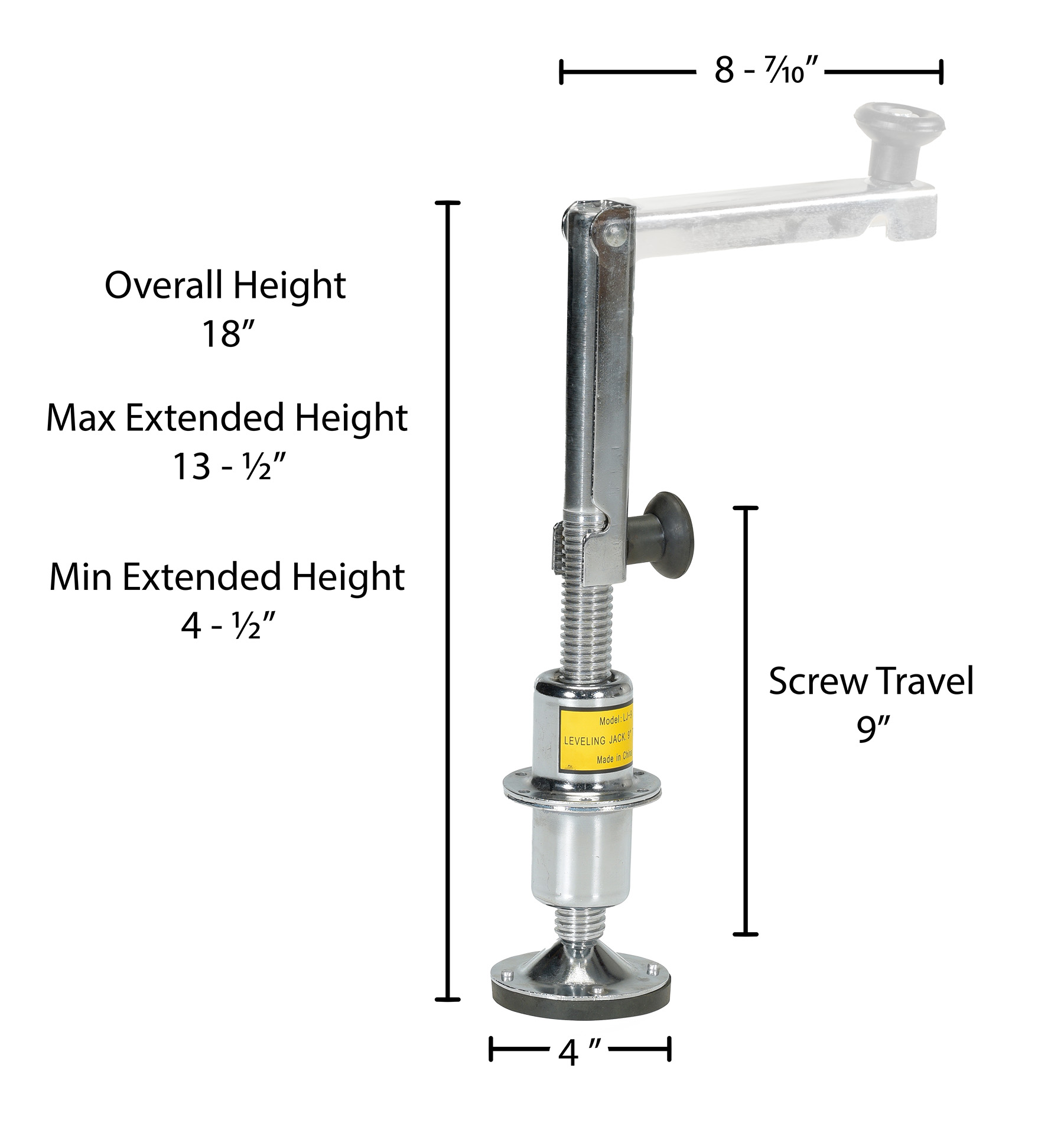

Designed for permanent installation, these screw-style jacks hold platforms and other equipment in place and stabilize them at the required height. Drill a 1-1/4" diameter hole through the platform to be leveled and bolt the platform between the upper and lower flanges of the jack's divided housing. Flanges are 3-5/8" overall diameter, 1/8" thick, and have (6) 1/4" diameter mounting holes equally spaced on a 3" diameter hole pattern. Jacks are made of steel with a polished chrome finish and have an 8-1/4" long handle that folds down when not in use. They stand on a 3-7/8" diameter swivel base that has a slip-resistant rubber pad on the bottom. Screw diameter is 1-1/4". Lift rate is 1/4" per crank revolution.

Leveling Jacks

model: LJ-9

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

For More Details of the Option Click the Red Model Button

Model	Image	Details	Icons	Wt.

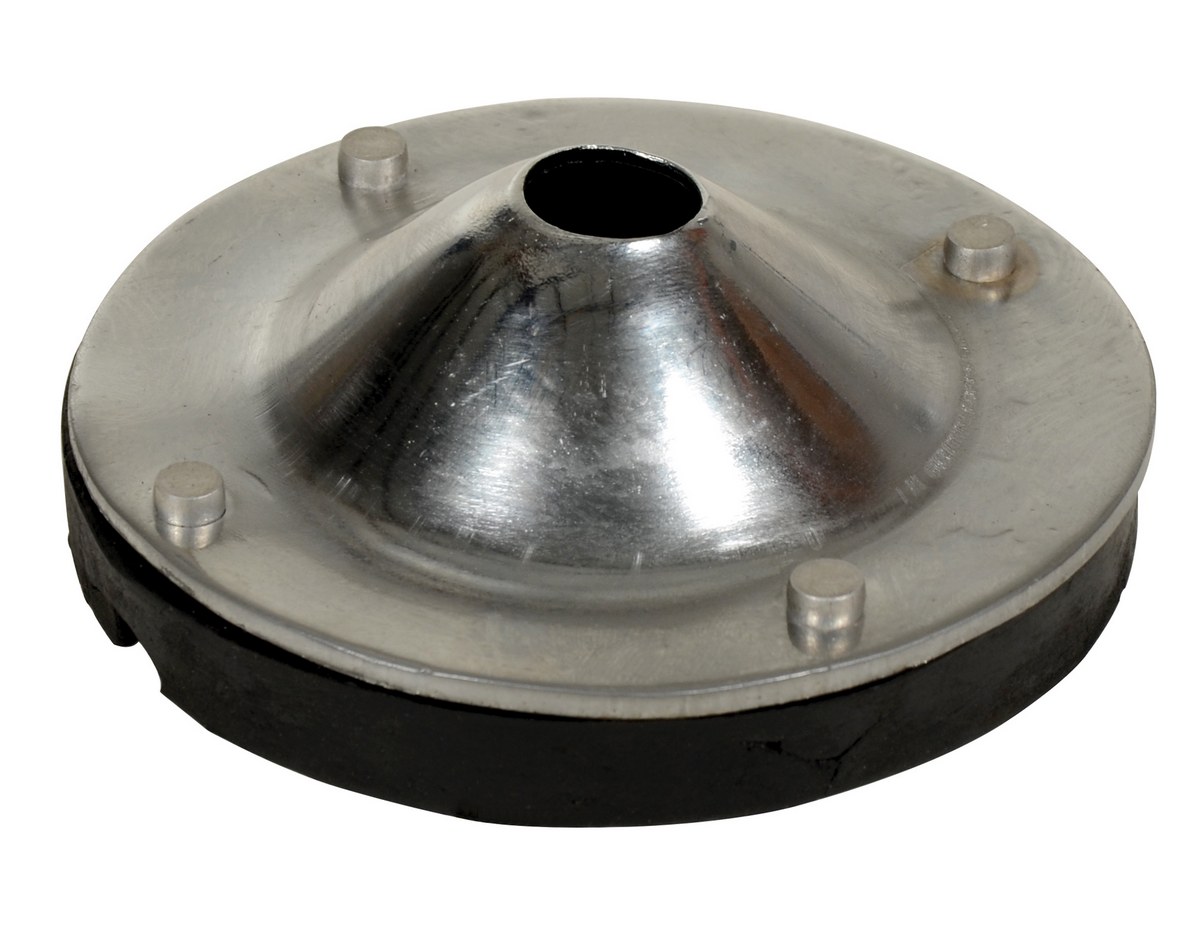

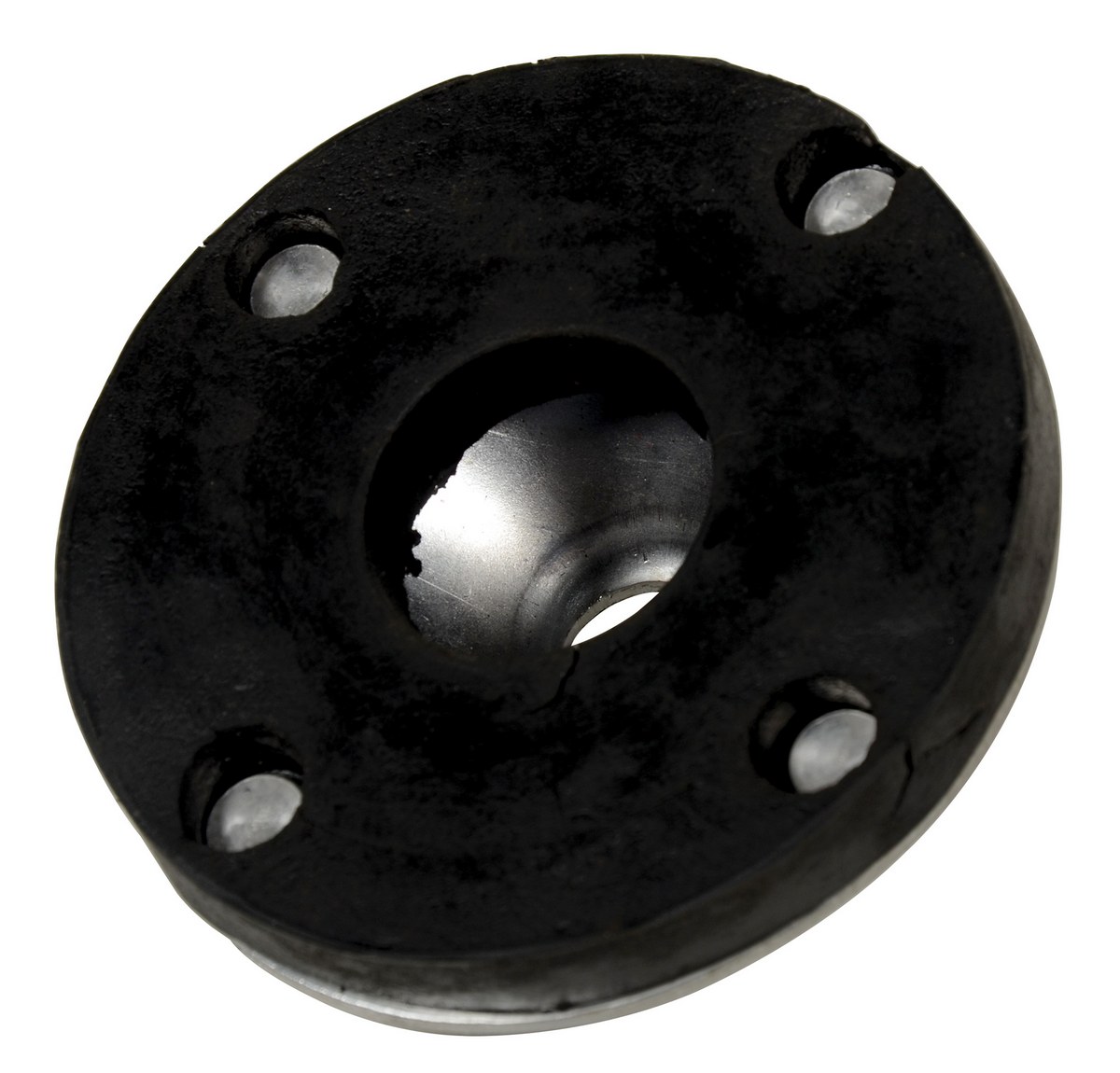

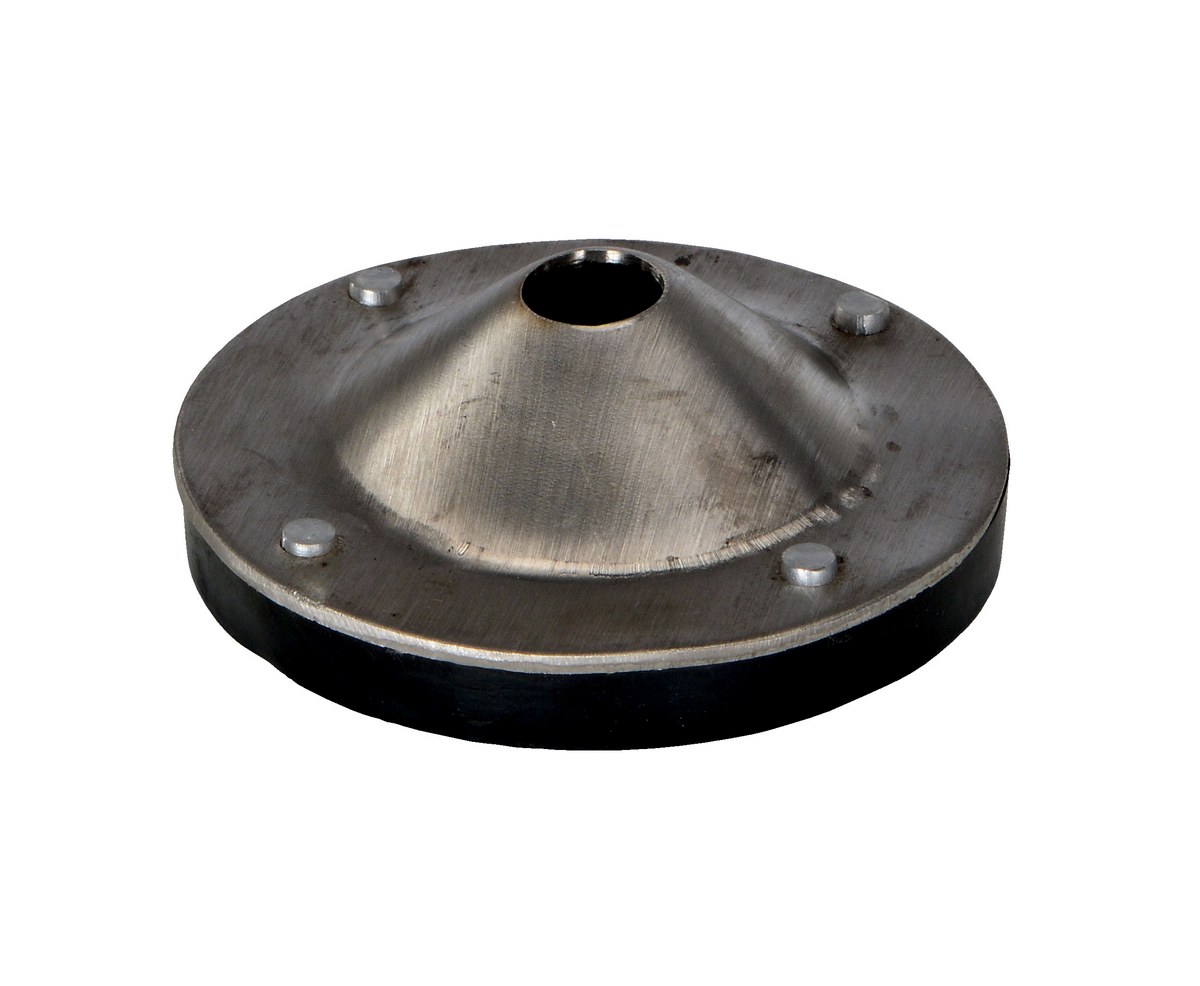

LJ-PAD		Leveling Jack Replacement Pads for LJ Series	30 Days Limited Warranty	4

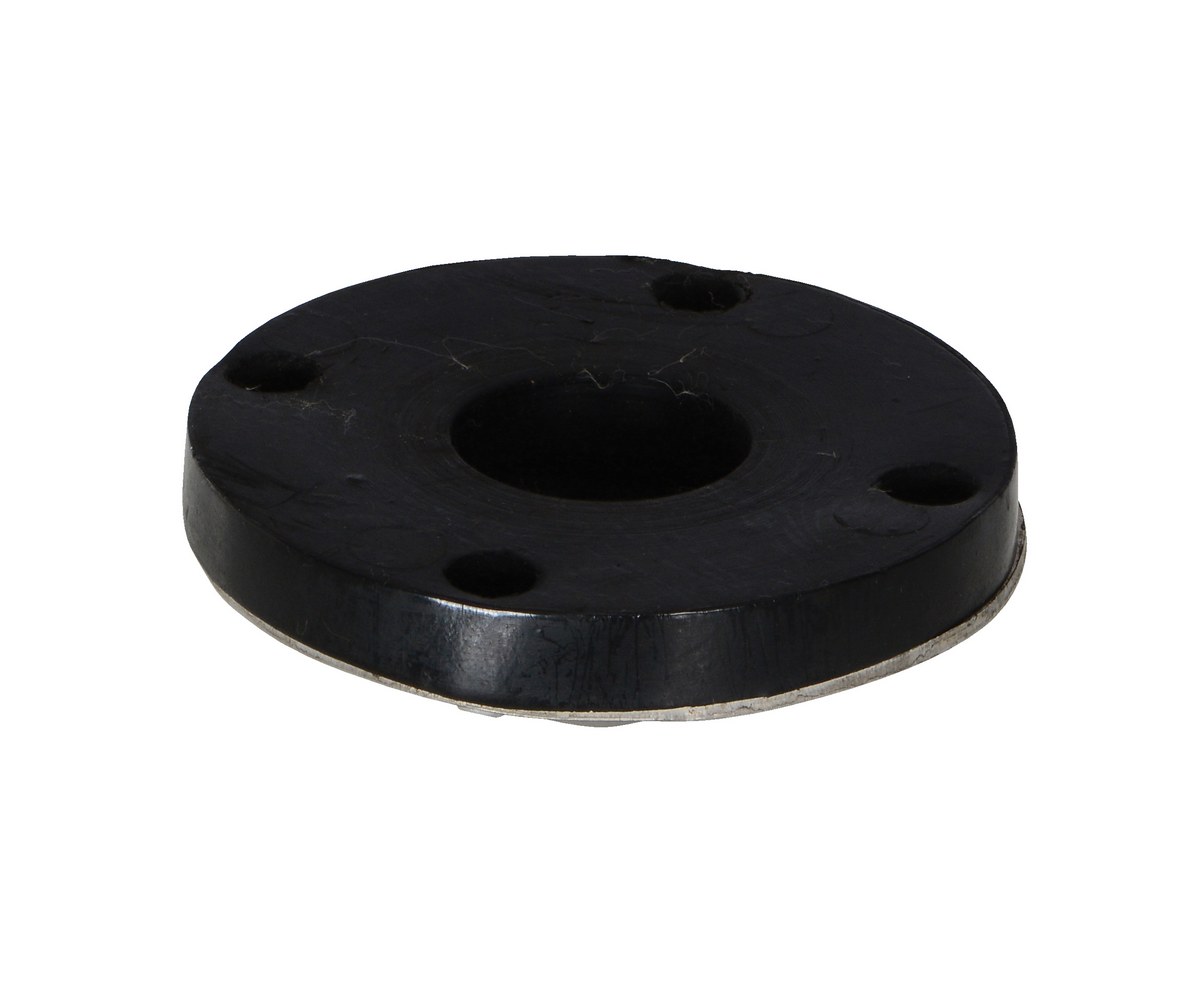

LJ-PAD-SS		Leveling Jack Replacement Pads for LJ-SS Series	30 Days Limited Warranty	4

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

PDFs will open in a new window when clicked.

Manuals

No Owners Manuals For This Product

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

LJ-17

LJ-21

LJ-9

Testing Certificates

LJ-17

LJ-17-SS

LJ-21

LJ-21-SS

LJ-9

LJ-9-SS

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product

Enhanced Product Content

LJ-17

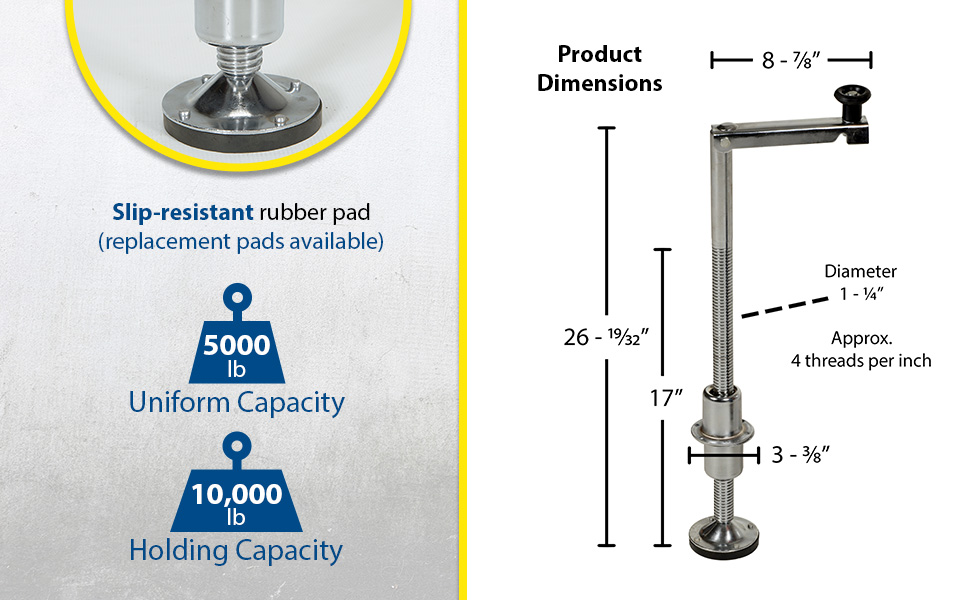

LJ-17 A+ Content - 3

LJ-17 A+ Content - 2

LJ-17 A+ Content - 1

LJ-9

LJ-9 A+ Content - 1

LINE-SA-W A+ Content - 2

LJ-9 A+ Content - 3

LJ-9 A+ Content - 2

Print Friendly

Related or Similar Products:

More From Jacks & Floor Locks

Polyurethane Floor Locks

Polyurethane Floor Locks

Leveling Jacks

Designed for permanent installation, these screw-style jacks hold platforms and other equipment in place and stabilize them at the required height. Drill a 1-1/4" diameter hole through the platform to be leveled and bolt the platform between the upper and lower flanges of the jack's divided housing. Flanges are 3-5/8" overall diameter, 1/8" thick, and have (6) 1/4" diameter mounting holes equally spaced on a 3" diameter hole pattern. Jacks are made of steel with a polished chrome finish and have an 8-1/4" long handle that folds down when not in use. They stand on a 3-7/8" diameter swivel base that has a slip-resistant rubber pad on the bottom. Screw diameter is 1-1/4". Lift rate is 1/4" per crank revolution.

Model #		Description	Attributes	Net Wt. (lbs)

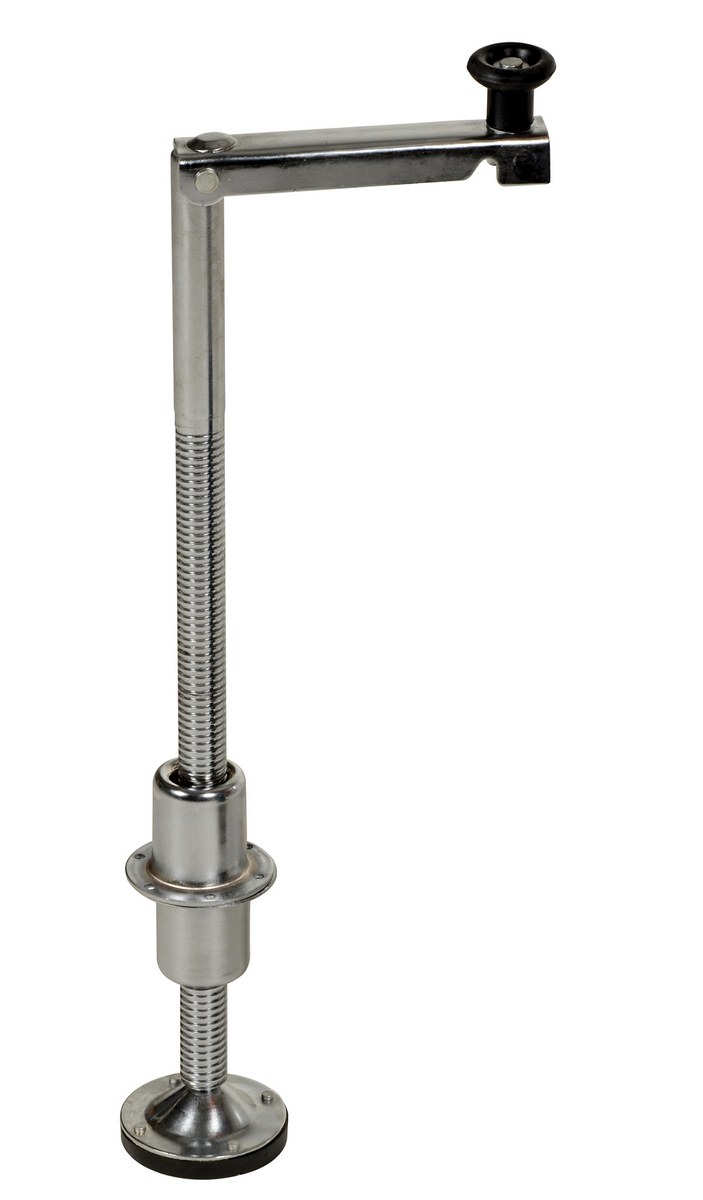

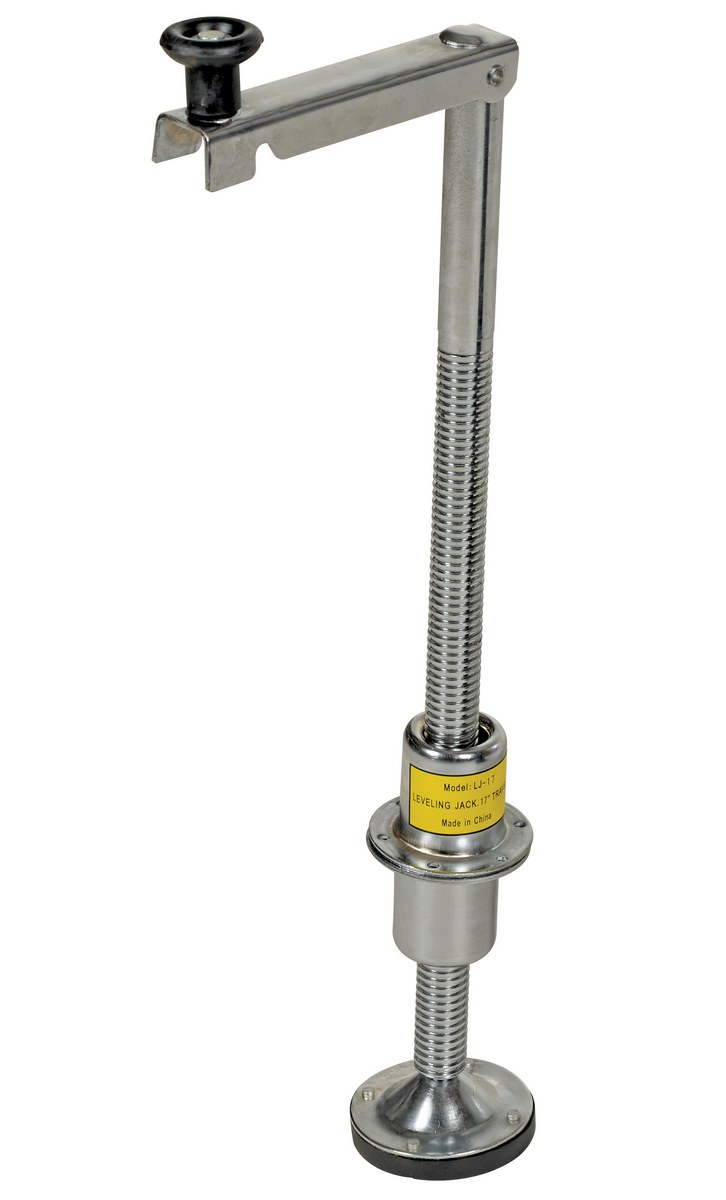

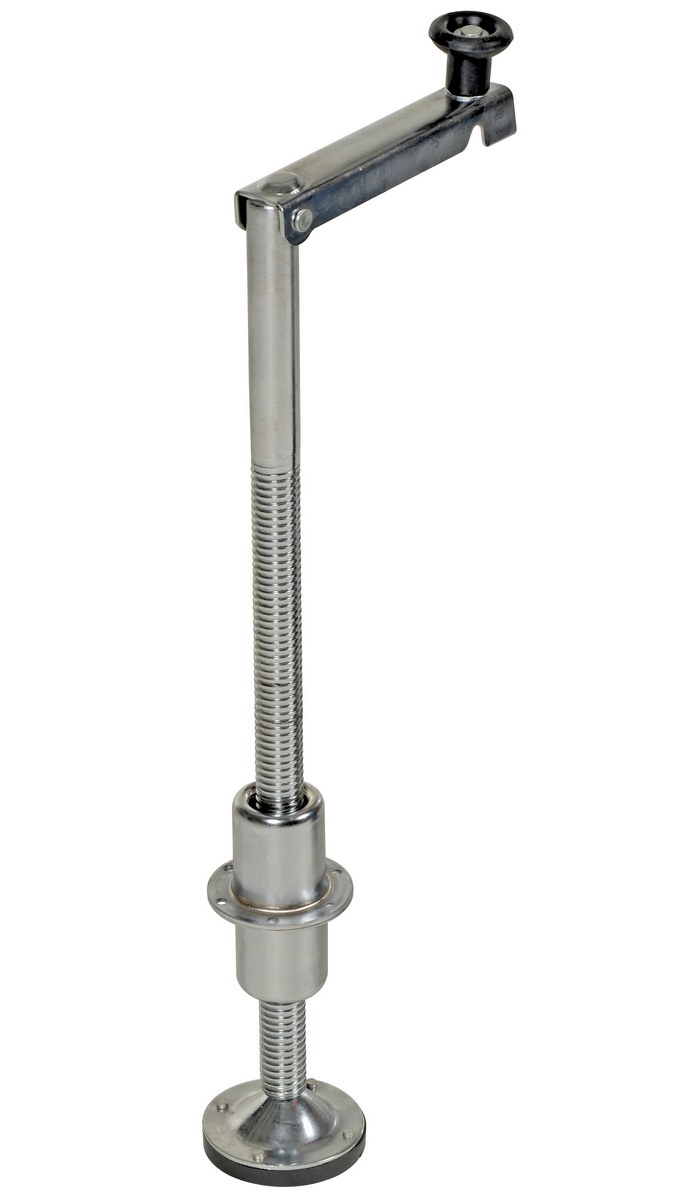

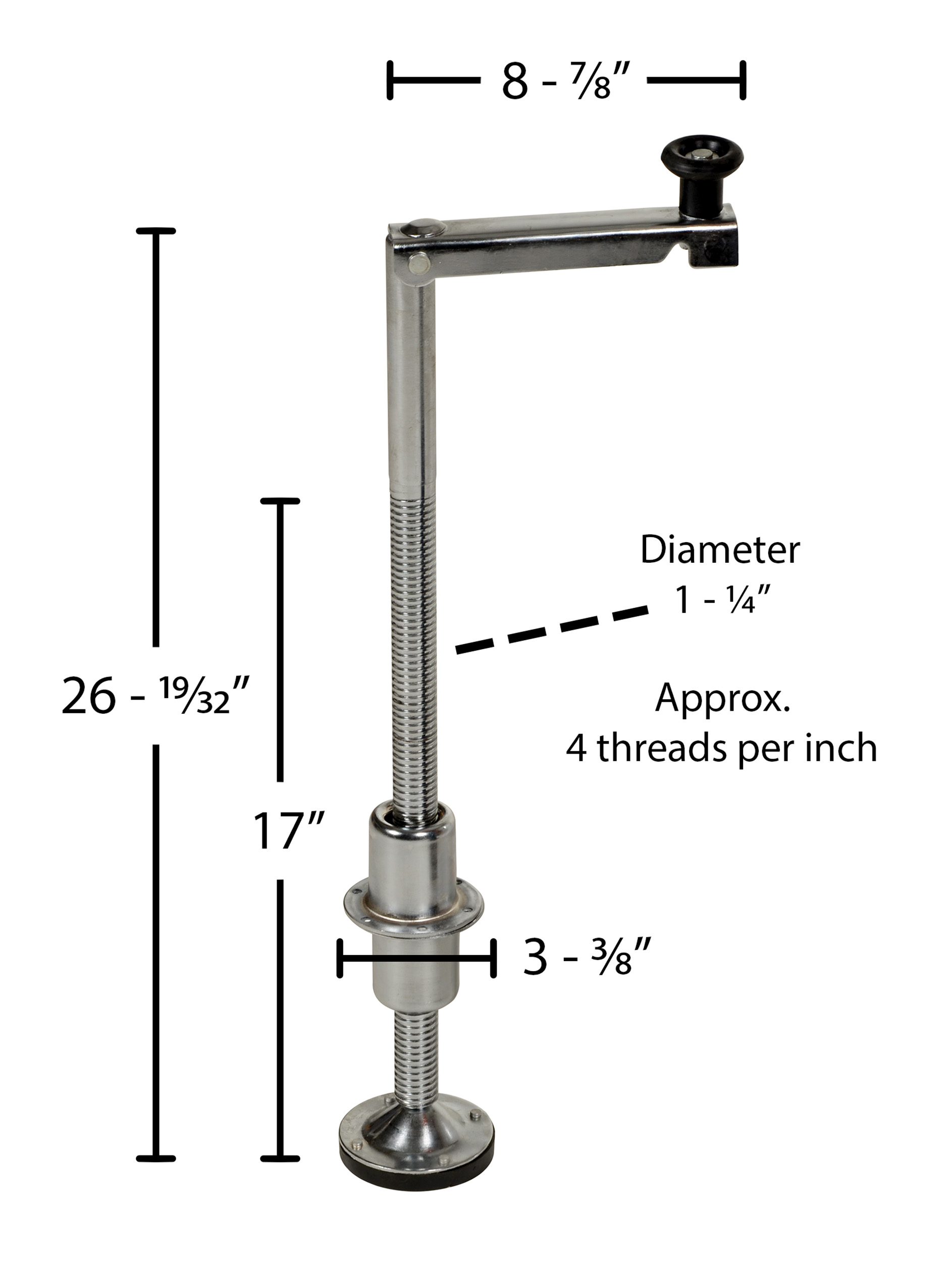

LJ-17		Steel Leveling Jack 26 In. 5000 Lb. Capacity Silver	Uniform Capacity (lb.): 5,000 Handle Length (in.): 8-1/2	13

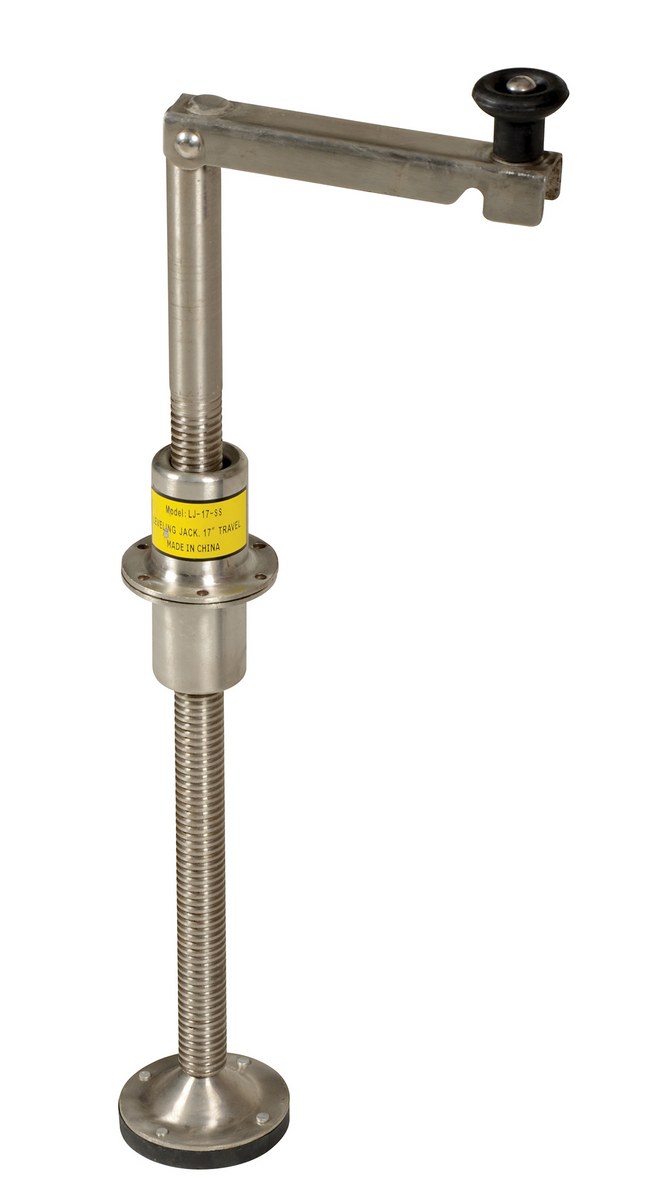

LJ-17-SS		Stainless Steel Leveling Jack 26 In. 5000 Lb. Capacity Silver	Uniform Capacity (lb.): 5,000 Handle Length (in.): 8-1/2	13

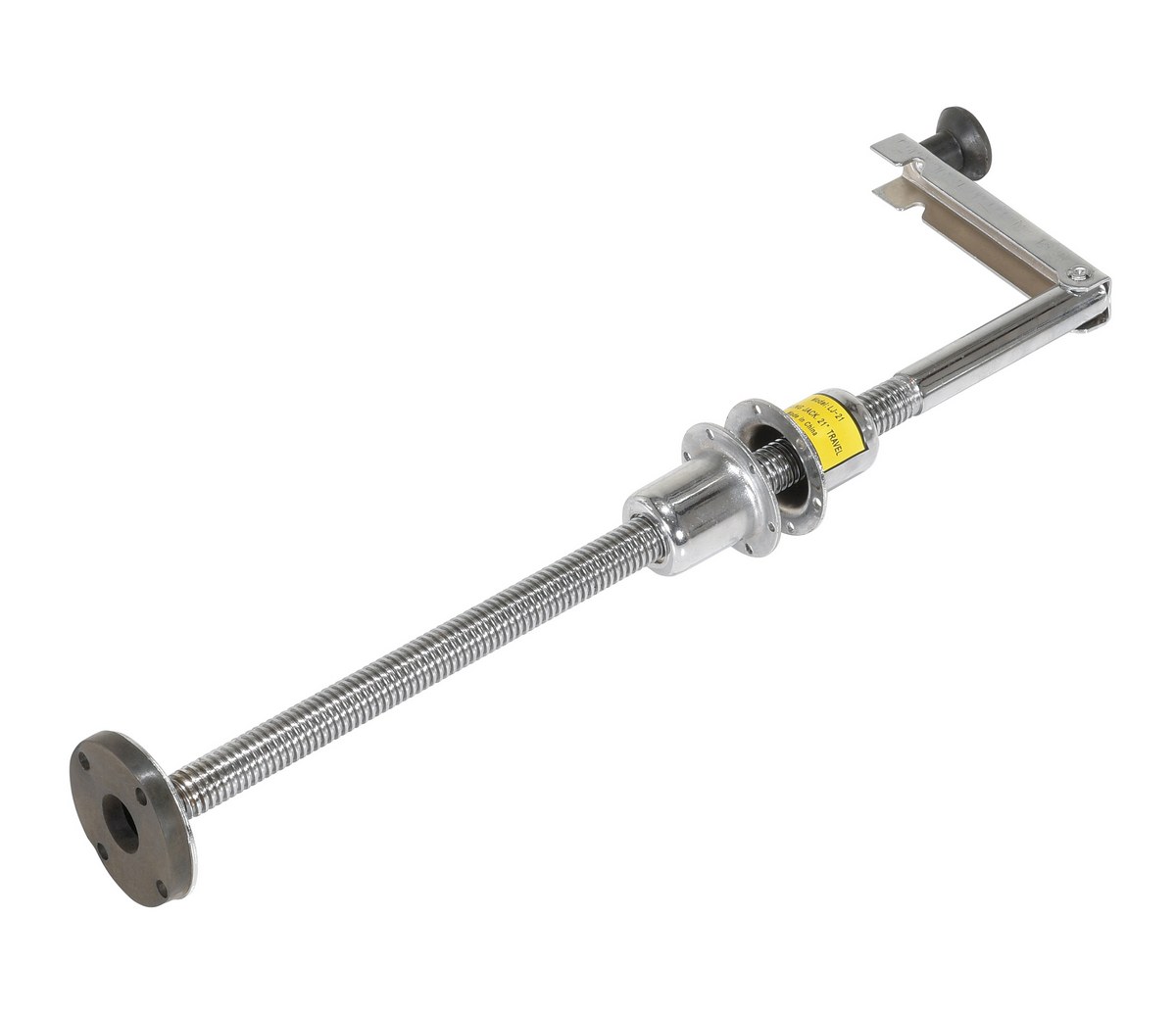

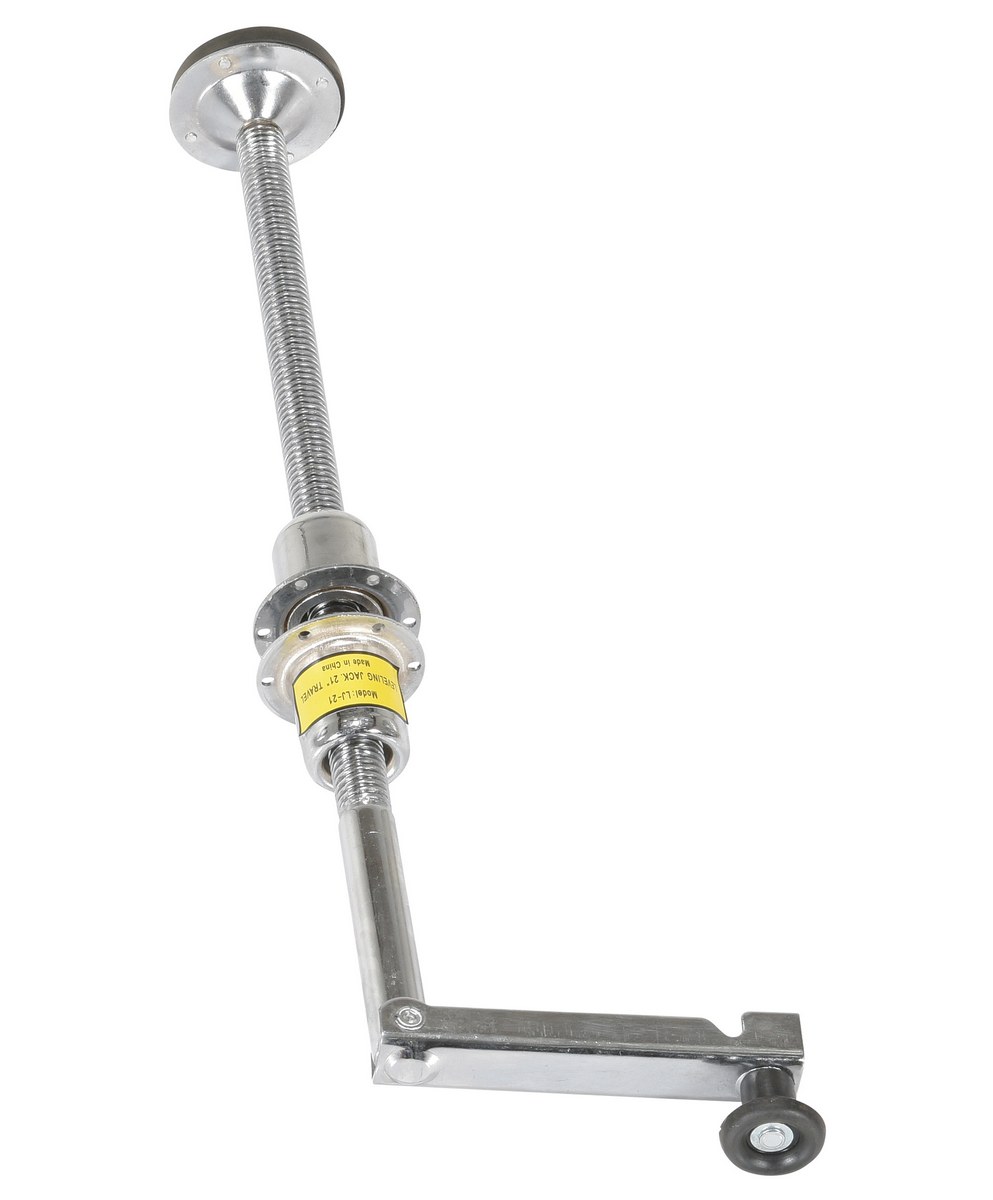

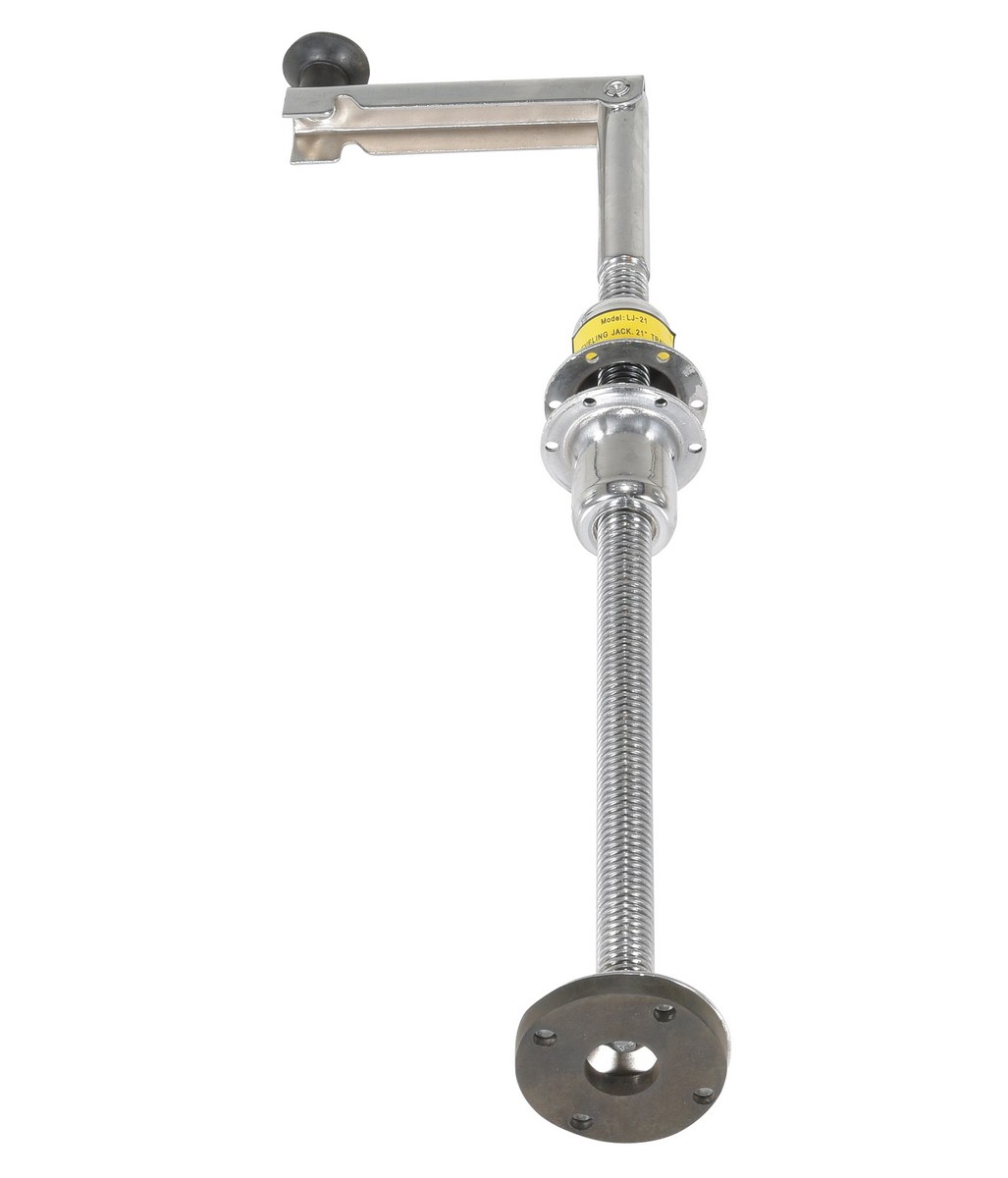

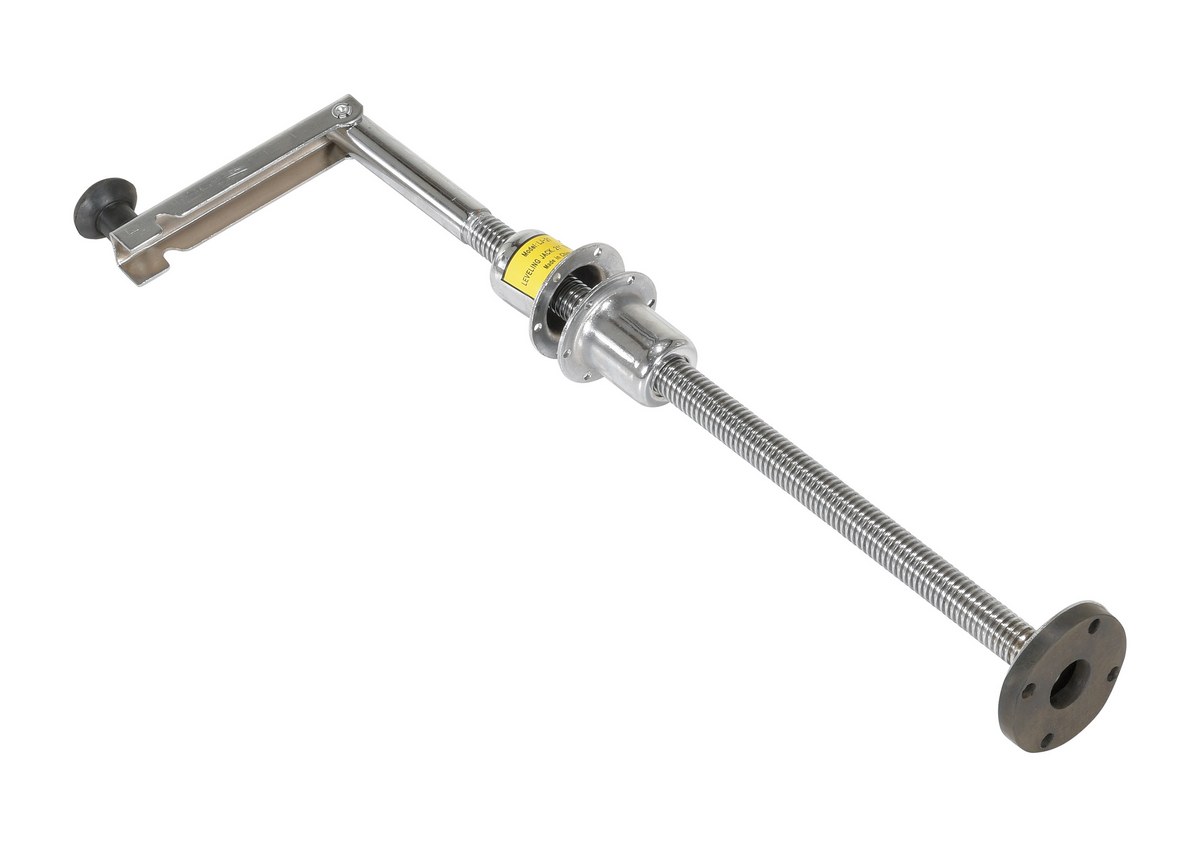

LJ-21		Steel Leveling Jack 30 In. 5000 Lb. Capacity Silver	Uniform Capacity (lb.): 5,000 Handle Length (in.): 8-1/2	14

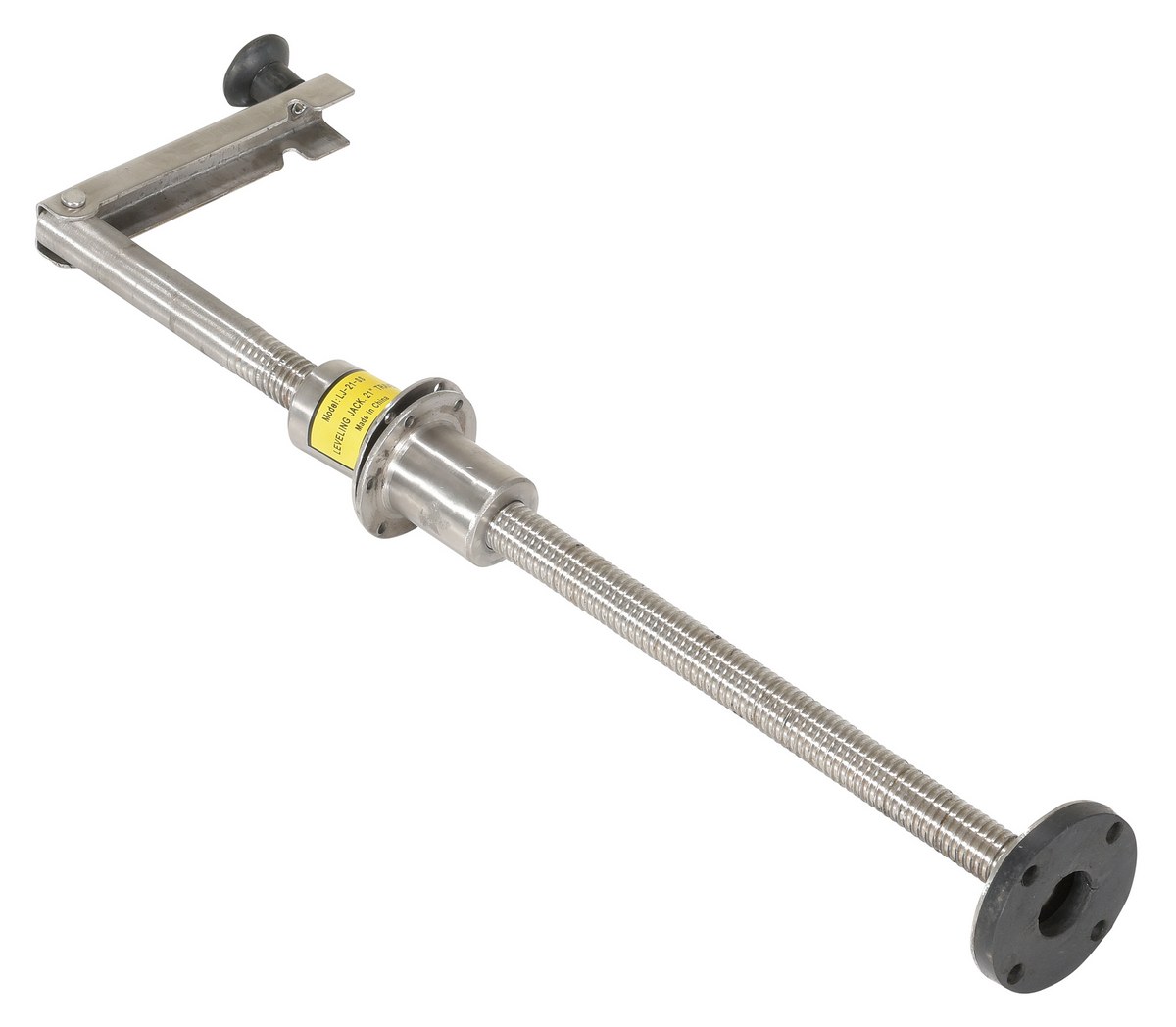

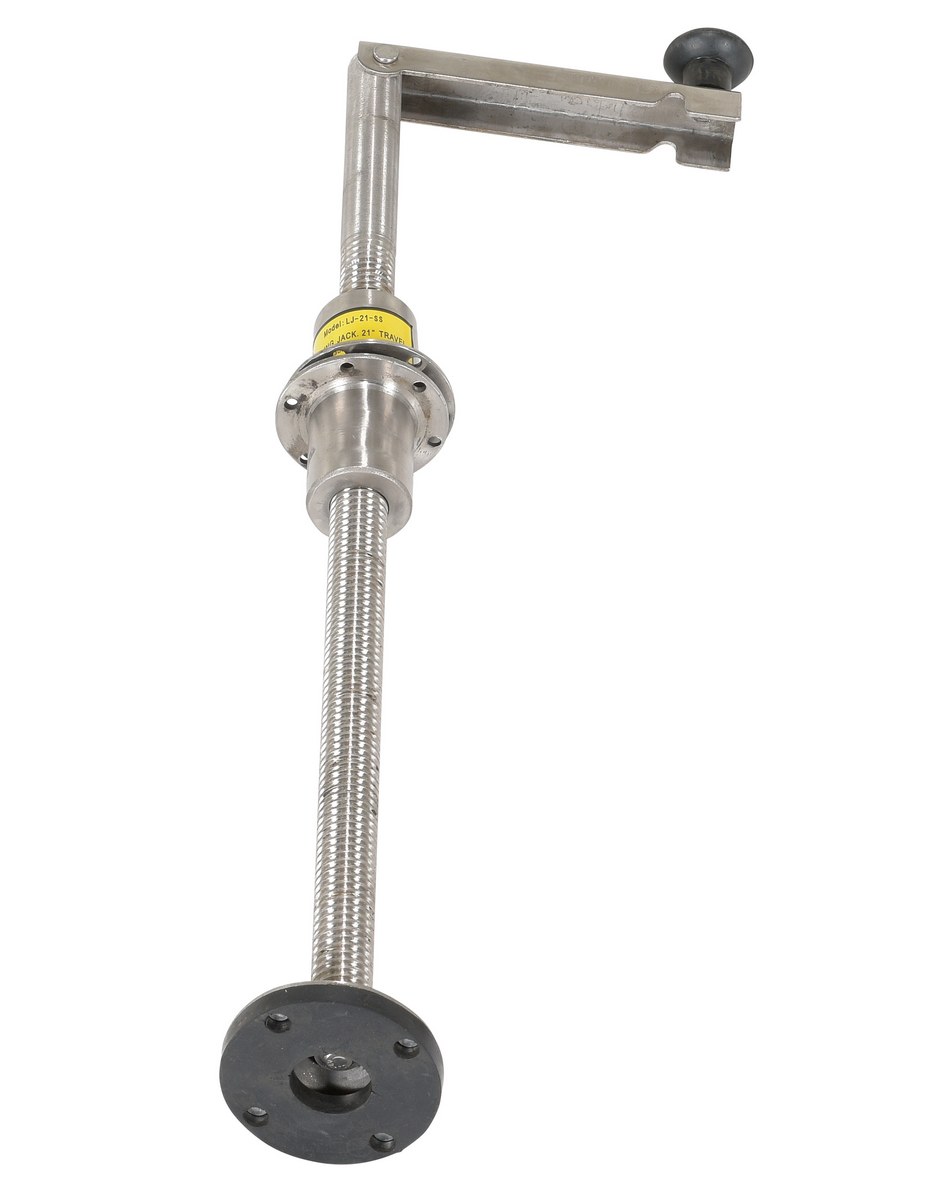

LJ-21-SS		Stainless Steel Leveling Jack 30 In. 5000 Lb. Capacity Silver	Uniform Capacity (lb.): 5,000 Handle Length (in.): 8-1/2	14

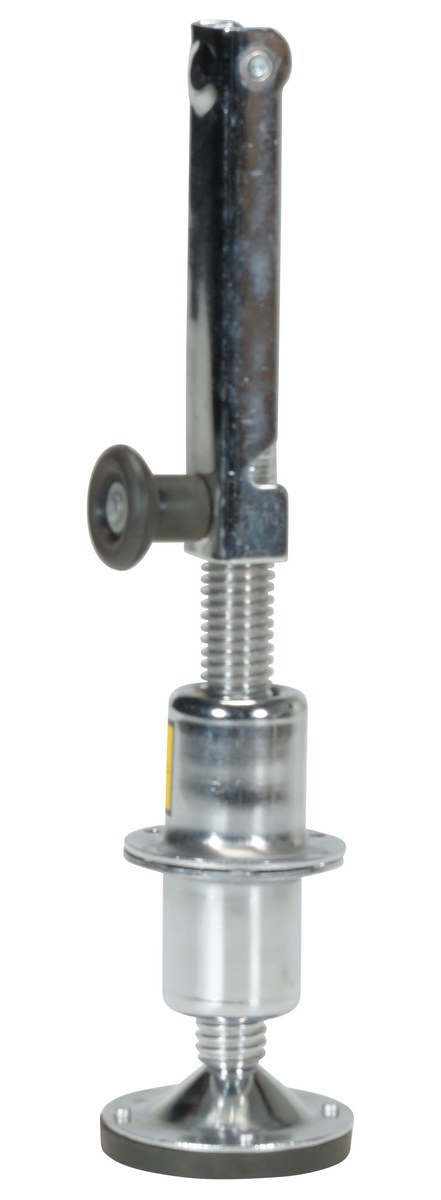

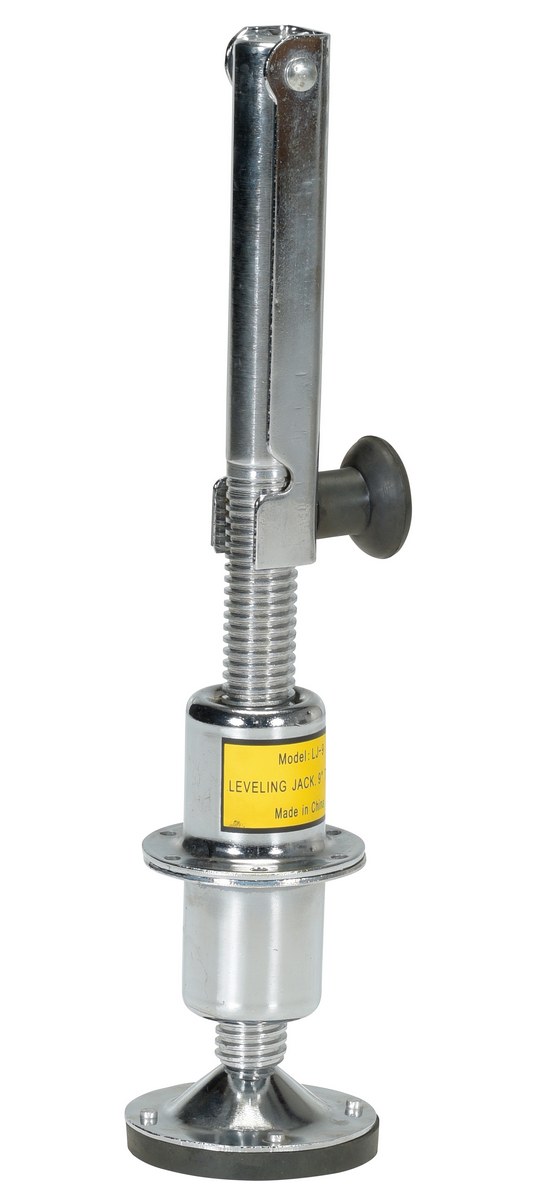

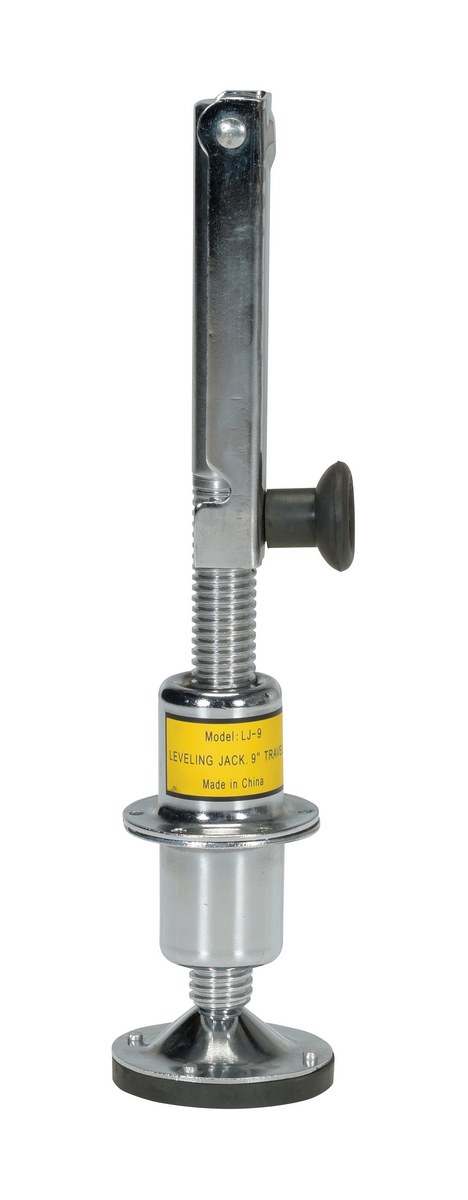

LJ-9		Steel Leveling Jack 18 In. 5000 Lb. Capacity Silver	Uniform Capacity (lb.): 5,000 Handle Length (in.): 8-1/2	11

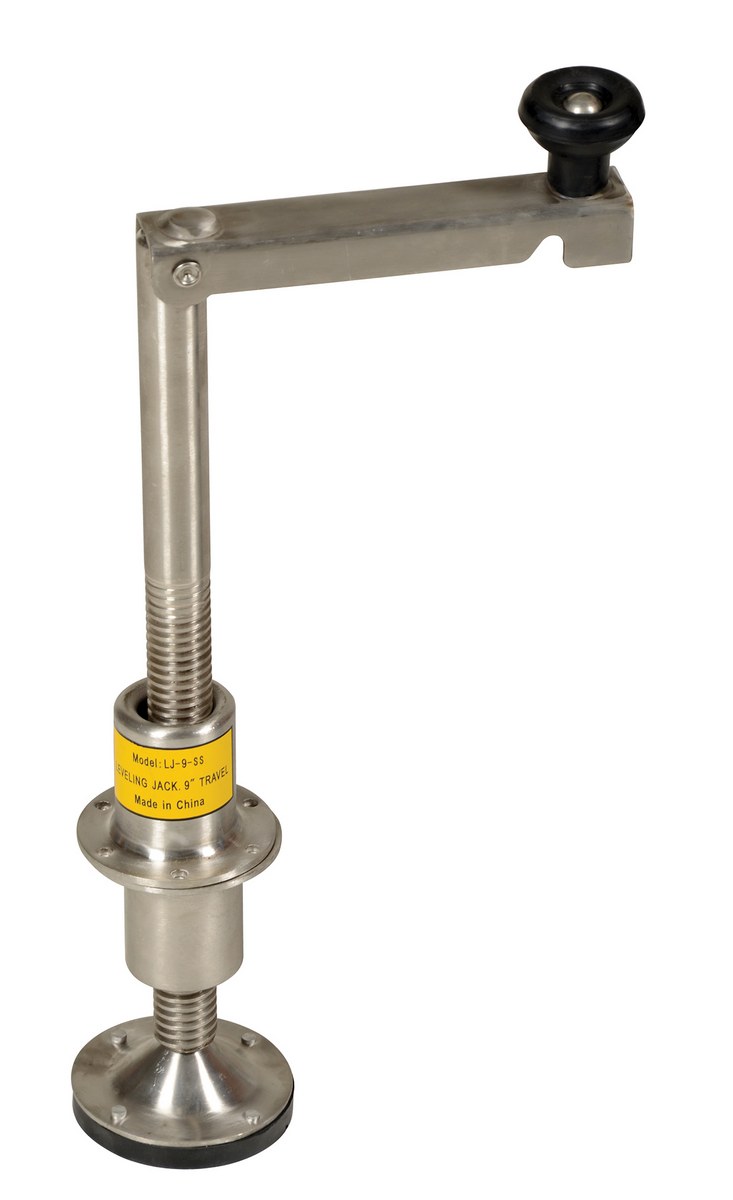

LJ-9-SS		Stainless Steel Leveling Jack 18 In. 5000 Lb. Capacity Silver	Uniform Capacity (lb.): 5,000 Handle Length (in.): 8-1/2	11
